Заводская оптовая продажа с одной головкой режущая пила цифровым измерением алюминия
248 408,10 ₽ - 270 488,82 ₽
Гибочная машина алюминиевого профиля гибочная окна
- Категория: >>>
- Поставщик: Jinan Ybke Machinery Co. Ltd.
Сохранить в закладки 1601252420346:
Описание и отзывы
Характеристики

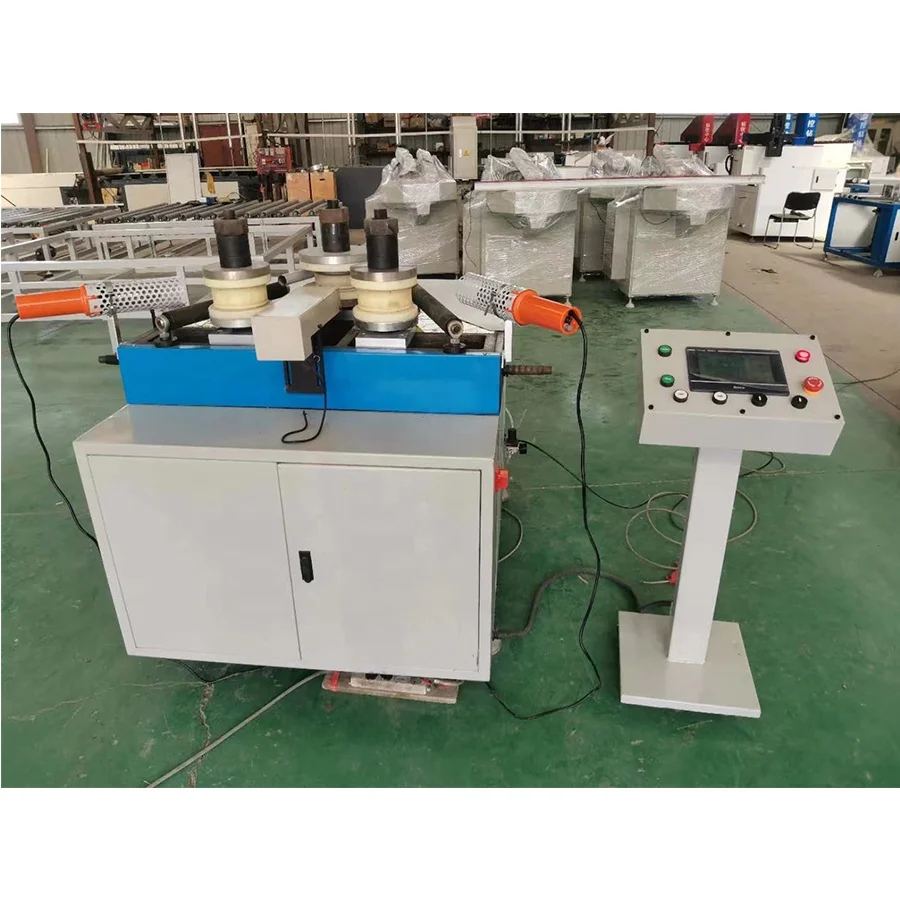

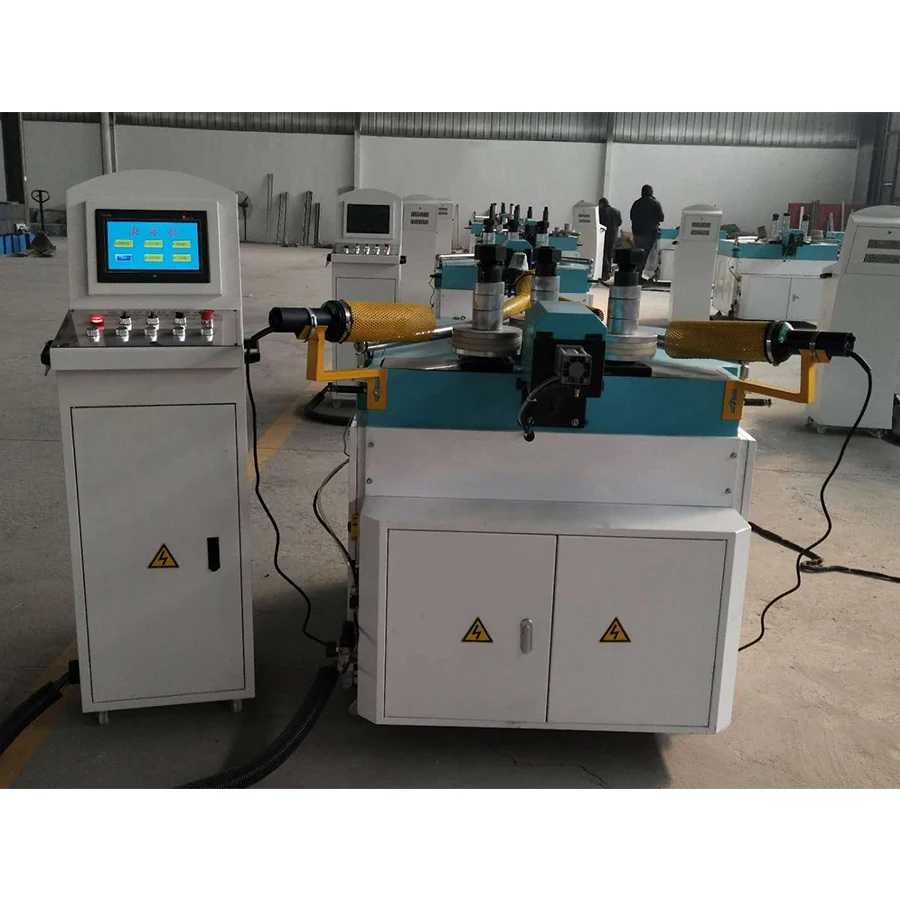

YBKE aluminum profile bending machine cnc aluminum profiles bending machine steel sheets bender
Product Description
Environment of use：
1.Please use indoors to prevent water
2.Ambient temperature -10℃-50℃
3.Hydraulic fluid is recommended：46#Anti-wear hydraulic oil
4.Ground to earth：Equipment must be reliably grounded
Automatic CNC bending machine functional features：
1.Self-developed CNC hydraulic system using imported oil pump，Make the equipment in the working state of 20 tons of pressure, the positioning accuracy of the working shaft in 0.02mm below the repeated control accuracy.
2.Three roller independent control, stepless speed regulation, three roller speed automatic matching，Make up for the linear velocity difference in the workpiece radius forming process【The difference between inner diameter and outer diameter】，Workpiece surface will not strain. Wheel base 340—410mm Arbitrary adjustment.
3.Humanized control system, flexible and simple
4.Exquisite mold design technology，Perfect solution to the product wrinkle, scratch, distortion, invagination and other quality problems，meet your high quality requirements for products
5.Unique core algorithm，Rich rolling and bending processing parameters, simple operation, simple and practical
6.Automatic cutting calculation，reduce material waste
Equipment and electrical components configuration | ||||
1. | Control system | 松下Panasonic | ||
2. | Operating screen | 威纶通 WEINVIEW | ||
3. | Location detection | Location detection | ||
4. | Electrical components | 施耐德（France）SCHNEIDER | ||
5. | Light grating ruler | 欧姆龙（Japan）OMRON | ||
6. | Button | 施耐德（France）SCHNEIDER | ||
7. | Linear guide rail | 上银（Taiwan）HIWIN | ||
Specification
item | value |
Condition | New |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Other |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2023 |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, PLC |
Brand Name | YBKE |
Voltage | 380V 50Hz |
Weight | 1000kg |
Warranty | 1 Year |
Production Capacity | 100sets/month |
Power | 6.5kw |
Dimension(L*W*H) | 1300*1300*1500 mm |
Applicable Material | Stainless steel, Carbon steel, Aluminum |
Key Selling Points | Easy to Operate |
Maximum die diameter | 220mm |
Rotational speed of shaft | 1-14 RPM |
Clamping profile range | H 230* W 110mm |
Minimum machining radius | 110mm Single bending forming |
Y axis feed stroke | 0-220mm |
X-axis repeat positioning accuracy | <0.4mm |
Y-axis repeat positioning accuracy | <=0.02mm |
Y-axis thrust | 20 tons(Maximum 23 tons) |
X axis Maximum torque | 2300 N/M |
axis length | 65mm |
Packing & Delivery
1.For full container load, usually wrapped in stretch films or simultaneously fixed with iron frame.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, packed in standard export plywood case.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, packed in standard export plywood case.
Company Profile
JINAN YBKE MACHINERY CO., LTD is a manufacturer of insulating glass machine with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in insulating glass manufacture and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in insulating glass manufacture and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our Customer
Our Certificate
FAQ
Q: What is your minimum order quantity?
A: One set is ok for the order.
Q: Is your company a manufacturer or trading company?
A: We are a manufacturer of the glass machines, and we have our own factory and production team.
Q: Can you do the production as customized?
A: Yes, we can produce products according to your requirements.
Q:If our price is higher than another company or factories?
A: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts, sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
Q:How to install our machines?
A:We record the installation and debugging videos and will send you all the circuit diagrams. We could establish an after-sale service group of only your company after the machines arrives. After all we have had 1 year online installation and debugging experience, please be rest assured.
Q: How can we guarantee quality?
A:Always a pre-production sample before mass production. Always final Inspection before shipment.
Q: How about the packing way?
A: Usually we have the products packed with plastic film for full container and wooden box for less than container. We can also customize the package according to your need.
Q:Can we get some discount or offer?
A:Contact me to know more about it.
A: One set is ok for the order.
Q: Is your company a manufacturer or trading company?
A: We are a manufacturer of the glass machines, and we have our own factory and production team.
Q: Can you do the production as customized?
A: Yes, we can produce products according to your requirements.
Q:If our price is higher than another company or factories?
A: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts, sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
Q:How to install our machines?
A:We record the installation and debugging videos and will send you all the circuit diagrams. We could establish an after-sale service group of only your company after the machines arrives. After all we have had 1 year online installation and debugging experience, please be rest assured.
Q: How can we guarantee quality?
A:Always a pre-production sample before mass production. Always final Inspection before shipment.
Q: How about the packing way?
A: Usually we have the products packed with plastic film for full container and wooden box for less than container. We can also customize the package according to your need.
Q:Can we get some discount or offer?
A:Contact me to know more about it.
