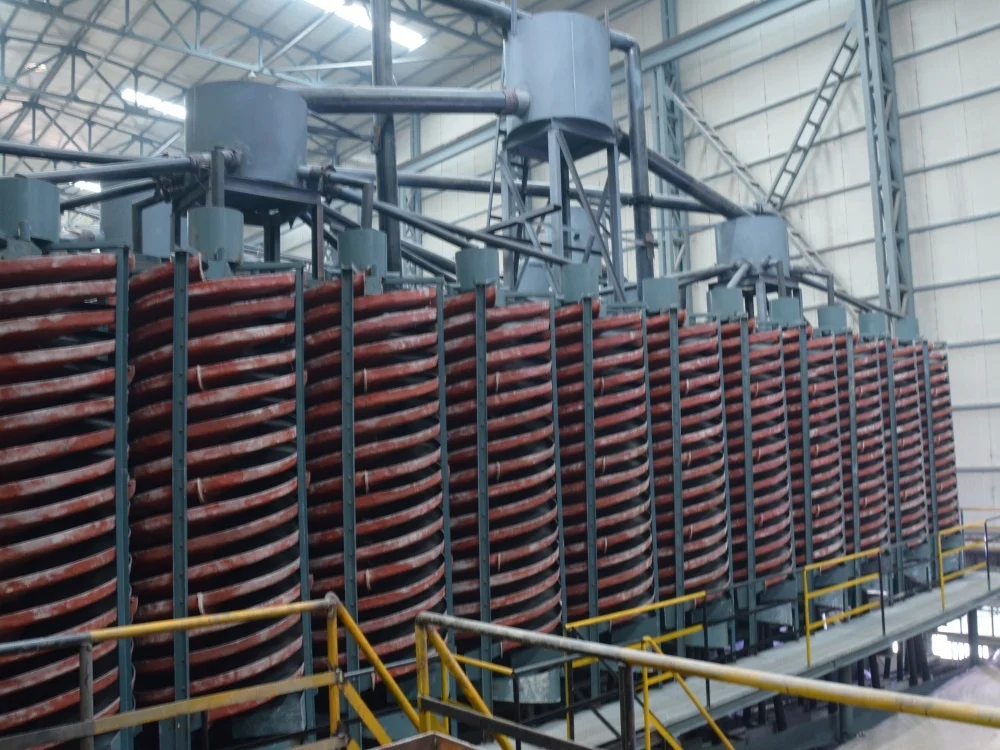

Гравитационная горная машина сепаратор для алмазной/оловянной/марганцевой драгоценной руды
271 089,75 ₽
LL 1500 2 года гарантии машина для спирального сепаратора Гравитационный концентратор оборудование добычи золота меди железной руды
- Категория: >>>
- Поставщик: Future Explorer Technical Equipment (shenzhen) Co. Ltd.
Сохранить в закладки 1601252861659:
Описание и отзывы
Характеристики
Product Overview
LL-2000 ~LL-400 Spiral Separator for Gold, Silver, Copper, Titanium, Tin, Tungsten
FETECH Spiral Chute Separators are made of fiberglass with high-quality corundum and resin as raw materials.. Compared with traditional ordinary spiral chutes, ours performance is improved by 50% and the service life is increased by more than 5 times. It is especially suitable for separating high-hardness metal ores such as chromium and iron. The surface is wear-resistant and the mineral processing recovery rate is high.
FETECH supports all customized solutions. Our company has the ability to design the overall mine production line and one-stop service to avoid mismatching and unsmooth operation caused by purchasing from different places. Help you to start production as soon as possible and continue to produce stably to recover costs and make profits early.
FETECH supports all customized solutions. Our company has the ability to design the overall mine production line and one-stop service to avoid mismatching and unsmooth operation caused by purchasing from different places. Help you to start production as soon as possible and continue to produce stably to recover costs and make profits early.
FEATURES AT A GLANCE
1.Highly Efficient Large Mineral Processing
2.Production Capacity
3.High Recovery Rate
4.Small footprint, Simple Installation, Easy Operation
5.No Power, No electricity, No Noise
6Strong adaptability to fluctuations in feed
volume, concentration, particle size and grade
Why Choose Future Explorer Technical Equipment?
Why Choose Future Explorer Technical Equipment?
1.Powerful Plant Design Ability based on the Rich experience in mine operation Since 1998
2 365*7*24 Hours Online Service Anytime you can keep in touch with our team,Anytime standby service for you
3.Strict Quality Control and One-Five Year Warranty
4.Oversea Exhibition Hall
Senior Engineer On-site Technical Guidance
5 The most Important: We have our our plant in Our Country.We know how to help you to recover the cost and earn money earlier. We can help you to AVOID issues
1.Powerful Plant Design Ability based on the Rich experience in mine operation Since 1998
2 365*7*24 Hours Online Service Anytime you can keep in touch with our team,Anytime standby service for you
3.Strict Quality Control and One-Five Year Warranty
4.Oversea Exhibition Hall
Senior Engineer On-site Technical Guidance
5 The most Important: We have our our plant in Our Country.We know how to help you to recover the cost and earn money earlier. We can help you to AVOID issues
PRODUCT SPECIFICATIONS
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
外径（毫米） Outer Diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 |
螺距（毫米） Spiral Distance（mm） | 1000 | 810\\720\\540 | 720/540 | 540 | 400 | 210 |
横向倾角 Horizontal Angle(°) | 9° | 7°-9° | 7°-9° | 8° | 8° | 7° |
每台最多安装螺旋头数 Max Spiral Starts | 3 | 4 | 4 | 4 | 3 | 2 |
每头常用圈数 Spiral Circles/ Start | 4 | 4-5 | 4-5 | 4-5 | 5 | 5 |
给矿粒度（毫米）Feeding Size(mm) | 2.5-0.074 | 2.5-0.074 | 0.3-0.03 | 1-0.074 | 2-0.074 | 1-0.074 |
给矿浓度 Feeding Density(%) | 15-40 | 20-50 | 25-55 | 25-55 | 25-55 | 25-55 |
生产能力（吨/小时） Capacity(t/h) | 10-15 | 5-7 | 3-5 | 1.5-2.5 | 0.8-1.2 | 0.1-0.2 |
长 Length(mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
宽 Width(mm） | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
高 Height(mm) | 5700 | 5230 | 5230 | 4230 | 2150 | 1500 |
Custom Notes :
1. The pitch can be customized according to the specific requirements of customers
2. The key factor affecting the processing capacity of the spiral chute is the specific number of heads installed on each chute
3. The maximum number of heads installed on the chute remains unchanged, but the number of circles of the blades installed on the chute head can be increased or decreased according to customer requirements
2. The key factor affecting the processing capacity of the spiral chute is the specific number of heads installed on each chute
3. The maximum number of heads installed on the chute remains unchanged, but the number of circles of the blades installed on the chute head can be increased or decreased according to customer requirements
Company Profile
Company Profile: Future Explorer Technical Eqiupment Co.,Ltd (FETECH)
Future Explorer Technical Eqiupment Co.,Ltd was founded in 2015. It is a mining service organization specializing in mining machinery manufacturing, mineral analysis, and mineral processing equipment design, installation and commissioning.
The R&D technical team is located in Shenzhen, Guangdong,a high-tech industry gathering city in China. The factory is located in Shicheng County, Jiangxi Province, covering an area of around 40,000m².
It has more than 200 sets of large-scale modern mechanical processing equipment, smelting and casting equipment, and more than 50 professional mechanical manufacturing engineers, mineral processing engineers, and professional equipment installation engineers, including 10+ senior engineers, 30+ junior engineers, and 150+ workers.supporting our company's strong production and supply capabilities.
For more than 20 years, we have focused on the R&D, design and production of mining mineral processing equipment. The core founding team has independently designed and developed customized production line one-stop solutions for mining projects in 100+ countries around the world based on customer needs and the local geographical environment of the mine. Including on-site survey, product design, manufacturing, installation, commissioning and after-sales service. In addition,We also maintain long-term cooperation with international and Chinese scientific research institutions of universities to explore new and efficient technologies, improving economic efficiency while protecting the environment
Main products: customized production line solutions for mines, ore washing equipment, gravity separation equipment, flotation equipment, magnetic separation equipment, crushing and grinding equipment, screening and classification equipment, feeding and conveying equipment, mineral processing experimental equipment, excavation equipment and transportation equipment , mobile mining crushing production equipment, sand dredgers, dredgers and other large equipment. Mainly used in mining, coal, quarry, scrap metal recycling and other fields.
Our products have passed ISO9001, ISO27001, ISO17020, SGS, IECEX, MSHA, ATEX, ANZEX, CERTEX, GOST-R, IRMA certification
Our products sell well all over the world:
1. Oceania: Australia, New Zealand
2Africa: South Africa, Sudan, Zimbabwe, Ghana, Tanzania, Uganda, Congo, Zambia, Nigeria,
3 Americas: United States, Canada, Brazil, Mexico
4Europe: Romania,
5 Asia: South Korea, India, Malaysia, Indonesia, Thailand, Philippines, Vietnam, Myanmar, Mongolia, Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Turkmenistan, Turkey, Papua New Guinea
The R&D technical team is located in Shenzhen, Guangdong,a high-tech industry gathering city in China. The factory is located in Shicheng County, Jiangxi Province, covering an area of around 40,000m².
It has more than 200 sets of large-scale modern mechanical processing equipment, smelting and casting equipment, and more than 50 professional mechanical manufacturing engineers, mineral processing engineers, and professional equipment installation engineers, including 10+ senior engineers, 30+ junior engineers, and 150+ workers.supporting our company's strong production and supply capabilities.
For more than 20 years, we have focused on the R&D, design and production of mining mineral processing equipment. The core founding team has independently designed and developed customized production line one-stop solutions for mining projects in 100+ countries around the world based on customer needs and the local geographical environment of the mine. Including on-site survey, product design, manufacturing, installation, commissioning and after-sales service. In addition,We also maintain long-term cooperation with international and Chinese scientific research institutions of universities to explore new and efficient technologies, improving economic efficiency while protecting the environment
Main products: customized production line solutions for mines, ore washing equipment, gravity separation equipment, flotation equipment, magnetic separation equipment, crushing and grinding equipment, screening and classification equipment, feeding and conveying equipment, mineral processing experimental equipment, excavation equipment and transportation equipment , mobile mining crushing production equipment, sand dredgers, dredgers and other large equipment. Mainly used in mining, coal, quarry, scrap metal recycling and other fields.
Our products have passed ISO9001, ISO27001, ISO17020, SGS, IECEX, MSHA, ATEX, ANZEX, CERTEX, GOST-R, IRMA certification
Our products sell well all over the world:
1. Oceania: Australia, New Zealand
2Africa: South Africa, Sudan, Zimbabwe, Ghana, Tanzania, Uganda, Congo, Zambia, Nigeria,
3 Americas: United States, Canada, Brazil, Mexico
4Europe: Romania,
5 Asia: South Korea, India, Malaysia, Indonesia, Thailand, Philippines, Vietnam, Myanmar, Mongolia, Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Turkmenistan, Turkey, Papua New Guinea
Why Choose FETECH ? (Future Explorer Technical Eqiupment Co.,Ltd )
30+Years experience in mining production line customization
50+engineers R&D Technical Team Support
40000+ m² Production Base
100+Countries Mining Plant Owners' Final Choice
1000+ International & Chinese Project Cooperation Cases
70+ Mineral material Beneficiation
40000+ m² Production Base
100+Countries Mining Plant Owners' Final Choice
1000+ International & Chinese Project Cooperation Cases
70+ Mineral material Beneficiation
We support EPC+M+O Mode (Engineer，Procure，Construct + Operation + Maintenance )
Engeering Design Drawings in the past successful cases
The drawings above are engineering modeling design drawings produced based on the on-site terrain and needs of the mine in our company's successful cases.
There are no identical mining plants in the world.
Common problems in the development of international and domestic mine projects:
1. Exceeding the investment budget
2 Not put into production on schedule or reach the target
3 Technical transformation is required from the date of production
4 Design research:
a) Copying the design plan or designing only according to experience;
b) Non-standard parts and pipelines are designed by non-professionals;
c) The design does not consider the later installation and commissioning issues.
5 Procurement
a) Equipment is purchased in a scattered manner, ignoring the connection problem of the production line;
b) Purchasing equipment from multiple manufacturers, putting price factors above quality and performance;
c) Standards and capabilities of different manufacturers are uneven, and accessories and supporting equipment are prone to problems.
6 Construction and installation
Installation and commissioning problems are caused by lack of understanding of overseas construction materials and capabilities during design;
Poor planning leads to backlog of inventory materials or insufficient supply of installation materials;
Insufficient overseas project experience of the installation and commissioning team;
Ensure that the project reaches the target and reaches the target according to the budget investment and planned construction period, and maximize the benefits of customers.
What we can provide:
Design:
a) Tailor-made design for each ore dressing plant
b) Non-standard parts and pipelines are designed by professionals and reviewed by the installation team
c) Fully consider installation and commissioning issues, and use steel structures when necessary
2 Procurement
a) Pay attention to the connection and capacity matching of the main and auxiliary equipment of the entire production line, and provide high-standard equipment and spare parts matching solutions;
b) Provide equipment with unified standards and adapted to foreign field conditions;
c) All documents (including 3D parts drawings) are organized and translated in a unified format;
d) Organize packaging, shipment and customs clearance according to the overall production line, installation materials, spare parts, etc.
3 Construction
a) Simulate on-site installation material plan to avoid insufficient materials or inventory backlogs, resulting in extended construction period and increased investment costs;
b) Careful construction plan, strict assessment standards, avoid repeated changes in the plan;
c) Experienced construction, installation and commissioning teams
4Full-process management services, providing integrated solutions;
5A large team of technical experts, providing operational management support;
6Superior on-site process inspection, equipment diagnosis, and management supervision capabilities of the beneficiation plant, providing personalized solutions to reduce costs and increase efficiency;
7Scientific and reasonable performance appraisal system to efficiently manage operational projects;
8The associated technical team can fully tap the potential of the project and quickly carry out on-site technical transformation
1. Exceeding the investment budget
2 Not put into production on schedule or reach the target
3 Technical transformation is required from the date of production
4 Design research:
a) Copying the design plan or designing only according to experience;
b) Non-standard parts and pipelines are designed by non-professionals;
c) The design does not consider the later installation and commissioning issues.
5 Procurement
a) Equipment is purchased in a scattered manner, ignoring the connection problem of the production line;
b) Purchasing equipment from multiple manufacturers, putting price factors above quality and performance;
c) Standards and capabilities of different manufacturers are uneven, and accessories and supporting equipment are prone to problems.
6 Construction and installation
Installation and commissioning problems are caused by lack of understanding of overseas construction materials and capabilities during design;
Poor planning leads to backlog of inventory materials or insufficient supply of installation materials;
Insufficient overseas project experience of the installation and commissioning team;
Ensure that the project reaches the target and reaches the target according to the budget investment and planned construction period, and maximize the benefits of customers.
What we can provide:
Design:
a) Tailor-made design for each ore dressing plant
b) Non-standard parts and pipelines are designed by professionals and reviewed by the installation team
c) Fully consider installation and commissioning issues, and use steel structures when necessary
2 Procurement
a) Pay attention to the connection and capacity matching of the main and auxiliary equipment of the entire production line, and provide high-standard equipment and spare parts matching solutions;
b) Provide equipment with unified standards and adapted to foreign field conditions;
c) All documents (including 3D parts drawings) are organized and translated in a unified format;
d) Organize packaging, shipment and customs clearance according to the overall production line, installation materials, spare parts, etc.
3 Construction
a) Simulate on-site installation material plan to avoid insufficient materials or inventory backlogs, resulting in extended construction period and increased investment costs;
b) Careful construction plan, strict assessment standards, avoid repeated changes in the plan;
c) Experienced construction, installation and commissioning teams
4Full-process management services, providing integrated solutions;
5A large team of technical experts, providing operational management support;
6Superior on-site process inspection, equipment diagnosis, and management supervision capabilities of the beneficiation plant, providing personalized solutions to reduce costs and increase efficiency;
7Scientific and reasonable performance appraisal system to efficiently manage operational projects;
8The associated technical team can fully tap the potential of the project and quickly carry out on-site technical transformation
Global Sales Network：
1. Oceania: Australia, New Zealand 2.Africa: South Africa, Sudan, Zimbabwe, Ghana,Tanzania, Uganda, Congo, Zambia, Nigeria,
3.Americas: United States, Canada, Brazil, Mexico
4.Europe: Romania, Sweden
5.Asia: South Korea,India, Malaysia, Indonesia, Thailand, Philippines, Vietnam, Myanmar, Mongolia, Russia, Kazakhstan, Uzbekistan,Kyrgyzstan,Tajikistan, Turkmenistan, Turkey, Papua New Guinea
3.Americas: United States, Canada, Brazil, Mexico
4.Europe: Romania, Sweden
5.Asia: South Korea,India, Malaysia, Indonesia, Thailand, Philippines, Vietnam, Myanmar, Mongolia, Russia, Kazakhstan, Uzbekistan,Kyrgyzstan,Tajikistan, Turkmenistan, Turkey, Papua New Guinea

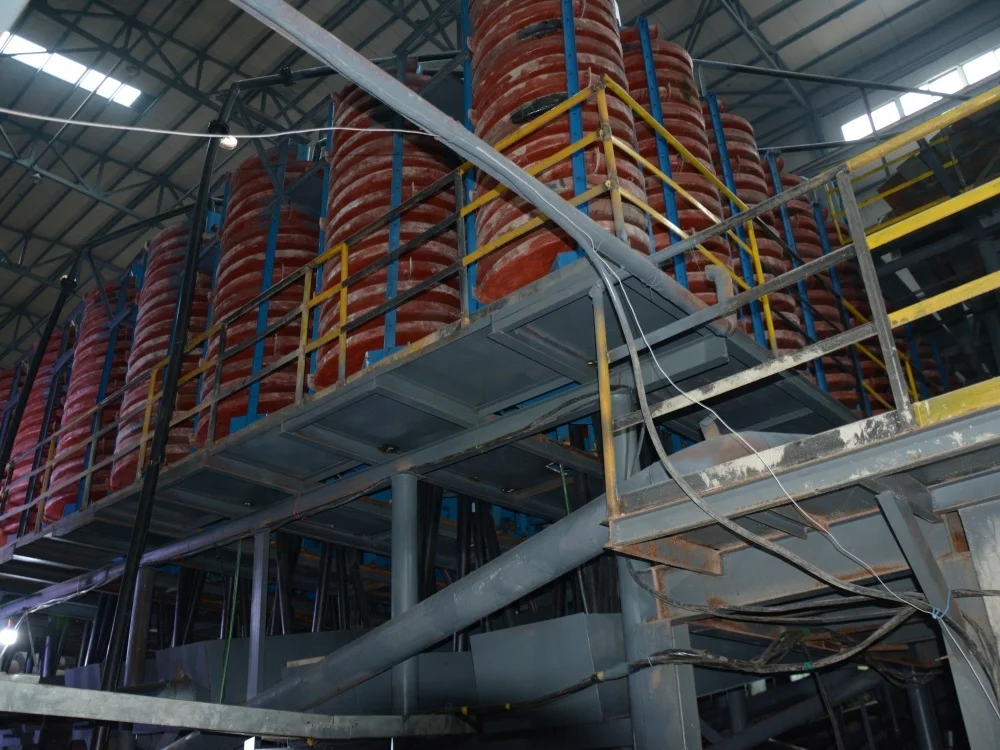

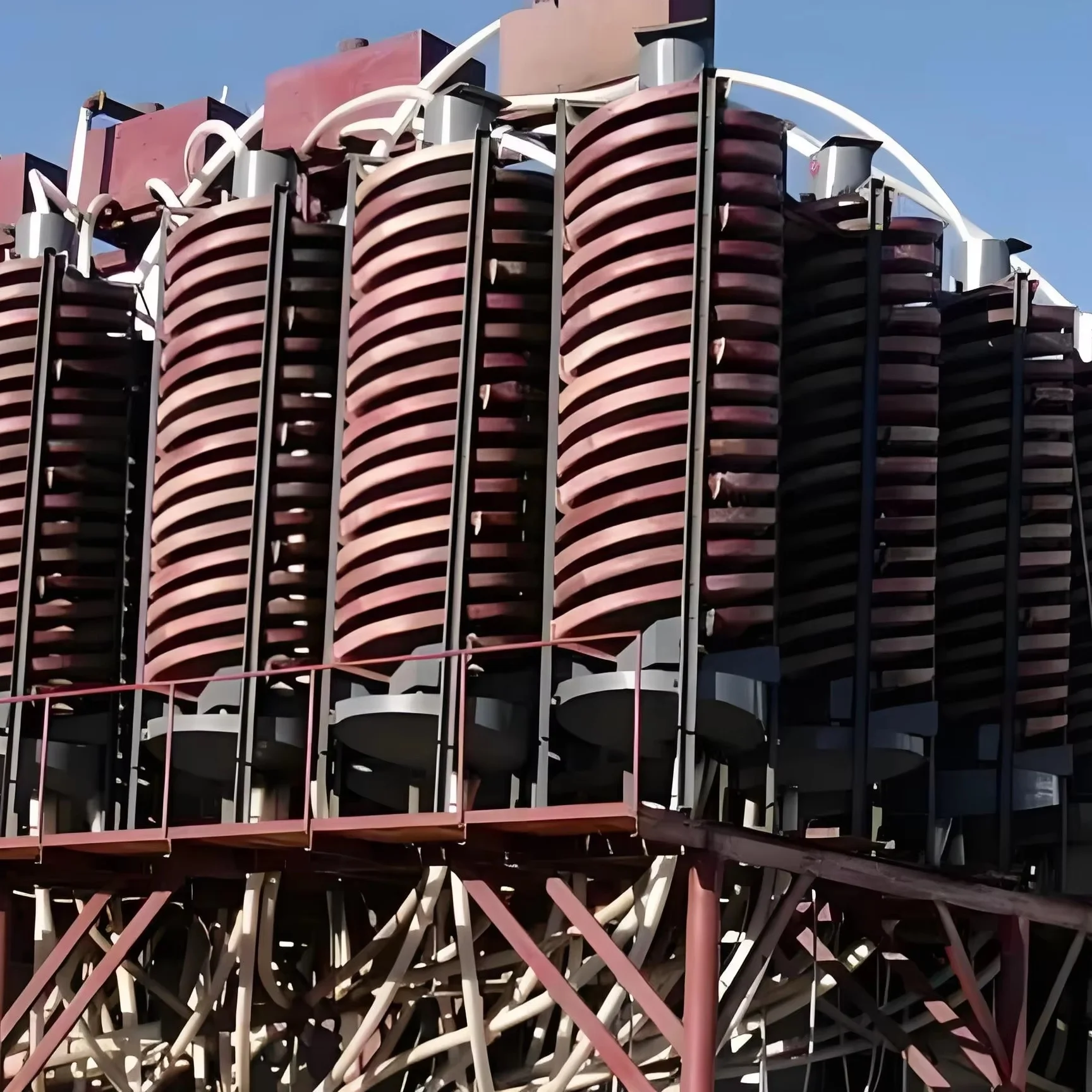

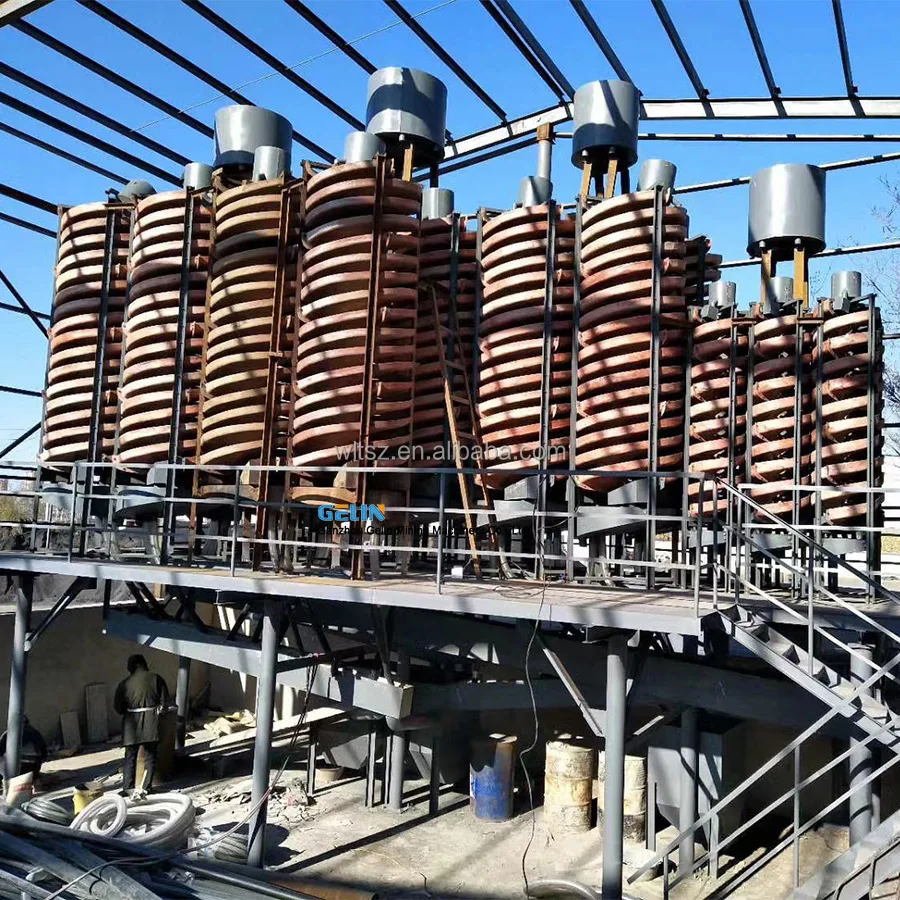

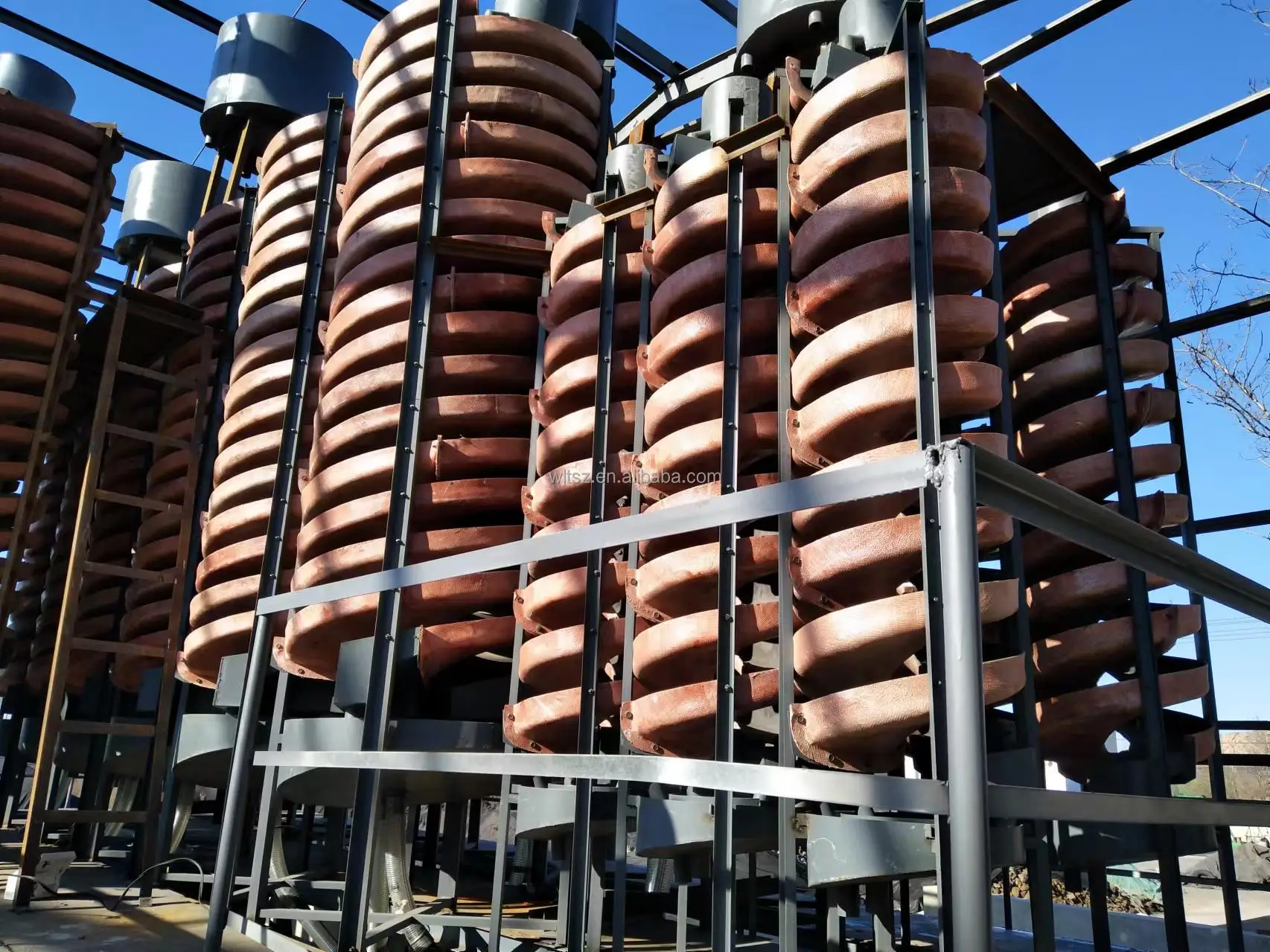

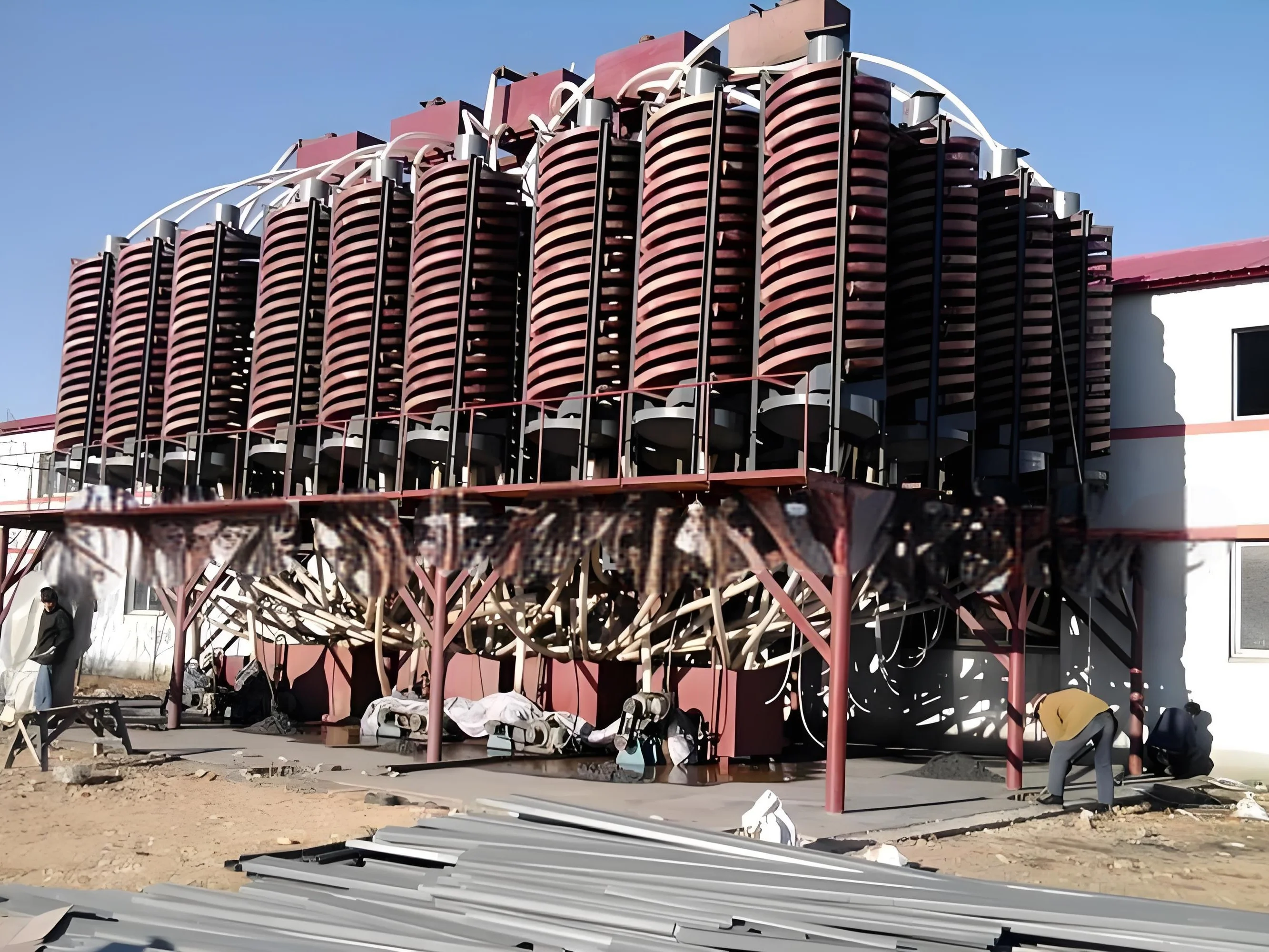

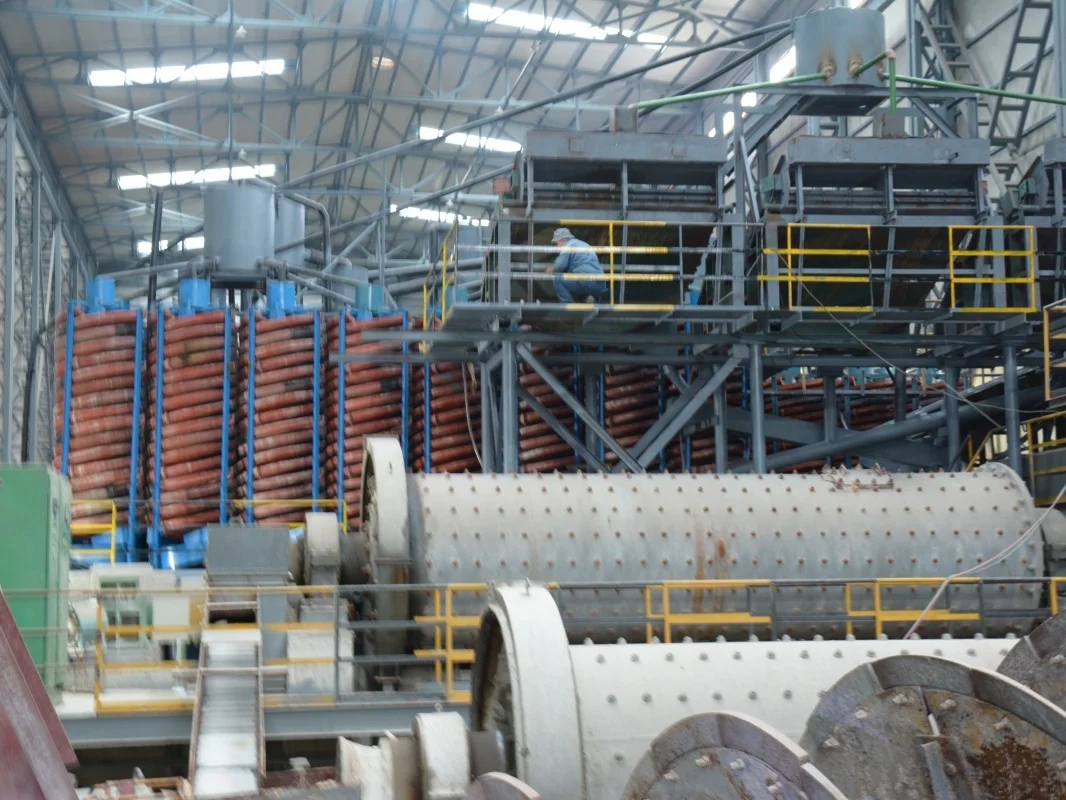

Customer Photos
Certifications
