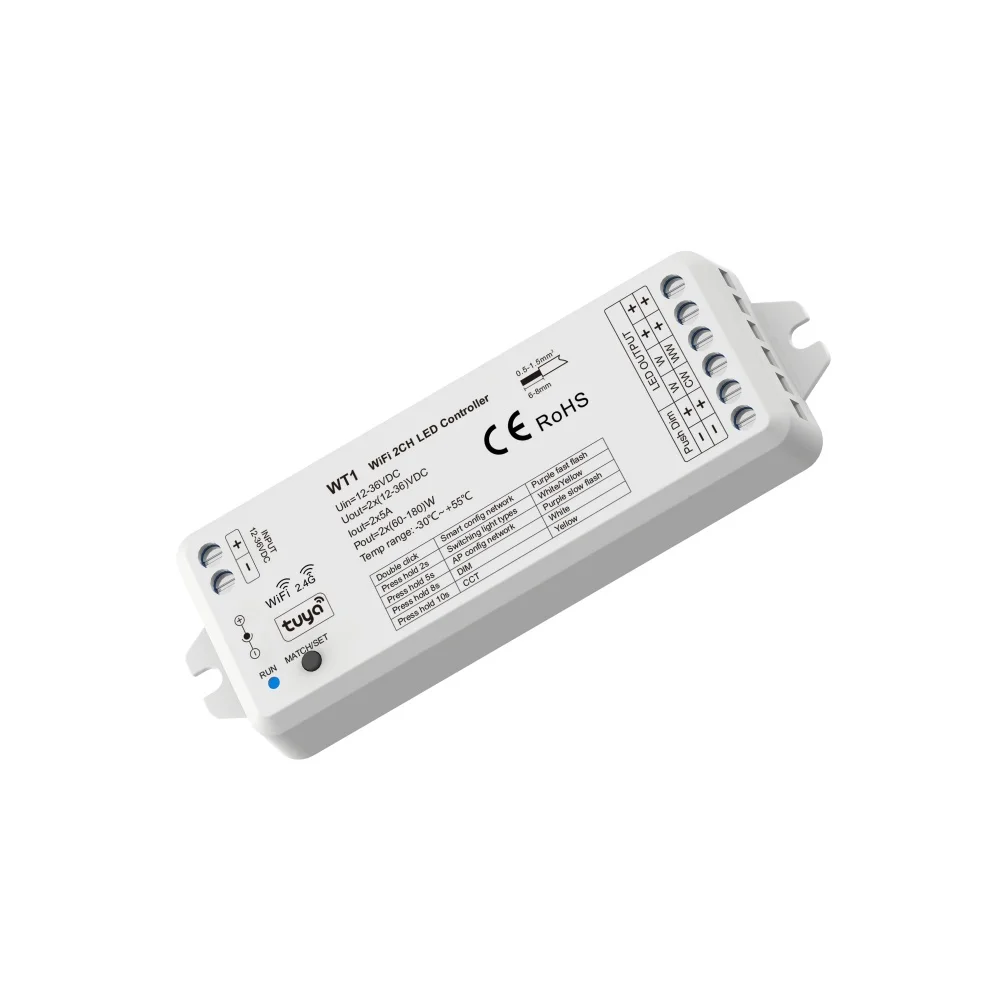

WT1 Tuya WiFi 2CH LED Controller for Single color/CCT Dual White Led Light Strips DC 12-36V 2.4G Wireless Dimmer Alexa Touch Panel Controller
Product Description

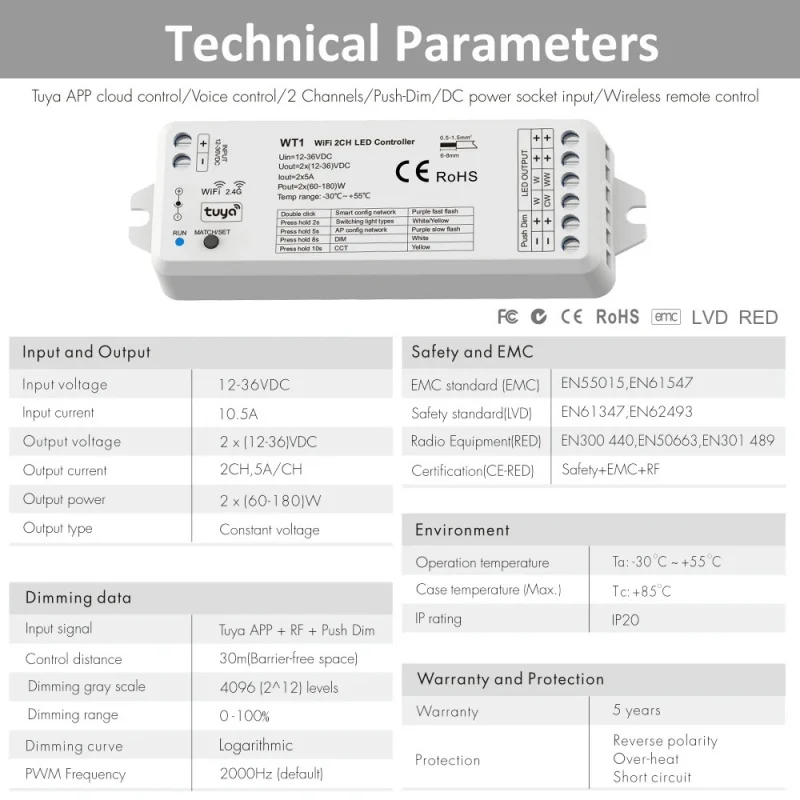

Item | WT1 WiFi 2CH LED Controller |
Input voltage | 12-36V DC |
Input current | 10.5A |
Output voltage | 2 x (12-36)V DC |
Output current | 2CH, 5A/CH |
Output power | 2 x (60-180)W |
Output type | Constant voltage |
Input signal | Tuya APP + RF 2.4GHz + Push Dim |
Control distance | 30m(Barrier-free space) |
Dimming gray scale | 4096 (2^12) levels |
Dimming range | 0 -100% |
Dimming curve | Logarithmic |
PWM frequency | 2000Hz (default) |

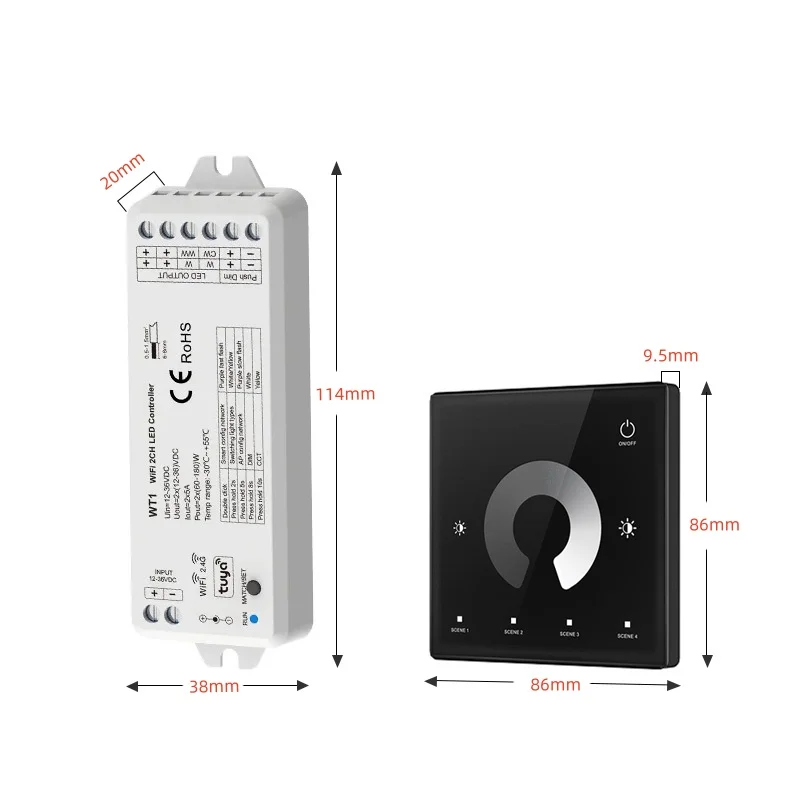

Dimension | L114 x W38 x H20mm |
Application | Used for control single color or color temperature LED strips |
Warranty(Year) | 2-Year |
Work temperature | -30°C to 55°C |
WT1 Led Controller Features:
● Used for control single color or color temperature LED strip.
● DC power socket input and 2 channel constant voltage output.
● Tuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light, timer run, scene edit
function.
● Voice control, support Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers.

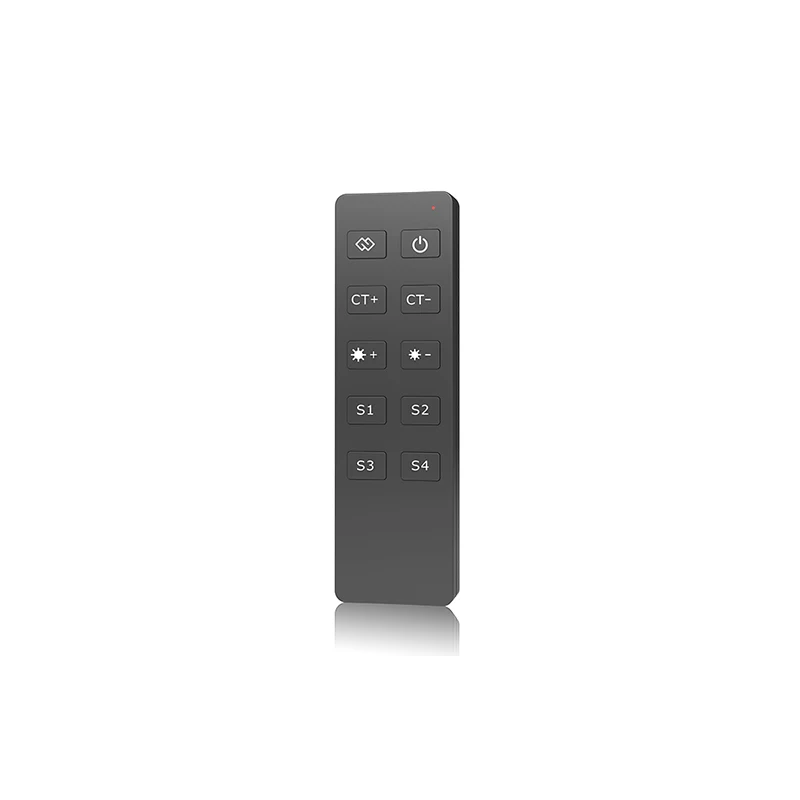

● Match with RF 2.4G remote control optional.
● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
● Each WT1 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED
dimming driver synchronously.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Light on/off fade time 3s selectable.
● DC power socket input and 2 channel constant voltage output.
● Tuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light, timer run, scene edit
function.
● Voice control, support Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers.
● Match with RF 2.4G remote control optional.
● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
● Each WT1 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED
dimming driver synchronously.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Light on/off fade time 3s selectable.

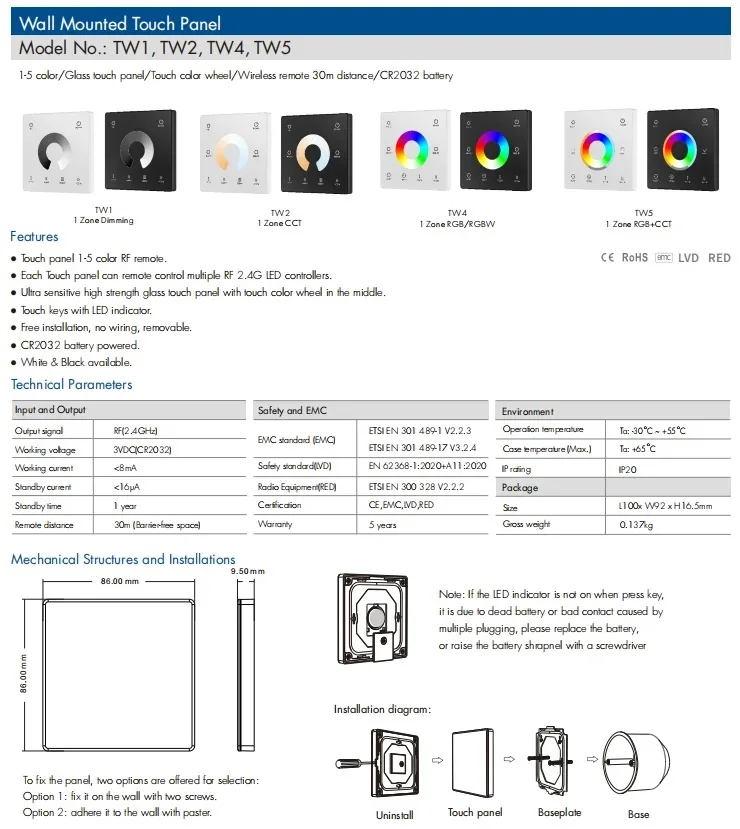

● Touch panel 1/4 Zone RF remote (TW1 for Single color, TW2 for CCT Dual white color)
● Each touch panel can remote control multiple RF 2.4G LED controllers( TW2 can only control one RF 2.4G LED controller )
●Ultra sensitive high strength glass touh panel with touch color wheel in the middle
●Touch keys with LED indicator
●Free installation,no wiring,removable
●CR2032 battery powered（but not included in the package）
●White & black available
● Each touch panel can remote control multiple RF 2.4G LED controllers( TW2 can only control one RF 2.4G LED controller )
●Ultra sensitive high strength glass touh panel with touch color wheel in the middle
●Touch keys with LED indicator
●Free installation,no wiring,removable
●CR2032 battery powered（but not included in the package）
●White & black available
