900x3000 шаровая мельница шлифовальный станок цена

Сохранить в закладки 1601253022894:


Цена:4 500,00-6 800,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

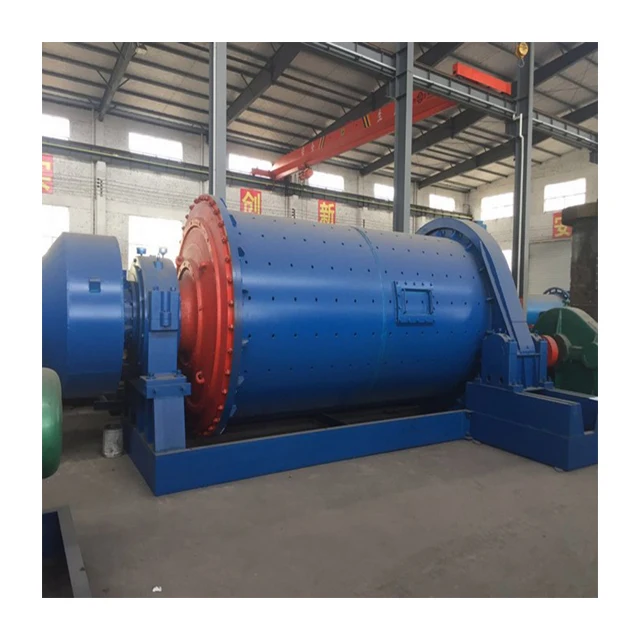

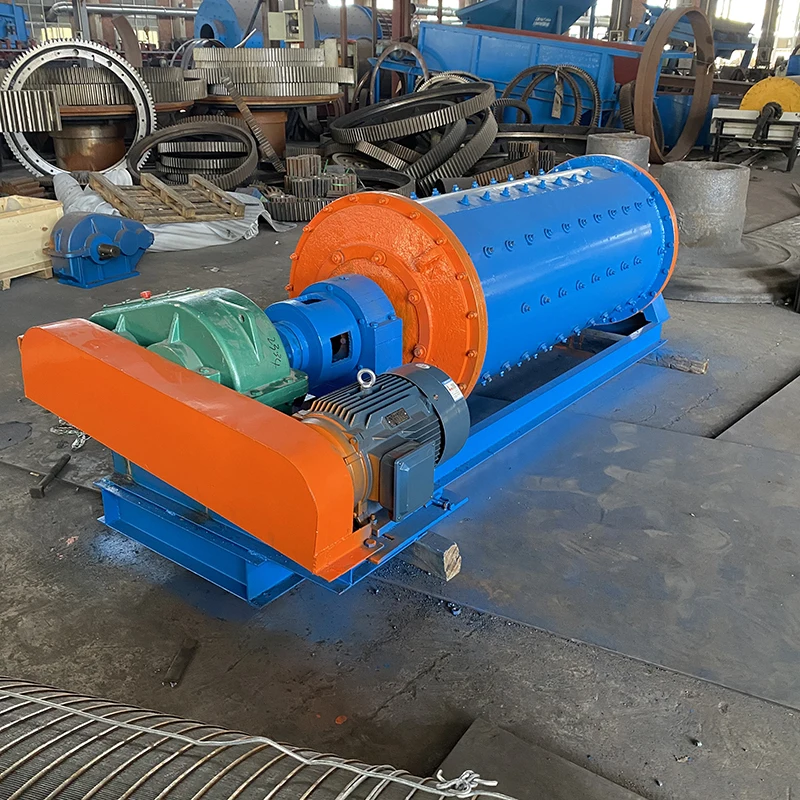

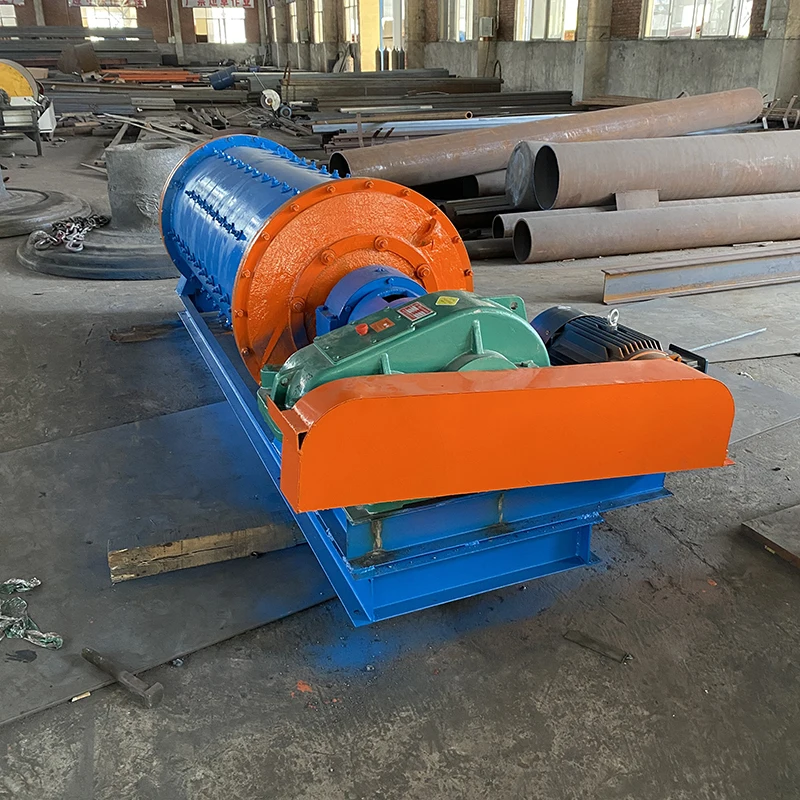

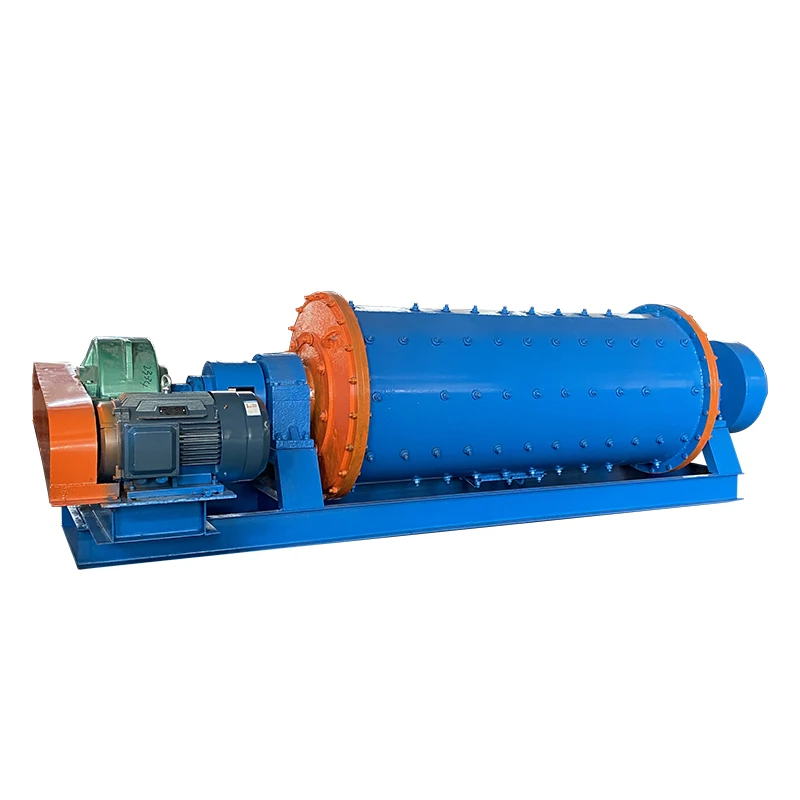

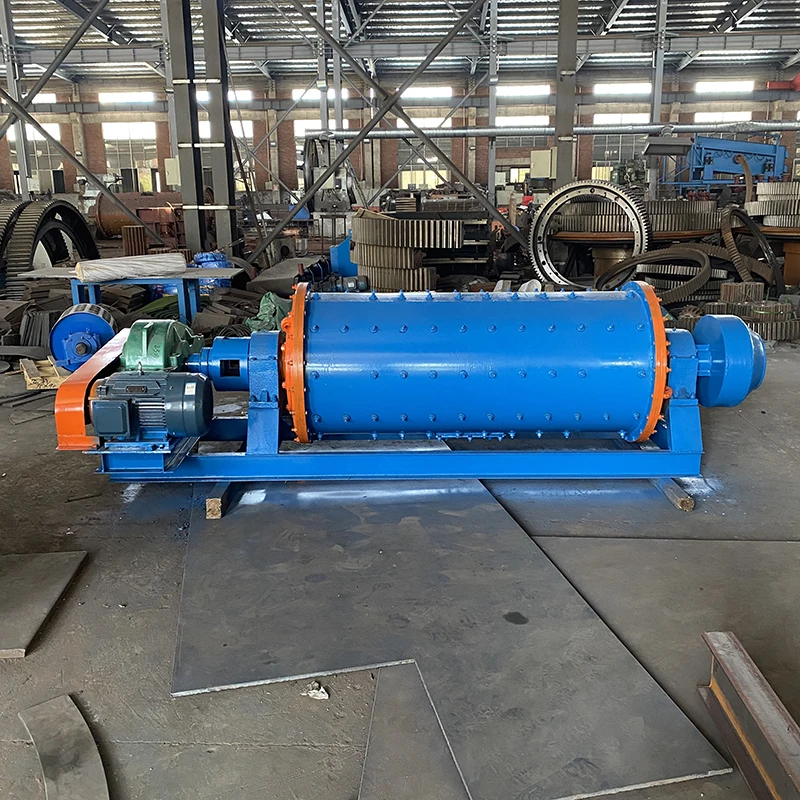

Ball Mill
Energy-saving ball mill is a key equipment for material grinding after crushing process. It is widely used in powder-making
production lines, such as cement, silicate, new-type building material, refractory material, fertilizer, glass ceramics and
non-ferrous metal etc.






Working principle

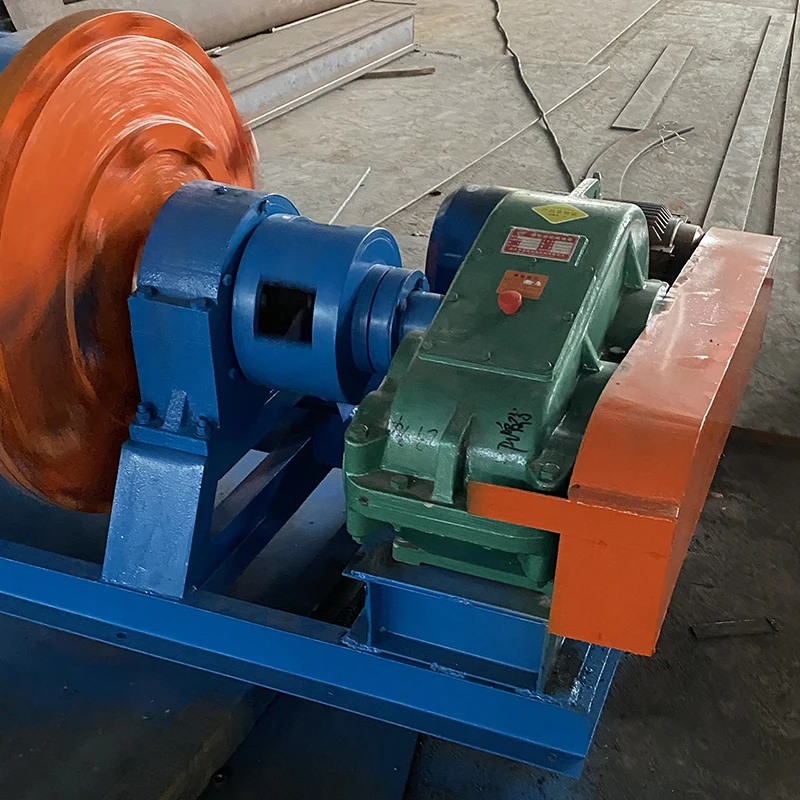

The ball mill is horizontal cylindrical rotation device,driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds.The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material. After the primary grinding in the first chamber, material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through the discharge screen.




Processing Material:
Gold Ore, Marble, Feldspar, Quartz, Calcite, Limestone, Copper Ore, Iron Ore.
Features
1. The lining can be replaced.
2. Mineral ball mill is an efficient tool for grinding many materials into fine powder.
3.Two ways of grinding: the dry way and the wet way.
4.Ultimate particle size depends entirely on how hard the material you’re grinding is.
5. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.




Successful cases


We have more than 35 years of experience in mining equipment production and can provide a full range of mining equipment from
crushing to beneficiation. We have professional engineers who can design the process for you and can provide field guidance for
installation services. Here are some of our success stories. Welcome to inquire!




Specification


Model
Size
(mm)
Speed
Ball load
Feeding
Capacity
Motor
Overall
(r/min)
(t)
size
dimension
(mm)
(t/h)
model
Power
(mm)
(kw)
GM0918
900x1800
41.6
1.6
0-25
0.4-1.1
Y180-6
15
4443x1850x1400
GM1224
1200x2400
35.2
4
0-25
1.6-4.1
Y250M-8
30
5540x2300x1850
GM1328
1300x2800
30.2
5.2
0-25
2.0-4.5
Y280M-8
45
5435x2370x1880
GM1530
1500X3000
30.7
8.1
0-25
3.5-8.0
JR117-8
80
7430x2930x2060
GM1830
1830x3000
27
13
0-25
3.0-17.0
JR127-8
130
9525x3960x2250
GM1836
1830X3600
27
15
0-25
4.0-21.5
JR128-8
155
10125x3960x2250
GM1845
1830x4500
27.2
18.6
0-25
6.0-28.0
JR136-8
180
10925x3960x2250
GM2130
2100X3000
23.9
16.5
0-25
4.0-30.0
JR136-8
180
8475x4060x3400
GM2136
2100X3600
23.9
19.8
0-25
5.0-37.0
JR136-8
180
9225x4060x3400
GM2245
2200x4500
23.9
27.32
0-25
5.8-52
JR139-8
280
10136x5100x3890
GM2460
2400x6000
22.4
37
0-25
10.6-125
JR158-8
475
12070x5000x3970
GM3070
3000x7000
19.5
63.77
0-25
28-250
TDMK1250- 36
1250
18125x6830x5400


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






Shicheng Gaoxuan Bearing Bush Co.,Ltd established in 1958 with a subsidiary corporation named Jiangxi Changyi Mining Machinery factory,located in Ganjiang River source and Wuyi mountain,is a professional supplier in producing and sale kinds of bearing bushes and mining equipments.This factory covers an area of 26000 square meters with a total fixed asset of USD3,000,000 and owns more than 200 sets of mechanical processing machines and 50 technical personnels,with an annual production ability for USD10,000,000.It's one net point of cooperation of the orginal China Equipment General Company of Ministry of Chemical Industry,as well as a fixed cooperation company of Huadong Fittings of Ministry of Metallurgy.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.


FAQ


Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in China, We will supply 7*24 service .

Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
