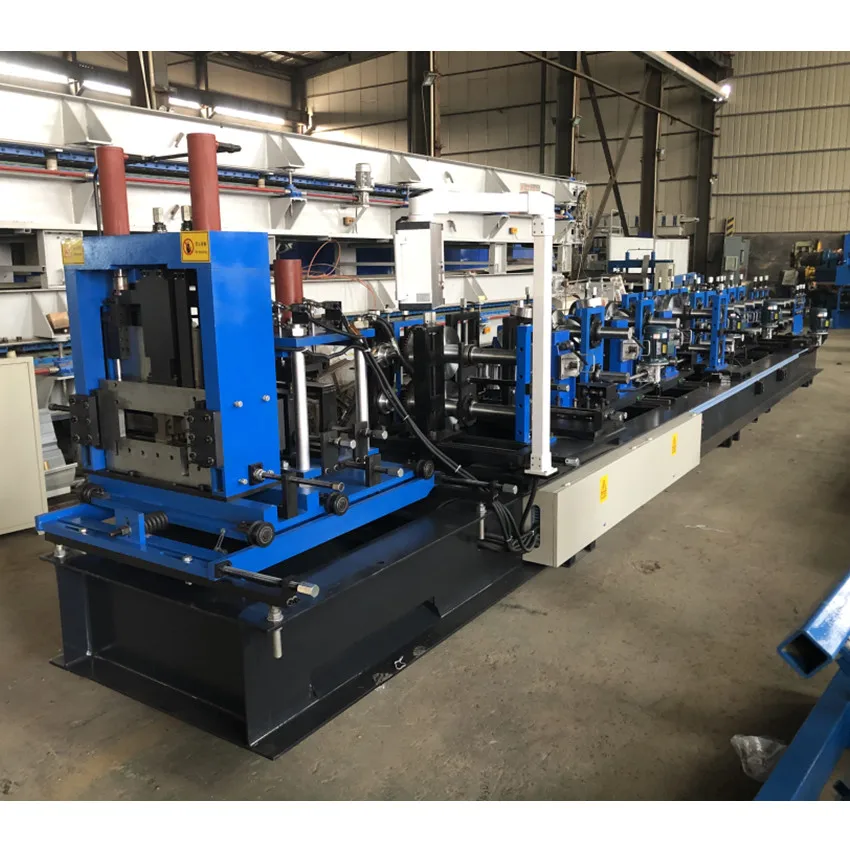

Полностью автоматическая многопроволочная система C Z SIGMA станок стальной каркас и проволочные машины
4 243 135,05 ₽ - 4 794 191,55 ₽

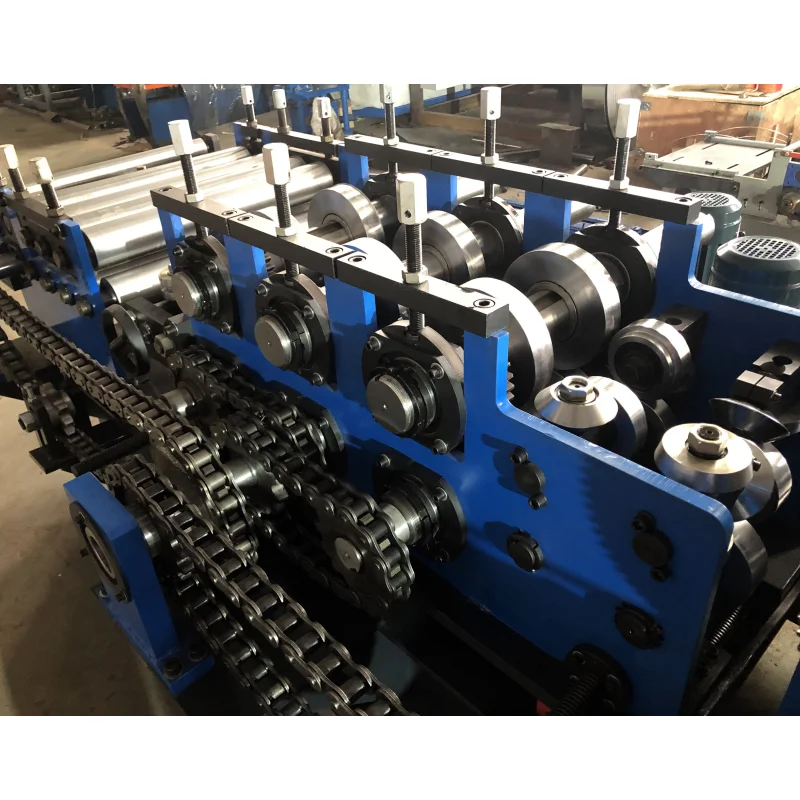

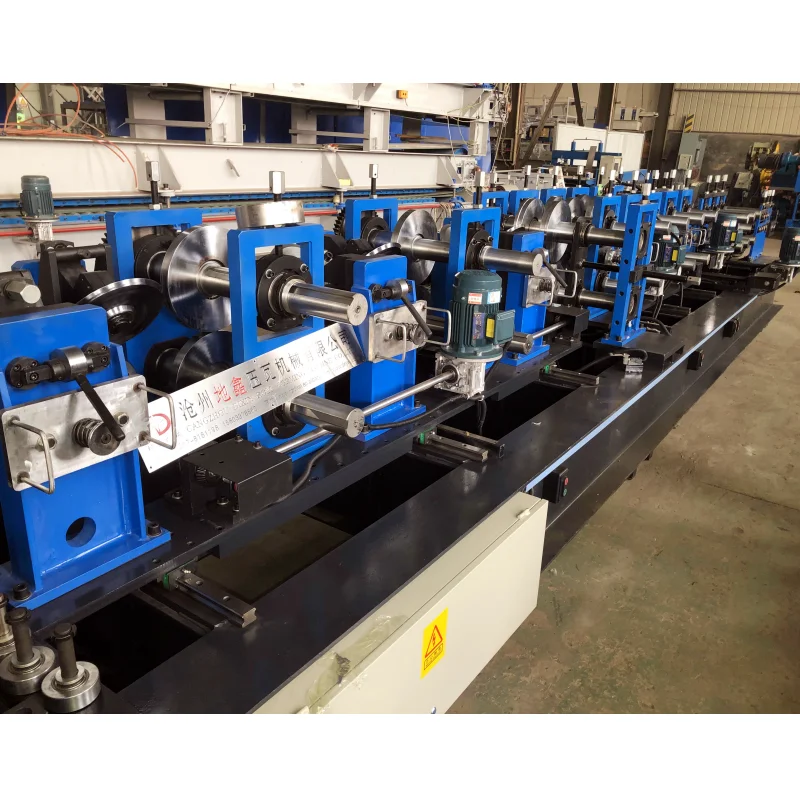

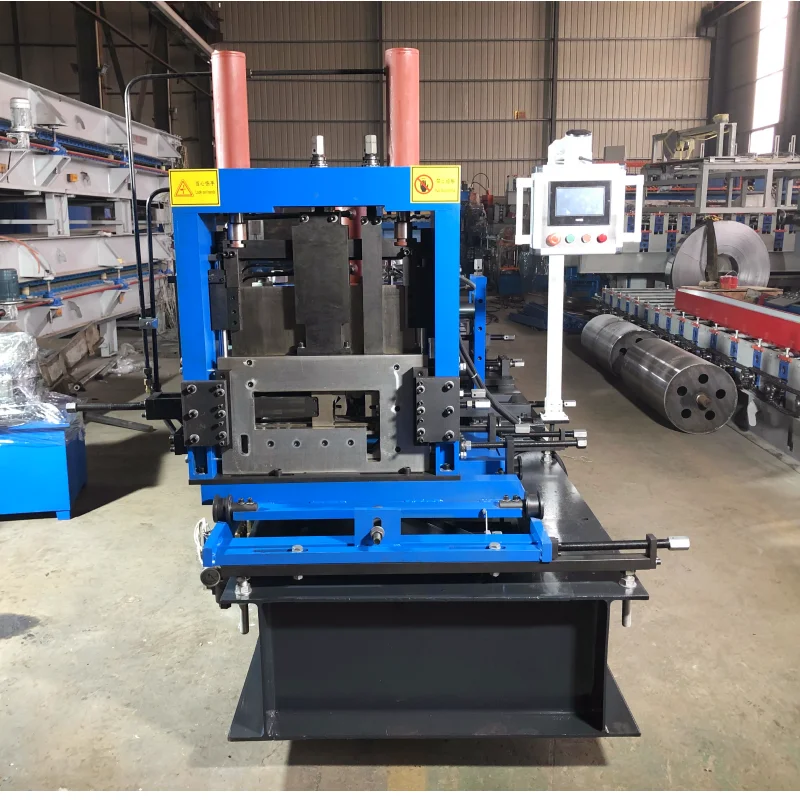

Южная Африка взаимозаменяемый CZ стальной роликовый станок CZUM Purlin 80 300 Sigma каркас рулонный
- Категория: >>>
- Поставщик: Cangzhou Dixin Roll Forming Machine Co. Ltd.
Сохранить в закладки 1601253143990:
Описание и отзывы
Характеристики
Products description

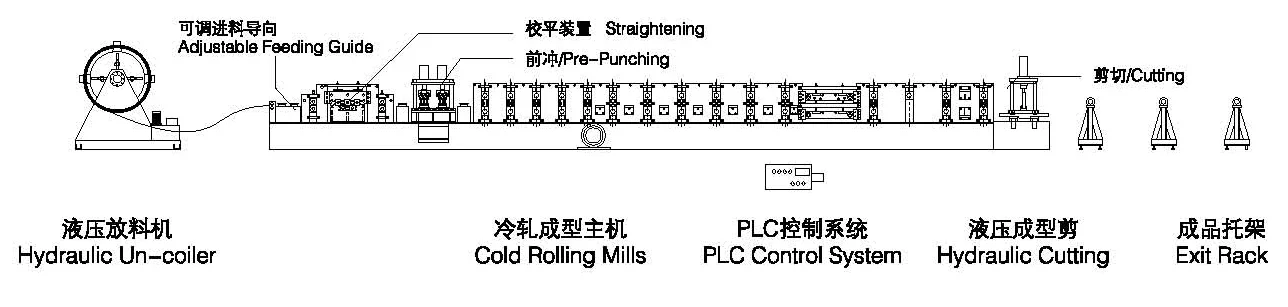

The Roll Forming Machine is composed of feeding, forming, and post-forming cutting. The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

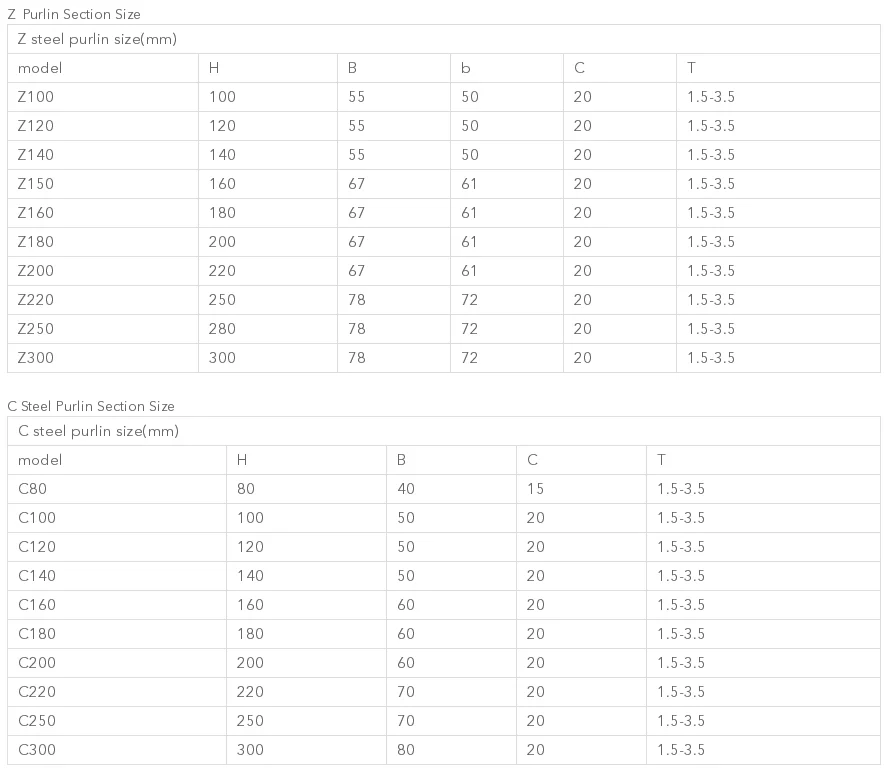

Specification
Type | Roll former for C/Z purline | ||||||
Thickness | 1.5mm-3.5mm | ||||||
Frame Design | Wall-plate-frame-design /New-stand-frame-design | ||||||
Roll Stages | 20 stages | ||||||
Material Of Forming Roller | GCr15, CNC lathes, Heat Treatment, Hard Chrome Coated | ||||||
Shafts Diameter | Φ75/95 mm | ||||||
Main Motor Power | 30KW | ||||||
Max. Line Speed of Roll Former | 30m/min (Higher speed is available, depends on the specification required by the buyer) | ||||||
Hydraulic Group Power | 15 KW | ||||||
Material of Cutting Blade | Cr12, hear treatment | ||||||
Electric Standard | 380V /50Hz/3PH or as per customer's requirements | ||||||
Machine Dimensions | 10000mm×1650mm×1200mm | ||||||
Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements | ||||||

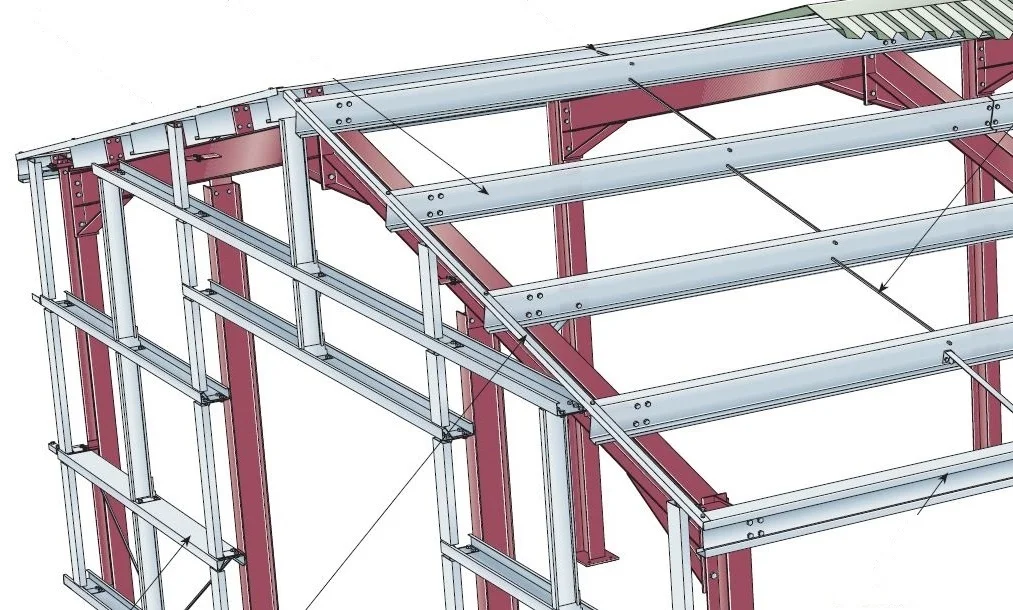

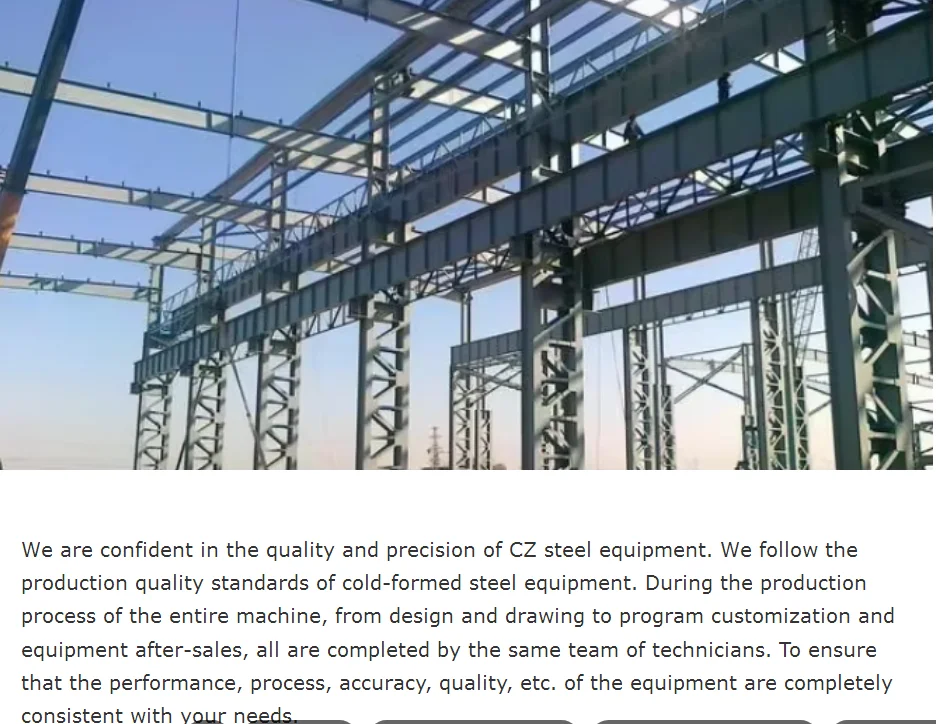

Application
Products Description
Company Profile
Cangzhou Dixin Roll Forming Machine Co., LTD is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises,Concerning with the design,Development and production of cold roll forming those, material of building. We specialize in the automated production line of sheet cold roll forming those. We are able to dojo.provide an integralResolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team,We are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world wide.
After Sales Service
our services
1)we have about 12 years experience in the steel roll forming machines area. So for the design and produce there are much experience and professional people. 2) quality control, we have CNC process to produce the rollers, the grinder machine to smooth the frame, make more precise, and less tollerance. And after assebling, inspect the whole machine and the result beforeDelivery. 3)we have professional engineer in charge of installation abroad. After services are easy way solution. 4) on time delivery. 5)quality garantee,one year time garantee,and service all the life.
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before
delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by
yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the
whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before
delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by
yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the
whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Please feel free contact Main sales manager Bella Su Tel/whatsapp:+8618713620537
Product packaging
