PS 016 100 25 Pneu поршневое уплотнение K25 100 двойного действия DK полные поршневые уплотнения

PS 016 100 25 Pneu поршневое уплотнение K25 100 двойного действия DK полные поршневые уплотнения

Категория: >>>
Поставщик: Dongguan Dier Seal Co. Ltd.Dongguan Ltd.

Цена:574,00-918,40 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Description Of Pneumatic seal

Pneumatic seal is a sealing device that uses compressed air to seal the gap of rotating shaft without leakage of working medium. The annular groove is processed on the housing, and the clearance of the rotating shaft is blocked after the compressed air enters, so as to prevent the leakage of lubricating oil.

The pneumatic seal has the characteristics of simple structure, but it requires air supply with a certain pressure, so the consumption of compressed air is large, and the pressure of the air source is 0.03~0.05Mpa higher than the pressure of the sealing medium. Pneumatic seals are not limited by speed and temperature. They are usually used for seals of rotating machinery equipment with small differential pressure, liquid media and gas media, such as to prevent the leakage of lubricating oil in bearing chambers. Sometimes it can be used in combination with labyrinth seal or spiral seal.

Types of pneumatic Seals:

Pneumatic Rod seals with wiper

Rod seals with wiper for anti-rotation pneumatic cylinders
Rod seals with wiper and guiding element

Piston seals, single-acting
Piston seals, double-acting
Complete pistons single-acting
Complete pistons double-acting

Other seal products:
Wipers/Cushioning seals/Guiding elements/O-rings

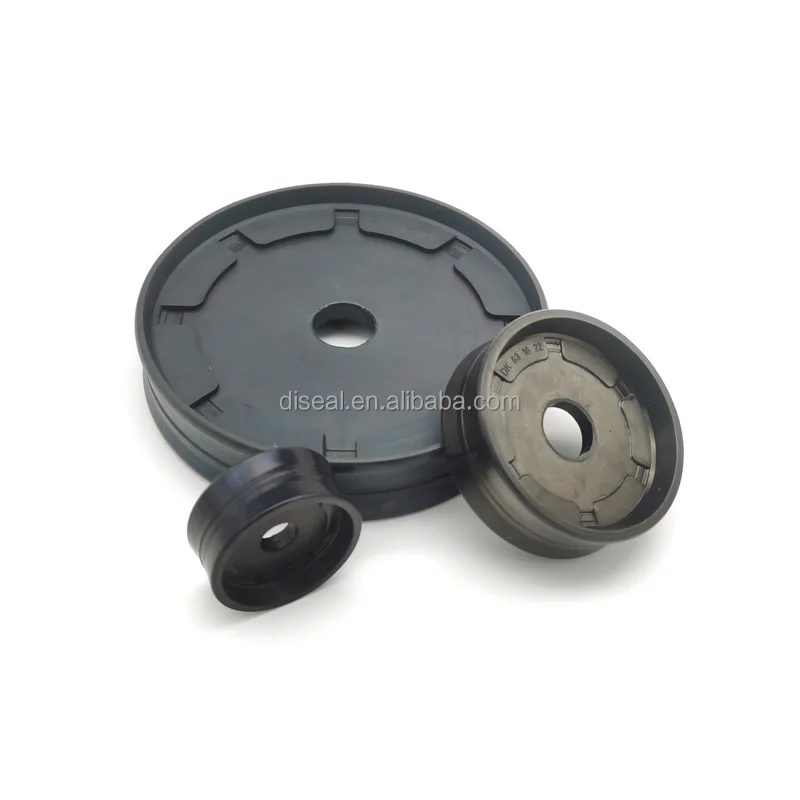

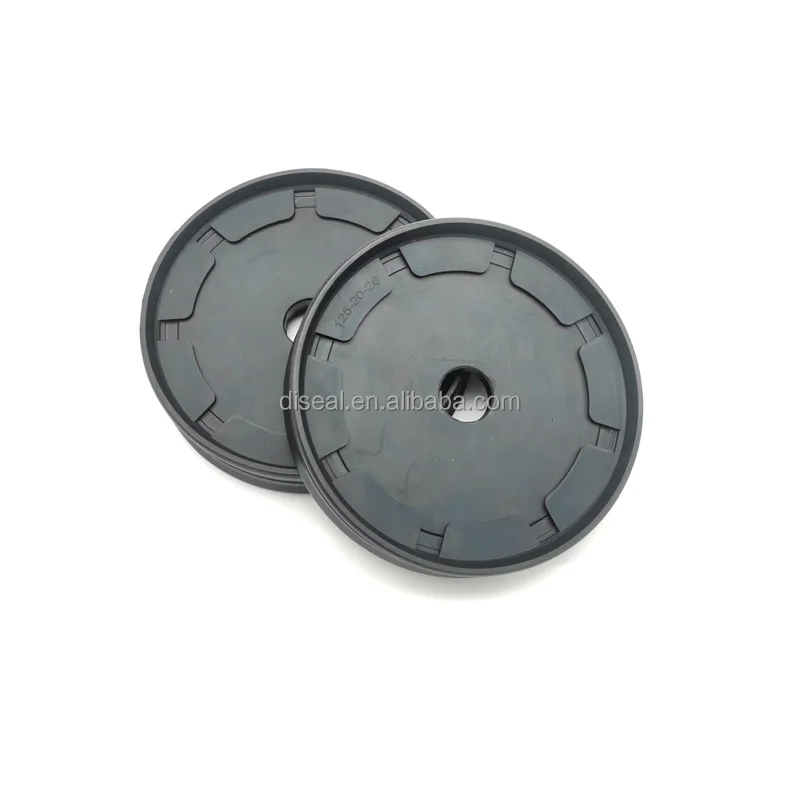

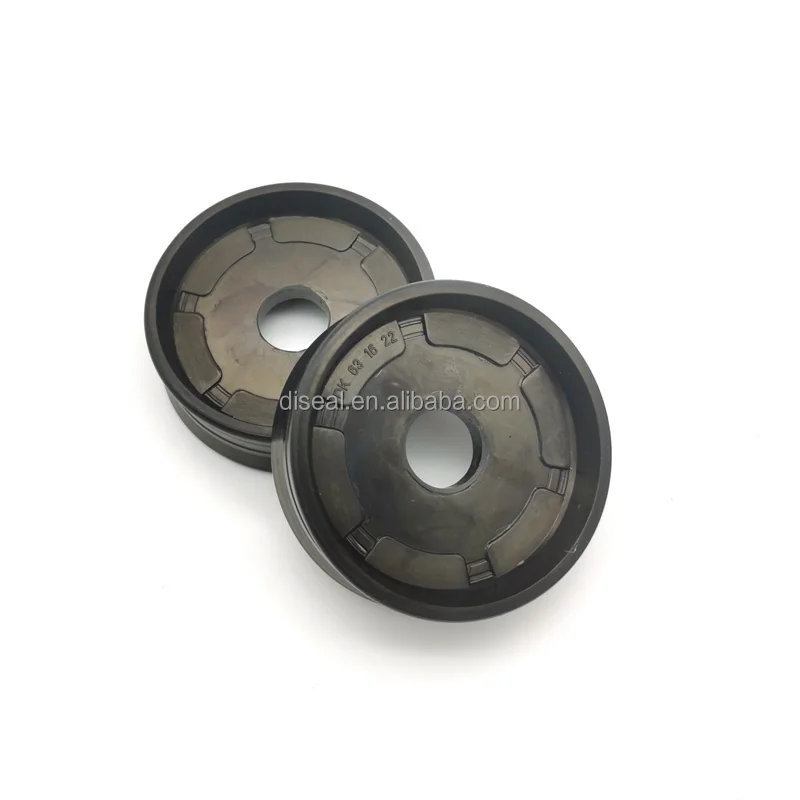

K25 pneumatic piston seal

K25 pneumatic piston seal is a double acting piston seal formed by vulcanizing the metal part and the elastomer material together with special methods.
Advantages
• Complete piston head
• Wide range of dimensions
• High friction resistance
• Easy installation
• Long service life
• Economical sealing solution
Area of Application
• Pneumatic Cylinders

Details Images

Different Types of Pneumatic Seals

EU pneumatic rod seals

The self-retaining EU rod seal / wiper ring for pneumatic cylinder piston rodperforms three functions simultaneously :Sealing , Wiping , Fixing

PP pneumatic cushioning seal

The profile PP pneumatic cushioning seal is specially designed for cushioning spears in pneumatic cylinders.

Z8 pneumatic piston seals

The profile z8 cylinder seal is a single-acting lip seal for pistons in pneumatic cylinders and valves . It requires small housing dimensions . The standard series of profile Z8 conforms to the cylinder diameters of ISO 3320 and CETOPRP 52 P, RP 43 P and RP 53 P.

Double-acting Cylinder COP Pneumatic Piston Seals

O Rings Seals Type COP is a small double-acting Cylinder Piston Seal with better friction characteristics and a unique
cross-section design compared to O-rings to avoid torsional damage. For standard cylinders, small diameter cylinders and lowprofile cylinders.

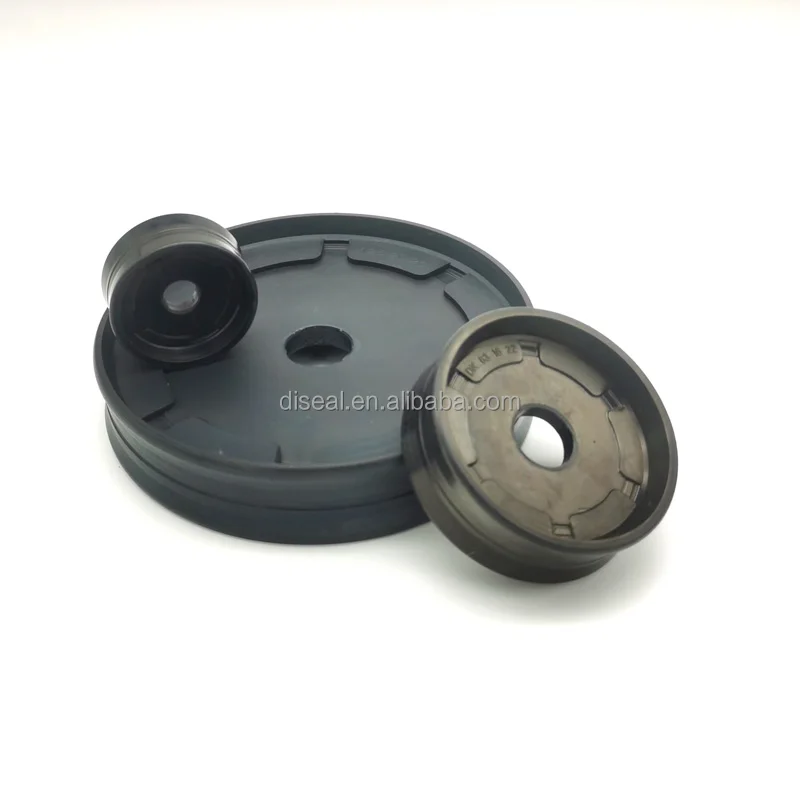

K25 -DK PNEUMATIC PISTON SEAL

K25/DK pneumatic piston seal is a double acting piston seal formed by vulcanizing the metal part and the elastomer material together with special methods.

F2 PTFE guidance tape profile

The PTFE guidance tape profile F2 is specially designed for use in pneumatic cylinders .

NBR Rubber o-ring for pneumatic system

NBR O-rings are widely used in pneumatic sealing systems

PDR type piston rod dustproof DOP cylinder sealing ring

Company Profile

Packing & Delivery

Cartons and Woodend Case are our Standard Packing of Seals Rings.
The Shipping ways we have DHL,UPS,TNT,FedEX or other Specified Shipping Way for Seals Rings.
