Xitanium G3 50W 1 05 1 2 A 42V DS I 230V 929003457580
- Категория: >>>
- Поставщик: Shanghai Bipeng Lighting Company Limited
Сохранить в закладки 1601254040711:
Описание и отзывы
Характеристики
Product Description
Product Overview
Affordable and reliable LED Drivers
Philips Xitanium LED point drivers are designed to operate with LED COB solutions used both in
built-in and independent applications such as down light, sport light and track light. Xitanium drivers have common features such as low ripple output current, adjustable output current by dip switch and 50,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness design and safety usage.
built-in and independent applications such as down light, sport light and track light. Xitanium drivers have common features such as low ripple output current, adjustable output current by dip switch and 50,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness design and safety usage.
Benefits.
• Great EMI performance for easy design-in
• Reliable design with strict quality control
• Safe to use with all round protection
• Selectable output current enables flexibility
Features.
• Class I and II application
• Low Ripple less than 1%
• Built in and independent
• 4 output currents by Dip switch
• 50,000 hours lifetime
Application.
• Down lighting
• Sport lighting
• Track lighting
• Panel light
Datasheet
Electrical Input data
Specification item | Value | Unit | Condition |
Rated input voltage range | 220-240 | Vac | Performance range |
Rated input voltage | 230 | Vac | |
Rated input frequency range | 50...60 | Hz | Performance range |
Rated input current | 0.256 | A | @ rated output power @ rated input voltage |
Rated input power | 55.08 | W | @ rated output power @ rated input voltage |
Power factor | 0.95 | @ rated output power @ rated input voltage | |
Total harmonic distortion | 20 | % | @ rated output power @ rated input voltage |
Efficiency | ≥88 | % | @ rated output power @ rated input voltage |
Input voltage AC range | 198-264 | Vac | Safety operational range |
Input frequency AC range | 47.5…63 | Hz | Operational range |
Isolation Input to Output | selv |
Electrical Output data
Specification item | Value | Unit | Condition |
Regulation method | Constant Current | ||
Output voltage | 30-44 | Vdc | |
Output voltage max. | 60 | V | Maximum output voltage (rms) |
Output current | 1.05 / 1.1 / 1.15 / 1.2 | A | |
Output current tolerance ± | 8 | % | |
Output current ripple LF | ≤ 1 | % | Ripple = peak / average@ ≤1KHz |
Output power | 31.5...50.4 | W |
Electrical Data Control Input
Specification item | Value | Unit | Condition |
Control method | fixed |
Operational Temperature and Humidity
Specification item | Value | Unit | Condition |
Ambient Temperature | -20 ... +50 | °C | Higher ambient temperature allowed as long as Tcase-max is not exceeded |
Tcase-max | 95 | °C | Maximum temperature measured at Tcase-point |
Tcase-life | 85 | °C | Measured at Tcase-point |
Maximum housing temperature | 130 | °C | In case of a failure, inherent by design |
Relative humidity | 10...90 | °C | Non-condensing |
Lifetime
Specification item | Value | Unit | Condition |
Driver lifetime | 50,000 | hours | Measured temperature at Tcase-point is Tcase-max. Maximum failures = 10% |
Driver lifetime | 100.000 | hours | Measured temperature at Tcase-point is Tcase-life -10 degrees. Maximum failures = 10% |
Programmable Features
Features
Specification item | Value | Condition | |
Open load protection | Yes | Automatic recovering | |
Short circuit protection | Yes | Automatic recovering | |
Over power protection | Yes | Automatic recovering | |
Suitable for fixtures with protection class | I and II | per IEC60598 |
Dimensions
Specification item | Value | Unit | Condition |
Length overall | 108 | mm | |
Width overall | 68 | mm | |
Height overall | 32 | mm | |
Mounting Holes Size | 3.6 | mm | For M4 with max head diameter of 10mm |
Weight | 263 | g |
Packing & Delivery
Packaging | ||
Size | 29*23*21cm | |
Weight | 13 KG | |
Packaging Details | Led Drivers : Philips original carton packing with MOQ.( 40pcs in one carton.) Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost. | |
SHIPPING
Certifications
Our Company
Shanghai Bipeng Lighting Limited Company is the core distributor of Philips professional lighting products. We mainly focus on LED Drivers and Modules, LED lights which are mainly applied on roads and Industry factories. Every product catalog is composed of over hundreds of product code.
We can offer outstanding lighting solutions, depending on our high efficiency management team and strong technician team. Through these years' efforts, we have been recognized and appreciated by many clients coming from mainland,southeast Asia,Europe and America market.
We promise to providing our clients with high quality products and services. At the same time, we have been working with excellent Surge protective device Manufacturer- CITEL QIRUI.
Now we have self brand, YINAI and BP.
YINAI focus on LED driver design and production.
BP focus on LED street lights and panel lights, highbay and lowbay lights.
FAQ
Q1. Are you Philips Authorized agents?
A:Yes, we can offer Philips Authorized Certificate.
Q2: What's your main products?
Led Drivers and modules. Road Light, Street Light and Highbay Lights.
We still can offer one step lighting Solution, depending on good cooperation relation with China(mainland) Lighting Manufacturers.
Q3. How about the delivery time ?
LED driver and modules Sample: 5-7days
LED driver and mudules Bulk Order: need recheck with us, usually 30-40 days.
LED Lights(sample& Bulk Order): need recheck with us, usually 30-40 days.
Q4. What is the Transaction terms ?
A: Samples: Cash before shipping.
B: Bulk Order: 50% in advance(deposit), 50% of the balance should be paid before shipping.
Q5. How is the Logistics and Transportation time ?
A Samples: International Express Service- DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
B.Bulk order : Airline and Sea shipping are available. Transportation time: need recheck with logistic company.
Q6. Do you have a minimum order?
Bulk order: Philips Original MOQ Packing(usually, 10pcs -12pcs in one carton).
Q7: How Long is the Quality assurance Time?
Philips Official Quality Assurance Time(Usually, 3-5years depend on products.)
Contact Us
Kelly Tang
Mob:+86 18917790116 Email: sales@bp-light.com
skype:+86 13818515084
whatsapp:+86 13818515084
Web: www.bp-light.com
Mob:+86 18917790116 Email: sales@bp-light.com
skype:+86 13818515084
whatsapp:+86 13818515084
Web: www.bp-light.com
Похожие товары

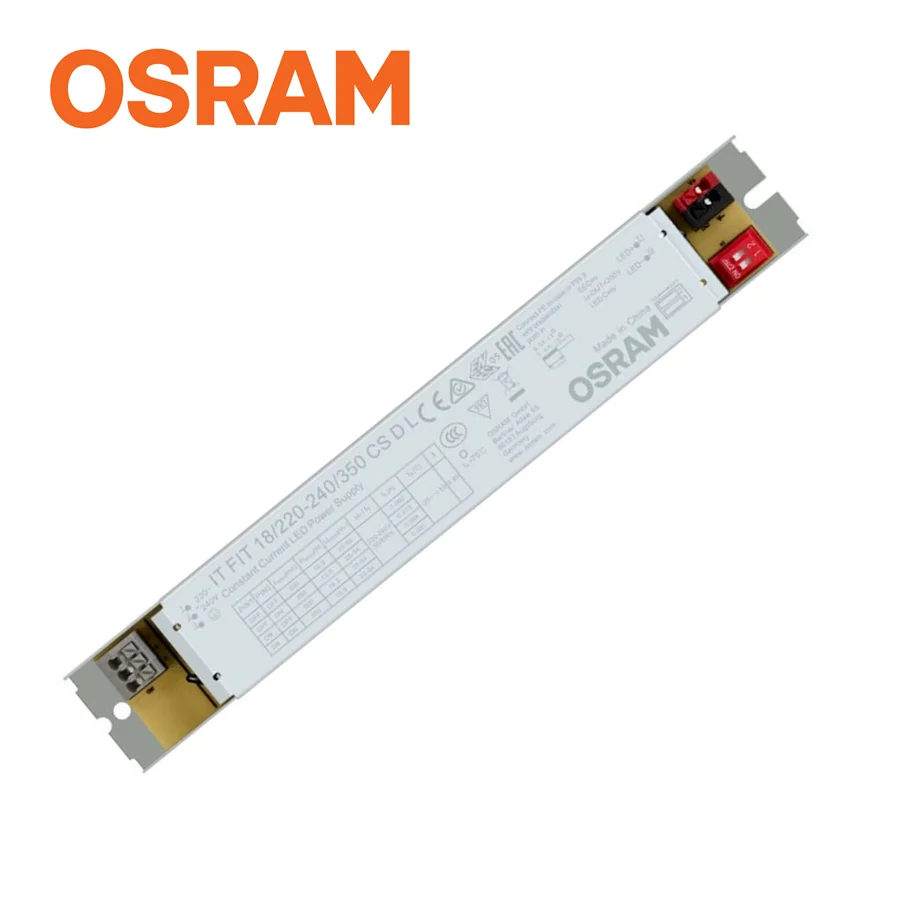

Привод Osram, подходит для SELV 5-летних, 18 Вт, 40 Вт, 60 Вт, 75 Вт, 120 Вт, железный корпус, линейный привод

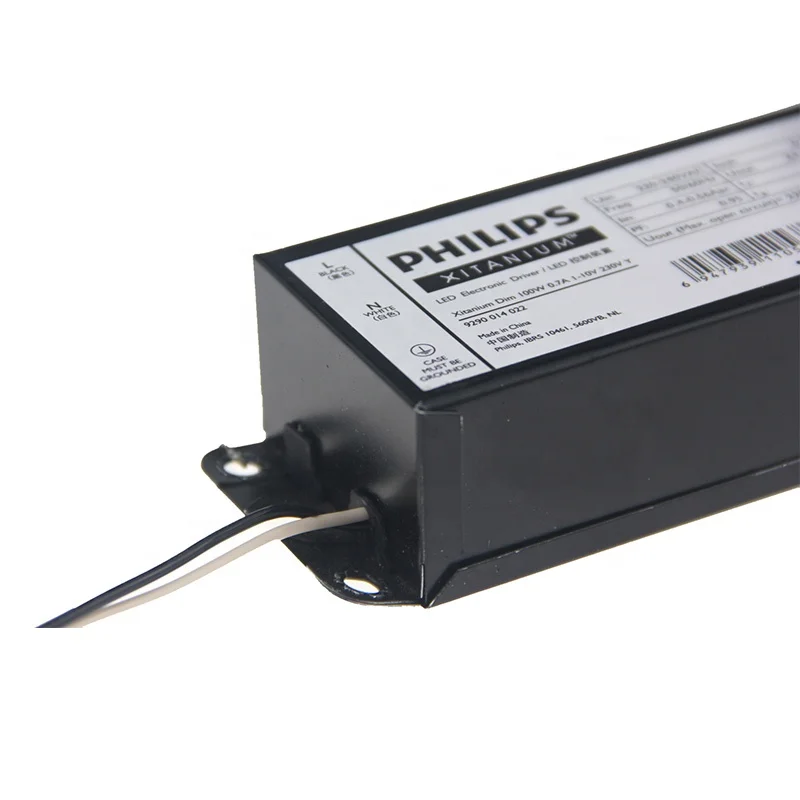

Xitanium 100W 0.7A 1-10V 230V Y-sXt 929001402280
929003458506 Xi FP 150W 0,3-1.0A SNLDAE 230V S240 sXt

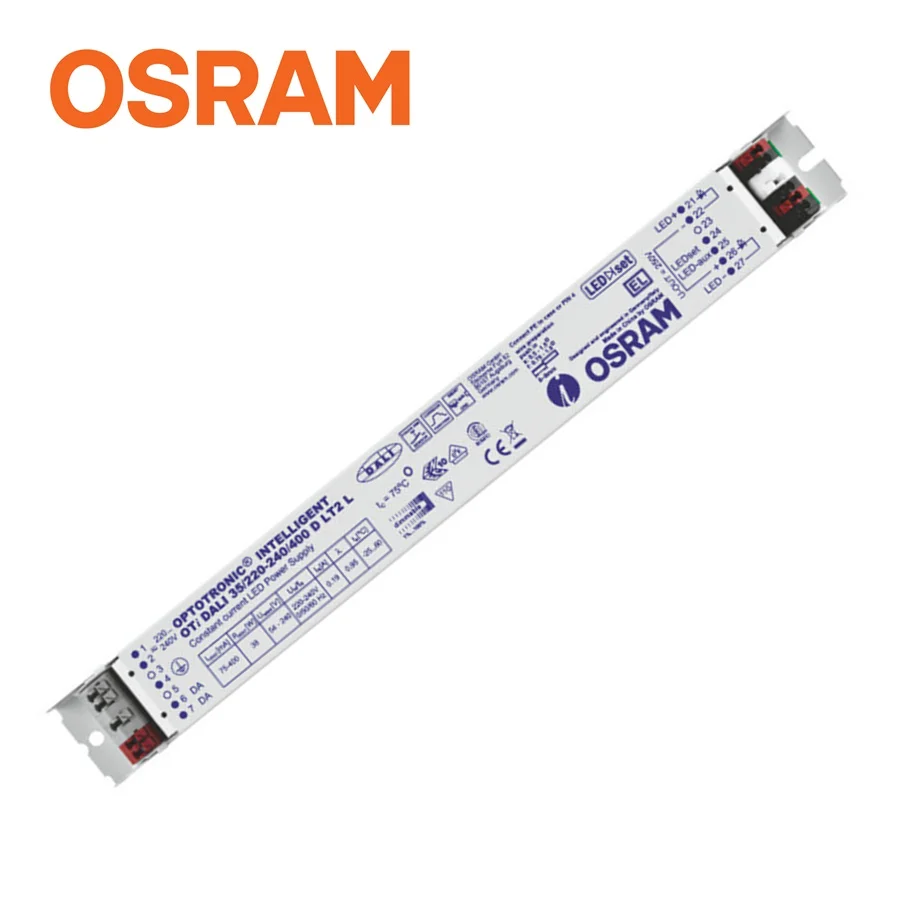

Osram привод OTi DALI Non SELV 5-летний 35 Вт 60 Вт 90 Вт Железный линейный привод

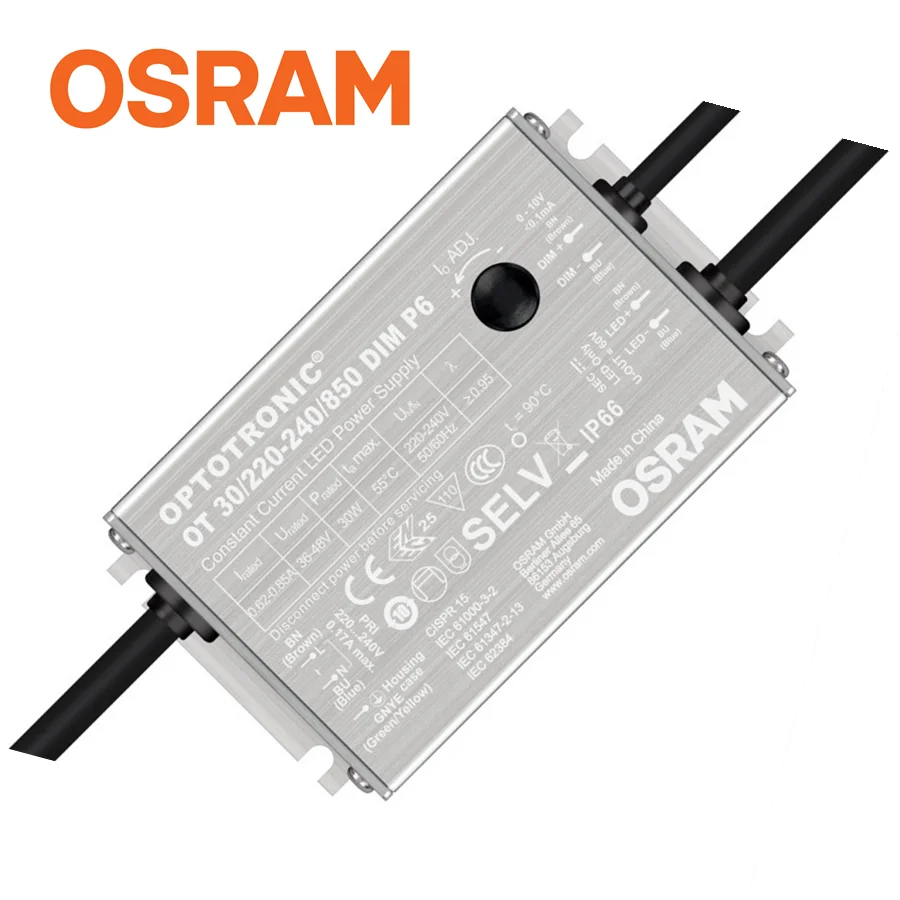

Osram DIM P7 0-10 В уличный IP67 постоянный ток 30 Вт 50 Вт 60 Вт 100 Вт 150 Вт 200 Вт

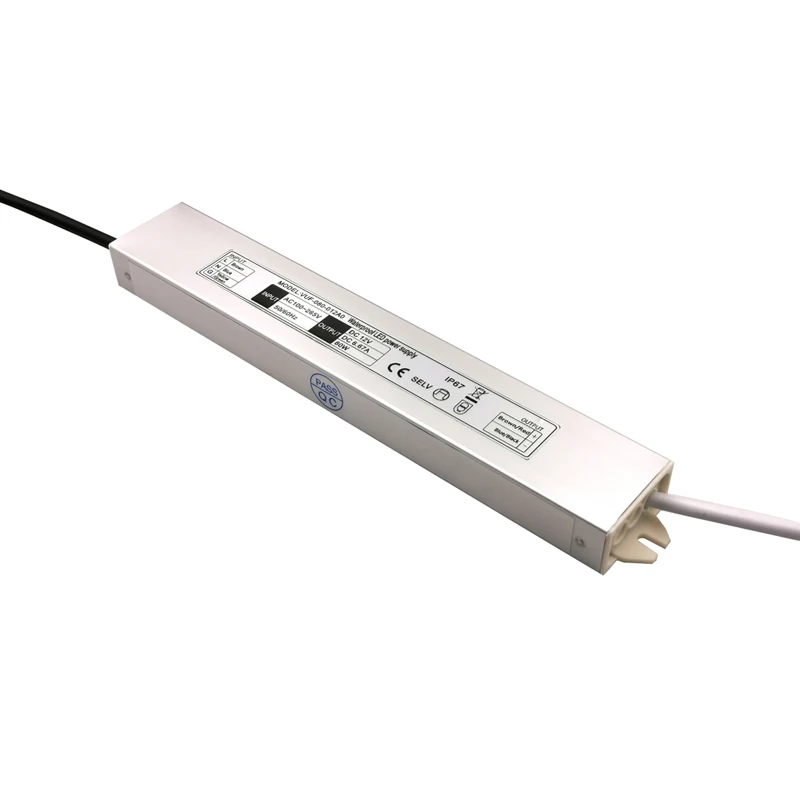

Источник питания CE ERP EMC без диммируемого светодиодного драйвера IP67 водонепроницаемый 100 ватт 24 В 12 В импульсный источник питания
