Сварочный аппарат производитель сварочный портативный 5 в 1
2 476,51 ₽ - 2 773,69 ₽
160 мм pe трубы стыковой сварки машина Ручное Оборудование
- Категория: >>>
- Поставщик: Qingdao Polyfusion Machinery Co. Ltd.
Сохранить в закладки 1601254084672:
Описание и отзывы
Характеристики
160mm pe pipe butt fusion welding machine manual equipment
Removable PTFE coated heating plate withseparate temperature control system.
Be made of light weight and high strengthmaterial; simple structure, small and exquisite easily use
Suitable for welding of plastic pipes and fittings made of PE, PP, PPR and PVDF, canbe operated in any complex work condition
Consists of basic frame, planning tool, heating plate and support (for planning tool and heating plate)
Self lock system, single-person operation, suitable for use in different construction situations.
Be made of light weight and high strengthmaterial; simple structure, small and exquisite easily use
Suitable for welding of plastic pipes and fittings made of PE, PP, PPR and PVDF, canbe operated in any complex work condition
Consists of basic frame, planning tool, heating plate and support (for planning tool and heating plate)
Self lock system, single-person operation, suitable for use in different construction situations.

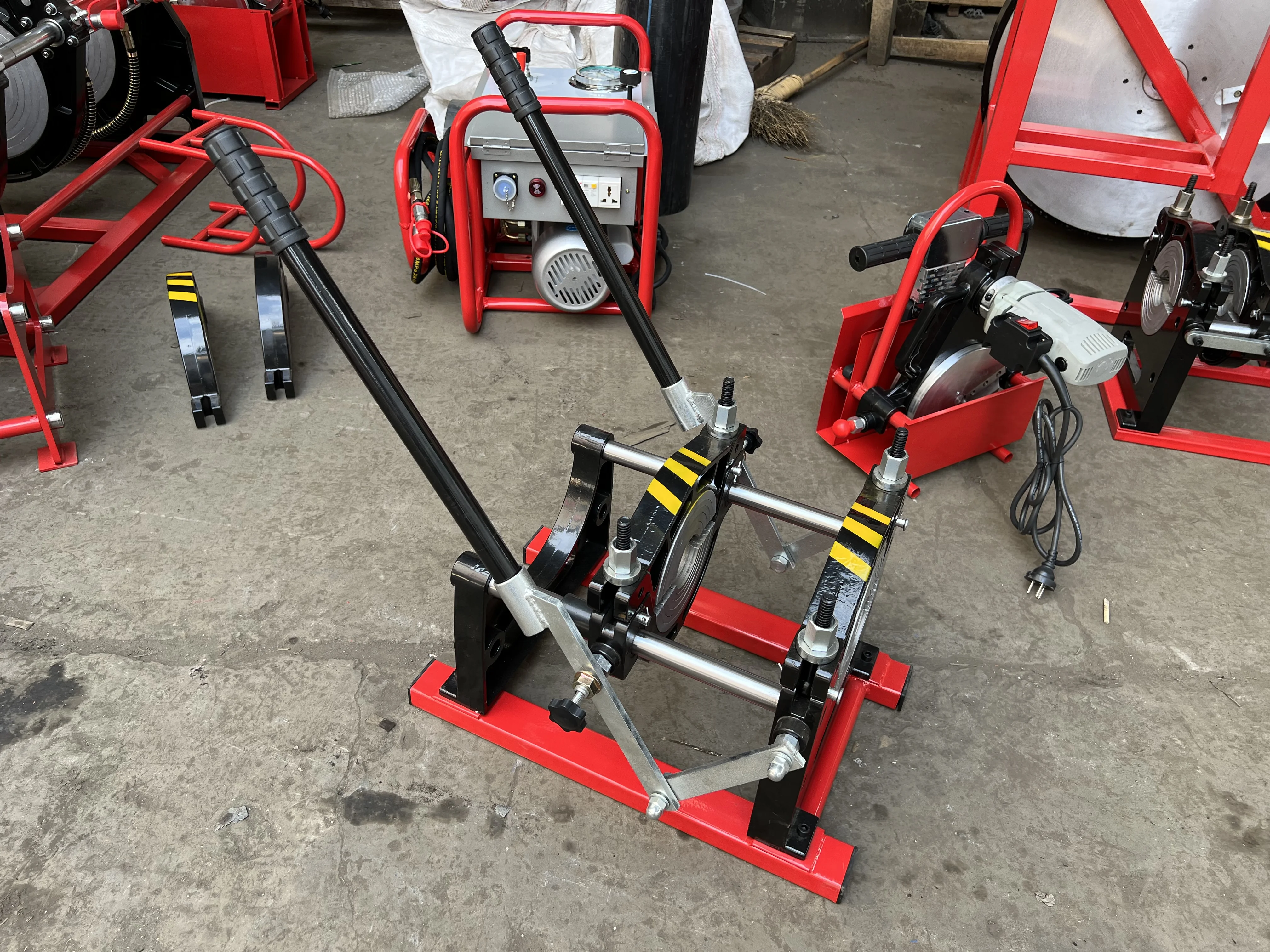

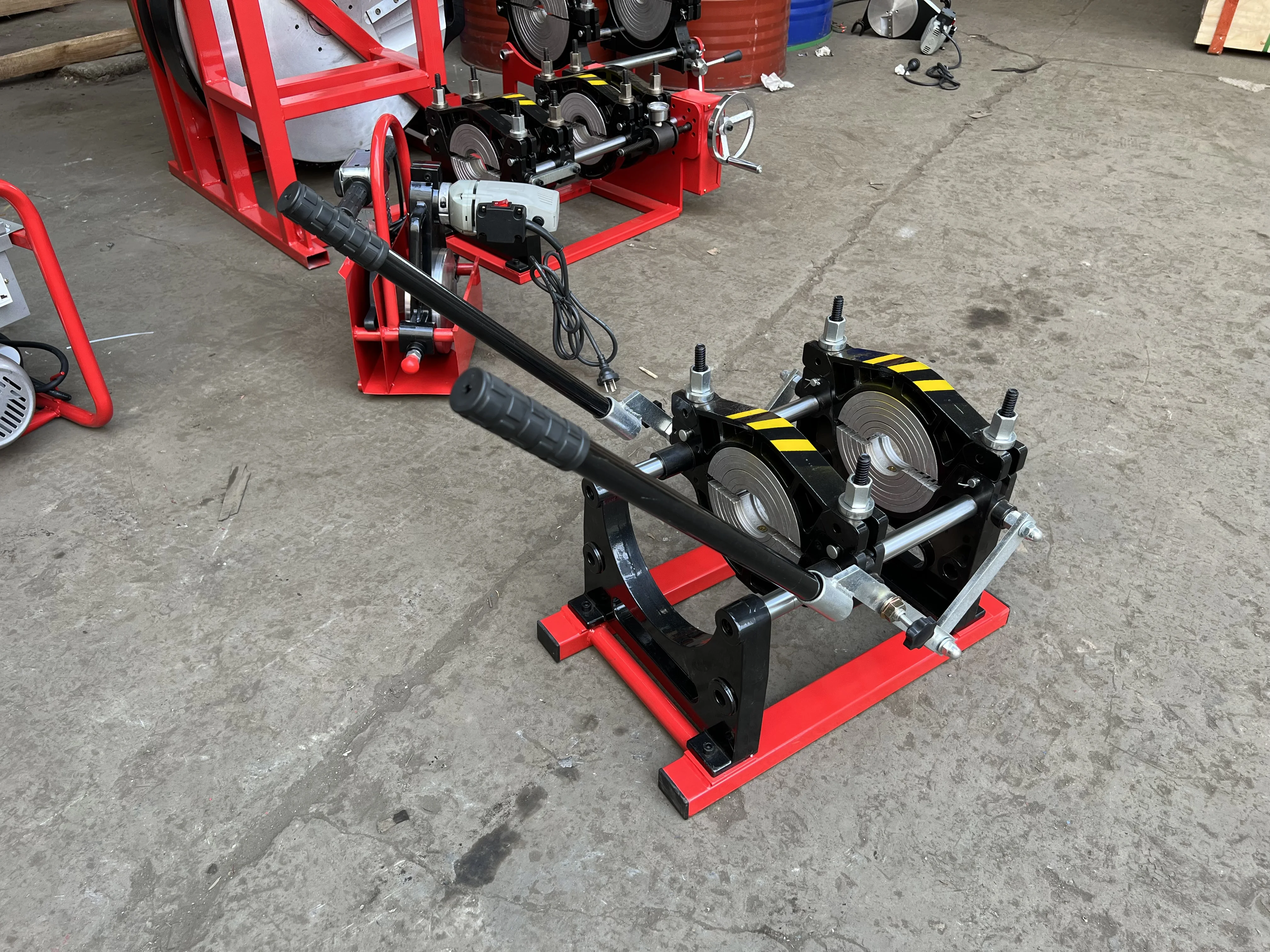

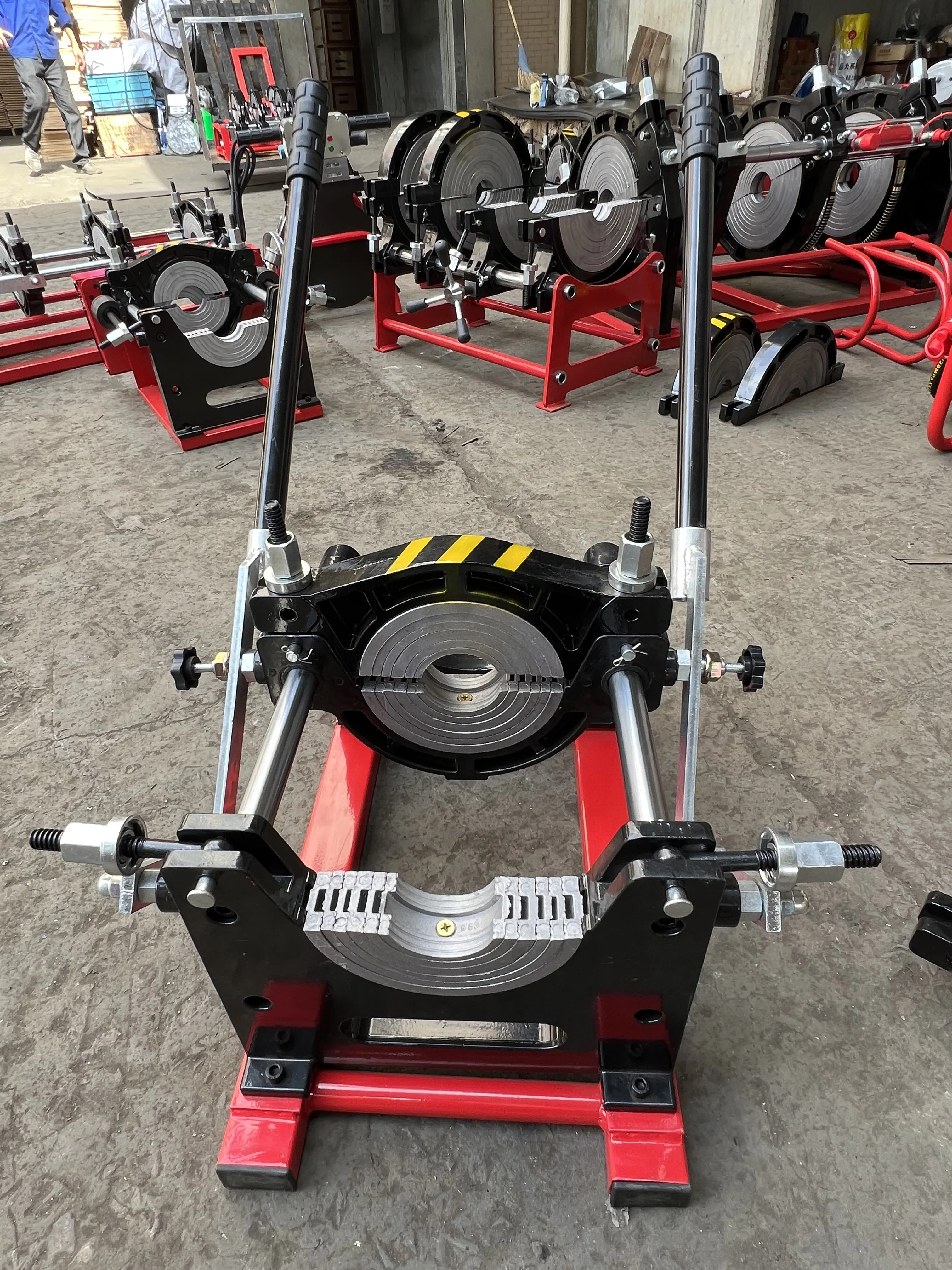

Basic Frame
The basic frame support the plastic pipes or fittings by two fixed and two movable clamps.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and
supply the necessary movement for the welding process.
A heating plate separator is installed on the basic frame, after the heating plate heats the pipe, the heating plate and the pipe can be separated well.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and
supply the necessary movement for the welding process.
A heating plate separator is installed on the basic frame, after the heating plate heats the pipe, the heating plate and the pipe can be separated well.

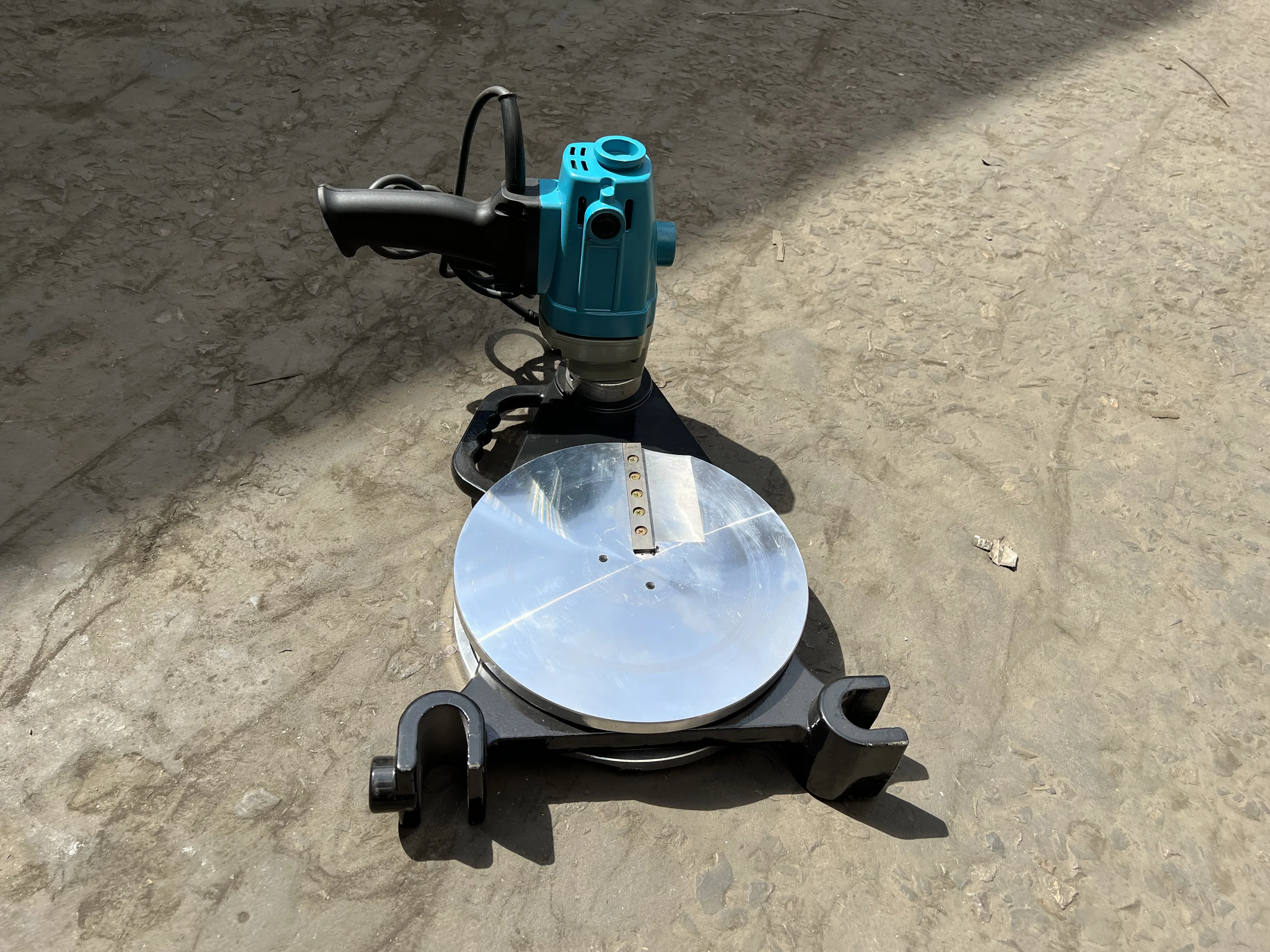

Planning Tool
The planning Tool is the tool which clean and smooth the both ends of the pipes before the heating process.
There is an emergency stop switch on the planning tool. If a wrong operation occurs during construction, the emergency stop switch can be directly used to stop the operation.
The planning tools are driven by gears to avoid chain breaks when milling thick pipes.
PF1000 butt welding machine is designed for self aligning facer always produces parallel pipe faces.
Connect the planning tool and the electric unit with the hualun brand plug (with CE certificate), which is easy to operate and not easy to wear.
There is an emergency stop switch on the planning tool. If a wrong operation occurs during construction, the emergency stop switch can be directly used to stop the operation.
The planning tools are driven by gears to avoid chain breaks when milling thick pipes.
PF1000 butt welding machine is designed for self aligning facer always produces parallel pipe faces.
Connect the planning tool and the electric unit with the hualun brand plug (with CE certificate), which is easy to operate and not easy to wear.

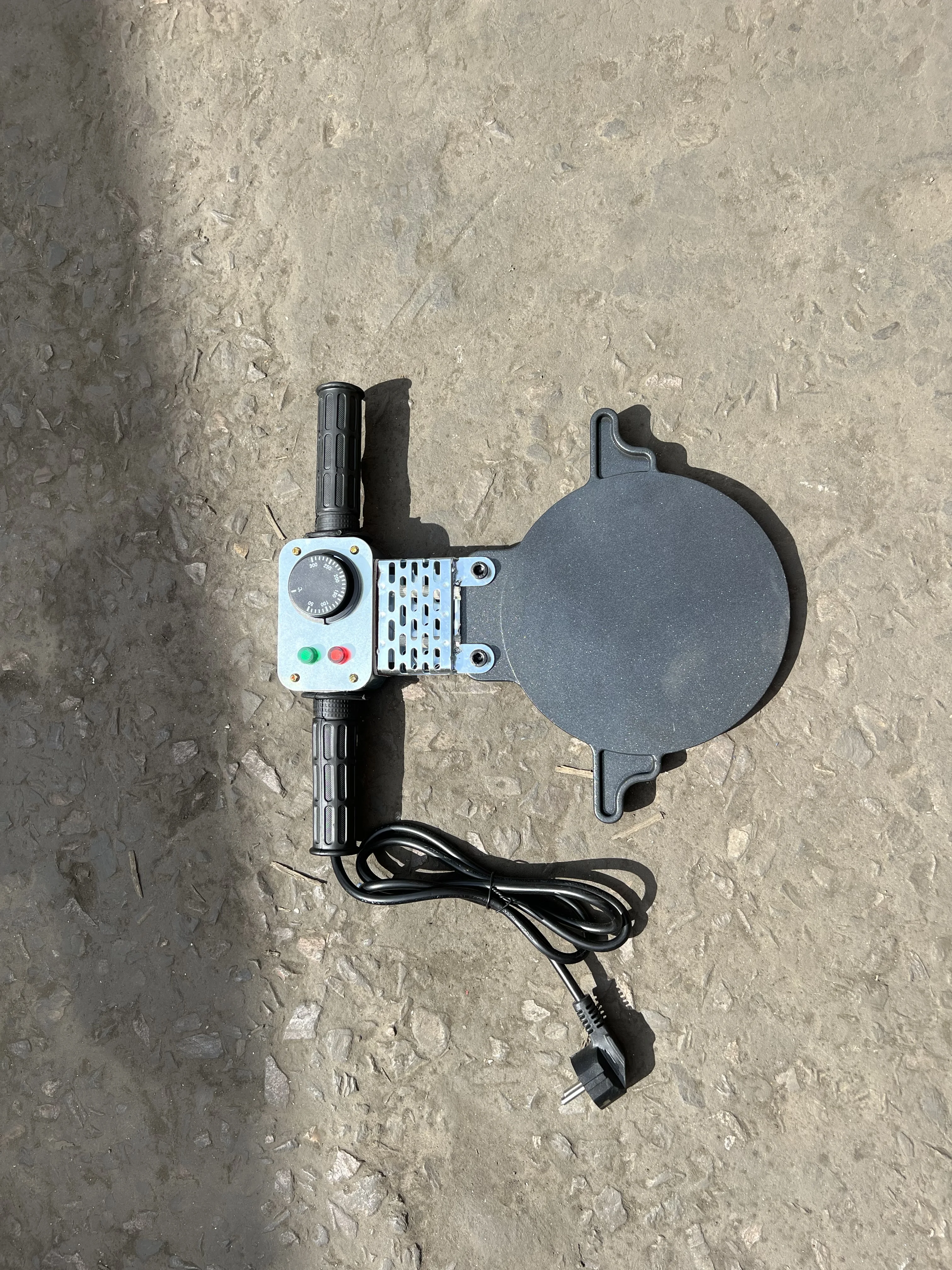

Heating Plate
The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates.
PF315 butt welding machine adopts PTFE-coated heating element imported from Japan, the Daikin brand, with uniform surface temperature. The heating plate is connected to the sensor of PT100, which can be directly connected to the data logger.
Socket Connector: Hualun brand. High-quality material, insulation and flame retardant, CE certification, can quickly connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage).
PF315 butt welding machine adopts PTFE-coated heating element imported from Japan, the Daikin brand, with uniform surface temperature. The heating plate is connected to the sensor of PT100, which can be directly connected to the data logger.
Socket Connector: Hualun brand. High-quality material, insulation and flame retardant, CE certification, can quickly connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage).
Model | PFT160-2C | PFT200-2C | |||
Welding Range （mm） | 40 50 63 75 90 110 125 140 160 | 40 50 63 75 90 110 125 140 160 180 200 | |||
Heating Plate Max.Temperature | 270 ℃ | ||||
Temperature Deviation in Surface | ≤±5℃ | ||||
Working Voltage | 220V,50/60HZ | ||||
Total Power | 1.71KW | 2.31KW | |||
Heating Plate Power | 1.0KW | 1.6KW | |||
Planning Tool Power | 0.71KW | 0.71KW | |||
Digital heating plate | OPTIONAL | OPTIONAL | |||
Pressure Adjustable Ranges | 0-6.3MPA | 0-6.3MPA | |||
Weight | 40KG | 50KG | |||
Package | 1 WOODEN BOX/0.13CBM | 1 WOODEN BOX/0.15CBM | |||
Data Logger Port | OPTIONAL | OPTIONAL | |||
About us
Pipelines conveying energy and water are the world's lifelines. Just like the veins in the human body, they guarantee that warmth, fuels and life bring fluids reach their recipients-an important contribution to the overall quality of human life.
Qingdao Polyfusion Machinery has been supporting all those whose daily work helps not only to ensure that these lifelines reach more and more people, but also to maintain them in an excellent condition: by supplying innovative and reliable highest quality hdpe pipe machinery, tools and accessories that can be found in the hands of excellent skilled craftsmen and on construction sites all around the global.
Qingdao Polyfusion Machinery Co., Ltd. Is the leader manufacturer of butt fusion equipment in China. We specializes in the supply of a full range of butt fusion welding machines from 40mm to 3000mm & 2 inch to 100 inch, electrofusion machines, workshop fitting welding machines, pipe saws, CNC plastic sheet welding machines, ppr welding machine, hdpe fittings and pipe tools with 10 years experience.
We have the certificate of ISO9001 and CE, BV, SGS and CNAS approval with the strength of service, good quality and pretty competitive price. Customers’ biggest benefit is our goal, machine’s quality is the life of our company. By many years of growth, we have our best partners in the world. Including Vietnam, Thailand, Philippines, Indonesia, India, Russia, South Africa, Mexico, Chile, Peru, Brazil, the United States and so on. Our company has an annual turnover of $5 million.
We have the concept ”Customer First, Quality Foremost”, we sincerely welcome all friends visit and co-operation.
Qingdao Polyfusion Machinery has been supporting all those whose daily work helps not only to ensure that these lifelines reach more and more people, but also to maintain them in an excellent condition: by supplying innovative and reliable highest quality hdpe pipe machinery, tools and accessories that can be found in the hands of excellent skilled craftsmen and on construction sites all around the global.
Qingdao Polyfusion Machinery Co., Ltd. Is the leader manufacturer of butt fusion equipment in China. We specializes in the supply of a full range of butt fusion welding machines from 40mm to 3000mm & 2 inch to 100 inch, electrofusion machines, workshop fitting welding machines, pipe saws, CNC plastic sheet welding machines, ppr welding machine, hdpe fittings and pipe tools with 10 years experience.
We have the certificate of ISO9001 and CE, BV, SGS and CNAS approval with the strength of service, good quality and pretty competitive price. Customers’ biggest benefit is our goal, machine’s quality is the life of our company. By many years of growth, we have our best partners in the world. Including Vietnam, Thailand, Philippines, Indonesia, India, Russia, South Africa, Mexico, Chile, Peru, Brazil, the United States and so on. Our company has an annual turnover of $5 million.
We have the concept ”Customer First, Quality Foremost”, we sincerely welcome all friends visit and co-operation.
