Оборудование для фракционирования пищевого масла промышленные заводы по переработке оборудование переработки растительного Бангладеш
3 305 639,50 ₽
Автоматическая машина для производства кунжутного масла канолы/машина прессования подсолнечного кокосового арахиса
- Категория: >>>
- Поставщик: Henan Hengyong Mechanical Equipment Co. Ltd.
Сохранить в закладки 1601254488128:
Описание и отзывы
Характеристики
Product Description

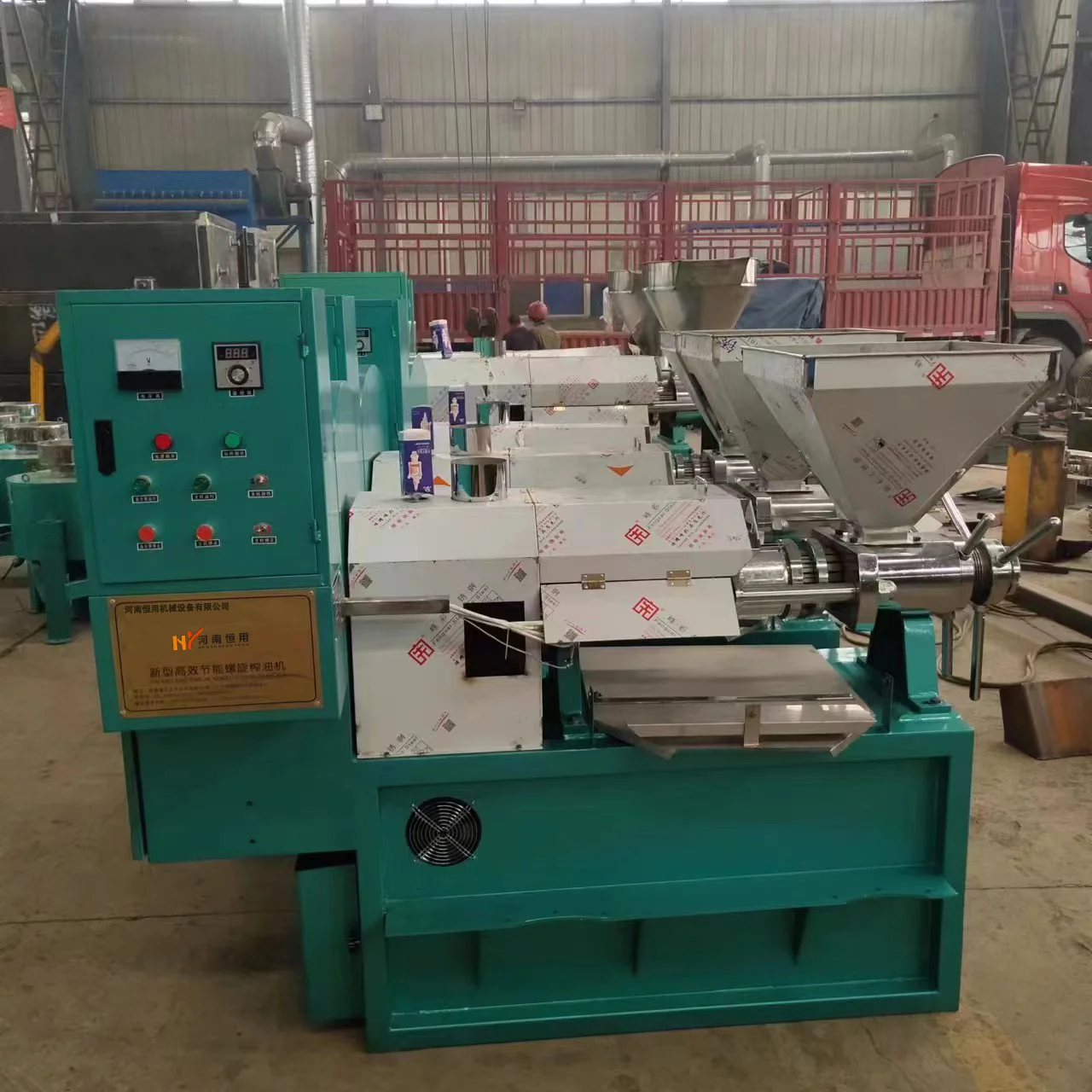

Automatic oil press Description:
This oil press is composed of five parts: automatic control part, heating press part, adjustment part, transmission part and vacuum oil filter.
1, automatic control system: air switch, AC contactor, temperature controller, circuit automatic protection system, etc.
2, the heating press part is composed of heater, press screw and press strip, body assembly, etc.
3, the transmission part by the main shaft and gearbox, pulley, motor wheel, etc.
4, the adjustment part is composed of adjusting screw, adjusting nut, child handle, locking nut, etc.
5, the vacuum oil filter part is composed of vacuum pump, oil filter barrel pipeline assembly.
Customer purchase instructions:
1. Communicate your requirements with customer service when purchasing
2, whether it is necessary to install vacuum oil filter and material elevator
3, the model you need and the capacity per hour
This oil press is composed of five parts: automatic control part, heating press part, adjustment part, transmission part and vacuum oil filter.
1, automatic control system: air switch, AC contactor, temperature controller, circuit automatic protection system, etc.
2, the heating press part is composed of heater, press screw and press strip, body assembly, etc.
3, the transmission part by the main shaft and gearbox, pulley, motor wheel, etc.
4, the adjustment part is composed of adjusting screw, adjusting nut, child handle, locking nut, etc.
5, the vacuum oil filter part is composed of vacuum pump, oil filter barrel pipeline assembly.
Customer purchase instructions:
1. Communicate your requirements with customer service when purchasing
2, whether it is necessary to install vacuum oil filter and material elevator
3, the model you need and the capacity per hour
Scope of applicationand oil yield:
soybean peanut sunflower seeds flaxseed olive oil camellia seeds palm and other oil crops。
Specification
name | Automatic screw oil press | ||||||||
model | HY-L60 | HY-L100 | HY-L120 | HY-L130 | HY-L150 | ||||
power | 3kw | 7.5kw | 11kw | 15kw | 30kw | ||||
Heater power | 0.9kw | 2.0kw | 2.0kw | 2.8kw | 4.5kw | ||||
processing capacity（kg/h） | 30-60 | 120-160 | 260-300 | 350-400 | 550-650 | ||||
vacuum pump（kw） | 0.5 | 1.1 | 1.1 | 1.5 | 2.5 | ||||
Weight（Kg） | 280 | 780 | 1100 | 1280 | 1500 | ||||
size（mm） | 1200*780*1100 | 1700×1200×1500 | 1800×1300×1680 | 2100×1400×1700 | 2100×1300×1600 | ||||
Related supporting equipment：
Matching purchases are more favorable
Company Profile
The machinery and equipment produced by our company are very popular in many fields in China, and are sold to Southeast Asia,Africa, the Middle East, Europe, South America and other countries.Rigorous processing technology, high-quality quality.Hengyong Machinery is your most reliable supplier.
We are looking for overseas distributors with very attractive prices, welcome your inquiry, you will get very valuable information and bring more returns for your company.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Photos
Certifications
FAQ
Why choose us?
1. We are a professional manufacturer of food machinery and equipment.
2. We have a standardized physical and chemical laboratory, an excellent design team, and a complete production process (cutting workshop, heat treatment workshop, pressing workshop, forging workshop, finishing workshop, grinding workshop, installation workshop).
How do we control our quality?
1. Strictly follow the design process flow for production and processing.
2. The raw materials must pass the mechanical property test and chemical composition test.
3. Parts are subject to hardness testing and vernier caliper testing.
4. Each weld needs to be tested by ultrasonic flaw detection
5. Each piece of equipment undergoes factory inspection and acceptance of the whole machine.
What products can you buy from me?
Oil press and supporting equipment, oil pressing production line, frying equipment and supporting equipment, fried food production line, distillation and concentration extraction equipment and technical support, mixer, mixing tank, storage tank, various packaging machines, filling machines, capping machine, labeling machine, sterilization equipment, beer juice, beverage production line.
What services can we provide?
1. 6-12 months warranty policy
2. Track the order until you receive the goods
3. Accepted payment currencies: USD, EUR, HKD, RMB
4. 24-hour online service
1. We are a professional manufacturer of food machinery and equipment.
2. We have a standardized physical and chemical laboratory, an excellent design team, and a complete production process (cutting workshop, heat treatment workshop, pressing workshop, forging workshop, finishing workshop, grinding workshop, installation workshop).
How do we control our quality?
1. Strictly follow the design process flow for production and processing.
2. The raw materials must pass the mechanical property test and chemical composition test.
3. Parts are subject to hardness testing and vernier caliper testing.
4. Each weld needs to be tested by ultrasonic flaw detection
5. Each piece of equipment undergoes factory inspection and acceptance of the whole machine.
What products can you buy from me?
Oil press and supporting equipment, oil pressing production line, frying equipment and supporting equipment, fried food production line, distillation and concentration extraction equipment and technical support, mixer, mixing tank, storage tank, various packaging machines, filling machines, capping machine, labeling machine, sterilization equipment, beer juice, beverage production line.
What services can we provide?
1. 6-12 months warranty policy
2. Track the order until you receive the goods
3. Accepted payment currencies: USD, EUR, HKD, RMB
4. 24-hour online service
