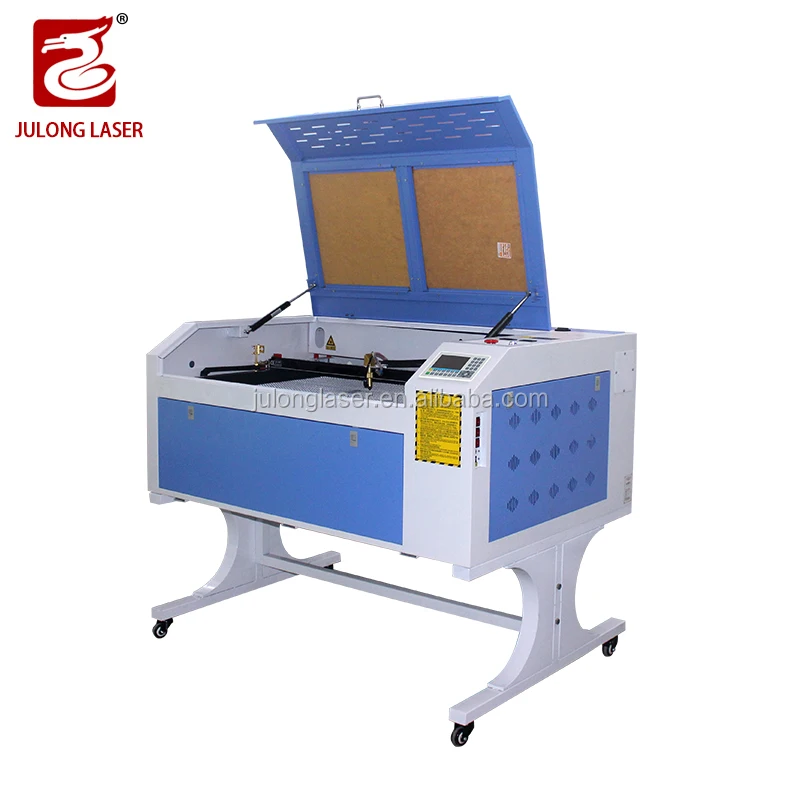

6090 Co2 лазерный резак гравер для горячей продажи может гравировка и резка акрила кожи войлока бамбука дерева
104 563,56 ₽ - 143 086,97 ₽

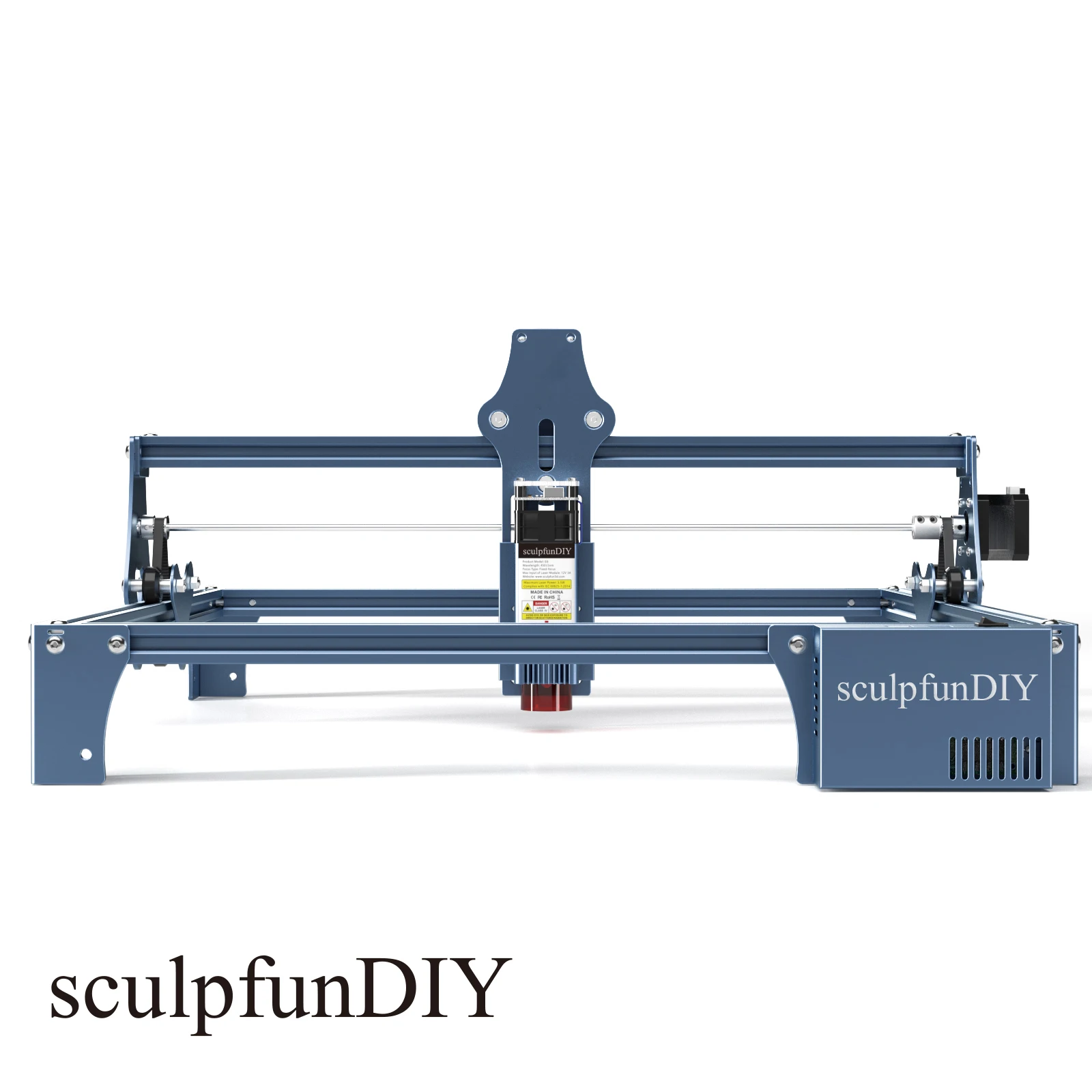

SCULPFUN S9 DIY Лазерный гравер лазерный гравировальный станок для металла и дерева
- Категория: >>>
- Поставщик: Shenzhen Sculpfun Technology Co. Ltd.
Сохранить в закладки 1601254658510:
Описание и отзывы
Характеристики
Products Description
Notes:sculpfunDIY only provide hardware and base drivers for operating system , the laser engraver support LaserGRBL ( free) , Lightburn(not free) and other similar edit software like Benbox, GrblController, LiteFire; Support Windows/Linux/Mac operating system.Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Product Model | sculpfunDIY S9 |
Engraving Size | 410*420mm |
Engraving Materials | Wood, Paper, Cardboard, Plastic, White, PCB Board, Aluminum Oxide, 304 Stainless Steel, Ceramic,Dark Stone |
Cutting Materials | Wood, Acrylic, Cardboard, Fabric, Bamboo, Plastic Board, KT Board |
Laser Effect Power | Cutting Effect Compared to 90W CO2 Laser |
Machine Electricity Power | 90W (It has nothing to do with cutting or engraving performance,just electricity consumes) |
Diode Laser Power | 5.5-6W (Please note that this is light energy and not electric energy) |
Laser Wave Length | 455±5nm |
Engraving Accuracy | 0.01mm |
Focusing Method | Fixed Focus Laser + Sliding Device |
Laser Protective Cover | The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot. |
Data Transmission Method | USB Connection |
Power Supply | International Universal Standard |
Power Input | 100-240V AC, 50/60HZ |
Power Output | 12V 5A |
Equipment Net Weight | 3.0kg |
Package Weight | 4.4kg |
Packing Size | 615*345*130mm |
Certification | CE FCC RoHS IEC |
Details Images
Product packaging
1* | X axis assembly | 2* | Belt |
2* | X shaft | 1* | T-shaped M5 Screwdriver |
2* | Y shaft | 1* | L-shaped M4 Screwdriver |
1* | Control Box Module Set | 1* | L-shaped M3 Screwdriver |
3* | Support Feet | 10* | Tie |
1* | Laser Module Set | 1* | 8-10mm Nut Wrench |
1* | 12V 5A Power Adapter | 1* | Brush |
1* | Power Adapter | 1* | Laser Goggles |
1* | USB Cable | 1* | 10x10cm Wood Chip 3mm Thickness |
1* | A4 Size Steel Desktop Protection Pad | 1* | 10x10cm Wood Chip 10mm Thickness |
About Us
Shenzhen Sculpfun Technology Co., Ltd. is a company focusing on sculpture product. The company's sculpfunDIY brand is committed to creating the best household hobby engraving machine. We hope you can bring you and your family the fun of sculpting through our products. sculpfunDIY means "SCULPT YOUR FUN".
The company cooperates with China's top diode laser companies to conduct in-depth research on laser miniaturization and solutions to consumer sculpture needs. And in-depth cooperation with a number of laser research institutes for the future use of lasers, we keep researching how lasers can facilitate people's lives.
Our company's product S6/S6 Pro and S9/S10/S30 series laser engraving machines have been sold on major e-commerce platforms such as Amazon, eBay, AliExpress, and Banggood. It has been praised many times for "most comfortable", "Easy to use" "Extremely Solid"and "very capable" among users and testers around the world. There are detailed usage demonstrations on YouTube and other websites.
Our company attaches great importance to "customer first". On the one hand, we strive for the most comfortable customer experience. On the other hand, the factory strictly controls the production quality. Every machine will be tested and sent out to ensure consumer rights.
The company cooperates with China's top diode laser companies to conduct in-depth research on laser miniaturization and solutions to consumer sculpture needs. And in-depth cooperation with a number of laser research institutes for the future use of lasers, we keep researching how lasers can facilitate people's lives.
Our company's product S6/S6 Pro and S9/S10/S30 series laser engraving machines have been sold on major e-commerce platforms such as Amazon, eBay, AliExpress, and Banggood. It has been praised many times for "most comfortable", "Easy to use" "Extremely Solid"and "very capable" among users and testers around the world. There are detailed usage demonstrations on YouTube and other websites.
Our company attaches great importance to "customer first". On the one hand, we strive for the most comfortable customer experience. On the other hand, the factory strictly controls the production quality. Every machine will be tested and sent out to ensure consumer rights.
Certifications
CE
CE
ROHS
FCC
F
IEC
Production Process
Quality Control
Our Advantages
Features:

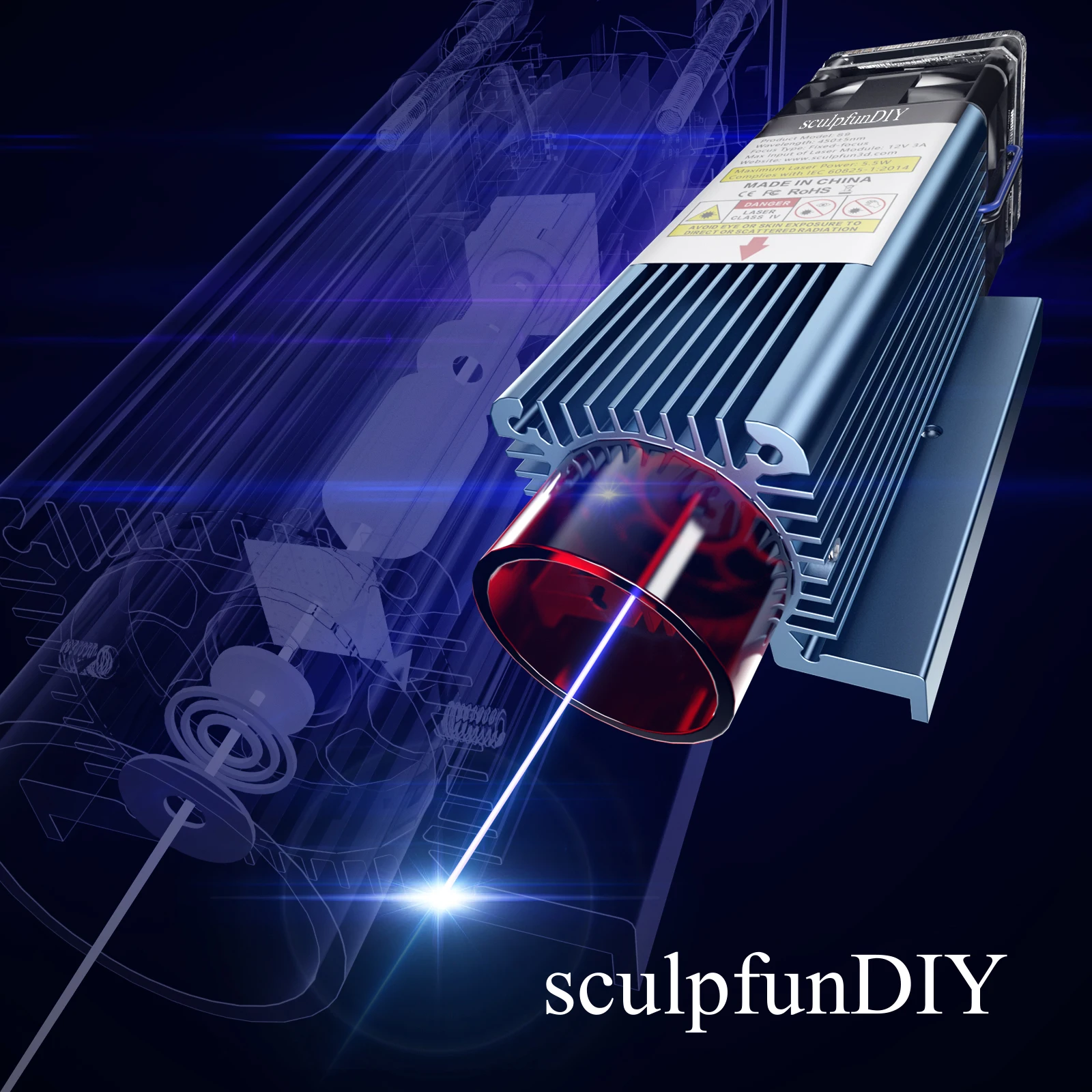

1. 90W Effect Laser Beam Shaping Technology:

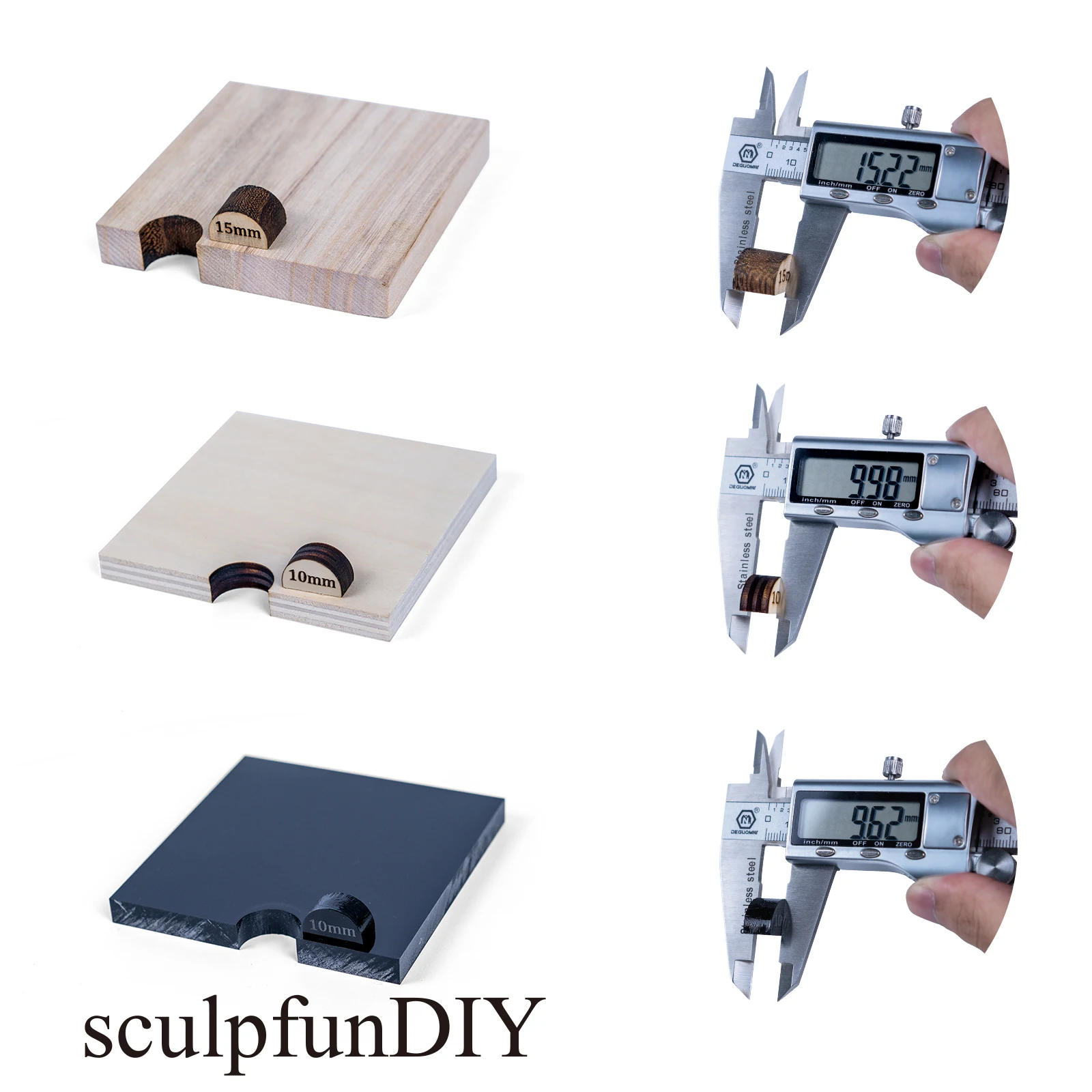

S9 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, this is almost beyond the effect of 90W CO2 laser.

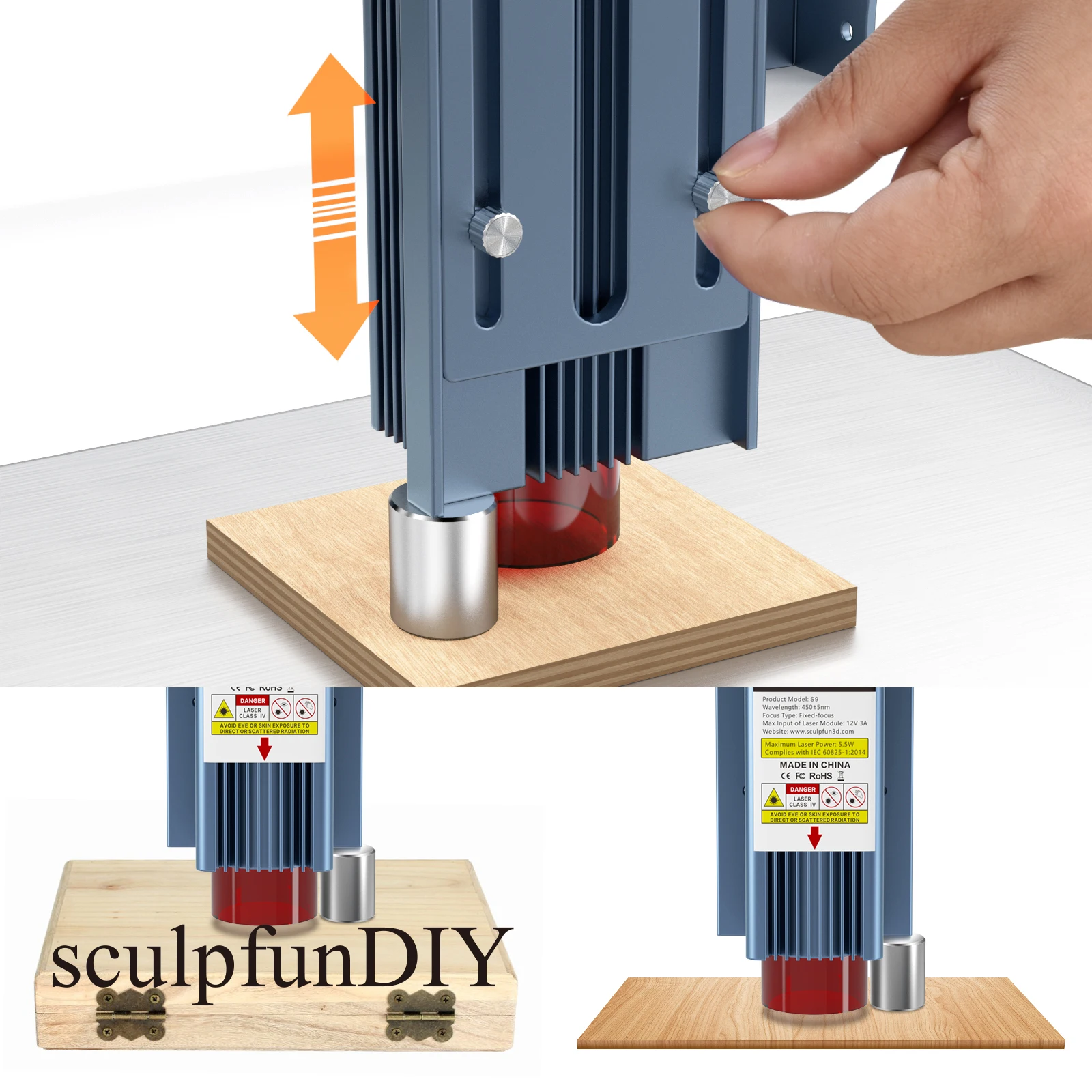

2. Fast Focusing Design:
2. Fast Focusing Design:

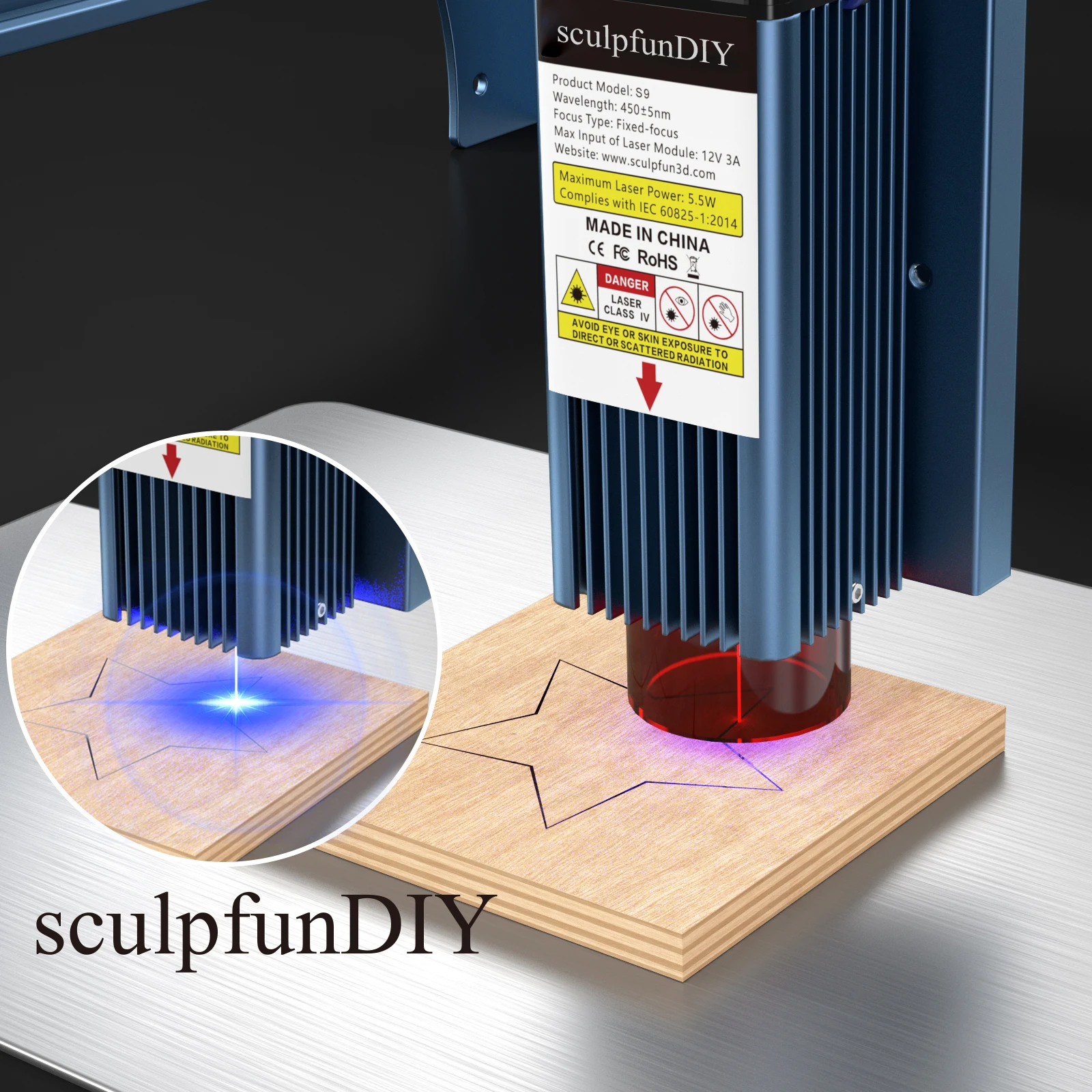

S9 has the fastest focus design. The S9 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use the laser .
3. Solid and Easy-assembly Structure Design:
3. Solid and Easy-assembly Structure Design:
The full-metal structure design makes the machine extremely solid, and it improves the accuracy of engraving. The whole structure is designed for easy-assembly, and the assembly can be completed in 10-20 minutes. The structural frame is very durable and remains open to upgrade. During use, you can keep the frame and replace with other new lasers. Or replace longer metal beams to expand the engraving area.
4. New Eye Protection Design:
4. New Eye Protection Design:
The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving without wearing goggles. At the same time it can prevent animals from catching the laser spot.
5. Wide Compatibility:
5. Wide Compatibility:
The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, Apple system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
6. Safe Design:
6. Safe Design:
The machine is equipped with a very convenient power switch, which is not available in others. Fixing holes are reserved on the four feet and the body structure to facilitate fixing the machine and the data cable.
7. A4 Steel Pad:
7. A4 Steel Pad:
The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
8. Square Measuring Ruler:
8. Square Measuring Ruler:
X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x420mm large-area engraving interval can meet your various engraving needs.
Note:
1. For detailed machine instructions, please refer to the manual for parameter settings.
2. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
3.Please do not touch the laser emitter with your hand, or it may burn your hand.
4.Please avoid strong impact on the machine.
5. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
6.The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
2. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
3.Please do not touch the laser emitter with your hand, or it may burn your hand.
4.Please avoid strong impact on the machine.
5. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
6.The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
Похожие товары
Лазерная гравировальная машина цена 900*600 мм лазерная горячая Распродажа резное стекло резина дерево
104 563,56 ₽ - 143 086,97 ₽
Большой формат 1530 Co2 лазерная резка гравировальный станок для неметаллической древесины акриловая фанера легко работать
394 039,51 ₽ - 406 146,87 ₽

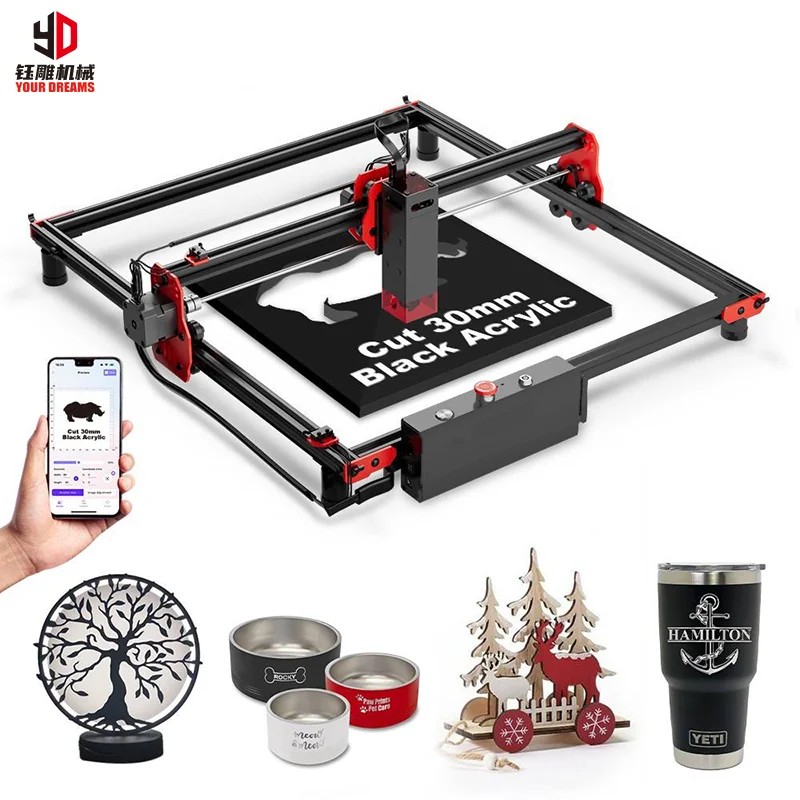

YD портативный лазерный станок мини-машины для малого бизнеса
17 060,37 ₽ - 17 610,71 ₽

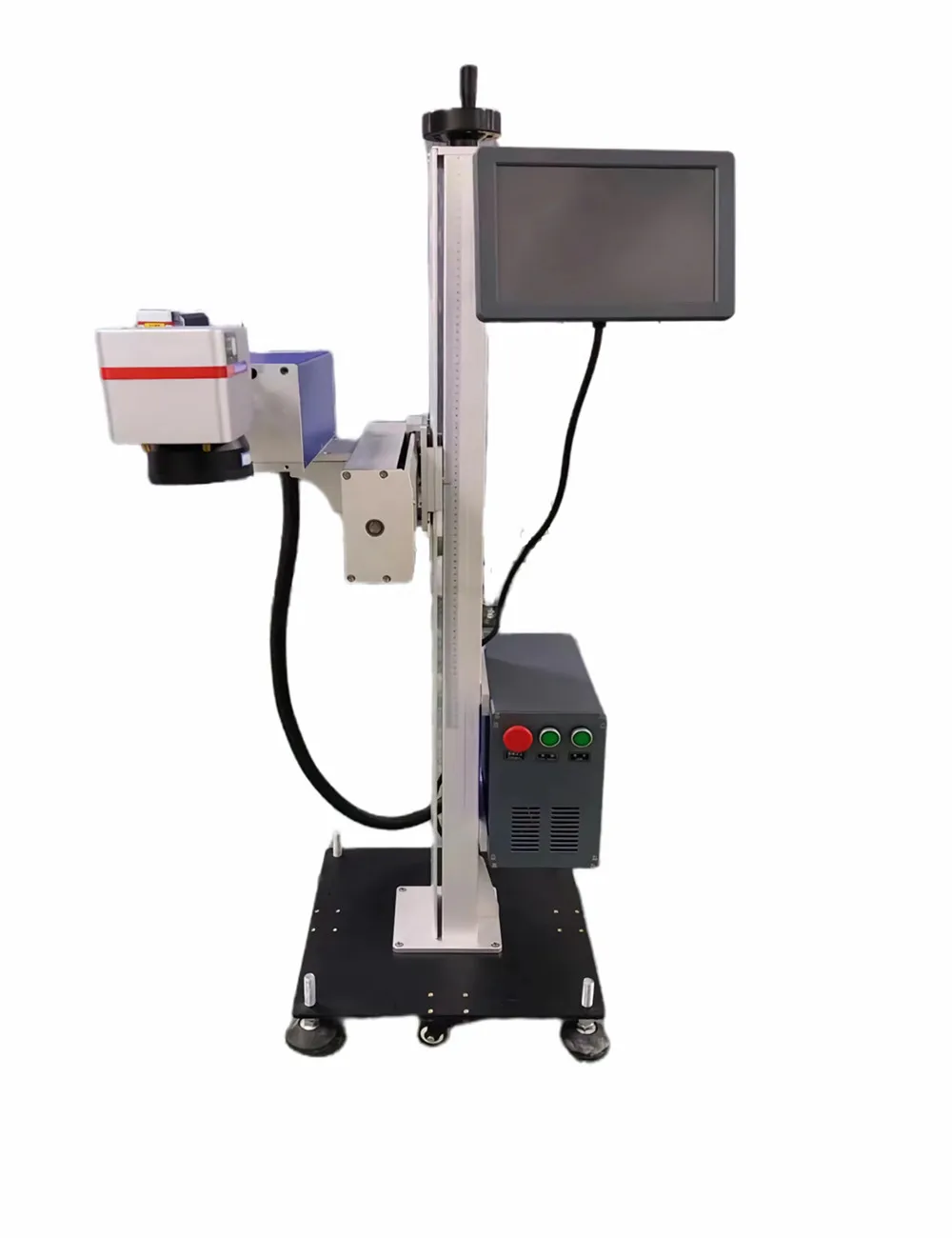

5 Вт УФ 3d летающие принтеры лазерный маркер производственная линия лазерная маркировка машины гравировка оборудование

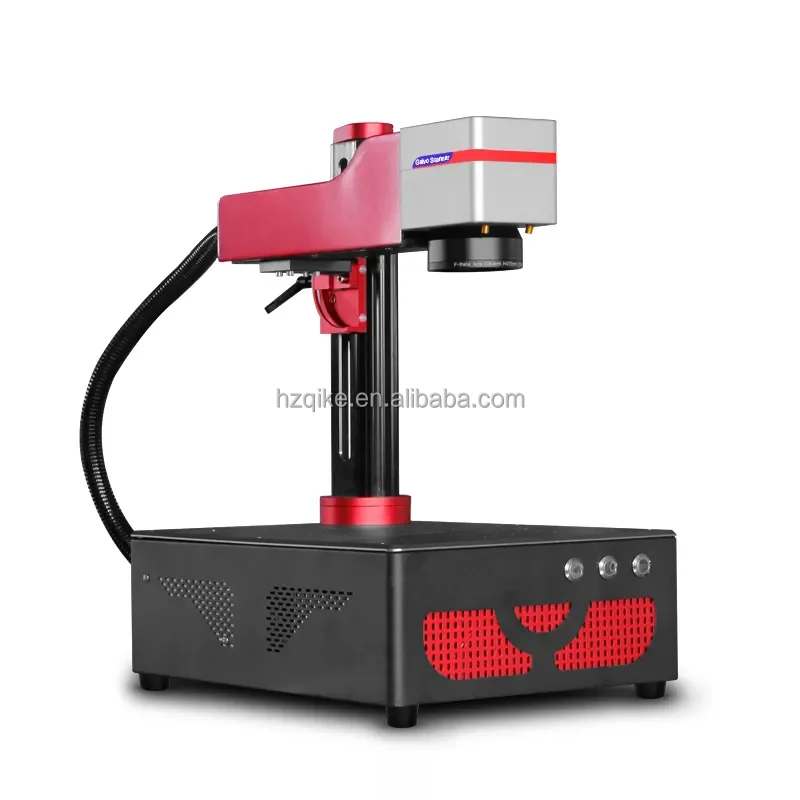

QK-F30D 20/30/50 Вт настольный мини волоконно-лазерный маркировочный станок гравировальный лазер по металлу
