Product Description
26, 28, 30mm Alluvial Gold Washing Carpet Portable Sticky Grass Mat Gravity Separation Gold Mining Sluice Box, 1*15 Meters/roll

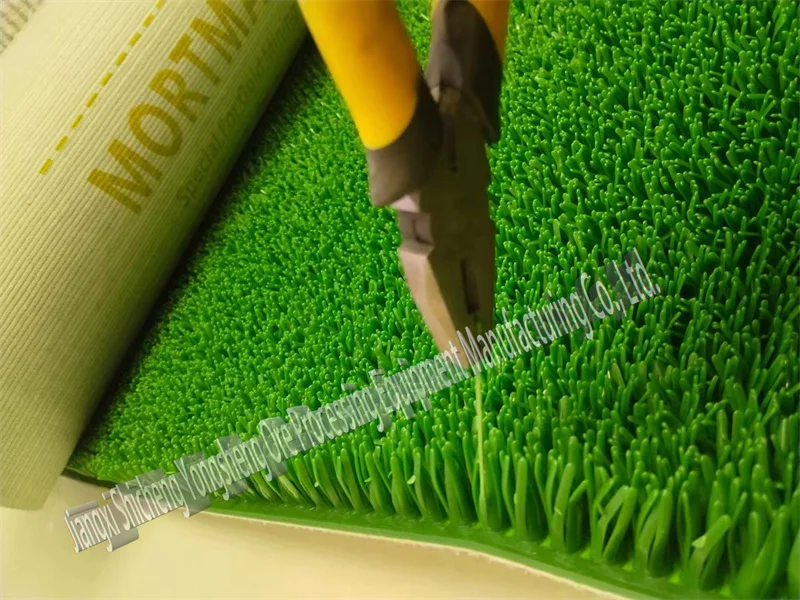

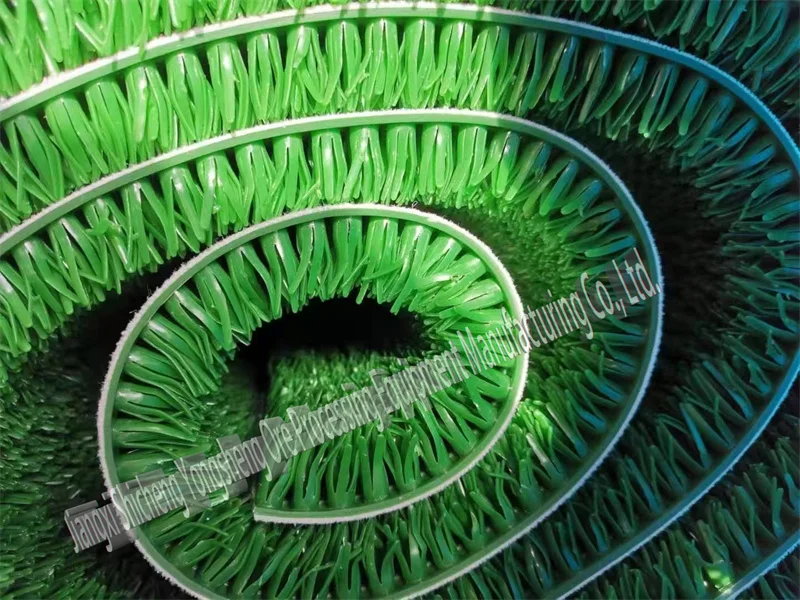

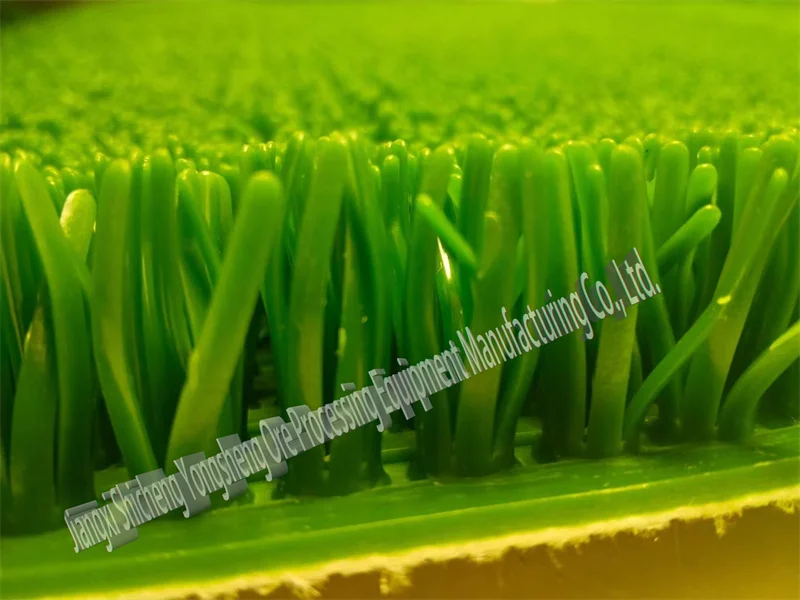

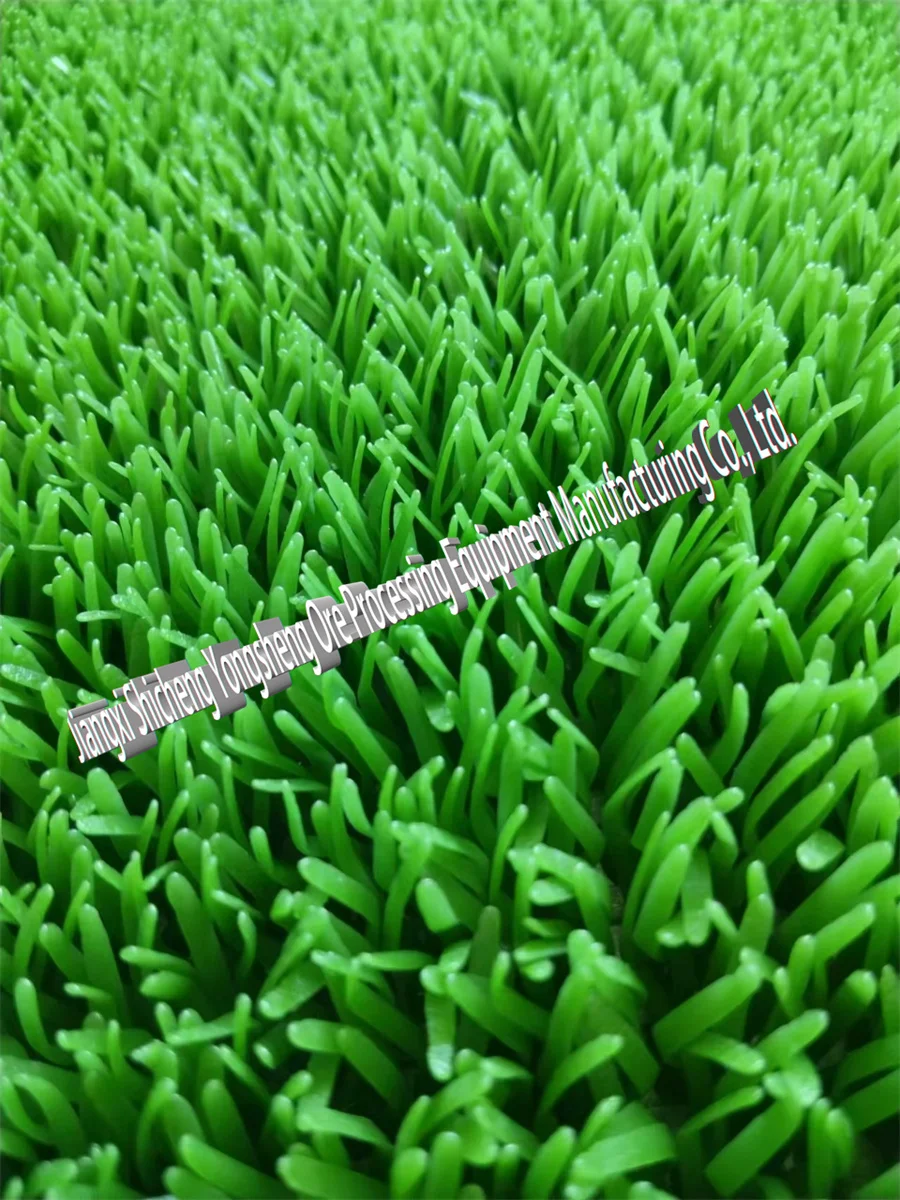

Materials of gold carpet mining use:
The surface material of green gold carpet is PE whose chemical name is polyethylene.
The back side material is PA which is also called polyamide.
The surface material of green gold carpet is PE whose chemical name is polyethylene.
The back side material is PA which is also called polyamide.
Item | 26mm, 30mm Miners Moss Gold Rush Grass for Gold |
Material | PE polyethylene |
Thickness | 26MM & 30MM (26mm is the most popular) |
Size | 1X15M |
Roll weight | 80-86KG/ROLL for 26mm, 96KG/ROLL for 30mm |
20 feet container | Load 50 rolls |
40HC container | Load 130 rolls |
Other Use
Brief Introduction

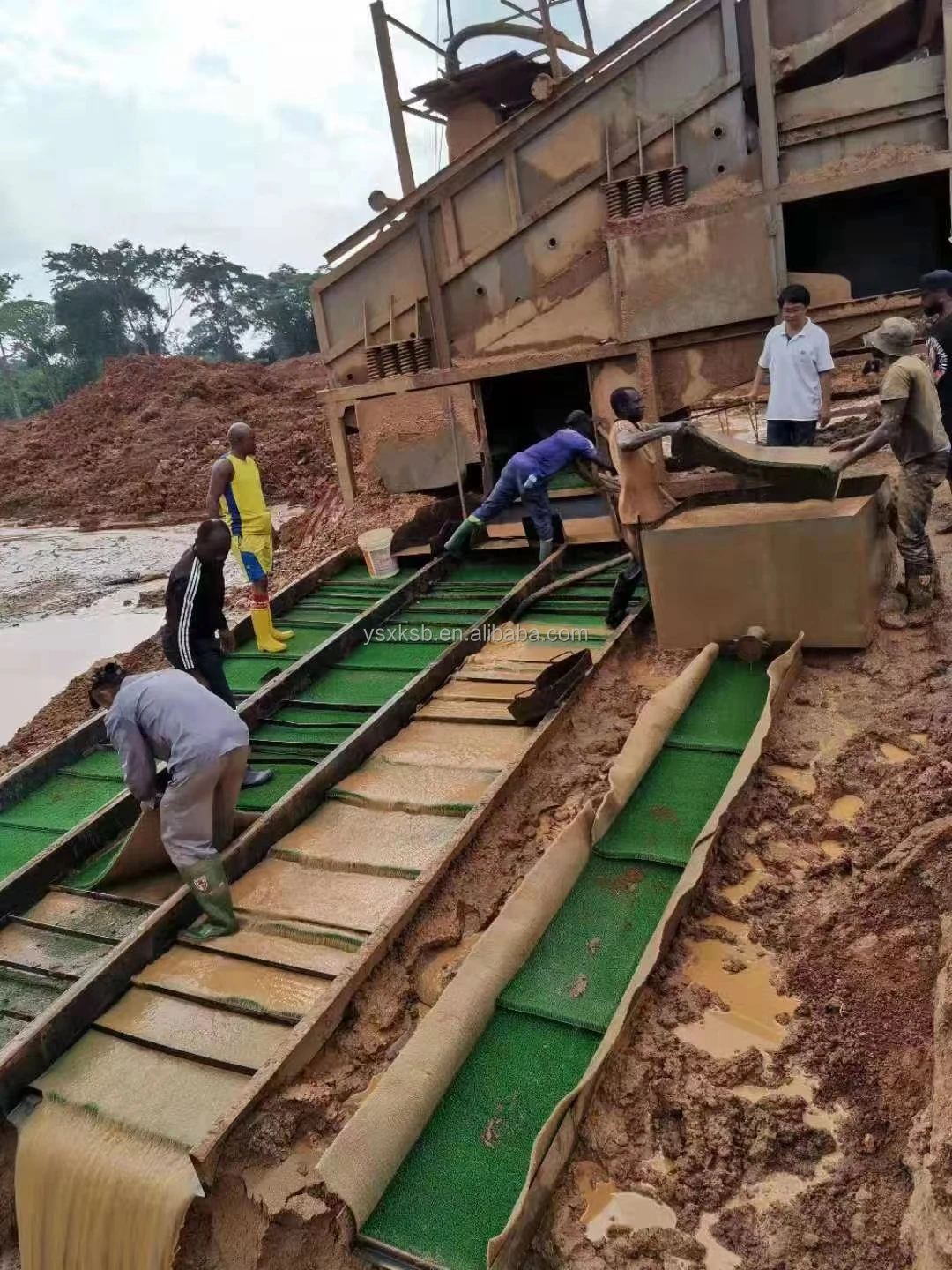

Carpet Sluice box is one of the most popular equipment for gold mining, which consist the steel structure and carpet. Sluice box is normally used in gold washing plant, it's been wildly used to recovery the placer gold directly together with trommel screen.
Advantage and Characteristics
1. Low price: compare to other machines, the price of sluice box is very very low.
2. Easy to install and operate: With a light weight, and small size, this equipment could be installed by hand, and the operation is very easy, after a certain time of feeding material, wash the concentrate inside the carpet, and then you can put the carpet back and continue the work.
3. Easy for maintenance: The only part need to service or change is the carpet, and the carpet is in a high quality, so the
service and maintenance is very easy.
4. Large capacity: A sluice box with 1000*4000MM could processing over 5 tons crude ore per hour. And we can offer a customize service to meet different requirements.
5. No power consumption: The sluice box no needs any power, which makes the operation very convenient.
6. Even gold carpet sluice has many advantages, but it can do nothing for fine gold, generally its gold recover rate is lower than 70%. Nowadays more and more miners use more advanced mining machines like fluctuate (vibrating) gold sluice, jig machine or centrifugal gold concentrator to get higher recovery.
Carpet Sluice box is one of the most popular equipment for gold mining, which consist the steel structure and carpet. Sluice box is normally used in gold washing plant, it's been wildly used to recovery the placer gold directly together with trommel screen.
Advantage and Characteristics
1. Low price: compare to other machines, the price of sluice box is very very low.
2. Easy to install and operate: With a light weight, and small size, this equipment could be installed by hand, and the operation is very easy, after a certain time of feeding material, wash the concentrate inside the carpet, and then you can put the carpet back and continue the work.
3. Easy for maintenance: The only part need to service or change is the carpet, and the carpet is in a high quality, so the
service and maintenance is very easy.
4. Large capacity: A sluice box with 1000*4000MM could processing over 5 tons crude ore per hour. And we can offer a customize service to meet different requirements.
5. No power consumption: The sluice box no needs any power, which makes the operation very convenient.
6. Even gold carpet sluice has many advantages, but it can do nothing for fine gold, generally its gold recover rate is lower than 70%. Nowadays more and more miners use more advanced mining machines like fluctuate (vibrating) gold sluice, jig machine or centrifugal gold concentrator to get higher recovery.
Main Technical Parameters of Carpet Sluice Box | ||
Model | 1000x5000 | |
Sluice length (mm) | 5000 | |
Sluice width (mm) | 1000 | |
Capacity (m3/h) | 2.5-6.25 | |
Feeding density (%) | 8-15 | |
Feeding size (mm) | <15 | |
Water required (m3/h) | 30-150 | |
Installation slope angle （°） | 5-12 | |
Concentrate cleaning up cycle (hour) | 4-6 | |
Small scale model size Alluvial Gold Mining Processing Equipment, Placer Gold Mining Separation Machine List
Alluvial gold mining processing equipment
A.This method of Rotary Trommel screening equipment helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Our Trommel screens are constructed of high quality material,designed for high performance, high production rates, lower operating costs and lower maintenance.
B.The Vibrating Sluice Box works with the gold trommel screen to recover gold roughly.
1. Reasonable structural design, convenient for transporting;
2. High degree of automation, high gold handling capacity with the daily capacity up to 2000m3
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines;
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines;
4. It can also be suitable for processing minerals that may contain gravels and boulders;
4. Applicable to recycling bar gold, nuggets, slices and gold particles;
5. High degree of washing and recovery rate.
C. Centrifugal gold concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges,specially for recovery of fine gold which is lost during the operation of the gravitational concentrators (sluice boxes and jigs). It can be used not only for placer gold mining, but also for recover the natural gold from hard rocks, to replace amalgamation, and recover gold from the tailings.
Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0.074mm, the gold is up to 98%, For 0.004mm in particle size, the gold recovery is 97%.
4. Applicable to recycling bar gold, nuggets, slices and gold particles;
5. High degree of washing and recovery rate.
C. Centrifugal gold concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges,specially for recovery of fine gold which is lost during the operation of the gravitational concentrators (sluice boxes and jigs). It can be used not only for placer gold mining, but also for recover the natural gold from hard rocks, to replace amalgamation, and recover gold from the tailings.
Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0.074mm, the gold is up to 98%, For 0.004mm in particle size, the gold recovery is 97%.
D .6-S Shaking table which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals.Separating precisely and the high enrichment ratio of concentrate is the prominent advantage of shaking table.
Especially when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 3 to 0.02 mm.
Application for recovery alluvial (sand) gold ore.
SPECIFICATIONS FOR 50/100 TPH ALLUVIAL GOLD ORE WASHING PLANT
SPECIFICATIONS FOR 50/100 TPH GOLD WASHING PLANT | |||||||
Item | Model | Quantity (unit) | Unit Power (KW) | Product Name | |||
50TPH | GT 1530 | 1 | 11 | Trommel Screen | |||
STLB 60 | 2 | 4 | Centrifugal Gold Concentrator | ||||
FGS-12 | 2 | 0.8+1.1 | Vibrating Sluice Box | ||||
1000*5000mm | 2 | / | Carpet Sluice Box | ||||
100TPH | GT1545 | 1 | 15 | Trommel Screen | |||
STLB 80 | 2 | 11 | Centrifugal Gold Concentrator | ||||
FGS-15 | 2 | 0.8+2.2 | Vibrating Sluice Box | ||||
1000*10000 mm | 2 | / | Carpet Sluice Box | ||||
