PM20S 2 модуля питания MATEK
- Категория: >>>
- Поставщик: Shenzhen Uangel Technology Co. Ltd.
Сохранить в закладки 1601254736876:
Описание и отзывы
Характеристики

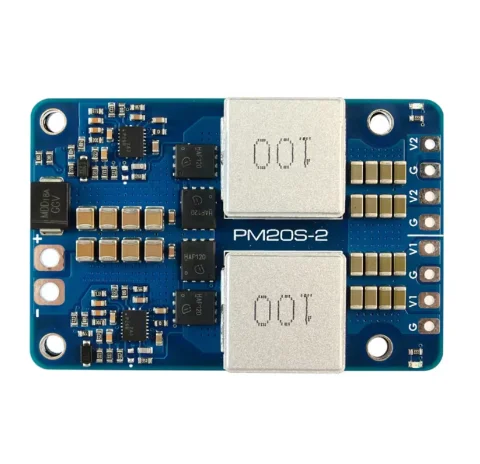

MATEK POWER MODULE PM20S-2
* PM20S-2 is made with 100V DC components.
* Support 9V to 85V DC operating Input voltage with 85V TVS protection
* 2x independent Step-Down Voltage Regulators
* Regulator 1 , 5.3V / 6.1V / 8.1V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
* Regulator 2 , 5.3V / 8.1V / 12.2V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
* 1K:25K voltage divider built-in for 3.3V based voltage ADC

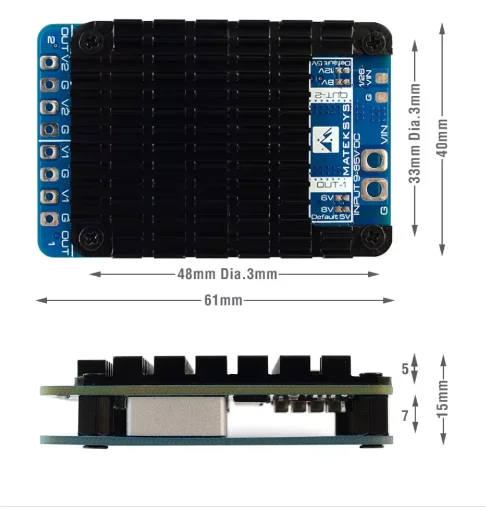

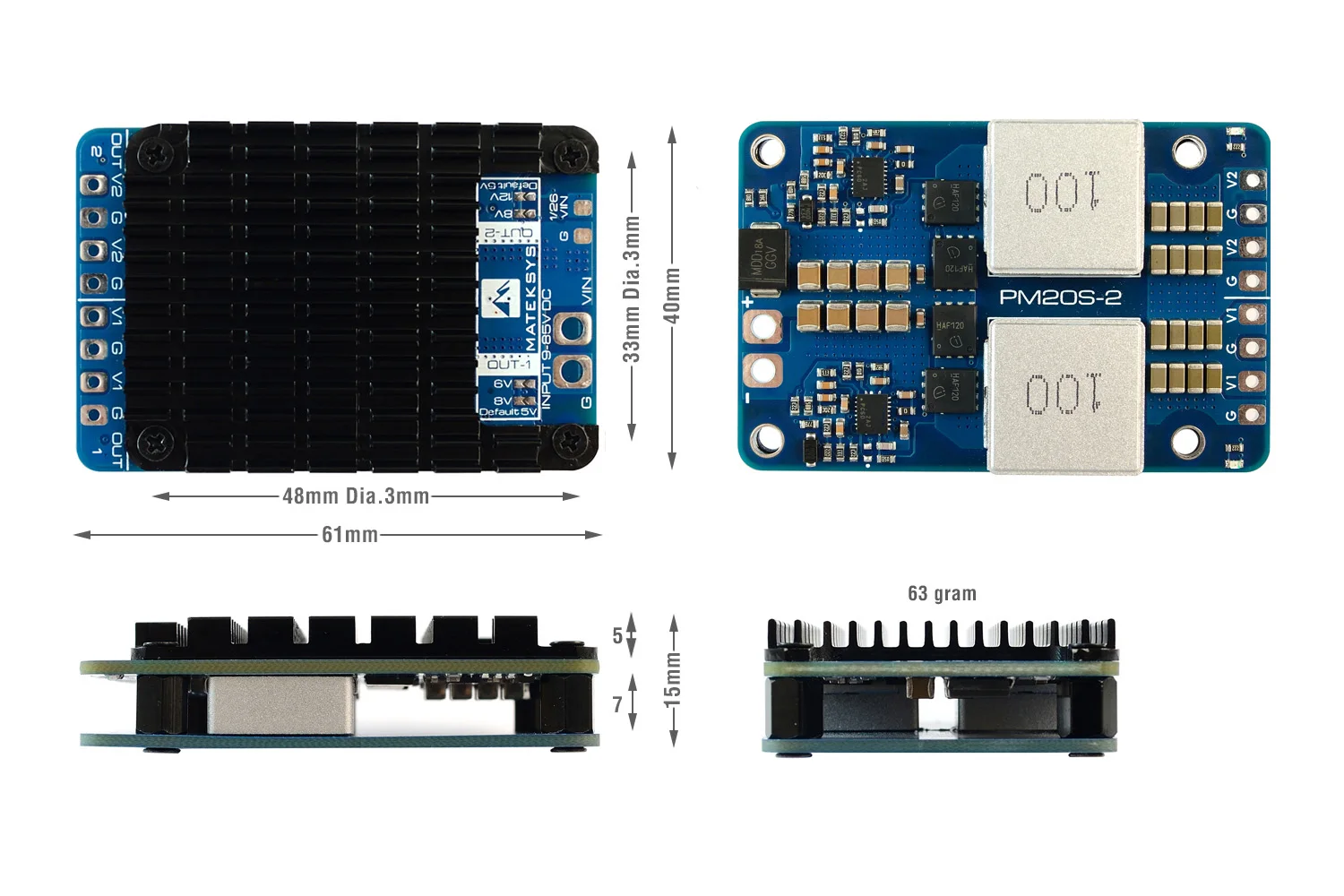

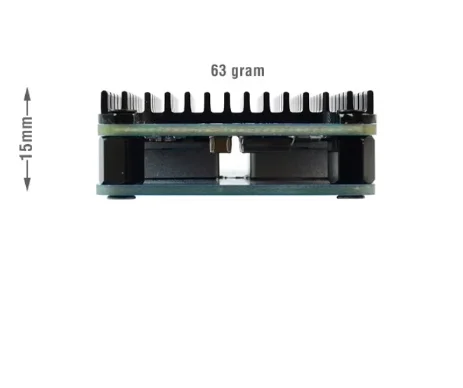

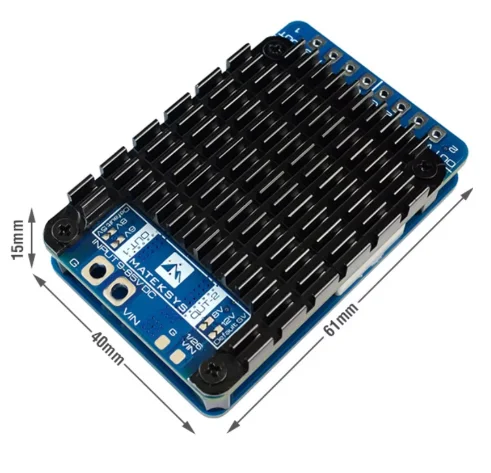

* Size & Weight: 61x40x15mm, 63g
* 3D step file PM20S-2.zip
Regulator 1
* Output voltage 5.3V / 6.1V / 8.1V options.
* Output voltage tolerance 1.5%
* Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
* Supports typical continuous output current of up to 15A, Peak current of up to 22A.
* Output ripple 25mV (VIN=42V, Output 5.3V @ 5A), 35mV (VIN=58V, Output 5.3V @ 15A)
* Standby current: 10~30mA
* Reverse Input voltage protection: No
* Thermal Shutdown 150C
* Output Short-circuit tolerant (1 seconds)
* Overcurrent protection & self-recovery
* Tip: Input voltage >= 15V is required for continuous output current of 15A
Regulator 2
* Output voltage 5.3V / 8.1V/12.2V options.
* Output voltage tolerance 1.5%
* Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
* Supports typical continuous output current of up to 15A, Peak current of up to 22A.
* Output ripple 58mV (VIN=58V, Output 12V @ 5A)
* Standby current: 10~30mA
* Reverse Input voltage protection: No
* Thermal Shutdown 150C
* Output Short-circuit tolerant (1 seconds)
* Overcurrent protection & self-recovery
* Tip: Input voltage >= 15V is required for continuous output current of 15A
Packing
* 1x PM20S-2
* Support 9V to 85V DC operating Input voltage with 85V TVS protection
* 2x independent Step-Down Voltage Regulators
* Regulator 1 , 5.3V / 6.1V / 8.1V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
* Regulator 2 , 5.3V / 8.1V / 12.2V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
* 1K:25K voltage divider built-in for 3.3V based voltage ADC
* Size & Weight: 61x40x15mm, 63g
* 3D step file PM20S-2.zip
Regulator 1
* Output voltage 5.3V / 6.1V / 8.1V options.
* Output voltage tolerance 1.5%
* Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
* Supports typical continuous output current of up to 15A, Peak current of up to 22A.
* Output ripple 25mV (VIN=42V, Output 5.3V @ 5A), 35mV (VIN=58V, Output 5.3V @ 15A)
* Standby current: 10~30mA
* Reverse Input voltage protection: No
* Thermal Shutdown 150C
* Output Short-circuit tolerant (1 seconds)
* Overcurrent protection & self-recovery
* Tip: Input voltage >= 15V is required for continuous output current of 15A
Regulator 2
* Output voltage 5.3V / 8.1V/12.2V options.
* Output voltage tolerance 1.5%
* Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
* Supports typical continuous output current of up to 15A, Peak current of up to 22A.
* Output ripple 58mV (VIN=58V, Output 12V @ 5A)
* Standby current: 10~30mA
* Reverse Input voltage protection: No
* Thermal Shutdown 150C
* Output Short-circuit tolerant (1 seconds)
* Overcurrent protection & self-recovery
* Tip: Input voltage >= 15V is required for continuous output current of 15A
Packing
* 1x PM20S-2
Packing and Shipping
Always Safe and Fast Shipping with U-angel |
We are working with reliable shipping companies, you order will be delivered to your address on time! We can also ship out the goods to your shipping forwarder in China if requested,we are more flexible! Global Transportation: |
We will find out the BEST logistics solutionsfor you! 1. DHL / UPS / FedEx / TNT, Door-to-Door; 2. By Air or by Sea, for FCL; Airport / Port receiving; 3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods; We choose thebest and safe packaging material to make sure your orders won’t be damaged during delivery. |
Company Profile
Our Company is an international trading Company of Rc Simulator, Rc Drone, Rc boat, RC Car & parts, Rc Toys, Motor and ESC, RC Transmitter, RC Servo, Rc Antenna, RC Flight Control, RC GPS, Battery Charger, RC Frame, FPV Camera, RC Tool, RC Connecter, RC Propellers and other RC accs and parts.
We have our own brand ,own factory. Also we sell many of other famous brand items. Our headquates is in Shenzhen. In order to cope with our rapidly expanding business,we estab-lished our operations in shenzhen in 2010 with office, warehouse and showroom. Hope to build Win-Win cooperation relationship with customers all over the world.
FAQ
Q1. How can we know the product quality?
A1: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q2. How can we guarantee quality?
A2: Always a pre-production
sample before mass production; Always final Inspection before shipment;
sample before mass production; Always final Inspection before shipment;
Q3. Is it the final price in the price list?
A3: No,the price depends on the qty to order and also the customize service. Let us talk in details about the order price.
Q4. Can you offer OEM/ODM service?
A4: Yes. The OEM/ODM is welcomed. We will be able to provide molding new product and OEM service , including
print logo , product color , customize package , change user manual...etc.
print logo , product color , customize package , change user manual...etc.
Q5. Why should you buy from us not from other suppliers?
A5: Our Company is an international trading Company of rc helicopter,rc drone,toys,electronic componts,accessoires and
spare parts. we have our own brand ,own factory.also we sell many of other famous brand items.
spare parts. we have our own brand ,own factory.also we sell many of other famous brand items.
Q6. What services can you provide?
A6: Accepted Delivery Terms: FOB;
A6: Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow and Alibaba Trade Assurance.
Language Spoken:English,Chinese
Q7. How can I send inquiry?
A7: When you find something you are interested, you can click “CHAT NOW”, or you can leave your information to us.
Похожие товары

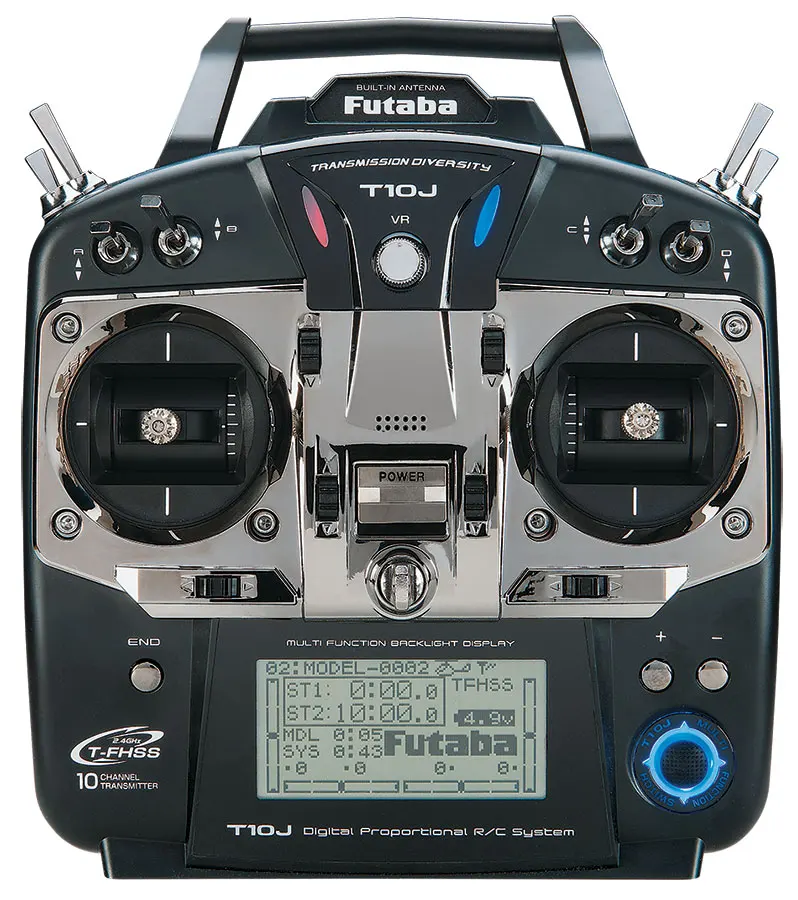

Передатчик Futab 2 4G 10J T10J 10ch с R3008SB приемником для радиоуправляемого самолета вертолета
35 328,05 ₽

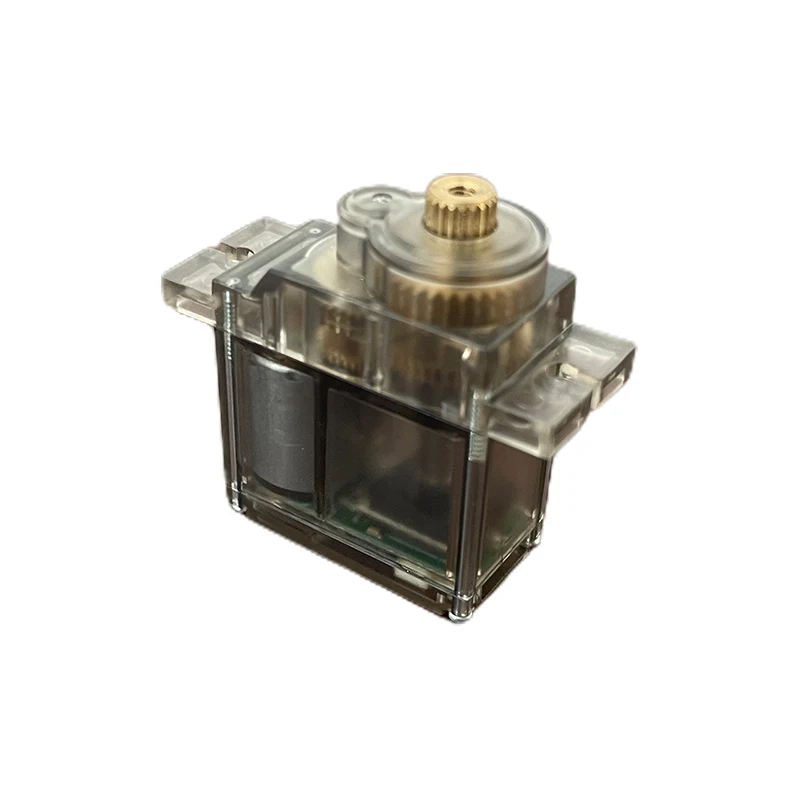

GDL 9g микро классический мини рулевой механизм для модели RC аэромодельный вертолет
162,30 ₽ - 165,61 ₽

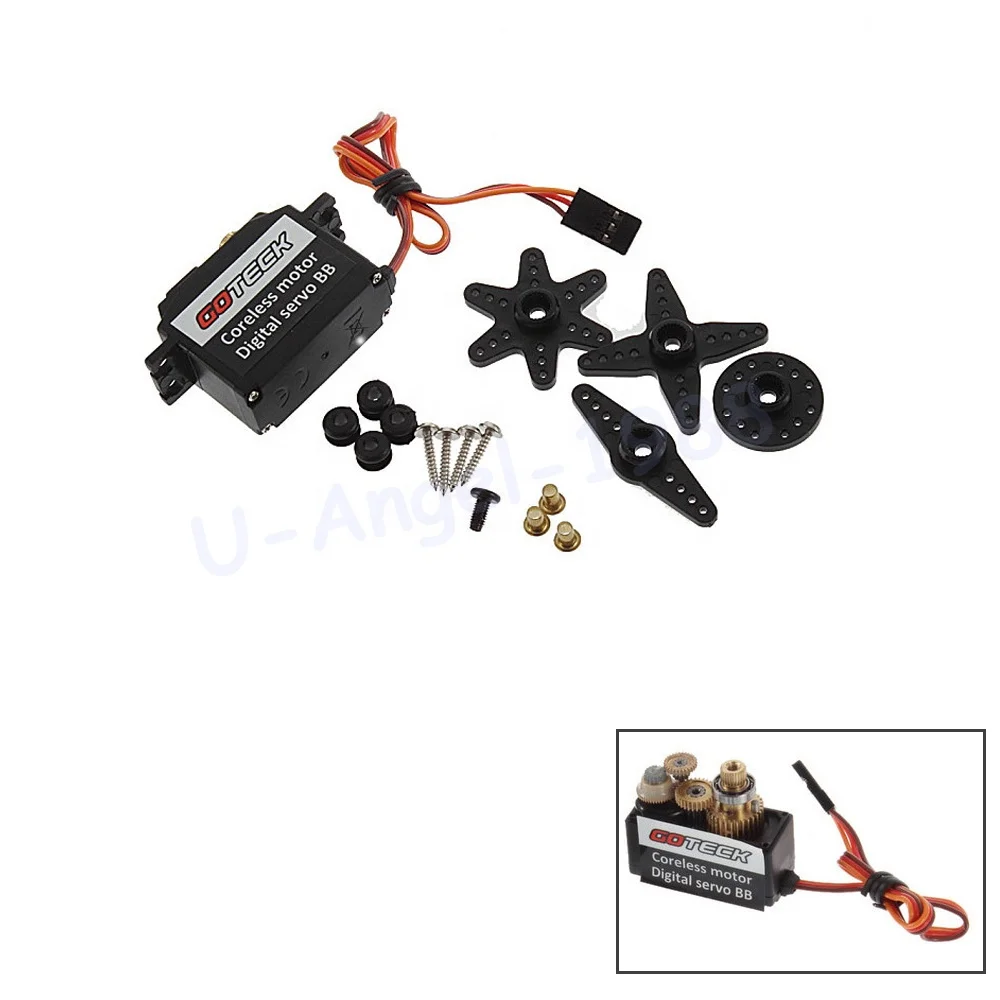

GOTECK цифровой металлическими шестернями и высоким крутящим GS-9257MG 9257MG Servo для Trex 450 500 RC вертолет
966,04 ₽ - 1 195,68 ₽

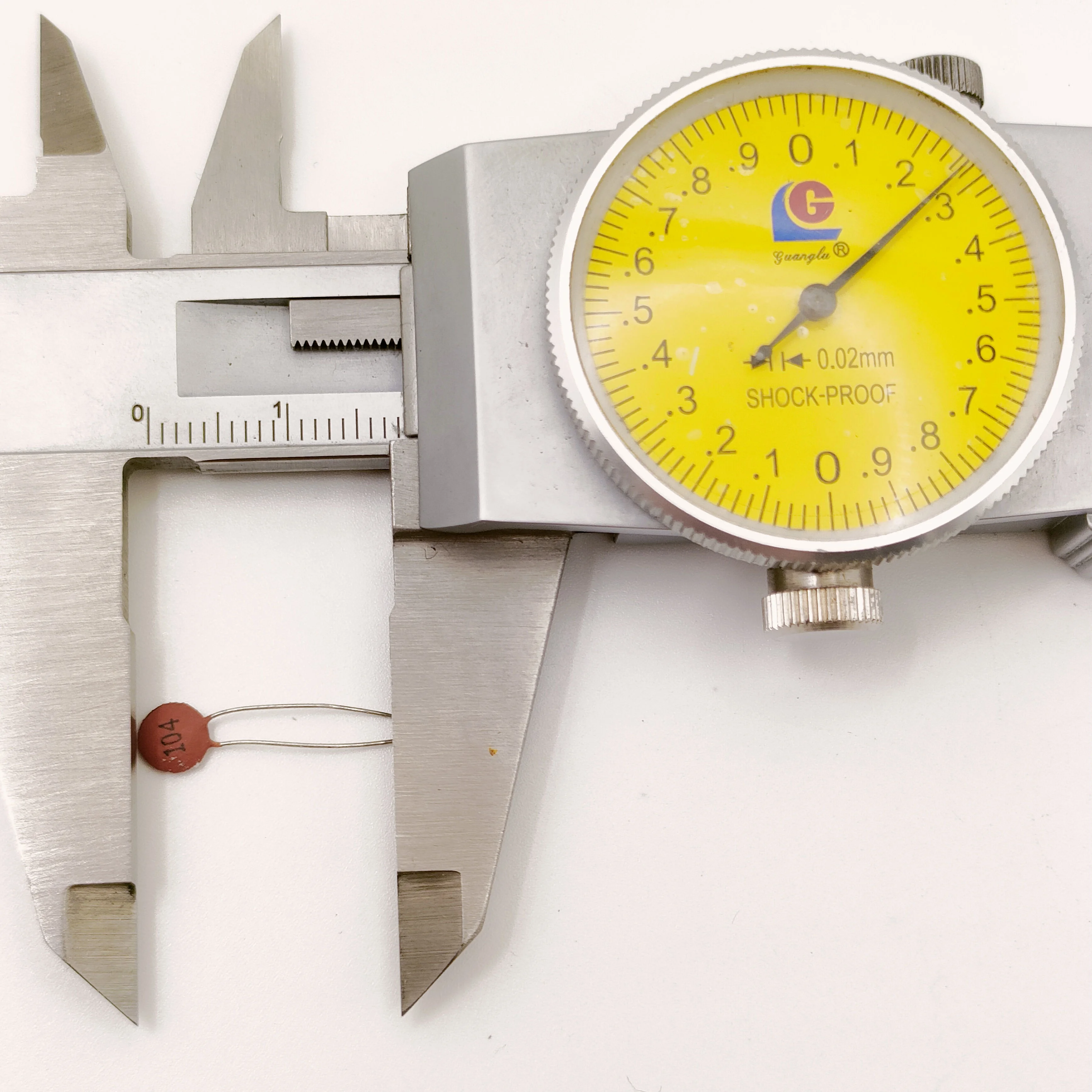

Набор керамических конденсаторов комплект 24 шт./коробка набор электронных 22PF 47PF 100nF 104
2,21 ₽

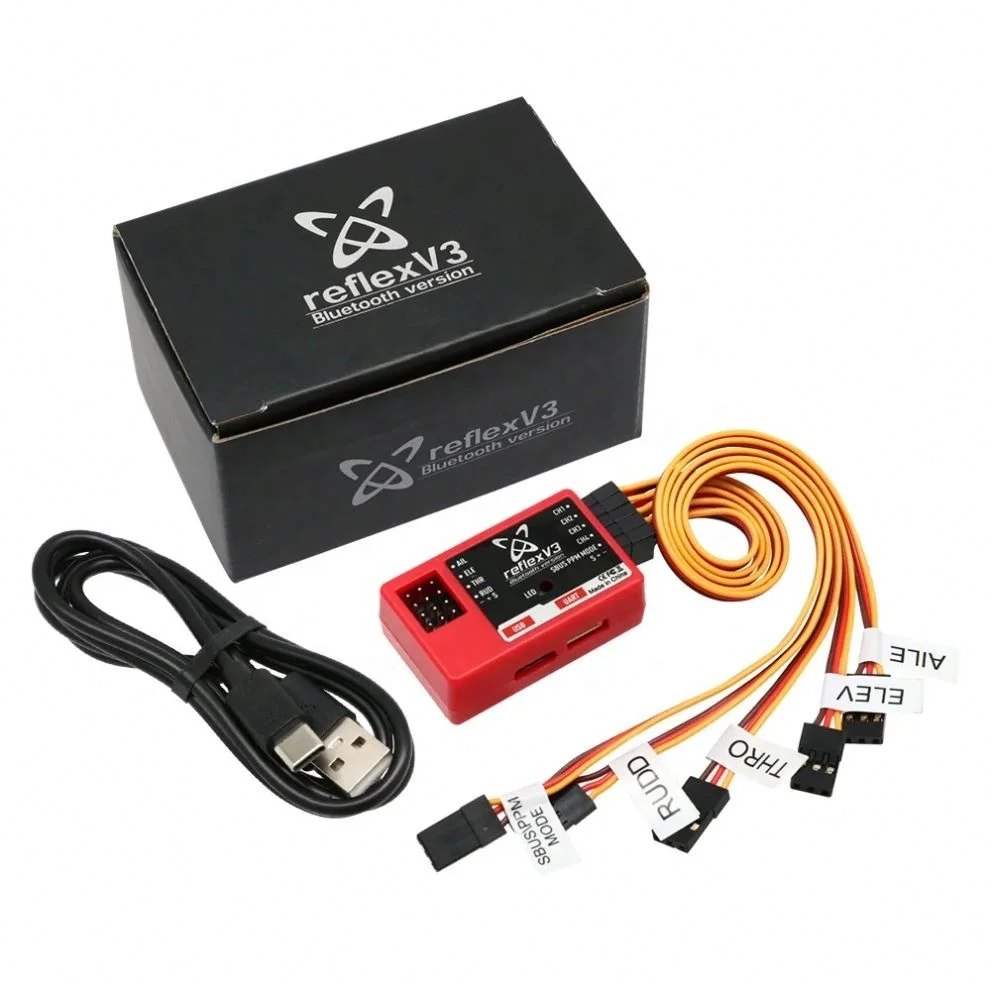

FMS Reflex V3 Полетный контроллер гироскоп стабилизатор пульт дистанционного управления радиоуправляемый самолет Warbird фиксированный
1 735,55 ₽ - 1 960,77 ₽

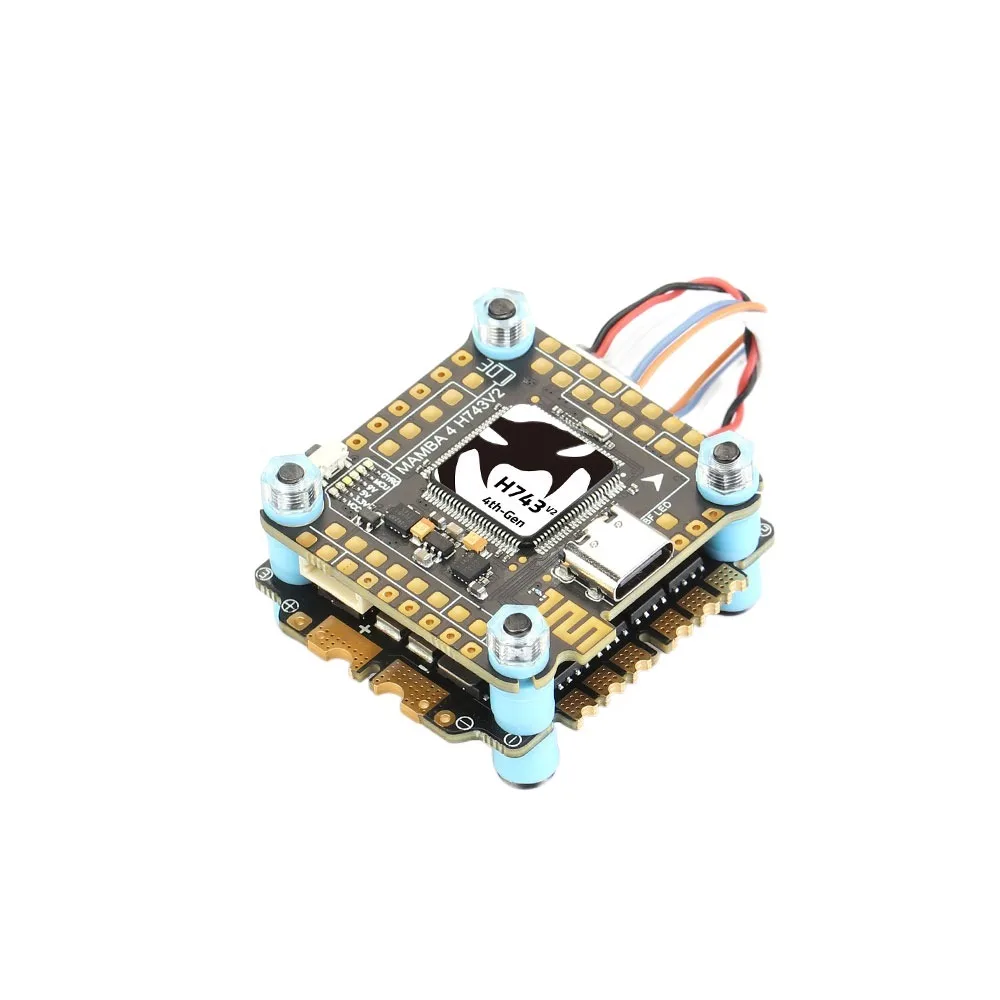

MAMBA MK4 H743 V2 Dual 42688P Gyro 55A/65A 128K Полетный контроллер с 4 в 1 ESC WIFI FC I2C 30 мм/M3
