Все в одном портативная металлическая лазерная маркировочная машина волоконно лазерная Ювелирная Золотая Серебряная ЧПУ
- Категория: >>>
- Поставщик: Universal machinery LLC
Сохранить в закладки 1601255097251:
Описание и отзывы
Характеристики
Products Description

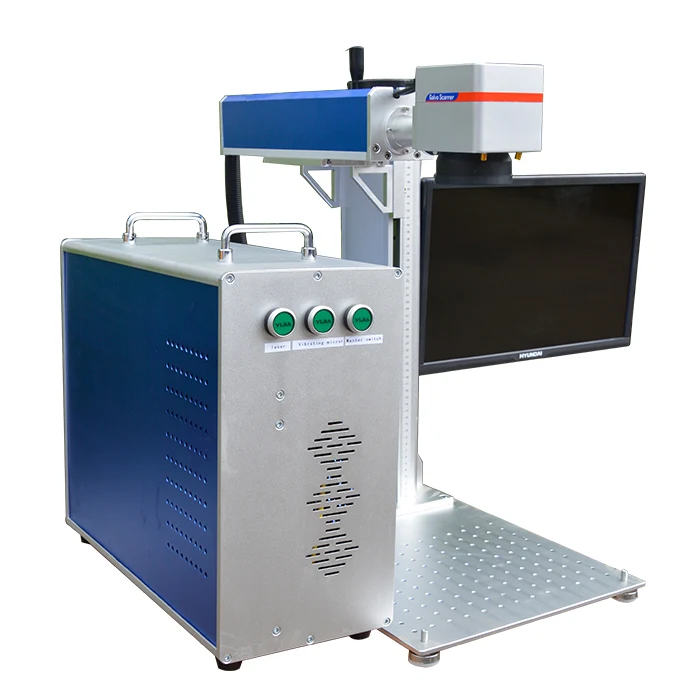

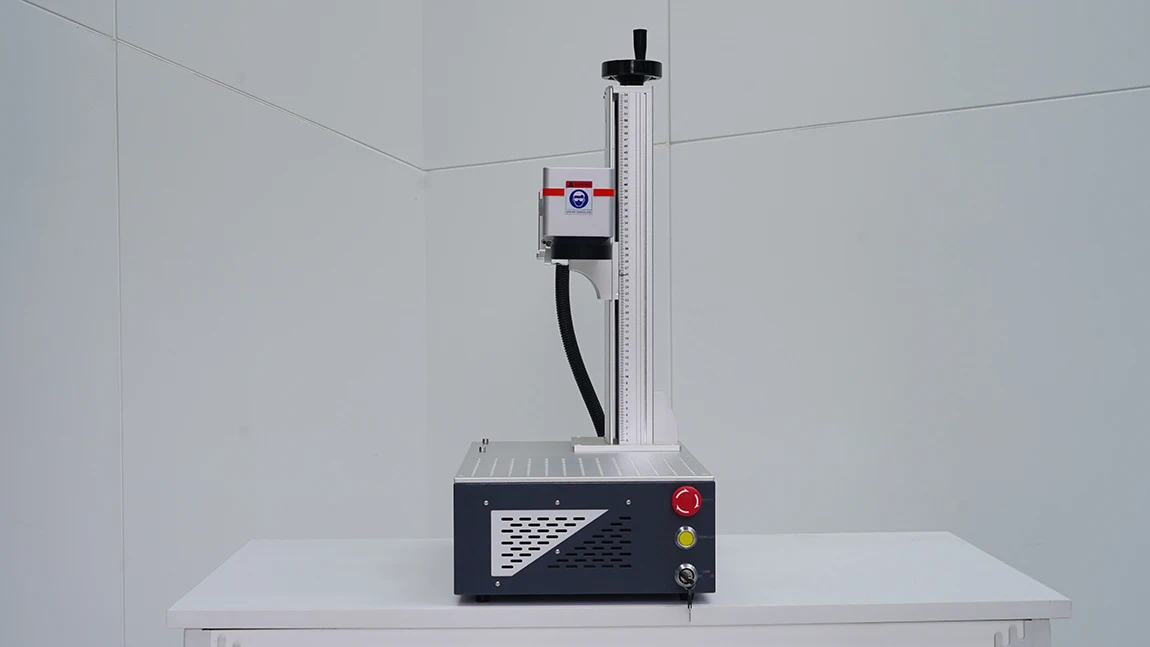

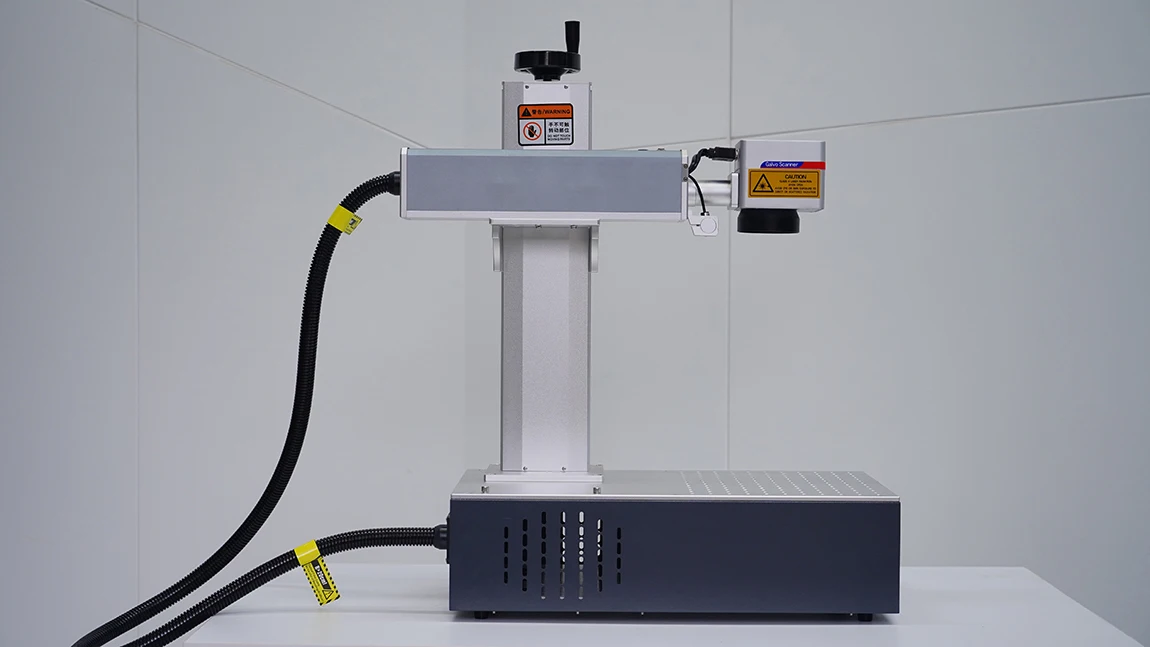

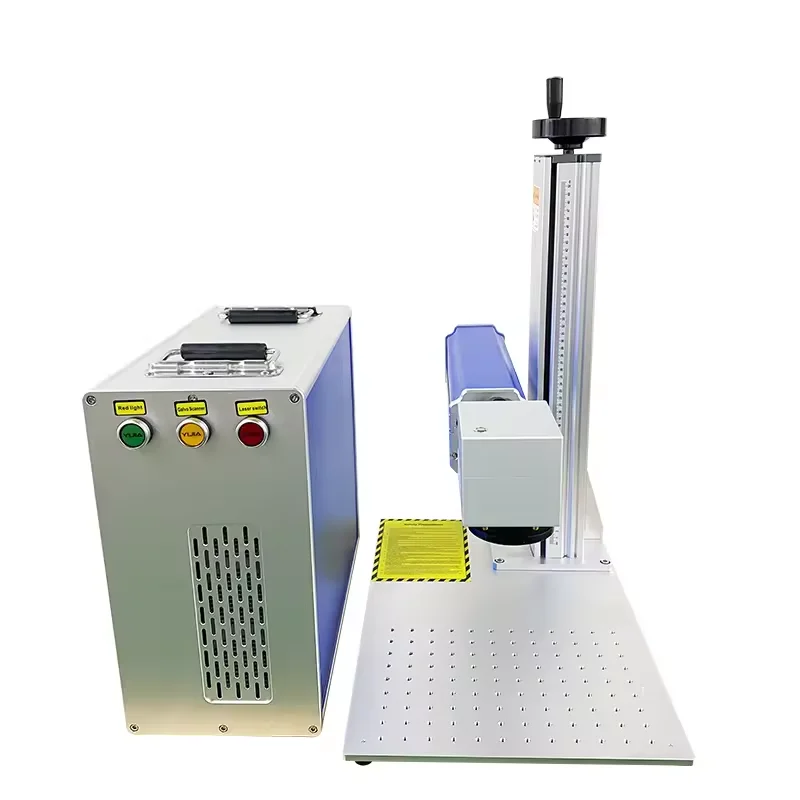

All-in-one portable metal laser marking machine fiber laser jewelry gold sliver marking machine cnc laser marking machine
Product Paramenters
Product name | Fiber laser marking machine |
Working area | 110*110mm(4.3in*4.3in) 150*150mm (5.9*5.9 in) 175*175mm(6.9in*6.9in) Optional |
Marking Speed | ≤8000mm/s |
Minimum Line Width | 0.01mm(0.0004in) Depends on the material |
Minimum Character | 0.2mm(0.008in) Depends on the materials |
Laser Type | Raycus/MAX Optional |
Cooling Type | Air Cooling |
Laser Wavelength | 1064nm |
Electrical Requirements | 110V-240V/50Hz-60Hz according to local electricity supply |
Supported Image Format | PLT,DXF,AI,BMP,JPEG,etc. |
Optional Spare Parts | Rotary/2D worktable/Cutting fixture and so on. |
Marking Principle：The fiber laser marking machine can expose the deeper material by evaporating the surface material, or cause physical changes in the surface material through light energy to make marks, or burn part of the material through light energy to reveal the required etching patterns, text, barcodes and other graphics.
Details Images
Laser Source
RAYCUS/IPG/JPT/MAX optional
High quality, low loss, long service life
Control Card
Beijing JCZ Control Card
With EZCAD Software For Windows XP
Easy to operate
Galvo Head
Digital Galvanometer Scanning Head Maximum speed: 7000mm/s
Lens
Working size：100*100mm、150*150mm、175*175mm、200*200mm
Choose according to different working areas
Red Light Indicator
Double red light indicator
high precision positioning
Adjust to the correct focal length and marking position
Workbench
Aluminum plate with positioning holes
Control Panel
Key controlled power switch
Emergence：The machine encounters an error and stops immediately to reduce losses
Plug-in Connector
Used to connect the power supply to the foot pedal，Waterproof settings for greater safety
Features：The fiber laser marking machine has the characteristics of no water cooling device, easy installation, maintenance-free, stable and reliable operation, no consumables, low power consumption, clear and beautiful marking, etc. It is suitable for laser marking on the surface of various materials.
Application：Fiber laser marking machines are widely used in a wide range of fields, including electronic components, integrated circuits, electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, etc. They are particularly suitable for fields with high requirements on depth, smoothness and precision, such as the mold industry and bitmap marking industry.
Product packaging
FAQ
1.Q:Are you a manufacturer or a trading company?
A：We are a company with 13 years of experience in manufacturing and sales. Before that, we have been committed to offline trade. We have our own factory and we are committed to creating high quality products, if you are interested in our products, please contact us!!!!
2.Q:How long does it take to learn how to use a machine?
A：The software has instructional videos that are easy to learn, and we can also help you learn the laser online. However, when working with different materials, it takes some trial and error to master the speed and power settings. Therefore, we include a comprehensive guide with recommended speed and power settings for various materials. If you have any questions during use, we will always send someone to answer your questions for you.
3.Q:What is the packaging of the product? Is it safe in transportation?
A：(1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.
So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4.If there is a problem with the machine what will you guys do to fix it?
A：We provide two years warranty. During the warranty period, we will provide the damaged products for free. After the warranty period, we still provide repair service.
A：We are a company with 13 years of experience in manufacturing and sales. Before that, we have been committed to offline trade. We have our own factory and we are committed to creating high quality products, if you are interested in our products, please contact us!!!!
2.Q:How long does it take to learn how to use a machine?
A：The software has instructional videos that are easy to learn, and we can also help you learn the laser online. However, when working with different materials, it takes some trial and error to master the speed and power settings. Therefore, we include a comprehensive guide with recommended speed and power settings for various materials. If you have any questions during use, we will always send someone to answer your questions for you.
3.Q:What is the packaging of the product? Is it safe in transportation?
A：(1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.
So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4.If there is a problem with the machine what will you guys do to fix it?
A：We provide two years warranty. During the warranty period, we will provide the damaged products for free. After the warranty period, we still provide repair service.
