2000w 3000w Automatic Feeding Fiber Laser Tube Cutting Metal Round Square Fiber Laser Metal Pipe / Tube Cutting
Specification
Machine model | BCJ220-6000T |
Product name | Fiber Laser Metal Tube Cutting Machine |
Pneumatic Chuck Diameter | 220mm （Other diameter: 120mm, 160mm,300mm, 350mm, 460mm,...Support customized ） |
Processing Length | 6m length tube (Optional length: 3m, 7m, 8m, 10m, 12m,.... Support customized ) |
Laser power | 1000W /1500W/ 2000W / 3000W/4000W/6000W/8000w/10000w/12000w |
Laser source | RAYCUS MAX IPG |
Laser head | Raytools Auto Focus Cutting Head |
Control system | Cpycut Control |
Motor | Japan Yaskawa Motor |
Reducer | Japan Shimpo Reducer |
Water chiller | Chinese Hanli water chiller |
Working voltage | 380V/50HZ/3Phase |
Dimension of packing | 9500mm*1900mm*2200mm (length*width*height) |
Machine weight | About 5 Ton |
Product Description

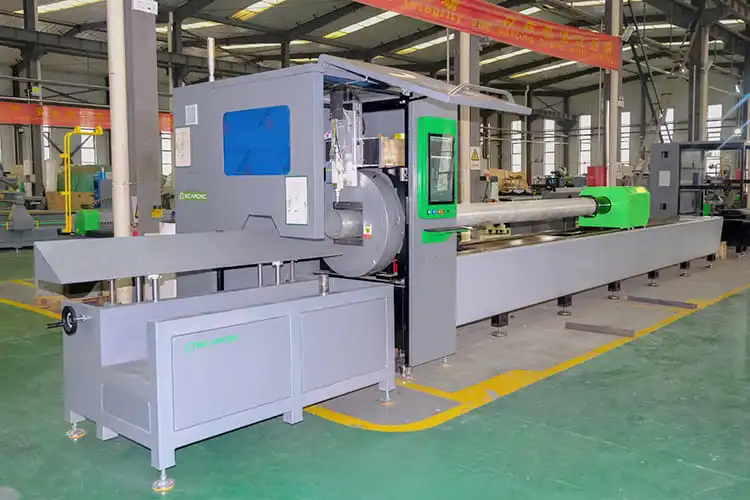

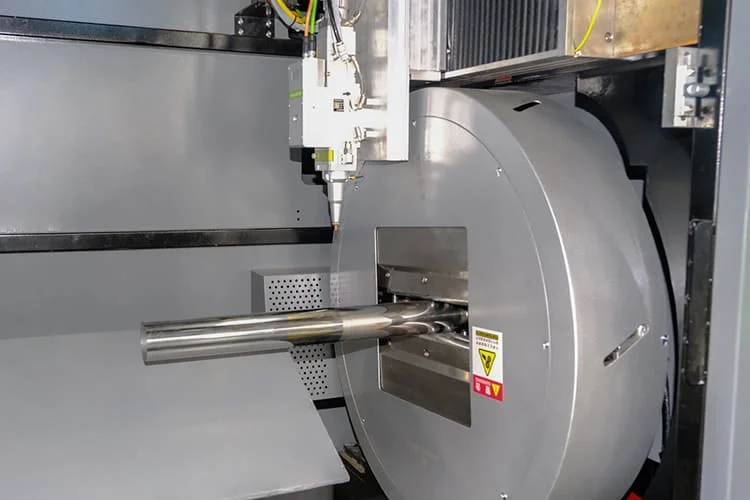

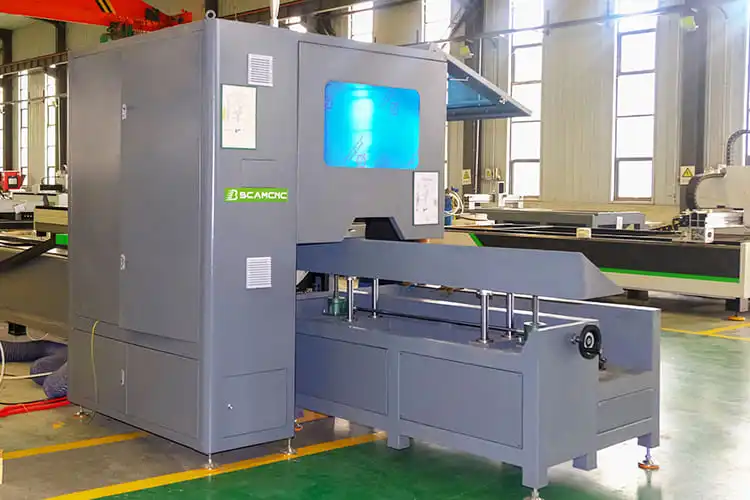

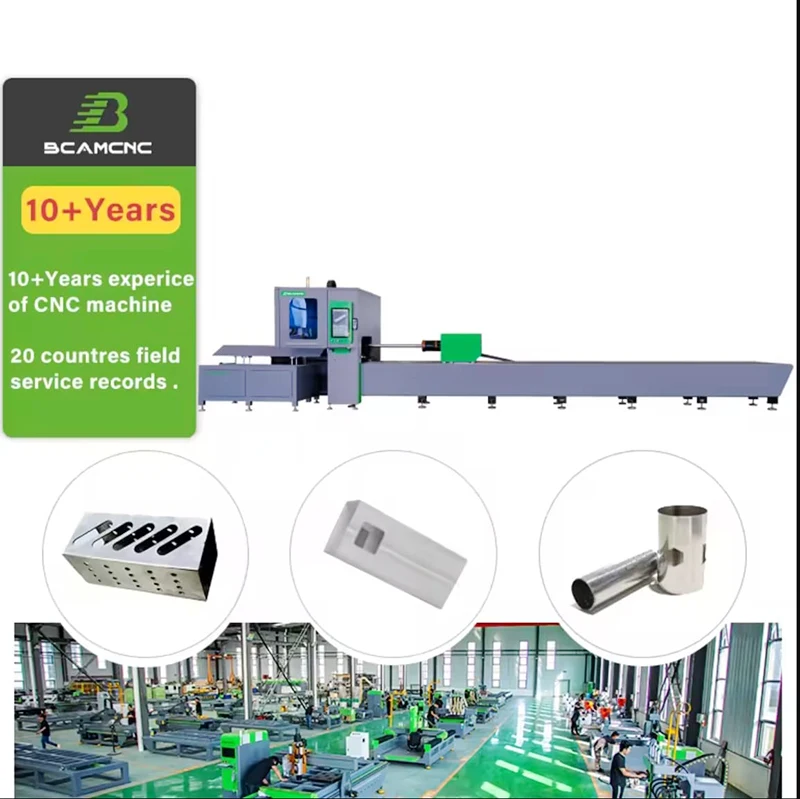

Metal tube fiber laser cutting machine

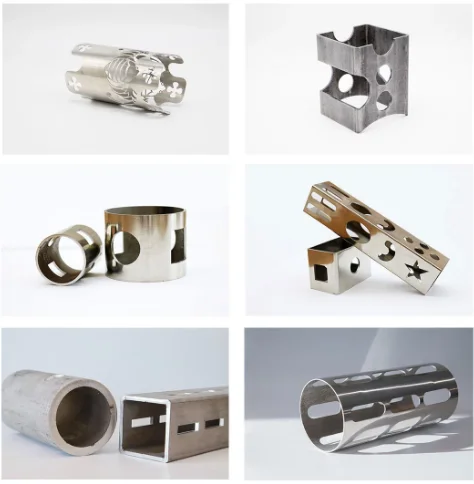

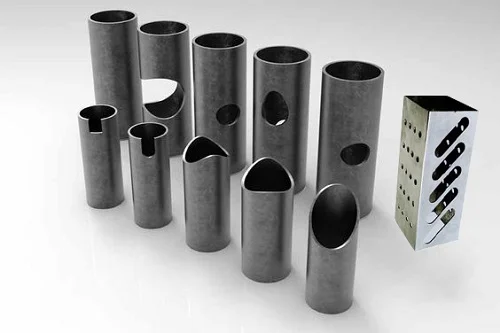

Professional metal tube fiber laser cutting machine. It can cut Small To Large Size Metal Tube (Pneumatic Chuck diameter and length can be customized according to clients need), Punching, Hollowing, Support Simple And Complicated Cutting Design On Round Tube, Square Tube, And Profile Pipes, Easy Cut Stainless Steel Pipes, Aluminum Pipes, Copper Pipes And So On.

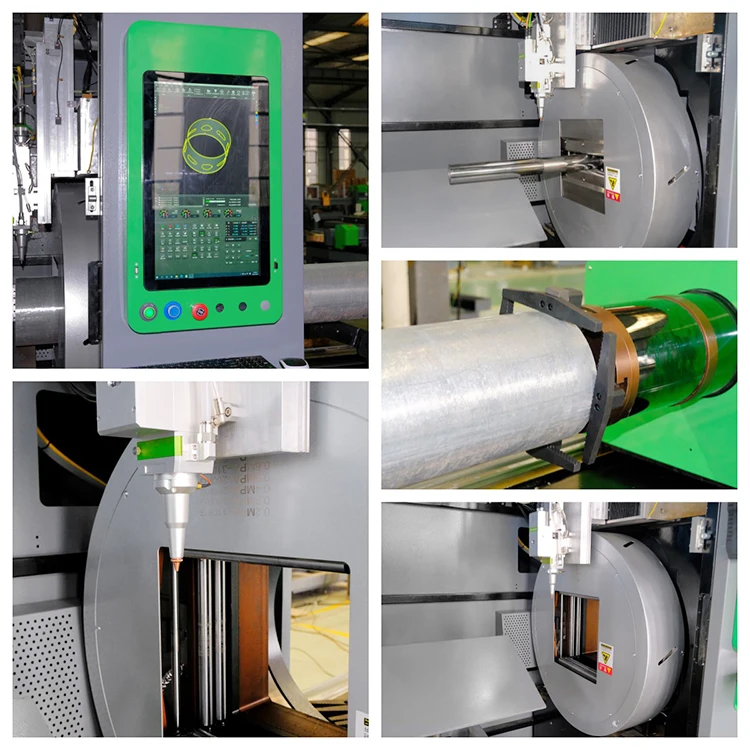

Main Part

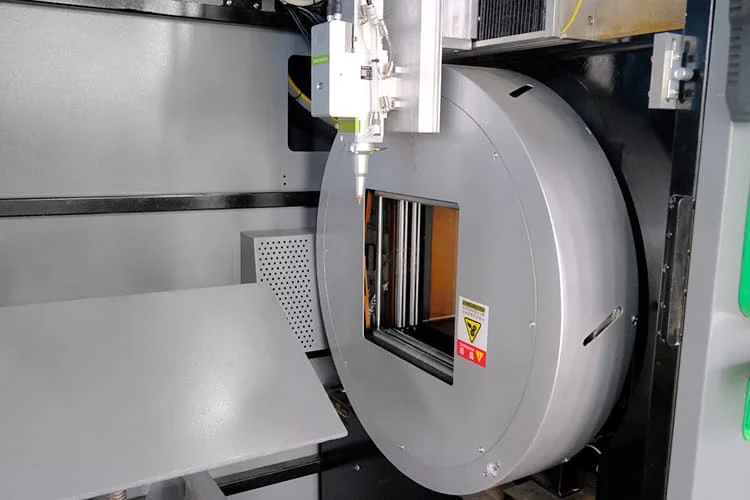

Rotary axis with diameter 120mm, 160mm, 220mm, 230mm, 260mm, 300mm, 350mm, 400mm, etc

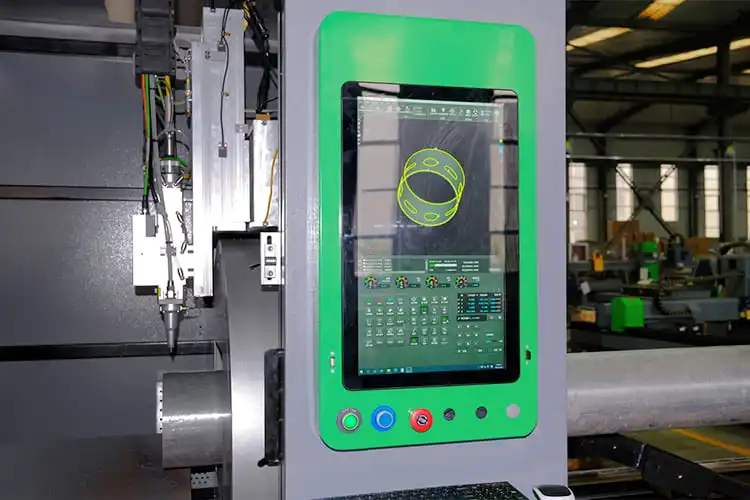

Professional metal tube cutting controller: Au3tech/Bochu FSCUT control system

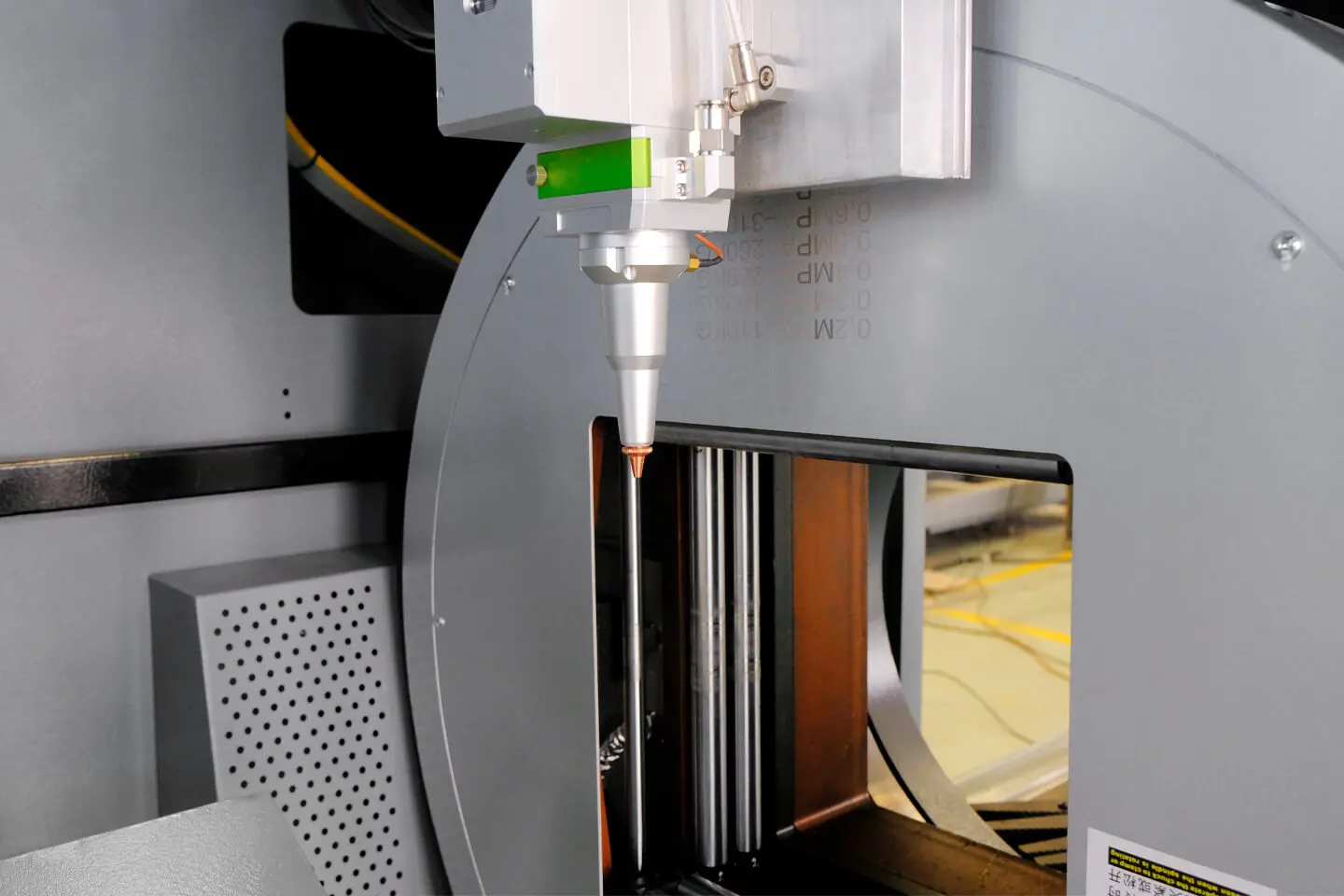

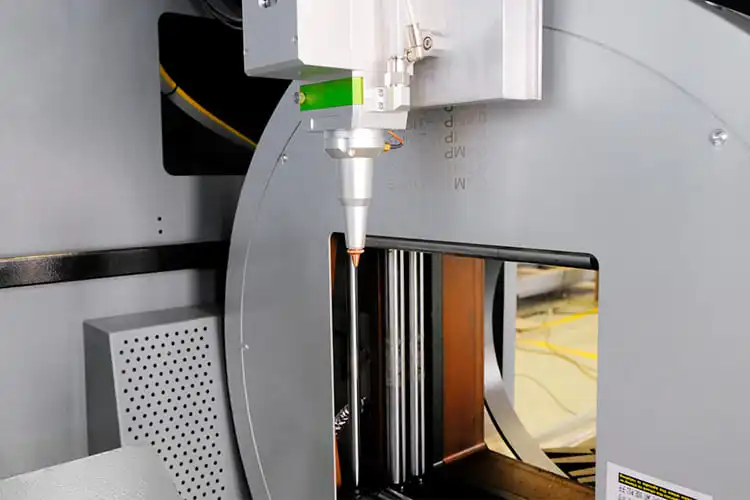

Auto focus laser head Au3tech/Raytools
Heavy duty body

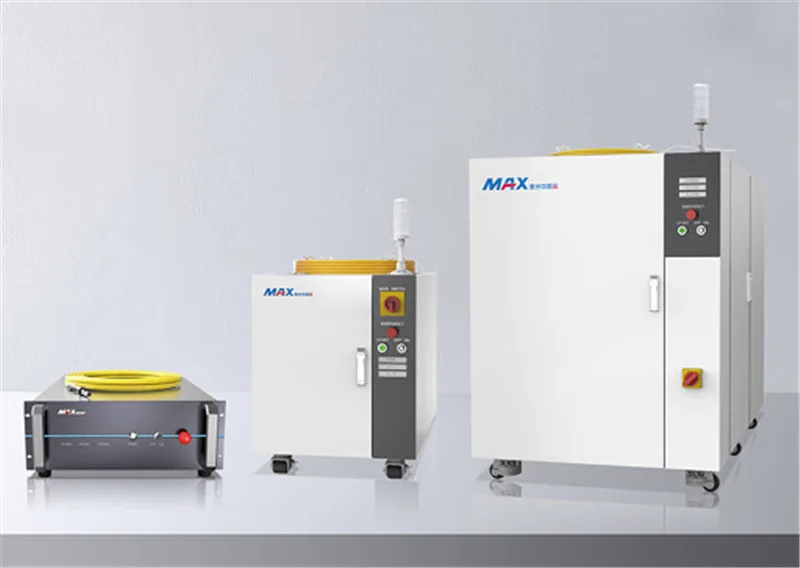

Long lifetime laser generator, Reci, Raycus, MAX, IPG. Enjoy 2-3 years warranty.
Related Products

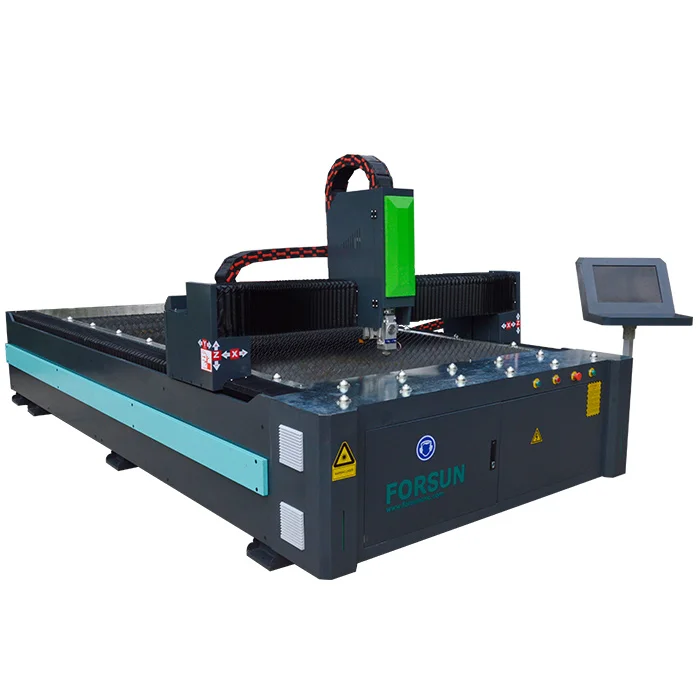

F series fiber laser cutting machine
This is a metal sheet fiber laser cutting machine, with 1500*3000mm table size (optional: 2000*3000mm, 2000*4000mm, 2000*5000mm, 2000*6000mm, 2500*6000mm, etc. We support customized according to clients metal sheets.)

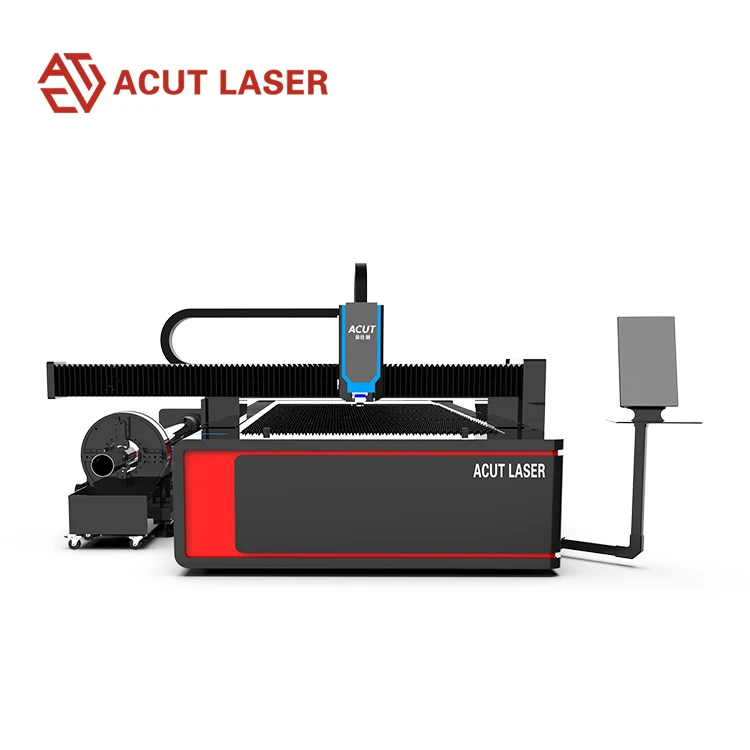

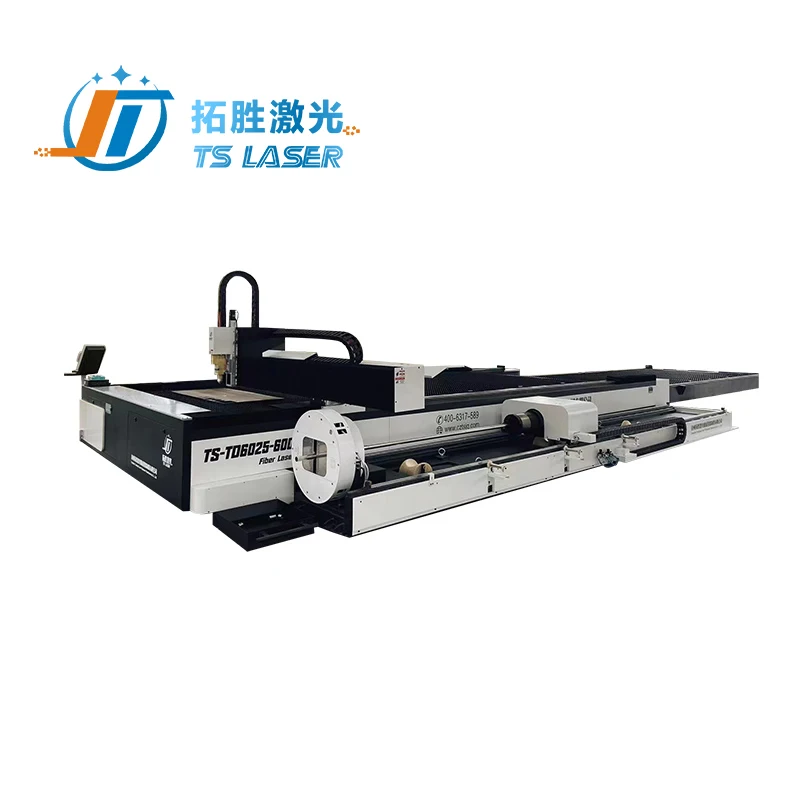

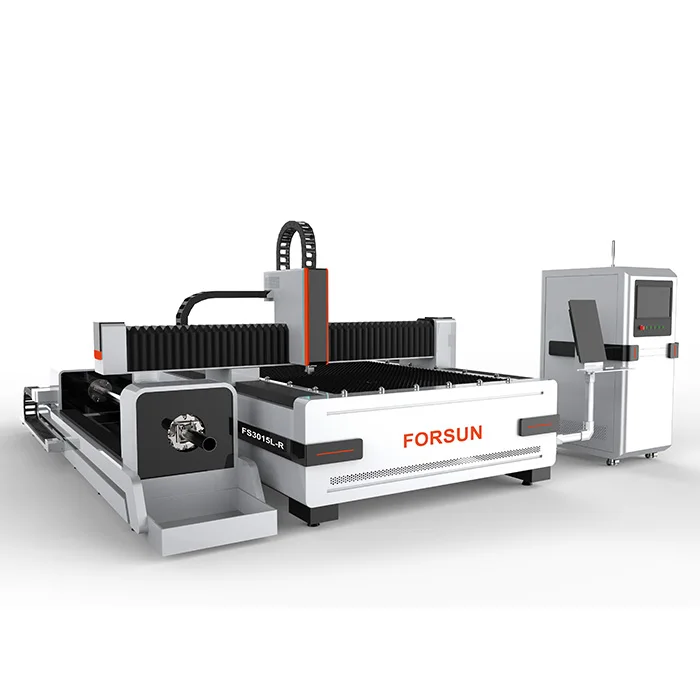

FT series Fiber laser cutter
This machine is equipped with a rotary, so metal sheet and tube can be cut in one machine.
X and Y axis cutting table size: 1500*3000mm；
Rotary diamter:220/ 230mm; processing length is 3m or 6m.

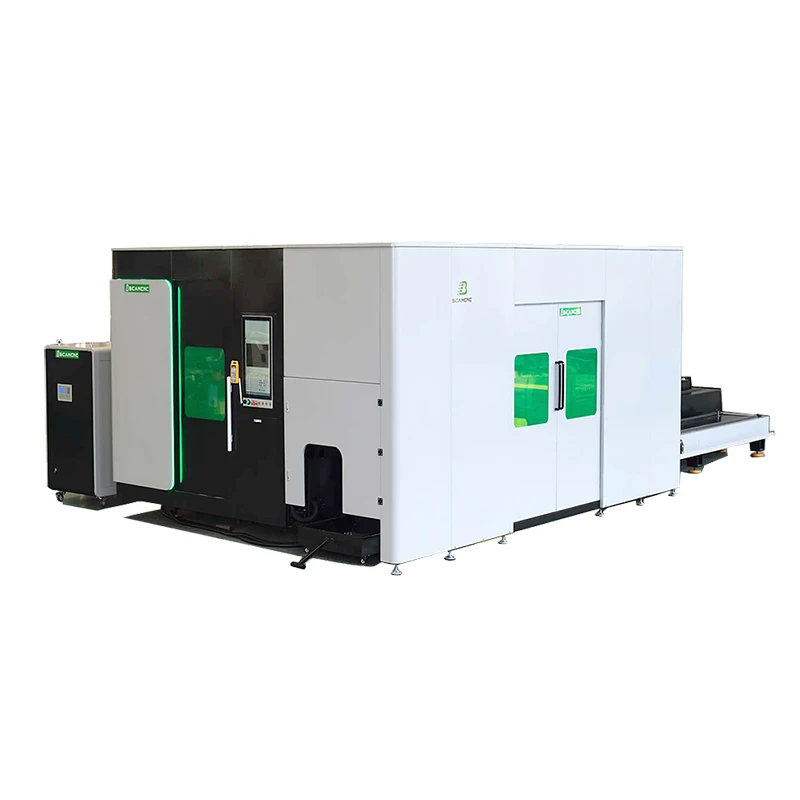

PE series Fiber laser cutting machine
*Equipped with full cover design : to provide better protection for the operator；
*Automatic exchange platform： improve work efficiency greatly
*High power laser machine: 6kw, 8kw, 10kw, 12kw, 20kw, etc.
*Equipped with the camera system, which can monitor the processing dynamics in real time.
*Automatic exchange platform： improve work efficiency greatly
*High power laser machine: 6kw, 8kw, 10kw, 12kw, 20kw, etc.
*Equipped with the camera system, which can monitor the processing dynamics in real time.
PT series Fiber laser cutting machine
Equipped with full cover design
Automatic exchange platform,
Rotary axis
High power
Metal sheet and tube can be cut in one machine
Automatic exchange platform,
Rotary axis
High power
Metal sheet and tube can be cut in one machine
FAQ
1. How to choose laser power?
According to your metal type and maximum thickness. Difference power can cut difference thickness, as following:
Laser Power | Carbon steel | Stainless steel | Aluminum | Brass |
1000w | 8-10mm | 4-5mm | 3-4mm | 2-3mm |
1500w | 12-16mm | 5-6mm | 3-4mm | 2-3mm |
2000w | 16-20mm | 6-8mm | 4-6mm | 4-5mm |
3000w | 12-22mm | 8-10mm | 6-8mm | 5-6mm |
4000w | 22-25mm | 10-12mm | 8-10mm | 6-8mm |
6000w | 22-25mm | 16-20mm | 12-14mm | 8-10mm |
8000w | 25-30mm | 18-25mm | 14-18mm | 10-12mm |
2. How to choose table size ?
According to the size of your maximum metal sheets. For example: 1500*3000mm, 2000*3000mm, 2000*4000mm, 2000*5000mm, 2000*6000mm, etc. These are our standard size. And we support customize service.
3.How to provide after-sales service?
We support 24 online service and door-to-door service.
*Machine user manual, installation video and manual will be send to you together with the cnc machine, to help you understand the machine better.
*Our engineers will provide 24 hours online service through whatsapp, Skype, Wechat, QQ, E-mail, phone, etc. And they can speak English very well, so communication won't be a problem between us.
* And for each clients, we will set up a technical support group, responsible for tracking clients and providing installation guide, technical support, operation guide, and machine maintenance.
*If you need door-to-door service, our engineer can fly to your country to provide machine installation, technical support, staff training and other service.
*Our engineers will provide 24 hours online service through whatsapp, Skype, Wechat, QQ, E-mail, phone, etc. And they can speak English very well, so communication won't be a problem between us.
* And for each clients, we will set up a technical support group, responsible for tracking clients and providing installation guide, technical support, operation guide, and machine maintenance.
*If you need door-to-door service, our engineer can fly to your country to provide machine installation, technical support, staff training and other service.
4. How to order the fiber laser machine ?
1. We will discuss and confirm the machine configuration, price and payment terms with you first；
2. If you are agree, we will make a proforma invoice for you. You can arrange deposit payment;
3. We will start production after receiving your deposit payment. And we will update the production progress of the machine regularly；
4. About 20-25 working days (If machine need customized, about 30-40 working days) machine can be finihsed, we will send your machine photos, and we will operate your machine for working test, the test video will be send to you for check.
5. Everything is ok, you can arrange the balance payment. At the same time, we will arrange packing, and booking the shipping date with freight forwarder.
6. Finally, we will transport the machine to Chinese port for shipping. If you need to delivery to you country, you can tell us the nearest port to your factory, we will check the shipping cost and shipping time for you.

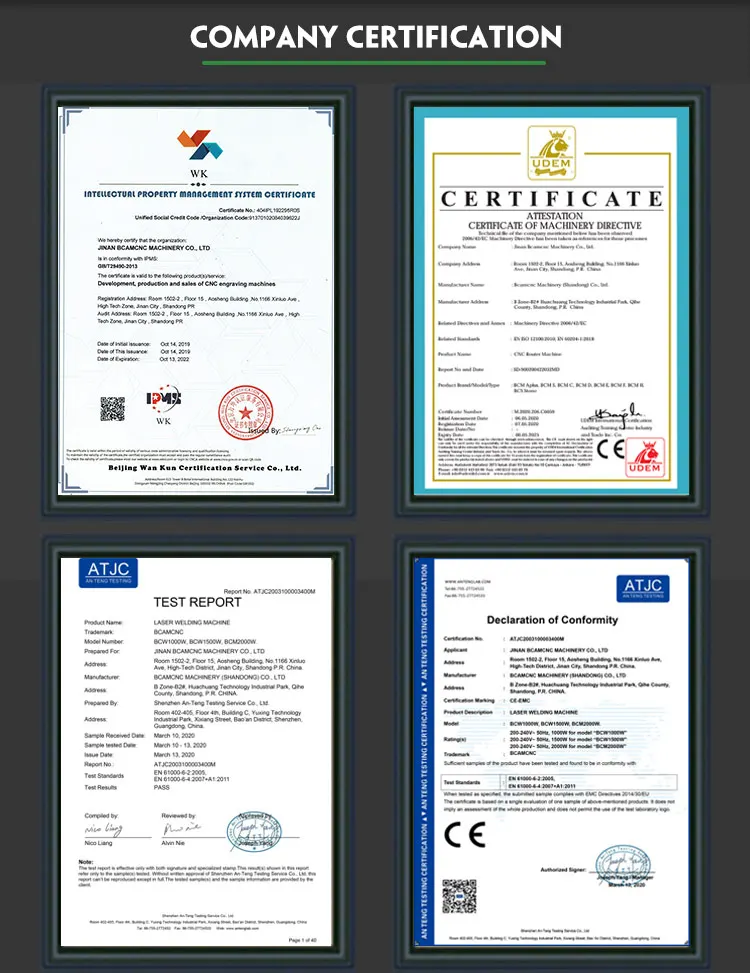

Certifications

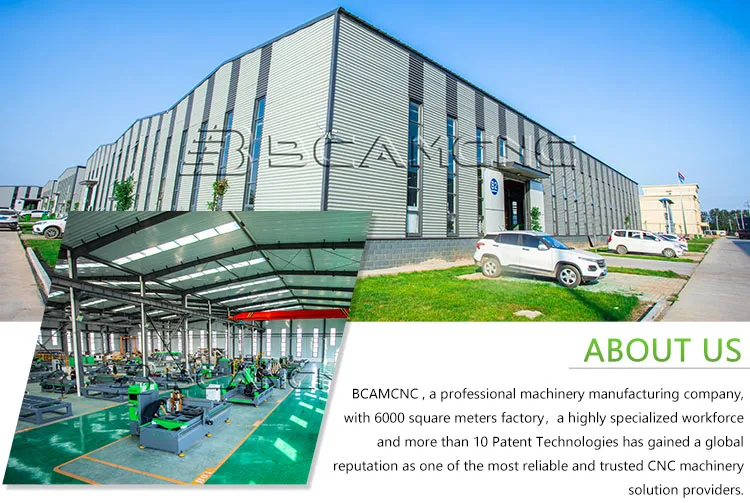

Company Profile
BCAMCNC
BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality.
