70 Вт CCT регулируемый балласт Дали постоянный ток 1500mA dali dimmabl Светодиодный драйвер для cct панельный свет

Сохранить в закладки 1601255536170:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


70W CCT adjustable dali ballast constant current 1500mA dali dimmabl led driver for cct adjustable panel light


Features:


1. Dali standard interface and standard DT8 protocol conform to Dali 144 standards


2. Dali2 certification, Dali member


3. Digital control output is adopted, and there is no stroboscopic


5. Natural air cooling, moisture-proof, heat conduction, silica gel heat dissipation process


6. Deep dimming design


7. Multiple protection functions


8. Ultra small volume design


9. Crimping design, convenient and fast


10. 4 gear current selection


11. 5-year warranty


12. TUV CE SAA ENEC certificate



Application:


1.Led two-color light source


2.Villa intelligent lighting


3.Wireless intelligent lighting system can be accessed


4.Museum lighting


5.High end commercial lighting

















MODEL LIST
































































DALI CCT DIMMABLE LED DRIVER



Series



Dimming method



MODEL



Input



Output



PF



Output Volt



Output Current



Dimension



PE-N14DCA
3-15W flicker free



DALI DT8
CCT tunable



PE-N14DCA42



AC100-250V



15W



0.96PF



25-42V



150/180/200/250/280/


300/320/350mA



147.5(117)x43x30mm



PE-N20DCA
8-20W flicker free



DALI DT8
CCT tunable



PE-N20DCA42



AC100-250V



21W



0.96PF



25-42V



200/250/280/300/350/


400/450/500mA



147.5(117)x43x30mm



PE-N30DCA 15-30W
flicker free



DALI DT8
CCT tunable



PE-N30DCA42



AC100-250V



29.4W



0.96PF



25-42V



350/400/450/500/550/


600/650/700mA



160.5(130)x43x30mm



PE-N45DCA 30-44W
flicker free



DALI DT8
CCT tunable



PE-N45DCA42



AC100-250V



44.1W



0.96PF



25-42V



700/750/800/850/900/


950/1000/1050mA



160.5(130)x43x30mm

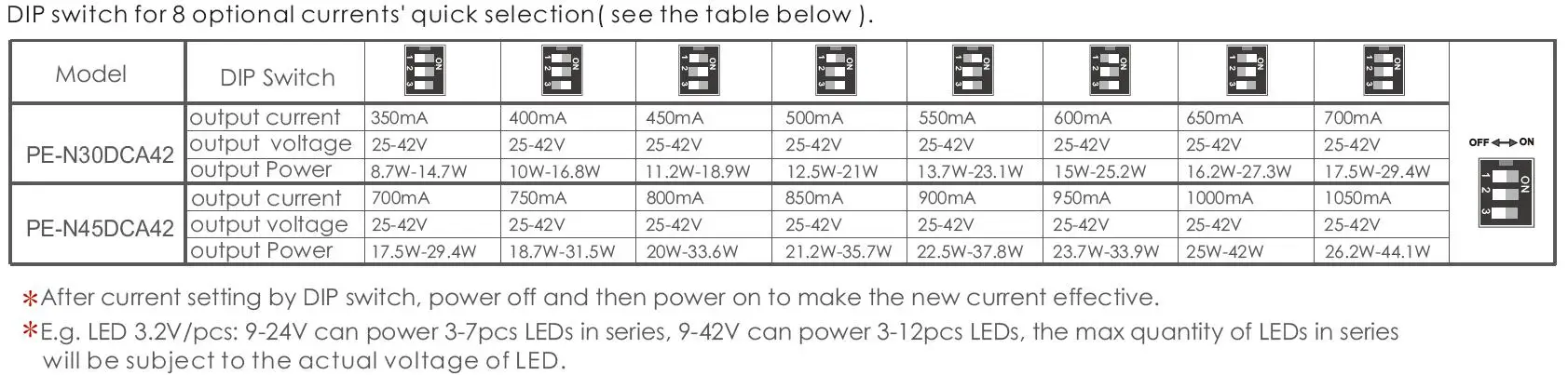

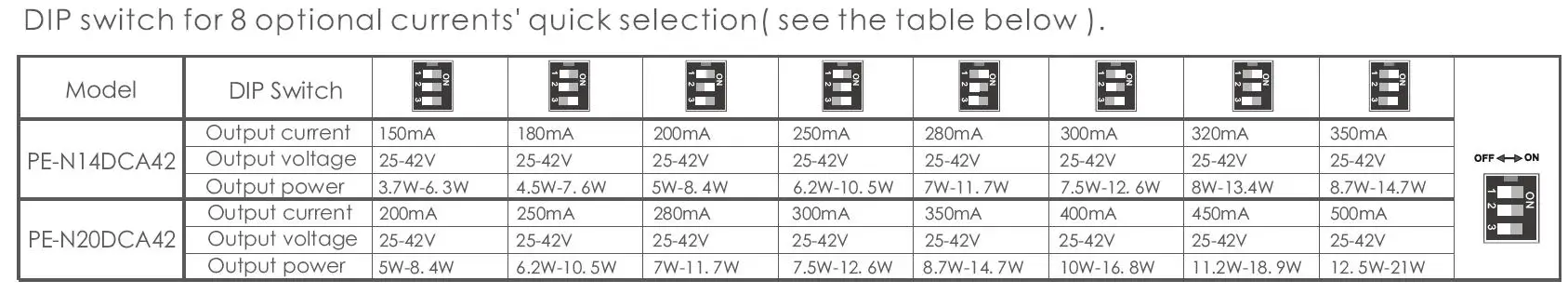

Led current selection:

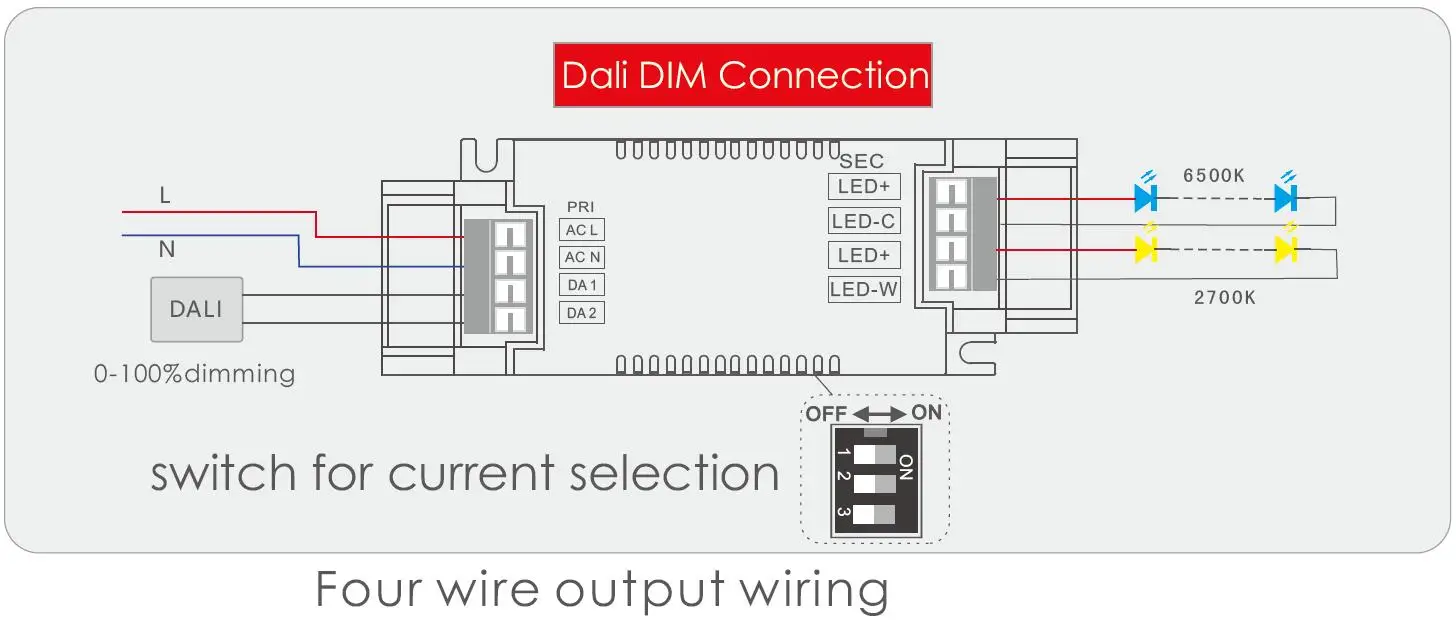

Wiring diagram:





3.Our company



70W CCT adjustable dali ballast constant current 1500mA dali dimmabl led driver for cct adjustable panel light70W CCT adjustable dali ballast constant current 1500mA dali dimmabl led driver for cct adjustable panel light70W CCT adjustable dali ballast constant current 1500mA dali dimmabl led driver for cct adjustable panel light









FAQ


1. How about your goods quality?


100% burn-in tests, full-round tests.


All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.


2. What is your warranty? And if I got wrong ones, how will you do with it?


3 years. If any wrong, we will replace in your next order, or refund.


3. What is your minimum order quantity?


The MOQ is 1pcs.


4. Which payment terms you can accept?


We accept T/T, Western Union, Paypal, etc.


5. What are the shipping ways you can offer?


By air/sea/land, from Shenzhen port, Hongkong, Guangzhou.


6. How about your delivery time?


3-7 working days according the order.


7. Can you make OEM?


Of course, OEM ODM provided.


More information, please feel free to contact us.








4.Contact us



70W CCT adjustable dali ballast constant current 1500mA dali dimmabl led driver for cct adjustable panel light
