1.Model:AS602030
2.Voltage:3.7v
3.Capacity:300mAh
4.Weight:6.0g
5.Dimension:6*20*30mm
Parameter Table:
Item | Rating | Note | ||
3.1 Capacity | Typical | 300mAh | Temperature/:25±2℃ Charge/:0.2C Discharge/:0.2C | |
Minimum | 280mAh |
| ||
3.2 Nominal Voltage | Average 3.7V |
| ||
3.3 AC Impedance Resistance | ≤200mΩ | Cell | ||
≤300mΩ | Battery Pack | |||
3.4 Discharge Cut-off Voltage | 3.00V |
| ||
3.5 Charge Current | 60mA | Standard Charge | ||
3.6 Charge voltage | 4.2V | Cut-off current≤3mA | ||
3.7 Charge Time | Approx:6 h | Standard Charge | ||
3.8 Storage humidity | < 85%RH |
| ||
3.9 Max Charge Continuous | 300mA | 10~45℃ | ||
3.10 Discharge Continuous | 150.mA |
| ||
3.11 Max Discharge Continuous | 300mA |
| ||
3.12 Weight | Approx 6.0g |
| ||
3.13 Shipping Voltage | 3.85~3.95V |
| ||
3.14 Operating Temperature | Charge | 0~+45℃ | Max Charge:60mA | |
10~+45℃ | Max Charge: 300mA | |||
Discharge | -20~+60℃ |
| ||
3.15 Storage Temperature | less than 1 month | -10~+45℃ | Recommended storage temperature: 25±2℃,at the shipment state |

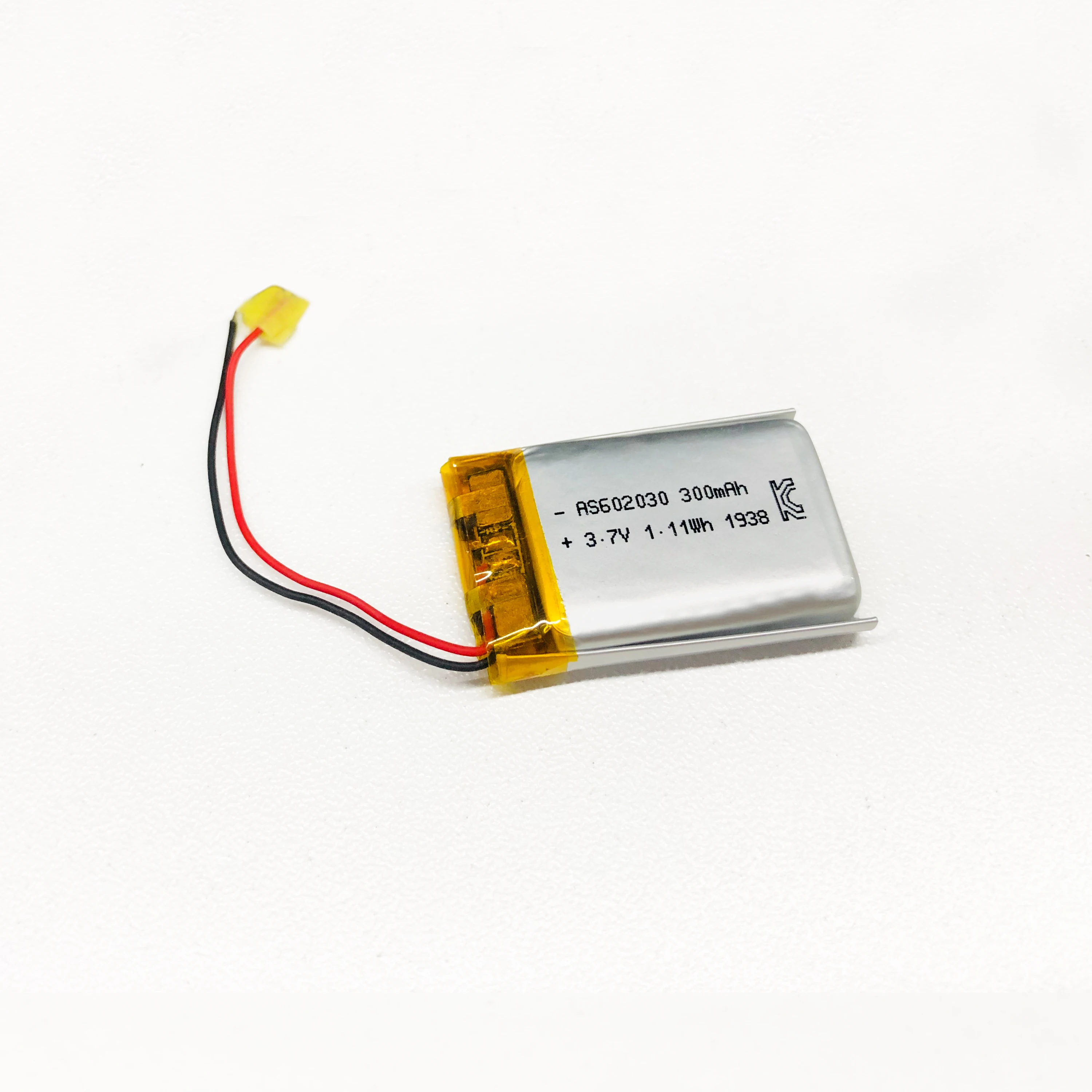

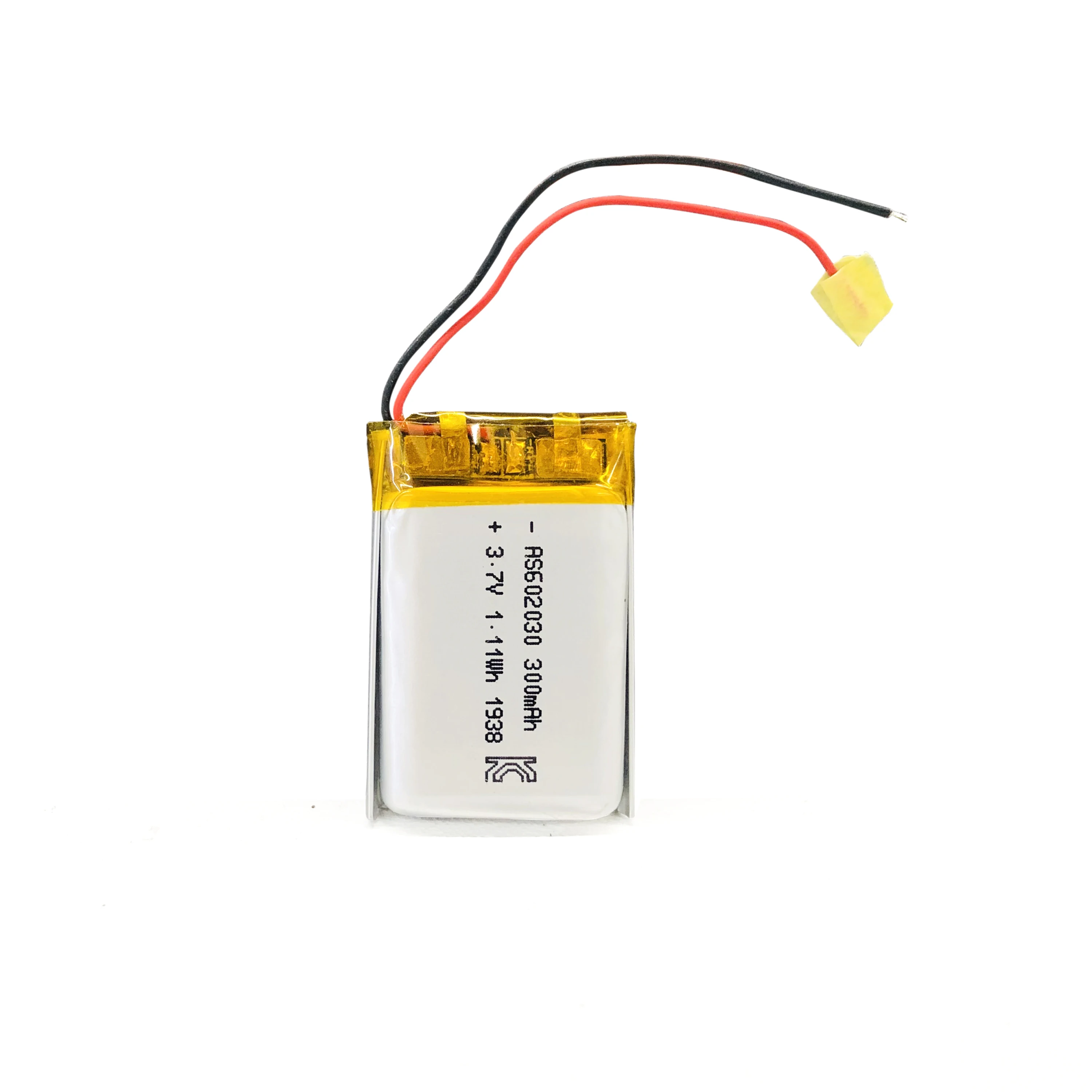

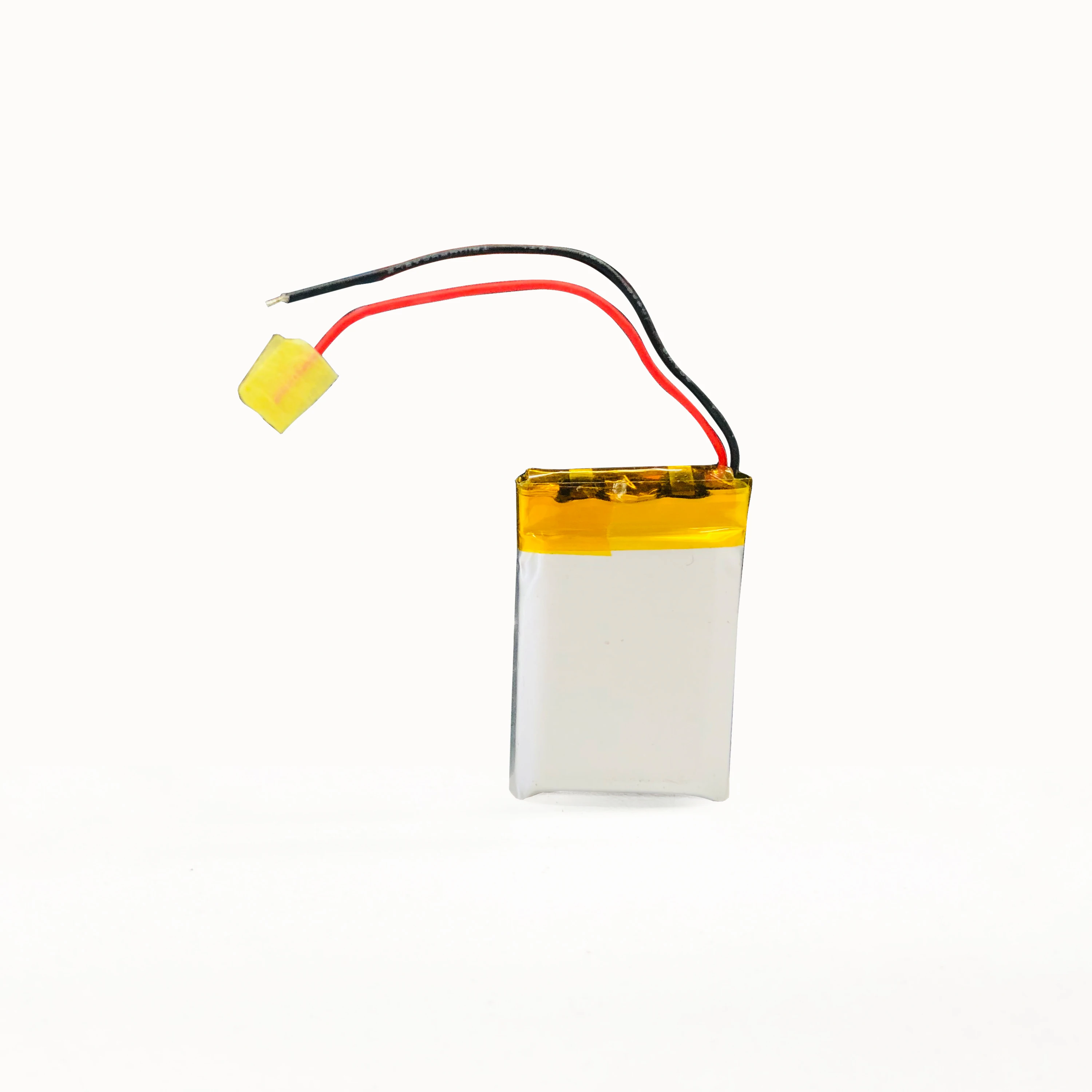

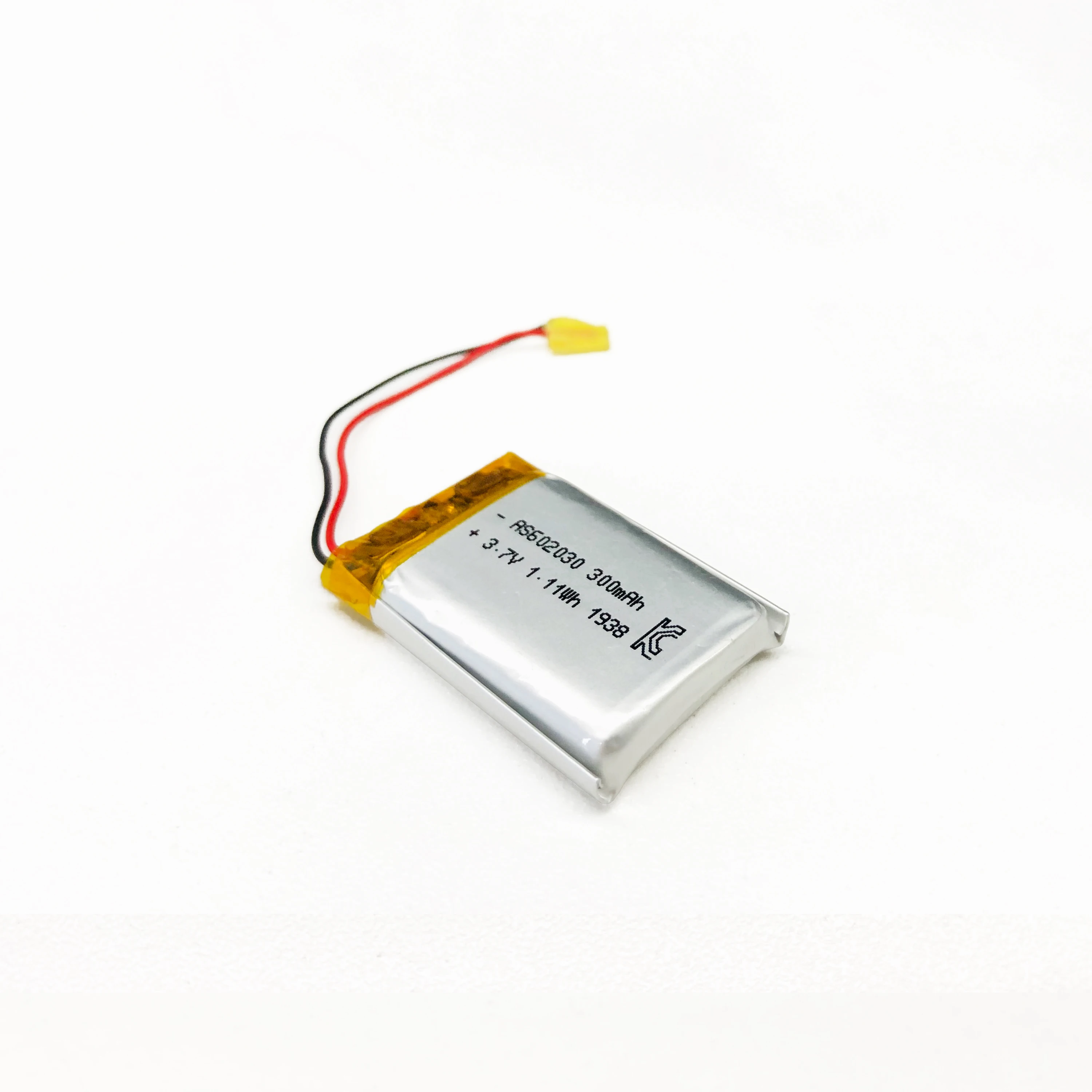

Product Pictures:
A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery and LiFePO4 battery.
