Product Overview
Ripple Color A1 SIZE RC-6090Pro UV Flatbed inkjet Printer
Ripple Color was located in Shanghai, China, who supply UV flatbed printer, DTG printer, DTF printer, Roll to roll printer over 10 years. Support OEM and ODM, welcome globle agent to contact us!
This machine can print on wood, glass, PVC, phone case, pens, bottles, cylinder, leather, tile, plastic, ABS, box, Paper, uv dtf film, golden and silver film etc. And it popular in gift shop, printing shop, phone case and design shop, which can print almost everything, and its easy to start in home or store.
1. Newest technology and friendly using;
2. intelligent software;
3, Smart design;
4, Print both flat materials and uv dtf film ;
4, Multi-function;
5, Epson head high resolution;
6, Low cost shipping;
7, Strong parts.
Nocai UV printer;
Rainbow printer;
Kingjet printer;
Audley uv printer;
refinecolor uv printer
Right Side
Front Side
Left Side
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | Ripple Color RC-6090Pro UV flatbed inkjet automatic printer |
2 | Software | Maintop/Photoprint |
3 | Print head | Epso 2-4 DX10/DX8/XP600/I3200 Heads |
4 | Ink bottle volume | 500ML |
5 | Printing size | 60*90 CM((24*36 inches) |
6 | Printing height | 0-180 MM(adjustable) |
7 | Temperature of working environment | 10-35°C |
8 | Power | 500W |
9 | Voltage/Plug | 110V-220V |
10 | Printing direction | Bi-Direction |
11 | Color Configuration of printing | CMYKW+Varnish |
12 | Software Setting Precision | 2880*1440/1440*1440DPI |
13 | Print Speed | 7.5m2/h(Production mode) / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode) |
14 | Printer size | 1562X1530x666mm |
15 | Net/Gross Weight of printer | 165kg/255KG |
16 | Size of package | 1660X1660X890mm |
17 | Computer operating system | Win7/8/10/XP |
18 | Printing table | Vacuum table available free |
19 | Print head protection | Print head Anti-collision function |
20 | Ink system | ink deficient alarm system/White ink circulation system |
21 | Picture design | .tif/.jpg/.bmp/.gif/.tga/.psd/.psb/.ps/.eps/.pdf/.dcs/.ai/.eps/.svg |
22 | Language | English/Chinese |
23 | Interface | USB 3.0 |
24 | Media | photographic paper, film, cloth, plastic, pvc, acrylic, glass, ceramic, metal, wood, leather, etc. |
PRODUCT CONFIGURATION
CNC Aluminium Cap Station Most stable Board:
The print head is imported from Japan, which has highest resolution, and micro piezoelectric technology, while it support double heads with cyan, magenta, yellow, black, white and varnish. And this one stop Aluminium CNC cap station is more longer life and easy to operate, which is all in one auto up and down.

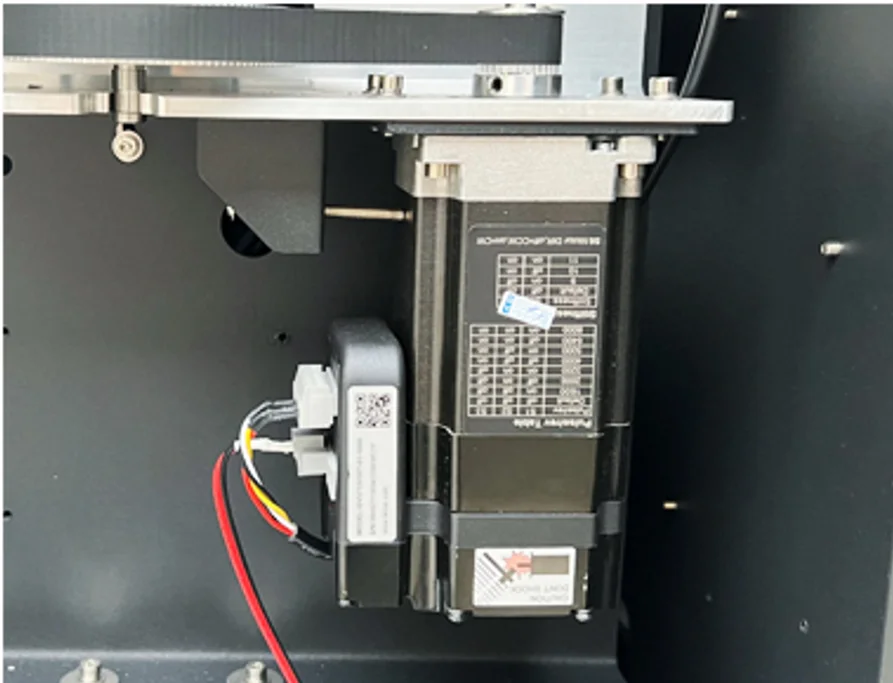

This machine uses the most stable board in the market: Hoson Board and servo Motor. Focus printer, funsun uv printer
Print head Heating system
Ripple Color a1 uv machine is equipped with print head heating system, which help machine works well even in cold weather.

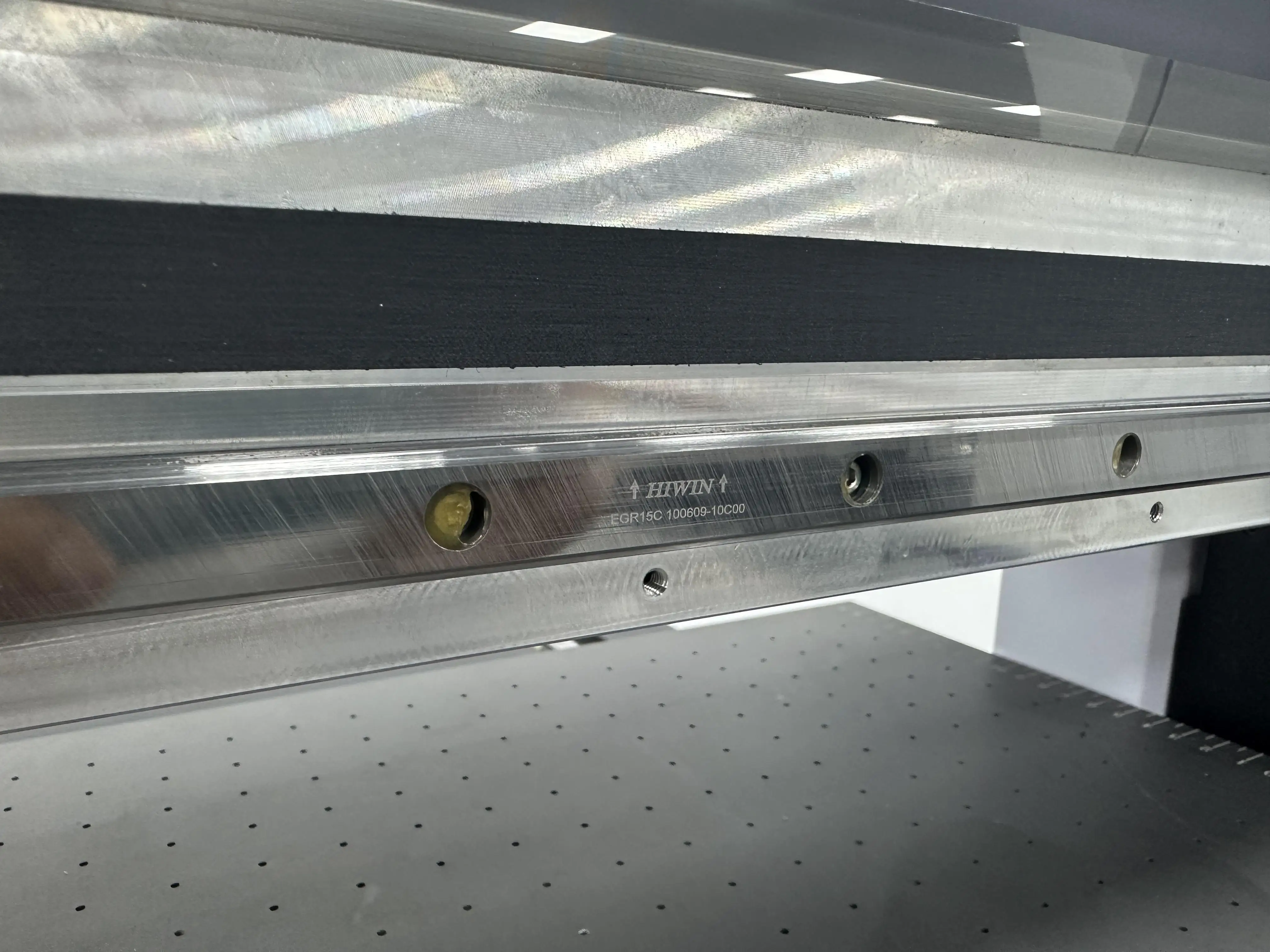

HI-WIN Guider
This A1 RC-6090Pro new update A1 UV printer uses HI-WIN 3.5 cm straight square rail on X axis which very silence and firm even decade using. audely uv printer, sinocolor printer

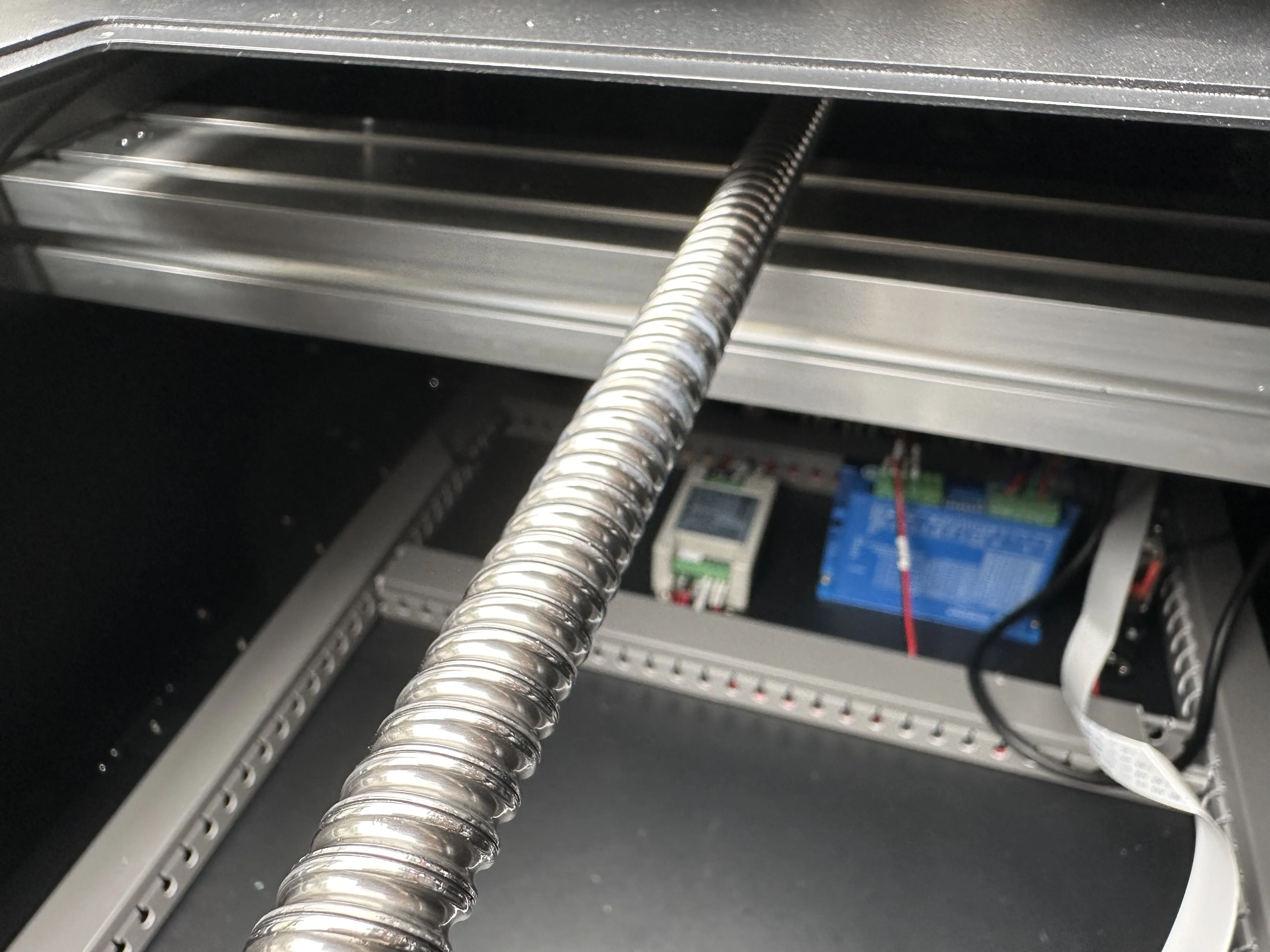

Y-Axis
This A1 UV printer is equipped with stronger ball screw from Y axis, which assure high accurate when printing, its more silence and stable.
Vacuum Table:
Each Printer is available with PTEF high quality A1 60*90cm Vacuum table which has ruler with it can print on paper, UV DTF AB FILM, golden silver film, leather and sheet etc.
White Ink Circulation/Stirring and Ink Deficient Alarm System:
This A1 UV printer has white ink circuation and stirring system as well which can help white head clog, and the stirring frequency can be set up in system. The machine also equipped with ink deficient alarm system to make sure machine working unstoppable. while it has cover for ink bottle from dust.

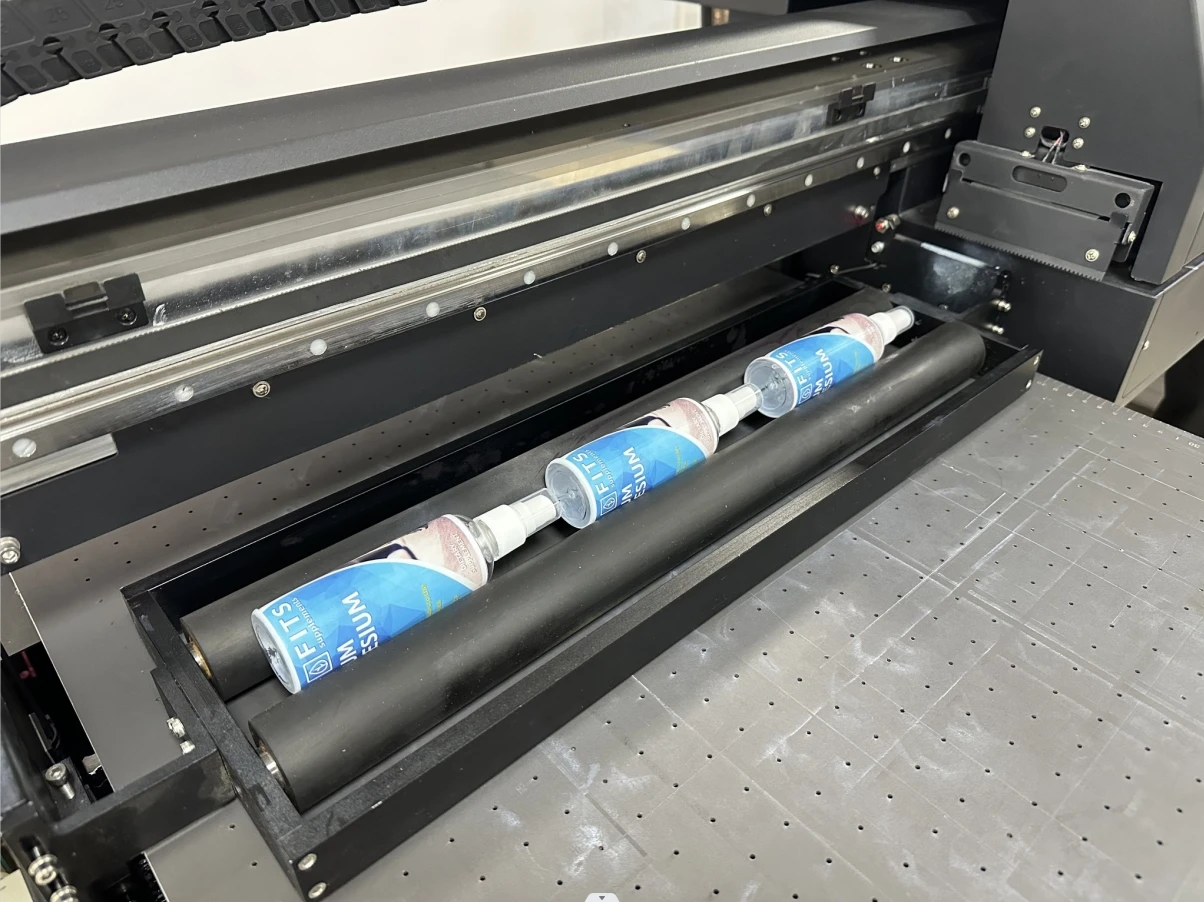

Support Rotary and Flatbed Printing:
This A1 RC-6090pro uv printer not only can print on flat materials like phone case, metal, glass, it also can directly print on bottles, cylinder, mug with rotary device. And the rotary device is drived by motor instead of platform, which is more stable and longer life. And it can print several bottles a time.
Auto Height Adjust:
Ripple Color A1 UV printer max printing height is 120MM, and the machine has auto height detect device, saving time for you.
Water cooling box:
This New A1 UV printer has high power water cooling box for UV light and it can help the uv light in a good condition and stable temperature.
Waste Ink Bottle:
This UV machine is equipped with waste ink bottle device with swich, with which can control the status of cap station. When close, the cap station will be under wet and vacuum station which prevent print head clog.
LCD Touch Control Panel:
It will be easier and convenient for you to control machine in the touch panel instead of computer with english.
Print head Anti-collision:
RC-6090Pro A1 UV printer is equipped with anti-collision system to protect print head.
Applications and Samples
SALES AND SERVICE NETWORK
Bolivia Partner
Exhibition in Egypt
2024 Shanghai Exhibition
Guangzhou Exhibition
OEM&ODM
UK Agent
Service:
1, We support 1 Year Warranty and lifetime technology support;2. Online service support and English-Speaking engineer;
3. Free technical training will be provide in the factory;
4. We will send you consumables: spare parts and inks in lower price;
5. We can issue you excludsive dealership after we confirm our cooperation and we will 100% loyal to our dealers.
3. Free technical training will be provide in the factory;
4. We will send you consumables: spare parts and inks in lower price;
5. We can issue you excludsive dealership after we confirm our cooperation and we will 100% loyal to our dealers.
Product packaging
Safe International Wooden Package: Mimaki printer. epson printer
FAQ
1. How long i can get the feedback when we have questions on machine?
------We will reply you within 10 minutes in working day.
2. Can you do customization?
-----Yes sure, OEM and ODM available.
3, What's the universal lead-time for order delivery?
-----The machine can be shipped out in 3-5 working days after we get full payment.
4, Why choose us?
----Fast shipping, Timely service, professional technicial and sales team, it can save both of us time.
