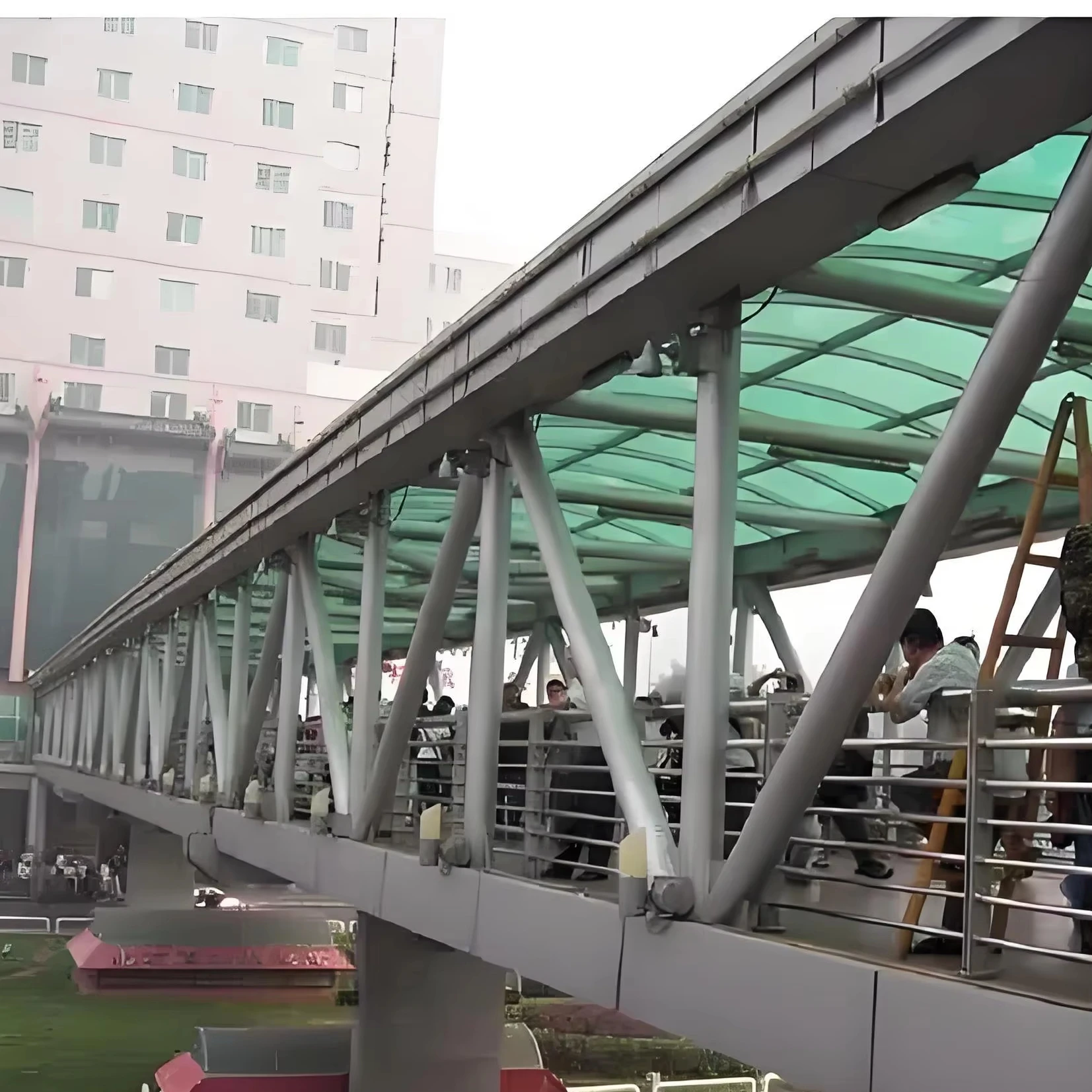

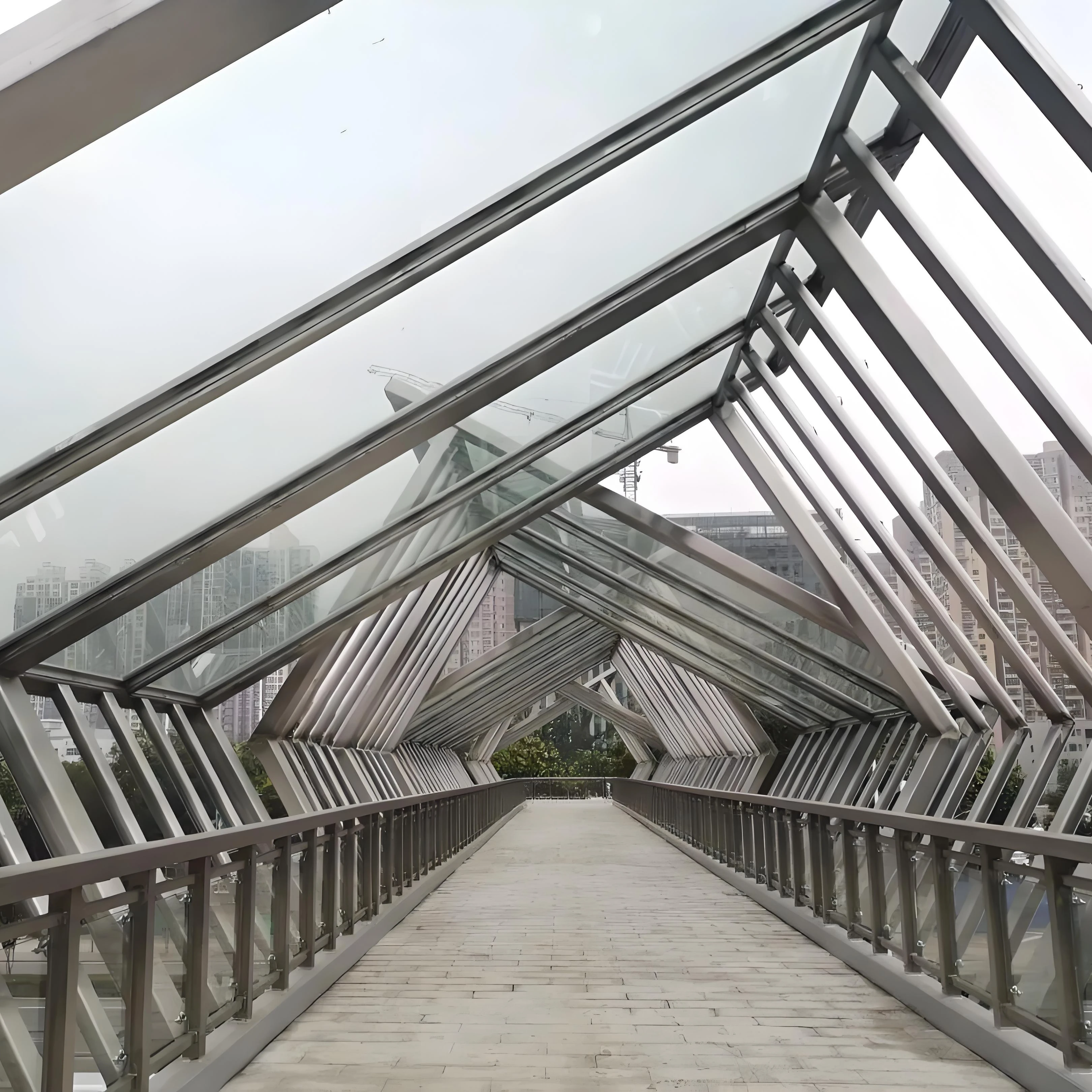

Высококачественный пешеходный мост с оцинкованной стальной трубой

Высококачественный пешеходный мост с оцинкованной стальной трубой

Категория: >>>
Поставщик: Hongfang Intelligent Iron Tower Manufacturing (xuzhou) Co. Ltd

Цена:10 789,78 ₽ - 12 947,74 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Brand name	HONGFANG
Model	1.Single slope, Double slope, Multi-slope.
Model		2.Single span, Double-span, Multi-span, Single floor, Double floors.
Column and beam	1.Material Q345(S355JR)or Q235(S235JR) steel.
		2.All bolts connecting.
		3.Straight cross-section or Variable cross-section.
Fabrication	Advanced Automatic Welding Machines
Quality control	GB/T19001-2000----ISO9001:2000
Surface	Hot-dip galvanized or painted
Roof and wall panel	1.EPS ,PU ,Rockwool sandwich panel.
		2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm
		3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50
Carrying capacity	1.Resisting winds and seismic impacts.
Carrying capacity		2.Bearing heavy snows.
Drawing	1.Making the design and quotation according to your requirements very soon.
		2.Making the quotation according to your drawings.
		3.Giving you the satisfying opinion to your project.

Ⅰ. Material grade
1.Carbon structural steel: Q235.
2.High-strength structural steel : Q345
3.Special purpose steel : Q355

ⅡQuality standard
1.Certificate: ISO9001:2000
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)

Ⅲ. Structure Assembly

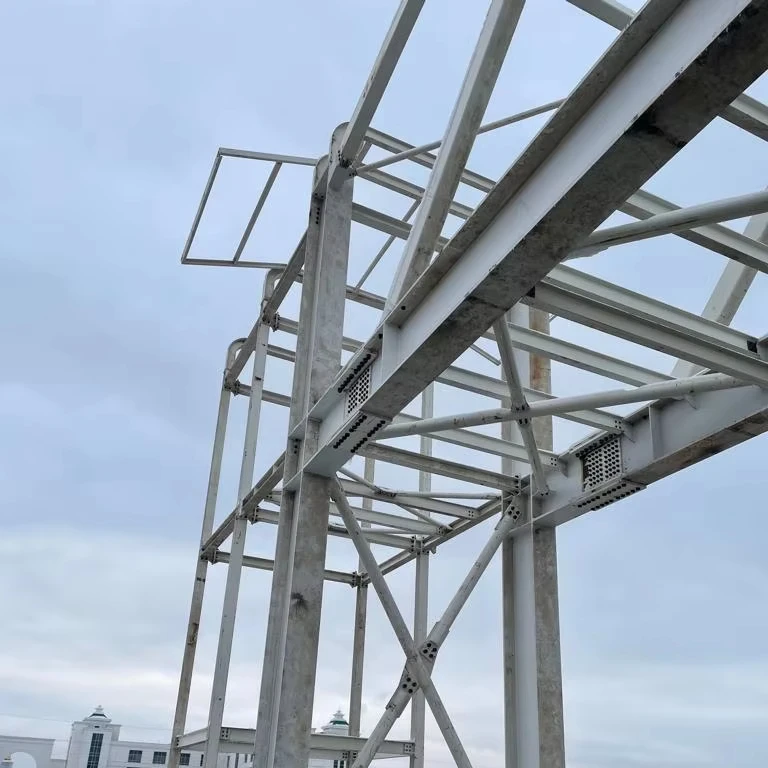

1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per request
4.Doors: Rolling or Pushing, as requested.

specifications:
1)Long life Span
2)Light in weight and easy installation
3)Short time when manufacturing
4)Fully recyclable

Steel Structure is used in a variety of products, especially in building fields:

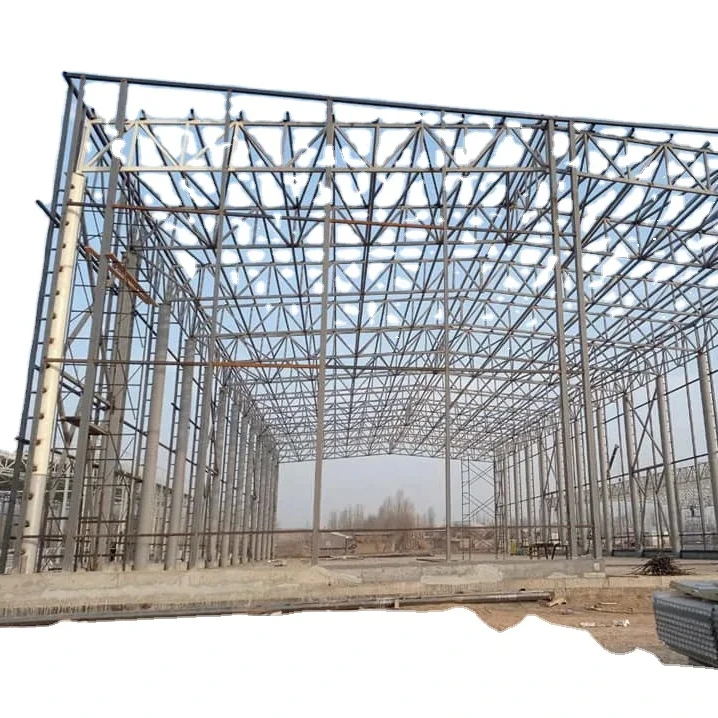

We supply any suitable Steel Structures, Net Assemblies,Dome Truss,Curtain Walls for all kinds of buildings.
We offer design, drawing , manufacture and installing.
We have professional technicians, engineers and hardworking workers. We can work together and provide you wonder products.

Just tell us what you want ,and we will do the rest.
