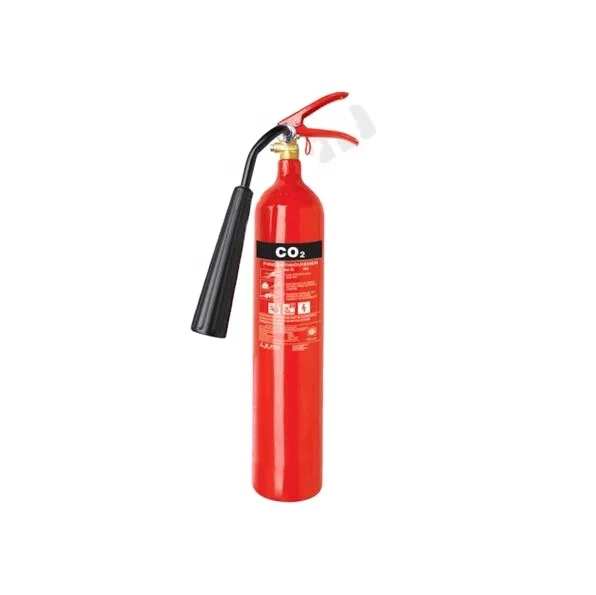

3 кг переносной огнетушитель из легированной стали СО2 необходимое противопожарное оборудование
31,00-32,00 $
Заводская цена трубы сети Co2 полное затопление пожарной системы с взвешивающим устройством
- Категория: >>>
- Поставщик: Hangzhou Pri-Safety Fire Technology Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601256157613:
Описание и отзывы
Характеристики
Product Description

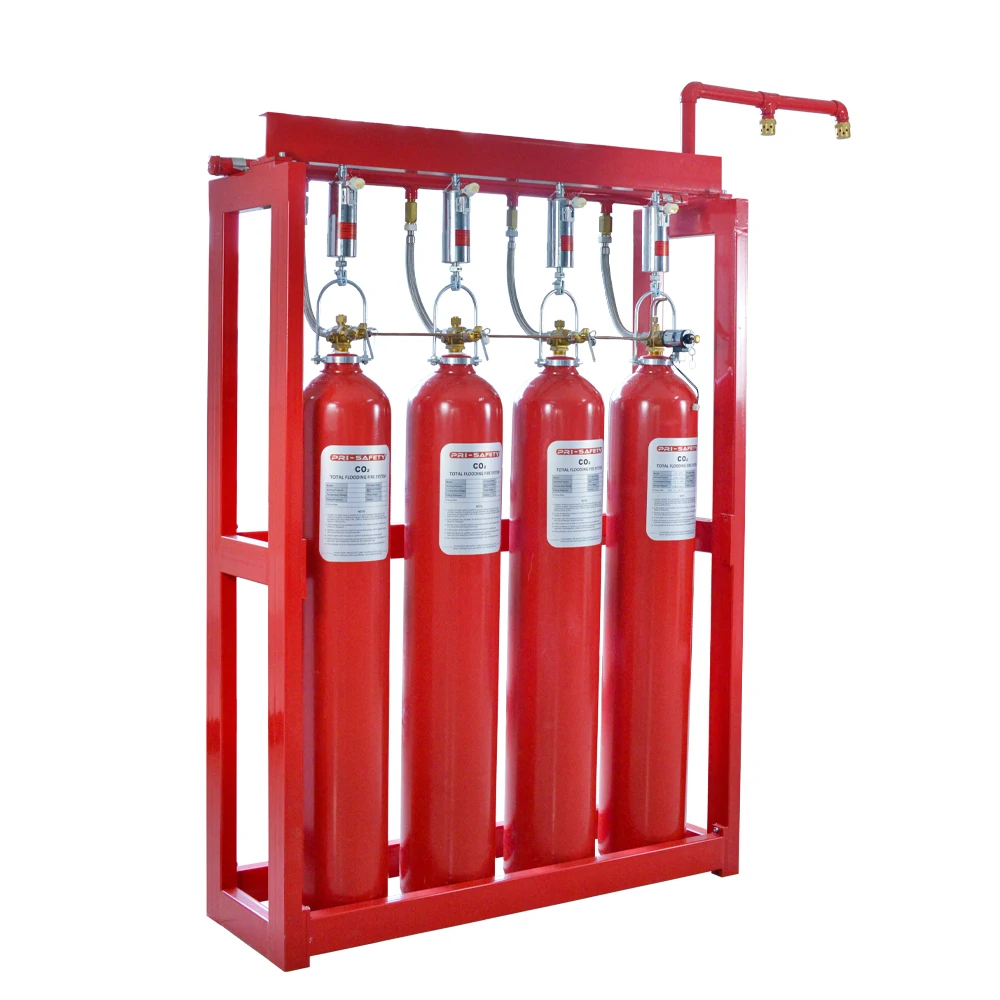

A CO2 Total Flooding Fire Suppression System with a Weighing Device
is a specialized fire protection system designed to extinguish fires using carbon dioxide (CO2) gas. It is particularly suited for areas where water or other conventional fire suppression methods might damage sensitive equipment or materials
Specification
Item | Description |
Place of Origin | China |
Zhejiang | |
Brand Name | PRI-SAFETY |
Model Number | PCTW-70 |
Color | RAL3000 Painting |
Material | Carbon Steel |
Item Weight | Depend on system capacity |
Capacity | 70L |
Filling Volume of Gas | 42kg |
Working Pressure | 5.7Mpa |
Max Working Pressure | 12.4Mpa |
Spraying Time | ≤60s |
Max Filling Rate | 0.6kg/L |
Power | DC24V/1.6A |
Nitrogen Pressure of Driving | 6.0±1.0Mpa(20℃) |
Reserving Temp. for Container | Temperature: 0~50℃ |
MOQ | 10sets |

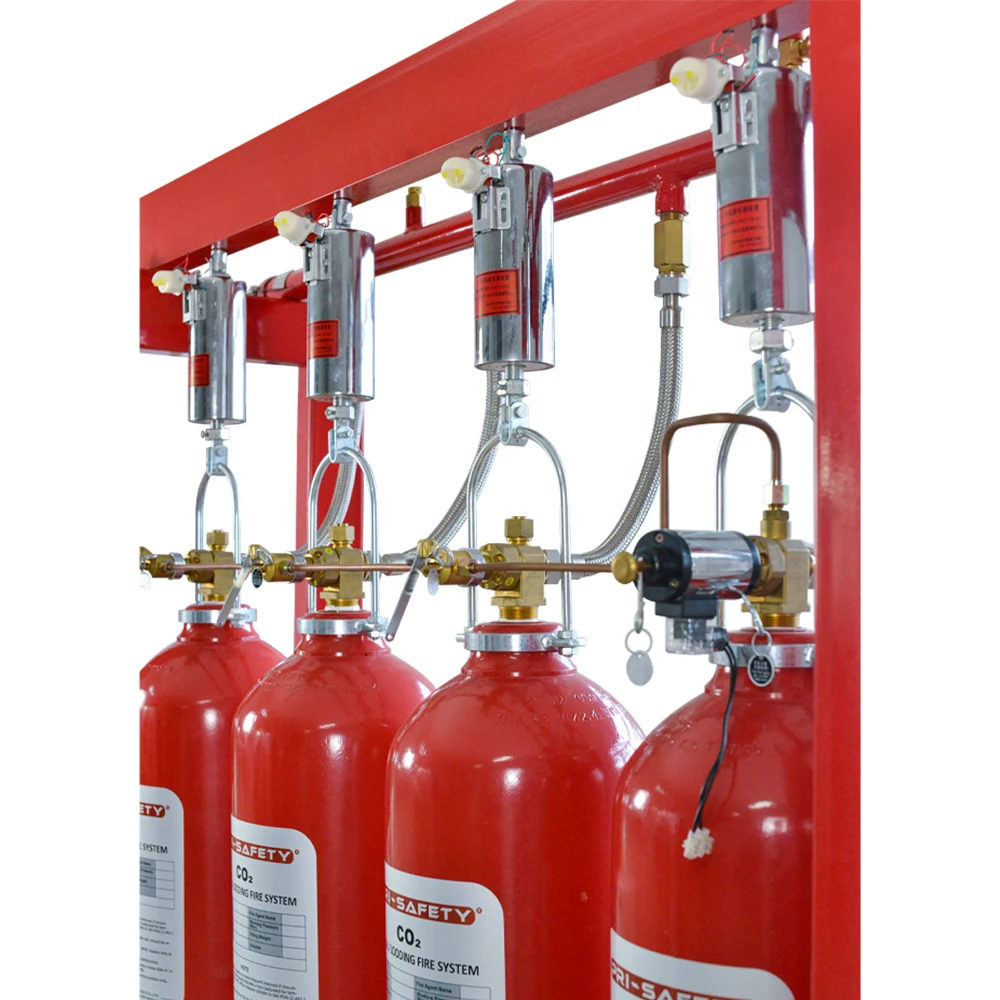

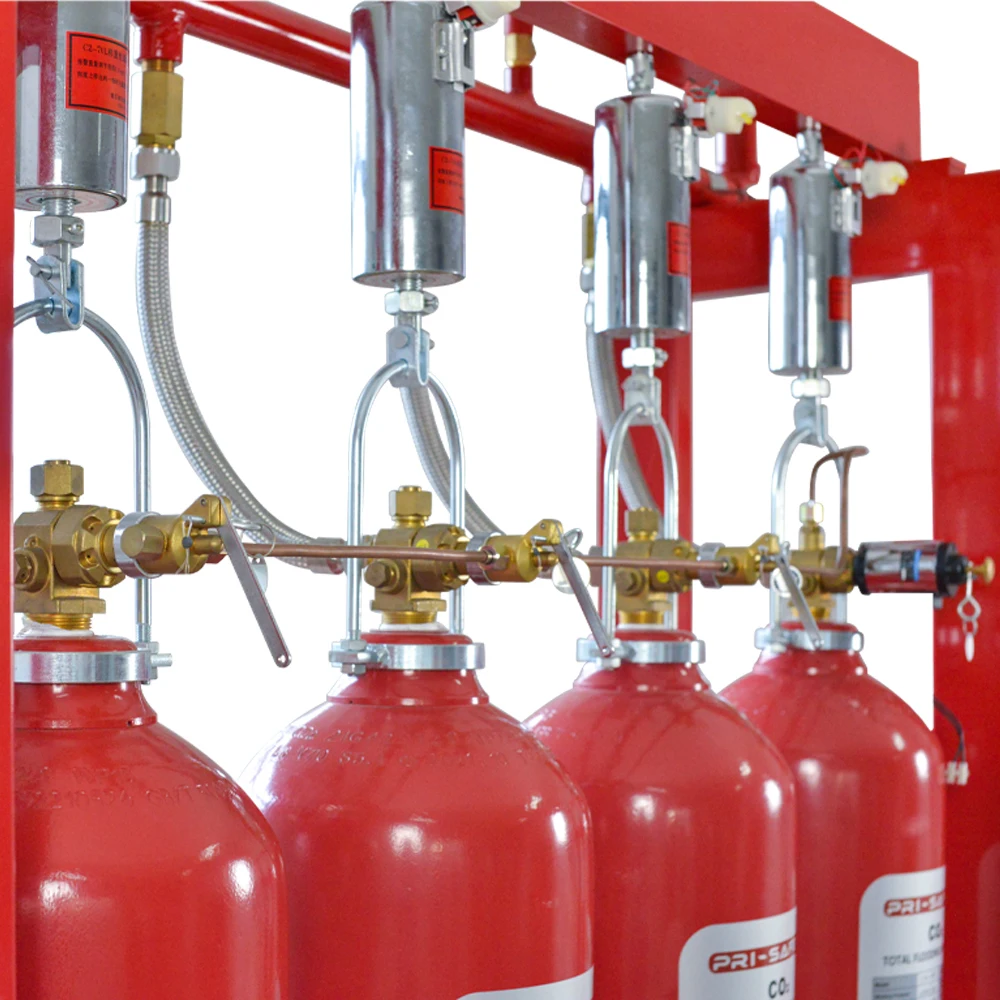

Detailed Components
A CO2 Total Flooding Fire Suppression System with a Weighing System consists of several key components that work together to detect, suppress fires, and ensure the system's readiness. Below is a breakdown of the main components:
1. CO2 Cylinders (Storage Tanks) Purpose: Store the carbon dioxide (CO2) in a pressurized liquid state, ready to be released
during a fire event. Design: These cylinders are typically high-pressure tanks made of steel and are available in various sizes to
store the appropriate amount of CO2 for the protected area.
during a fire event. Design: These cylinders are typically high-pressure tanks made of steel and are available in various sizes to
store the appropriate amount of CO2 for the protected area.
2. Weighing System
Purpose: Monitors the weight of the CO2 cylinders to ensure that the correct amount of CO2 is available for fire suppression.
Components:Load Cells or Weighing Platforms: Installed beneath each CO2 cylinder, continuously monitoring the weight of the cylinder.
Control Panel: Receives signals from the load cells and triggers an alert if the weight falls below a specified threshold, indicating potential leakage or CO2 depletion.
Purpose: Monitors the weight of the CO2 cylinders to ensure that the correct amount of CO2 is available for fire suppression.
Components:Load Cells or Weighing Platforms: Installed beneath each CO2 cylinder, continuously monitoring the weight of the cylinder.
Control Panel: Receives signals from the load cells and triggers an alert if the weight falls below a specified threshold, indicating potential leakage or CO2 depletion.
3. Fire Detection System Purpose: Detects a fire and activates the CO2 discharge. Components:Smoke Detectors: Sense the presence
of smoke in the protected area. Heat Detectors: Trigger the system when the temperature rises to a predetermined level. Control
Panel: Central system that processes signals from detectors and decides when to release the CO2.
of smoke in the protected area. Heat Detectors: Trigger the system when the temperature rises to a predetermined level. Control
Panel: Central system that processes signals from detectors and decides when to release the CO2.
4. Discharge Nozzles
Purpose: Distribute CO2 evenly throughout the protected space to achieve the required concentration to suppress the fire.
Design: Strategically placed to ensure full coverage. The nozzles are designed to release the gas in a fine mist or wide spray to flood the area quickly.
5. Piping Network
Purpose: Transports CO2 from the cylinders to the discharge nozzles.
Design: Consists of durable pipes designed to withstand the pressure of the CO2 gas. The network is installed throughout the protected area to deliver CO2 where it’s needed.
6. Automatic Release Mechanism
Purpose: Initiates the release of CO2 when the system detects a fire.
Components:Solenoid Valves: Electrically
Purpose: Distribute CO2 evenly throughout the protected space to achieve the required concentration to suppress the fire.
Design: Strategically placed to ensure full coverage. The nozzles are designed to release the gas in a fine mist or wide spray to flood the area quickly.
5. Piping Network
Purpose: Transports CO2 from the cylinders to the discharge nozzles.
Design: Consists of durable pipes designed to withstand the pressure of the CO2 gas. The network is installed throughout the protected area to deliver CO2 where it’s needed.
6. Automatic Release Mechanism
Purpose: Initiates the release of CO2 when the system detects a fire.
Components:Solenoid Valves: Electrically
Product Features
The CO2 Total Flooding Fire Suppression System with a Weighing Device is designed to offer robust and efficient fire protection for sensitive environments. Its features ensure effective fire suppression while maintaining system reliability.
Here are the key features:
1. Total Flooding Capability
Full Coverage: The system floods the protected area with CO2 gas, displacing oxygen and extinguishing the fire. This ensures that all corners, including hard-to-reach areas, are covered.
Rapid Suppression: CO2 works quickly to suppress fires, making the system highly effective in minimizing damage and reducing downtime.
2. Weighing Device for Continuous Monitoring
Constant Cylinder Monitoring: The weighing device continuously monitors the weight of CO2 cylinders, ensuring that they are fully charged and ready for use.
Leak Detection: Any decrease in cylinder weight triggers an alarm, indicating a potential leak or loss of CO2. This allows for proactive maintenance and reduces the risk of system failure during a fire.
Safety Compliance: The weighing system ensures that the system complies with safety regulations, as it guarantees that the correct amount of CO2 is always available.
Full Coverage: The system floods the protected area with CO2 gas, displacing oxygen and extinguishing the fire. This ensures that all corners, including hard-to-reach areas, are covered.
Rapid Suppression: CO2 works quickly to suppress fires, making the system highly effective in minimizing damage and reducing downtime.
2. Weighing Device for Continuous Monitoring
Constant Cylinder Monitoring: The weighing device continuously monitors the weight of CO2 cylinders, ensuring that they are fully charged and ready for use.
Leak Detection: Any decrease in cylinder weight triggers an alarm, indicating a potential leak or loss of CO2. This allows for proactive maintenance and reduces the risk of system failure during a fire.
Safety Compliance: The weighing system ensures that the system complies with safety regulations, as it guarantees that the correct amount of CO2 is always available.
3. Non-Conductive and Residue-Free Safe for Electronics:
CO2 is non-conductive, making it ideal for environments with sensitive
electrical and electronic equipment (such as data centers, server rooms, and control panels). No Clean-Up: CO2 is a gas, so
there’s no residue left behind after discharge. This eliminates the need for post-fire clean-up, reducing operational downtime.
electrical and electronic equipment (such as data centers, server rooms, and control panels). No Clean-Up: CO2 is a gas, so
there’s no residue left behind after discharge. This eliminates the need for post-fire clean-up, reducing operational downtime.
4.Automatic and Manual Activation Automatic Detection:
The system can be triggered automatically by smoke or heat detectors,
ensuring rapid response in case of a fire. Manual Activation: In addition to automatic activation, the system includes manual pull
stations, giving personnel the ability to release CO2 in an emergency.
ensuring rapid response in case of a fire. Manual Activation: In addition to automatic activation, the system includes manual pull
stations, giving personnel the ability to release CO2 in an emergency.
5. Pre-Discharge Warning System
Audible and Visual Alerts: Since CO2 can be dangerous to humans at high concentrations, the system is equipped with alarms (audible sirens and flashing lights) to warn personnel to evacuate before the gas is discharged.
Delay Mechanism: A time delay is often built into the system, allowing for a safe evacuation before CO2 release.
6. High Pressure and Efficient Delivery
High-Pressure System: The CO2 is stored in high-pressure cylinders, allowing for rapid release and effective fire suppression.
Strategic Nozzle Placement: Discharge nozzles are positioned to ensure even and thorough distribution of CO2 throughout the protected space.
7. Minimal Downtime
Quick Suppression and Restoration: Since the system suppresses fires rapidly without leaving any residue or damaging equipment, affected areas can be back online faster than with water- or foam-based systems.
Audible and Visual Alerts: Since CO2 can be dangerous to humans at high concentrations, the system is equipped with alarms (audible sirens and flashing lights) to warn personnel to evacuate before the gas is discharged.
Delay Mechanism: A time delay is often built into the system, allowing for a safe evacuation before CO2 release.
6. High Pressure and Efficient Delivery
High-Pressure System: The CO2 is stored in high-pressure cylinders, allowing for rapid release and effective fire suppression.
Strategic Nozzle Placement: Discharge nozzles are positioned to ensure even and thorough distribution of CO2 throughout the protected space.
7. Minimal Downtime
Quick Suppression and Restoration: Since the system suppresses fires rapidly without leaving any residue or damaging equipment, affected areas can be back online faster than with water- or foam-based systems.
8. Customization for Specific Applications
Flexible Design: The system can be customized for different room sizes, environments, and hazards. The number of CO2 cylinders, nozzle placements, and system controls can be tailored to meet the needs of various facilities.
Sector-Specific Protection: It is widely used in environments where water-based systems are not appropriate, such as power plants, marine vessels, chemical storage areas, data centers, and archives.
9. Reliable Control and Monitoring
Control Panel: The system features a central control panel that manages the entire suppression system, including detection, activation, and weighing devices.
System Diagnostics: The control panel can provide real-time diagnostics, monitoring the status of the detectors, CO2 cylinders, and the weighing system. It ensures the system is always operational.
10. Scalability
Expandable System: The system can be scaled up to protect large areas or divided into zones, allowing it to protect multiple rooms or spaces within a facility.
Integration with Other Systems: It can be integrated with other fire safety systems, such as alarms, sprinklers, and ventilation controls, for comprehensive fire protection.
Flexible Design: The system can be customized for different room sizes, environments, and hazards. The number of CO2 cylinders, nozzle placements, and system controls can be tailored to meet the needs of various facilities.
Sector-Specific Protection: It is widely used in environments where water-based systems are not appropriate, such as power plants, marine vessels, chemical storage areas, data centers, and archives.
9. Reliable Control and Monitoring
Control Panel: The system features a central control panel that manages the entire suppression system, including detection, activation, and weighing devices.
System Diagnostics: The control panel can provide real-time diagnostics, monitoring the status of the detectors, CO2 cylinders, and the weighing system. It ensures the system is always operational.
10. Scalability
Expandable System: The system can be scaled up to protect large areas or divided into zones, allowing it to protect multiple rooms or spaces within a facility.
Integration with Other Systems: It can be integrated with other fire safety systems, such as alarms, sprinklers, and ventilation controls, for comprehensive fire protection.

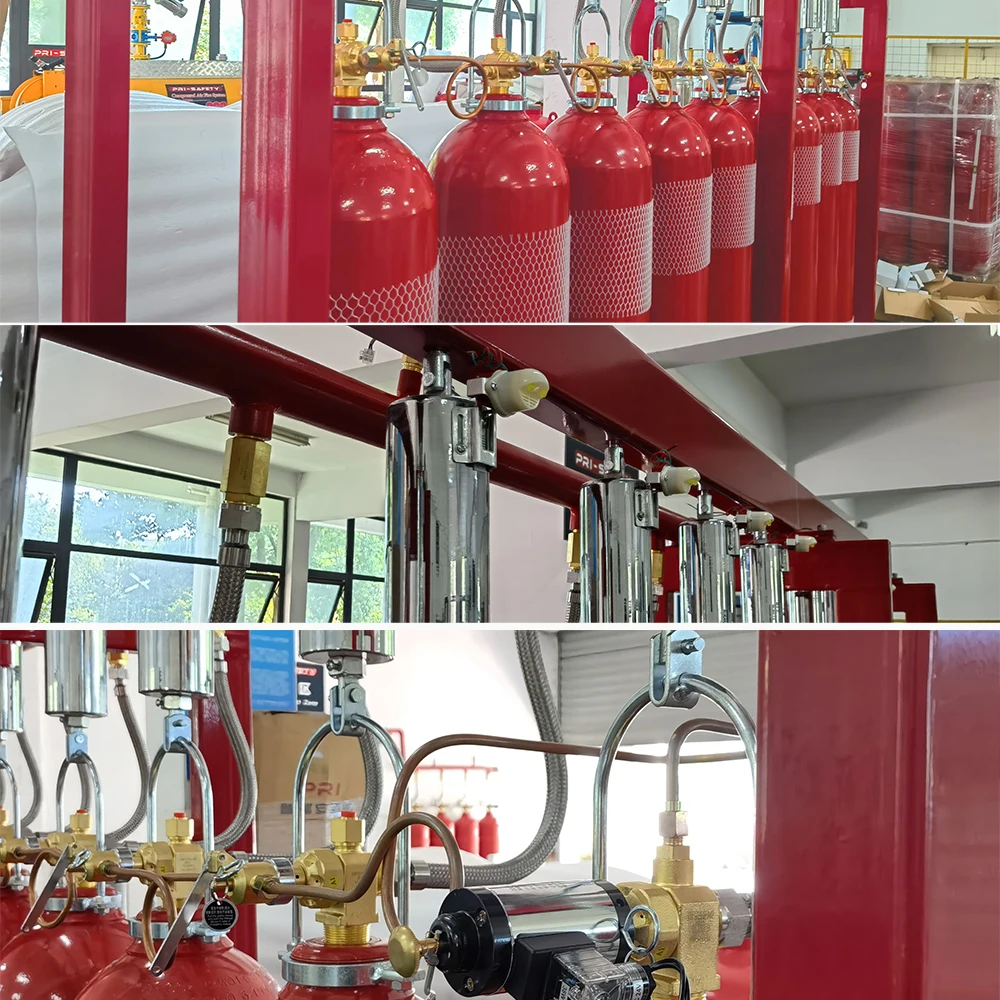

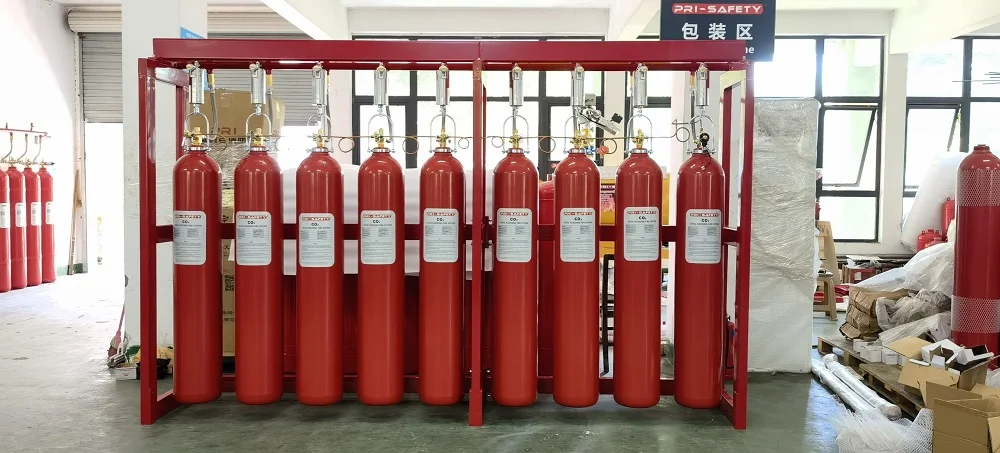

Workshop
Company Profile
PRI-SAFETY specializes in the manufacture and exportation of Automatic Fire Systems, Throw Type Fire Extinguishers, CAFS Compressed Air Foam Fire Systems, Fire Extinguishers, Fire Hose Reels, Fire Hoses, Fire Cabinets, Valves, Pressure Gauges, Couplings, Smoke Alarms, Fire Blanket and other fire equipment, etc. We focus on providing one-stop fire-fighting products and professional service.
We have attained ISO9001:2000, CE, EN3, EN1869 and EN694 certifications. Almost all products that we provide are manufactured and tested according to the international standard. We also supply OEM service, we can design and produce the products as client's special request.
PRI-SAFETY also has very good after-sales service, we have one professional,high efficient and warmly sales team. We promise that all feedbacks from clients would be replied within 8 hours during working days. We always try our best to provide better service to meet our clients' demands.
Our company rule is saving time and cost for clients, taking good profit and well development for clients. We supply well growing space and training for each staff, help staffs to achieve their dreams. Then clients and staffs push our company development.
We have attained ISO9001:2000, CE, EN3, EN1869 and EN694 certifications. Almost all products that we provide are manufactured and tested according to the international standard. We also supply OEM service, we can design and produce the products as client's special request.
PRI-SAFETY also has very good after-sales service, we have one professional,high efficient and warmly sales team. We promise that all feedbacks from clients would be replied within 8 hours during working days. We always try our best to provide better service to meet our clients' demands.
Our company rule is saving time and cost for clients, taking good profit and well development for clients. We supply well growing space and training for each staff, help staffs to achieve their dreams. Then clients and staffs push our company development.
Похожие товары

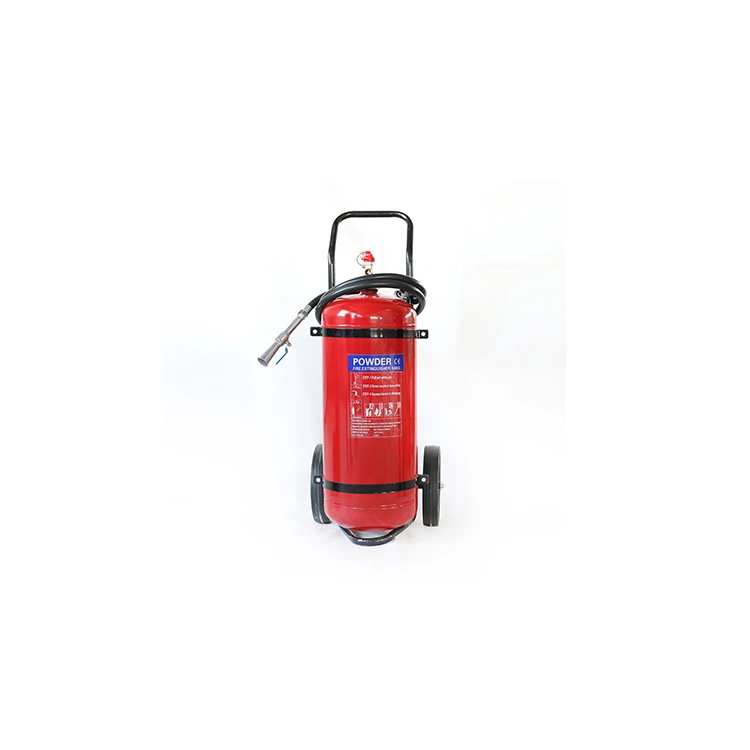

Вместительный и долговечный пенопластовый Огнетушитель на колесиках сухой порошковый
38,00-70,00 $
Высококачественный 90% для Америки ABC пожарно-химический порошок фосфат аммония 70% 80% и
353,00-389,00 $

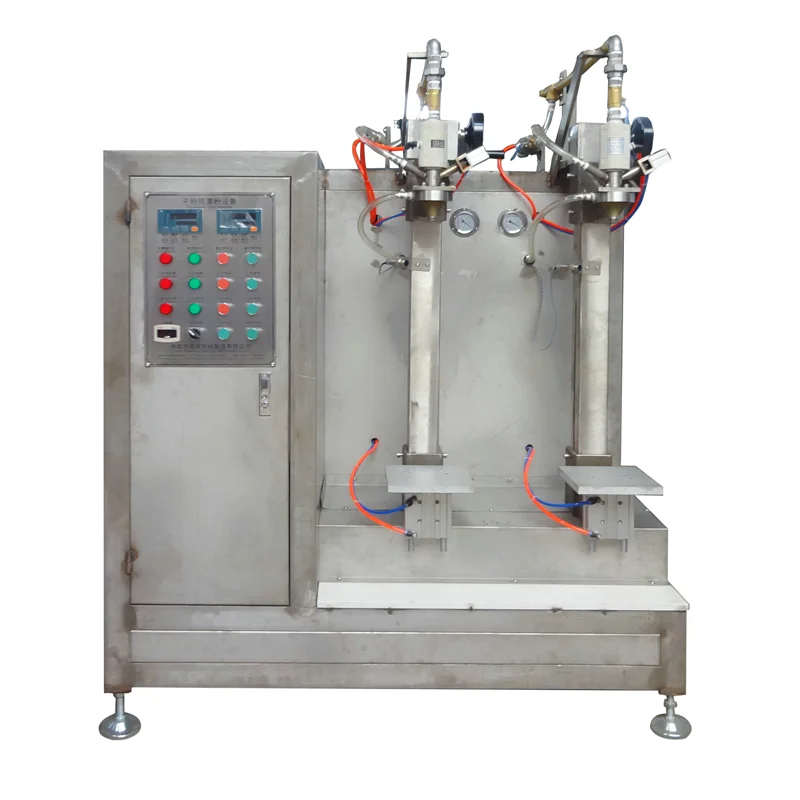

Прямые продажи с фабрики Огнетушитель машина для наполнения сухого порошка
10 000,00-100 000,00 $
CE approval 4kg automatic fire extinguisher production line dry powder sprinkler system
9,90-10,20 $
Автоматический Огнетушитель цилиндр снизу маркировки слово Машина

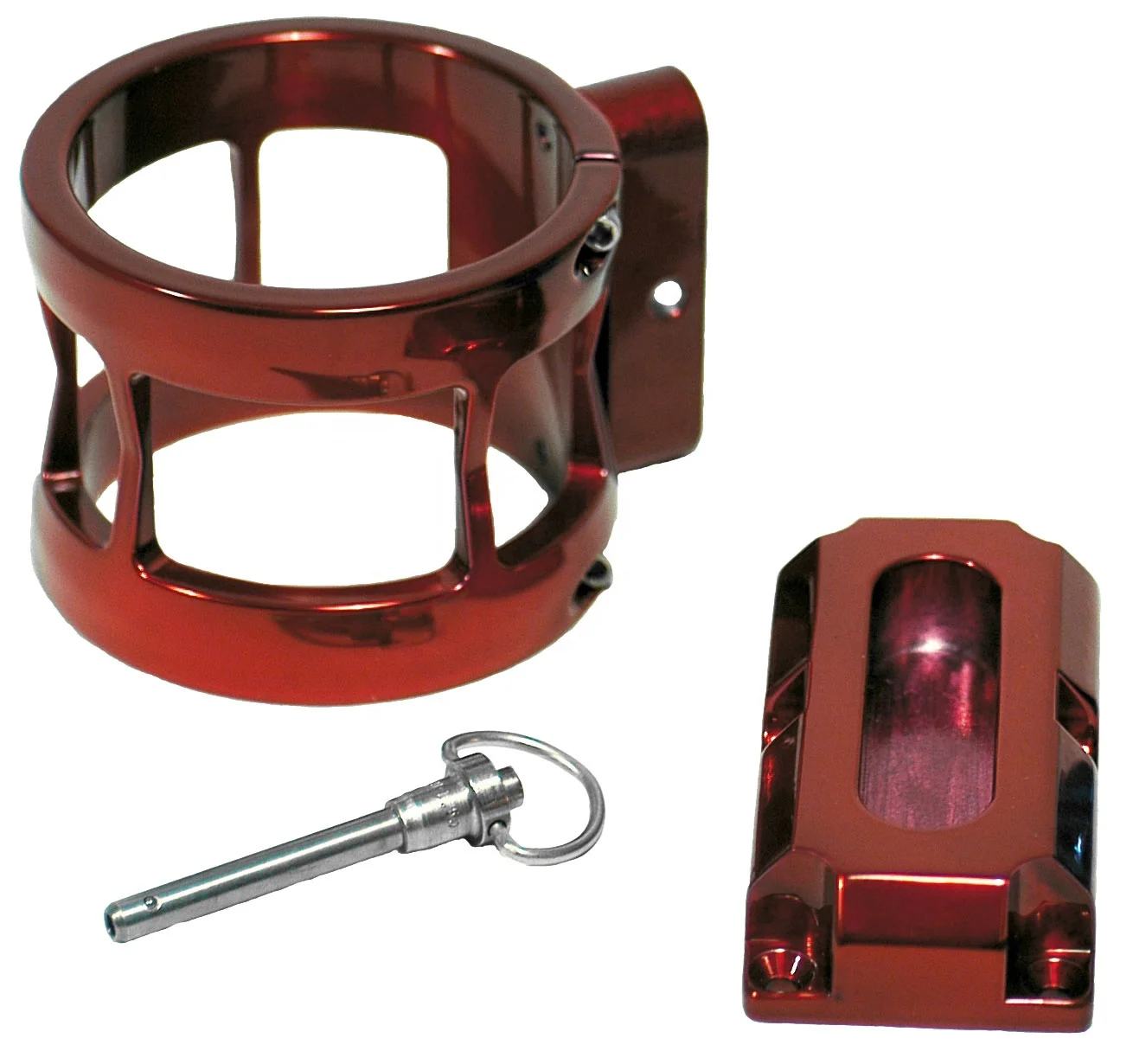

Держатель для огнетушителя на заказ, кронштейн для огнетушителя
972,17-1 215,21 ₽

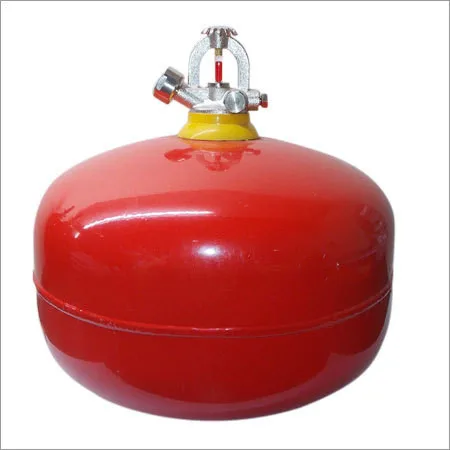

Автоматическая система пожаротушения типа трубки
