Производство Китай оптовая продажа Нитриловое X-кольцевое уплотнение силиконовое Четырехугольное кольцо NBR/VMQ/FKM резиновое X кольцевое
1,11 ₽ - 5,55 ₽

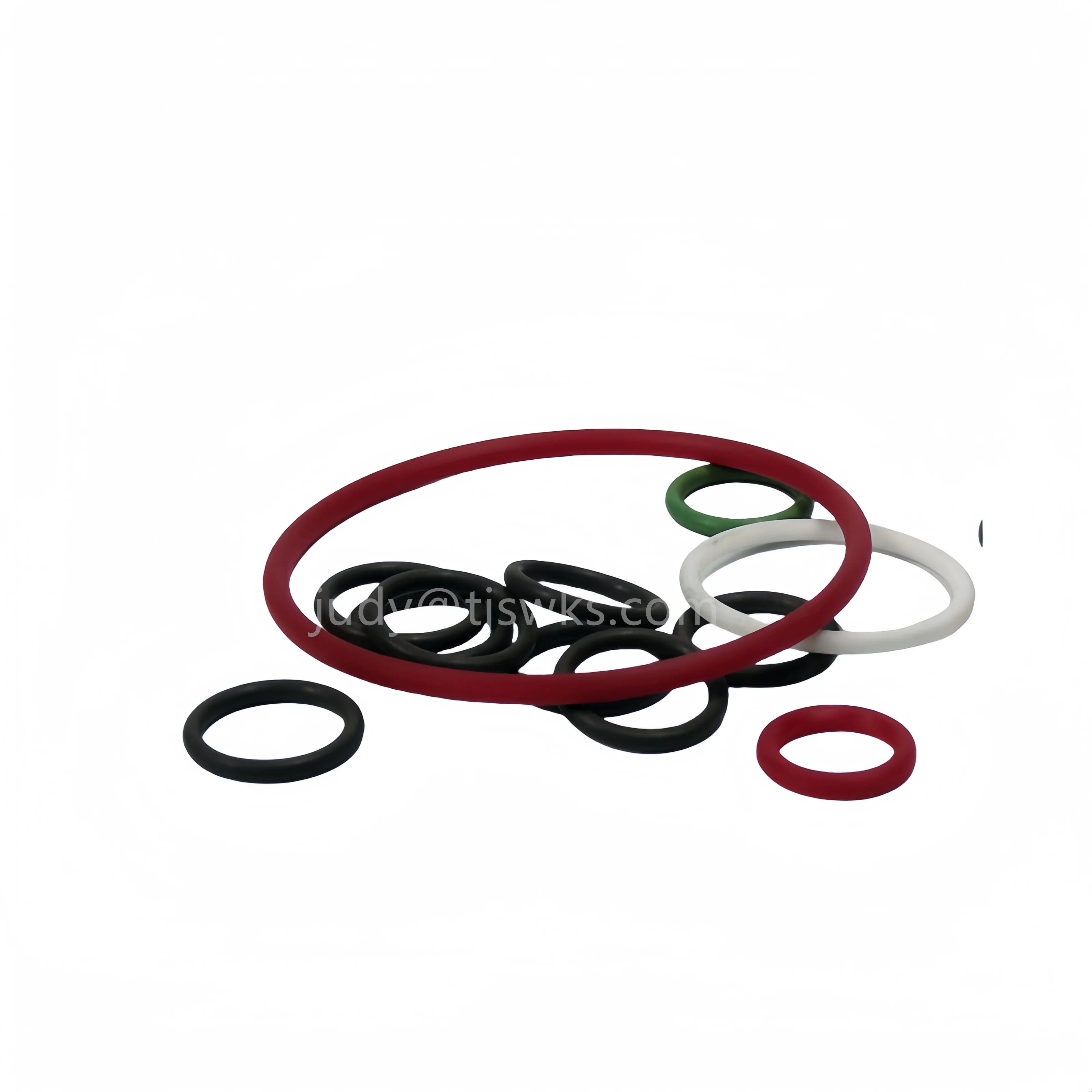

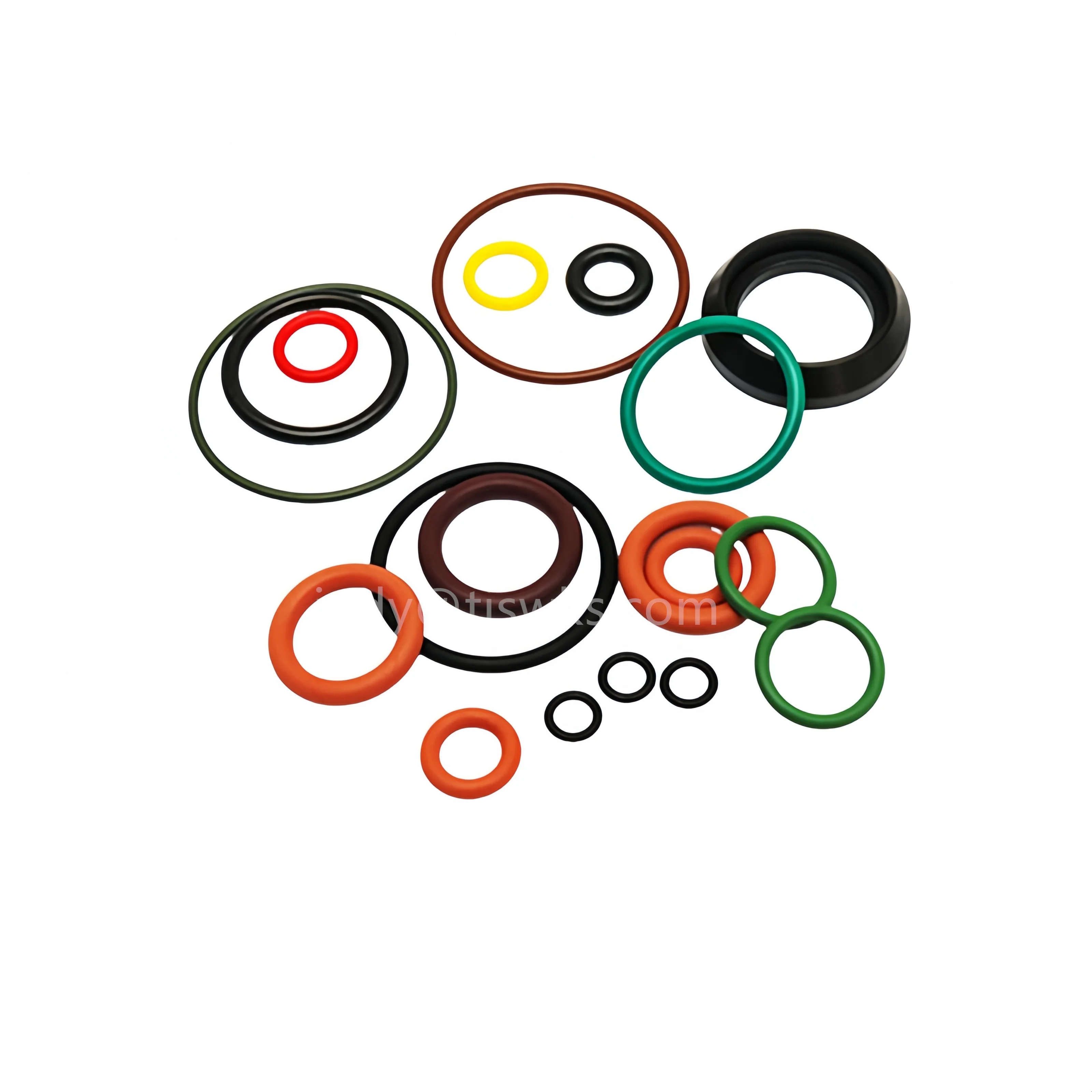

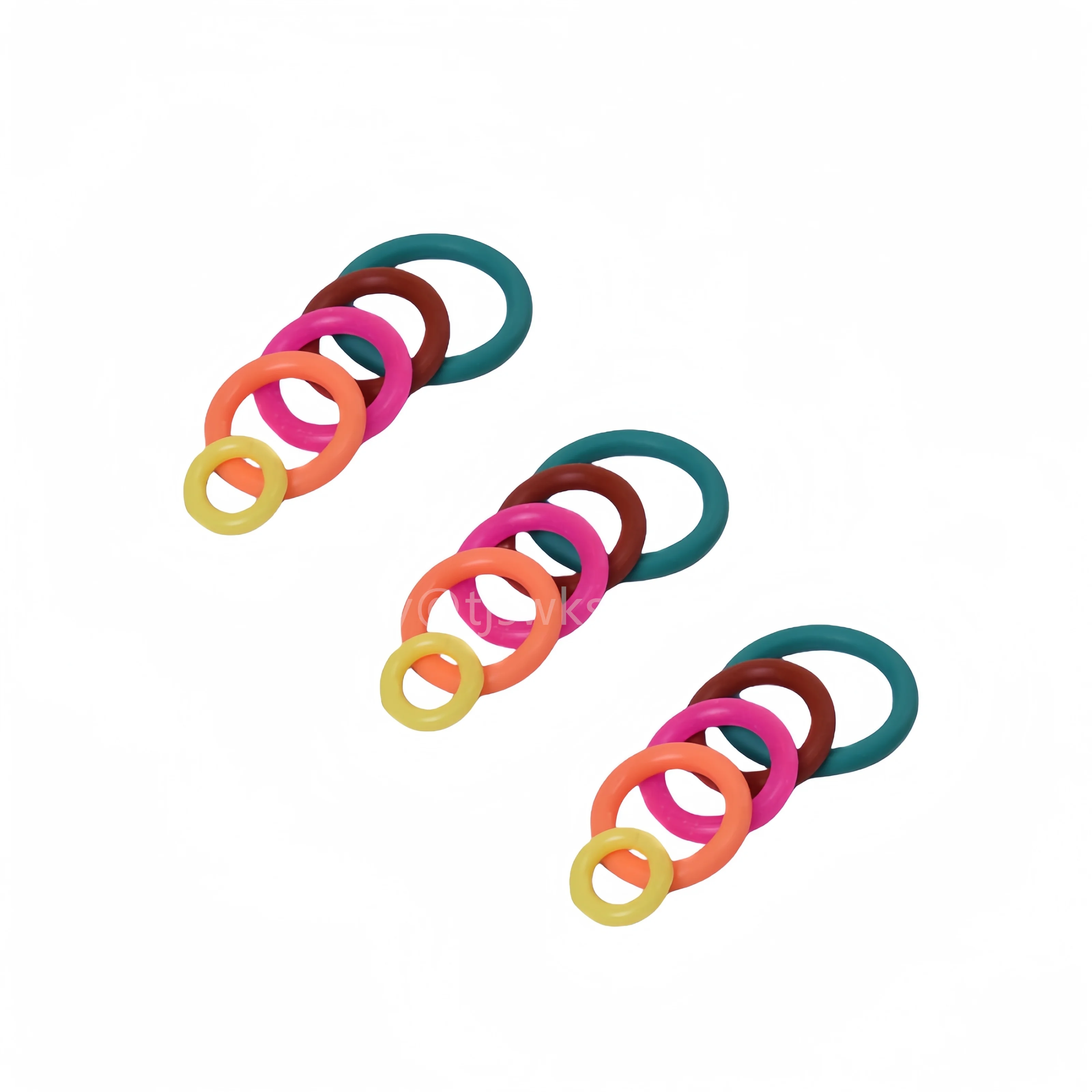

Оптовая Продажа с фабрики высокое качество индивидуальные резиновые уплотнительные кольца NBR производитель
- Категория: >>>
- Поставщик: Tianjin Swks Technology & Development Co. Ltd.
Сохранить в закладки 1601256397704:
Описание и отзывы
Характеристики

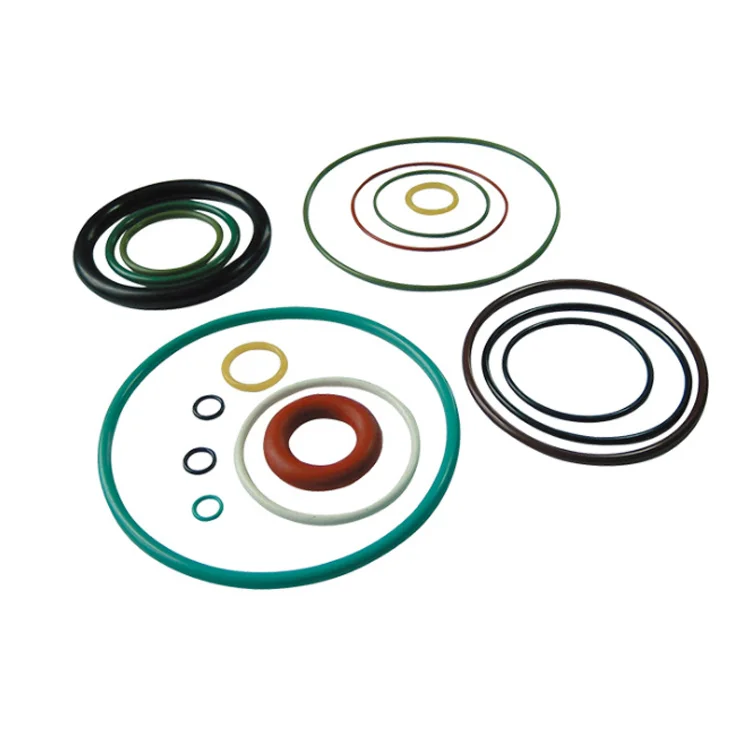

Factory Wholesale High Quality Customized NBR Rubber o rings Oring O-ring Seal Manufacturer
Products Description

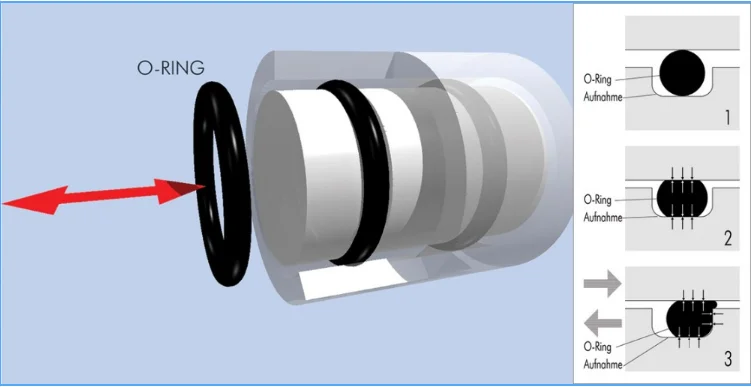

What is an o-ring?
An o-ring is a simple and versatile ring-shaped packing or sealing device with a circular cross section (from which the “O” in its name is derived). The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases. They simplicity, convenience, and small installation space. As long as the groove design and material selection are correct, and the operating conditions are within the temperature range of the rubber material, the seal can have a long-term sealing effect in the static or dynamic seal.
An o-ring is a simple and versatile ring-shaped packing or sealing device with a circular cross section (from which the “O” in its name is derived). The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases. They simplicity, convenience, and small installation space. As long as the groove design and material selection are correct, and the operating conditions are within the temperature range of the rubber material, the seal can have a long-term sealing effect in the static or dynamic seal.
The size of o-ring is determined by the inner diameter ID and the wire diameter CS. O-ring size calculation: outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2x CS).
Product Name | Factory Wholesale High Quality Customized NBR Rubber o rings Oring O-ring Seal Manufacturer |
Material | Fluorine Rubber/FKM/Silicone/VMQ/NBR/NR |
Hardness | 60-90A |
Size | Standard size or Custom Size |

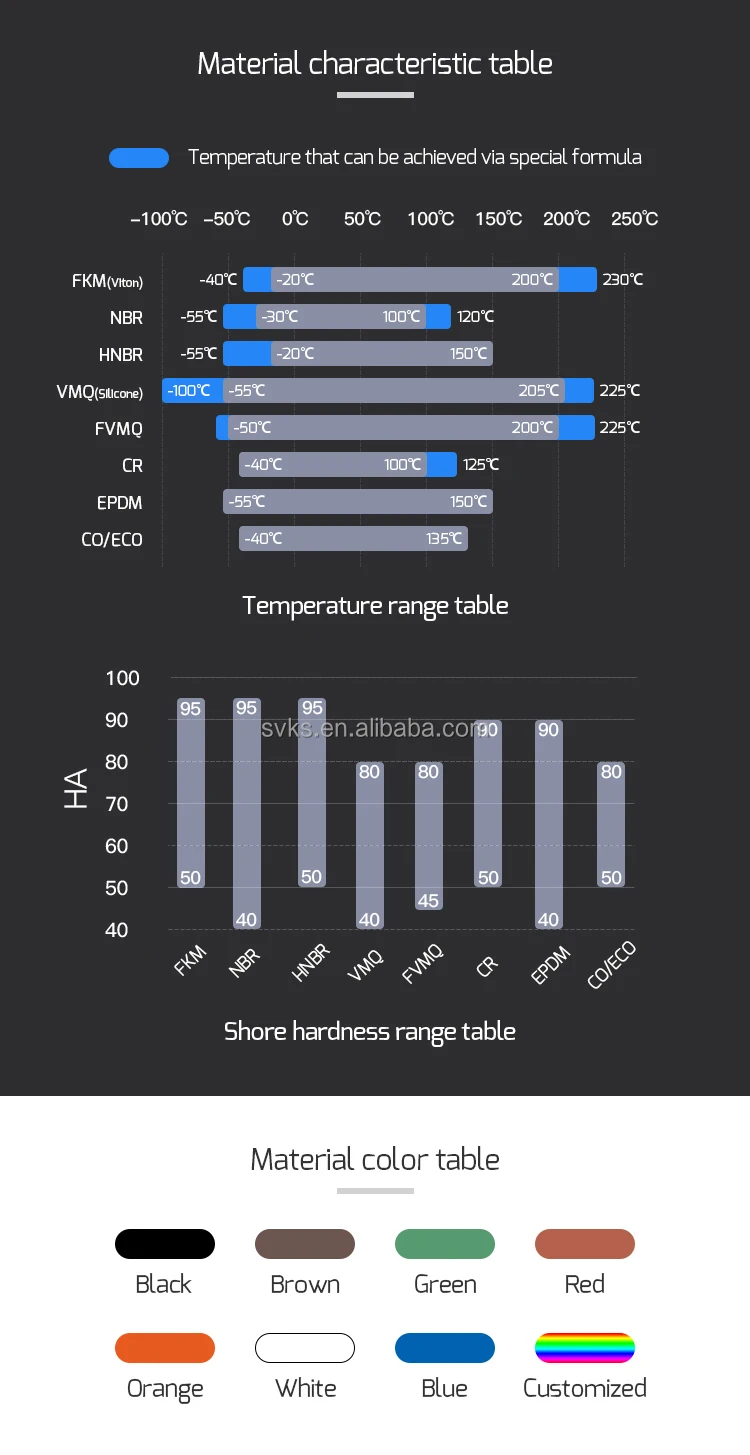

Material Characteristics
NBR/Nitrile/Buna-N (nitrile butadiene rubber)O RINGS
*Service Temperature
–35°C to 110°C or up to 130°C
*Application
NBR can be compounded for enhanced oil and fuel resistance, increased temperature flexibility, high hardness and extrusion resistance, low compression set, and a variety of other attributes.

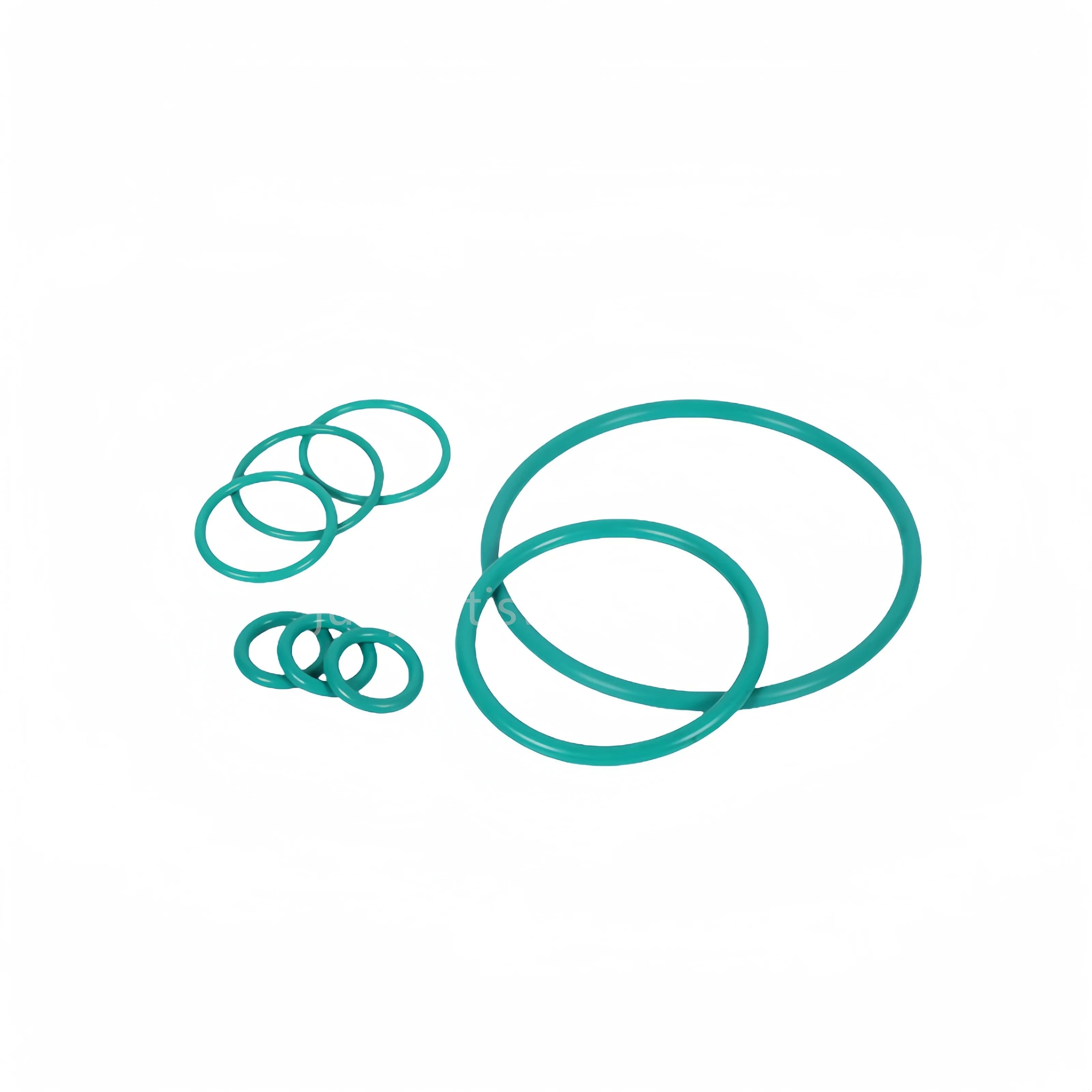

FKM/FPM/Vtions(Fluorocarbon) o ring seals
*Service Temperature
-20°C to 200°C
*Application
Fluoroelastomers provide additional heat and chemical resistance. Vitons is used because it has a lower probability of catching fire, even with the increased percentages of oxygen found in nitrox. It is also less susceptible to decay under increased oxygen conditions.
Silicone Rubber (Q, MQ, VMQ, PVMQ) O-ring
*Service Temperature
-70°C to 220°C
*Application
Electrical (e.g., insulation), electronics (e.g., coatings), household (e.g., sealants for cooking apparatus), automobile (e.g., gaskets), aeroplane (e.g., seals), office machines (e.g., keyboard pads), medicine/dentistry (e.g., teeth impression molds), textiles/paper (e.g., coatings)
Ethylene Propylene Rubber (EPM, EPDM) Oring
*Service Temperature
-55 C to 125 C or up to 150 C (for peroxide cured systems).
*Application
In phosphate-ester based hydraulic fluids and glycol based brake fluids systems Ethylene Propylene Rubber is good choice for sealing parts. EPDM is also is usually used in hot water or steam applications up to 150 C.

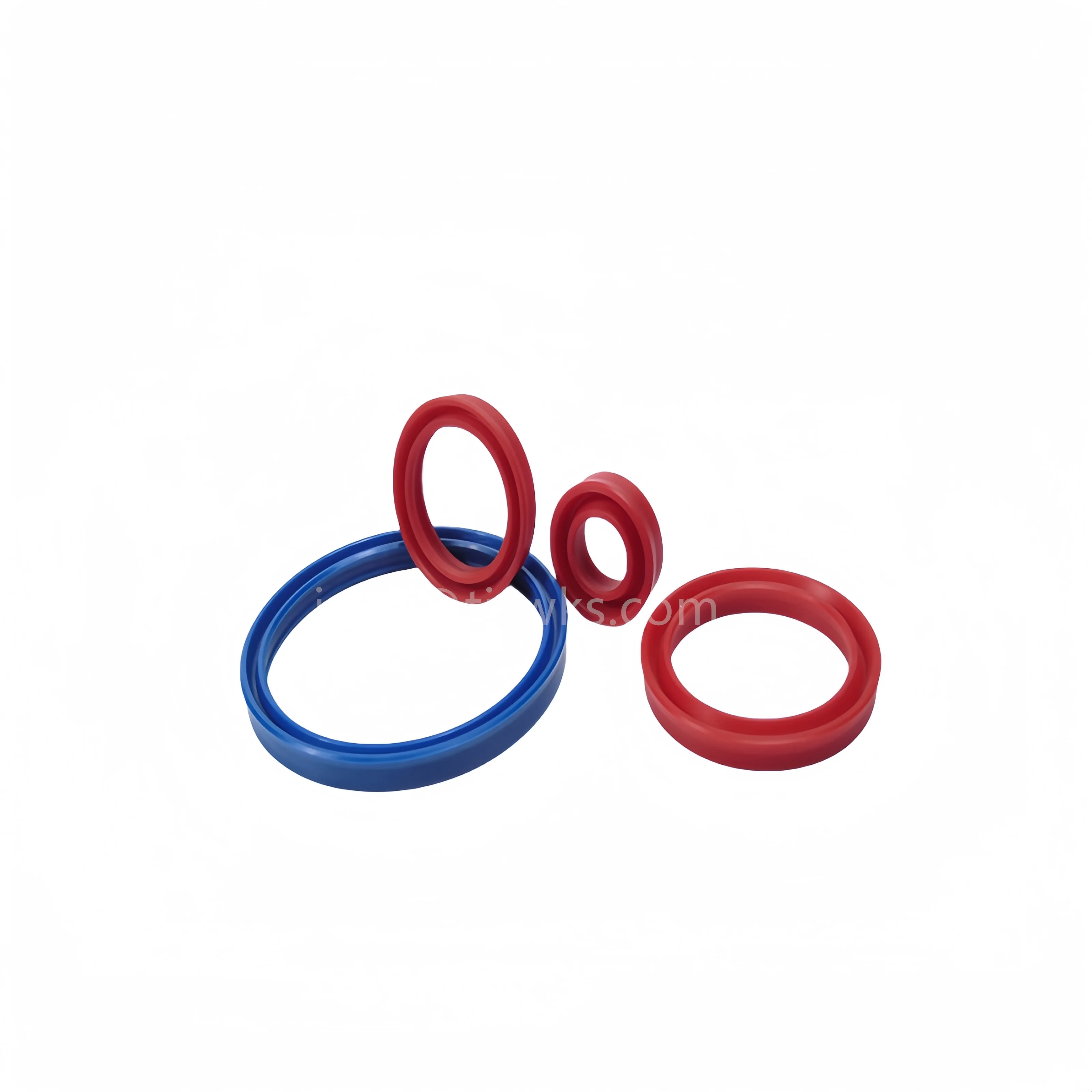

PU/Polyurethane o ring
*Service Temperature
-45 to 120 °C
*Application
PU displays higher mechanical strength, high abrasion, wear and extrusion resistance, high pressure load capacity, as well as a high tear and elongation at break resistance. PU is suitable for for application in mineral oils and greases, hydraulic oils, silicone oils and greases, highly non-flammable hydraulic fluids HFA and HFB and water uo to 50℃.
HNBR(Hydrogenated Nitrile Butadiene) O Ring
Temperature Range: -30℃/-40F-160℃/302F
*Application
Hardness:50-90a Color : could be made black color or as customized color Advantage: Excellent Ozone Resistance,Heat resistance,Mechanical Strength,better than NBR.
Company Profile

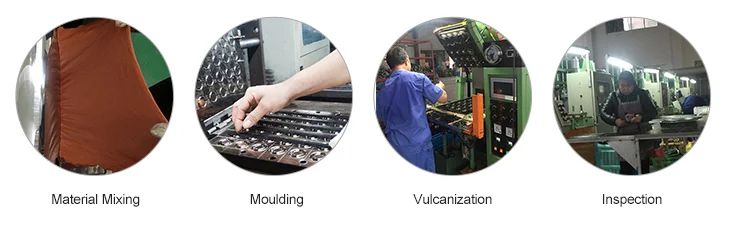

We Tianjin SWKS is a manufacturer of rubber products with many year experience in China. We have the trade department,engineer department, production department and after-sales service department. Our engineers could recommend sizes according to using, draw the drawings according to samples, even help to design it. OEM and ODM are welcome,you could get satisfied service there,7 days and 24 hours quick reply.
Payment&Delivery

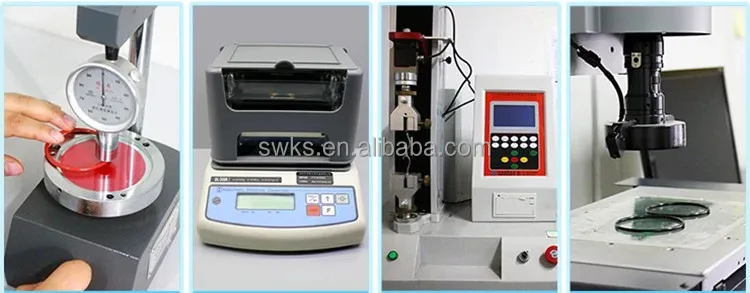

Testing Equitment
FAQ
1.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
2.Q: How can I get some samples?
A: We are honored to offer you samples by express.Abroad clients are expected to pay for the freigh cost, the samples are free.
3. Regarding the courier cost:
(1) you could arrange a RPI (remote pickup) service upon Fedex, UPS, DHL, TNT, etc. to have the samples collected;
(2) inform us your express freight collect account. Then you can pay the freight direct to your local carrier company;
(3) Transfer the cost to us in advance, the sample will be sent after receiving the payment
4.Q: How does your factory do regarding quality control?
1). All raw material we used are imported;
2). Skilled workers care every details in handling producing and packing processes;
3). Quality Control Department specially responsible for quality checking in each process.
A: Yes, we can do OEM products. It's no problem.
2.Q: How can I get some samples?
A: We are honored to offer you samples by express.Abroad clients are expected to pay for the freigh cost, the samples are free.
3. Regarding the courier cost:
(1) you could arrange a RPI (remote pickup) service upon Fedex, UPS, DHL, TNT, etc. to have the samples collected;
(2) inform us your express freight collect account. Then you can pay the freight direct to your local carrier company;
(3) Transfer the cost to us in advance, the sample will be sent after receiving the payment
4.Q: How does your factory do regarding quality control?
1). All raw material we used are imported;
2). Skilled workers care every details in handling producing and packing processes;
3). Quality Control Department specially responsible for quality checking in each process.
Recommended Products
Похожие товары
ODM оптовая продажа хорошее качество резиновые детали устойчивы к высоким температурам производитель FPM PU натуральный каучук
Заводская поставка уплотнительное кольцо из силиконовой резины разных размеров
25,52 ₽ - 34,39 ₽

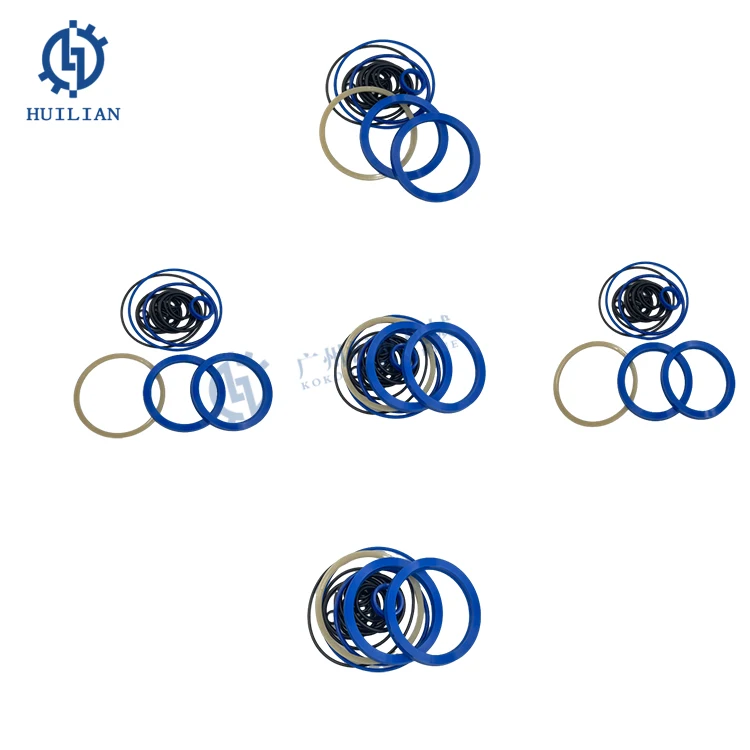

Montabert BRH900 комплект уплотнений для гидравлического молотка 324 329 336
2 861,74 ₽
Гидравлическое углеродное скользящее кольцо PTFE бронзовое Glyd
127,57 ₽ - 1 275,67 ₽

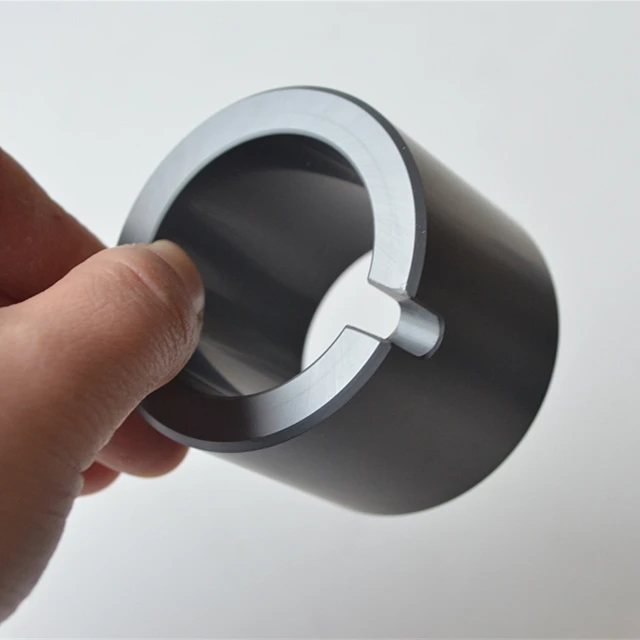

Лучшая цена черный карбид кремния 3 2 г/см3 переработка керамических деталей уплотнительное кольцо для тигеля
