Ball Mill for Ore Dressing

Ball mills for Ore Dressing are widely used in mineral processing, cement production, and other industrial fields due to their high efficiency, energy saving, wear resistance, and simple operation. Their structural characteristics and working principles enable ball mills to achieve precise grinding and crushing of materials, providing strong support for subsequent mineral processing and extraction processes.

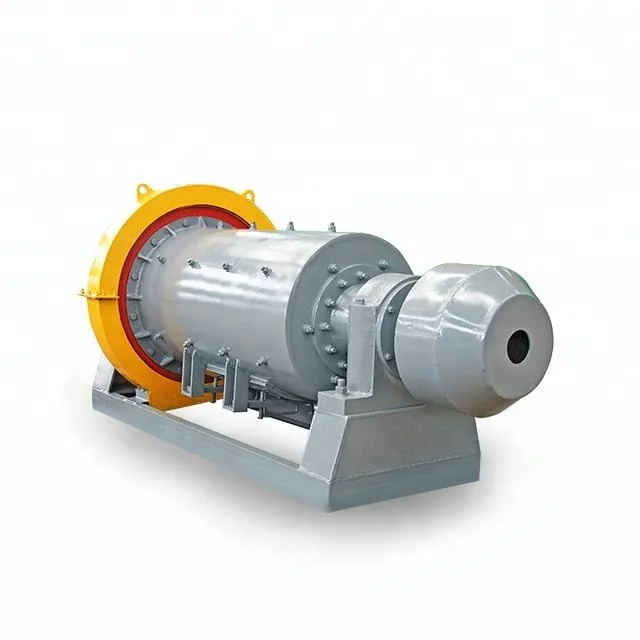

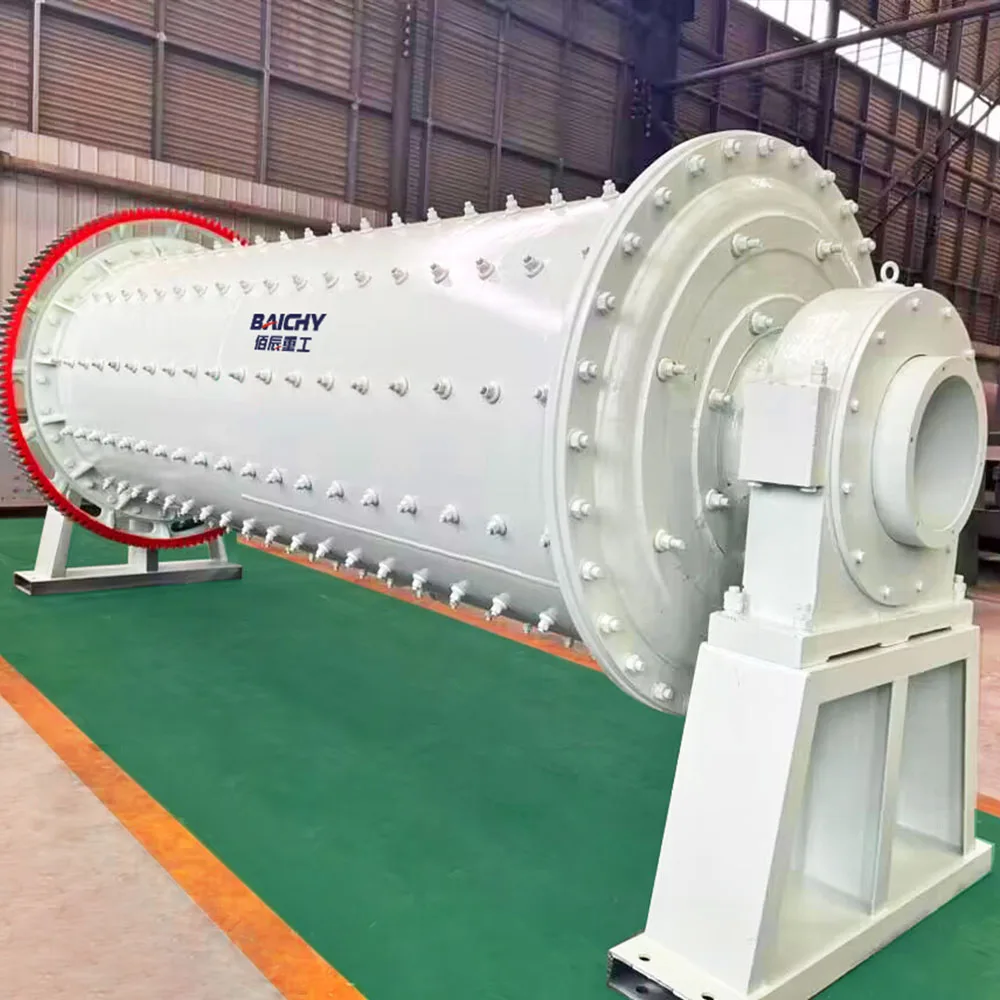

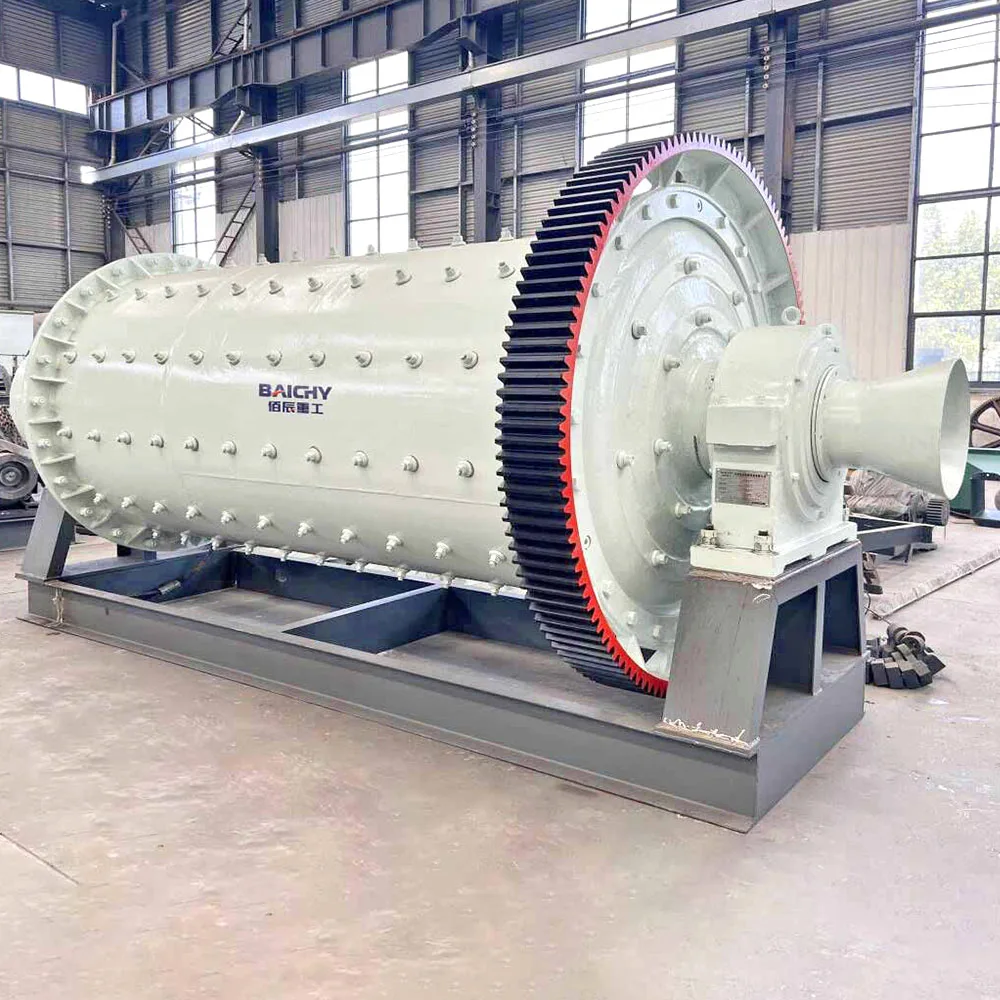

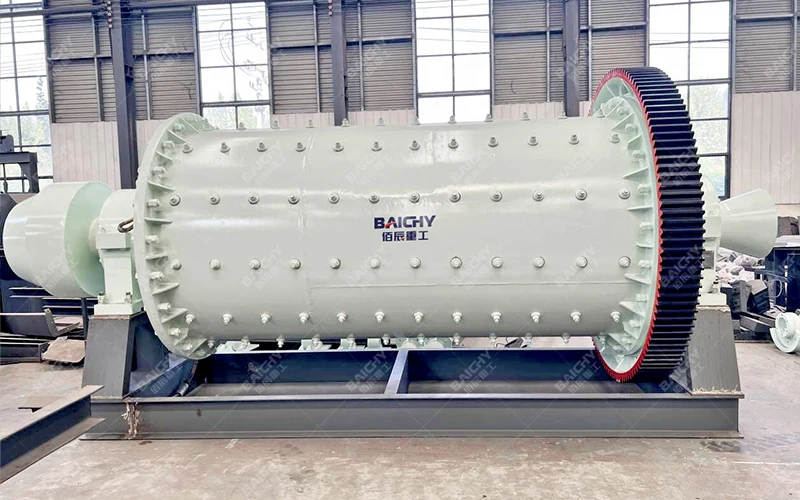

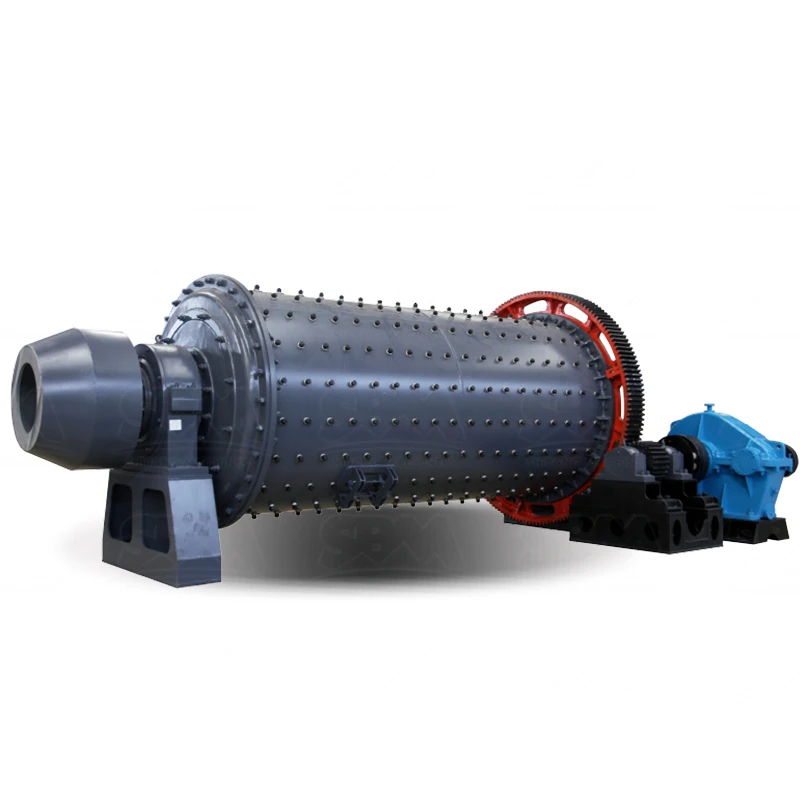

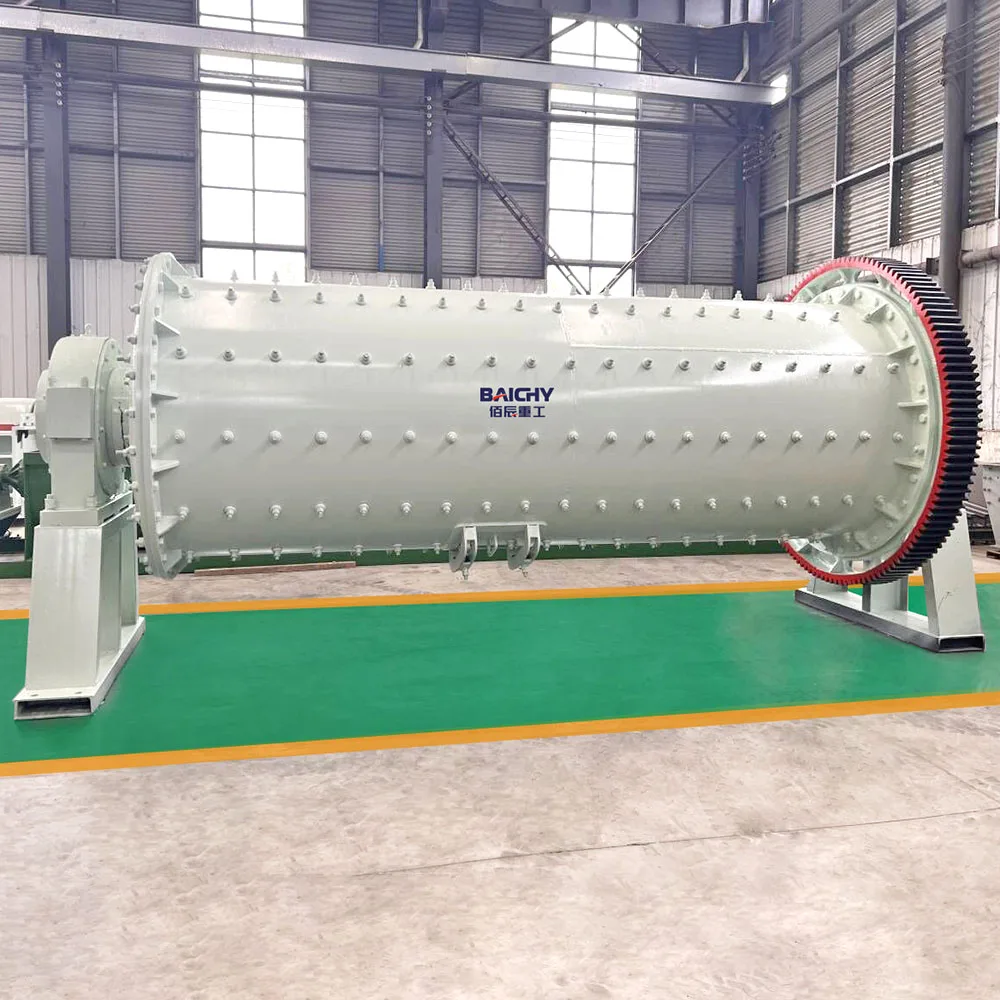

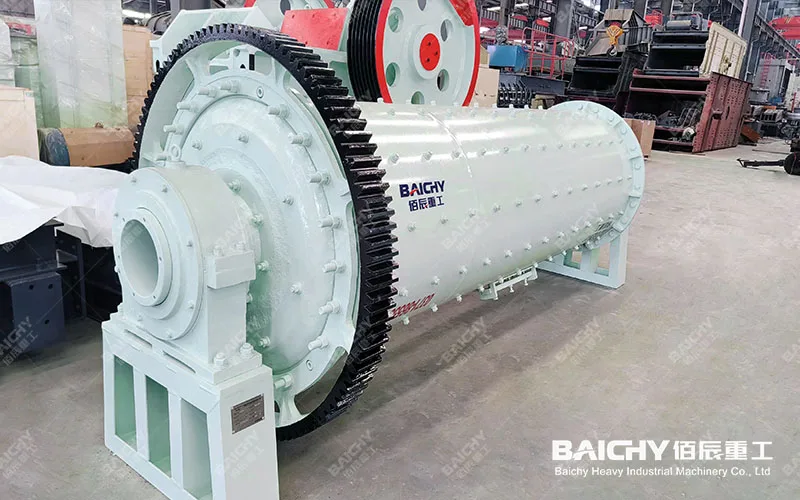

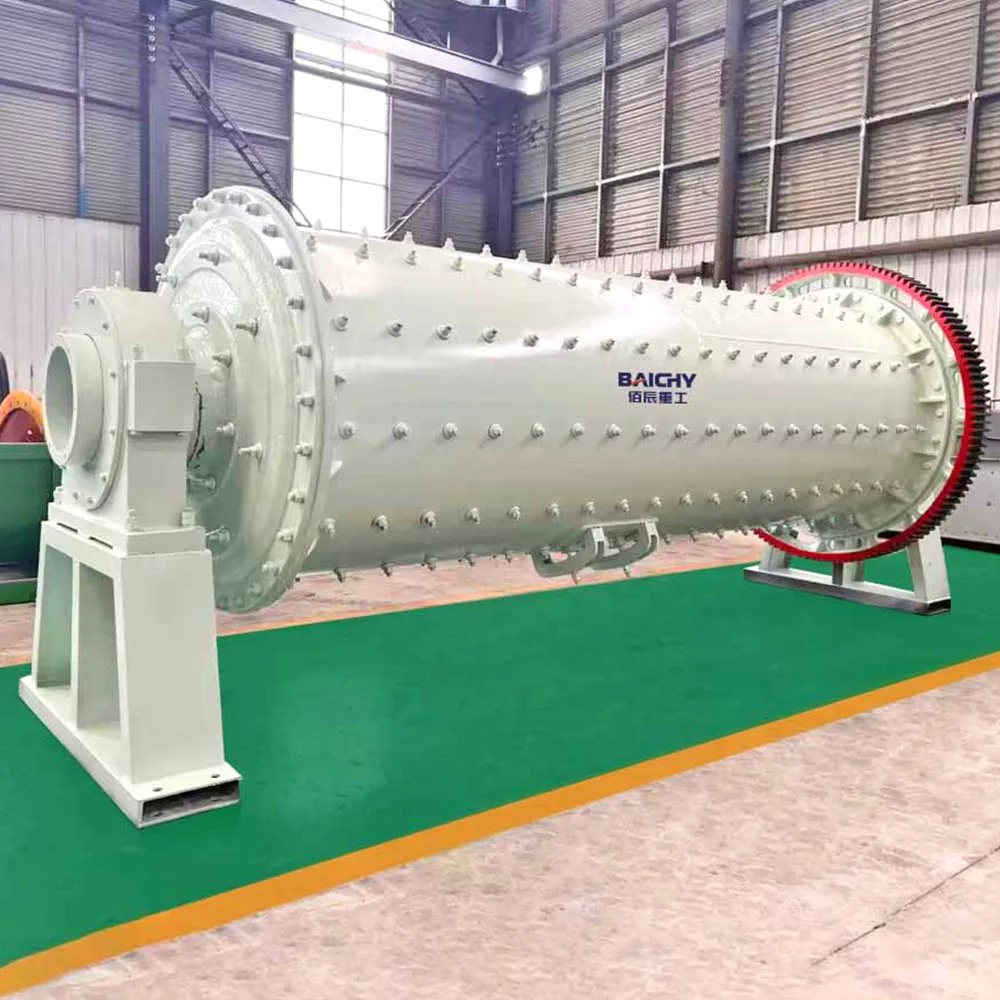

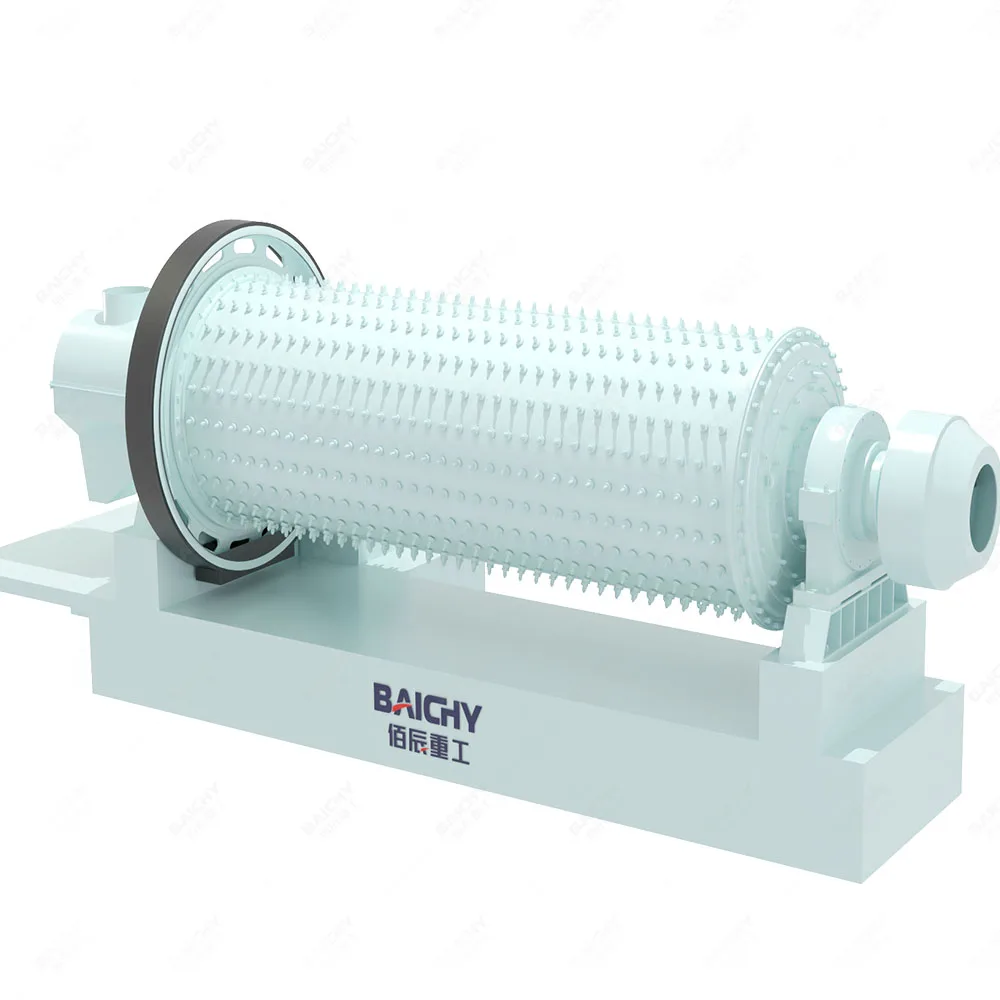

The ball mill for Ore Dressing is a device used to crush and grind minerals. It can grind raw ore into smaller particles for subsequent mineral processing. Its working principle is to make the grinding media (such as steel balls) in the cylinder collide and rub with the ore through the rotation of the cylinder, thereby achieving the crushing and grinding of the ore.

Application scenarios of ball mill

Mining: In the beneficiation and ore grinding of metal ores and non-metallic ores, ball mills can efficiently grind raw materials into the required particle size to meet the needs of industries such as metallurgy and building materials.

Cement industry: Ball mills play a key role in cement production. They can grind raw materials into suitable cement powder and provide stable and high-quality raw materials for cement production.

Metallurgical industry: Ball mills are also used to grind ores, mineral processing tailings, and other materials, providing high-quality raw materials for the metallurgical industry.

What Is The Working Principle Of The Ball Mill for Ore Dressing

The drum of the ball mill starts to rotate. This action is driven by the motor and the reducer, and the drum is driven by the large and small gears to produce a rotary motion. The grinding media (usually steel balls) in the drum are lifted up by the rotation of the drum, producing a certain motion trajectory.

1. Impact grinding: When the grinding media is lifted to a certain height, it will fall freely due to gravity, and produce an impact on the material at the bottom of the drum, thereby achieving the initial crushing of the material.

2. Friction grinding: During the rotation of the drum, friction and collision will occur between the grinding media and the material, and between the grinding media, and this friction and collision will further refine the material.

Ball mill beneficiation process

1. The ball mill plays a vital role in the mineral processing process. It mainly refines the ore particles through friction and impact force, thereby achieving ore separation and purification.

2. The crushed ore particles are fed into the ball mill. The ball mill consists of a drum, a roller and grinding balls. When the drum rotates, the grinding balls interact with the ore, and the ore particles are continuously collided, worn and crushed through friction and impact force, and finally refined into particles of a certain size.

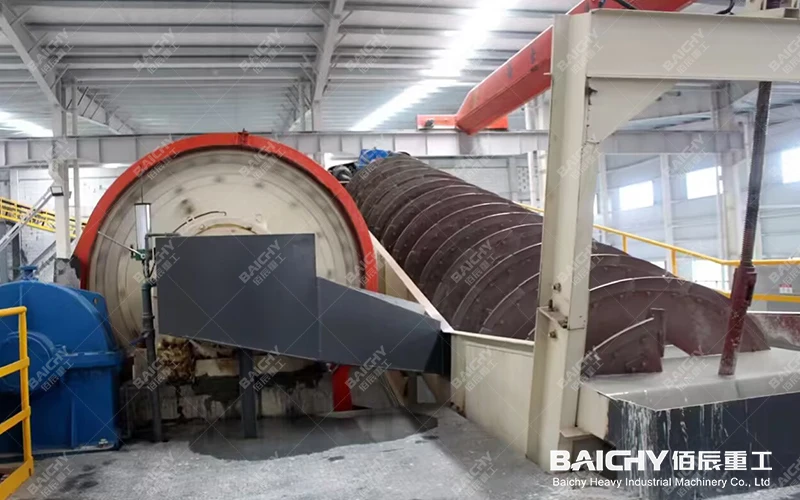

3. The ore particles processed by the ball mill usually contain particles of different sizes. In order to further purify, the particles need to be classified. Commonly used classification equipment includes screening machines, spiral classifiers, hydrocyclones, etc., which can separate ore particles according to particle size.

The grinding drum liner is a protective layer covering the inner wall of the grinding drum of the ball mill to protect the grinding drum from wear and chemical corrosion of the grinding balls; it is usually made of wear-resistant and corrosion-resistant materials, such as high-chromium alloy steel, rubber or polyurethane.

Grinding balls are usually made of steel balls or ceramic balls, and their size and material selection are determined according to the hardness of the material and the grinding requirements. The general diameter is between 20-125mm, and the super-large ball mill can reach 130-150mm.

There are many kinds of accessories for ball mills, each of which carries specific functions and roles, which together ensure the normal operation and efficient grinding of the ball mill. When purchasing and using accessories, they should be reasonably selected and configured according to the specific model and operation requirements of the ball mill.

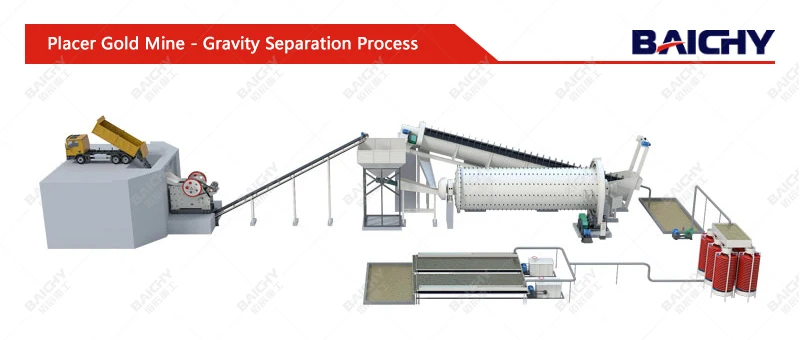

Placer gold ore - gravity separation process

The gravity separation process of placer gold ore is a key link in the process of placer gold ore beneficiation. It is mainly used to separate gold ore particles from other mineral particles by gravity difference.

Gravity separation is a technology that uses the weight difference between gold ore particles and other mineral particles to separate gold ore particles by gravity separation. In placer gold ore, since gold usually exists in the form of monomer natural gold and its density is much greater than that of other minerals, gravity separation is the most important, effective and economical method for selecting placer gold ore.

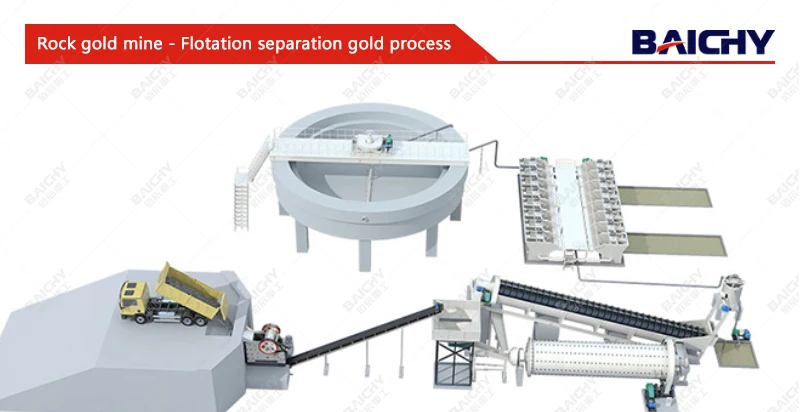

Rock gold ore - flotation separation gold process

The flotation separation process of rock gold ore is a complex and delicate process, mainly involving multiple links such as crushing, grinding, and flotation.

Commonly used crushing equipment includes jaw crushers and cone crushers. Jaw crushers are suitable for coarse crushing and have strong processing capacity and durability; cone crushers are used for fine crushing and can crush ore to finer particle sizes.

There are two main types of equipment in the grinding stage: ball mills and rod mills. Ball mills are suitable for grinding fine particles and can effectively improve the degree of metal dissociation; rod mills perform well when grinding coarse particles and reduce over-grinding.

Flotation principle: When flotating high-density and coarse-grained minerals, a thicker pulp is often used; conversely, when flotating low-density, fine-grained, and slimy minerals, a thinner pulp is used. Using a thicker pulp for coarse selection can ensure a higher recovery rate; using a thinner concentration for fine selection is conducive to improving the quality of the concentrate.

Perfect after-sales service

Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.

The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.

To prevent the rights and interests of customers from being infringed, Baichy Heavy Industry reminds customers: please contact our customer service staff through the official website of Baichy Heavy Industry , or add WhatsApp: 15093222637 ; or send an email to: , we will get in touch with you as soon as possible and provide you with the most professional service in the industry.

Baichy Heavy Industrial Machinery Co., Ltd. is a professional mining machinery manufacturer mainly engaged in producing stone crushers, powder grinding mills, mobile crushing plants, and mineral processing equipment. It covers a total area of 200,000 square meters, including a standardized workshop, modern office building, R&D center, and sales and aftersales center.

Our company has more than 100 middle and senior technicians. Over the years, based on professional technology, a complete scientific and quality management system(CE, ISO9001) , and high-quality products, Baichy Machinery has quickly grown into an important production and export base of China mining machinery. The products have been exported to over 150 countries and are widely used in the global mining and construction industry.

All our products are strictly manufactured according to ISO/CE standards, affordable, and of unmatched quality. We focus on product quality and will take responsibility for any defects. OEM/ODM services are available. We have rich experience in export and project management and can 100% ensure the safety of your order.

About Customer Visits

Baichy Machinery's equipment has been exported to more than 150 countries around the world. This global business layout requires Baichen Heavy Industry to frequently communicate and exchange with customers from all over the world; visiting customers may include potential customers, existing customers, and partners.

Baichy Machinery attaches great importance to customer visits and has formulated a complete reception process and standards for this purpose. The company has a professional reception team responsible for receiving visiting customers, arranging itineraries, and providing explanations and demonstrations.

1. Are you manufacture or trading company?

We are factory, established in 2003.

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at lowest cost.

5. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
