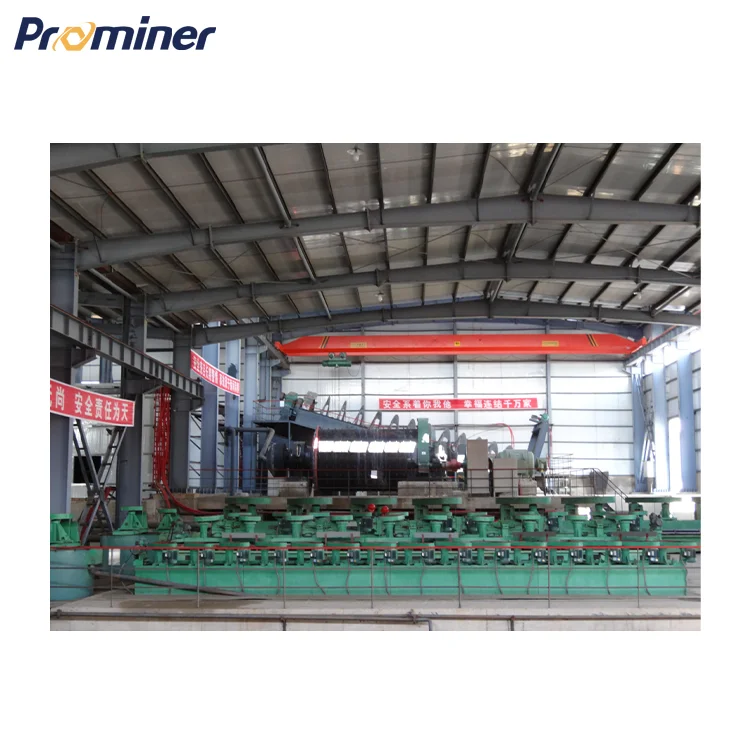

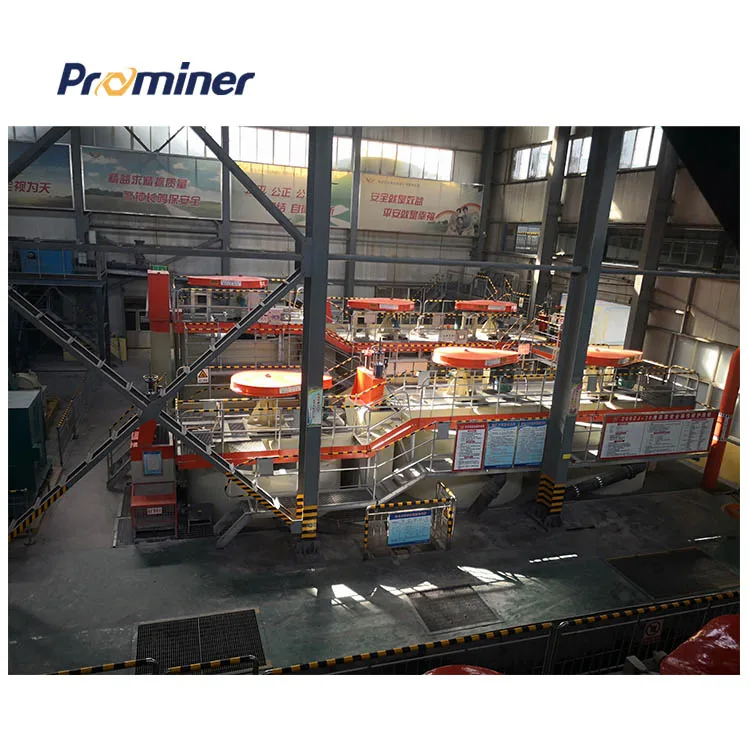

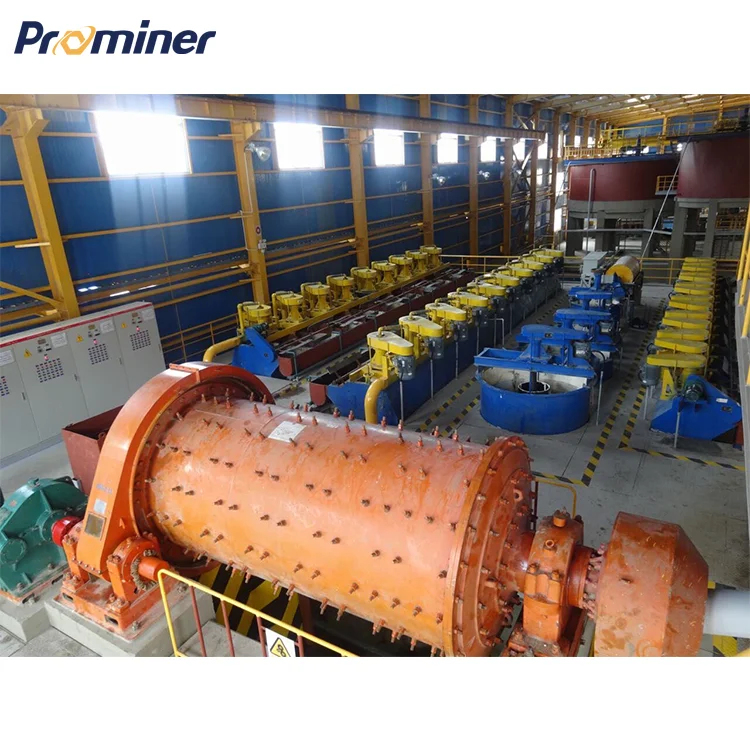

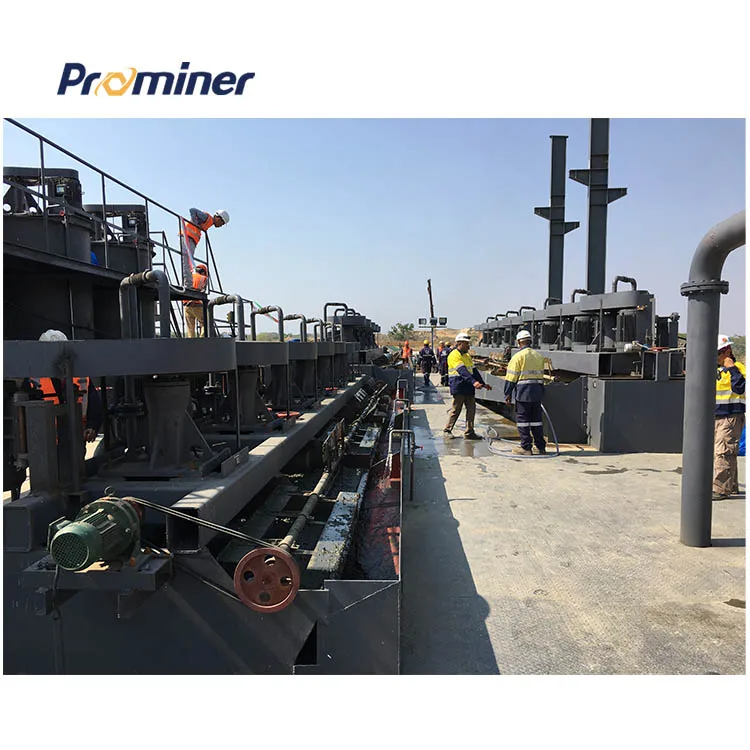

Высокоэффективная производственная линия по переработке минералов медной руды/медная Флотационная установка/Высококачественная свинцовая цинковая установка
- Категория: >>>
- Поставщик: Prominer (shanghai) Mining Technology Co. Ltd.
Сохранить в закладки 1601257052257:
Описание и отзывы
Характеристики
Product Description

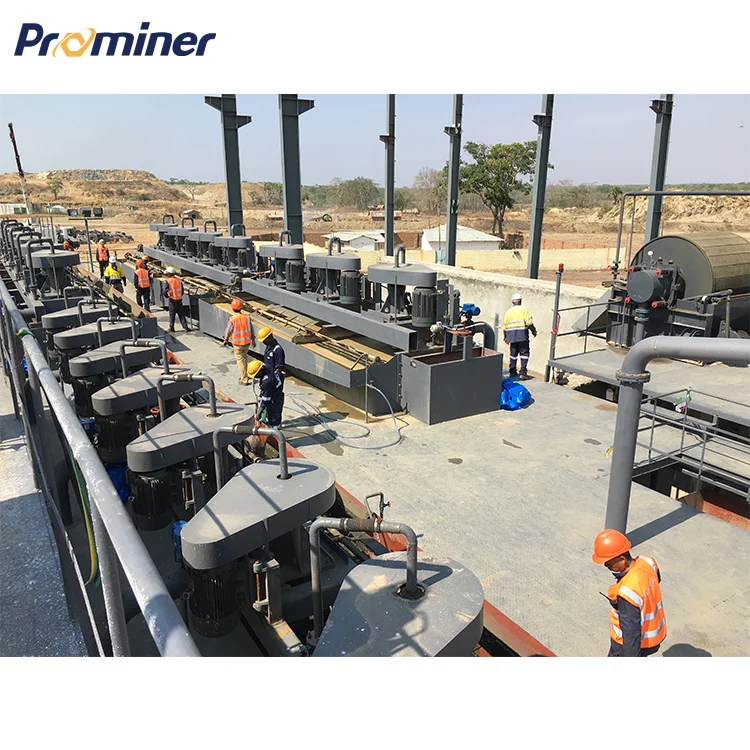

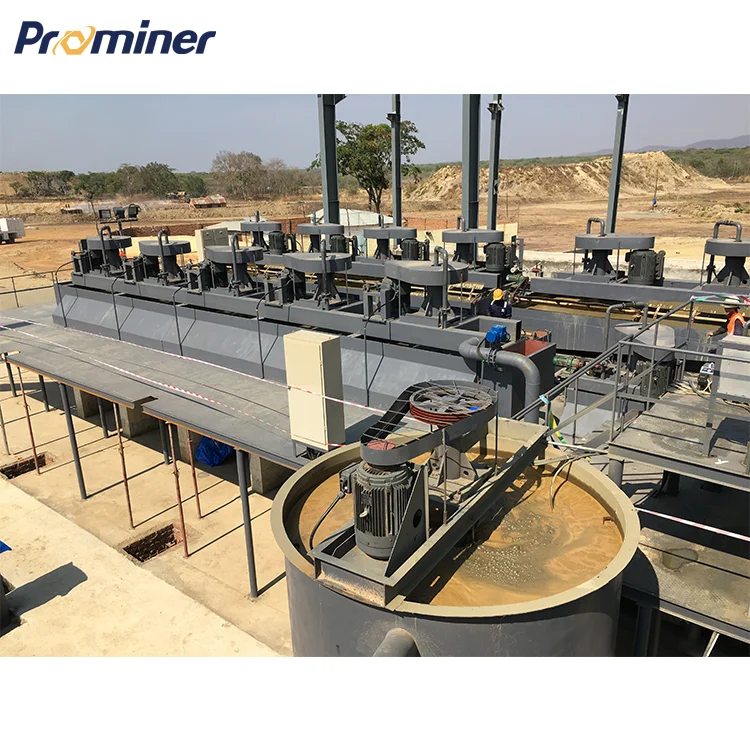

PROMINER can provide SF series self-priming flotation machine and XCF/KYF series pneumatic flotation cell which are mainly used for the recovery and upgrading of sulfide ores such as cooper ore, lead & zinc ore, gold ore, silver ore, nickel ore. And it can be also used in some nonsulfide ores include fluorite, graphite, quartz, tungsten, lithium, tantalum, tin and coal.Our flotation cells are cell to cell type flotation machine which always combine several sets together as roughing stage, cleaning stage or scavenging stages. For ensuring the performance our flotation system, the suitable chemical reagent system also very important. Base on the function of chemical reagent, it can be classified as collectors, frothers and modifiers.
Specification
Model | Volume (m³) | Size of Tank (L x W x H) (mm) | Impeller Dia (mm) | Impeller Speed (r/min) | Capacity (m³/min) | Motor Power (kw) | Air flow sucked (m³/㎡.min) | Single Tank Weight (kg) |
SF-0.7 | 0.7 | 820x900x950 | 350 | 400 | 0.3-0.9 | 3/1.1 | 0.8-1 | 805 |
SF-1.2 | 1.2 | 1100x1100x1100 | 450 | 312 | 0.6-1.2 | 5.5/1.1 | 1-1.2 | 1373 |
SF-2.8 | 2.8 | 1700x1600x1150 | 550 | 268 | 1.5-3.5 | 11/1.5 | 1-1.2 | 2138 |
SF-4 | 4 | 1850x2050x1200 | 650 | 220 | 2-4 | 15/1.5 | 1-1.2 | 2582 |
SF-8 | 8 | 2200x2900x1400 | 760 | 191 | 4-8 | 30/1.5 | 0.9-1 | 4129 |
SF-10 | 10 | 2200x2900x1700 | 760 | 191 | 5-10 | 30/1.5 | 0.9-1 | 4486 |
SF-16 | 16 | 2850x3800x1700 | 760 | 191 | 5-16 | 30x2/1.5 | 0.9-1 | 8320 |
SF-20 | 20 | 2850x3800x2000 | 760 | 191 | 5-20 | 30x2/1.5 | 0.9-1 | 9828 |

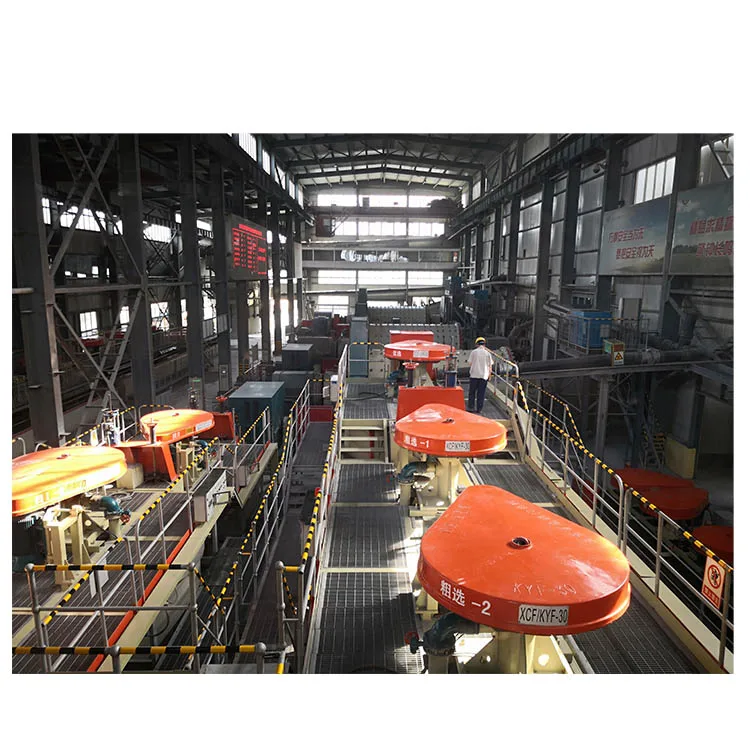

Model | Volume (m³) | Size of Tank (L x W x H) (m) | Impeller Dia (mm) | Inlet Air Pressure (Kpa) | Capacity (m³/min) | Power (kw) | Airflow Setting (m³/ ㎡.min) | Single Cell Weight(kg) |
XCF/KYF-3 | 3 | 1.60x1.60x1.40 | 0.54/0.48 | >14 | 0.7~1.5 / 0.7~3 | 7.5/5.5 | 0.05~1.4 | 2172/2074 |
XCF/KYF-4 | 4 | 1.80x1.80x1.50 | 0.62/0.55 | >15 | 1~2 / 1~4 | 11/7.5 | 0.05~1.4 | 2375/2100 |
XCF/KYF-6 | 6 | 2.05x2.05x1.75 | 0.62/0.55 | >17 | 1~3 / 1~6 | 18.5/11 | 0.05~1.4 | 3545/3278 |
XCF/KYF-8 | 8 | 2.20x2.20x1.95 | 0.72/0.63 | >19 | 2~4 / 2~8 | 22/15 | 0.05~1.4 | 4142/3857 |
XCF/KYF-10 | 10 | 2.40x2.40x2.10 | 0.76/0.66 | >20 | 3~5 / 3~10 | 30/22 | 0.05~1.4 | 4894/4334 |
XCF/KYF-16 | 16 | 2.80x2.80x2.40 | 0.86/0.74 | >23 | 4~8 / 4~16 | 37/22 | 0.05~1.4 | 6928/7545 |
XCF/KYF-20 | 20 | 3.00x3.00x2.70 | 0.91/0.78 | >25 | 5~10 / 5~20 | 45/37 | 0.05~1.4 | 9200/8240 |
XCF/KYF-24 | 24 | 3.10x3.10x2.90 | 0.93/0.80 | >27 | 6~12 / 6~24 | 55/37 | 0.05~1.4 | 10819/9820 |
XCF/KYF-30 | 30 | 3.50x3.50x3.03 | 0.88/0.90 | >31 | 7~15 / 7~30 | 55/45 | 0.05~1.4 | 14810/13820 |
XCF/KYF-40 | 40 | 3.80x3.80x3.40 | 1.05 | >32 | 8~19 / 8~38 | 75/55 | 0.05~1.4 | 18790/17097 |
XCF/KYF-50 | 50 | 4.40x4.40x3.50 | 1.20/1.03 | >33 | 10~25 / 10~40 | 90/75 | 0.05~1.4 | 22000 |
XCF/KYF-70 | 70 | Φ 4.30x4.10 | 1.12 | >35 | 13~50 | 90 | 0.05~1.4 | 26200 |
Company Profile
PROMINER focus on mineral processing and anode producing industry as an complete solution provider and we have rich expereince to provide the solution for mineral ore include gold, Iron, lead, zinc, copper, graphite, quartz and kaolinite.
PROMINER can provide the key equipment for mineral processing like Crusher, SAG mill, Ball mill, Flotation cells, Leaching tank, Banana Screen, Flip-flow screen, Ultra Fine Screen, belt conveyors.
We can also provide the equipment such as impact mill, roller mill, shaping mill, granulation system, rotary furnaces for pre-carbonization, crucible loading and unloading device, final anode product handling system and pneumatic for anode material production plant. By working together with our partner we can also provide the turn key solution for making anode material by using natural graphite or synthetic graphite include grinding and shaping system, granulation system, carbonization system, graphitization system and final production handling system.
PROMINER is an EPC contractor can provide lab test, engineering design, equipment supply, erection and commissioning, O&M service for our client. PROMINER can also We have 30 patens for our equipment. 90% of our team have bachelor degree and 2 engineers with PHD degrees.

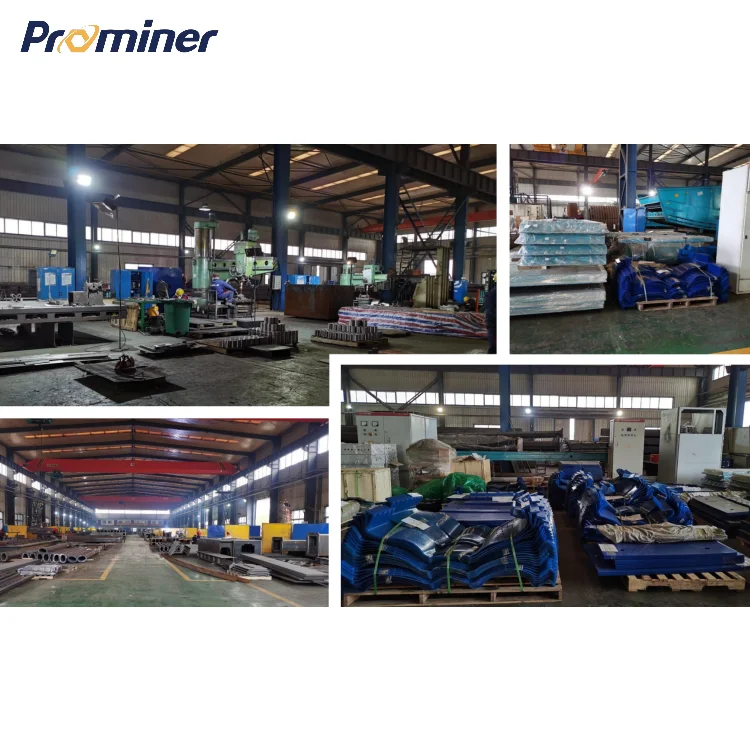

We have 3 manufacture center with total building area 330, 000 square meters in China. The factory in Shenyang for mineral processing equipment. Factory in Shenzhen and Sichuan for supplying the equipment for anode materials.
PROMINER can provide the key equipment for mineral processing like Crusher, SAG mill, Ball mill, Flotation cells, Leaching tank, Banana Screen, Flip-flow screen, Ultra Fine Screen, belt conveyors.
We can also provide the equipment such as impact mill, roller mill, shaping mill, granulation system, rotary furnaces for pre-carbonization, crucible loading and unloading device, final anode product handling system and pneumatic for anode material production plant. By working together with our partner we can also provide the turn key solution for making anode material by using natural graphite or synthetic graphite include grinding and shaping system, granulation system, carbonization system, graphitization system and final production handling system.
PROMINER is an EPC contractor can provide lab test, engineering design, equipment supply, erection and commissioning, O&M service for our client. PROMINER can also We have 30 patens for our equipment. 90% of our team have bachelor degree and 2 engineers with PHD degrees.
We have 3 manufacture center with total building area 330, 000 square meters in China. The factory in Shenyang for mineral processing equipment. Factory in Shenzhen and Sichuan for supplying the equipment for anode materials.

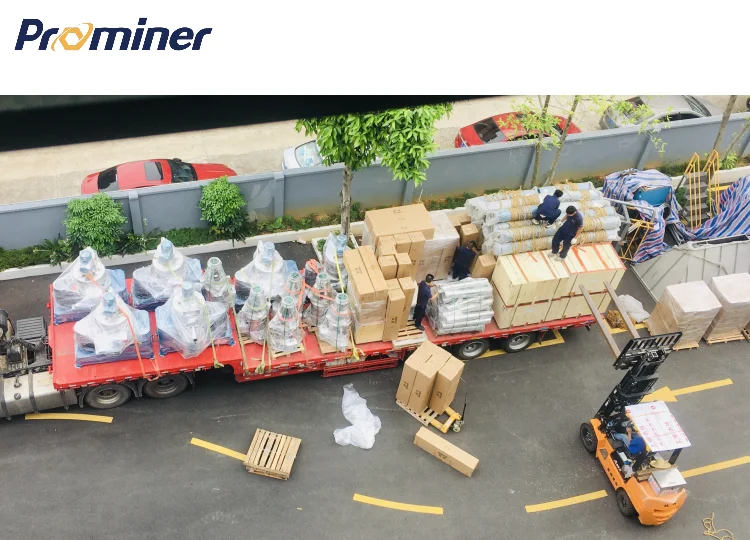

Packing & Delivery
Wood case package,palletizing and large parts in bulk package with plastic cover
FAQ
1. who are we?
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc, cooper, quartz, graphite and kaolinite.
Have ability to provide consultancy service, lab test, pilot test, EPC and OM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc, cooper, quartz, graphite and kaolinite.
Have ability to provide consultancy service, lab test, pilot test, EPC and OM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
Похожие товары
Высокая эффективность добычи золота Шахтер ковер для восстановления драгоценные металлы
35,00 $ - 40,00 $

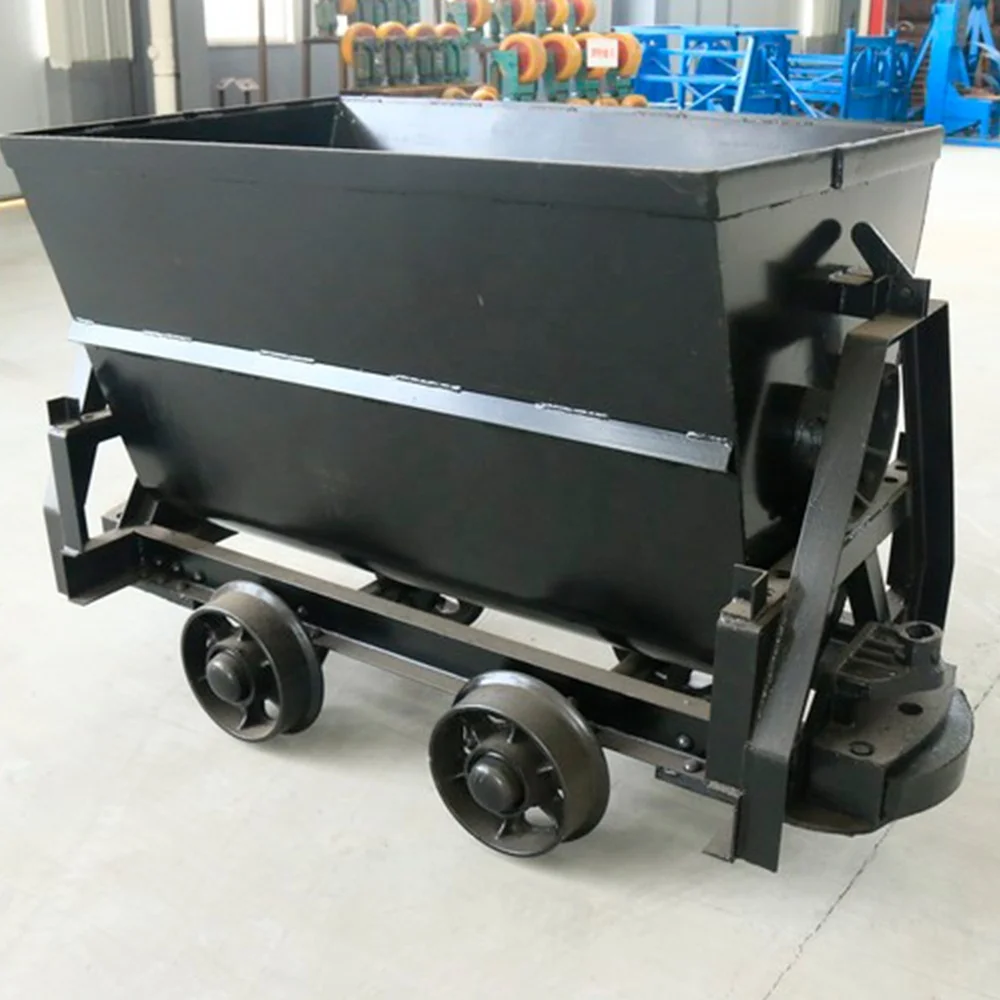

Высококачественное и высокоэффективное оборудование для добычи золота, минеральный вагон, лидер продаж, MFC 0,75-6, угледобывающий автомобиль
450,00 $ - 500,00 $

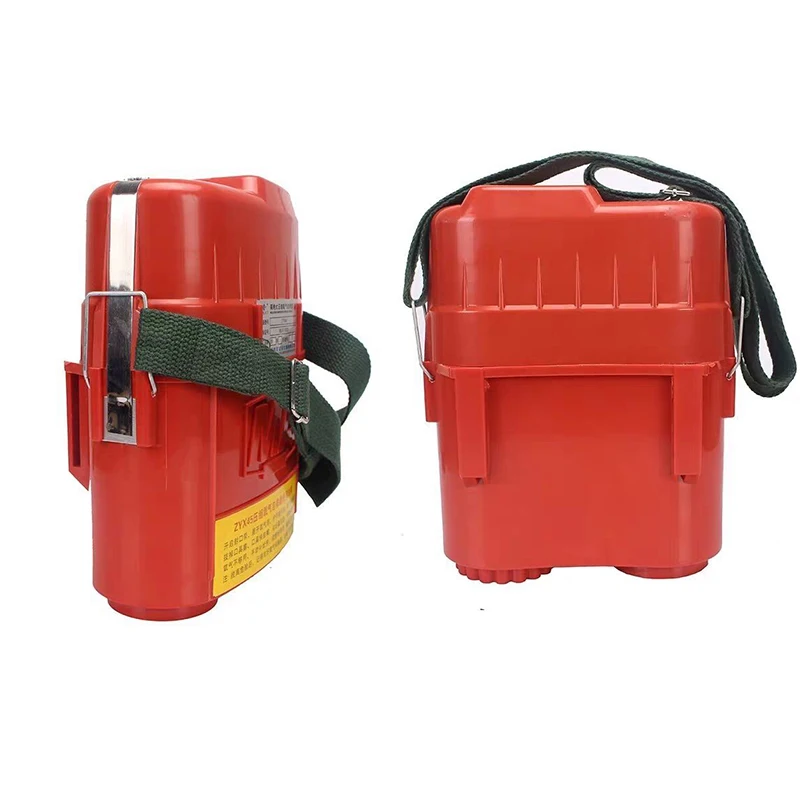

Высококачественный изолированный сжатый кислород, самоспасатель, небольшой размер, угольная шахта, туннель, Спасательный аппарат с кислородным респиратором
15,00 $ - 23,00 $

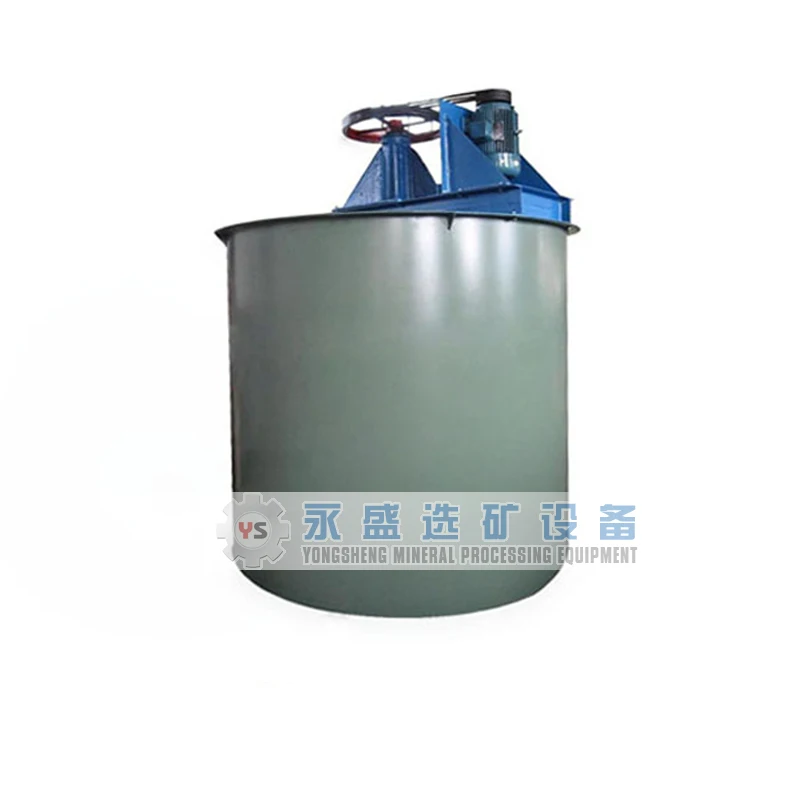

Простая в эксплуатации майнинговая смесь минералов, перемешивание, вытаскивание, танкетка
1 000,00 $ - 1 800,00 $
WJD-1 Электрический подземный Шахтер Hongke
28 000,00 $ - 30 000,00 $
Хорошее качество, машина для разделения оловянной руды
4 500,00 $ - 8 000,00 $

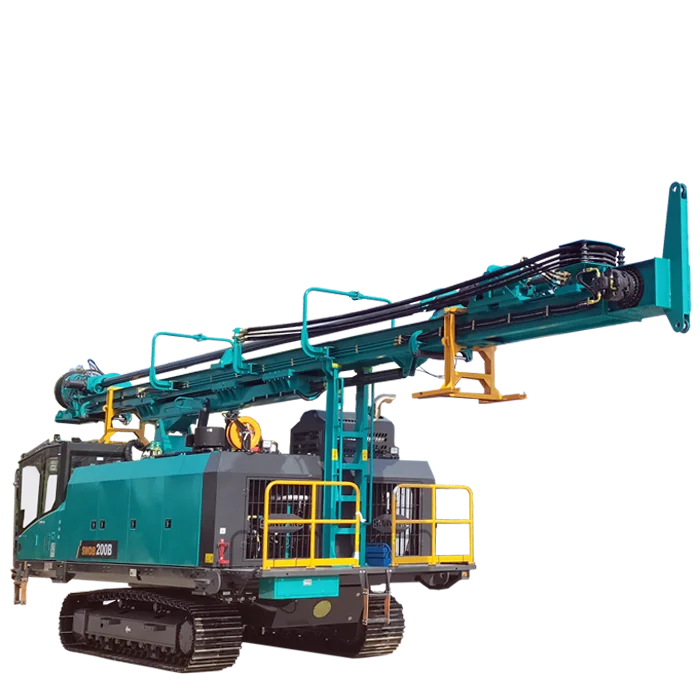

Высококачественная горнодобывающая техника Sunward, оборудование для добычи золота, оборудование для бурения минеральных скважин
