Дробилка для камня

Категория: >>>
Поставщик: Henan Vest Machinery Co. Ltd.Henan Ltd.

Цена:12 690,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Introduction:

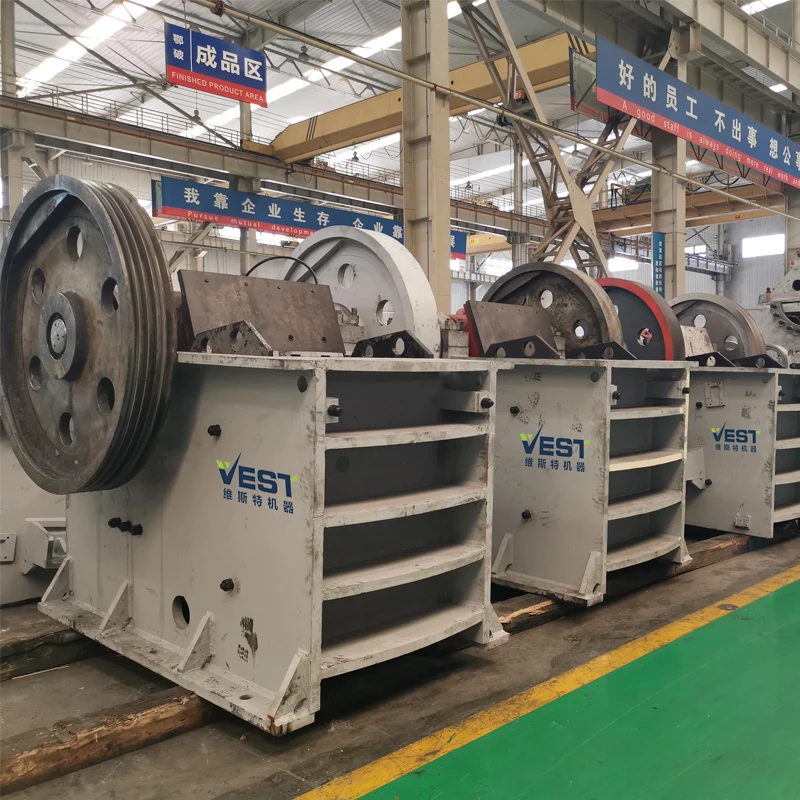

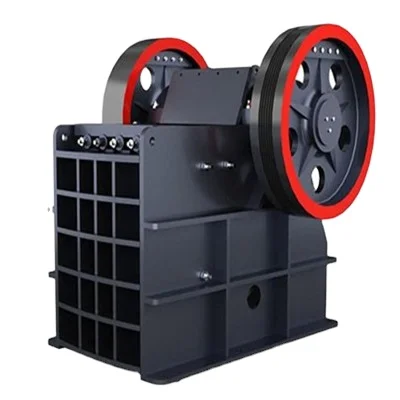

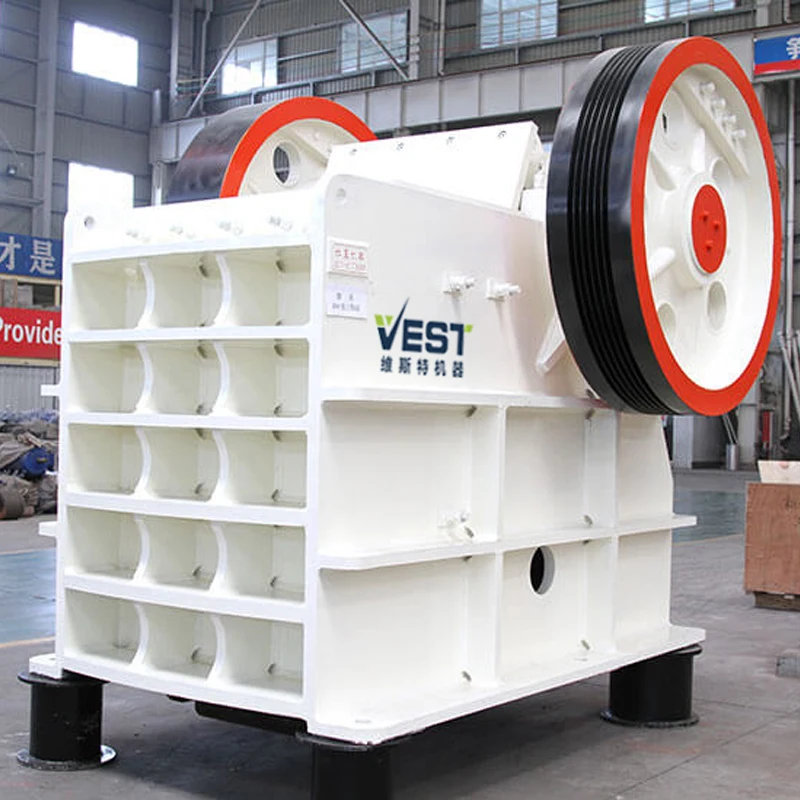

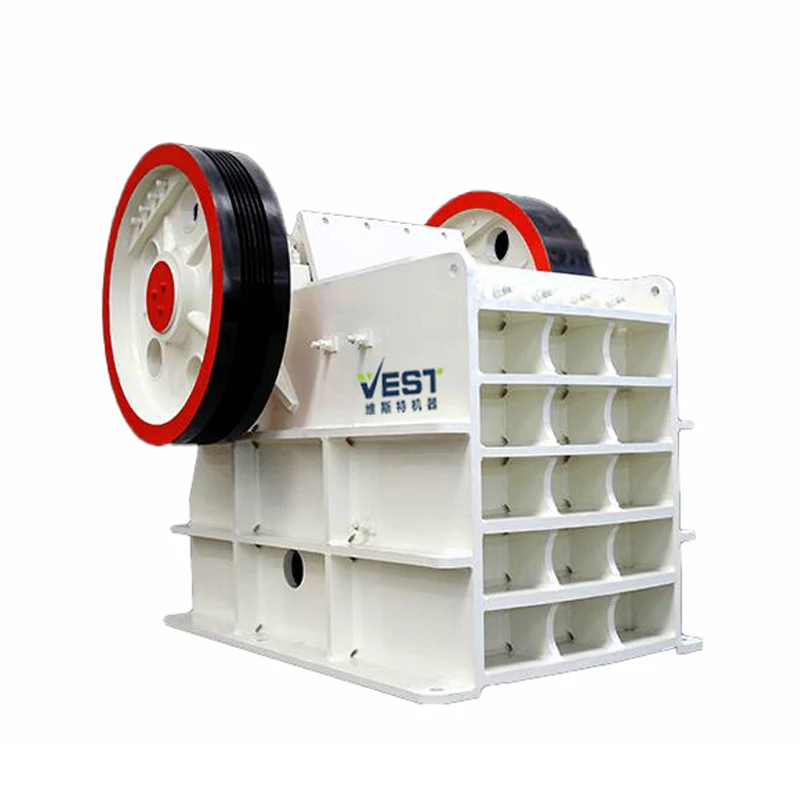

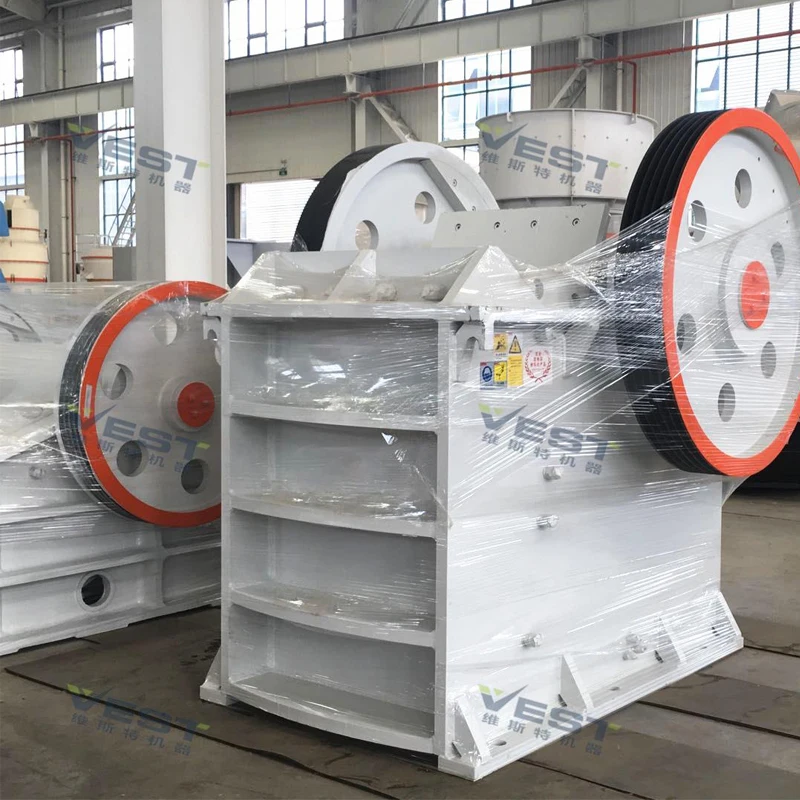

PE Jaw crusher is one traditional crushing equipment used to crush stone below 320MPa compressive strength. It will crush Large stone to Medium or small size, which have various models to meet a lots of capacity requirements of crushing plants.

• Capacity: 20-900t/h

• Max. Input size: 220-1020mm

• Min. Output size: 15-300mm

Application Field:

PE / PEX series Jaw crusher adopts classic design with long history, which is used as primary or secondary crusher of hard, medium-hard, brittle and tough materials. Such as quartz, granite, basalt, marble, calcite, gypsum, pebble, feldspar,cement clinker, concrete, copper, manganese ore, iron ore, and other ores. The main fields of application for jaw crusher include building material, mineralogy and metallurgy, ceramics and glass, construction waste industry.

Technical Features:

1. Easy maintenance: Simple structure but reliable operation. It can be equipped with lubrication system, easy to replace parts, small maintenance workload.

2. Adjustable output size: The wedge adjusts the discharge opening, and the discharge size can be controlled to meet the different requirements of users.
3. Energy saving and environmental protection: Single machine saves 15% to 30% energy, system saves more than double the energy. Low noise and less dust.
4. High Crushing efficiency: The design of deep crushing chamber improves feeding capacity and output.

Working Principle:

The crushing method of PE series jaw crusher is the cam-type extrusion type. The motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw plate to approach the fixed jaw plate. At the same time, the material is squeezed, rubbed, and crushed in multiple ways; when the movable jaw descends, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the movable jaw of the crusher performs periodic crushing and discharging to achieve mass production.

Model	Size of Inlet port (mm)	Max Input size(mm)	Outlet port adjustment range (mm)	Eccentric Shaft speed (r/min)	Capacity (t/h)	Power (kw)
PE250×400	250×400	220	20-60	300	5-20	15
PE400×600	400×600	340	40-100	275	15-60	30
PE500×750	500×750	425	50-100	275	40-110	45-55
PE600×900	600×900	500	65-160	250	90-180	75
PE750×1060	750×1060	630	80-140	250	110-320	110
PE900×1200	900×1200	720	95-165	200	220-450	132-160
PE1000×1200	1000×1200	800	200-300	200	280-560	160-185
PE1200×1500	1200×1500	1000	150-300	180	400-800	200-220
PE1500×1800	1500×1800	1200	210-360	180	700-1280	355-400

Model	Size of Inlet port (mm)	Max Input size(mm)	Outlet port adjustment range (mm)	Eccentric Shaft speed (r/min)	Capacity (t/h)	Power (kw)
PEX250×750	250×750	210	25-60	330	13-35	30
PEX250×1000	250×1000	210	25-60	330	16-55	30
PEX250×1200	250×1200	210	25-60	330	20-60	37
PEX300×1300	300×1300	250	20-90	300	30-90	55-75

1. Are you a manufacturer or trading company?
We are a factory, founded in 1987 and restructured in 2010.

2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.

5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
