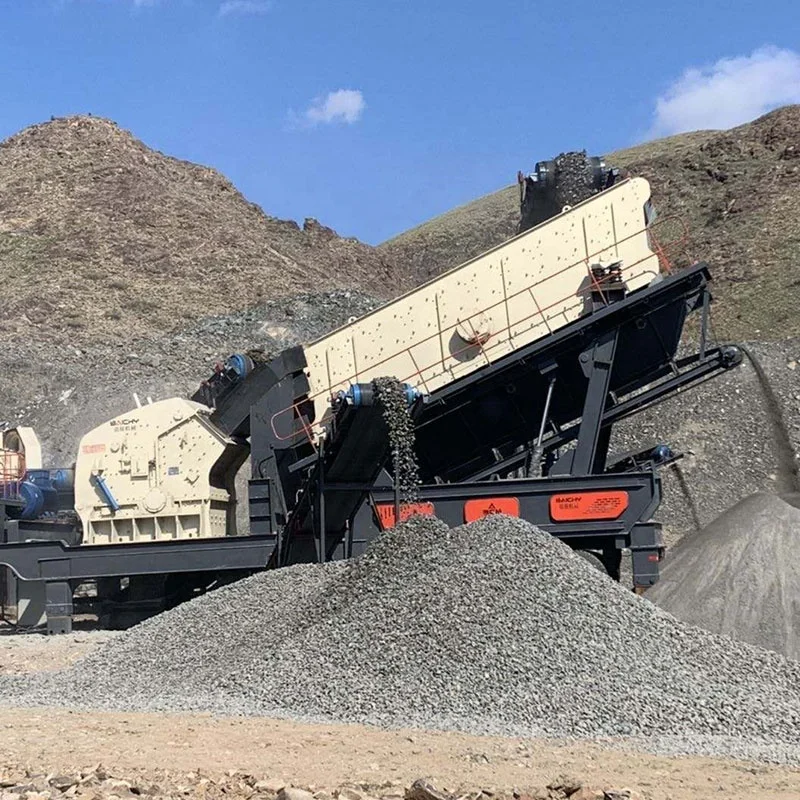

Мобильная ударная дробильная станция установка для дробления гранита известняка
79 999,00 $
Китайский производитель Золотая мойка горная техника хромированная золотая аллювиальная для продажи
- Категория: >>>
- Поставщик: Ganzhou Gelin Mining Machinery Co. Ltd.Ganzhou Ltd.
Сохранить в закладки 1601257260430:
Описание и отзывы
Характеристики
Product Description
China Manufacturer Gold Washing Plant Mining Machinery Chrome Rock Gold Alluvial Trommel for Sale
Trommel screen also known as rotary screen, is a kind of mechanical screen machine for separating mineral ore material, mainly used in the gold wash plant and solid waste treatment industry. The trommel controls the mineral separation by the size of the particles, and the separation precision is high.
Features:
![]()
![]()
![]()
![]()
![]()
1.Custom Built Design,and high performance: hopper, diesel engine or electric motor,screen size etc.are available to choose.
2.Large capacity range.
3.Easy move around,operation,and maintenance
4.Low investment,long service life
5.At least 1 year warranty and 24 hours online service.
Gelin Provide different types trommel screen with Stationary and Mobile Style;
Sieve size, Layer quantity, Power, Wheel type... can be available customization.
Stationary type as below:

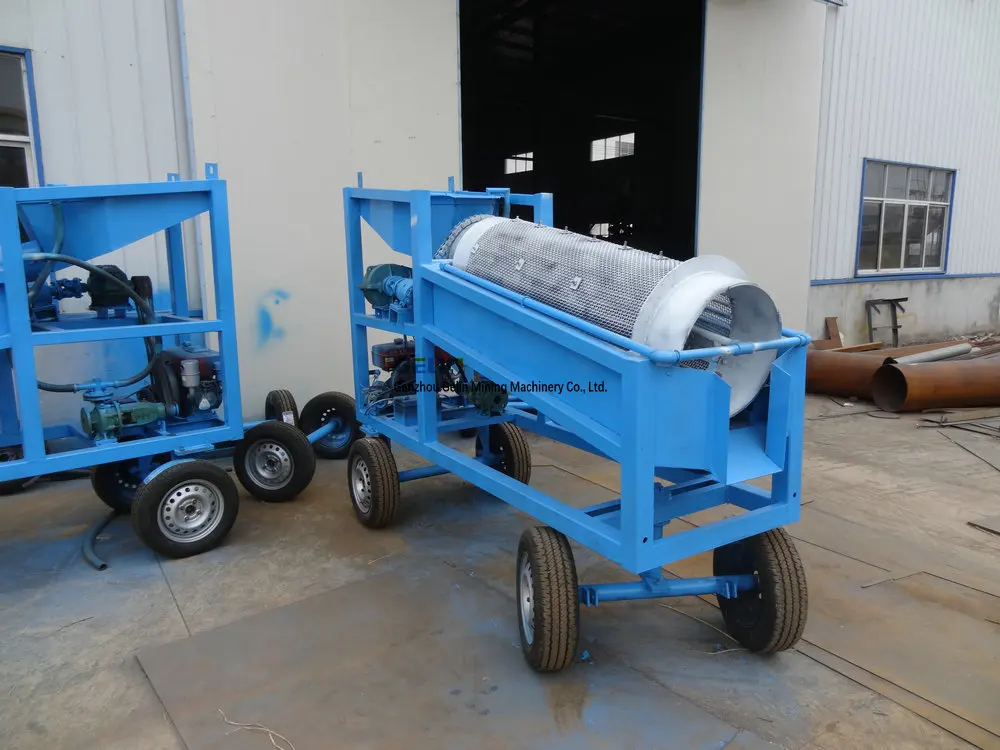

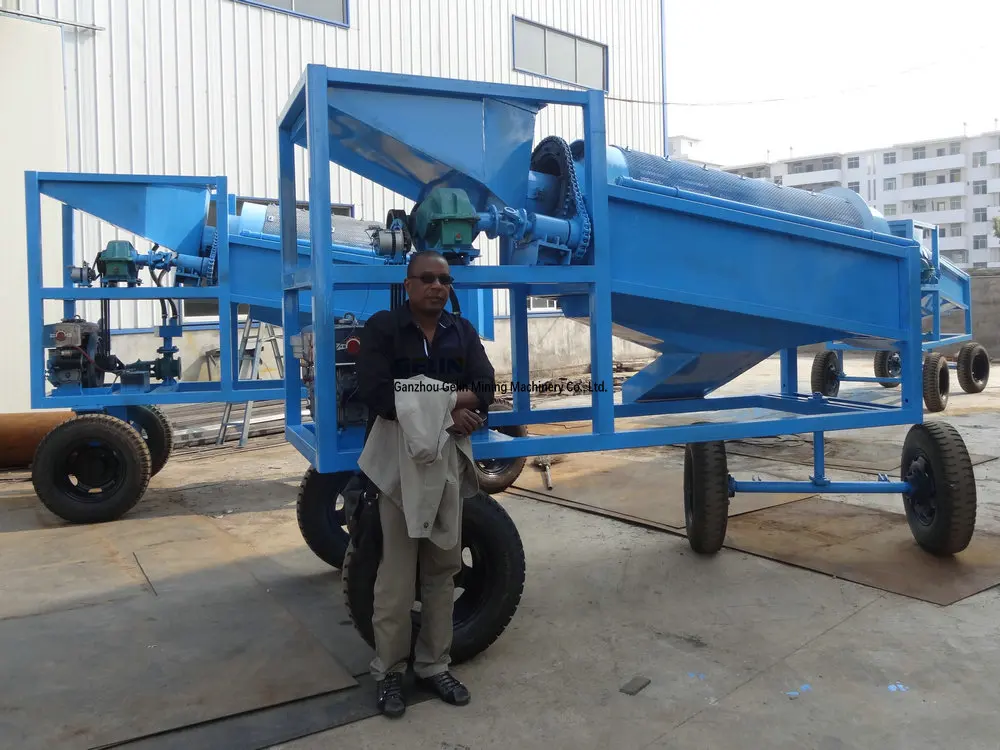

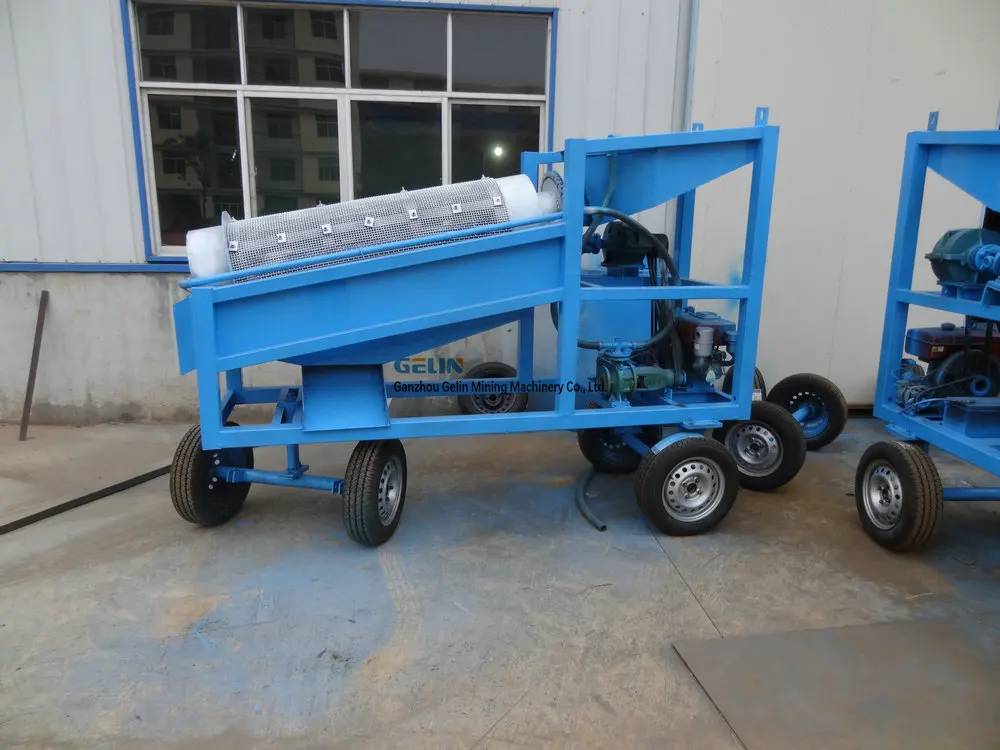

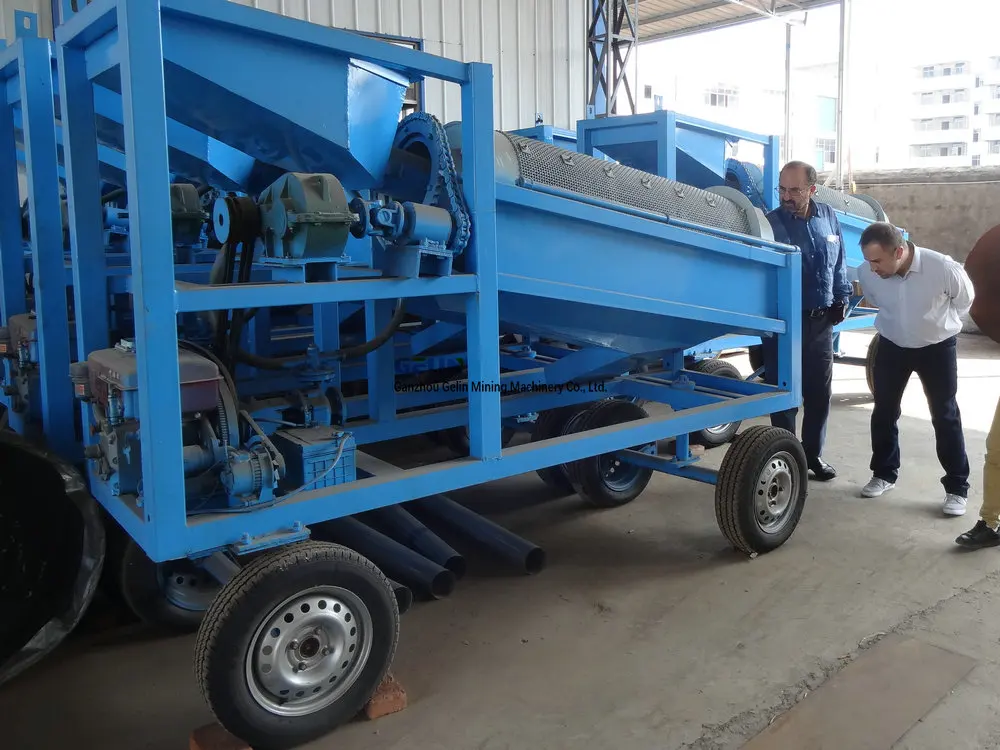

Mobile type as below:
Working Principle:
The cylinder of the drum screen is generally divided into several sections, depending on the specific circumstances, the screen holes from small to large arrangements, each section on the same size of the screen hole. The trommel screen mainly comprises a motor, a reducer, a roller device, a machine frame, a sealing cover and an inlet and outlet.
When feeding ore material into the drum, the material begins to rotate and tumble inside the drum before calming down intermittently. This revolution is completed along the length of the drum. Hence, the larger ones tumble to their exit through the rear end of the drum while the finer materials pass through the screen openings and then pass to the downstream process equipment, which can be in various forms, such as gold concentrator, spiral chutes, jig machines,Sluice box with carpet etc.Separation of different materials is done efficiently.
Specification
| Mobile Type Washing Trommel Machine | |||||||
| Model | Capacity (t/h) | Wheel quantity | Water pump& water pipe | Drum diameter | Drum length | Screen size(mm) | Weight(kgs) |
| GL510 | 5-10 | 4 | include | 500mm | 1300mm | <3-20 | 800 |
| GL615 | 10-20 | 4 | include | 600mm | 1500mm | <3-20 | 1000 |
| GL715 | 20-30 | 4 | include | 700mm | 1500mm | <3-20 | 1200 |
| GL815 | 30-40 | 4 | include | 800mm | 1500mm | <3-20 | 1500 |
| GL1020 | 40-100 | 4 | include | 1000mm | 2000mm | <3-20 | 2300 |
| GL1225 | 100-160 | 4 | include | 1200mm | 2500mm | <3-20 | 4000 |
| GL1530 | 150-200 | 4-6 | include | 1500mm | 3000mm | <3-20 | 5500 |
| GL1545 | 200-300 | 4-6 | include | 1500mm | 4500mm | <3-20 | 6000 |
| GL1848 | 300-450 | 4-6 | include | 1800mm | 4800mm | <3-20 | 7000 |
| GL2055 | 400-600 | 4-6 | include | 2000mm | 5500mm | <3-20 | 8000 |
| Fixed Type Washing Trommel Machine | ||||||||
| Model | Capacity (t/h) | Power (kw) | Screen Diameter (mm) | Screen Length (mm) | Discharge Size (mm) | Input Size (mm) | Dimension (L*W*H) (mm) | Weight (kg) |
| TW1015 | 50 | 3.0 | 1000 | 1500 | 0~100 | ≤300 | 2600*1400*1700 | 2200 |
| TW1020 | 100 | 4.0 | 1000 | 2000 | 3390*1400*2140 | 2800 | ||
| TW1225 | 160 | 5.5 | 1200 | 2500 | 4146*1600*2680 | 4200 | ||
| TW1530 | 250 | 7.5 | 1500 | 3000 | 4460*1900*2820 | 5100 | ||
| TW1545 | 350 | 11 | 1500 | 4500 | ≤400 | 5960*1900*3080 | 6000 | |
| TW1848 | 450 | 15 | 1800 | 4800 | 6500*2350*4000 | 7500 | ||
| TW2055 | 600 | 22 | 2000 | 5500 | 7500*2550*4800 | 9600 | ||
| TW2265 | 800 | 30 | 2200 | 6500 | 8500*2750*5000 | 12800 | ||
Application&Successful Case
- gold mining plant for alluvial gold, placer, gold sand
- gold processing plant for river dirt gold with clay
The basically main machines matching are as below according to different mining condition:
a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).
a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).
Company Information
Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc. Sincerely welcome customers to visit our factory.
Our Services
One Stop solution for beneficiation plant service
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design and equipment, we also provide the infrastructure design; Electrical and pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands
After-sale Service
1.Strict machine inspection before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
FAQ
Q: How about your machine quality?
A: Quality is our top priority, we have strict control over the details of our products, and we always insist on ensuring that our products are of good quality! If you need spare parts,you can always find us all the time.
Q: If I don’t know installation and commissioning,what should I do?
A: After you buy machine from us,we’ll provide you specific manual,even more,we can provide you online support if you have any questions. Our engineers will also go to the site for installation guidance if needed.
