Китай умный ручной контроль пневматический угловой клапан шаровой структуры для воды и общего применения
52 049,24 ₽ - 52 287,80 ₽
Санитарный 2 дюймовый NPT с внутренней резьбой и двойным приводом пневматический Y образный Угловой клапан датчиком обратной связи
- Категория: >>>
- Поставщик: Zhejiang Sanying Fluid Equipment Co. Ltd.
Сохранить в закладки 1601257512122:
Описание и отзывы
Характеристики
Products Description
VR

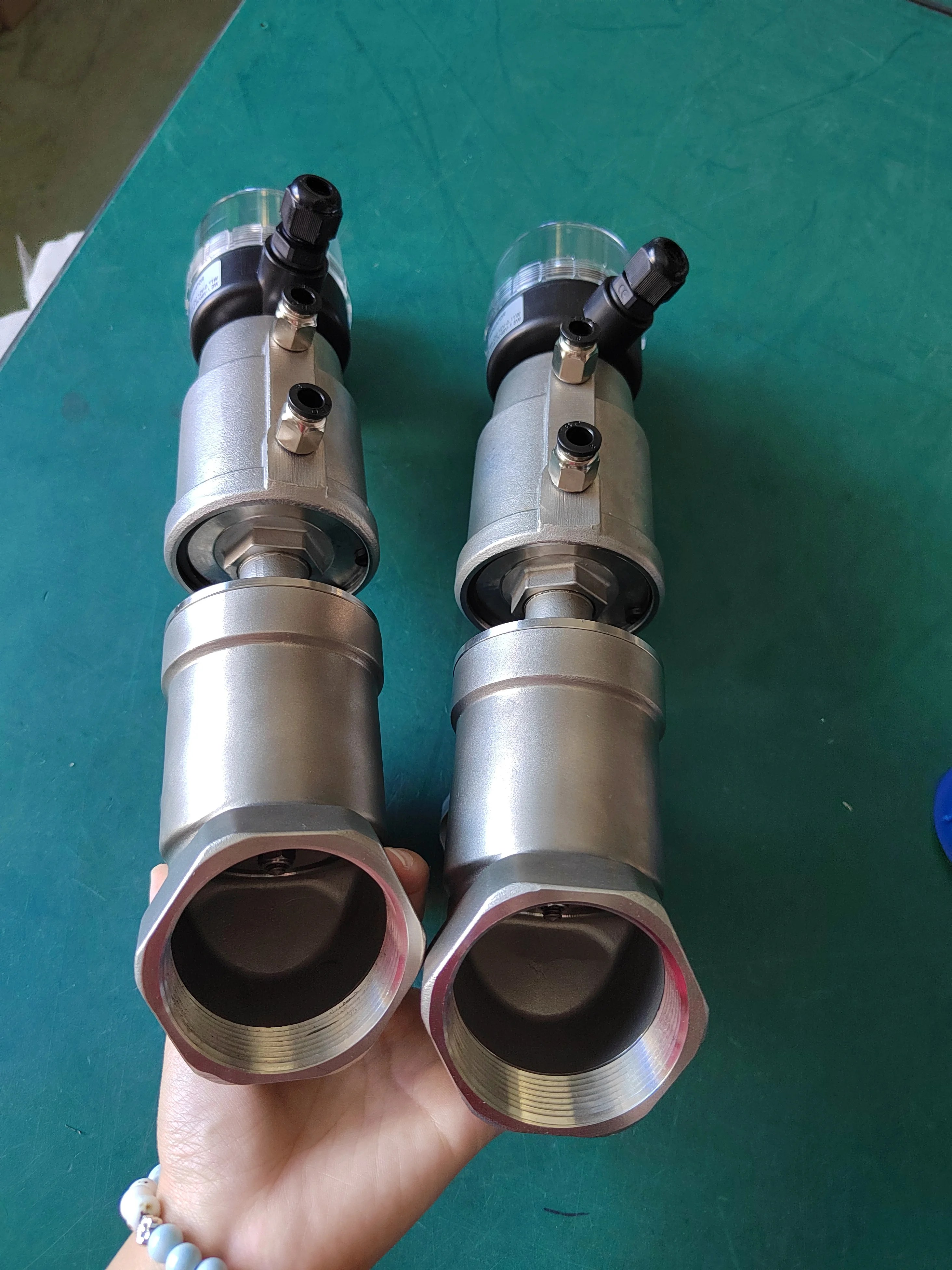

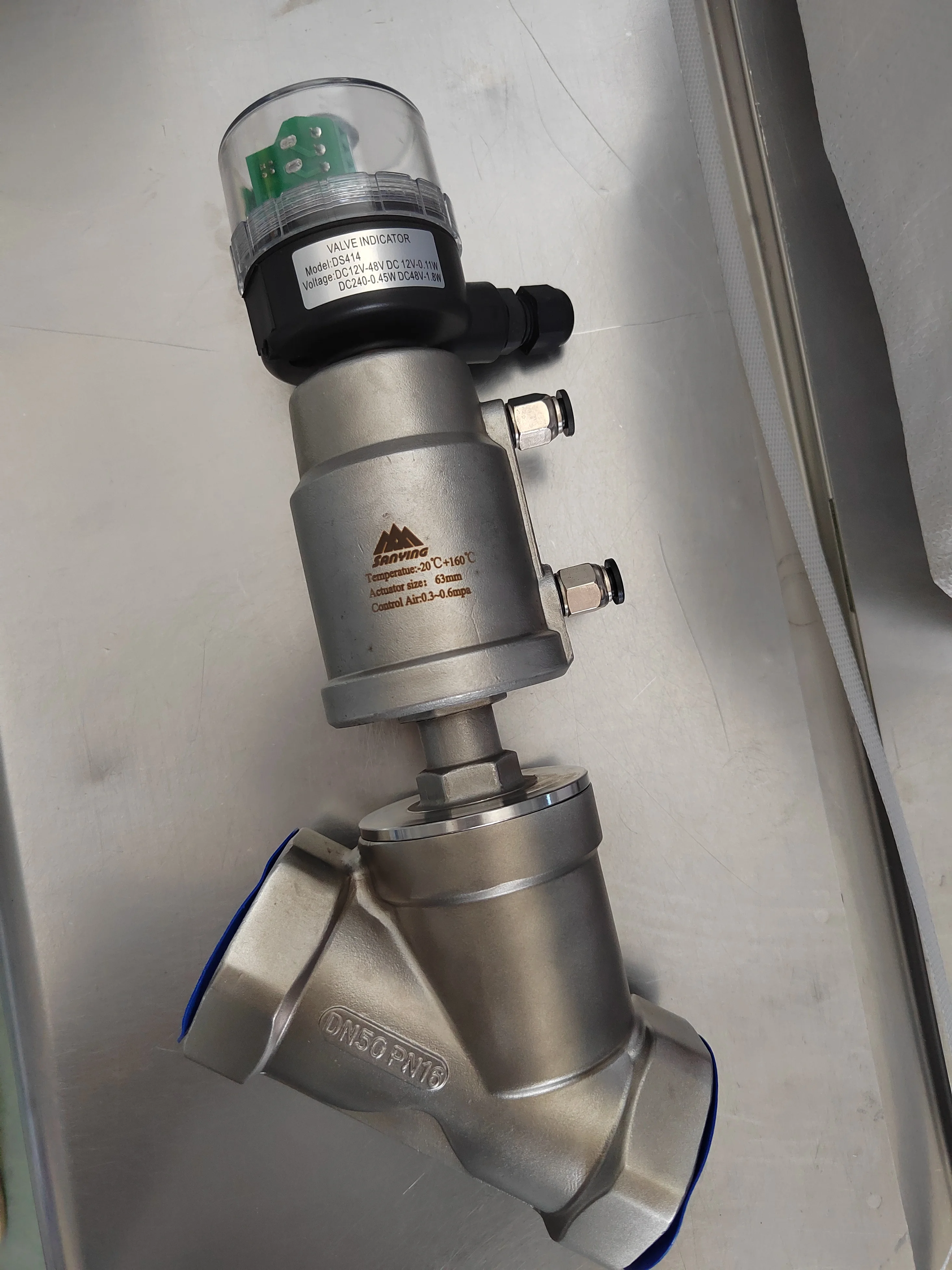

Pneumatic Angle Seat Valve with Feedback sensor
1.Valve body double spring gasket, to ensure that the valve and the valve body is closely connected, do not fall off.
2.Thickened valve body, firm valve body, quality assurance.
3.Flow is 30% larger than the ordinary Angle valve, small volume, optimal fluid flow, no water hammer effect.
3.Flow is 30% larger than the ordinary Angle valve, small volume, optimal fluid flow, no water hammer effect.
4. times longer service life than ball valve, 50% more economical than ball valves.
5. Precision design, Quick response, No noise, Reliable sealing.
6. Easy to install.
7. Earned many patents of Angle Seat Valve
8. Mainly used for Printing/dyeing/bleaching/washing/food/chemical industry, water treatment system, pharmaceutical and other automatic machinery or equipments.
Product Overview
Product Specifications
Connection/Appilcable Media
Connection Way: Tri-Clamp, Welding, Female Thread,
Applicable media: Neutral gas, Air, liquid, steam, Oil, Water, Spirits etc
Product Paramenters
Size | 1/2''-2.5''（DN15-DN65） | ||
Material | Stainless steel 304/316L, | ||
Sealing Gasket Material | PTFE | ||
Working Temperature | -10℃~180℃ | ||
Normal Pressure | 1.6Mpa | ||
Air source pressure | 0.3Mpa-1Mpa | ||
Investment Casting | Yes | ||
Operation | Manual/Pneumatic | ||
Control Type | Single Function: Always Open/Closed Double Function: Open and Close | ||
Availably standard | BSP/NPT/DIN/ISO | ||
Certificate | 3A/54-02 (1580), PED/97/23/EC, FDA 177.2600 |
Recommend Products
Which We Produce??
Pics can not show all products which we manufactured. If you are interested in it, contact us freely. We can be customized according to your needs.Show me your ideas and then we can manufacture which you want.:)
Details and Company Profile
Company Profile
Zhejiang Sanying Fluid Equipment CO.,Ltd, who cooperate with ASW Automation Equipment Co.,Ltd(UK). Sanying has been established for 10 years, focusing on manufacturing the safety and top quality valves, pipeline fittings and other sanitary productions for pharmaceutical/biological/food industry. Exporting to nearly 50 countries like USA, Russia, Europe, Korea, South Africa, Thailand etc.
We have a professional technical team and earned a series of patents.
CERTIFICATES
Packing Details
Inner Packing
Using the plastic foam to protect products to avoid scratches.
Noted Specifications
Printed the specifications and notes of customers at outside of inner box.
Mark

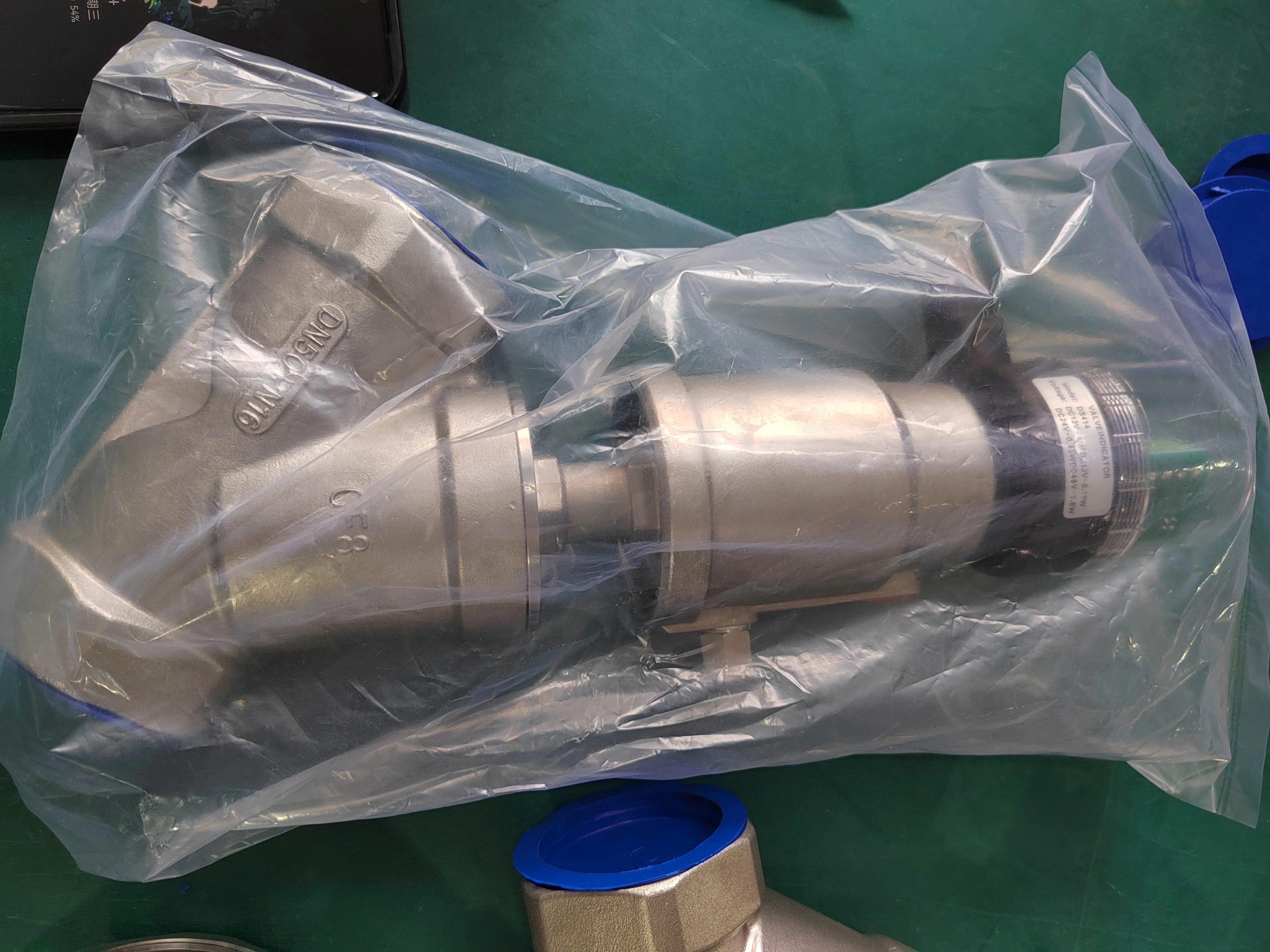

Marking the weight/pcs of goods and using polybag at outside.
Quality Testing
Material Test
Customized Size Test
Material Test Report
Passed Certificate
Exhibition
FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 1 week.
C)Are you a factory or trading company?
We are a factory
D)Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
E)Why should you buy from us not from other suppliers?
The company has passed ISO9001 quality system certification and has a number of technology patents. We had built a modern factory area and standards workshop and introduced a variety of advanced high-precision, automatic production equipment .
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 1 week.
C)Are you a factory or trading company?
We are a factory
D)Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
E)Why should you buy from us not from other suppliers?
The company has passed ISO9001 quality system certification and has a number of technology patents. We had built a modern factory area and standards workshop and introduced a variety of advanced high-precision, automatic production equipment .
