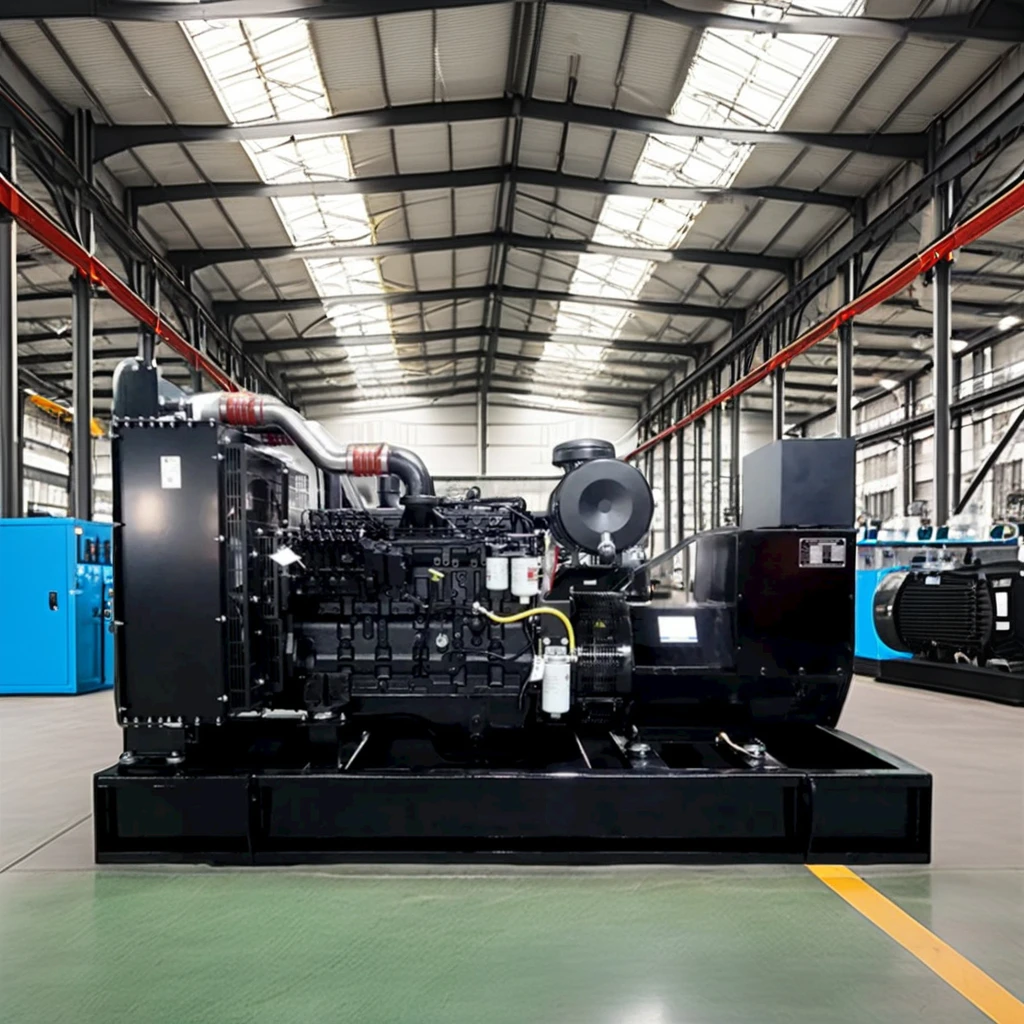

QSZ13 G2 двигателя Cummins 360 кВт 450 кВА Китайский дизельный генератор открытого типа с водяным охлаждением по низкой цене
- Категория: >>>
- Поставщик: Hunan Super Power New Energy Co. ltd
Сохранить в закладки 1601257564116:
Описание и отзывы
Характеристики
Product Overview
Cummins Series Diesel Generator Set
Cummins Series Diesel Generator Set offers a range of configurations with adjustable voltage and frequencies. Choose from 50HZ/1500RPM or 60HZ/1800RPM, with voltages including 380/220V, 400/230V, 415/240V, and 220/127V, 440/254V.

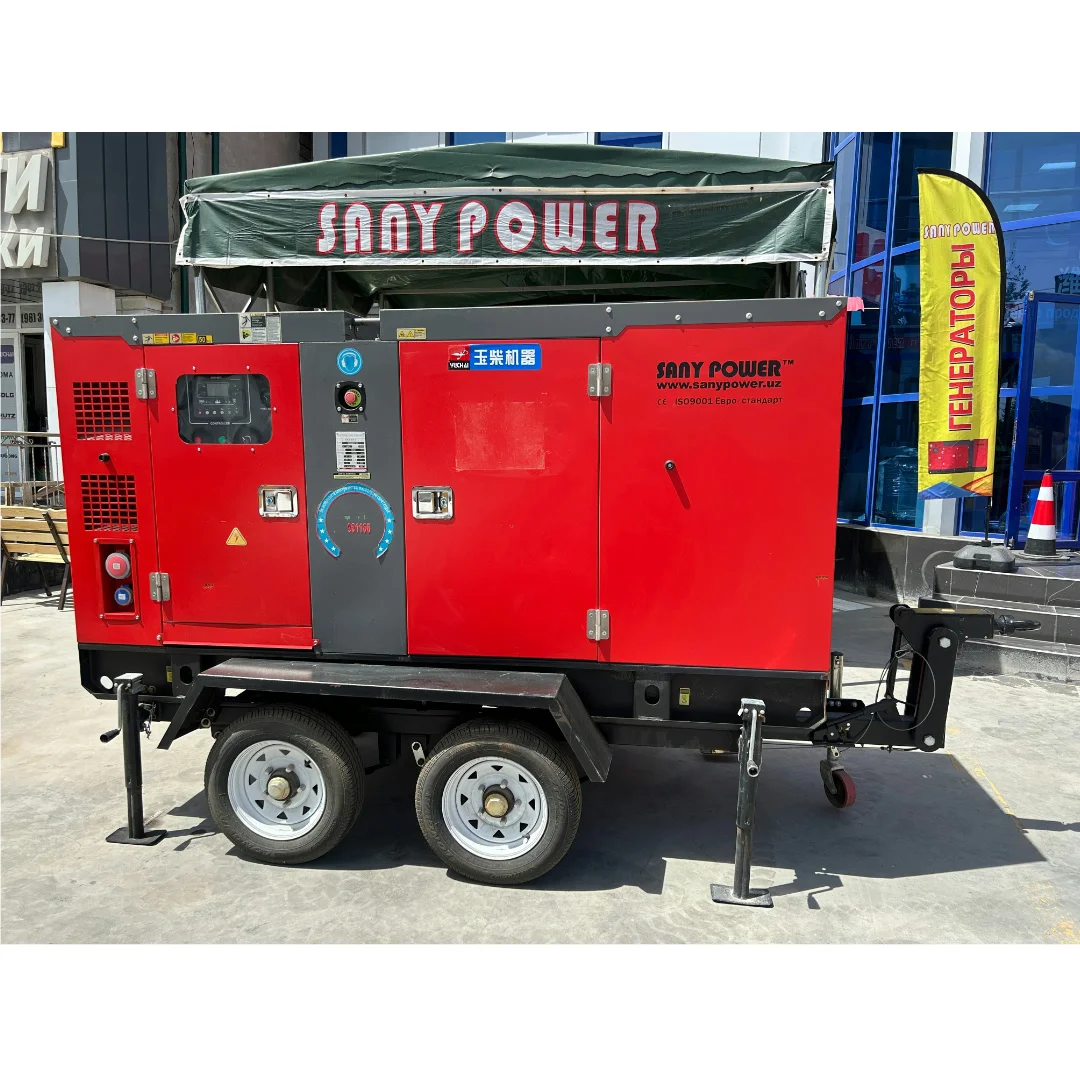

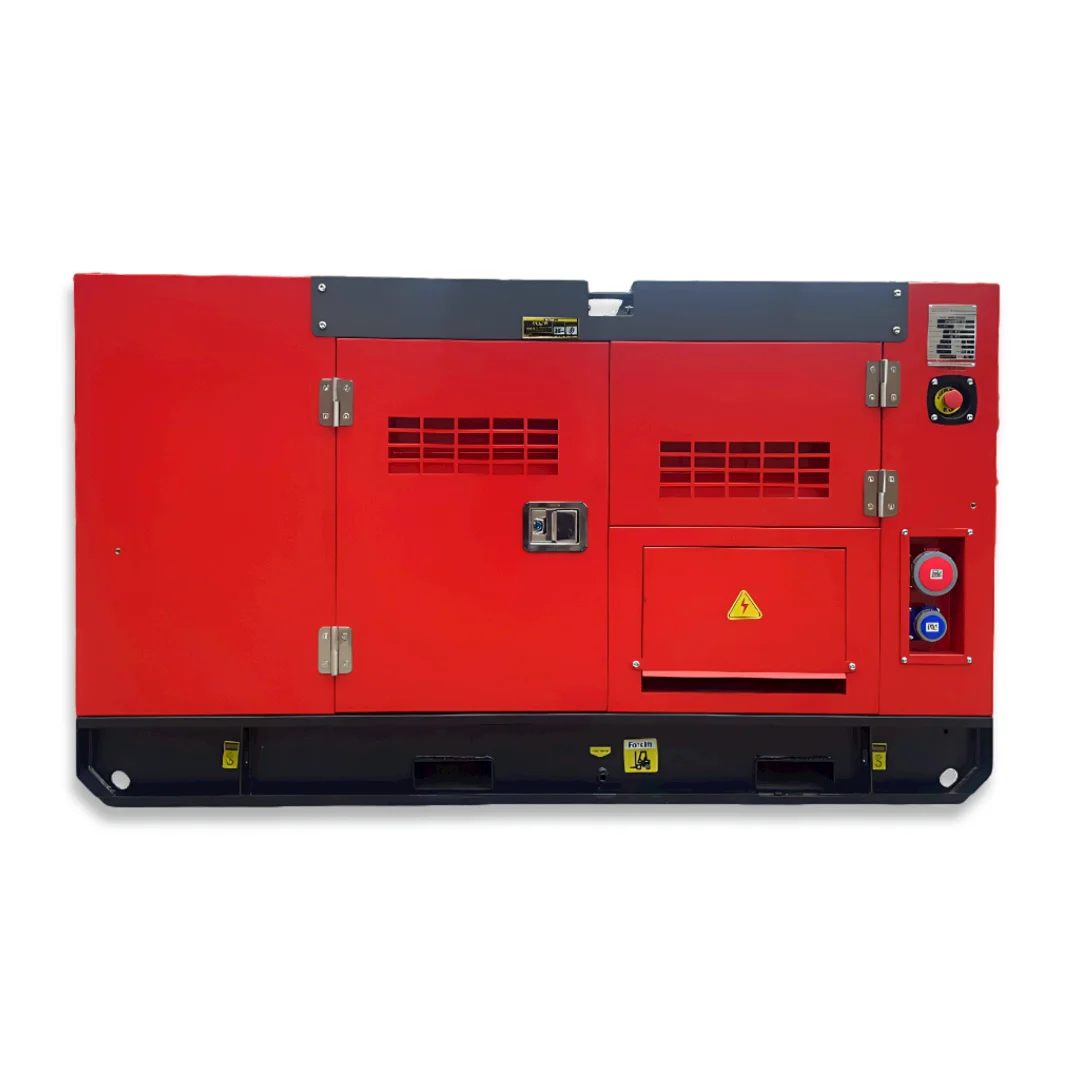

Available in Open, Silent Box, soundproof, and trailer types.
Optional ATS and choice of controller brands like UK Deepsea, Czech ComAp, Denmark DEIF, and SANY POWER China ensure reliable performance.
Robust engine, comprehensive service, and maintenance support make it a trusted global power solution.
Available in Open, Silent Box, soundproof, and trailer types.
Optional ATS and choice of controller brands like UK Deepsea, Czech ComAp, Denmark DEIF, and SANY POWER China ensure reliable performance.
Robust engine, comprehensive service, and maintenance support make it a trusted global power solution.
FEATURES AT A GLANCE
Advanced Technology
Diverse Product Range
Fuel Efficiency
Easy Operation and Maintenance
Customizable Solutions
Brand Reputation
Front Genset
Right Genset
Back Genset
PRODUCT SPECIFICATIONS
Generator Specification | Model | SP-360DC | Voltage | 400V/230V | ||||
Standby Power | 37.5KW | Prime Power | ||||||
KVA | KW | KVA | KW | |||||
495 | 396 | 450 | 360 | |||||
Frequency | 50HZ | Rated Speed | 1500r/min | |||||
Engine Details | Max. breakout force | 96kN | ||||||
Manufacturer | CUMMINS | Model | QSZ13-G2 | |||||
Capacity factor | 400/440 | |||||||
Style | Vertical, in-line, water-cooled, four-stroke | |||||||
Inhale way | Inter-cooling | |||||||
Number of cylinders | 6/L | |||||||
Bore and stroke(MM) | 130×163（mm） | |||||||
Displacement | 13L | |||||||
100%Oil consumption(L/H) | 90 | |||||||
Total oil capacity(L) | 45 | |||||||
Coolant capacity(L) | 10.2 | |||||||
Machine combustion ratio | 58 | |||||||
Starting mode | Electrical start of the DC24V | |||||||
Alternator Details | ||||||||
Manufacturer | SANY POWER | Model | SP-360E4 | |||||
Number of Phases | 3 | |||||||
Connecting Type | 3 Phase and 4 Wires, Y type connecting | |||||||
Power Factor | 0.8 | |||||||
Protection Class | IP23 | |||||||
Exciter Type | Brushless Exciting | |||||||
Insulation Class/ Temperature Rise | Class H/H | |||||||
Telephone Influence Factor (TIF) | ＜50 | |||||||
Telephone Harmonic Coefficient | ＜2% | |||||||
Alternator Capacity | 450kVA | |||||||
Voltage | 400V | |||||||
Controller Brand: SANY POWER China | ||||||||
Dimension | Length(mm) | Width(mm) | Height(mm) | Weight(kg) | ||||
Open Type | 3250 | 1360 | 2100 | 3700 | ||||

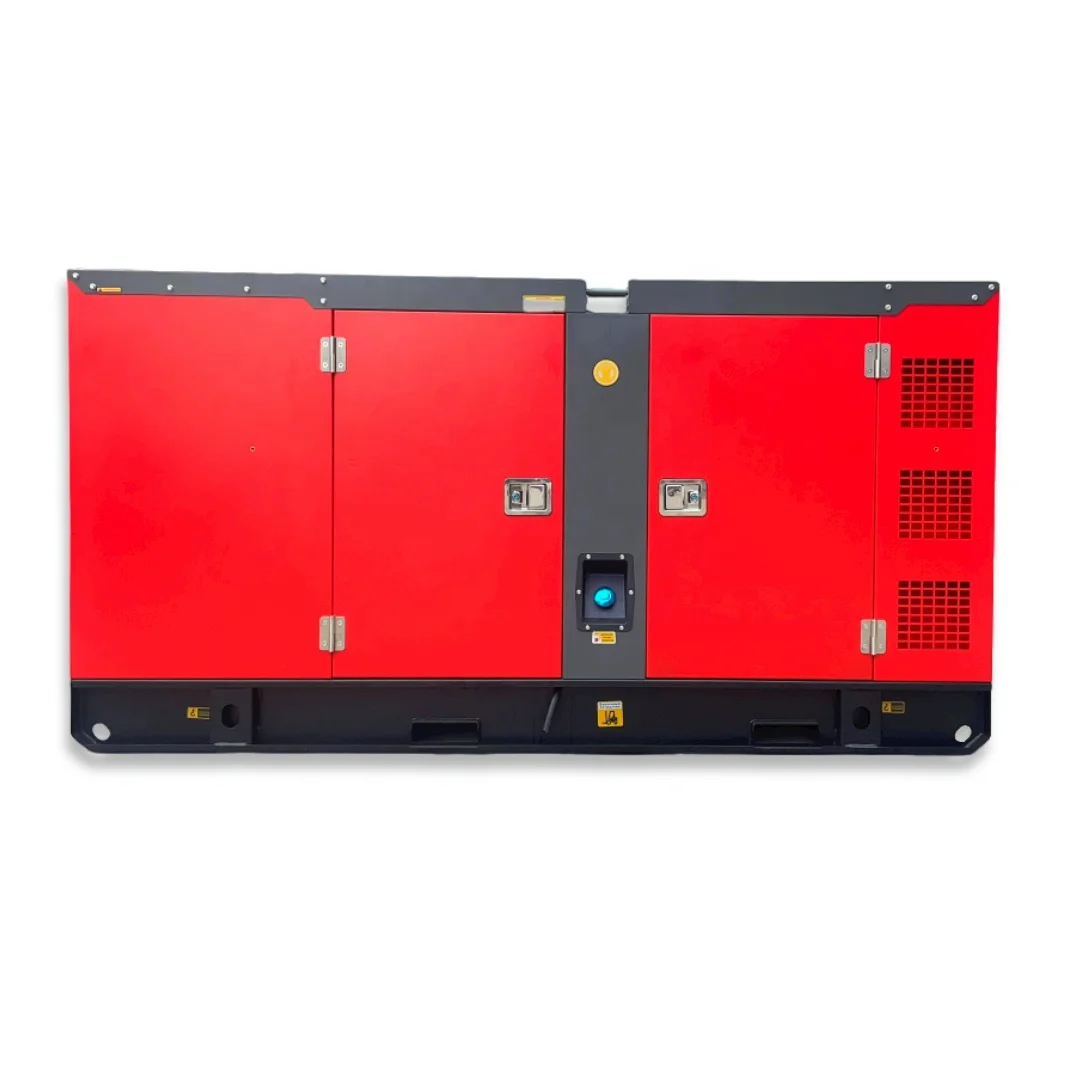

Silent Box | 4650 | 1650 | 2300 | 4600 | ||||
PRODUCT CONFIGURATION
Intelligent Control System
Switch, ATS Optional
Emergency Stop Button
Electrical start of the DC24V
Portable Sockets
Stainless steel door locks
Heavy duty battery terminal
Water Injection
Exhaust Pipe
Why Choose Us
10 Years Experience
Established in 2014, HUNAN SUPER POWER NEW ENERGY CO.,LTD have 10 years of experience in generator set production, research, and sales. Our skilled team develops efficient, reliable, and environmentally friendly solutions. We offer customized products and exceptional service, ensuring customer satisfaction and long-term partnerships.
2 Production Bases
We operate two production bases in Fu'an and Changsha, located in Tiehu Industrial Park in Fujian and Environmental Industrial Park in Hunan. These facilities ensure efficient production and reliable delivery times, meeting customer demands consistently and on schedule.
Service Guarantee
① Warranty for 1-2 years or 1200-2500 hours from the date of shipment.
② 100% two times inspection before shipment
③ Overseas maintenance service and Training working operator
④ We stock abundant spare parts to meet client urgent maintenance requirements.
⑤ We supply one set air filter, oil filter, fuel filter for free.
Customized Product
① LOGO and color customization
② Nameplate customization
③ Style customization

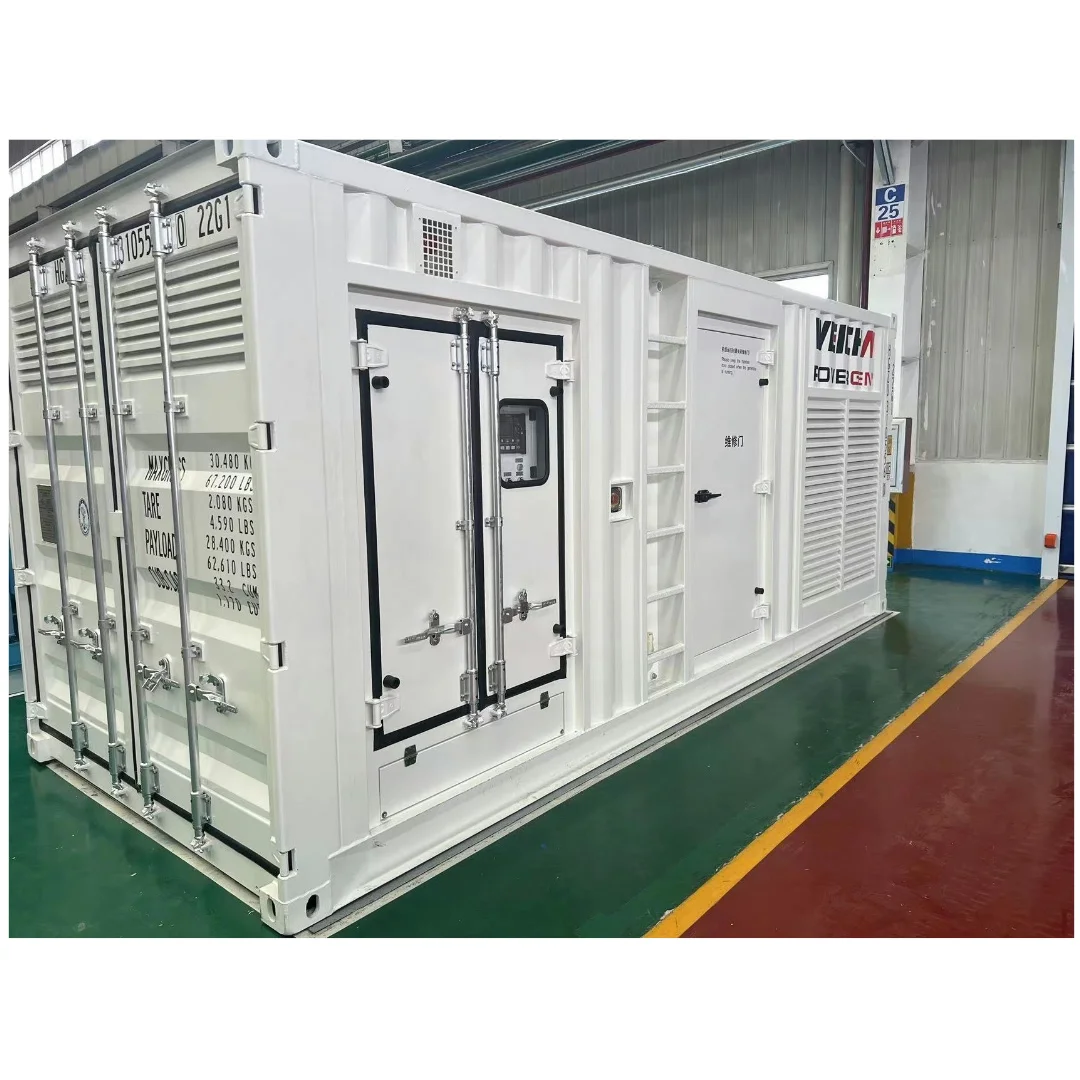

You can choose Open type, Silent type, Containerized and Trailer Type
You can choose Open type, Silent type, Containerized and Trailer Type
SALES AND SERVICE NETWORK
Successful Project
Country：Uzbekistan
Project：National Data Center
Genset model:
Power：1200KW
Quantity: 8 SETS
Country：Uzbekistan
Project：Oil and Gas Field Project
Power：400KW
Quantity: 1SET
Country：Djibouti
Project：Container Project
Genset model:Cummins Series
Power：250KVA-750KVA
Quantity: 12 SETS
Country：China
Project：Caihong Group (Shaoyang) Special Glass Co.,Ltd
Genset model: WEICHAI
Power：2000KW
Quantity: 6 SETS
Country：Uzbekistan
Project：TV Station Project
Power：500KW
Quantity: 1SET
Country：China
Project：Hunan Xianggu Information Technology Co.
Genset model:YUCAHI
Power：1000KW
Quantity: 3 SETS
FAQ
Q: How to request a quote?
A: Please feel free to contact our sales department at 0086 15116240218.
Q: What is your minimum order quantity(MOQ)?
A: 1 set.
Are you a trading company or a manufacturer?
A: We are a factory.
Q: What are your terms of payment?
A: 30% by TT in advance and 70% balance before shipment.
What is the power range of your diesel generator?
We can provide 5KW-4000KW diesel generators and comprehensive power supply solutions for you.
Q: Do you provide OEM services?
A: Yes.
Q: What is your warranty period?
A: Our warranty period is 18 months or 1000 hours, whichever comes first. But according to some special items, we can extend the warranty period.
Q: What certificates do you have?
A: We have CE and ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COC for
Tanzania, etc.Q: What is the delivery time?
A: 4-6 weeks.
Q: How can I trust you?
A: If you are not satisfied with the pictures, videos, boarding reports, load tests, customer experience, and sales staff's understanding of the generators you are interested in, we invite you to visit our spacious storage yards and stores to witness your generators. Carry out a load test and check our professional operations here.
Q: How do I get replacement parts for my generator?
A: It's as easy as calling your advisor. He will handle everything related to your machine, including supply and delivery of replacement parts and consumables, maintenance, technical assistance, operation, etc.
Q: What should I do after I receive the generator set?
A: Please read the operation manual carefully after obtaining the generator. The generator is attached to the user manual, With
Operation, Installation, Maintenance, and Repair Guide.
Operation, Installation, Maintenance, and Repair Guide.
Похожие товары
Самая реалистичная цена, паровой котел, топливное масло, дизель, природная Паровая турбина

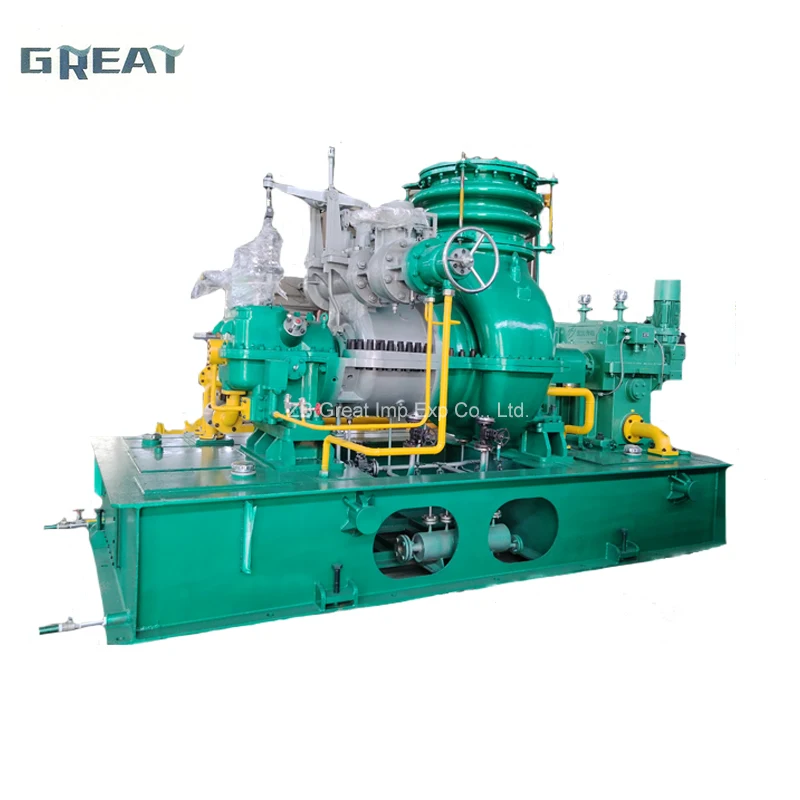

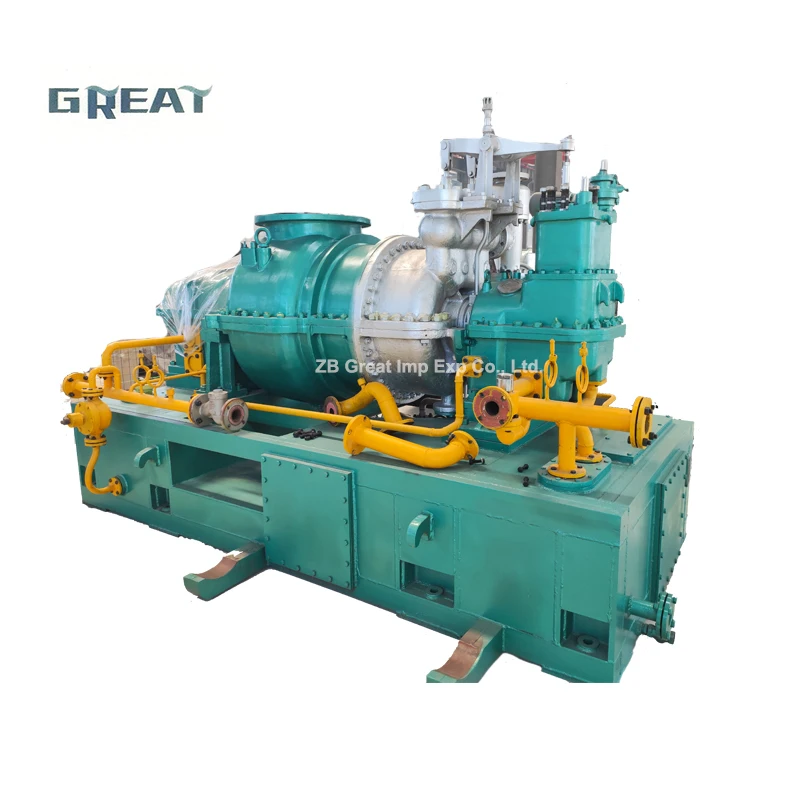

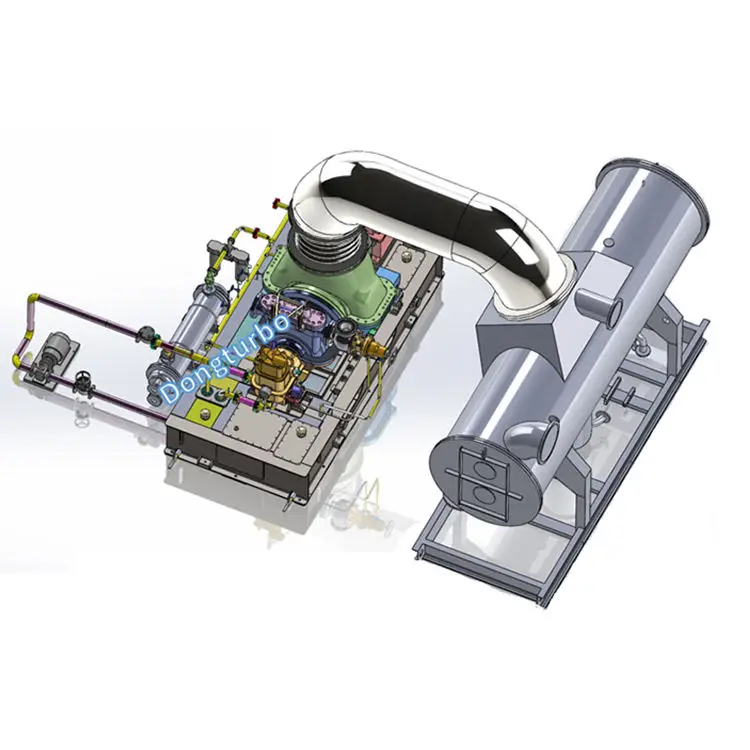

500 кВт/1 МВт/2 МВт/3 МВт парогенератор обратного давления/Конденсационная Паровая турбина в электростанциях
11 868 758,00 ₽

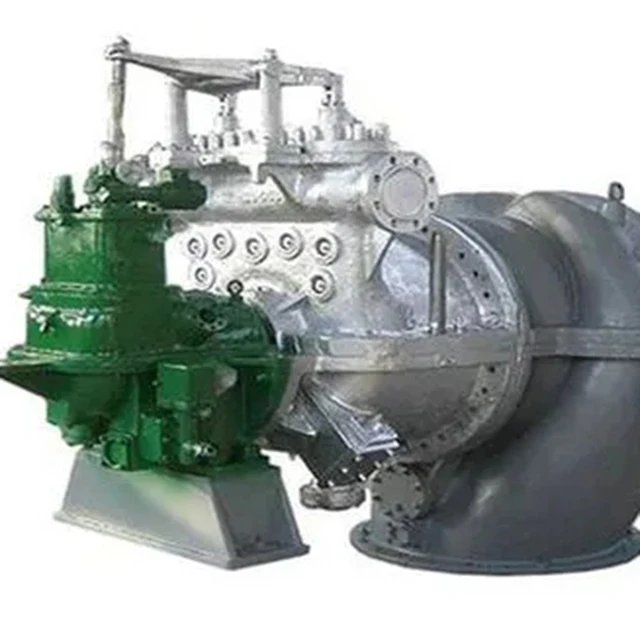

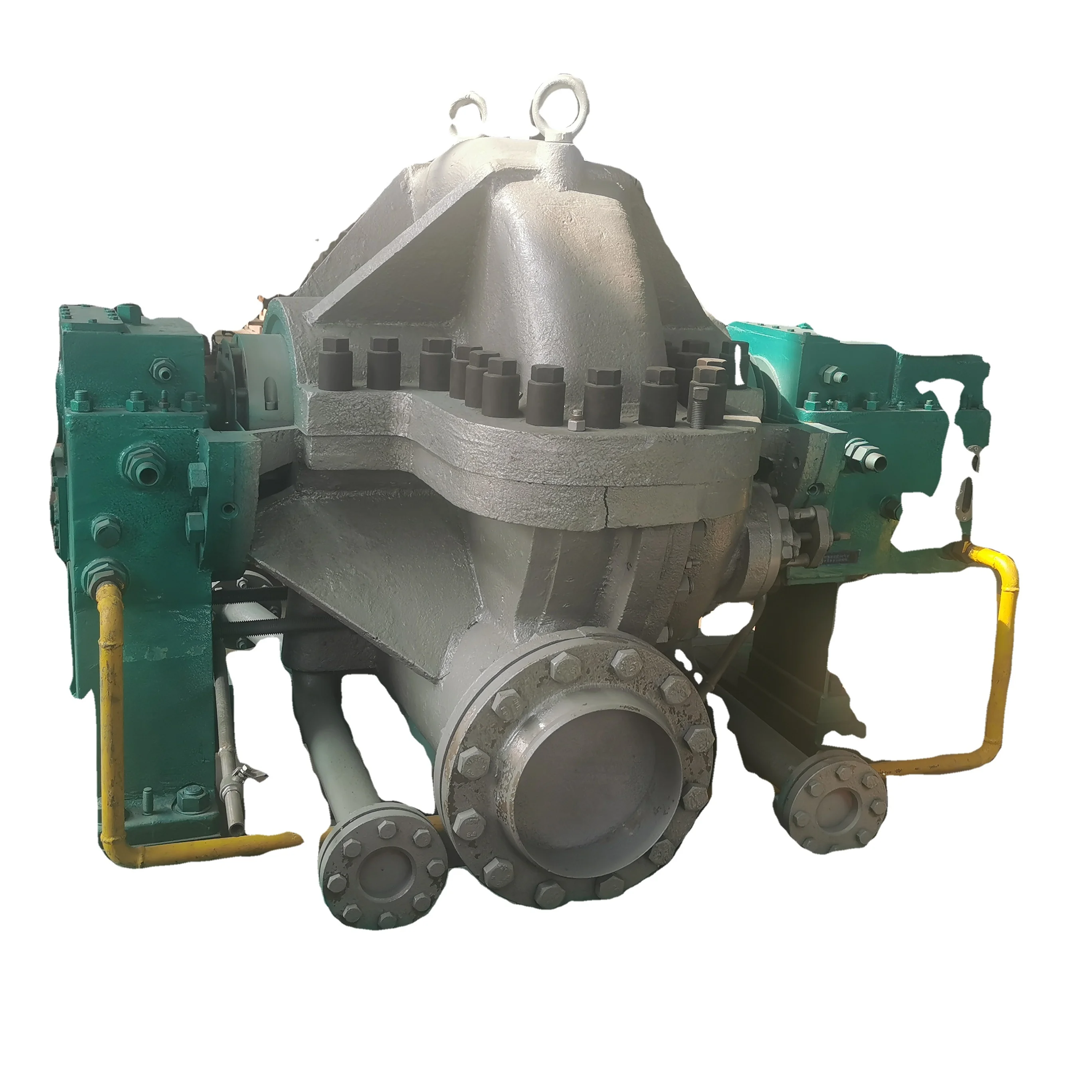

Паровая турбина, 1 МВт

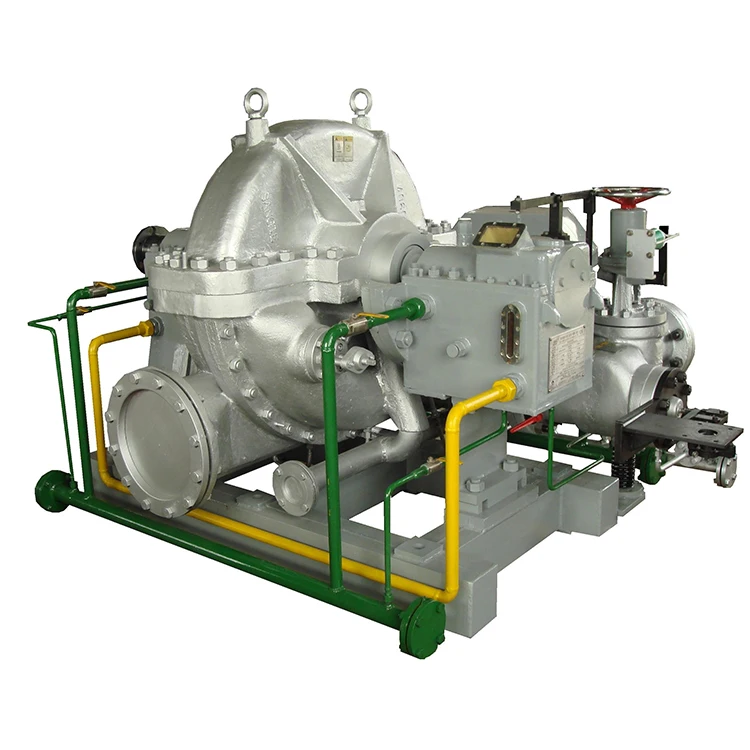

1 МВт биомассы Пелле машина Паровая турбина для электростанции
636 489,13 ₽

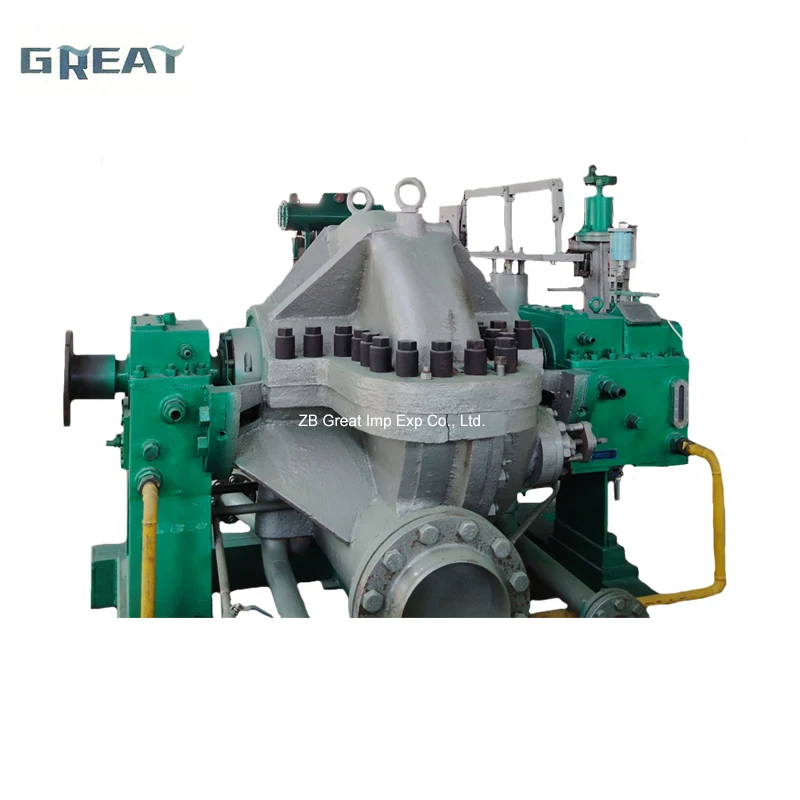

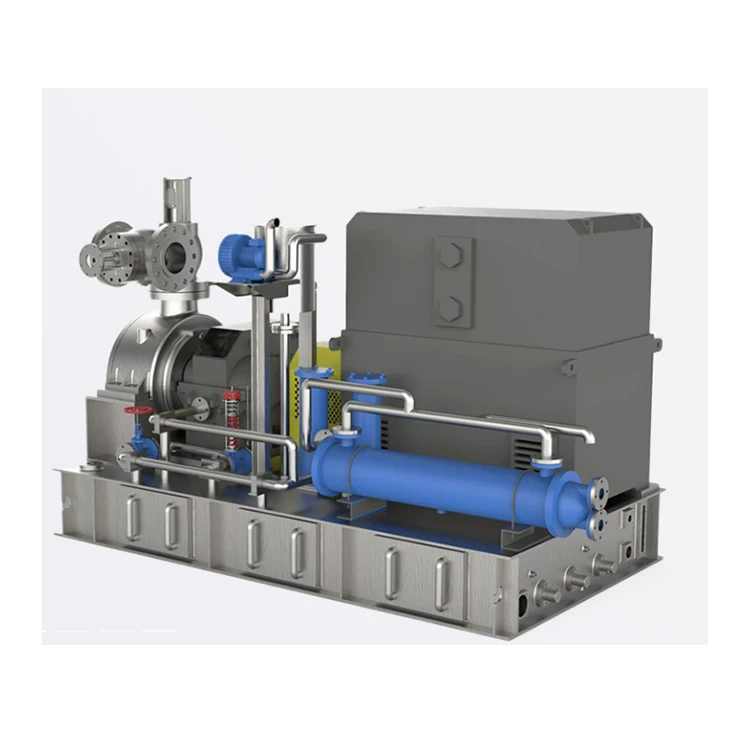

500 кВт/1 МВт/2 МВт/3 МВт компрессор паровой турбины обратного давления/Конденсационная Паровая турбина в электростанциях
