Product Description

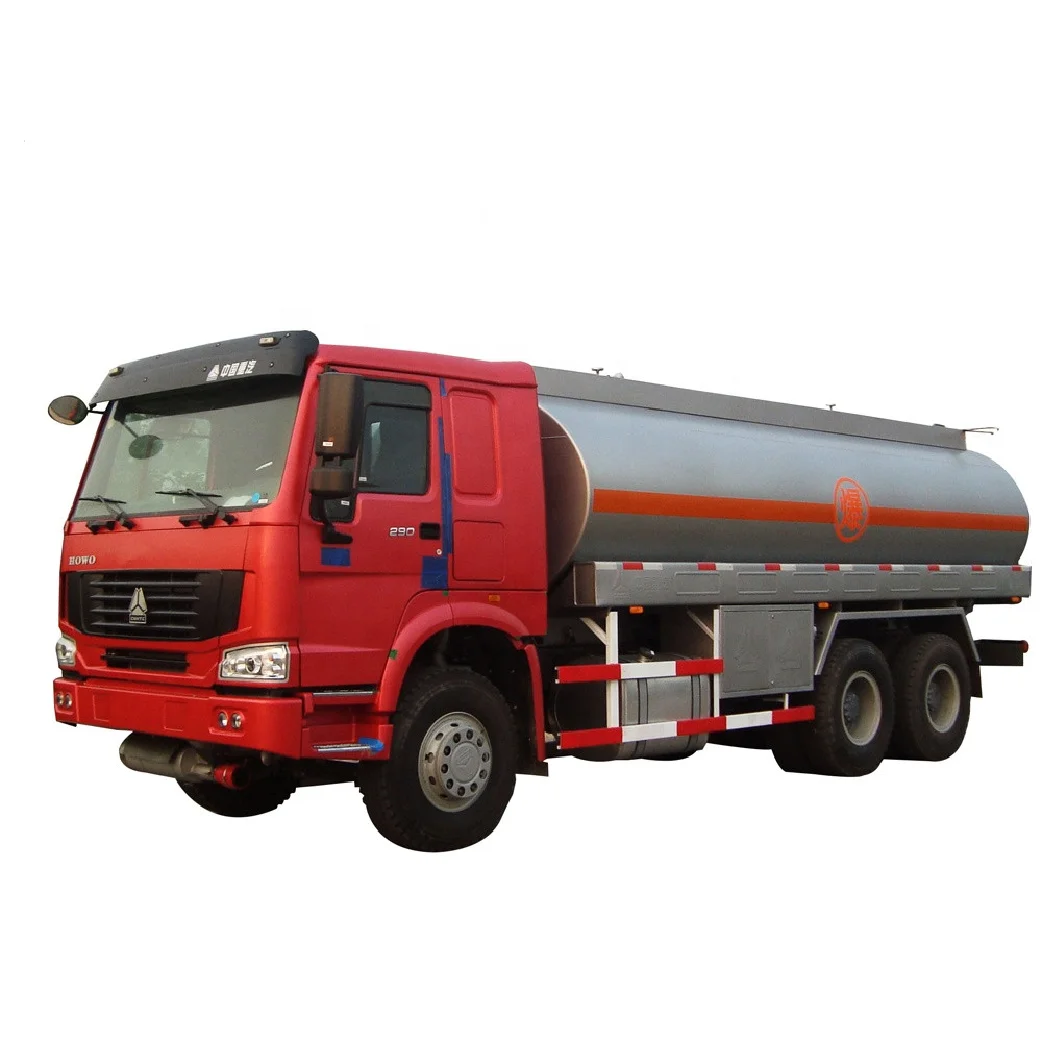

Oil Tanker Truck
Specification | ||
Product Name | Sinotruk HOWO 6*4 oil tanker truck | |
Description | ||
Truck Model | ZZ1257V4647 | |
Driving Position | Left hand Driving | |
Fuel tanker capacity（L） | 300 | |
Dead Weight | 13700kg | |
Wheelbase（mm） | 5225+1350 | |
Color | White | |
Tanker | ||
Tank Capacity | 20000 liters | |
Material | Q235 Carbon Steel | |
Body | Body thickness:5mm front/rear plate:6mm | |
Compartment | 2 10m3+10m3 | |
Manhole | 2 European standard | |
Bottom Value | 2 | |
Discharge Value | 2 | |
Lifting Ladder | Including Top walkway and backside | |
Engine | ||
Model | WP.400E201 | |
Power | 400hp | |
Emission | EURO II, water-cooled，four strokes，6 cylinders in line, directly injection | |
Kind of Fuel | Diesel | |
Fuel Consumption(L/100km) | 25L/100km | |
Transmission Type | HW 19710 Manual | |
Clutch | Reinforced diaphragm clutch, Diameter 430mm | |
Steering System | ZF8098,Power steering | |
Gear oil pump | ||
Model | 76YCB-40(F) | |
Flux m3/h | 40 | |
In /out cabiber mm | 76 | |
RPM r/min | 960 | |
Metering System | LC-40 Return to Zero 3’’ discharging system | |
Axles | ||
Front Axle Model | VGD95 axle. Capacity: 7000kg | |
Rear Axle | HC16 axle Capacity: 16000kg | |
Wheels & Tyres | ||
Type | 12R22.5 New | |
Material | Tubeless tires | |
Quantity | 10 +1spare | |
Brake System | ||
Service Brake | Dual circuit compressed air brake | |
Parking Brake | Spring energy, compressed air operating on rear wheels | |
Auxiliary Brake | Engine exhaust brake | |
Electrical System | ||
Battery | 2X12V/165Ah | |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |
Cabin | ||
Type | HW76 Cabin | |
One sleeper with air conditioner，all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||
Other | ||
102km/h speed limiter; 2 fire extinguisher；English plate;Tool box | ||
Details Images
Company Profile
Our Factory
Customer Photos
Packing & Delivery
FAQ
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
