Products Description
Basalt Fiber Rebar
Basalt fiber rebar is an ideal eco-friendly advanced material to replace steel and glass rebar, which is made from high-strength basalt roving along with vinyl resin or epoxy resin by the processes of pultrusion, winding, coating and composite molding. Its high tensile strength and excellent corrosion resistance coupled with its designability and long lasting made basalt rebar widely used in civil engineering.Various kinds of basalt fiber rebar are available.
The available dimension: 4/6/8/10/12/16/22 mm
Identification of Product Code
• Eg. BFRP-22
22—BFRP rebar Dia. of 22mm
The available dimension: 4/6/8/10/12/16/22 mm
Identification of Product Code
• Eg. BFRP-22
22—BFRP rebar Dia. of 22mm

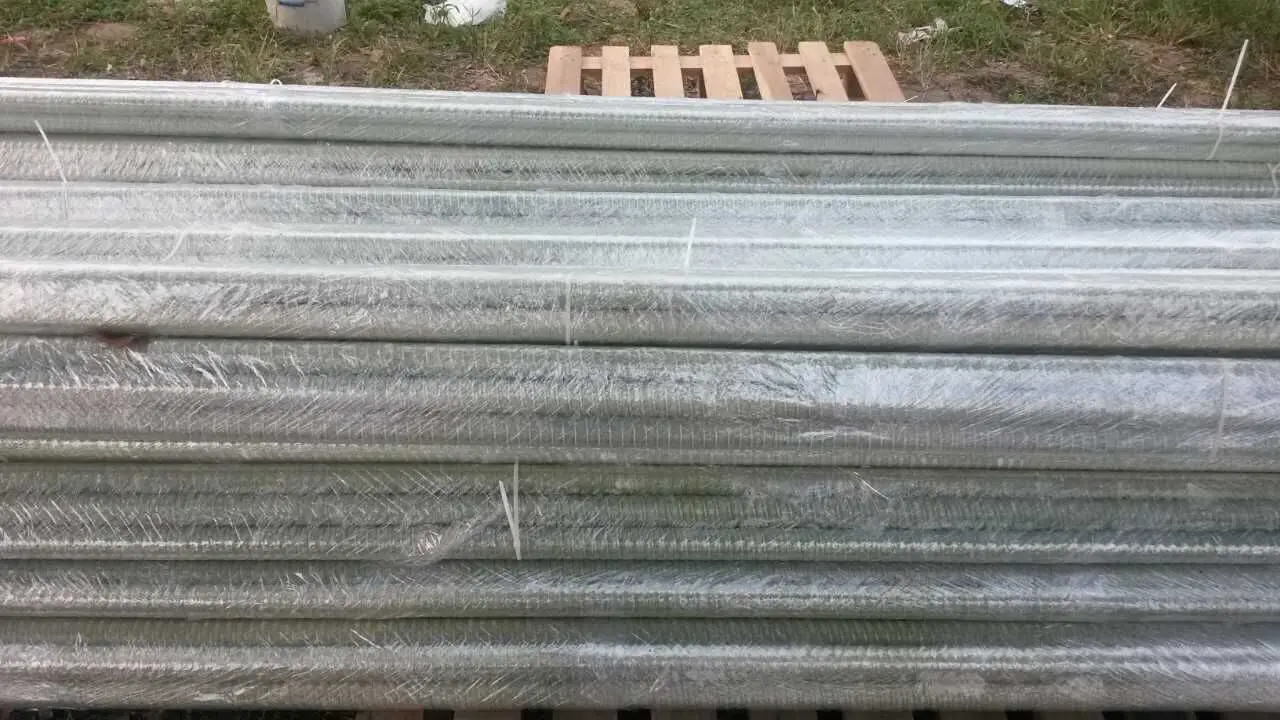

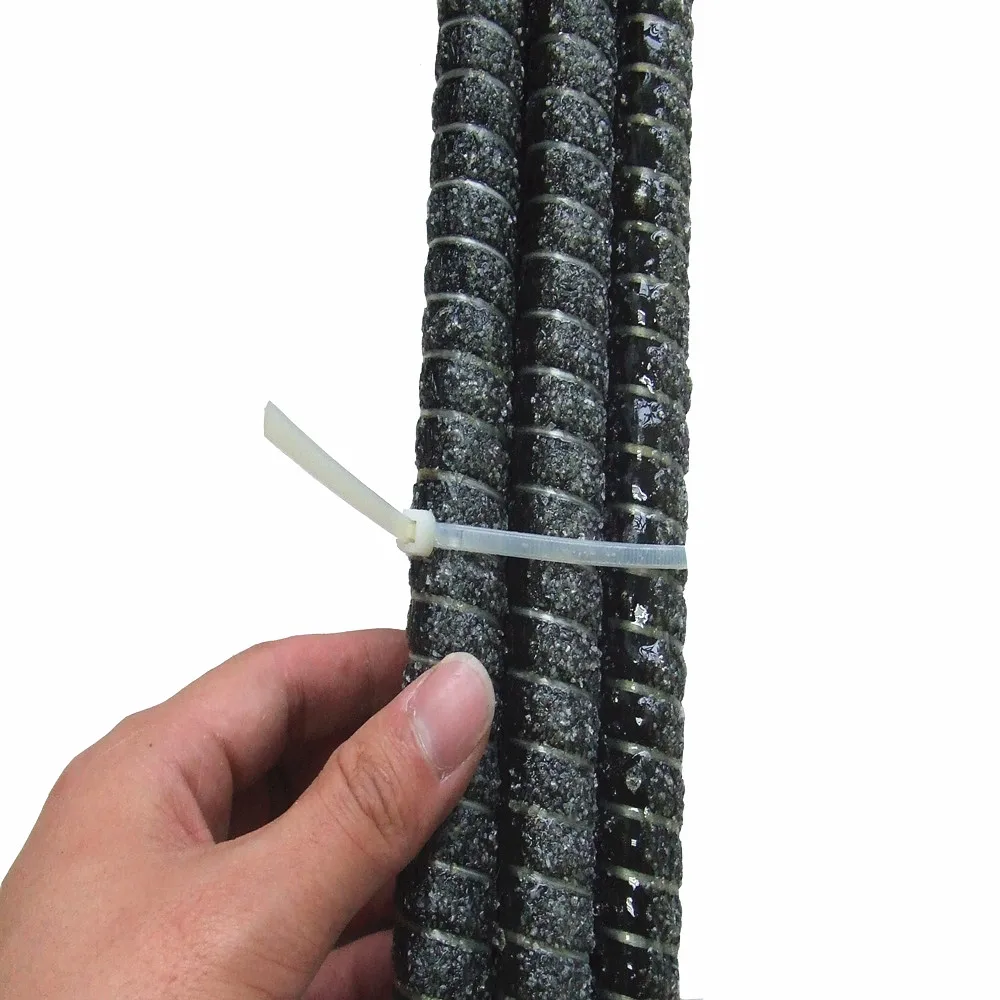

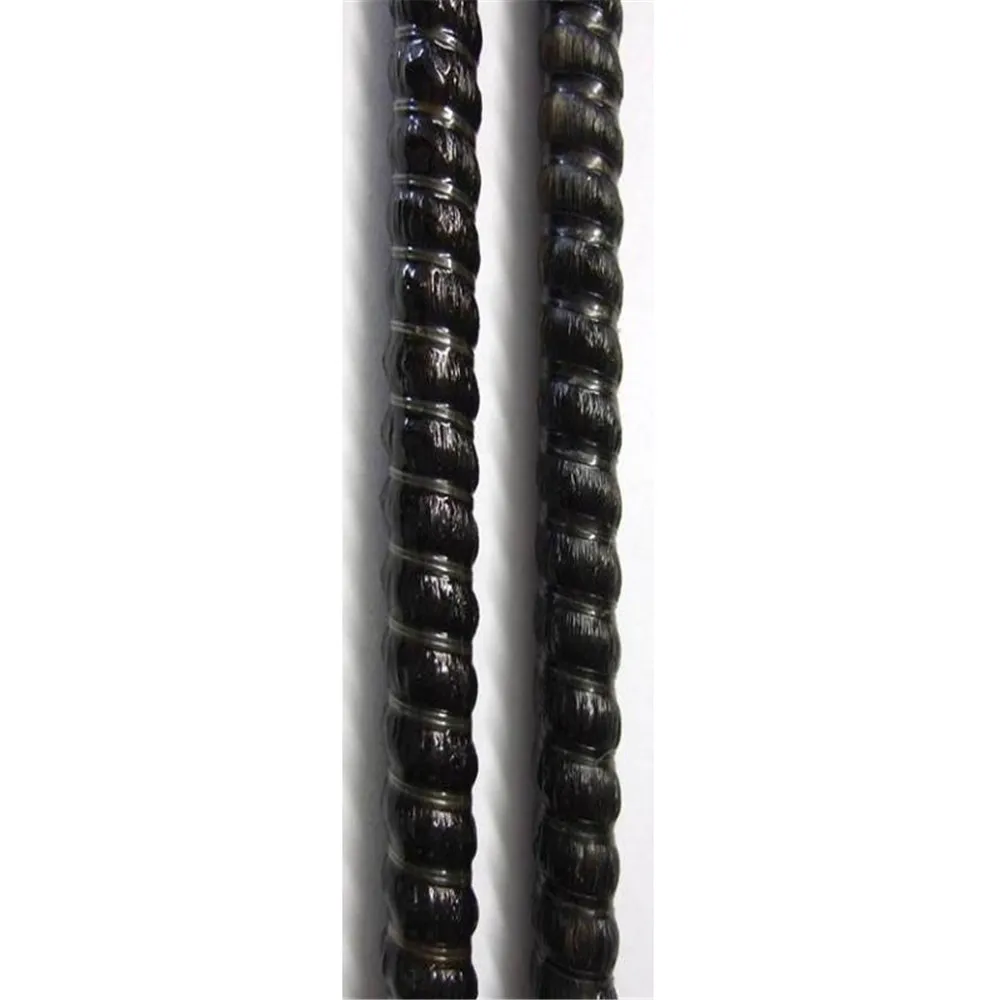

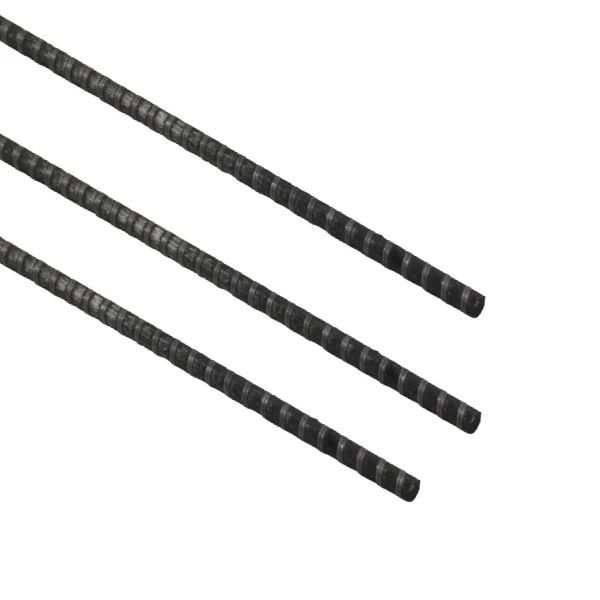

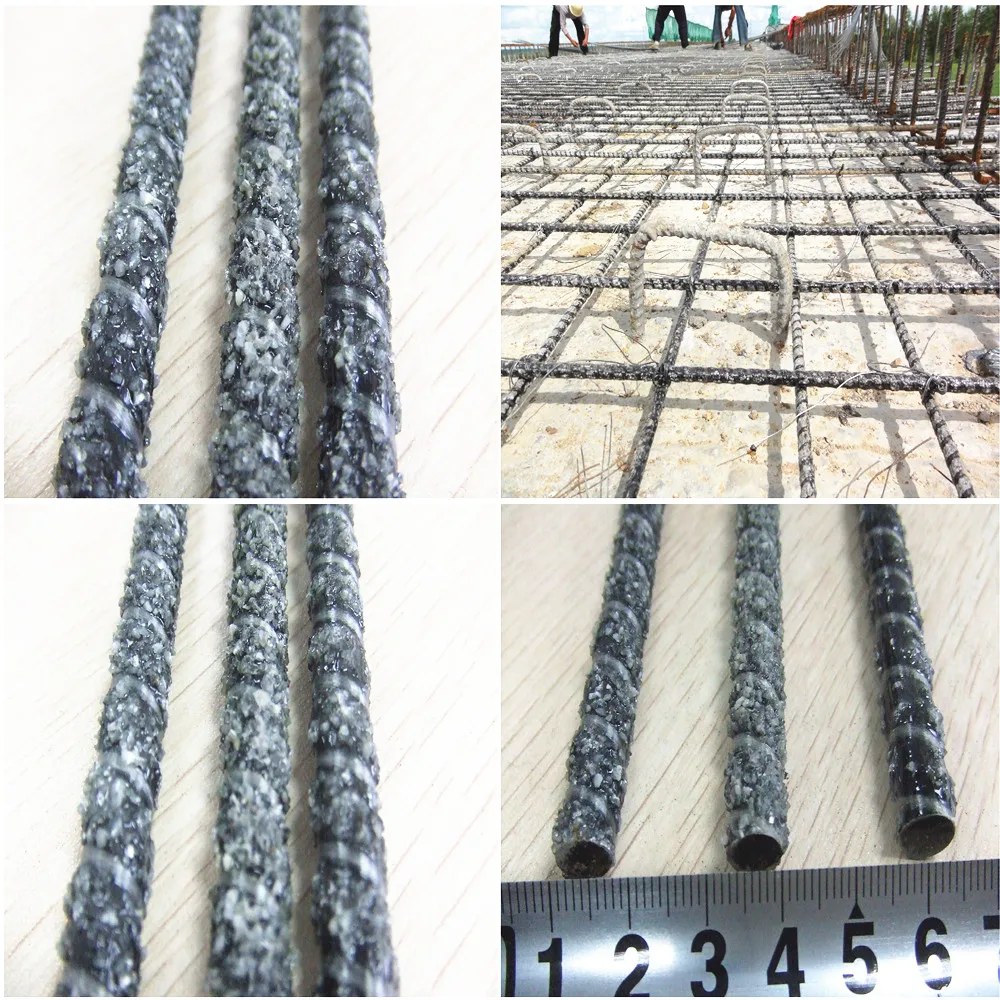

Details Images
Product feature
1. High tensile strength. The tensile strength of BFRP is 2 times more than ordinary steel of the same size.
2. Excellent corrosion resistance which can’t be surpassed by any other fiber fabric.
3. Low density. The density of BFRP is just about 1/4 of the ordinary steel.
4. Thermal expansion coefficient of BFRP is similar to concrete and they won’t produce high temperature stress.
5. Excellent wave transparence, no shielding.
6. No conductivity, no thermal conductivity.
7. Can be prefabricated to standard curve and other shapes.
8. Environmental friendly. When using one ton basalt rebar will reduce 5.24tce carbon emission compared with using steel.
2. Excellent corrosion resistance which can’t be surpassed by any other fiber fabric.
3. Low density. The density of BFRP is just about 1/4 of the ordinary steel.
4. Thermal expansion coefficient of BFRP is similar to concrete and they won’t produce high temperature stress.
5. Excellent wave transparence, no shielding.
6. No conductivity, no thermal conductivity.
7. Can be prefabricated to standard curve and other shapes.
8. Environmental friendly. When using one ton basalt rebar will reduce 5.24tce carbon emission compared with using steel.
Specifications
Item: Basalt Fiber Rebar
Density(g/cm3): 1.9-2.1
Tensile strength(Mpa): ≥1000
Elongation modulus at break(Gpa): ≥40
Tensile strength at break (%): ≥1.8
Coefficient of thermal expansion: 1*10-6/℃ vertical 9--12
lateral: 21-22
Alkali resistance (%): ≥85
susceptibility(1*10-5(CGSM)): ≤5*10-7
Packing: in coil
Density(g/cm3): 1.9-2.1
Tensile strength(Mpa): ≥1000
Elongation modulus at break(Gpa): ≥40
Tensile strength at break (%): ≥1.8
Coefficient of thermal expansion: 1*10-6/℃ vertical 9--12
lateral: 21-22
Alkali resistance (%): ≥85
susceptibility(1*10-5(CGSM)): ≤5*10-7
Packing: in coil
Diameter(mm) | 3 | 4 | 6 | 8 | 10 | 12 |
Cross section(mm2) | 7 | 13 | 28 | 50 | 79 | 113 |
Density(g/cm3) | 1.9-2.1 | 1.9-2.1 | 1.9-2.1 | 1.9-2.1 | 1.9-2.1 | 1.9-2.1 |
Weight(g/m) | 18 | 32 | 51 | 98 | 210 | 250 |
Applications
It was widely used in the construction of pavement, sidewalk and bridge surface, in view of its high electro-insulating
properties, it also be used as insulators for high –voltage power lines, hydraulic engineering, such as seismic station and
seawall, etc,.
properties, it also be used as insulators for high –voltage power lines, hydraulic engineering, such as seismic station and
seawall, etc,.
Foundations and walls
Strengthening the coastline
Bridges and overpasses
Parking lots, overpasses, driveways, open warehouses
Cement-sand screeds
Industrial floors
Precast concrete products
Asphalt-concrete roads
Cement-concrete roads
1. who are we?
We are a specialized supplier of heat insulation and filtration materials ,based in Chongqing, China, start from 2010. We have our own plants to serve our customers both in China and overseas' market. We have established the strategic cooperation with some of customers and quickly grows in these years. Besides it, we work closely with our partner manufacturers of glass fiber, basalt fiber and carbon fiber products etc to serve well on our customers.
2. how can we guarantee quality?
We always adhere to the principle of "to provide the best quality as we can". We have the strict quality control policy on our
products and on our partner's companies before the goods delivery. If there is some quality issue, we will closely check with our customers and always take our responsibilities if it happen even though the possibility is very low.
3.what can you buy from us?
The heat insulation materials include vacuum insulation panel(or board), Vacuum glass, Aerogel mat and others for construction and industrial applications. The filtration material and product include various kinds of glass fiber filtrate paper (F and Hepa grade, laminated ones), wood pulp filter paper (tea and coffee filter paper), various kinds of non-woven tissue (used for face mask and others) and PP, PET filter paper. The new material of fiber products include glass fiber, basalt fiber and carbon fiber materials such as roving, chop strand,fabric and mat.etc.
4. why should you buy from us not from other suppliers?
We are specialized in the heat insulation and filtration fields morn than 10 years and can provide the best solutions to our
customers. We always respect our reputation and treat our customers sincerely.
5. what services can we provide?
Accepted Delivery Terms:EXW, FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C, D/P,Western union,Paypal;
