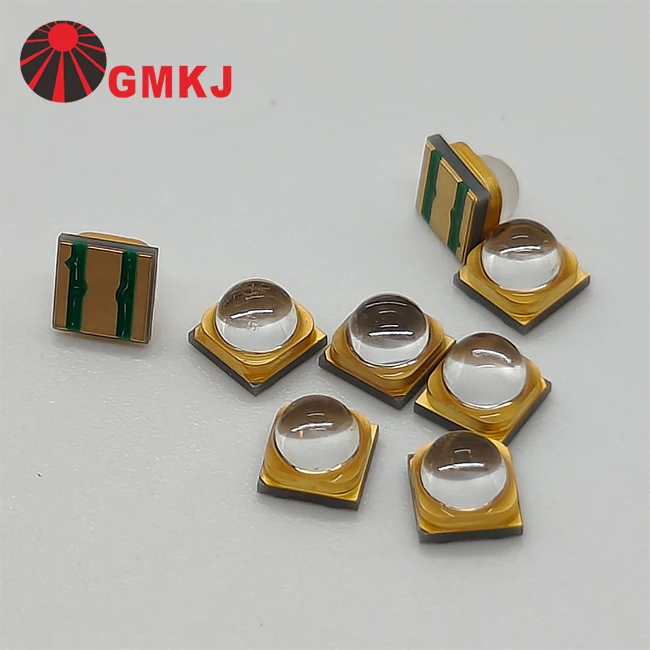

GMKJ 380nm УФ светодиод Заводская 3535 упаковка стеклянная линза 60 ° 120 пользовательский uv cob модуль
- Категория: >>>
- Поставщик: Shenzhen Guangmai Electronics Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601258469558:
Описание и отзывы
Характеристики

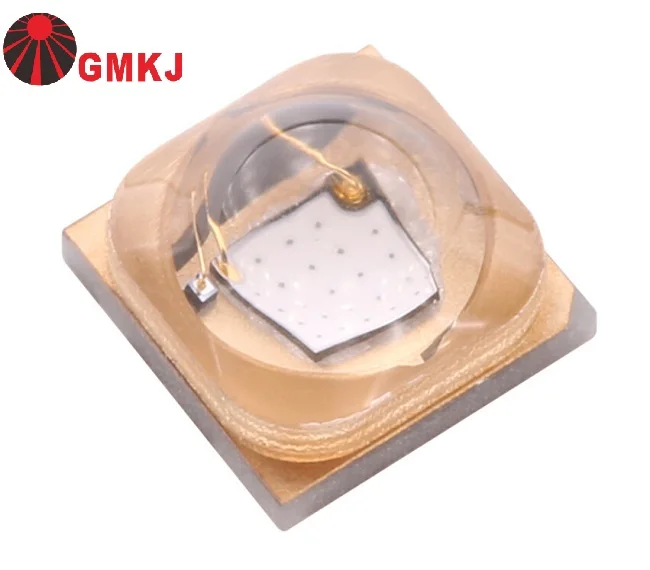

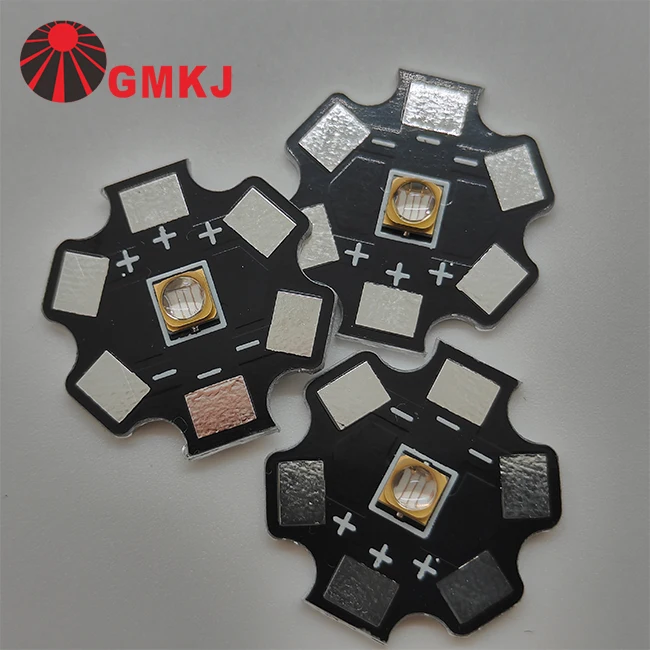

GMKJ 380nm uv led factory 3535 package glass lens 60° 120° custom uv cob module
Products Description
High Brightness
1. Only Use Best High Bin LED chip
2. High Radiance performance. up to 1400mw each led
3. Max Forward Voltage up to 1400mA each LED..
2. High Radiance performance. up to 1400mw each led
3. Max Forward Voltage up to 1400mA each LED..
Superior Raw Material .
1.Oxide Aluminum or Nitride Aluminum Ceramic base
2. Only Use Heraeus 99.99% high purity Gold wire
3. Various type of view angle 30° 60° 90° 120°
2. Only Use Heraeus 99.99% high purity Gold wire
3. Various type of view angle 30° 60° 90° 120°
Part No. | GD-3535/3838P400-1CC0-SA55M |
Wavelength(nm) TYP | 365nm / 385nm / 395nm /405nm |
①500-600mW@350mA ②1000-1200mW@700mA ③1100-1400mW@1000mA | |
Viewing Angle | 120 / 90 / 60 /30 degree |
①Aluminum oxide substrate silicone lens (120/90/60/30 degree) ②Aluminum nitride substrate quartz glass lens (60degree) | |
Web Site | www.szgmled.com www.gmleds.com |
Product Name | GMKJ 380nm uv led factory 3535 package glass lens 60° 120° custom uv cob module |
Power Dissipation | 3.5W @1000mA |
Forward Current | Max 1000mA |
Forward Voltage | 3.2-3.8v |
Wavelength | 380nm |
Chip Brand | 3535 SMD LED UV |
Keywords | GMKJ 380nm uv led factory 3535 package glass lens 60° 120° custom uv cob module |
Life Span | 80.000Hrs |
Radiant Flux | 1300-1500mW @1000mA |
Thermal Resistance Junction To Board | 6.5 |
Viewing Angle | 30/60/90/120 degree |
Base Material | Nitride Aluminium quartz glass lens ceramic package |
Related Product
Part No. | GD-3535U290-1CD0-PW20B |
Wavelength(nm) TYP | 290nm / 293nm /295nm /308nm /311nm /320nm |
Power(w) | 0.5w /1w /2w /3w /5w |
①10-15mW@150mA,1w uvb led ②50-60mW@500mA,3W 293nm ③60-90mW@700mA,5w UVB led | |
Chip Brand | Korea PW chip /Epileds chip |
Material | Aluminum Nitride substrate quartz glass lens led |
Part No. | GD-5050P385-1CC0-SA55M |
Wavelength(nm) TYP | 365nm /385nm /395nm /405nm |
VF(V) | 3.2-3.6V / 6.-7V |
①1200-1600mW@1000mA,3v ②3000-4000mW@1400mA,6-7v | |
Viewing Angle | 120 /90 /60 /30 degree |
Material | Aluminum Nitride substrate silicone lens |
Part No. | GD-6868P365-2C2C6-SA45B |
Wavelenth(nm) TYP | 365nm /385nm /395nm /405nm |
Vf(v) | 6-8v/13-15v |
①6-8V (1)2000-3000mW@1400mA(cost-effective) (2)3000-3500mW@1400mA ②13-15v 1600-2000mW@700mA | |
Viewing Angle | 60degree（Regular) /120degree |
Aluminum Nitride Substrate Quartz glass lens Main for uv curing |
Part No. | GD-3535U260-1CD0-PW40B |
Wavelength(nm) TYP | 255nm /265nm /275nm /280nm |
Power(w) | 0.5w /1w /2w /3w /5w |
Radiant Flux(mW) | ①2-4mW@40mA,0.5W ②10-15mW@150mA,1w ③40-60mW@500mA,5-7v uv-c ④60-90mW@700mA,5w uvc led |
Material | Aluminum Nitride substrate quartz glass lens |
LED TYP | 3535 uvc led /6565 /6868 uvc led 3838/4040 UVC LEDs |
Part No. | GZ-1408P400-1CC1-GH45M |
Power(w） | 3W /5W |
Wavelength(nm) TYP | 365nm /385nm /395nm /405nm |
①400-600mW@350mA ②1000-1300mW@700mA ③1500-2000mW@1400mA | |
Chip Brand | Epileds chip 45mil |
Materail | Pure Copper Substrate |
Viewing angle | 120degree |
Part No. | GJZ-J020P395-10C2Z-GH45 |
Power(W) | 10-200W |
Wavelength(nm) TYP | 365nm /385nm /395nm /405nm |
VF(V) | 30-36V |
Pure Copper substrate ,99.99% pure gold wire bonding | |
Chip Brand | Epileds chip 45mil / 30mil /28mil |

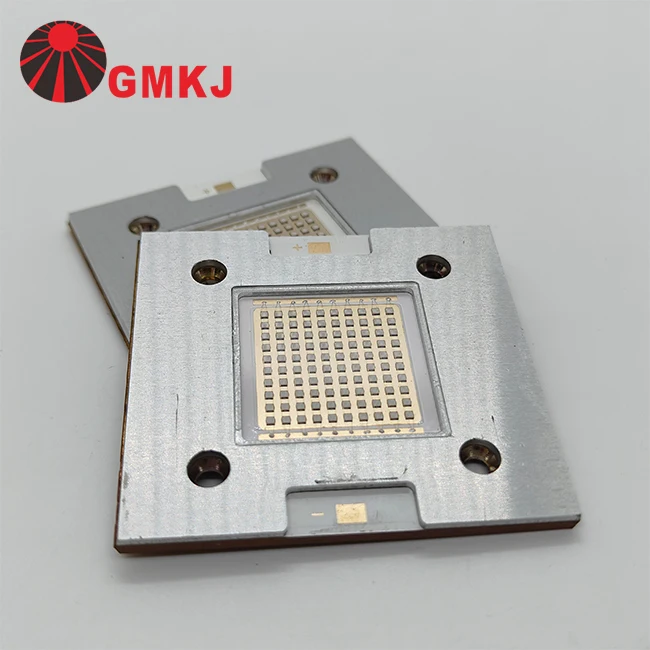

Part No | UV COB LED Module |
PCB Dimension(mm) | 56mm*75mm |
Power(w) | 12w*30 |
Radiant Flux(mW) | (2.5W-3W)*30 |
Wavelength(nm) | 395-400nm |
Vf(v) | 60-70V |
Material | Pure copper PCB Board /Chip on Board) |
Other wavelength | Offer customize |
Customized made 400W UVA Module
Customized made 100w UVA 395nm Module

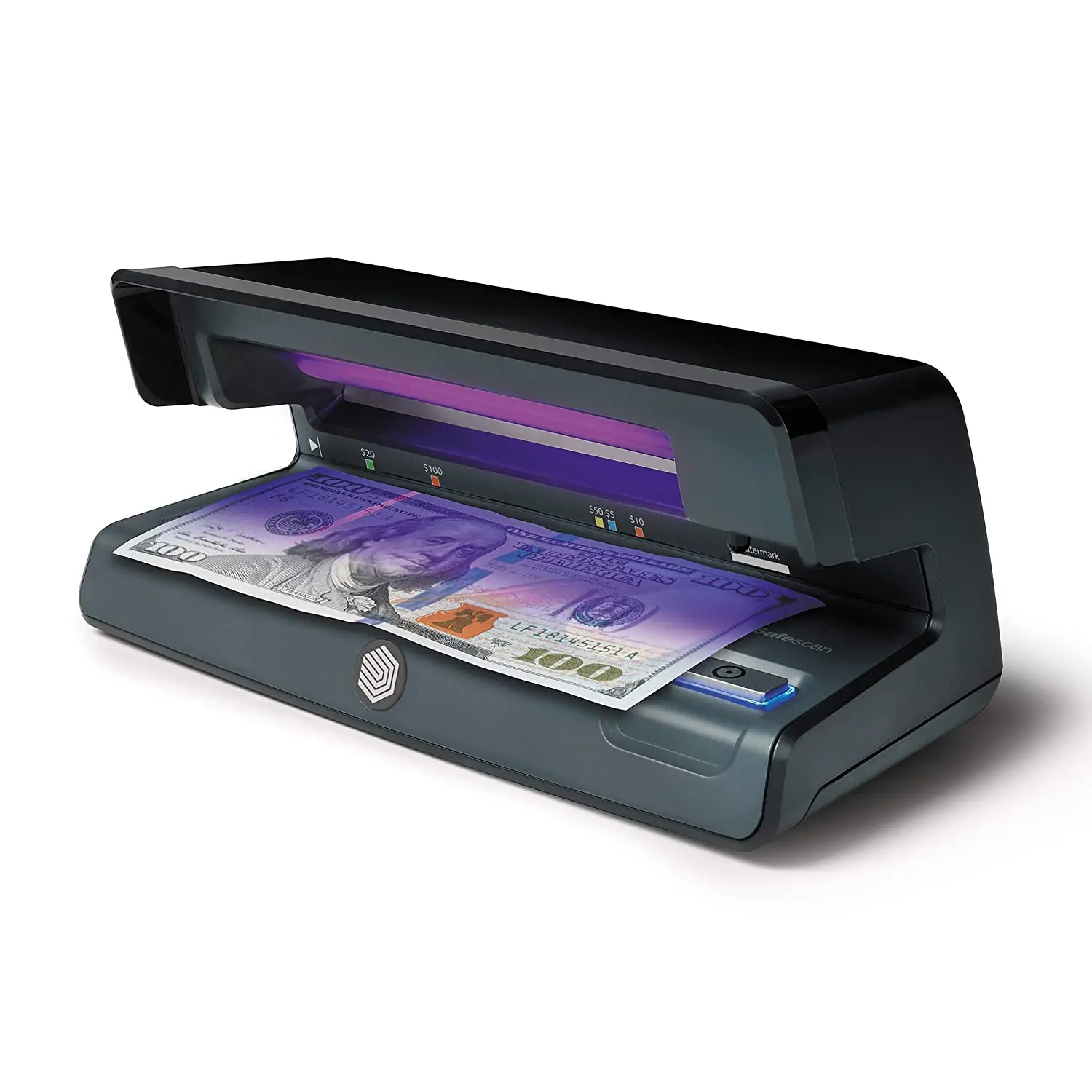

Application
Manufacturing Technique
Company Profile
Shenzhen Guangmai Electronics Co.,Ltd is a High-Tech firm founded in 2009 with registered capital: 30 million. We specialize in the development of LED products, owning a experienced and skilled engineer team team to meet customers' demand.We are the first choice for lighting project in LED.
With many years of led technology and rigorous management,we received the praise and trust from clients.Our philosophy is " focus on technology,provide the best LED" ,making good quality products and bringing more value to our clients.We are your honesty partner in the world and make a contribution to the green light industry.GMKJ is fighting to achieve the goal of "To be the best LED lighting supplier" .
With many years of led technology and rigorous management,we received the praise and trust from clients.Our philosophy is " focus on technology,provide the best LED" ,making good quality products and bringing more value to our clients.We are your honesty partner in the world and make a contribution to the green light industry.GMKJ is fighting to achieve the goal of "To be the best LED lighting supplier" .
Certifications
FAQ
Q1. Can I have a sample order of this UVA 365nm LED?
A: Sample order is welcomed to test and check quality. Mixed samples are welcomed as well.
Q2. What about the lead time?
A: 3-7 working days for sample, 10-15 working days for bulky order based on the quantity.
Q3. How about MOQ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A. Please tell us your requirements or application.
B. Quotation or solution will be sent to you accordingly.
C. Sample will be shipped to you after everything is confirmed
D. Modify or confirm the order according to your opinion.
E. Start the production after your confirmation of order.
Q6: Do you provide OEM service?
A: Yes. OEM is welcomed .
Q7: Do you offer guarantee for the products?
A: Yes, 3-4 years warranty.
A: Sample order is welcomed to test and check quality. Mixed samples are welcomed as well.
Q2. What about the lead time?
A: 3-7 working days for sample, 10-15 working days for bulky order based on the quantity.
Q3. How about MOQ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A. Please tell us your requirements or application.
B. Quotation or solution will be sent to you accordingly.
C. Sample will be shipped to you after everything is confirmed
D. Modify or confirm the order according to your opinion.
E. Start the production after your confirmation of order.
Q6: Do you provide OEM service?
A: Yes. OEM is welcomed .
Q7: Do you offer guarantee for the products?
A: Yes, 3-4 years warranty.
