Specification

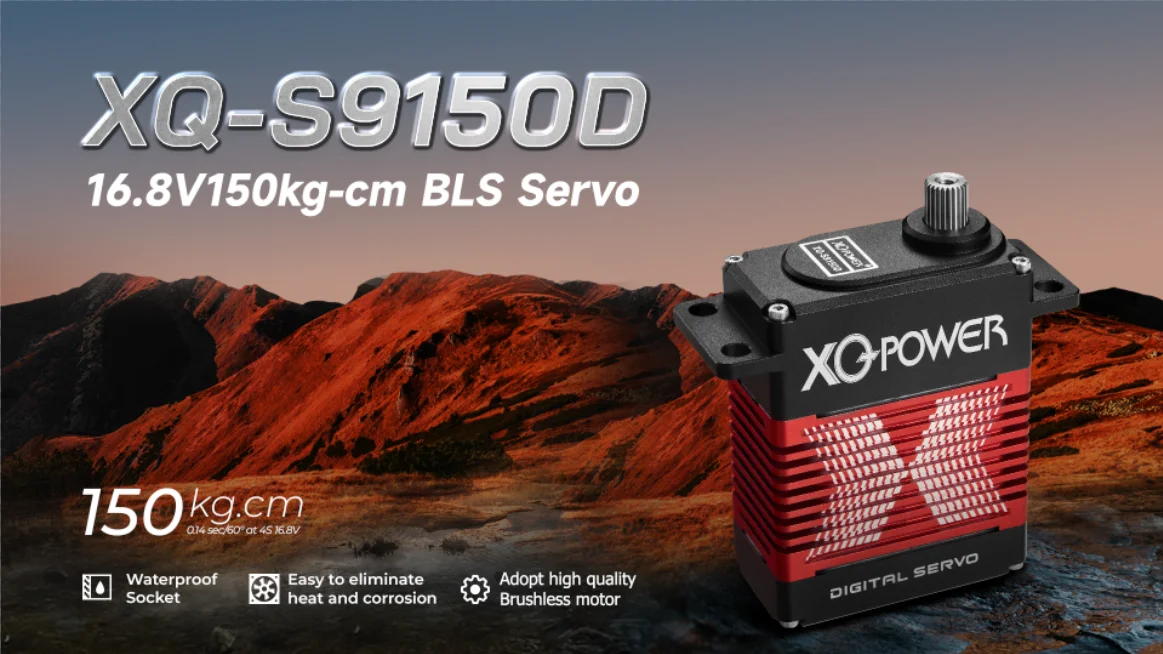

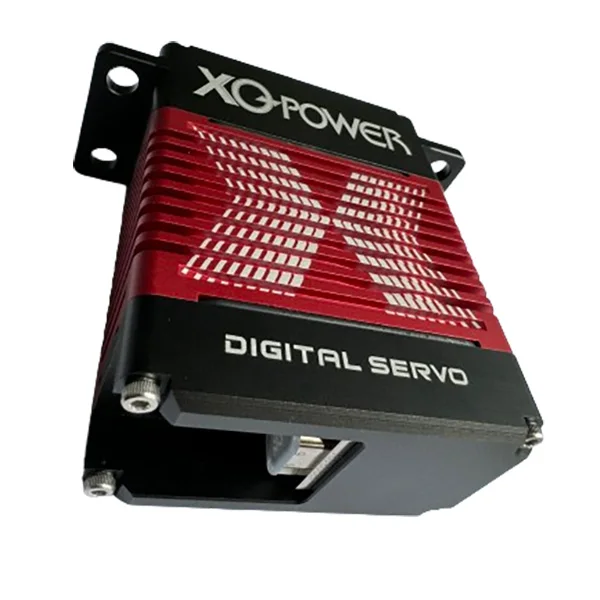

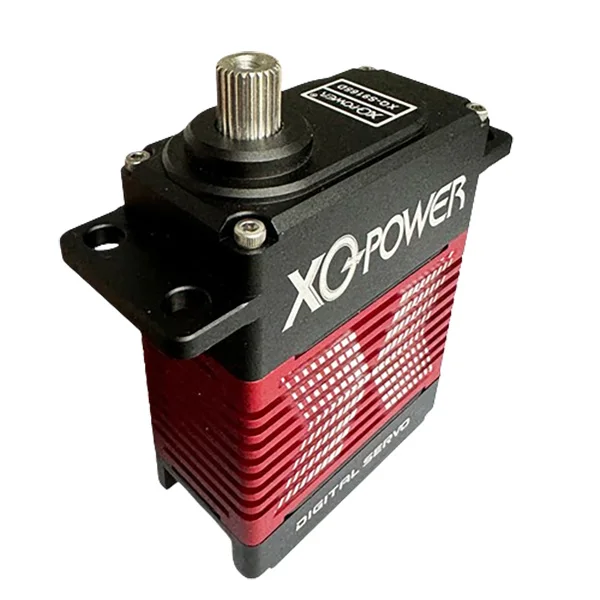

Item No. | Brushless Digital Servo XQ-S9150D | |
Apply Environmental Condition | ||

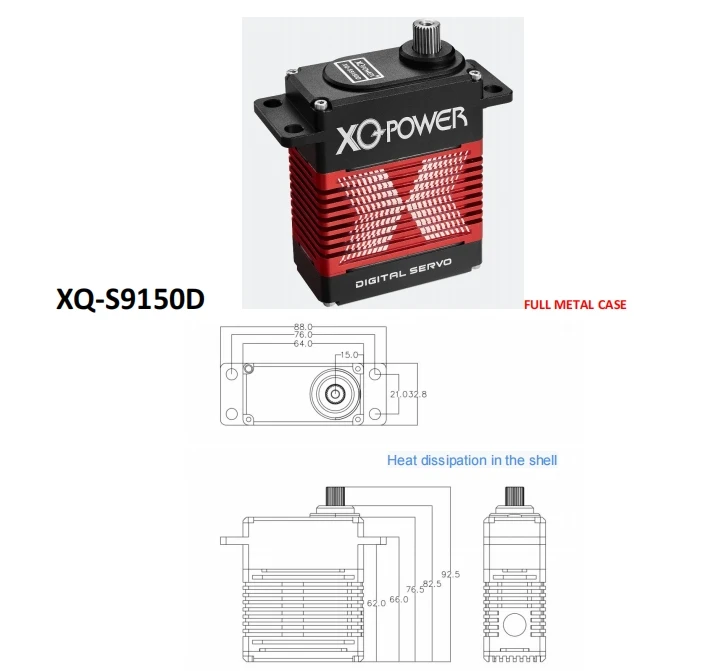

Size | 64.0*32.8*76.5mm | |
Weight | 452g no including accessory | |
Gear type | Stainless Steel | |
Limit angle | 210° | |
Speed | 0.29 sec/60° at 2S（8.4 V） 0.18 sec/60° at 3S（12.6 V） 0.14 sec/60° at 4S（16.8V） | |
Torque | (1611 oz-in)116 kg.cm.at(8.4V) (2222 oz-in)160 kg.cm.at(12.6V) (2499.8 oz-in)180 kg.cm.at(16.8V) | |
Feature | Waterproof,tamper-proof servo wire, All Aluminium case, easy to eliminate heat and corrosion;Adopt high quality Brushless motor. | |
Horn gear spline | 25T-φ5.94mm | |
Case | Aluminium CNC | |
Connector wire | 300mm | |
Motor | Brushless motor | |
Operating Voltage Range | 8.4-16.8 V | |
Rotating direction | CCW (when 1000～2000 µsec) | |
Idle current | 150 mA -400 mA | |
Stall current | 6.5A-10 A | |
Signal | PWM 50-333Hz | |
Frquency | 50-330HZ | |
Dead band width | 2 µsec | |
Product packaging
Company Profile
Shenzhen XQ-POWER Technology Co.,Ltd founded in 2010, Our company that quality is assigned the highest priority at all stages,from product development,manufacture and service. It devotes to making the user has the perfect flight experience by developing leading-edge production. We specialized in researching, producing and selling the best RC products and offering related technology solution to our clients.
XQ-POWER Tech is a vibrant company who makes long term commitment to development,manufacturing and sales
of industrial intelligent UAV, intelligent mechanical and electrical and electrical equipment,intelligent electronic control
product, precision sensors and servos. With full passion and innovation, the enterprise is striving to developing itself
continuously. We have been focus on all series of RC servos, speed controllers(ESC), receiver modules and car gyros,supplying high quality RC products and RC solutions for many domestic and abroad famous brands
of industrial intelligent UAV, intelligent mechanical and electrical and electrical equipment,intelligent electronic control
product, precision sensors and servos. With full passion and innovation, the enterprise is striving to developing itself
continuously. We have been focus on all series of RC servos, speed controllers(ESC), receiver modules and car gyros,supplying high quality RC products and RC solutions for many domestic and abroad famous brands

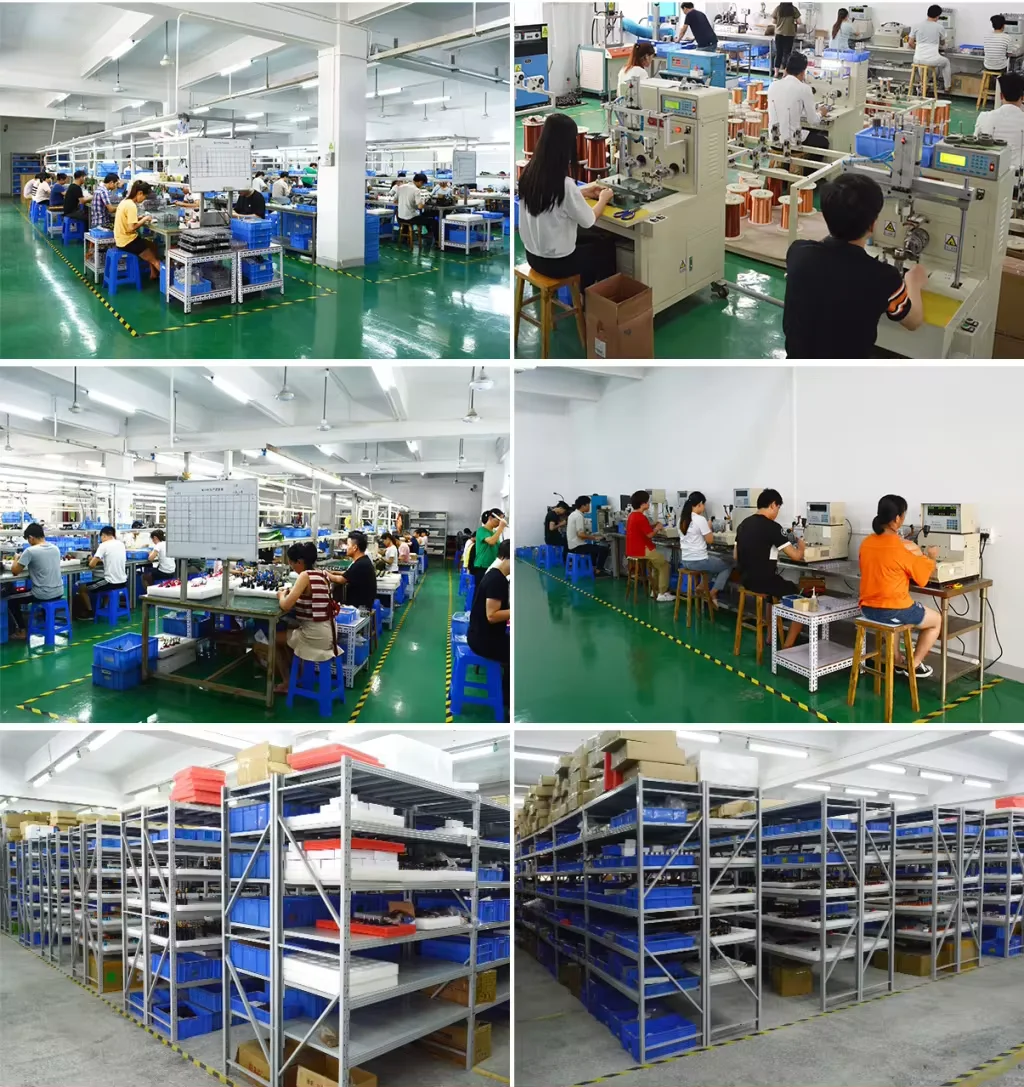

Our industrial zone covers 20 acres and has 10000㎡ modernized industrial buildings, which consists of precisely manufacture model workshop, CNC machining center and injection molding workshop. All of these reflect that the enterprise always gives priority to quality of production. Our company in line with the quality first, customer-oriented excellence" business philosophy, integrity as the principle, market-oriented, adhere to the strategy of continuous innovation, and strive to provide the market with novel style, serving the whole world's Chinese brand, Chinese products. In the future, XQ-POWER Tech will continue to create high-quality products that integrate technology and artistic innovation and share them with all walks of life.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to South America(20.00%),North America(20.00%),Southern
Europe(10.00%),Domestic Market(10.00%),Central America(10.00%),Western Europe(10.00%),South Asia(10.00%),Northern
Europe(5.00%),Eastern Europe(5.00%). There are total about 101-150 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Servo,ESC,Receiver,Gyroscope,Controller board
4. why should you buy from us not from other suppliers?
1. We have more than 10 years experience in product customization service (OEM and ODM);
We are based in Guangdong, China, start from 2010,sell to South America(20.00%),North America(20.00%),Southern
Europe(10.00%),Domestic Market(10.00%),Central America(10.00%),Western Europe(10.00%),South Asia(10.00%),Northern
Europe(5.00%),Eastern Europe(5.00%). There are total about 101-150 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Servo,ESC,Receiver,Gyroscope,Controller board
4. why should you buy from us not from other suppliers?
1. We have more than 10 years experience in product customization service (OEM and ODM);
2. We have 12 senior engineers and 81 prefessional employees;
3. We have our own SMT line, CNC & Mould workshop, high frenquency lab and dust-free workshop.
5. what services can we provide?
Accepted Delivery Terms: ,EXW,CFR；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
5. what services can we provide?
Accepted Delivery Terms: ,EXW,CFR；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Potential Applications.
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo
19. Robot arm servo
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo
19. Robot arm servo
20. Drones servo
Recommend Products
Похожие товары
450 г бесщеточный цифровой сервопривод обратной связи 100 кг 150 200 Крутящий момент 12 В 24 28 нержавеющая сталь Водонепроницаемый
28 543,98 ₽ - 35 156,48 ₽
Водонепроницаемый металлический редуктор большой крутящий момент цифровой бесщеточный сервопривод 100 кг 150 200 программируемый 4S 0 14/сек
27 552,10 ₽ - 32 952,32 ₽
R601X супер-микроприемник DSM2 приемник для модели самолета FPV гоночный спутниковый с кнопкой крепления
1 072,33 ₽ - 1 107,60 ₽
CZ вихревой дымовой насос система выхлопных труб топливный бак дымовая Форсунка для модели самолета

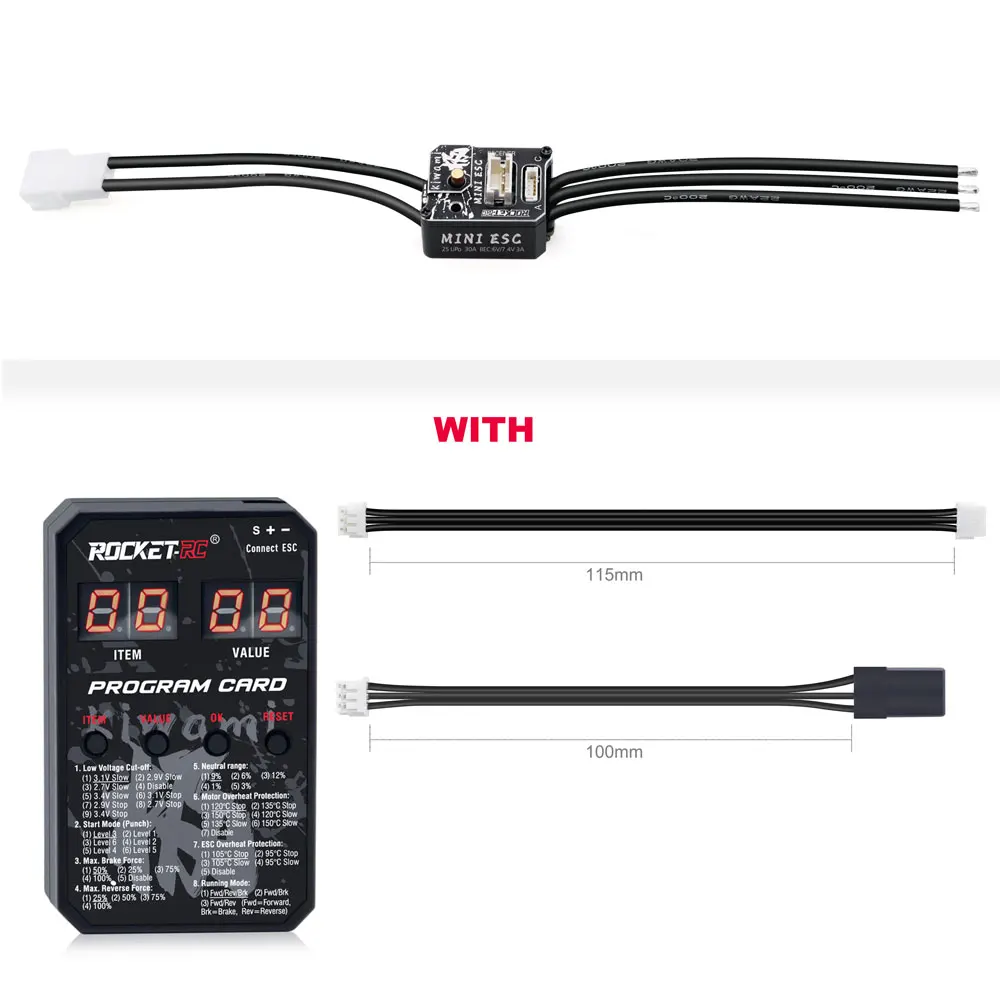

Ракета-радиоуправляемая новейшая KIWAMI MINI 28 PRO 30A бесщеточная ESC с программной картой для 1/28 1/27 радиоуправляемых мини-автомобилей дистанционным управлением
3 691,99 ₽ - 5 290,01 ₽

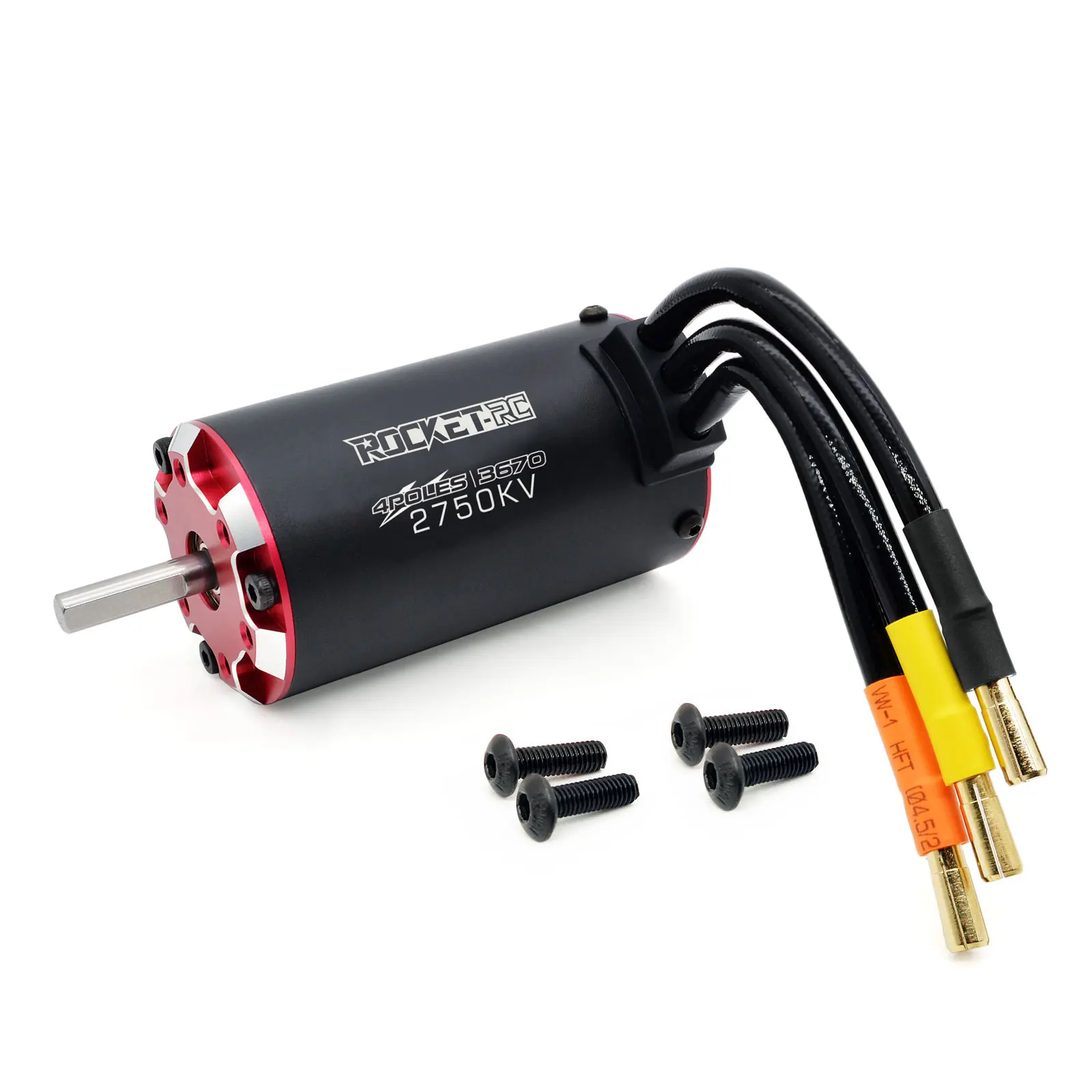

Сверхзвуковая 3670 безщеточный двигатель постоянного тока с дистанционным управлением для высокоскоростного 1/10 радиоуправляемого автомобиля
2 492,92 ₽ - 2 572,27 ₽

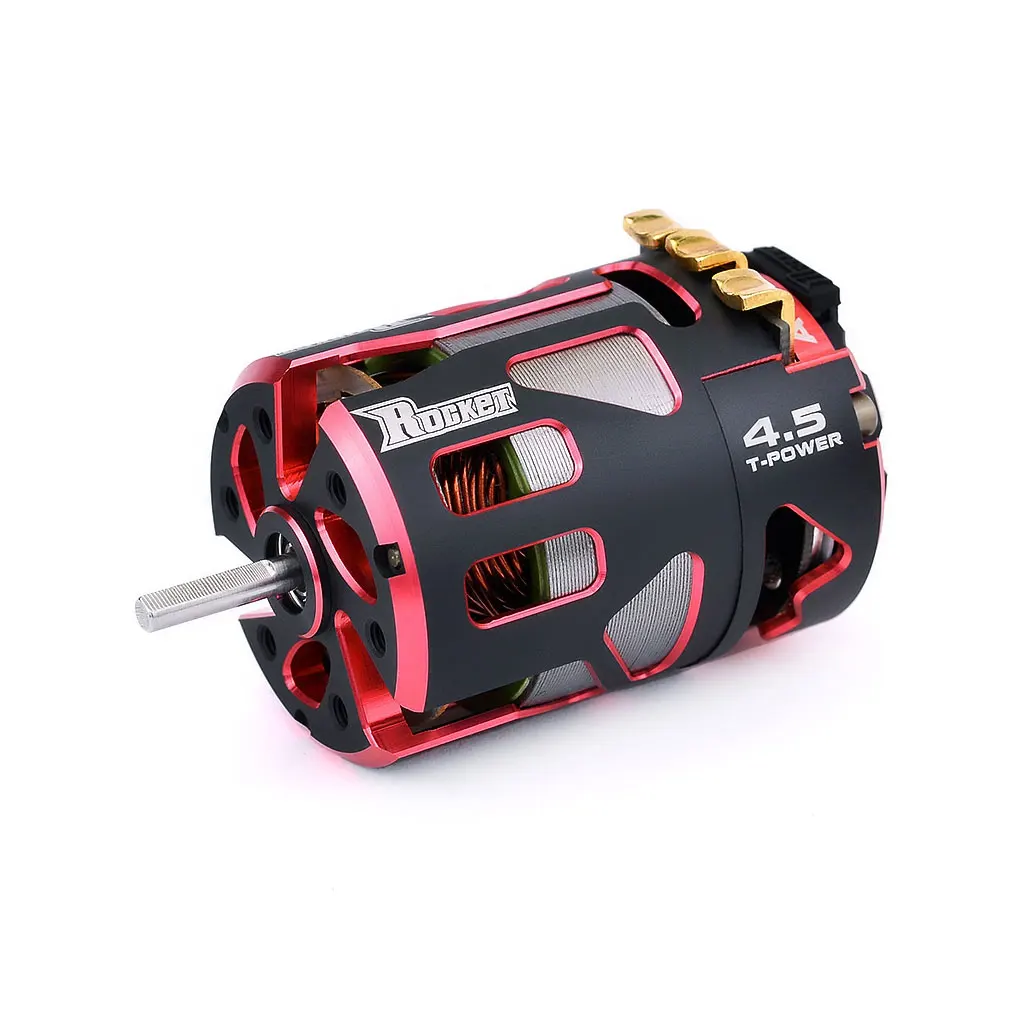

Безщеточный двигатель для автомобиля
