Atess высокочастотный Гибридный инвертор Mppt 150 кВт солнечный с зарядным устройством
- Категория: >>>
- Поставщик: Sunpal Energy Co. Ltd.
Сохранить в закладки 1601259617426:
Описание и отзывы
Характеристики
Products Description
Atess HPS series inverter, large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity.
HPS series inverter is designed for energy storage system, it converts DC current generated by battery bank into AC current and feed it into the load/grid, also it can take power from solar inverter or grid to charge battery to ensure uninterrupted power supply to the load.
ATESS is a global supplier of solar energy storage inverters dedicated to developing and delivering affordable clean energy to all corners of the world, providing customers around the world with the possibility of energy independence.
ATESS has a R&D team of more than 100 experienced engineers. The laboratory is equipped with advanced testing instruments to ensure first-class product performance and quality, as well as customer needs. Atess spends about 15% of its annual revenue on research and development each year to keep our products competitive.
ATESS has a R&D team of more than 100 experienced engineers. The laboratory is equipped with advanced testing instruments to ensure first-class product performance and quality, as well as customer needs. Atess spends about 15% of its annual revenue on research and development each year to keep our products competitive.
Hybrid Inverter Advantage:
All-in-one hybrid inverter:
Battery, load, grid, solar connection all supported
Battery, load, grid, solar connection all supported
Programmable working mode:
Peak-shaving, back-up, use the system however you want it
Scalable design:
Quadruple capacity by paralleling 4 units
Hot back-up:
One inverter fails in parallel system, the other(s) takes over seamlessly
Touchscreen LCD:
More convenient for parameter setting and maintenance
Seamless transfer
Uninterruptable power supply guaranteed
Dry contact output
Supports remote control of DG
Uninterruptable power supply guaranteed
Dry contact output
Supports remote control of DG
How To Installation
To ensure normal operation of the machine, the installation environment is required as follows:
> The ingress protection of inverter is IP20. Moreover, as this product is an electronic equipment, it shall not be placed in humid environment;
> Install indoors and avoid sunlight and rain;
> Ventilation of the room shall be good;
> The installation ground shall be even enough, and firm enough to support the weight of inverter;
>In front of the installation place of inverter, a space of 0.8m or more shall be ensured, the back 0.8m or more, the top 0.8m or more to ensure easy installation, cooling and maintenance.
> The ingress protection of inverter is IP20. Moreover, as this product is an electronic equipment, it shall not be placed in humid environment;
> Install indoors and avoid sunlight and rain;
> Ventilation of the room shall be good;
> The installation ground shall be even enough, and firm enough to support the weight of inverter;
>In front of the installation place of inverter, a space of 0.8m or more shall be ensured, the back 0.8m or more, the top 0.8m or more to ensure easy installation, cooling and maintenance.
Atess Working Principle
Off Grid mode or power failure working principle:
1. When PV power is higher than load power, PV supply priority to load power, the remaining to the battery charge.
2. Battery discharge automatically when PV power is lower than load power, When the battery is discharged to the undervoltage alarm point or minimum SOC(depending on battery type).
1. When PV power is higher than load power, PV supply priority to load power, the remaining to the battery charge.
2. Battery discharge automatically when PV power is lower than load power, When the battery is discharged to the undervoltage alarm point or minimum SOC(depending on battery type).
There are two situations:
a) By default, continue to discharge to the battery undervoltage alarm point, then turn into PV chargingmode, in the meantime there is no AC output.
b) If the DG access function is enabled, the inverter sends a relay signal to start the DG, which supplies theload or charges the battery.
a) By default, continue to discharge to the battery undervoltage alarm point, then turn into PV chargingmode, in the meantime there is no AC output.
b) If the DG access function is enabled, the inverter sends a relay signal to start the DG, which supplies theload or charges the battery.
LCD Display
When powered or clicking "Home" button in any interface will enter into the Home page.The operating status of the inverter output power, safety standard, model, input and output voltage, current information can be viewed in the page. Pressing the following key can switch to other pages.
Atess inverter specification
Operation status | Description |
Error | Not started or failed to start |
Wait | Start initialization |
Check | System self checking |
Permanent fault | Serious failure occurred |
Off grid mode | Off grid mode with load |
On grid mode | Successfully connected to grid |
PV mode | PV only charging mode |
Parallel to off-grid | Parallel system waiting to enter off-grid mode |
Parallel to on-grid | Parallel system waiting to enter on-grid mode |
Parallel Function
Expand power rating, more flexible configuration
ATESS HPS models can be parallel up to 4units, and they work together through CAN communication. In terms of capacity expansion, it means you also have 60/100/200/240/300/450/600 models for option, providing customers with more possibility in the range of 30-600kw.
ATESS HPS models can be parallel up to 4units, and they work together through CAN communication. In terms of capacity expansion, it means you also have 60/100/200/240/300/450/600 models for option, providing customers with more possibility in the range of 30-600kw.
Features:
1.Quick yield overview of all your pv plants.
2.All important data at a glance including energy output, yield gains, environment status.
3.Display of all important data about data logger, inverter, environment monitor, smart meter and other key devices.
4.Display of all the warning events of the plant
5.User could manage all PV plants with one same account.
6.All inverter running status are recorded automatically, the warning of fault is highlighted and immediate.
7.Timely e-mail reports on system fault and plant error.
8.Add new plant, edit and delete existed.
9.Intuitive operation to manage all devices.
10.Simple parameters setting for inverters including power management.
2.All important data at a glance including energy output, yield gains, environment status.
3.Display of all important data about data logger, inverter, environment monitor, smart meter and other key devices.
4.Display of all the warning events of the plant
5.User could manage all PV plants with one same account.
6.All inverter running status are recorded automatically, the warning of fault is highlighted and immediate.
7.Timely e-mail reports on system fault and plant error.
8.Add new plant, edit and delete existed.
9.Intuitive operation to manage all devices.
10.Simple parameters setting for inverters including power management.
Cooperation Inverter Brands
Sunpal Specialized in one-stop solar system solution for more than 16 years, cooperating with Afore, Atess, Growatt, Deye, Solis, Solax, Huawei, Megarevo, Sunpal can meet all kinds of solar requirements. Quick response, faster delivery, choose Sunpal is a kind of cost saving.
Project Case
Why Choose Us
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000
square meters, with 600 experienced employees.Customer Photos
Contact Us
Похожие товары

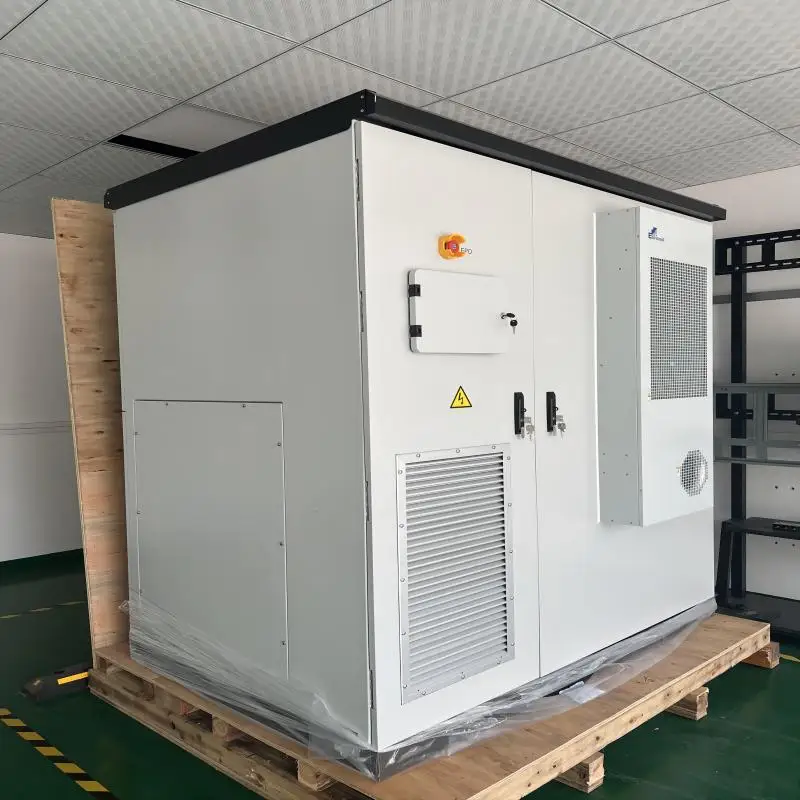

Промышленный и коммерческий 215kwh шкаф для хранения энергии высокого напряжения 100kwh солнечная батарея 500kwh литий-ионный аккумулятор

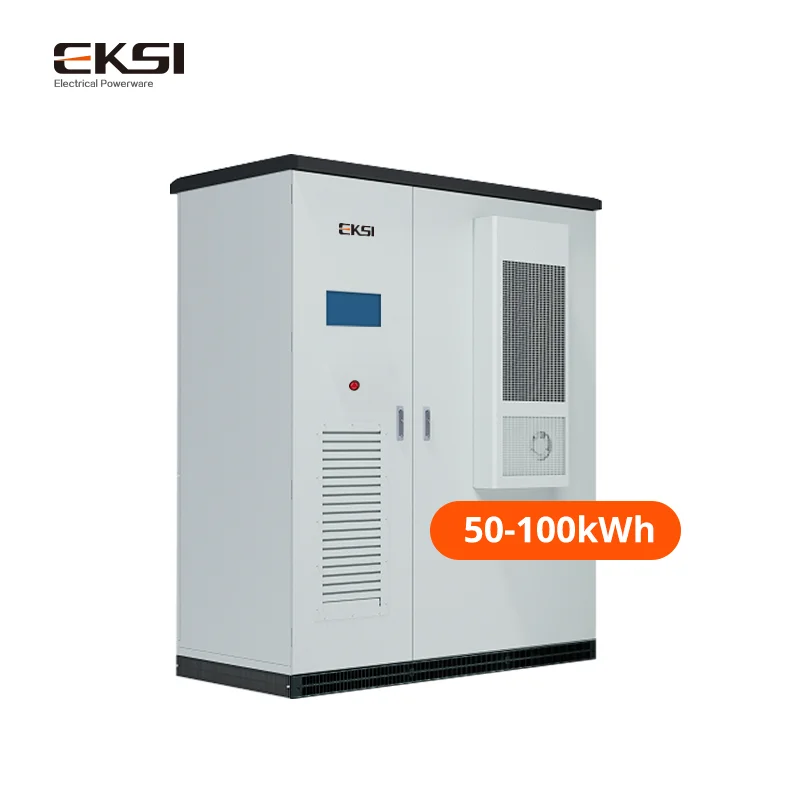

100 кВтч Коммерческие промышленные литиевые батареи 200 кВтч аккумуляторные батареи системы хранения энергии шкафы
1 367 417,50 ₽ - 1 476 810,90 ₽

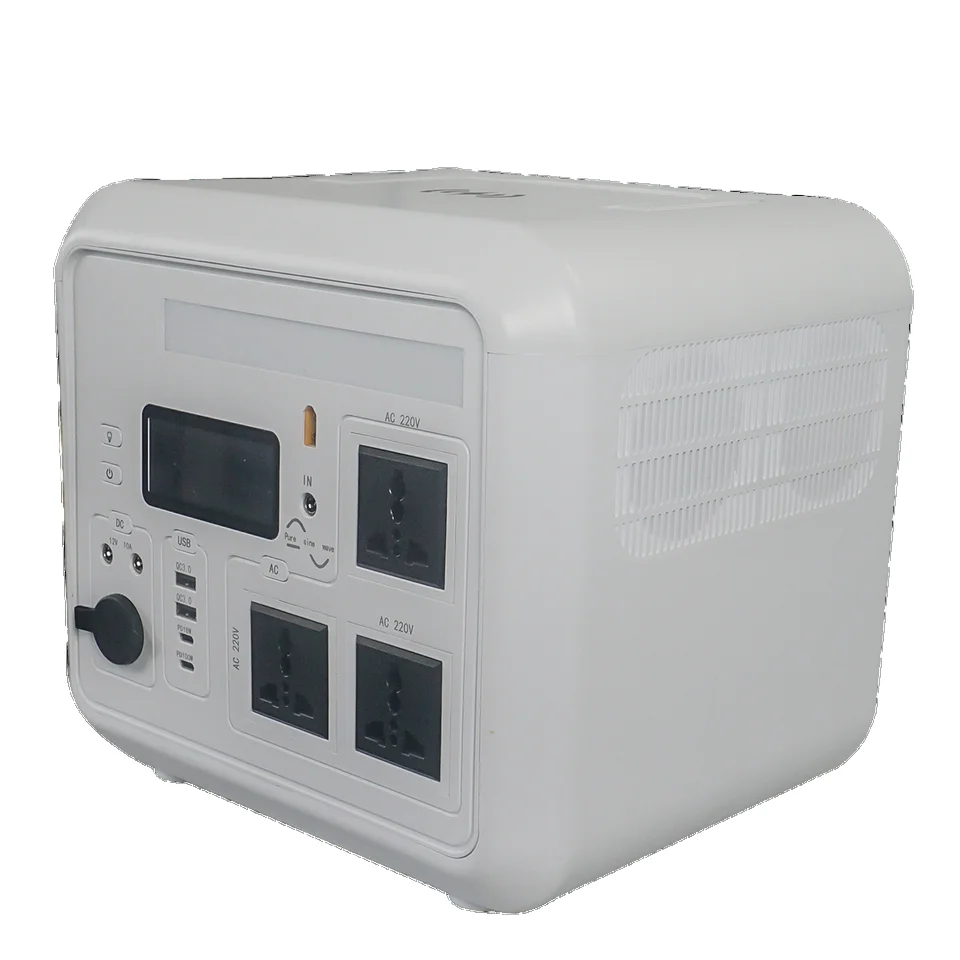

Портативная электростанция 460, 8wh-2560Wh с подключением к сети, литий-ионный аккумулятор, солнечный генератор, домашний резервный Кемпинг LifePO4
28 442,29 ₽ - 31 724,09 ₽

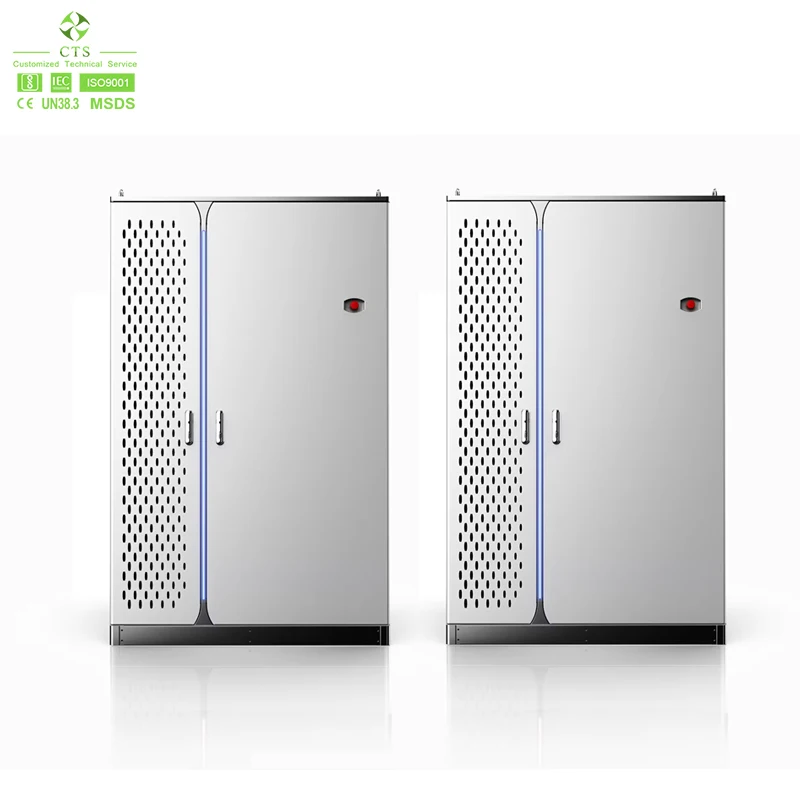

CTS высокая пиковая мощность 215kWh солнечная батарея система хранения с 672V разряд диапазон напряжения поддержка настроить
4 922 703,00 ₽ - 5 688 456,80 ₽

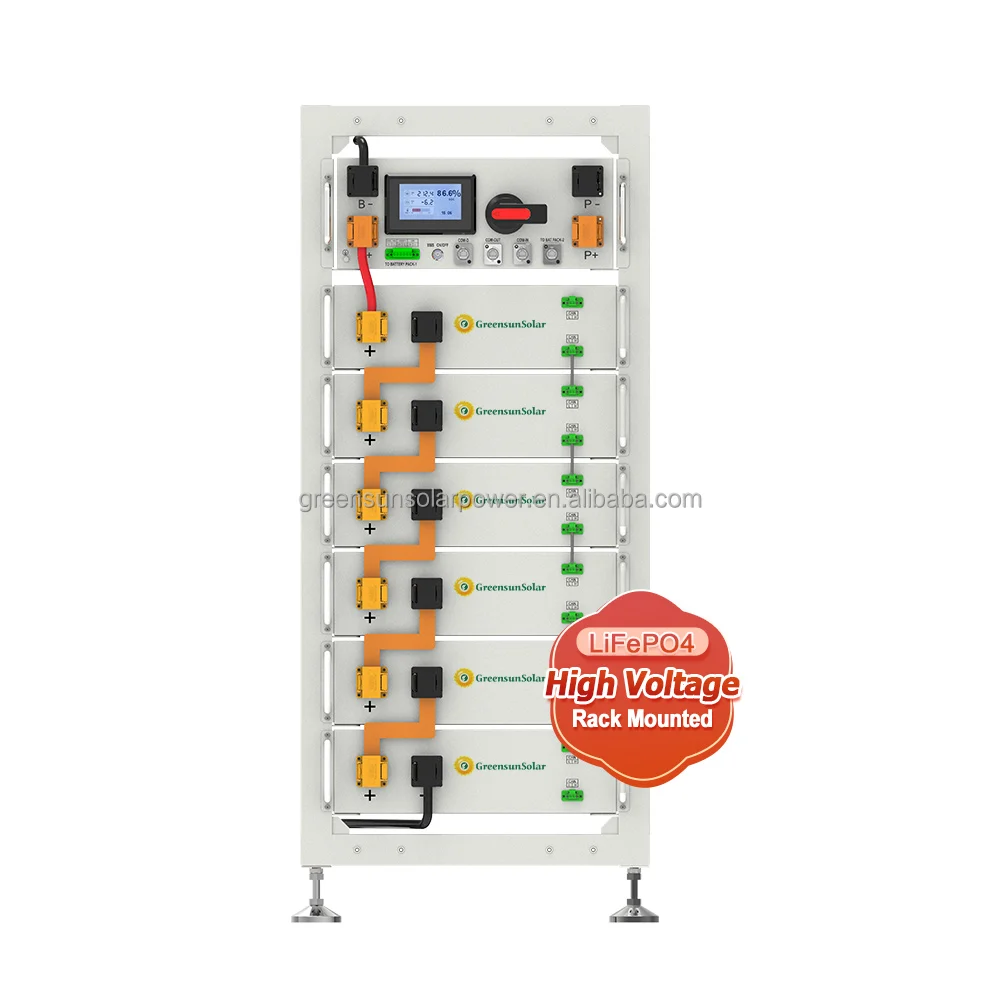

Стойка высокого напряжения 20 кВтч 30 кВтч литиевая батарея LiFePO4 51,2 В 100Ah 200Ah солнечная батарея ЕС на складе с 10 годами гарантии
Солнечные батареи Greensun класса A 51,2 V 48V 100ah 280ah Lifepo4 задняя литиево-ионная аккумуляторная батарея для дома

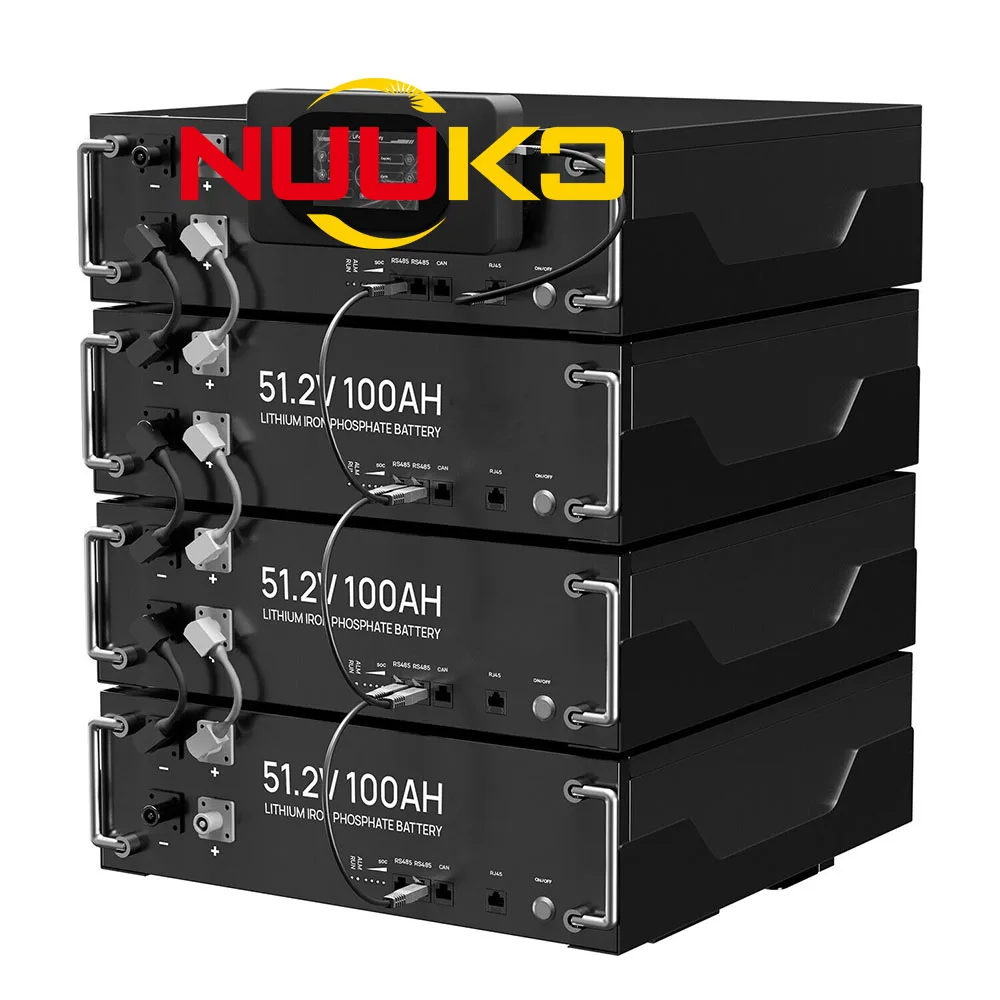

Литиевая аккумуляторная батарея 5kwh 10kwh 48V 51,2 V 100ah 200ah LiFePO4, домашняя солнечная батарея, подвижный домашний инвертор
