Гибридный инвертор Deye on grid off 5 кВт 6 1-фазный солнечной SUN-6K-SG03LP1-EU с Регистратор данных
93 679,61 ₽ - 98 088,06 ₽
Deye оптовая продажа 5 кВт 6 низковольтный однофазный инвертируемый Солнечный SUN 6K SG03LP1 EU кВА гибридный инвертор с регистратором данных
- Категория: >>>
- Поставщик: Anhui Minvic Import & Export Co. Ltd.
Сохранить в закладки 1601259653348:
Описание и отзывы
Характеристики
Product Description
SUN-6K-SG03LP1-EU
* Colorful touch LCD, IP65 protection degree
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 135A
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 135A
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
* Support storing energy from diesel generator

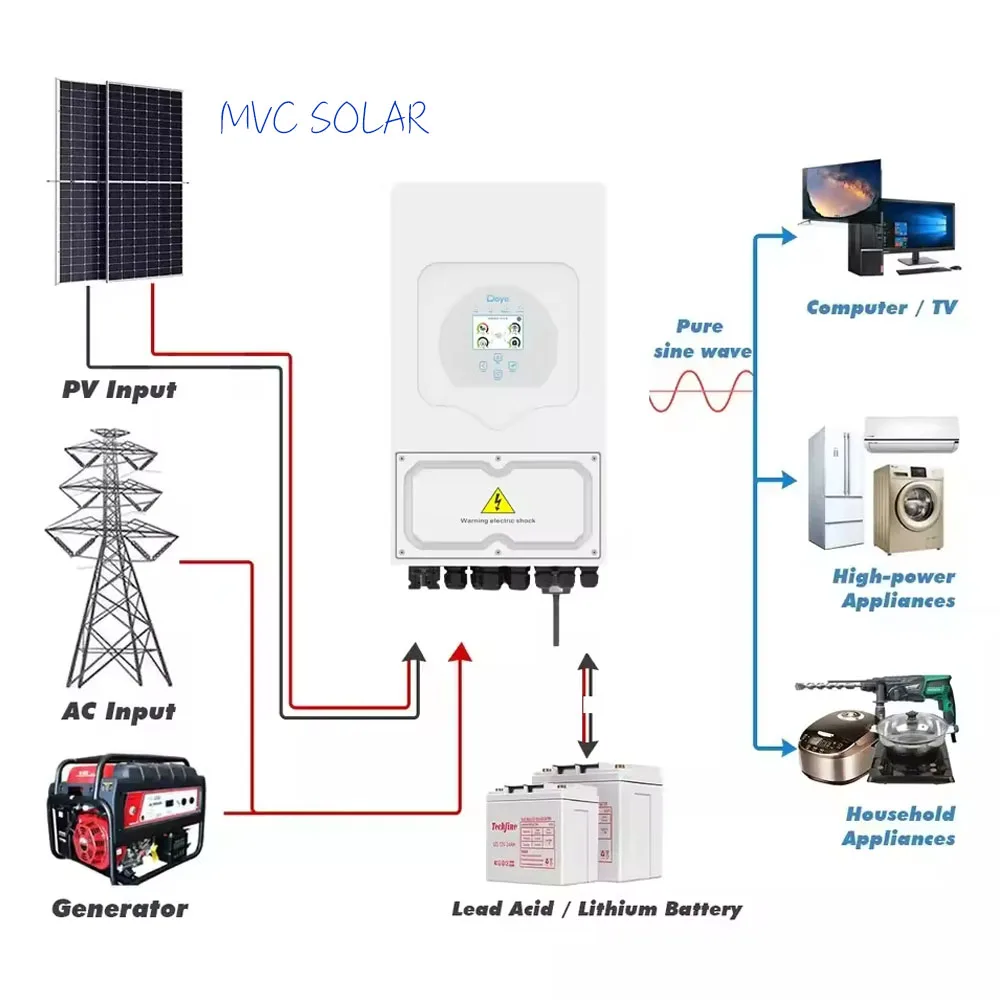

SUN 3.6/6K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

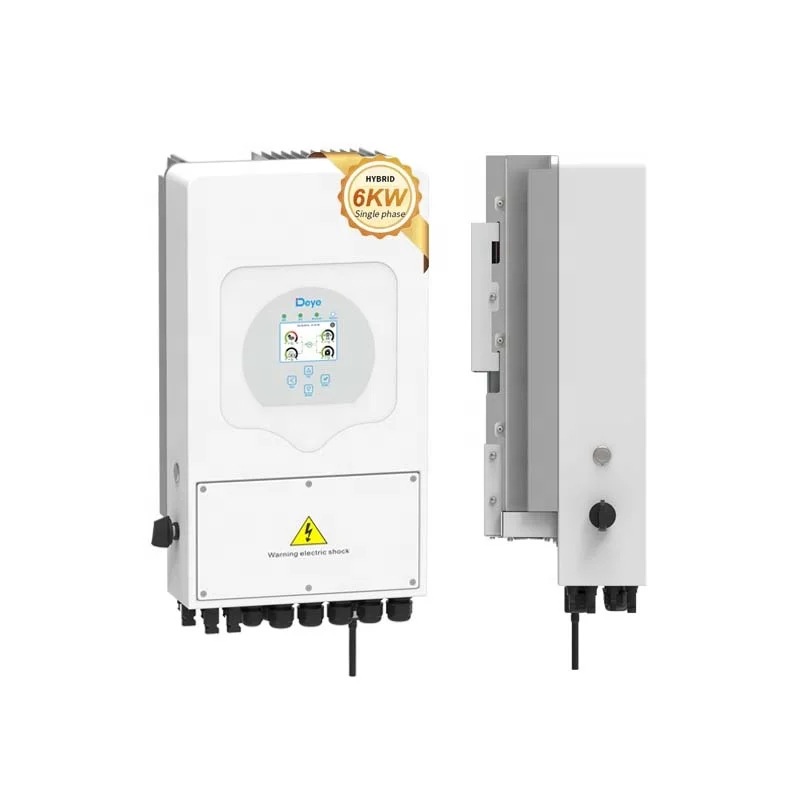

The back view of the inverter
The side view of the inverter
The bottom of the inverter
Specification
Model | SUN-6K-SG03LP1-EU | |||||||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40-60 | |||||||||
Max. Charging Current (A) | 135 | |||||||||
Max. Discharging Current (A) | 135 | |||||||||
External Temperature Sensor | Yes | |||||||||
Charging Curve | 3 Stages / Equalization | |||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 7800 | |||||||||
Rated PV Input Voltage (V) | 370 (125-500) | |||||||||
Start-up Voltage (V) | 125 | |||||||||
MPPT Voltage Range (V) | 150-425 | |||||||||
Full Load DC Voltage Range (V) | 300-425 | |||||||||
PV Input Current (A) | 13+13 | |||||||||
Max. PV I (A) | 17+17 | |||||||||
No.of MPP Trackers | 2 | |||||||||
No.of Strings per MPP Tracker | 1+1 | |||||||||
AC Output Data | ||||||||||
Rated AC Output Active Power (W) | 6000 | |||||||||
Max. AC OutputActive Power (W) | 6600 | |||||||||
AC Output Rated Current (A) | 27.3/26.1 | |||||||||
Max. AC Output Current (A) | 30/28.7 | |||||||||
Max. Continuous AC Passthrough (A) | 40 | |||||||||
Peak Power (off grid) | 2 time of rated power, 10 S | |||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||||
Rated Input/Output Voltage/Range(V) | 220/230 0.85Un-1.1Un | |||||||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |||||||||
Grid Connection Form | L+N+PE | |||||||||
Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | |||||||||
DC Current Injection | <0.5% In | |||||||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 96.50% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge Protection | |||||
Over Voltage Category | DC Type II/AC Type III | |||||
Certifications and Standards | ||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||
Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
General Data | ||||||
Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||||
Cooling | Free Cooling | |||||
Noise (dB) | ≤30 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 25 | |||||
Cabinet Size (WxHxD mm) | 330×580×232 (Excluding Connectors and Brackets) | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||
Products Series
SUN-3/3.6/5/6K-SG04LP1
Output Power: 3-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Voltage: 20-30V /40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-3.6/5/6K-SG03LP1-EU
Output Power: 3.6-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-3.6/5/6/7.6/8K-SG05LP1-EU
Output Power: 3.6-8KW Single Phase Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
SUN-5/6/7.6/8K-SG01LP1-EU
Output Power: 5-8KW Single Phase
Output Voltage: 120V/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion

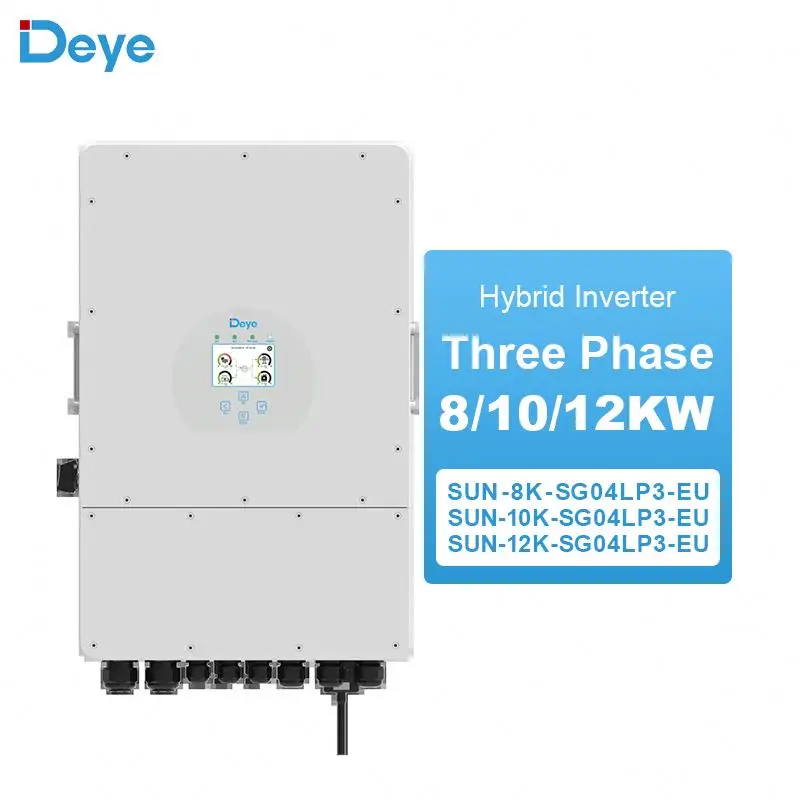

SUN-5/6/8/10/12K-SG04LP3
Output Power: 5-12KW Three Phase Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Type: Lead-acid or Lithium-ion
SUN-12/14/16K-SG01LP1
Output Power: 12-16KW Single Phase Output Voltage: 230/400V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion
Battery Type: Lead-acid or Lithium-ion
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
Company Profile
Anhui Minvic New Energy Technology Co., Ltd, established in 2018, has a subsidiary, Anhui Minvic Import & Export Trading Co. We focus on the development, production and sales of photovoltaic new energy products. We are committed to helping our global partners make great strides in products, technologies and solutions related to new energy generation. We are adhering to our vision of linking the world's trading partners and driving the global PV industry forward to achieve a carbon neutral world.
FAQ
1. who are we?
We are based in Anhui, China, start from 2018,sell to Northern Europe(10.00%),Eastern Europe(10.00%),Western Europe(8.00%),Domestic Market(8.00%),Mid East(8.00%),Southern Europe(8.00%),Central America(8.00%),South America(8.00%),North America(8.00%),Africa(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panels/Solar Inverters/Energy Storage Batteries/Solar Systems
4. why should you buy from us not from other suppliers?
New energy integrated company, more than 10 years experience in PV industry, having complete supply chain for solar modules, inverters and energy storagy products. Also, provide the whole system design, development and implementation.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Anhui, China, start from 2018,sell to Northern Europe(10.00%),Eastern Europe(10.00%),Western Europe(8.00%),Domestic Market(8.00%),Mid East(8.00%),Southern Europe(8.00%),Central America(8.00%),South America(8.00%),North America(8.00%),Africa(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panels/Solar Inverters/Energy Storage Batteries/Solar Systems
4. why should you buy from us not from other suppliers?
New energy integrated company, more than 10 years experience in PV industry, having complete supply chain for solar modules, inverters and energy storagy products. Also, provide the whole system design, development and implementation.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
