Машина для формования валков водосточной трубы по индивидуальному заказу оборудование желоба и локтя
- Категория: >>>
- Поставщик: CANGZHOU HAUAN ROLL FORMING MACHINERY CO. LTD.
Сохранить в закладки 1601259657907:
Описание и отзывы
Характеристики
Product Information
1. Product Profile

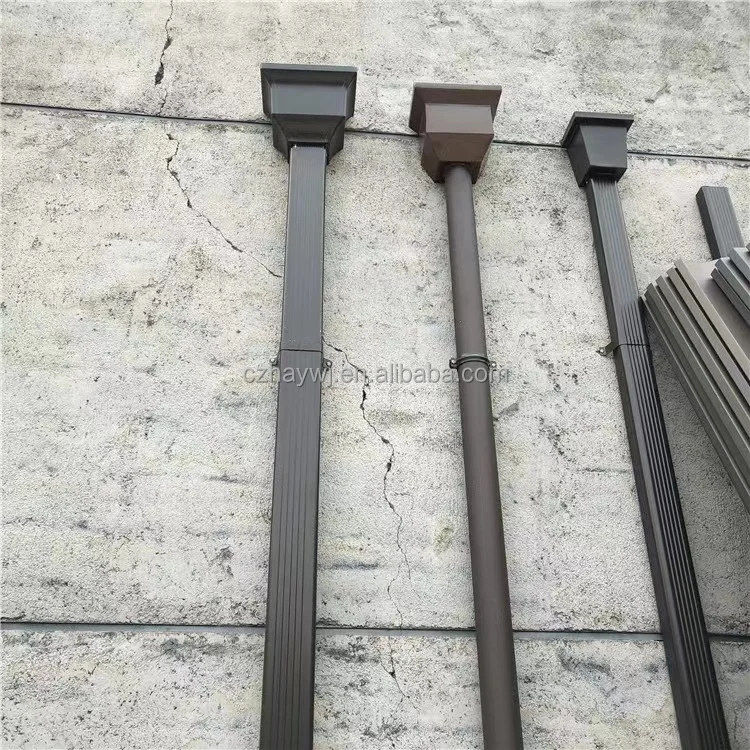

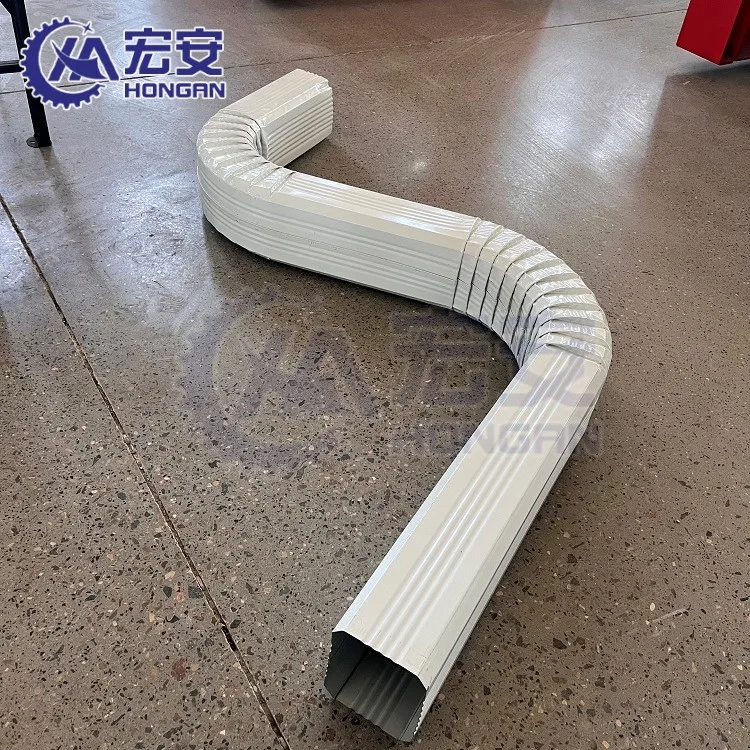

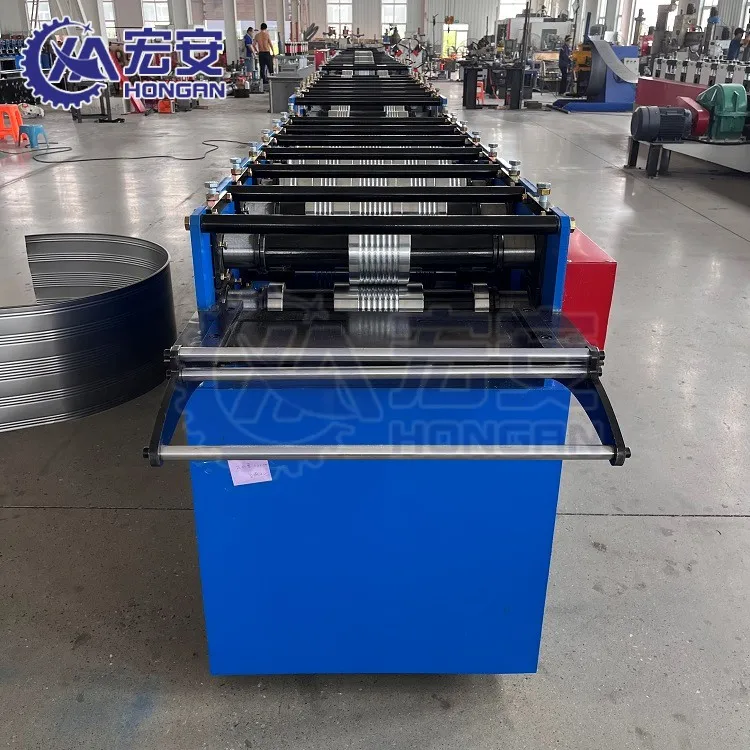

Storm drain downspout and bend roll forming machine
Our stormwater downspouts and elbow rollers are specialized in manufacturing stormwater downspouts and elbows. We can also customize the machines as final products according to customer requirements.
Storm drain downspout and bend roll forming machine
Our stormwater downspouts and elbow rollers are specialized in manufacturing stormwater downspouts and elbows. We can also customize the machines as final products according to customer requirements.
Our machines have been exported to many countries, please contact us for more details of the machine.
(Customized according to customer configuration requirements.)
2. Work Flow
Capacity of the entire production line is 5- 15 m / min.
Capacity of the entire production line is 5- 15 m / min.

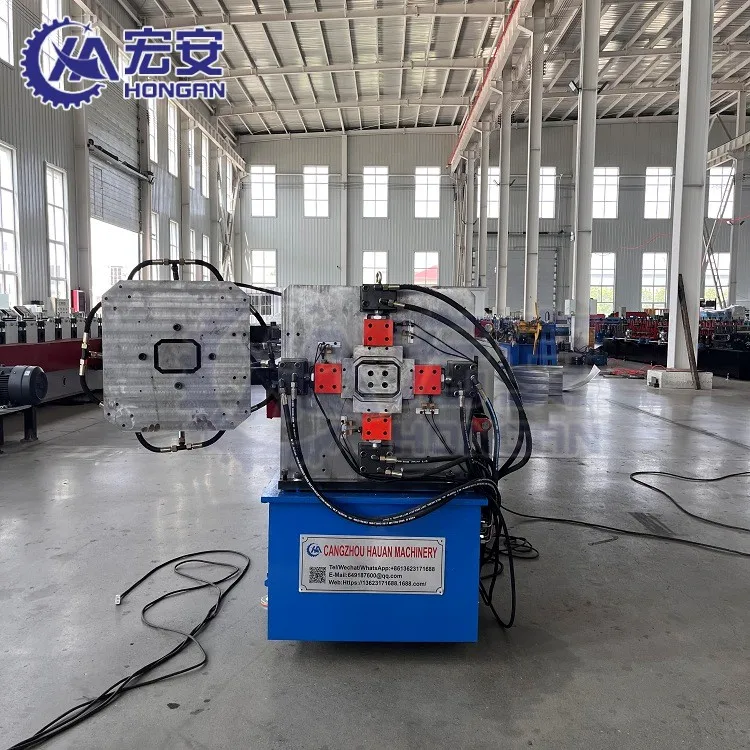

It consists of 6 parts:Loading frame➝ mechanical forming machine➝Hydroforming ➝hydraulic bending➝hydraulic shear➝receiving table but It only takes 1 -2 worker.
3. Product Specification
Item | Description & Parameter |
1. GB/T6725-2002《Technical conditions for cold-formed steel》 2 .GB/708-88《Dimensions, shapes, weights, and allowable deviations of cold-rolled steel plates and strips》 3.GB/6723-86《Dimensions, shapes, weights, and allowable deviations of general cold-formed open section steel》 | |
Forming raw material | Q195/Q235/Q355 steel plate or galvanized steel |
Rolling thickness(mm) | 0.2-0.6 |
Formiing dimensions (mm) | According to the product drawings provided by the customer |
Feeding width(mm) | 180-298 or According to the product drawings provided by the customer |
Production capacity | 5-15 m/min,300-900m/h |
Control system | PLC |
Forming tolerance (mm) | ±0.1mm |
Operation mode | Combined operation method of LCD, PLC Program, driver and wireless control. |
Automation level | Fully automatic |
Fault diagnosis function | Control system diagnosis |
Technical Parameter: | -30 ℃～50℃ |
Power | 11.5KW |
Input voltage | 380V/50HZ/3PH electricity or Customization |
Dimension(L*W*H)(mm) | 11800mm * 1200mm * 2400mm |
Weight(Tons) | 5 |
Video outgoing-inspection | Provided |
Machinery test report | Provided |
Warranty information | Three years warranty for the entire machine. |
4. Equipment List
NUM | Equipment Name | Quantity (set) |
1 | Decoiling machine | 1 |
2 | Feeding Device | 1 |
3 | Forming System | 1 |
4 | Cutting System | 1 |
5 | Finished Product Receiving Rack | 1 |
6 | PLC Control System | 1 |
7 | Supporting Accessories | 1 |

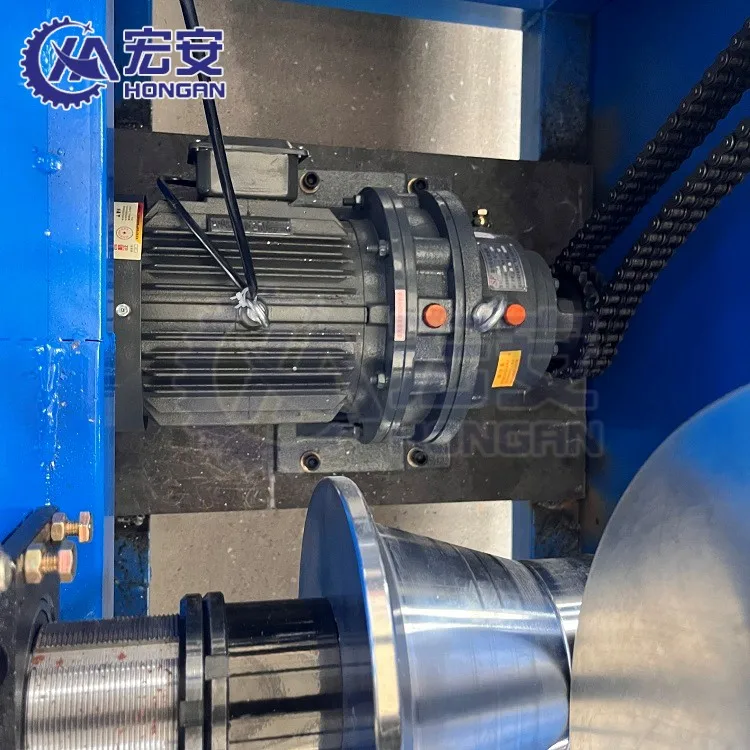

5. Components Details
6. Usage scenario
Packing & Shipping
Packaging Details
1. Select containers of different specifications for transportation based on the actual volume and weight of the packaged goods.
2. Wipe the entire equipment with rust proof oil and use a thin film for dust protection. 3. PLC controller and electric cabinet
are covered with foam film, and vulnerable parts are protected by wooden cases. 4. Spare parts and some small parts are packed in
a plastic toolbox.
2. Wipe the entire equipment with rust proof oil and use a thin film for dust protection. 3. PLC controller and electric cabinet
are covered with foam film, and vulnerable parts are protected by wooden cases. 4. Spare parts and some small parts are packed in
a plastic toolbox.
Related Products
About Us
1.Company profile
Cangzhou Hauan Roll Forming Machinery Co., Ltd.
Cangzhou Hauan Roll Forming Machinery Co., Ltd. focuses on one-stop service solutions for metal processing machinery. The factory covers an area of 8,300 square meters and currently has 50 employees, including 9 senior engineers and 6 technicians. The company has two large-scale metal processing machinery workshops. The main products are: Roof Roll Forming Machine, Decoration Forming Machine, Light Gauge Villa Roll Forming Machine, Fully Auto changeable CZ Roll Forming Machine and other related various cold bending forming machines including shearing machines and bending machines, etc.
2.Our Clients
3.Our Certificates
Our machinery has the characteristics of fast processing efficiency and high precision.It has passed ISO9001 and international CE certification. We have exported our machines abroad. Our oversea market include the USA, UAE, the Southeast Asia, Middle East, South America, Africa, Russia and European countries.
4.Hauan Concept
Hauan company has its own professional R&D center and design team, which is responsible for equipment drawings and continuous innovation, breaking through technical difficulties, and developing new equipment; the independent finishing department and mechanical department are responsible for equipment aluminum steel structure hardware processing and ultrasonic electronic device development and power distribution; Assembly department assembly line assembly equipment. Hauan Machinery always adheres to technological innovation as its leading force, and the R&D team continues to break through technical bottlenecks. The technical content of some of its main equipment is far ahead in the industry.
5.We solemnly promise
All machines and equipment have a one-year warranty and lifetime maintenance. Provide free technical consultation and other related maintenance services. The company can arrange professional engineers and technicians to go to the user's site to guideinstallation and debugging.
FAQ
Q1.You are a trade company or factory?
Cangzhou Hauan Roll Forming Machinery Co., Ltd. is a Manufacturer.
Q2:Where is your factory located?
Our factory is located in Cangzhou City, Hebei Province, China. You are warmly welcome to visit us!
Q3.Do you provide customized?Can you make the machine according to my design or prototype?
Sure,We have an professional designer for working out the most suitable design and productionplan for the machine that you are going to book with us.We are a professional roll forming machine designer and manufacturer.
Q4.What can you do if the machine is broken?
All machines and equipment have a one-year warranty and lifetime maintenance. Provide free technical consultation and other related maintenance services.
Q5.Can you be responsible for transport?
Yes,please tell us the destination port or address.we have rich experience in transport.
Q6.what can you buy from us?
The main products are: Roof Roll Forming Machine, Decoration Forming Machine, Light Gauge Villa Roll Forming Machine, Fully Auto changeable CZ Roll Forming Machine and other related various cold bending forming machines including shearing machines and bending machines, etc.
Q7.How is your after-sales support?
The company can arrange professional engineers and technicians to go to the user's site to guide installation and debugging.We always provide customers with comprehensive production planning solutions, as well as comprehensive pre-sales technical guidance and after-sales free technical support services; providing customers with high-quality products, reasonable prices, fast delivery and enthusiastic services to win the market.
