Baking type panko bread crumbs making machine bread crumbs grinder production line

    Bread Crumb is the widespread use food increase supplementary material , mainly uses in the western-style food exploding the beefsteak, exploding the chicken leg and so on to fry in oil the supplementary material. Our company develops the development "Bread Crumb" special-purpose production line production changed the traditional bread crumb technique of production, invests from the lining to destorys the formation is the production-runs, the personnel are few, the excess stock might duplicate uses,dose not have the waste material, to reduce the production cost, to raise the labor productivity, Main Product acicular crumb, granular crumb etc.

Sample Photos:

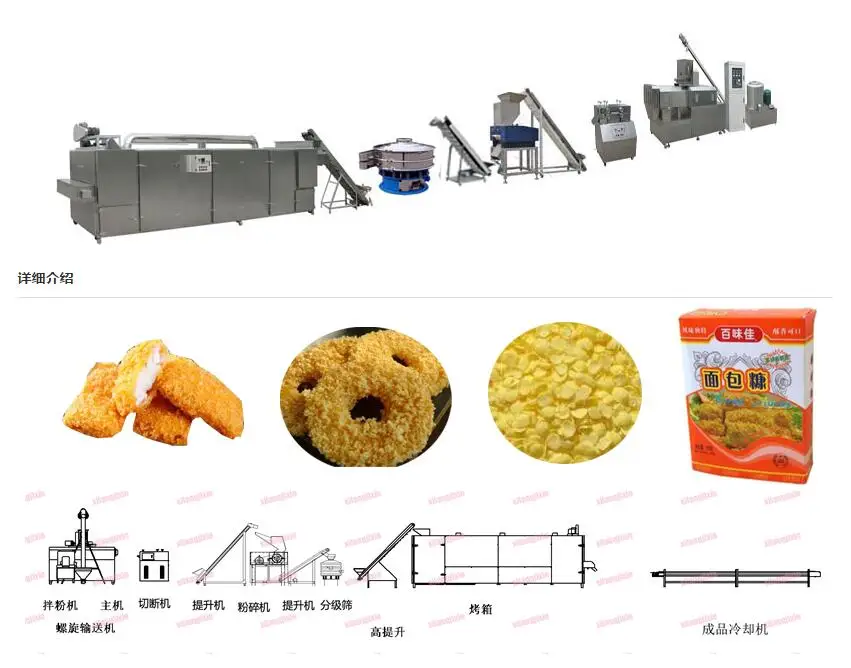

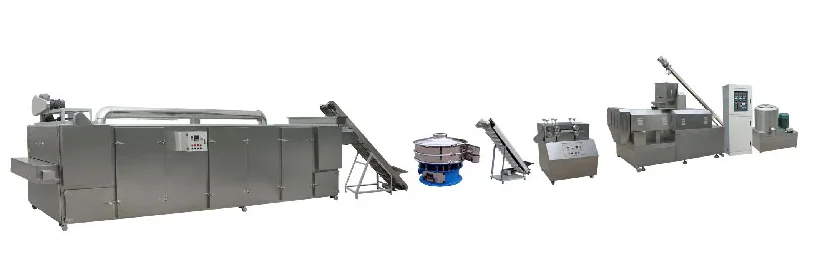

1. Processing flow: Mixer - Screw Conveyor - Twin screw extruder - Pulling and Cutting Machine - Hoister - Pulverizer - Air Conveyer - Sizer - Air Conveyer - Oven - Colling Machine

2. Machine Capacity: 100kg/h - 1500 kg/h

3. Machine floating Voltage: Three phases: 380 V/50 Hz, Single phase: 220 V / 50 Hz. we can make it according to customers' Local voltage according to different countries.

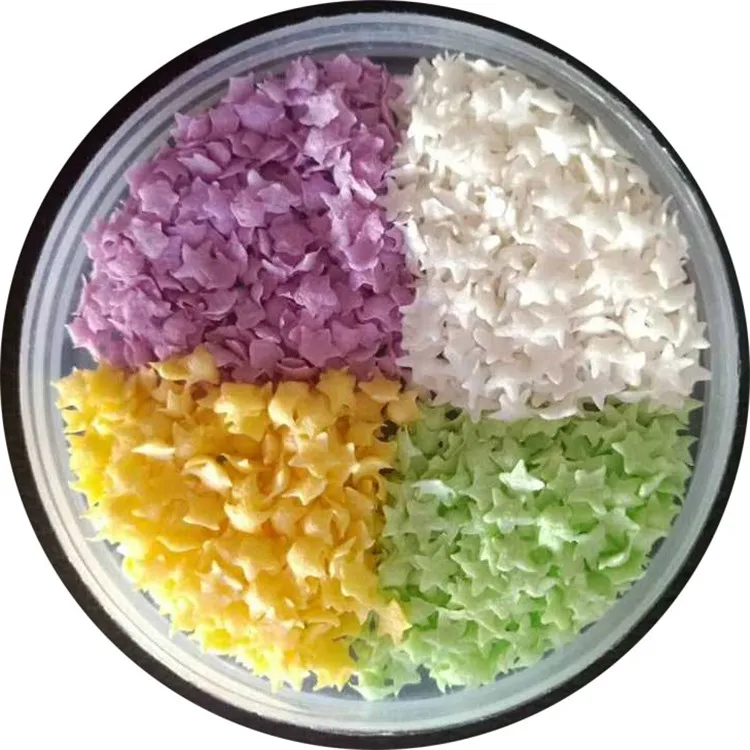

4. Final products:  Star Shape Bread Crumb, Acicular Bread Crumb, Granular Bread Crumb, etc.

5. Machine material: Stainless steel 304 or as customer's request

6. Raw material: Corn Flour, Rice Flour, Wheat Flour, etc.

Techinical parameter for Fried Snack Food Extruder:

Detailed specification of a single machine:

	Name: Mixer Capacity: 50kg/batch Power: 7.5kw Size:1410*760*1350mm Function: It max the raw material, water, and other raw material.
	Name: Screw conveyor Capacity: 500kg/h Power: 1.1kw Size:2670*600*2545mm Function: Converying the raw material to Twin Screw Extruder. Working Principle: The Motor drives the screw in elevator, lifting the matrial from the low end to the high end.

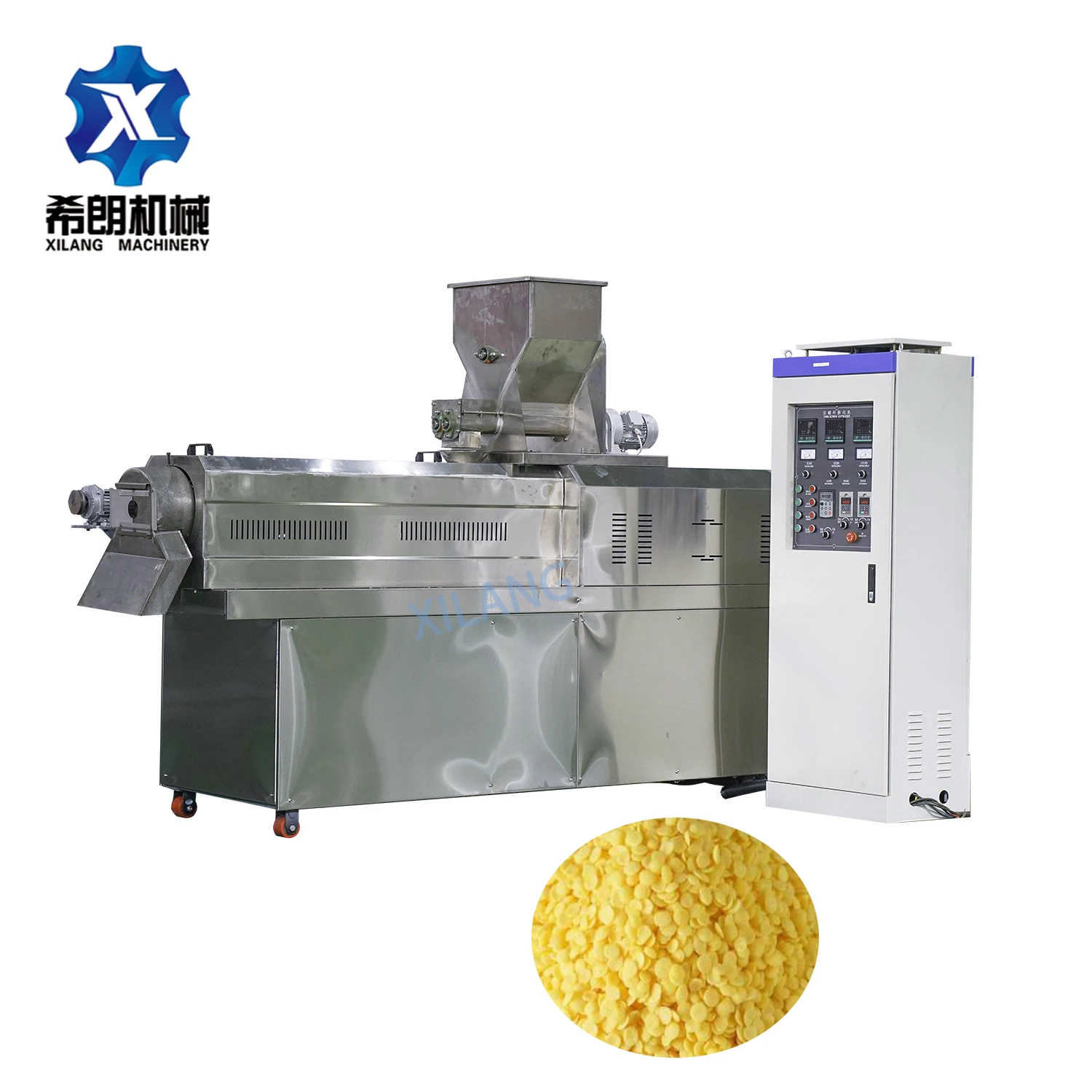

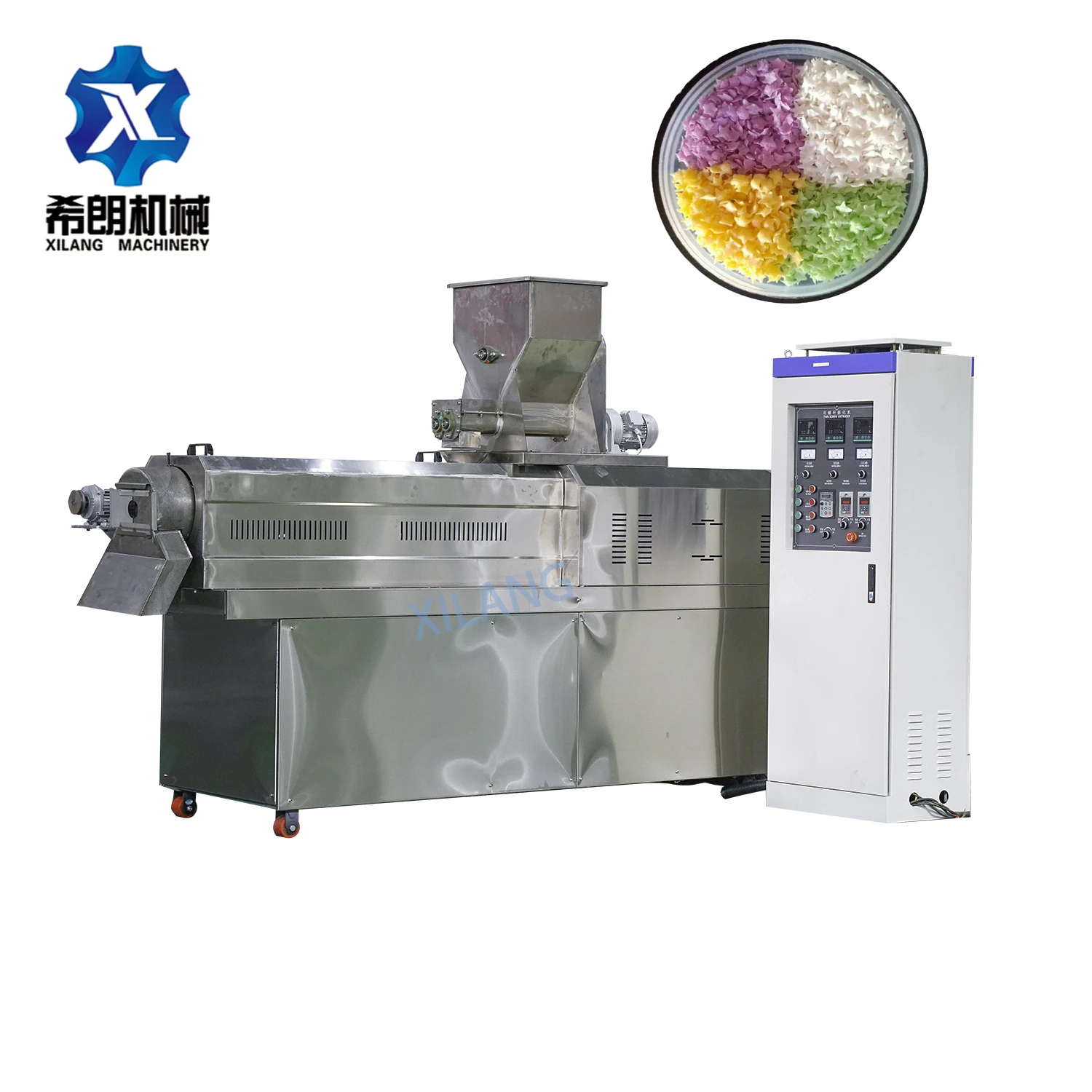

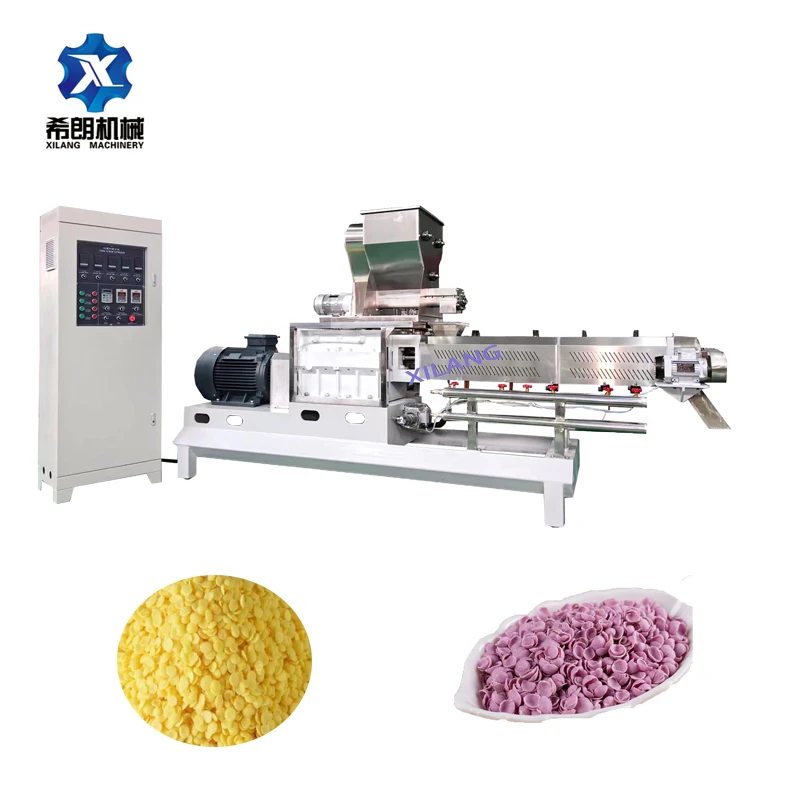

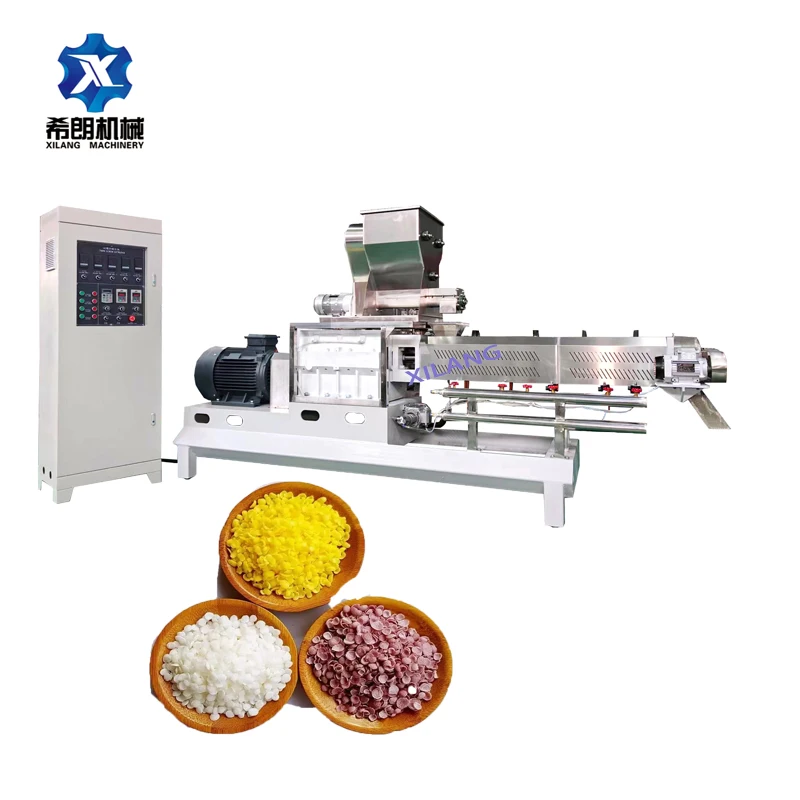

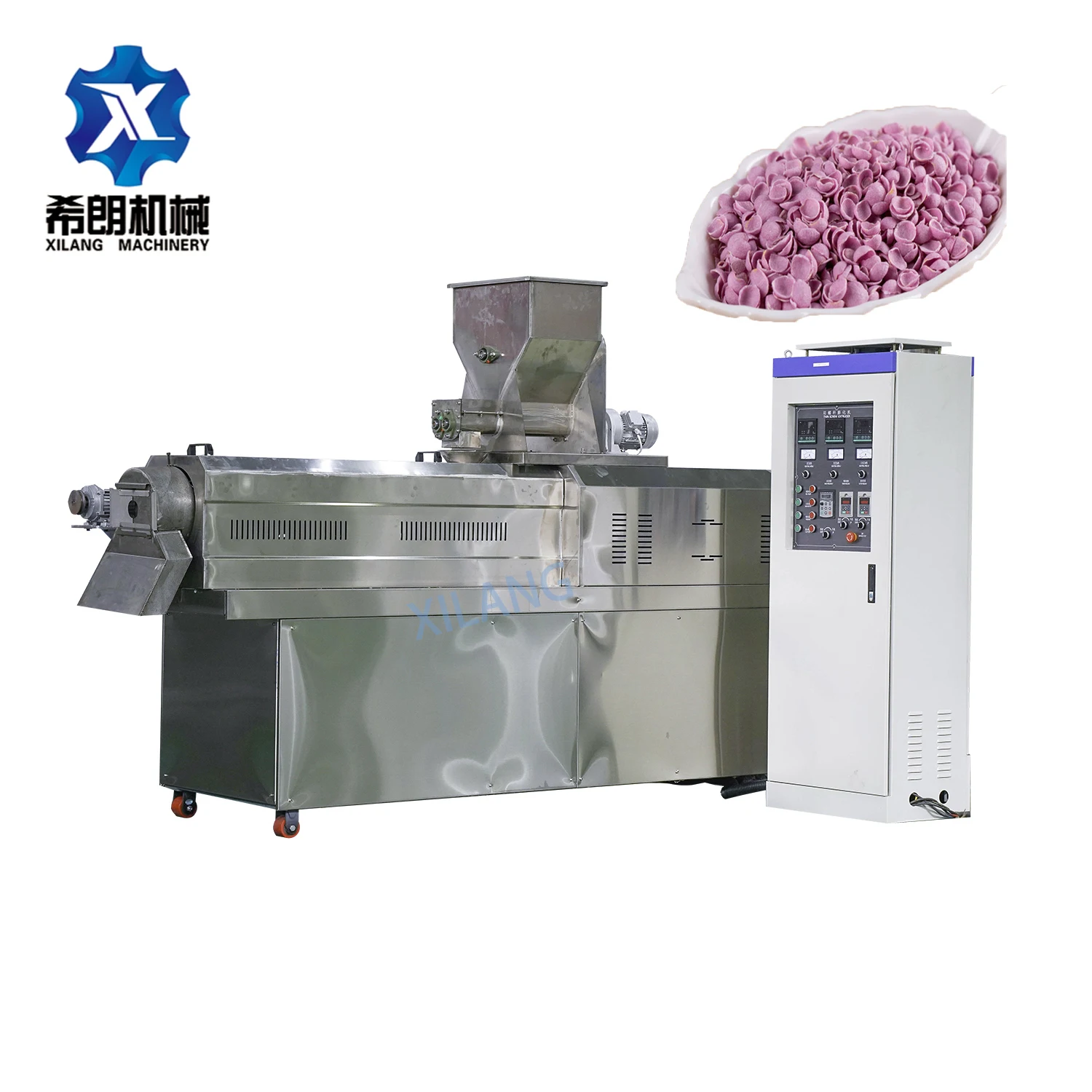

	Name: Twin Screw Extruder Capacity: 500-800kg/h Power: 84kw Size: 413*1030*2360mm Function: This equipment is developed on twin roating screw technology. It contains extrusion system, transmission system. Feeding material system, roll cutting system and control system. The frequency of electrical motor is adjustable with transducer. The main functions of extruder are extrusion and material puffing.

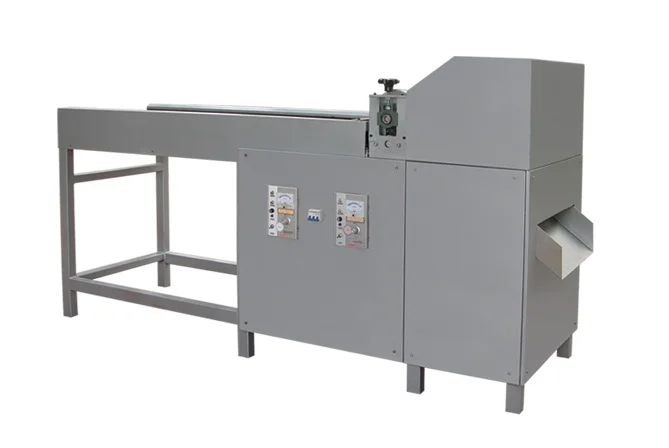

	Name: Pulling and Cutting Machine Capacity: According to the Extruder Power: 1.1kw Material: Food Grade 304 stainless steel  Function:Cut long strips into short strips
	Name: Pulverizer Power: 0.75kw Material: Food Grade 304 stainless steel Function: Crush the long strips into chaff.
	Name: Sizer Power: 0.75kw Material: Food Grade 304 stainless steel Function: Sift out different products.
	Name: Air Conveyor Capacity: 500kg/h Power: 1.1kw Material: Food Grade 304 stainless steel  Function: This machine is to convey the Bread Crumb to the dryer and pre-dry the Bread Crumb.

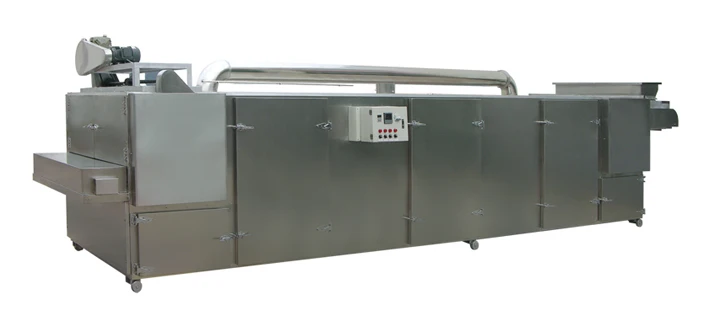

	Name: Dryer Capacity: 500kg/h Power: 80kw Material: Food Grade 304 stainless steel Function:Most of the ovens are electric ovens, the temperature is adjusted between 0-200 degrees by the control cabinet, and the inside is a stainless steel double-layer mesh bag. The baking time can be adjusted according to the speed, minus the moisture, and increase the shelf life;

As a manufacturer of extrusion equipment, Jinan Xilang Machinery Co., Ltd has gathered a group of technical teams with rich industry experience, Since its establishment, it has been committed to the research and development of extrusion equipment. The company's products have developed into diversified varieties and supporting series. It has become a mature manufacturer of main extrusion equipment in China.
    Through the unremitting efforts of all employees of the company, the technical level and processing level of the enterprise have been continuously improved, and the market competitiveness and comprehensive strength of the enterprise have been enhanced. High-quality products and perfect after-sales service have earned Xilang a good reputation in the industry and won the recognition of customers at home and abroad.

1. To provide you with market, equipment, process, raw materials, packaging and other aspects of the consultation.

2. Assist you in equipment selection, process design, plant layout optimization, if necessary, door-to-door service.

3. For your products, we can provide all kinds of basic formula, as well as raw material changes compensation scheme, and on-site demonstration.

4. According to your needs, we can carry out special design, manufacture and application test, and provide targeted training.

5. For you to design a reasonable packaging and transportation scheme, transportation, send technical personnel on-site installation and debugging, training personnel.

6. One year equipment warranty, long-term discount, supply of spare parts.

7. Undertake the design and processing of similar imported equipment parts.

1. Who are we?
We are based in Shandong, China, start from 2017,sell to Domestic Market(50.00%),Southeast Asia(12.00%),Africa(8.00%),Mid East(7.00%),South America(7.00%),Eastern Europe(6.00%),Eastern Asia(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Fish Feed Making Machine,Pasta Macaroni Extruder Processing Machine,Nutritional Rice Production Lin,Microwave Drying Sterilization Equipment,Pet Food Production Line

4. Why should you buy from us not from other suppliers?
1 Good quality control
2Highly competitive prices
3 Prompt delivery
4 smooth communication
5 OEM &ODM service

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

6. How long is your delivery time?

Generally the delivery time is 10 - 20 working days after receiving the deposit. But the exact delivery time will depend on your quantity and your ordering time.

7. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

8. Warranty period?
Within one year.

If you are intrested in our products, feel free to contact me.
