Power Your Lighting with Precision and Efficiency
he Boqi 0-10V Dimmable LED Driver series offers an advanced solution for LED dimming requirements. Featuring a built-in
high-performance MCU, this series supports a wide dimming range from 0-100%, ensuring smooth and flicker-free dimming. Compatible
with various 0-10V dimmers and control systems, it provides reliable performance for diverse lighting setups. This driver is ideal
for professionals seeking a dependable and efficient LED driver for high-quality lighting installations.
high-performance MCU, this series supports a wide dimming range from 0-100%, ensuring smooth and flicker-free dimming. Compatible
with various 0-10V dimmers and control systems, it provides reliable performance for diverse lighting setups. This driver is ideal
for professionals seeking a dependable and efficient LED driver for high-quality lighting installations.
Products Description

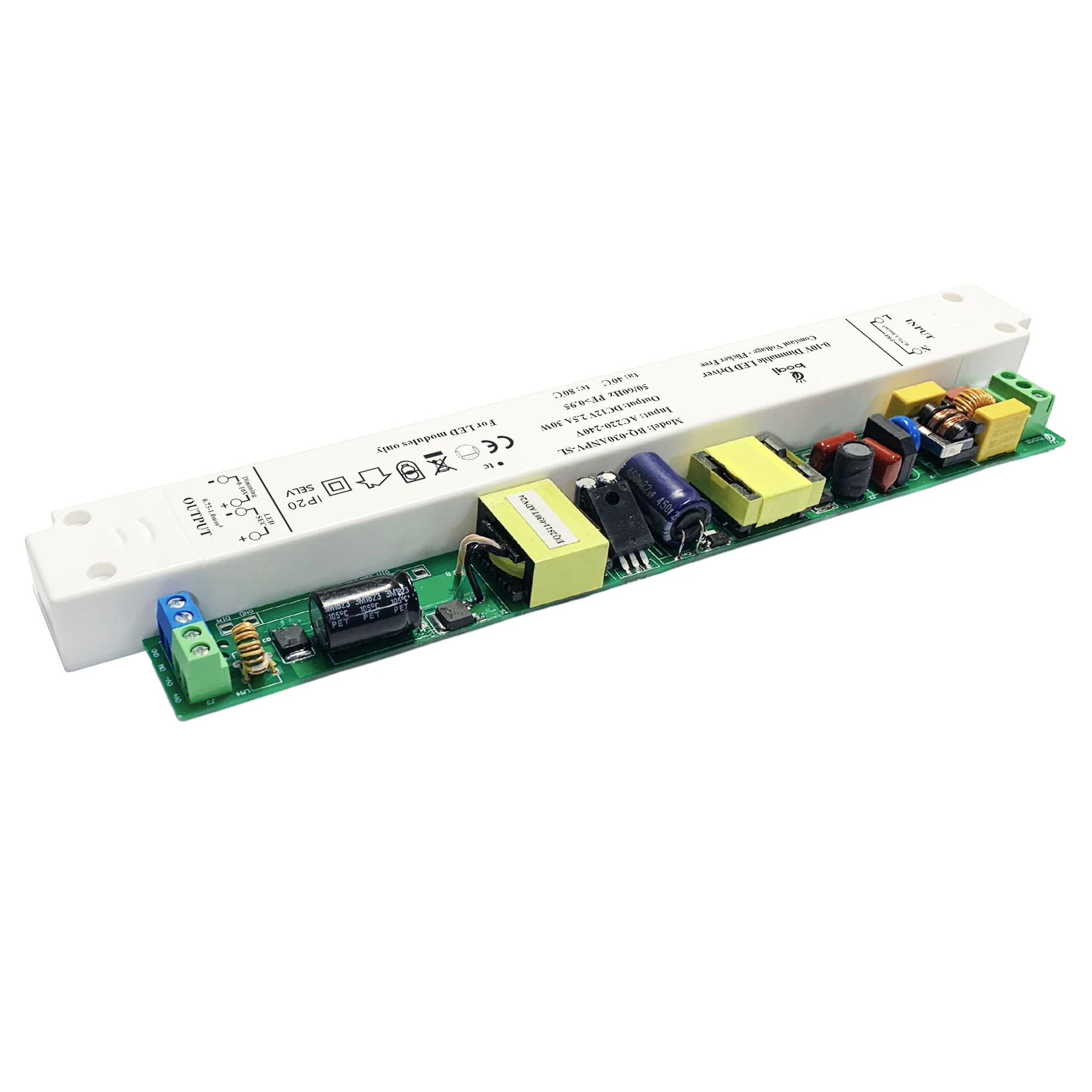

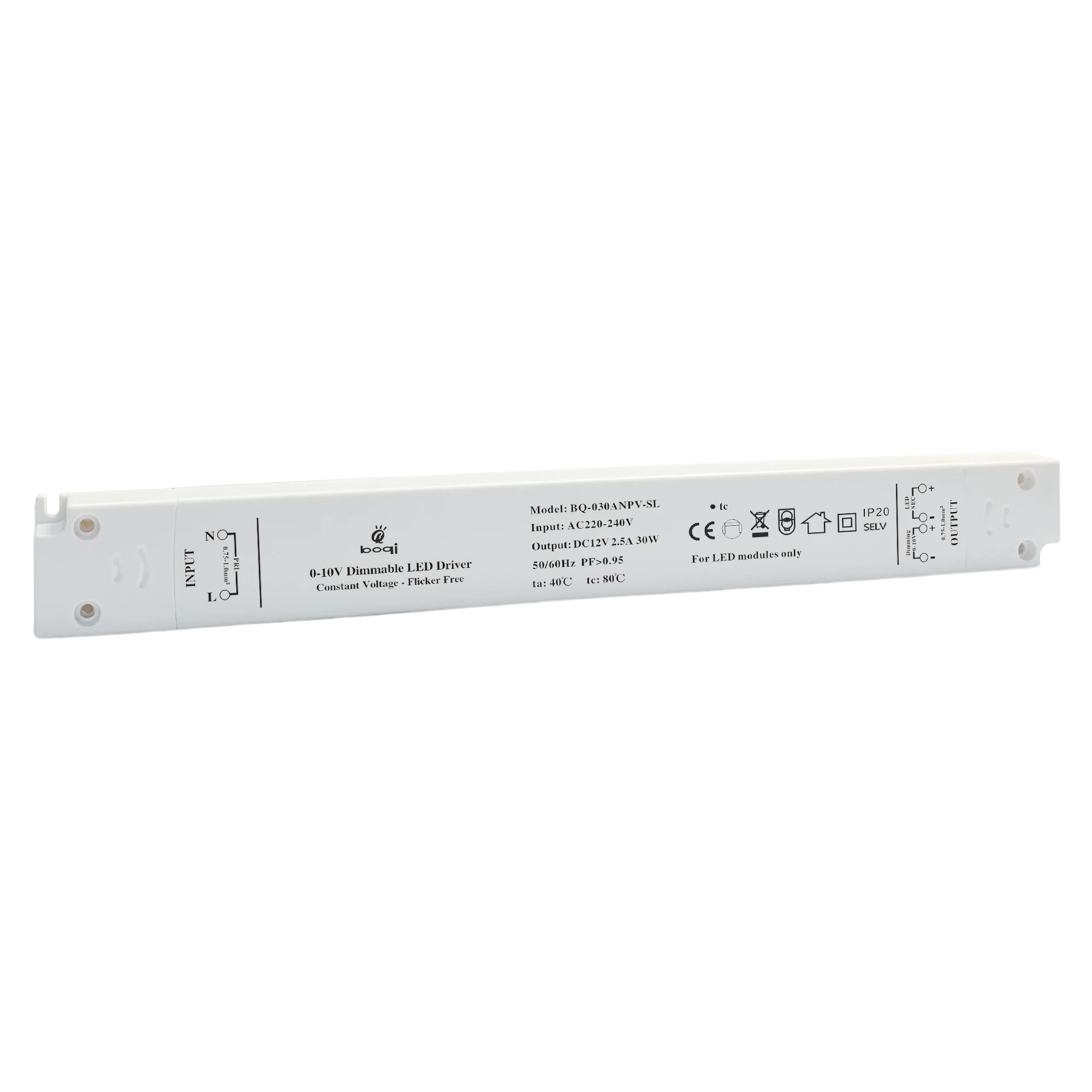

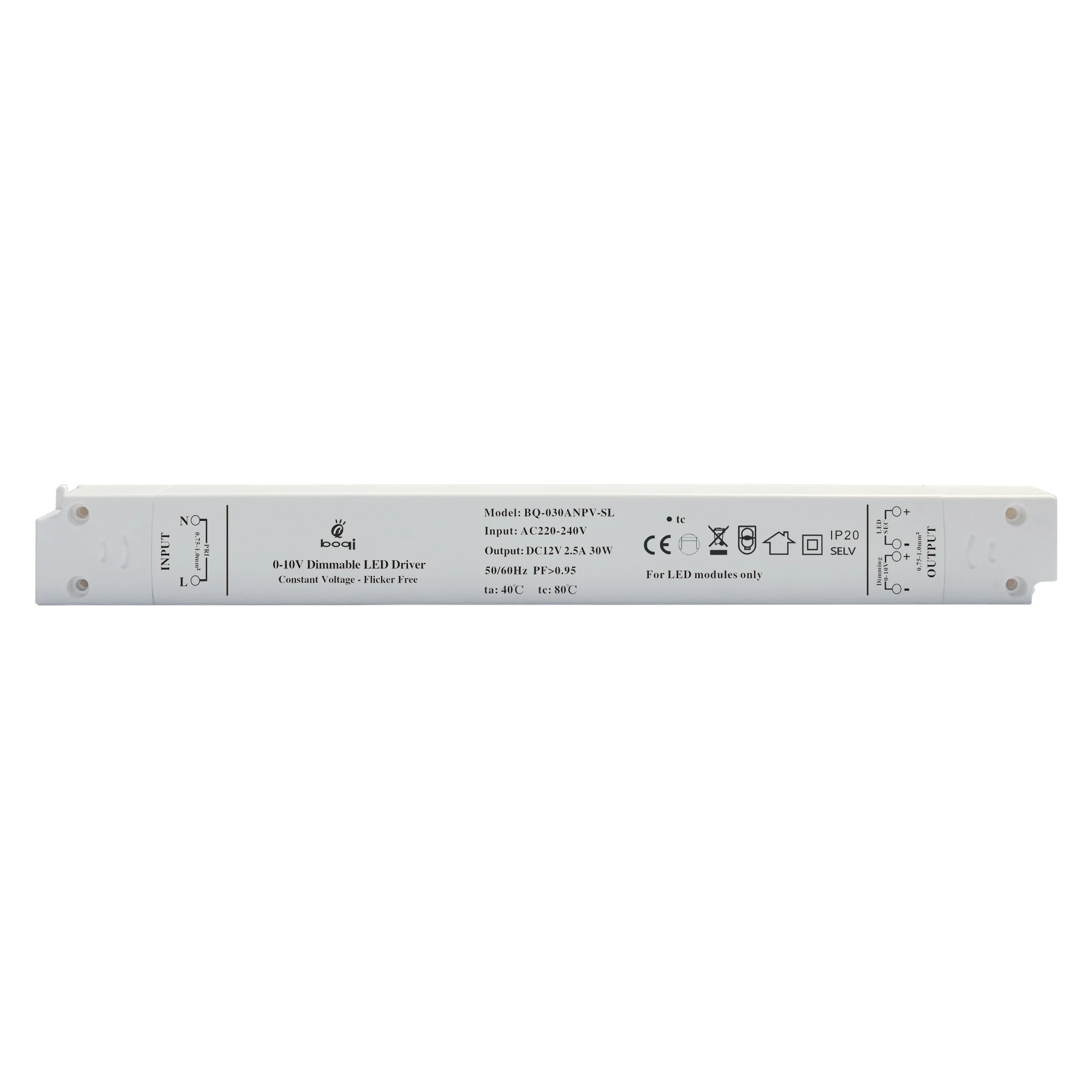

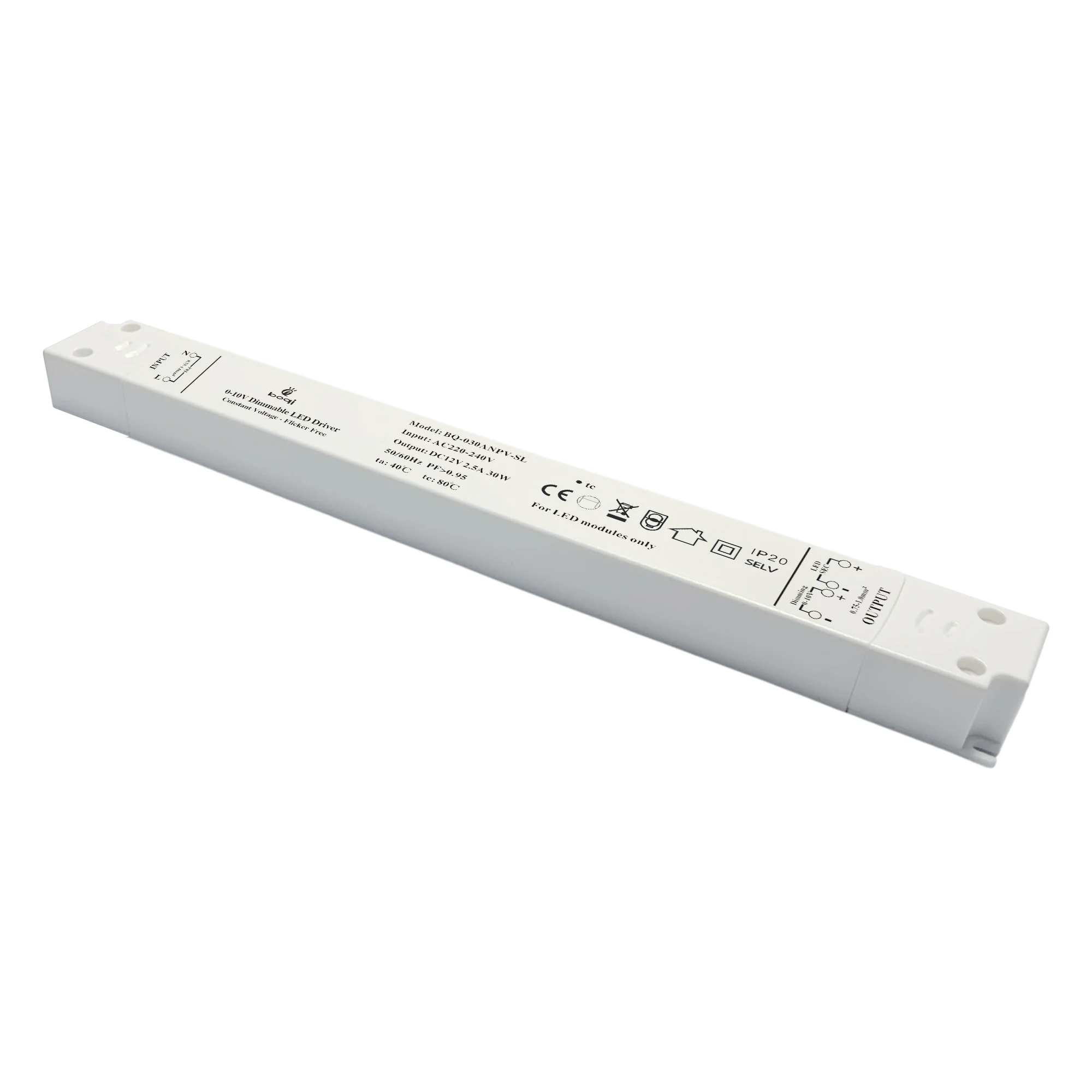

DIP Switch Constant Current 0-10V Dimmable LED Driver 30W
BQ-030ANPC-S
Feature
* Adjustable Output Current: Easily adjustable via DIP Switch, offering multiple current options in 50mA steps to tailor the output as needed.
* 0-10V Dimming: Achieve smooth dimming across a 0-100% range, ensuring optimal lighting control for different environments.
* High Power Factor, Flicker-Free Operation: Guarantees stable and consistent lighting without any flickering, ideal for professional lighting applications.
* High-Performance MCU: The built-in microcontroller ensures precise control and efficient
performance.
performance.
* Certifications: CE, RoHS, TUV, CB, SAA certified, ensuring compliance with global safety and performance standards.
* Suitable for Class II Light Fixtures: Designed for compatibility with a wide range of LED fixtures.
* Suitable for Class II Light Fixtures: Designed for compatibility with a wide range of LED fixtures.
* 5-Year Warranty: Offers long-term reliability and peace of mind.
Specification
Model | BQ-030DNPC-S | ||||||
Output | DC Voltage | 9-42V | 24V | ||||
Rated Current | 550mA-900mA | 1.67A | |||||
Output Power | 5-30W | ||||||
Flicker Index | Modulation depth ≤1% Complies with the flicker-free standard (IEEE Std 1789-2015) | ||||||
Ripple Current | <5% | ||||||
Current Tolerance | ±5% | ±0.5% | |||||
Temperature Drift | ±5% | ||||||
Start-up Time | <1.5S@230Vac | ||||||
Input | Voltage Range | 100-265VAC | |||||
Frequency Range | 47-63Hz | ||||||
Power Factor(Typ.)@ full load | 0.96@115VAC 0.95@230VAC @ full load | ||||||
THD(Typ.)@ full load | <10%@230Vac (DC42V full load) | ||||||
Efficiency(Typ.)@ full load | 88% @ full load | 88% | |||||
AC Current(Max.) | ≤0.13A/230Vac | ||||||
Inrush Current (Typ.) | ≤10A&120uS@230Vac (Max) | ||||||
Leakage current | <0.70mA | ||||||
Standby Power Consumption | ≤0.5W (when DALI OFF signal is effective) | ||||||
Protection | Short Circuit | Hiccup mode (auto-recovery) | |||||
Over Loading | ≤120% constant current limiting, auto-recovery | ||||||
Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||||||
Environment | Working TEMP. | -20~+45℃ (see below derating curve) | |||||
Working Humidity | 20~90%RH, non-condensing | ||||||
Storage TEMP. Humidity | -30~+80℃,10~90%RH | ||||||
TEMP .coefficient | ±0.03%/℃(0~50℃) | ||||||
Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||||
Safety& EMC | Safety standards | EN61347 | |||||
Withstand voltage | I/P-O/P: 3.75KVac | ||||||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||||||
EMC EMISSION | EN55015; EN61000-3-2; EN61000-3-3； | ||||||
EMC IMMUNITY | EN61547 | ||||||
Others | Dimension | 130*30*20mm (L*W*H) | |||||
Warranty | 5 Years | ||||||
0-10V Dimmable LED Driver Wiring Diagram
To help you with the wiring diagram for a 0-10V Dimmable LED Driver, here's a general guide for wiring:
Wiring Steps:
1. Power Input Connections (AC Mains):
- Live (L): Connect the live wire (usually brown or black) from the AC mains to the “L” terminal of the driver.
- Neutral (N): Connect the neutral wire (usually blue or white) from the AC mains to the “N” terminal of the driver.
2. Output Connections (LED Fixture):
- Positive (+): Connect the positive wire from your LED light fixture to the positive (+) output terminal on the LED driver.
- Negative (-): Connect the negative wire from your LED light fixture to the negative (-) output terminal on the LED driver.
3. 0-10V Dimming Control Connections:
- Dim+ (Purple): Connect the positive dimming control wire (typically purple) to the Dim+ terminal on the driver.
- Dim- (Gray or Pink): Connect the negative dimming control wire (typically gray or pink) to the Dim- terminal on the driver.
Important Tips:
- Ensure all power is turned off before starting any wiring to avoid electrical shock.
- Double-check the connections and refer to the specific driver’s user manual for any additional instructions.
- If you're using a compatible 0-10V dimmer switch, connect it to the dimming control wires as indicated.
Wiring Steps:
1. Power Input Connections (AC Mains):
- Live (L): Connect the live wire (usually brown or black) from the AC mains to the “L” terminal of the driver.
- Neutral (N): Connect the neutral wire (usually blue or white) from the AC mains to the “N” terminal of the driver.
2. Output Connections (LED Fixture):
- Positive (+): Connect the positive wire from your LED light fixture to the positive (+) output terminal on the LED driver.
- Negative (-): Connect the negative wire from your LED light fixture to the negative (-) output terminal on the LED driver.
3. 0-10V Dimming Control Connections:
- Dim+ (Purple): Connect the positive dimming control wire (typically purple) to the Dim+ terminal on the driver.
- Dim- (Gray or Pink): Connect the negative dimming control wire (typically gray or pink) to the Dim- terminal on the driver.
4. DIP Switch Adjustment (if applicable):
- Adjust the DIP switch settings according to your desired output current. The switch settings will vary depending on the required mA output, and you should refer to the product's specification sheet for exact configurations.
Important Tips:
- Ensure all power is turned off before starting any wiring to avoid electrical shock.
- Double-check the connections and refer to the specific driver’s user manual for any additional instructions.
- If you're using a compatible 0-10V dimmer switch, connect it to the dimming control wires as indicated.
Application
The 0-10V dimmable LED driver is a versatile component used in a wide range of lighting applications, providing precise dimming control and energy efficiency. Here are some common applications:
1. Commercial Lighting:
- Office Spaces: Ideal for creating adjustable lighting in offices, allowing brightness control to suit different tasks and times of day.
- Retail Stores: Enhances product displays by adjusting lighting intensity, making merchandise more visually appealing.
- Hospitals & Clinics: Offers controlled lighting for different zones, such as examination rooms, corridors, or patient rooms, ensuring appropriate illumination levels.
2. Residential Lighting:
- Living Rooms & Bedrooms: Enables mood lighting and energy-saving solutions, offering comfortable lighting levels for different activities.
- Home Theaters: Allows dimming of lights to create the perfect ambiance while watching movies or shows.
- Outdoor Lighting: Provides adjustable lighting for patios, gardens, or pathways, enhancing security and aesthetics.
3. Hospitality Industry:
- Hotels & Restaurants: Used for creating an inviting atmosphere in lobbies, dining areas, and conference rooms by adjusting light intensity according to the time of day or event.
- Banquet Halls & Event Spaces: Offers flexible lighting options for various events, from weddings to corporate functions, ensuring the perfect ambiance.
4. Industrial & Warehouse Lighting:
- Ideal for factories, warehouses, and workshops, where lighting intensity can be adjusted according to the work requirements or to save energy during off-peak hours.
5. Educational Institutions:
- Classrooms & Lecture Halls: Provides optimal lighting levels for different teaching activities, enhancing focus and reducing eye strain for students.
- Libraries: Offers adjustable lighting for study areas, ensuring a comfortable reading environment.
6. Retail & Supermarket Lighting:
- Used to highlight products and create a comfortable shopping environment. It helps in making aisles and display areas more appealing with adjustable brightness.
7. Architectural Lighting:
- Ideal for lighting up architectural elements in buildings, monuments, or sculptures, where controlled dimming can create stunning visual effects.
The 0-10V dimmable LED driver is an essential component for any application where adjustable lighting is needed, providing flexibility, energy efficiency, and enhanced ambiance. Let me know if you need any more information or assistance!
FAQ For DALI Dimmable LED Drivers
- A 0-10V dimmable LED driver is a device that controls the power supplied to an LED light fixture, allowing smooth dimming from 0% to 100% brightness using a 0-10V control signal. It’s commonly used in commercial, residential, and industrial lighting applications.
2. How does a 0-10V dimming system work?
- The 0-10V dimming system adjusts the light output by sending a low-voltage signal (0-10V) to the LED driver. At 0V, the light output is at its minimum or off, while at 10V, the light output is at its maximum brightness. The driver adjusts the power supplied to the LED according to the signal received.
3. Is the 0-10V dimmable LED driver compatible with all LED lights?
- No, not all LED lights are compatible with 0-10V dimming systems. Ensure that your LED fixture is designed for 0-10V dimming and check the driver specifications to confirm compatibility.
4. What types of dimmers can be used with a 0-10V dimmable LED driver?
- You can use any standard 0-10V dimmer or control system that sends a 0-10V signal, such as Lutron, Leviton, Schneider, and other popular brands. Make sure the dimmer is suitable for the load and power specifications of your LED driver.
5. Can I connect multiple LED fixtures to one 0-10V dimmable LED driver?
- Yes, you can connect multiple LED fixtures to a single 0-10V dimmable LED driver, provided that the total power consumption of the fixtures does not exceed the maximum output capacity of the driver. Always check the driver's wattage and current ratings before connecting multiple fixtures.
6. Is the 0-10V dimming system flicker-free?
- Yes, our 0-10V dimmable LED drivers typically provide smooth and flicker-free dimming. The high-performance MCU in these drivers ensures stable and consistent dimming performance.
7. How do I install a 0-10V dimmable LED driver?
- Installation involves connecting the AC power input (Live, Neutral, and Ground), the LED fixture output (Positive and Negative), and the 0-10V dimming control wires (Dim+ and Dim-). Always refer to the driver’s installation manual and follow safety protocols during installation.
8. Can I use a 0-10V dimmable LED driver for outdoor lighting?
- Yes, many 0-10V dimmable LED drivers are suitable for outdoor lighting applications, but ensure that the driver is rated for outdoor use, with appropriate IP (Ingress Protection) ratings for weather resistance.
9. What is the difference between 0-10V and other dimming methods like TRIAC or DALI?
- 0-10V dimming: Uses a low-voltage control signal to adjust brightness and is simple and widely used.
- TRIAC dimming: Commonly used in household dimmers, operates on AC mains, but may not provide as smooth dimming as 0-10V.
- DALI (Digital Addressable Lighting Interface): Offers more advanced control with digital signals, allowing individual fixture control but is more complex to install and configure.
10. Is a 0-10V dimmable LED driver energy-efficient?
- Yes, it is energy-efficient as it allows for adjustable brightness levels, reducing power consumption when full brightness is not needed.
11. What kind of warranty is typically offered with a 0-10V dimmable LED driver?
- Most quality 0-10V dimmable LED drivers come with a 3 to 5-year warranty, but it’s essential to check the specific product details for warranty coverage.
12. Can I retrofit my existing lighting with a 0-10V dimmable LED driver?
- Yes, many existing lighting systems can be retrofitted with a 0-10V dimmable LED driver. Ensure that the LED fixtures and dimming controls are compatible with the 0-10V system.
Feel free to reach out if you have any more questions or need further assistance!
