Products Description
HD16 160HP Power Shift Crawler Bulldozer
Crawler Bulldozers are powerful tracked machines that use mounted blades to move material.HD16 bulldozer is a 160hp power shift crawler bulldozer.The power shift transmission is more flexible and easy operating compared with mechanical transmission.
A reliable 131KW Weichai WD10G178E25 engine gives you the more power and reliability you need.The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.
A reliable 131KW Weichai WD10G178E25 engine gives you the more power and reliability you need.The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.
Product Paramenters
OVERALL | Dimension | 5140×3388×3032 mm | ||||
Operating Weight | 17000 kg | |||||
ENGINE | Model | Weichai WD10G178E25 | ||||
Type | Water-cooled, in-line, 4-stroke,direct injection | |||||
Number of Cylinders | 6 | |||||
Bore × Stroke | Φ126×130 mm | |||||
Piston Displacement | 9.726 L | |||||
Rated Power | 131 KW (178HP) @1850 rpm | |||||
Max Torque | 765 N·m @1300 rpm | |||||
Fuel Consumption | 214 g/kW·h | |||||
TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase | ||||
Transmission | Planetary gear type, power-shift, forced lubrication | |||||
Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||||
Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||||
Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||||
UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||||
No. of Carrier Rollers | 2 each side | |||||
No. of Track Rollers | 6 each side | |||||
No. of Track Shoes | 37 each side | |||||
Track Shoe type | Single Grouser | |||||
Width of Track shoe | 510 mm | |||||
Pitch | 203.2 mm | |||||
Track Gauge | 1880 mm | |||||
Ground Pressure | 0.067 Mpa | |||||
HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||||
Pump Type | Gear Pump | |||||
Displacement | 243 L/Min | |||||
Bore of Working Cylinder | 110 mm × 2 | |||||
BLADE | Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade | ||
Blade Capacity | 4.5 m³ | 4.3 m³ | 5 m³ | |||
Blade Width | 3388 mm | 3970 mm | 3556 mm | |||
Blade Height | 1150 mm | 1040 mm | 1120 mm | |||
Max Drop Below Ground | 540 mm | 540 mm | 530 mm | |||
MaxTilt Adjustment | 400 mm | – | 400 mm | |||
THREE SHANK RIPPER | Max digging depth | 572 mm | ||||
Max lift above ground | 592 mm | |||||
Weight of 3-shank ripper | 1667 kg | |||||
Main Features
Application
Our crawler bulldozer applicable for road construction,water and electricity engineering,farmland leveling,port building, mining and other engineering conditions.

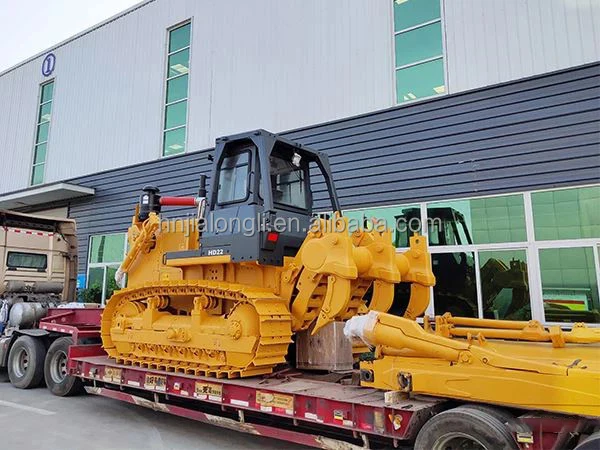

Packing and Shipping
Company Profile
Power shift crawler bulldozer hd16, China, suppliers, manufacturers, factory, cheap, price, with CE, for sale
We have more than 10 years experience in manufacturing and sales of construction machinery and learned a lot about the strengths and weaknesses of machinery,especially bulldozers and excavators.Looking forward to building good and long-term business relationships with all of our customers.
Our company mainly engaged in manufacturing and sales of construction machineries including dozers,loaders and excavators.The leading product is bulldozers,from 160hp to 320hp mechanical and hydraulic crawler bulldozers,with various types like standard type,swamp or wet-land type,sanitation type,forest logging type,coal mining type etc.
We have rich experience in handling orders for buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
Our brand bulldozers has ISO certificate and all the loaders and excavators are CE certificate approved.
Похожие товары
Shantui 220hp бульдозер SD20-B5 со стандартной версией низкая цена
Новый бульдозер HBXG 160HP TY165-3 большой 17ton гусеничный по низкой цене
3 191 940,10 ₽ - 4 622 809,80 ₽
Дорожная техника горнодобывающее оборудование бульдозер Shantui SD13 130HP гусеничный
5 324 520,00 ₽ - 6 433 795,00 ₽
Болотный гусеничный бульдозер компактный 160HP ND16 небольшой мини-водно-болотный
224 517,26 ₽
Китайский Новый гидравлический бульдозер SD16 160 л.с. гусеничный SD16TL дешевая цена болотный для продажи
4 953 010,50 ₽ - 5 063 077,40 ₽
Бульдозер Skymard SHANTUI SD34 б/у китайского происхождения бренд SD16 SD17 SD19 SD32 используемый бульдозер для продажи
1 996 695,00 ₽ - 2 218 550,00 ₽

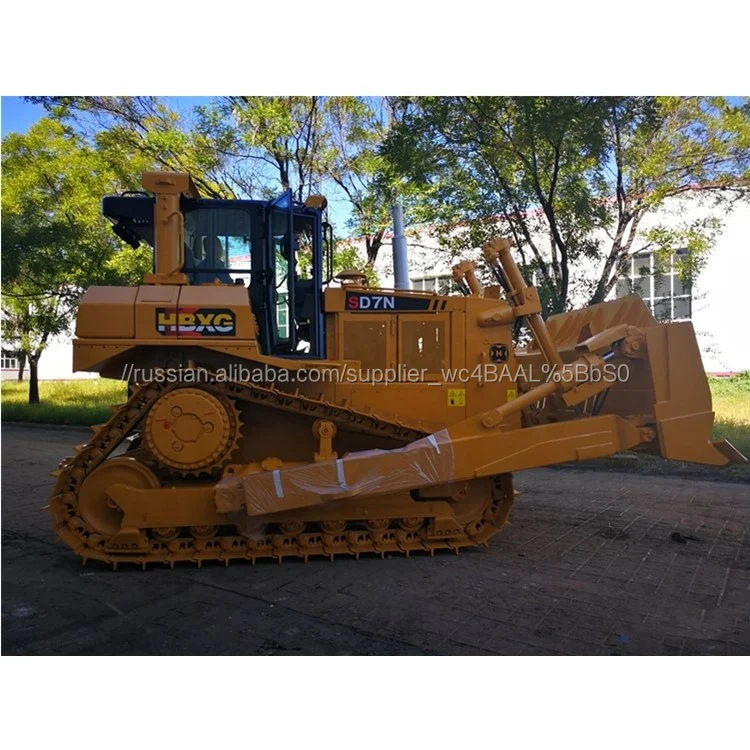

Китай HBXG 230HP мини болото гусеничный бульдозер на продажу SD7N
