Feetech SM70BL Монстр крутящий момент 70 кг четыре подшипника HV бесщеточный RC сервопривод для большого размера самолета/грузовика
- Категория: >>>
- Поставщик: Shenzhen Feite Model Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601260367595:
Описание и отзывы
Характеристики
Product Description
Product Name | 24V 70cm Serial Control RS485 Servo |
Product Model No | SM-70BL-C001 |
Structure Size | 40X20X47.8 |
Product Weight | 91.6±1g |
24Vcm Serial Control RS485 Servo
SM70BL it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback
position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and other industries.
position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and other industries.
(Item) | (Specification) | ||||||||
Operating Voltage | 24V | ||||||||
±10% No Load Speed | 0.13sec/60° (78RPM) | ||||||||
±10% Running Current ( no load) | 180mA | ||||||||
Stall Torque (at locked) | 70kg.cm | ||||||||
973.81oz.in | |||||||||
±10% Stall Current (at locked) | 3.5A | ||||||||
±10% Idle Current (at stopped) | 22mA | ||||||||
Input Voltage | 16.8V-25.2V | ||||||||
Rated Torgue | 17.5kg.cm | ||||||||
Rated Current | 870mA | ||||||||
Terminal resistance | 4.55Ω | ||||||||
Kt | 20kg.cm/A | ||||||||
(Item) | (Specification) | ||||||||
Size | 40X20X47.8 | ||||||||
Limit Angle | No limit | ||||||||
Case material | Aluminium | ||||||||
Gear material | Steel | ||||||||
Bearing type | Ball bearings | ||||||||
Angle Sansor | Type | 12Bits Magnetic Coding | |||||||
Connector and Cable | Type | TJC25020-4P | |||||||
Material | PP | ||||||||
Length | 40CM+/-10mm | ||||||||
Pin Definition | 1 | GND | |||||||
2 | Vcc | ||||||||
3 | Signal/B | ||||||||
4 | Signal/A | ||||||||
The Weight | 91.6±1g | ||||||||
Horn Type | 25T/OD5.9mm | ||||||||
Gear Ratio | 1/356 | ||||||||
Back Lash | ≦0.5° | ||||||||
The rocker phantom | 0° | ||||||||
The rocker screw | M3.0 | ||||||||
Motor | 4 Pole Brushless motor | ||||||||
(Item) | (Specification) | ||||||||||
Command Signal | Digital Packet | ||||||||||
Protocol Type | Half Duplex Asynchronous Serial Communication | ||||||||||
ID range | 0-253 | ||||||||||
Communication Baud Rate | 38400bps ~ 1 Mbps | ||||||||||
Control Algorithm | PID | ||||||||||
Neutral Position | 180°（2047） | ||||||||||
Running degree | 360°(when 0～4095) | ||||||||||
Resolution [deg/pulse] | 0.088°(360°/4095) | ||||||||||
Rotating Direction | Clockwise(0→4095） | ||||||||||
Feedback | Load, Position, Speed, Input Voltage，Current,Temperature | ||||||||||

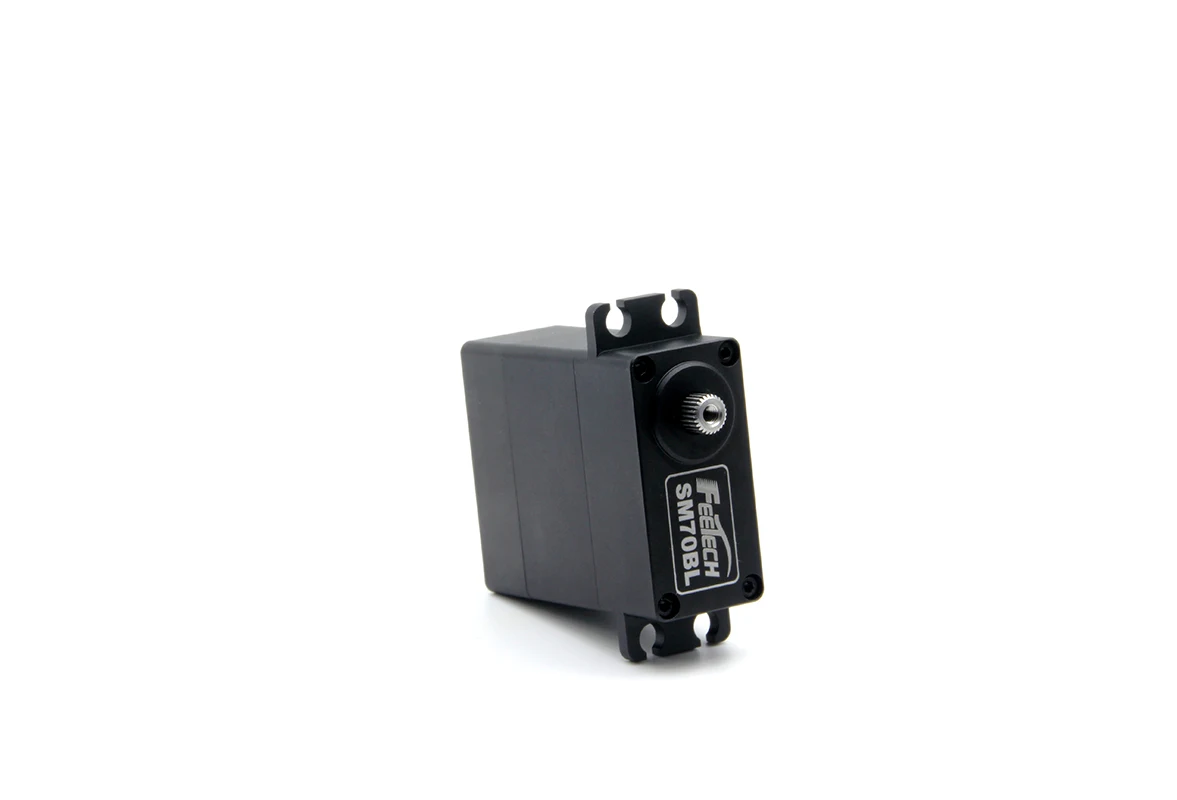

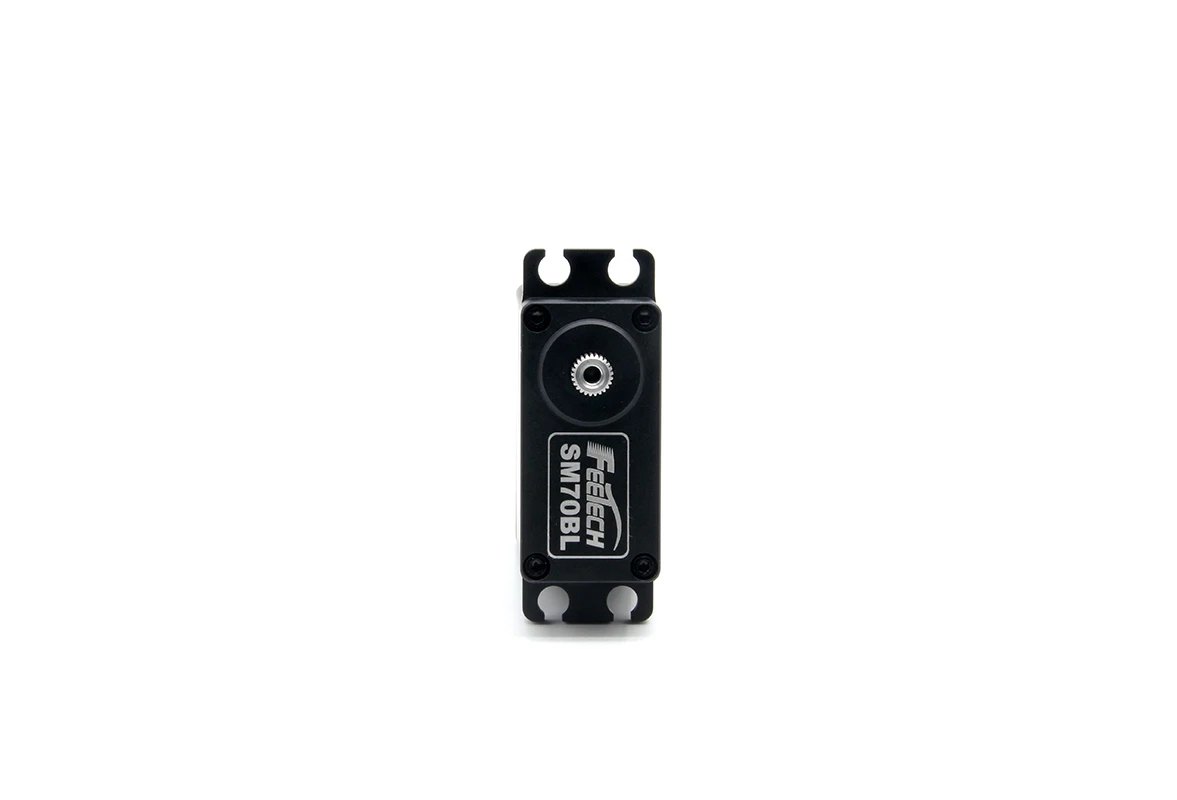

Details Images
24V 80KG.cm Serial Control RS485 Servo

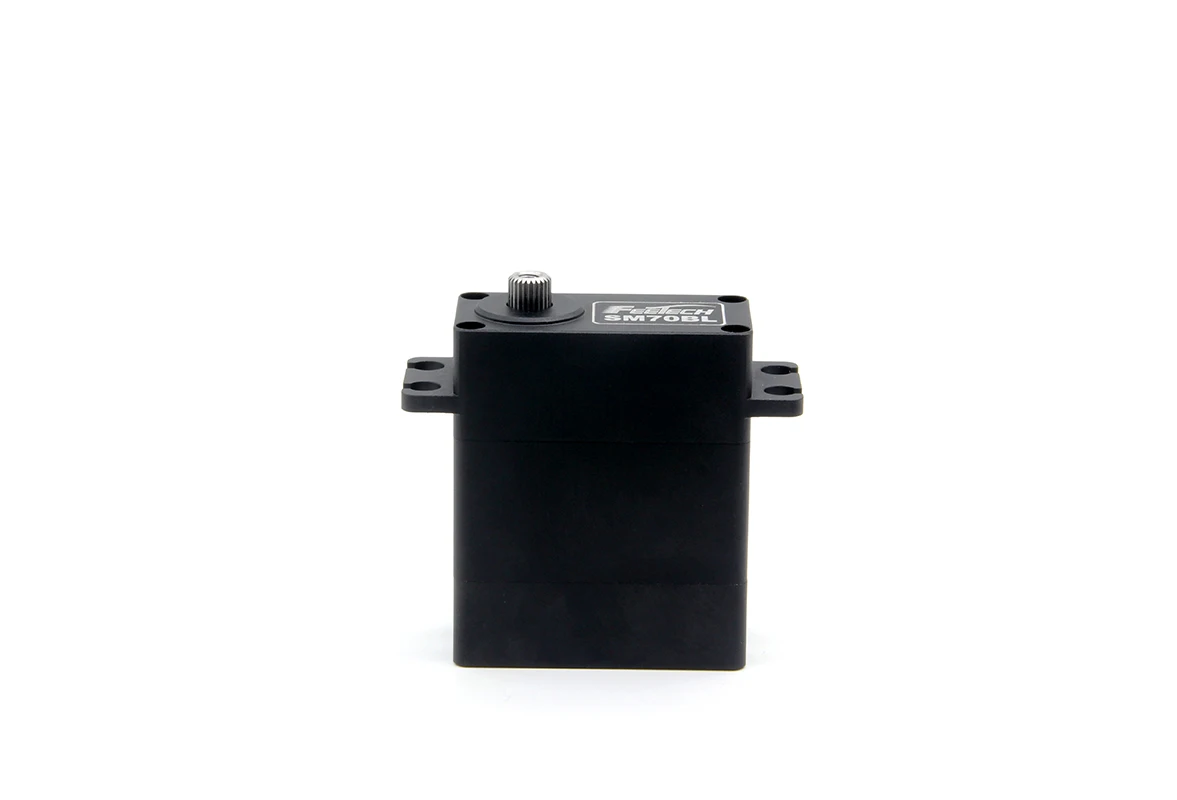

front

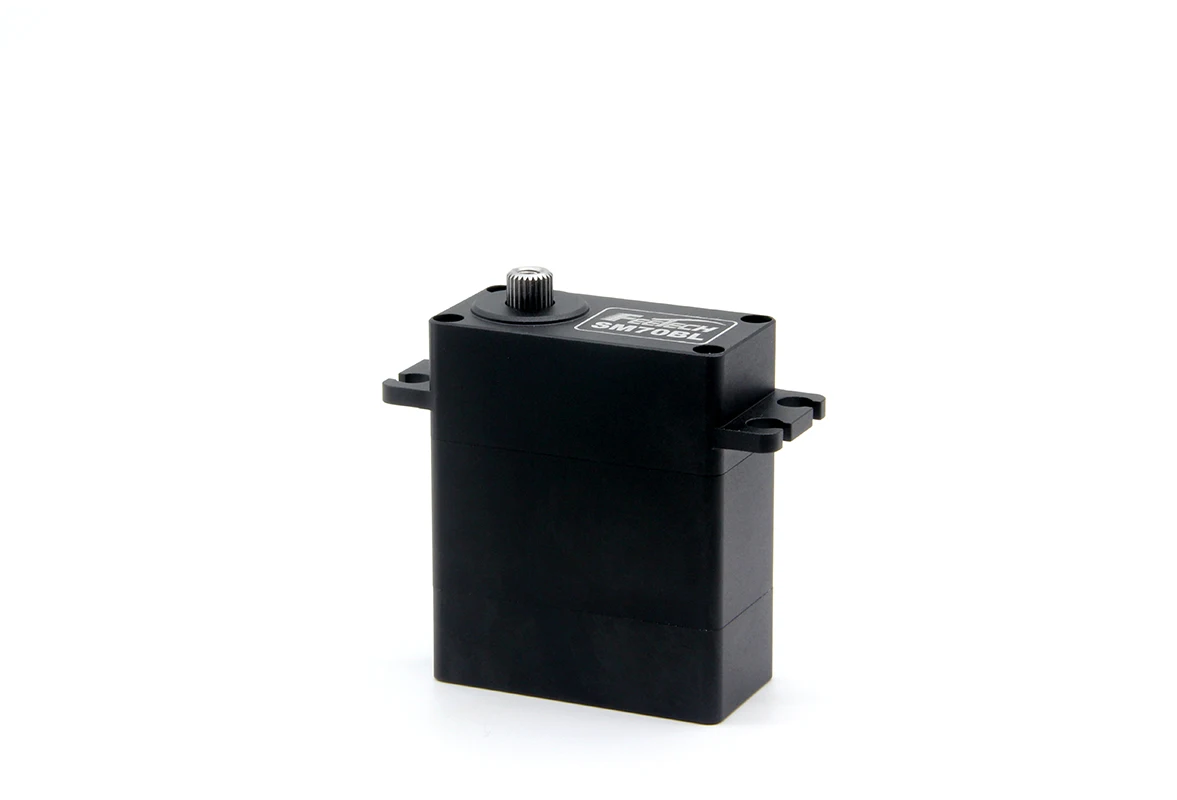

Side

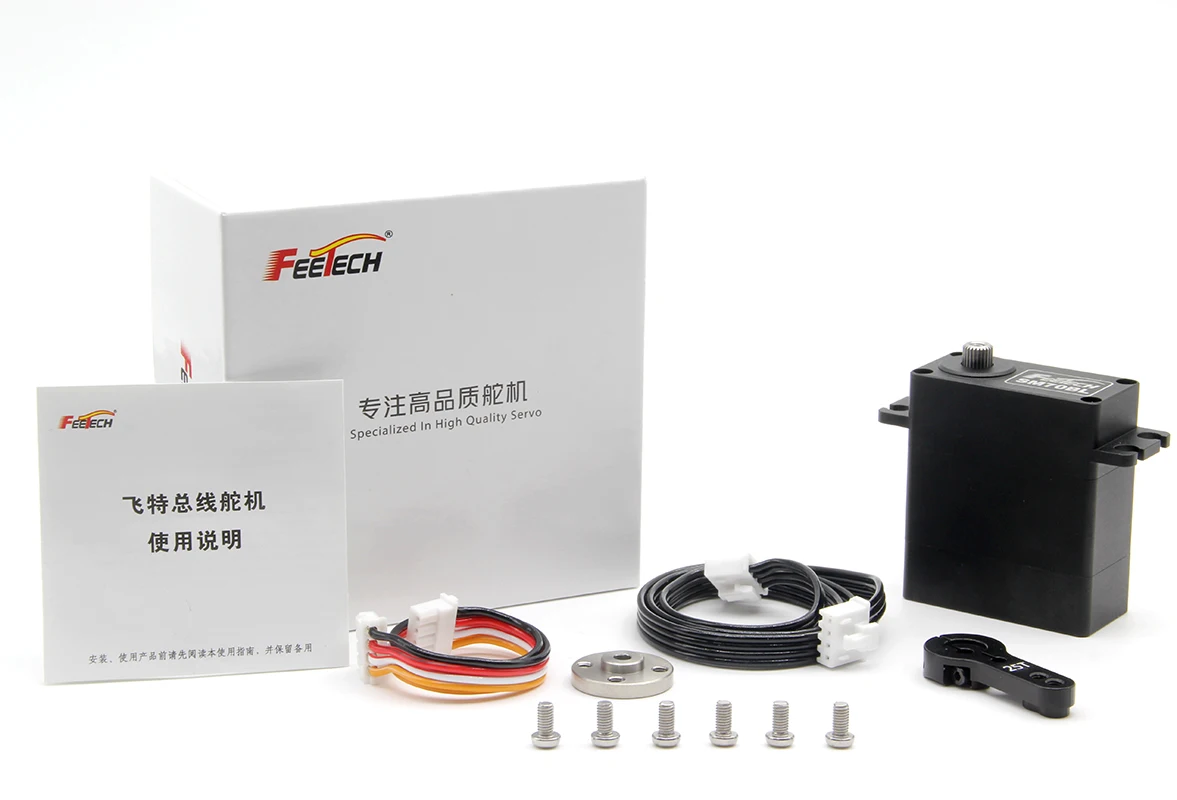

Packing
Product Usage
1，Refer to URT-1 instructions.pdf
2, Bill of materials：
① URT-1 drive board.
② The MINI USB Wire Connect the driver board to the computer.
③ power supply to Feetech Servo.
④ The wire between Servo and drive board.
⑤ DuPont line (used for URT and MCU connection. Please refer to the question answer on page 9 of this document). 3，.Connect URT-1 and computer.
4，Install Driver，Refer to document of CH340 drive，Check the serial number of the device manager.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Connect servo to URT-1 ，URT-1 connect to power，refer to the picture
Open the software FD software for debugging
select port number（ The serial number of the device manager） -Baud rate: the baud rate of SCS / STS series servo is 1000000, and that of SMS series is 115200 (baud rate is not correct / or the servo has no power supply ID can not be searched) - Open Search.
