Инвертор EASUN 11 кВт Встроенный MPPT 120A с Wi Fi без батареи параллельной работы
- Категория: >>>
- Поставщик: Easun Power Technology Corp Limited
Сохранить в закладки 1601260564372:
Описание и отзывы
Характеристики
Specification
MODEL | ISolar-SMG-II-8.5KW-48V WiFi | ISolar-SMG-II-11KW-48V WiFi | ||||
Capacity(Rated Power) | 8.5KVA/8.5KW | 11KVA/11KW | ||||
Parallel Capability | NO | NO | ||||
Lithium Battery activation | YES ( By PV or Utility) | YES ( By PV or Utility) | ||||
Work without battery | YES (PV voltage >150v) | YES (PV voltage >150v) | ||||
Lithium Battery communication | YES(RS485) | |||||
INPUT | ||||||
Nominal Voltage | 230VAC | 230VAC | 230VAC | |||
Acceptable Voltage Range | 170-280VAC(For personal Computer); 90-280vac(For Home Appliances) | |||||
Frequency | 50/60 Hz(Auto sensing) | |||||
OUTPUT | ||||||
Nominal Voltage | 220/230VAC土5% | |||||
Surge Power . | 17000VA | 22000VA | 7000VA | |||
Frequency | 50/60Hz | |||||

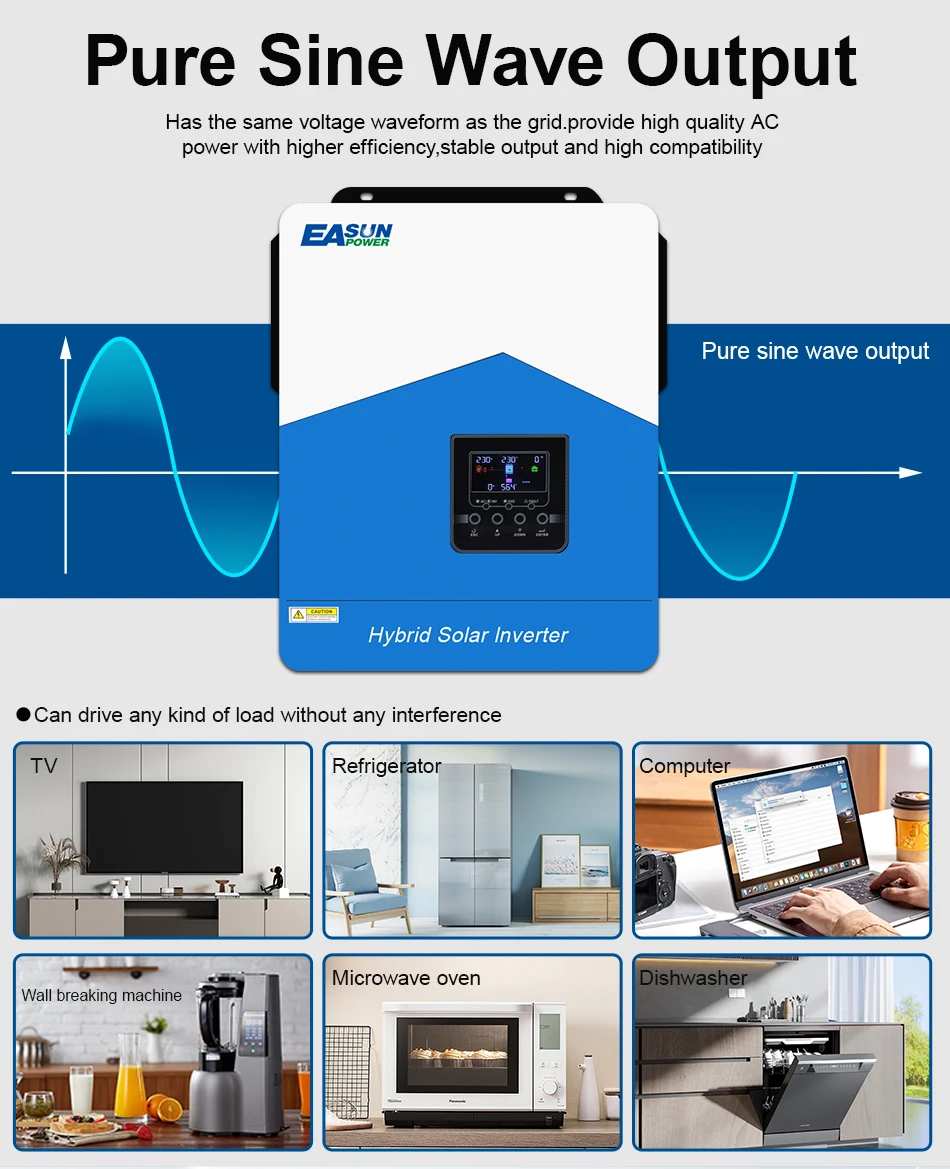

Waveform | Pure Sine wave | |||||
Transfer Time | 10ms(For personal Computer); 20ms(For Home Appliances) | |||||
Peak Efficiency(PV to INV) | 94% | |||||
Peak Efficiency(Battery to INV) | 93% | |||||
Overload Protection | 5s@ > = 140% load; 10s@100%~ 140% load | |||||
Crest Factor | 3:01 | |||||
Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||
BATTERY | ||||||
Battery Voltage | 48V | 48VDC | 24Vdc | |||
Floating Charge Voltage | 54V | 54VDC | 27Vdc | |||
OverCharge Protection | 63V | 63VDC | 32Vdc | |||
Charging Method | CC/ CV | CC/ CV | CC/ CV | |||
SOLAR CHARGER & AC CHARGER | ||||||
Solar Charger Type | MPPT | MPPT | MPPT | |||
Max.PV Array Power | 5000W*2 | 5000W*2 | 4000W | |||
Max.PV Array Open Circuit Voltage | 500VDC | 500VDC | 500VDC | |||
PV Array MPPT Voltage Range | 60VDC ~ 500VDC | 60VDC ~ 500VDC | 30VDC~ 500VDC | |||
Max.Solar Input Current | 18A*2 | 18A*2 | 15A | |||
Max.Solar Charge Current | 140A | 160A | 100A | |||
Max.AC Charge Current | 120A | 120A | 60A | |||
Max.Charge Current (PV+AC) | 140A | 160A | 100A | |||
PHYSICAL | ||||||
Dimensions,D x W x H(mm) | 540*415*122 | 540*415*122 | 330*278*98 | |||
Package Dimensions,DxWxH(mm) | 637x495x214 | 637x495x214 | 400*365*174 | |||
Net Weight(Kg) | 14 | 15 | 6 | |||

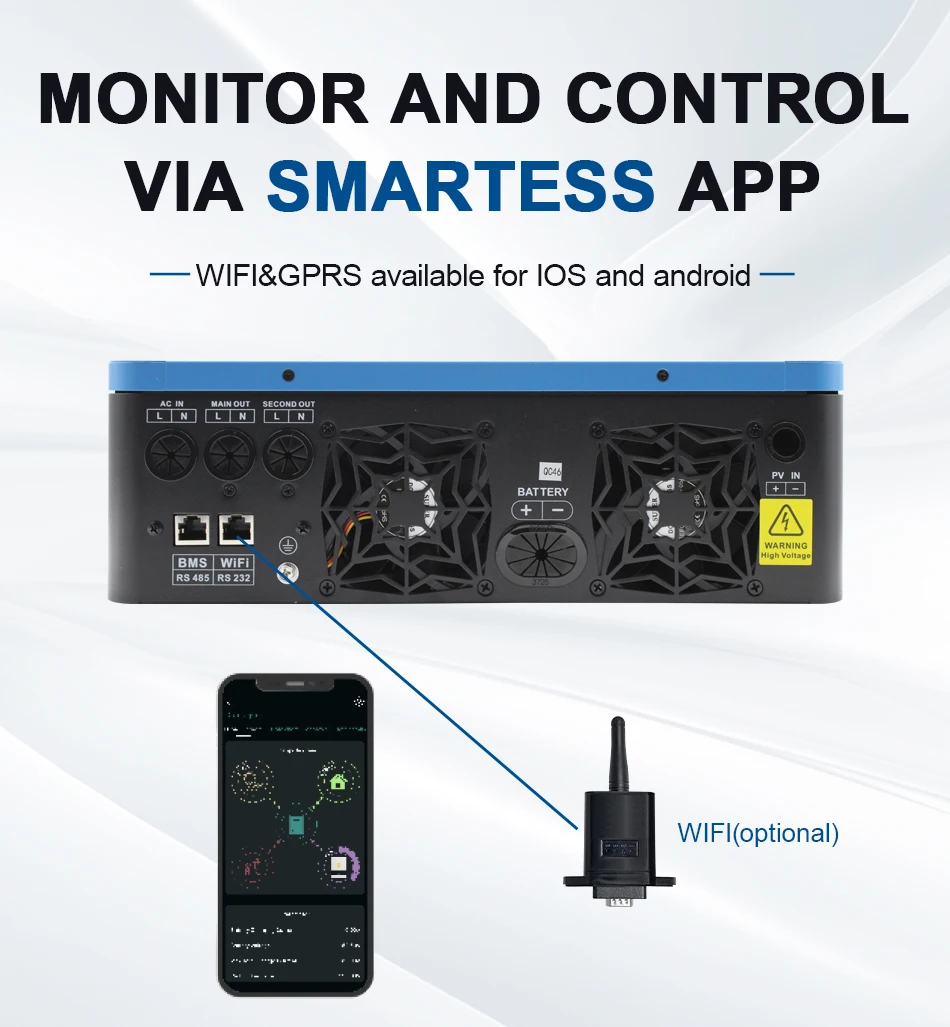

Communication Interface | RS232/RS485/DRY CONTACT | RS232/RS485/DRY CONTACT | RJ45 For WIFI | |||
ENVIRON MENT | ||||||
Operating Temperature Range | (-10°C to 50°C) | |||||
Storage Temperature | (-15°C ~ 50°C) | |||||
Humidity | 5% to 95% Relative Humidity ( Non-condensing ) | |||||
Product Description
Company Profile
FAQ
Q1. May I take some samples to test before placing the order ?
Answer: Yes, customers need to pay for the sample and delivery cost.
Q2. What's your payment terms for sample?
Answer: You can pay via T/T or Trade Assurance.
Q3. How long can you offer the samples?
Answer: 1~3 days after the payment is confirmed.
Q4. What’s the delivery terms you can offer?
Answer: We can accept EXW, FOB, CFR, CIF,CIP,FCA,Express Delivery.
Q5. Do you have any certifications for your products?
Answer: We have ISO9001:2015, CE, RoHS certifications for all of our products.
Q6. How to order ?
Answer: Step 1, please tell us model name or link and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the scheduled time.
Q7. Is it OK to print my logo on product?
Answer: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8. What is your term of payment and delivery?
Answer: Our term of payment is by T/T,PayPal,Western Union,Cash,Escrow etc,30% in advance for deposit and balance payment before shipment;
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Transportation: DHL, UPS , EMS, FedEx, TNT, Air freight , Sea freight, Train way.
Q9. Why choose us ?
Answer: With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center.
Q2. What's your payment terms for sample?
Answer: You can pay via T/T or Trade Assurance.
Q3. How long can you offer the samples?
Answer: 1~3 days after the payment is confirmed.
Q4. What’s the delivery terms you can offer?
Answer: We can accept EXW, FOB, CFR, CIF,CIP,FCA,Express Delivery.
Q5. Do you have any certifications for your products?
Answer: We have ISO9001:2015, CE, RoHS certifications for all of our products.
Q6. How to order ?
Answer: Step 1, please tell us model name or link and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the scheduled time.
Q7. Is it OK to print my logo on product?
Answer: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8. What is your term of payment and delivery?
Answer: Our term of payment is by T/T,PayPal,Western Union,Cash,Escrow etc,30% in advance for deposit and balance payment before shipment;
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Transportation: DHL, UPS , EMS, FedEx, TNT, Air freight , Sea freight, Train way.
Q9. Why choose us ?
Answer: With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center.
