Высококачественная заводская цена доломитовая Порошковая роликовая мельница Поставщик 3r2115 raymond мельница машина для кварца для продажи
1 301 230,80 ₽ - 1 626 538,50 ₽
Новая технология HGM88 порошковая мельница для барит каолин гипс известняковый порошок с высоким качеством горячая распродажа
- Категория: >>>
- Поставщик: Henan Hongxing Mining Machinery Co. Ltd.
Сохранить в закладки 1601261388672:
Описание и отзывы
Характеристики
Products Description

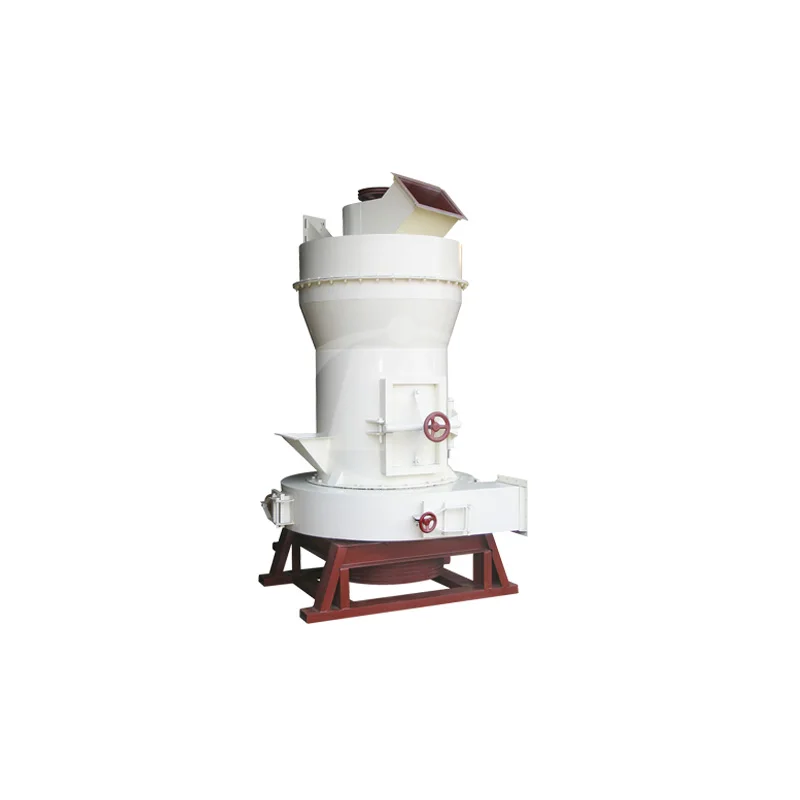

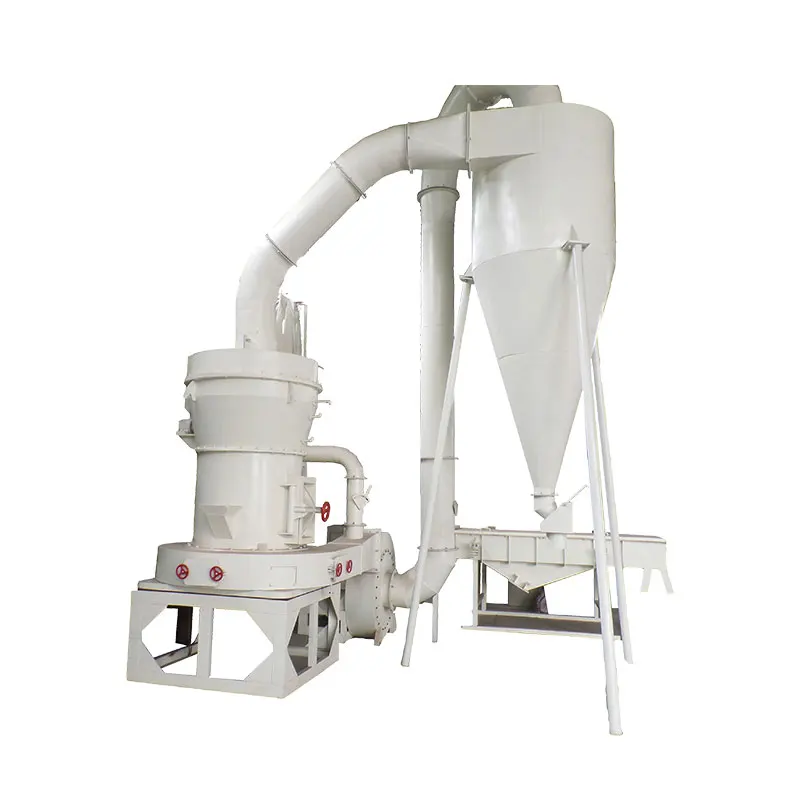

HGM Power Grinding Mill Introduction:
The HGM series superfine grinding mill is the new-type product with high-level techniques, developed by Hongxing Group, with more than 20 years’ experience in the R&D of powder grinding equipment, absorbing the good powder grinding techniques and concepts. It is applied to process the non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 7%, such as quartz, feldspar, calcite, limestone, talc, etc. The final product’s fineness can be adjusted at random between 0.18mm (80 mesh)-0.01mm (800 mesh).
Working Principles:
The materials being crushed into small particles will be sent to the storage hopper by bucket elevator, and then being sent to the host at station by the electric vibrating feeder to be ground. The grinder roller device, hanging on the star rack,rotates around the center shaft in the host, and the grinding roller turns on its own axis at the same time. The grinder roller swings outwards and presses grinding rings under the action of centrifugal force. The grinding materials can be mashed and grounded under the action of grinding rollers. The air blower blows powders to the analytic engine to be analyzed in the grinding chamber, and the fineness of the materials will fall into the host to be grounded again, and if the fineness meeting the specification,they will enter the whirlwind collecting machine following airflow and will become the finished products after being collected and discharged through discharging pipe.The purified airflow will enter into the air blower through the pipeline on the upside of the whirlwind machine collector and grinding chamber.the wind road is circular,the pipe between air blower and grinding chamber is positive pressure,other pipe is negative pressure.The dust cannot overflow, so it can protect the environment. Thanks to the moisture in the materials will be evaporated into gas, which flows through the pipeline and the feed inlet and increases the air volume in the cycle roads,and the increased air volume will be discharged after being purified by the bag-type dust collector.
Structural Advantages of HGM Mill:
①:Grinding roller assembly The seal adopts German technology, the refueling cycle is short,and the maintenance frequency is reduced. It is currently at the world advanced level.
②: Powder classifier
The powder classifier adopts a low-resistance hanging cage powder classifier with high separation effi-ciency. ③: Heavy-duty base Make the equipment run more smoothly;the external anchor bolts reduce the blockage of the air duct.
④: Booster device
Increase the grinding pressure when the equipment is running. ⑤:Cooling system The novel internal thin oil lubrication system plays the role of lubrication, cooling and filtering,long oil change interval,low oil cost,and low maintenance frequency.
②: Powder classifier
The powder classifier adopts a low-resistance hanging cage powder classifier with high separation effi-ciency. ③: Heavy-duty base Make the equipment run more smoothly;the external anchor bolts reduce the blockage of the air duct.
④: Booster device
Increase the grinding pressure when the equipment is running. ⑤:Cooling system The novel internal thin oil lubrication system plays the role of lubrication, cooling and filtering,long oil change interval,low oil cost,and low maintenance frequency.
Features:
High efficiency and large output, lower operation cost.
Split Modular structure, easy maintenance. The transmission form of coupling reduce is compact in structure; famous brand reducer,reliable quality.
Roller linkage pressurization technology, stable opera-tion,high grinding pressure, and a significant increase in output.
The unique spindle structure enables the upper part of the spindle to realize thin oil lubrication,and the external cooling filter
ensures the normal operation of the equipment.
ensures the normal operation of the equipment.
The unique steel frame supports the analyzer,which makes the equipment run more smoothly,provides conve-nience for the inspection,refueling,and maintenance.
The split-type middle machine body makes it more con-venient to replace the grinding ring,reduces manpower and reduces maintenance costs.
The use of high-pressure centrifugal fans is energy-saving and high-efficiency,which can ensure stable wind power for system
operation.
operation.
The turbine type powder separator is used to improve the efficiency and precision, and the wide-frequency motor provides a wide range of powder selection.
Equipped with a special pulse dust collector,the dust re-moval effect can reach more than 99.99%,and the dust-free operation of the workshop is basically realized.
The enlarged cyclone powder collector, combined with the closed air feeder, greatly improves the powder collection rate and reduces the powder back.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Milling process:
①Jaw crusher
②Bucket elevator
③Silo
④Electro-vibrating feeder
⑤Main machine
⑥Analyzer
⑦ Cyclone powder collector
⑧Wind duct
⑨Blower
⑩ Pulse dust collector
Technical Parameters:
Model | Feeding size | Output size | Processing capacity | Number of pulverizing roller | Main motor | Fan motor | Analyzer motor |
HGM88 | ＜20mm | 0.25-0.015mm | 0.4-5t/h | 3 | 22kw | 22kw | 5.5kw |
Goods Delivery:

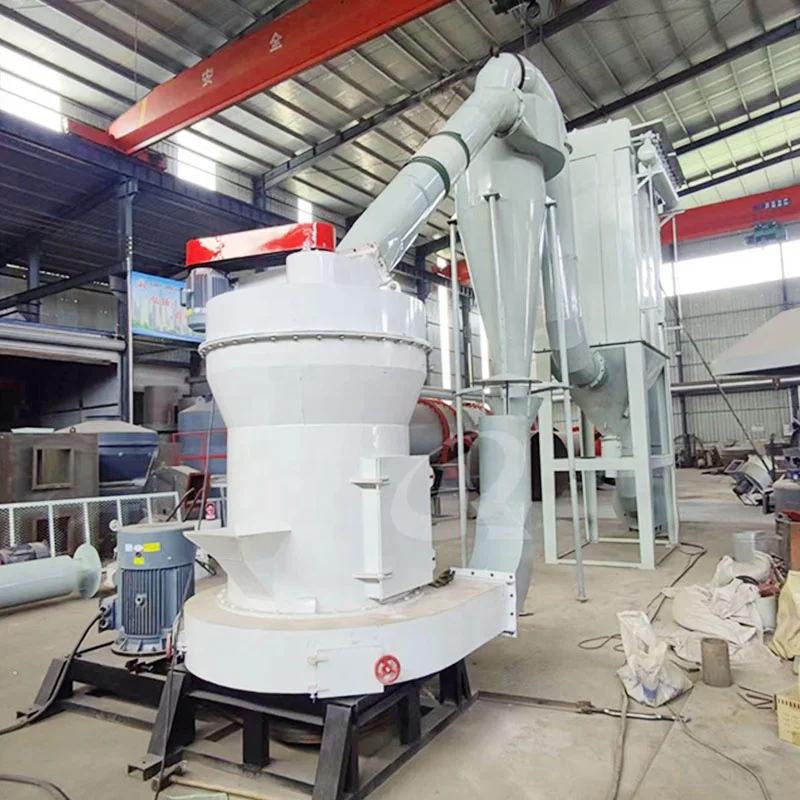

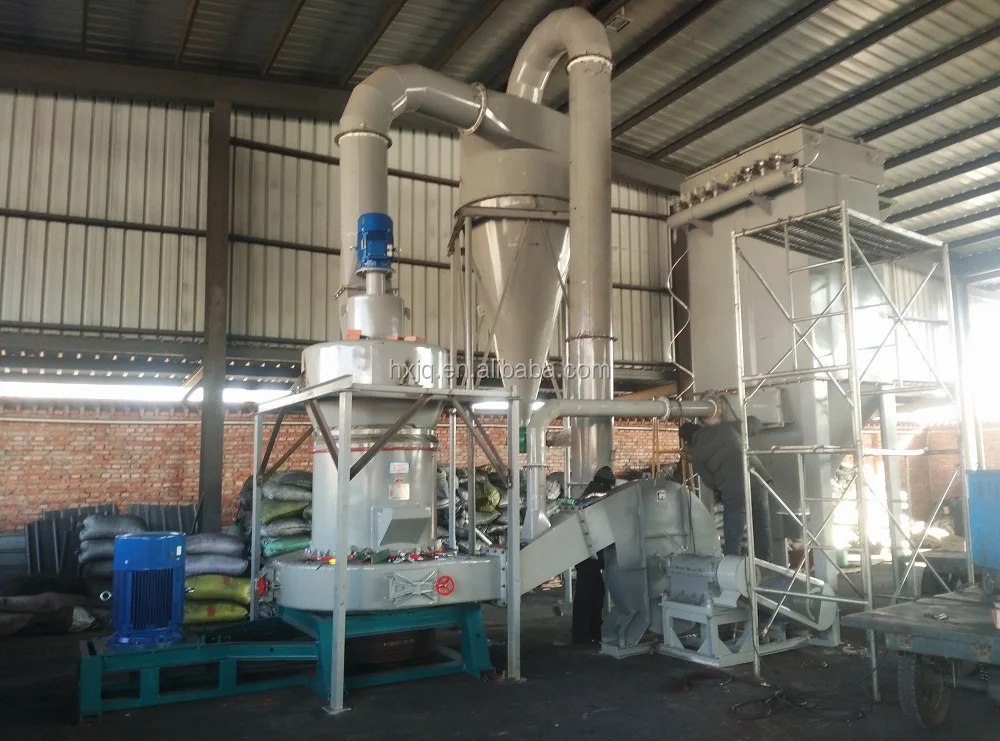

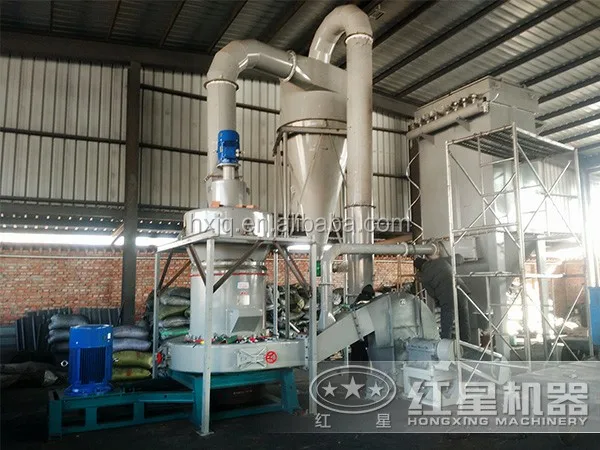

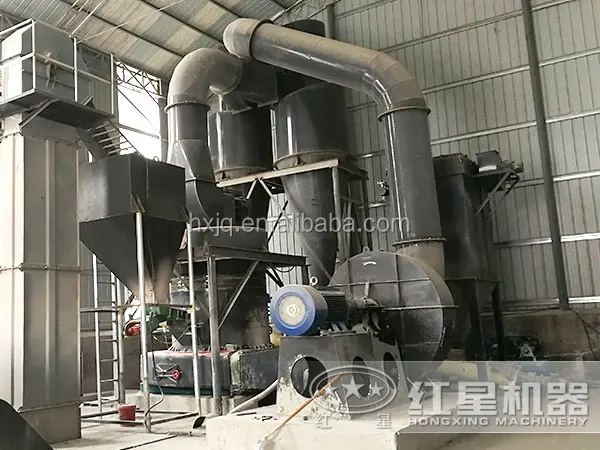

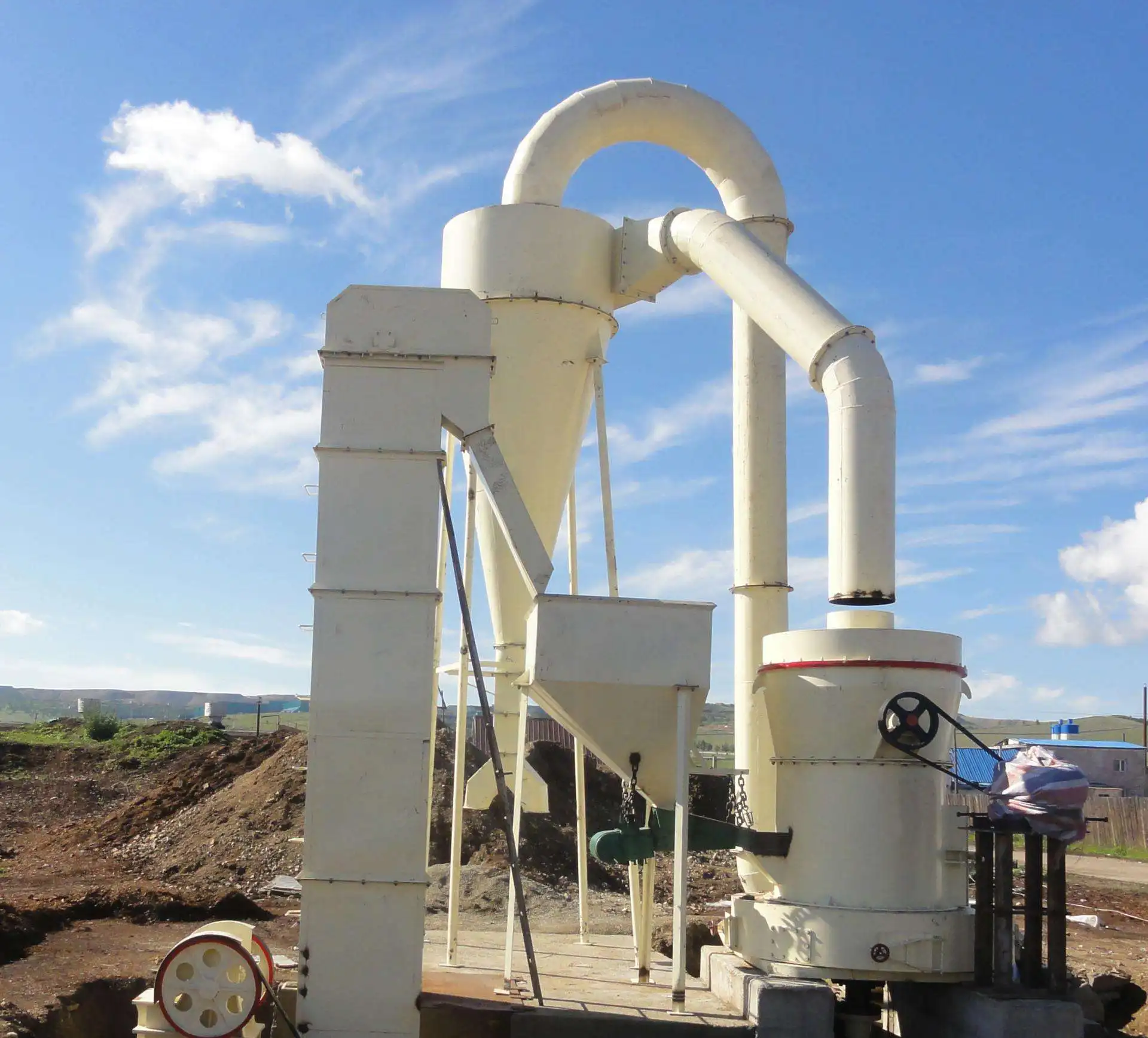

Working Site:

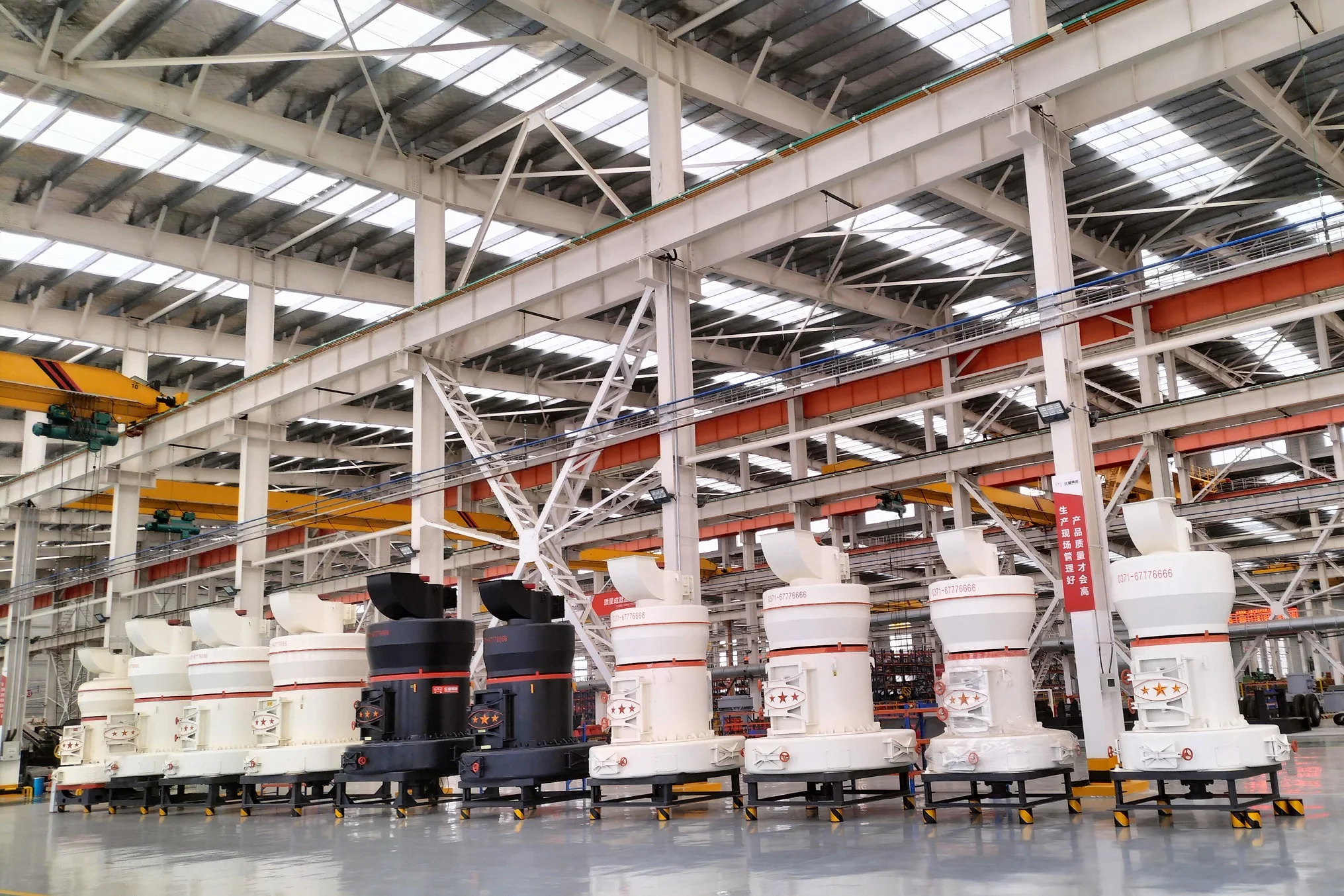

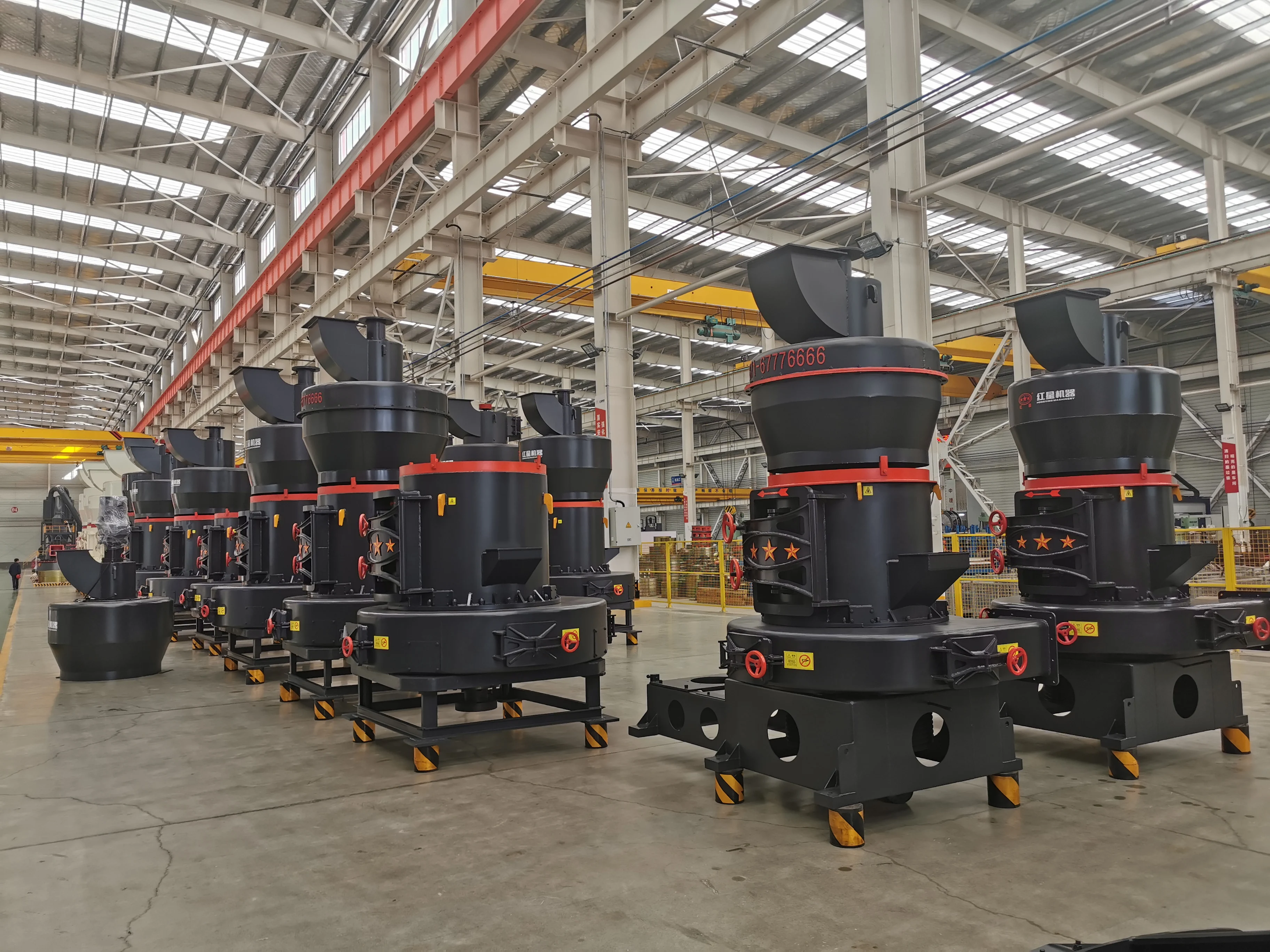

Four Large Production Bases:
ABOUT HONGXING
Hongxing is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machinery and
integrating scientific research, production and sales together. It currently has four large-scale production bases.
The company headquarter is located in Zhengzhou High-tech Industrial Development Zone, with a total area of 350,000
square meters, 260,000 square meters of standardized heavy industrial workshop, and more than 600 advanced production and
processing equipment. There are more than 2,300 online employees, including more than 360 management cadres and
engineering technician with middle and senior titles. Hongxing built an internationally advanced production line and a first-class modern testing base, establishing a sand and stone machine research institute, a milling machine research institute, a mineral processing equipment research institute and a building material equipment research institute. All the products have passed the ISO9001, CE and GOST international quality system certification. Its reliable and stable quality makes the company's production and sales volume and various comprehensive economic indicators steps into the forefront of the domestic industry, tens of thousands of users all over the country and exported to more than 100 countries.
integrating scientific research, production and sales together. It currently has four large-scale production bases.
The company headquarter is located in Zhengzhou High-tech Industrial Development Zone, with a total area of 350,000
square meters, 260,000 square meters of standardized heavy industrial workshop, and more than 600 advanced production and
processing equipment. There are more than 2,300 online employees, including more than 360 management cadres and
engineering technician with middle and senior titles. Hongxing built an internationally advanced production line and a first-class modern testing base, establishing a sand and stone machine research institute, a milling machine research institute, a mineral processing equipment research institute and a building material equipment research institute. All the products have passed the ISO9001, CE and GOST international quality system certification. Its reliable and stable quality makes the company's production and sales volume and various comprehensive economic indicators steps into the forefront of the domestic industry, tens of thousands of users all over the country and exported to more than 100 countries.
CORPORATE HONOURS
Since its establishment, Hongxing group lays much emphasis on the quality and clients, regards quality as its life and
respects users as God, and has always followed the quality policy of being responsible for each process, being responsible for
each product, and being responsible for each user, and dedicated to serving users wholeheartedly. Aiming at the forefront contemporary technology, Hongxing continuously develops, introducs new products, and strives to strive for a first-class level in management, scientific research,technology, etc. Now all the company's products have passed ISO9001, CE and GOST international quality system certification. “Hongxing brand machine” has won "China's famous brand" and "China's top ten brands of mining machinery" and many other awards. Hongxing occupies the market with products, creates the market with services, and leads the market with brands. "Building a hongxing brand and satisfying users" is the eternal pursuit of Hongxing group.
respects users as God, and has always followed the quality policy of being responsible for each process, being responsible for
each product, and being responsible for each user, and dedicated to serving users wholeheartedly. Aiming at the forefront contemporary technology, Hongxing continuously develops, introducs new products, and strives to strive for a first-class level in management, scientific research,technology, etc. Now all the company's products have passed ISO9001, CE and GOST international quality system certification. “Hongxing brand machine” has won "China's famous brand" and "China's top ten brands of mining machinery" and many other awards. Hongxing occupies the market with products, creates the market with services, and leads the market with brands. "Building a hongxing brand and satisfying users" is the eternal pursuit of Hongxing group.
