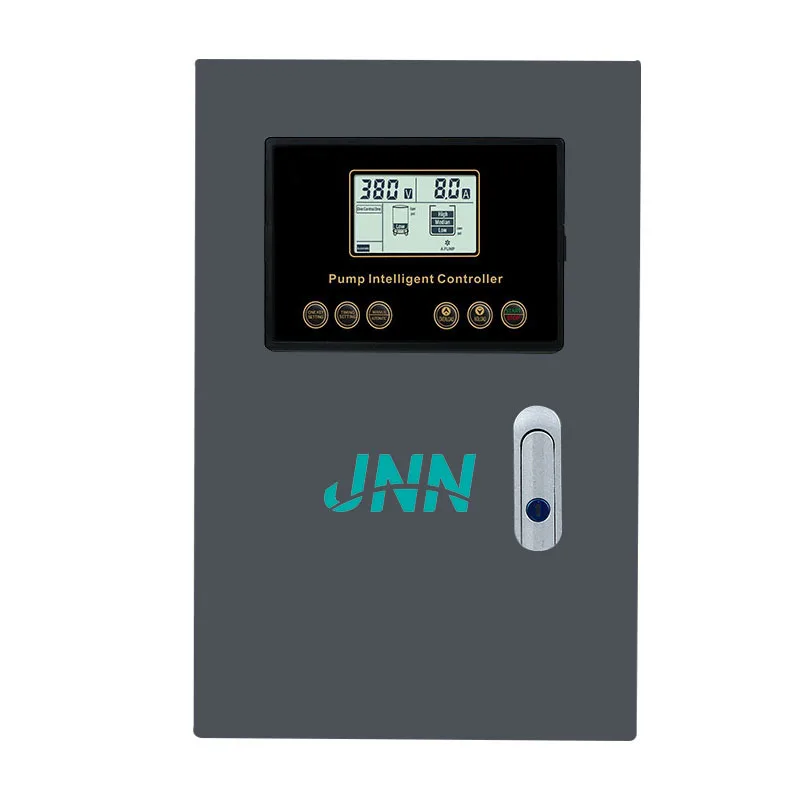

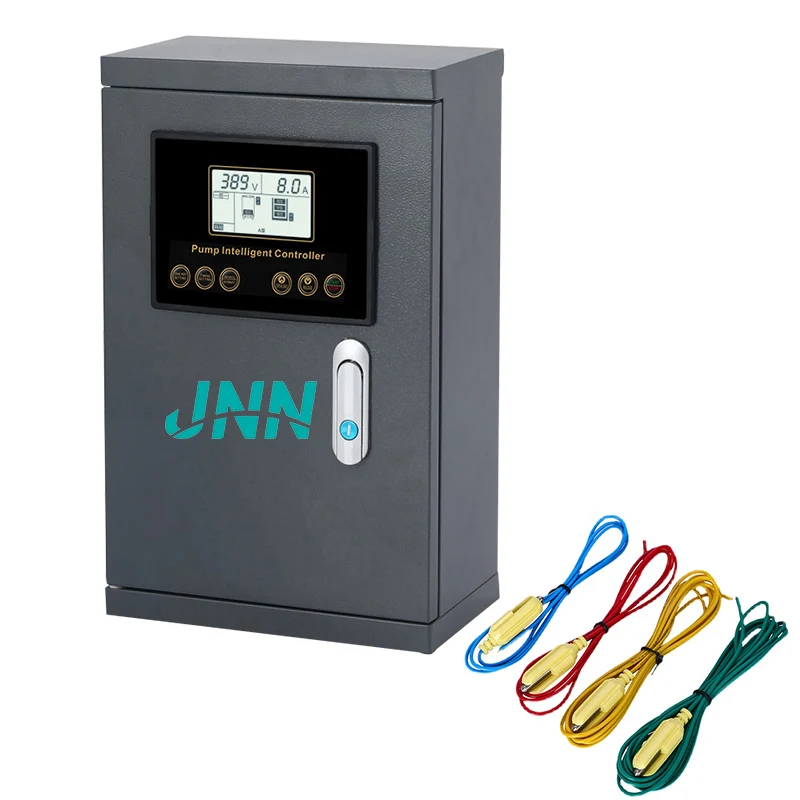

Домашние сельскохозяйственные угодья 12 В 24 48 60
6 707,22 ₽
Железный бассейн Поплавковый насос панель управления коробка таймер переключатель давления контроллер водяного насоса
- Категория: >>>
- Поставщик: Yueqing Haiyin Electric Co. Ltd.Yueqing Ltd.
Сохранить в закладки 1601261542780:
Описание и отзывы
Характеристики

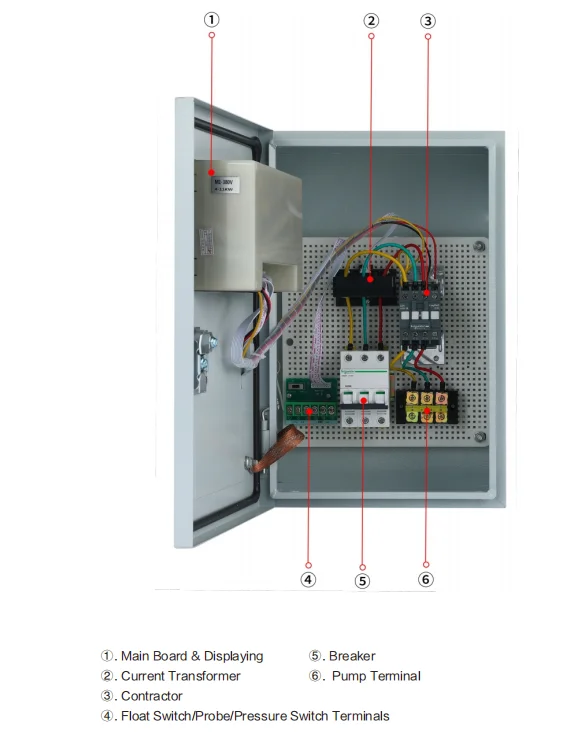

Product Structure

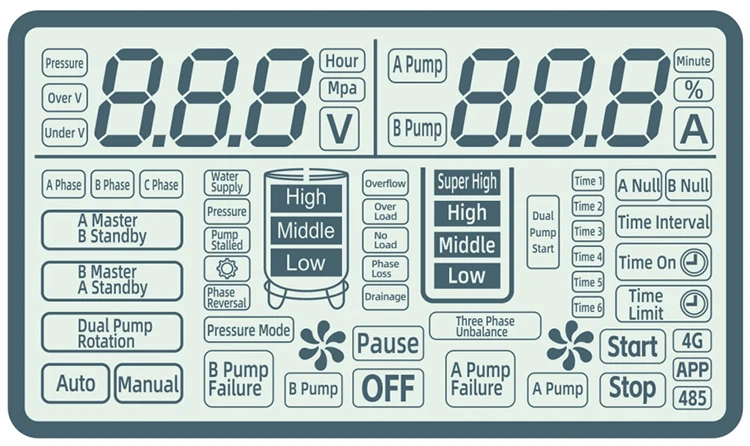

LCD screen
Monitor pump run statuses and set parameters
Product Description
30M2 series steel/iron pump controller is single phase or three phase pump control panel series for manual and automatic operation of two pumps up to 15KW. With tens of thousands of pump controllers throughout China, our pump control panels are of the highest quality pump controllers, built for pump up/pump down residential,commercial and industrial sump and sewage applications.
The enclosure is of factory built, wall mounted type with gasketed locked doors, which may not be opened without a separate key.Material 1mm powder-enameled steel plate.The panels are as standard built for indoor installation.All external connections are made from the bottom side, on suitable sized and clearly marked terminals.
The enclosure is of factory built, wall mounted type with gasketed locked doors, which may not be opened without a separate key.Material 1mm powder-enameled steel plate.The panels are as standard built for indoor installation.All external connections are made from the bottom side, on suitable sized and clearly marked terminals.
Specification
Type | 30M1（Single Pump Control） | ||||||||||
Model | 30M1-4KW | 30M1-7.5KW | 30M1-11KW | 30M1-15KW | 30M1-18.5KW | 30M1-22KW | |||||
Rated Power | 0.75-4KW | 1.1-7.5KW | 1.1-11KW | 2.2-15KW | 3-18.5KW | 4-22KW | |||||
Type | 30M2 (Dual Pump Control) | ||||||||||
Model | 30M2-4KW | 30M2-7.5KW | 30M2-11KW | 30M2-15KW | |||||||
Rated Power | 0.75-4KW | 1.1-7.5KW | 1.1-11KW | 2.2-15KW | 3-18.5KW | 4-22KW | |||||
Rated Input Voltage | 380+10%/50Hz or 60Hz 220V+10%/50Hz or 60Hz | ||||||||||
Qty.of Controlled Pump | One or Two pumps | ||||||||||
Display | LCD display | ||||||||||
Pump Modes | One duty one standby Dual pump automatic switch in faults Dual pumps alternate Dual pump start | ||||||||||
Multiple Protections | ◆Overload protection ◆No load protection ◆Overvoltage protection ◆Undervoltage protection ◆Short circuit protection ◆Phase loss protection ◆Phase reversal protection ◆Phase unbalance protection ◆Anti-rust protection | ||||||||||
Main Functions | ◆Overflow alarm ◆Rated power setting ◆ON/OFF time delay ◆Parameter settings at fingertips ◆Water level control by level probes or float switch ◆Pressure control by pressure gauge or pressure switch ◆LCD screen displaying current,voltage,water level and other pump status ◆Accumulative pump run time ◆Latest 10 pump failures record and display ◆Automatic restart after pump failure recovery ◆RS-485 communication(optional) | ||||||||||
Working temperature Working humidity Degree of protection Install position | -20ºC-- +80ºC 20%--90%RH, no drips concreted IP22 Wall mounting | ||||||||||
Product Size | 400x260x150mm | ||||||||||
Package | Box size:41.2*34*23cm Carton size:55*35.5*43.5cm PCS/CTN:4 | ||||||||||
Parameter Setting and Instruction
P00 --- Retore factory setting.
PP0 --- Rated power current setting.
P01 --- Over-current protection percentage setting,100%-170% adjustable,default 135%.
P02 --- Dry run current protection percentage setting,50%-100% adjustable,default 70%.
PP0 --- Rated power current setting.
P01 --- Over-current protection percentage setting,100%-170% adjustable,default 135%.
P02 --- Dry run current protection percentage setting,50%-100% adjustable,default 70%.
PPP --- Pump stalled protection percentage setting,100%-200% adjustable,default 170%.
P05 --- No load restart time setting,0-720 minutes adjustable,default 30 munites.
P06 --- Dual pump alternation time setting,0-720 minutes adjustable,default 30 minutes.
P05 --- No load restart time setting,0-720 minutes adjustable,default 30 munites.
P06 --- Dual pump alternation time setting,0-720 minutes adjustable,default 30 minutes.
P07 --- Over-voltage setting.
P08 --- Under-voltage setting.
P09 --- Screen backlight ON time setting,0-999 minutes adjustable,default 30 minutes.
P08 --- Under-voltage setting.
P09 --- Screen backlight ON time setting,0-999 minutes adjustable,default 30 minutes.
P12 --- No load protection trip delay time setting,0-600 seconds adjustable,default 0 second.
P13 --- Overload protection trip delay time setting,0-600 seconds adjustable,default 0 second.
P14 --- ON time delay,1-60 seconds adjustable, default 0 second.
P15 --- OFF time delay,1-60 seconds adjustable,default 0 second.
P16 --- Self check for anti-rust time setting,24-240hours adjustable,default 72 hours.
P17 --- Overload/over-current retart time setting,0-10 minutes adjustable,default 0 minute.
P18 --- Overflow buzzer alarm time setting,0-99 seconds adjustable,default 0 second.
P19 --- Phase loss retart time setting,0-99 minutes adjustable,default 0 minute.
P20 --- Overvoltage-undervoltage restart time setting, 0-999 seconds adjustable,default 0 second.
P21 --- Phase reversal protection setting.
P22 --- Three phase unbalance percentage,0-500% adjustable,default 0.
P13 --- Overload protection trip delay time setting,0-600 seconds adjustable,default 0 second.
P14 --- ON time delay,1-60 seconds adjustable, default 0 second.
P15 --- OFF time delay,1-60 seconds adjustable,default 0 second.
P16 --- Self check for anti-rust time setting,24-240hours adjustable,default 72 hours.
P17 --- Overload/over-current retart time setting,0-10 minutes adjustable,default 0 minute.
P18 --- Overflow buzzer alarm time setting,0-99 seconds adjustable,default 0 second.
P19 --- Phase loss retart time setting,0-99 minutes adjustable,default 0 minute.
P20 --- Overvoltage-undervoltage restart time setting, 0-999 seconds adjustable,default 0 second.
P21 --- Phase reversal protection setting.
P22 --- Three phase unbalance percentage,0-500% adjustable,default 0.

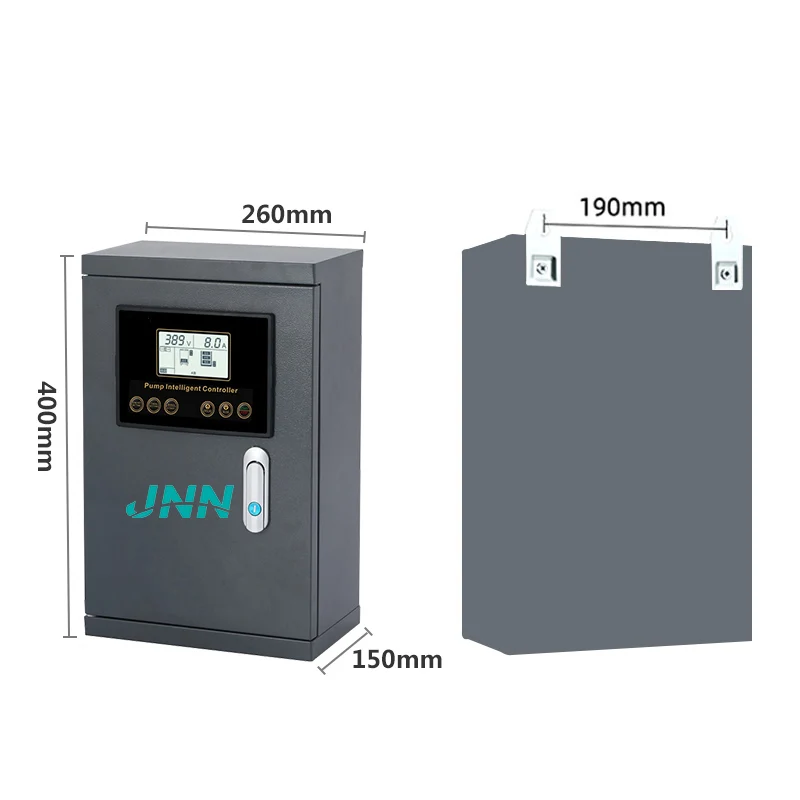

Product Size
Wiring Diagram
Packing and Shipping
1,What is your delivery time?
For sample order,it takes 1-3 days.Bulky order depends on the quantity.Our monthly ability is 15000pcs,and daily 500pcs.Custom panels depend.
2,How to match the power between the controller and the pump?
The power of controller should be bigger than that of the pump.
3,What is your warranty?
We warrant that panels and equipment will be free from defects in material,workmanship,and title.Each panel is backed by a full 1-year warranty.
4,How about your quality control?
Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load conditions to exceed our customer's quality and fuctionality requirements.
Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load conditions to exceed our customer's quality and fuctionality requirements.
5,What are your payment methods acceptable?
Western Union,T/T and L/C
