Заводская цена SUP23T ручная лазерная сварочная головка 3 в 1/4 1 Лазерный сварочный пистолет для лазерной сварочной машины продажи
- Категория: >>>
- Поставщик: Top Laser Technology (xuzhou) Co. Ltd.
Сохранить в закладки 1601261553911:
Описание и отзывы
Характеристики
Product Description

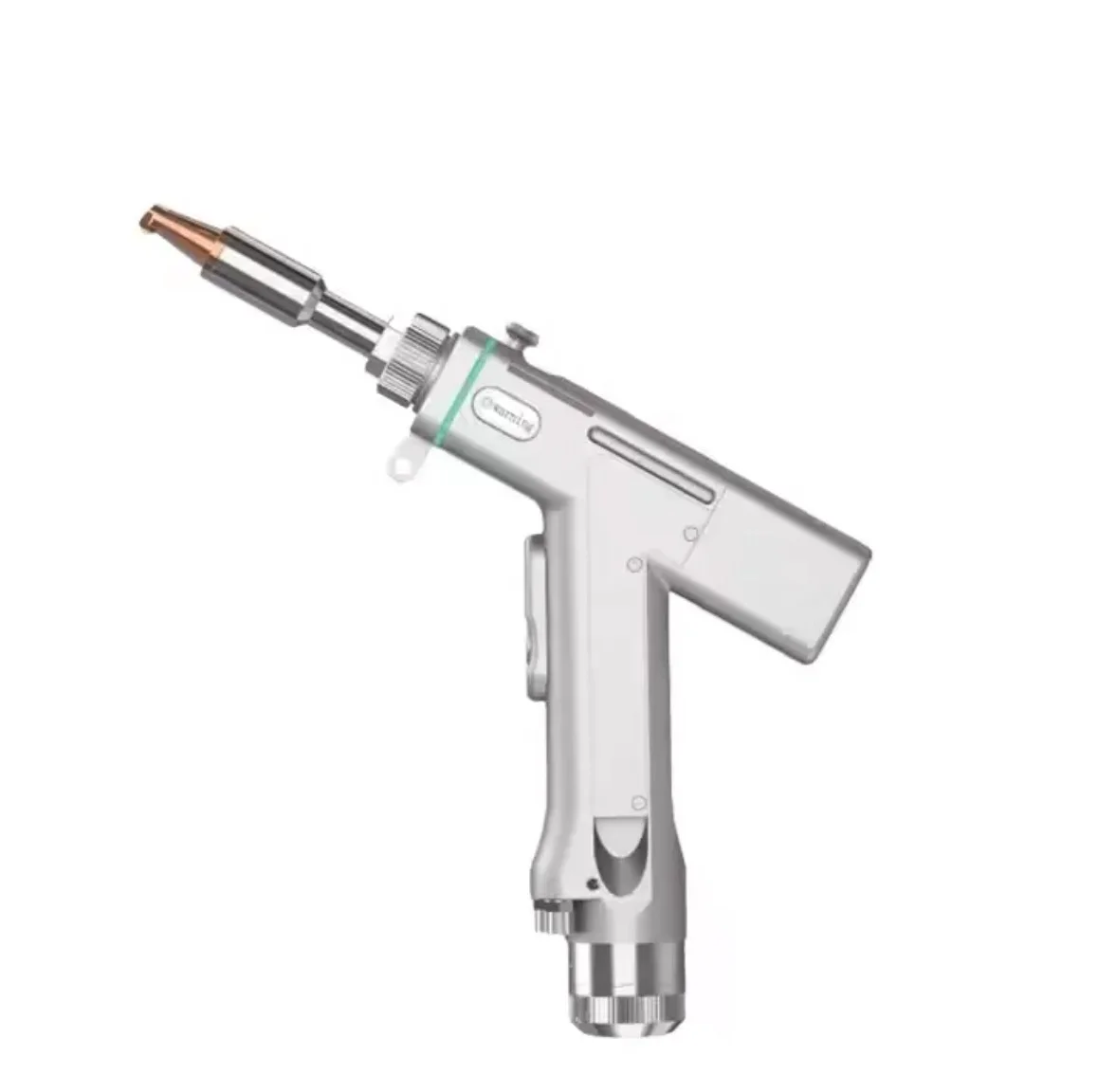

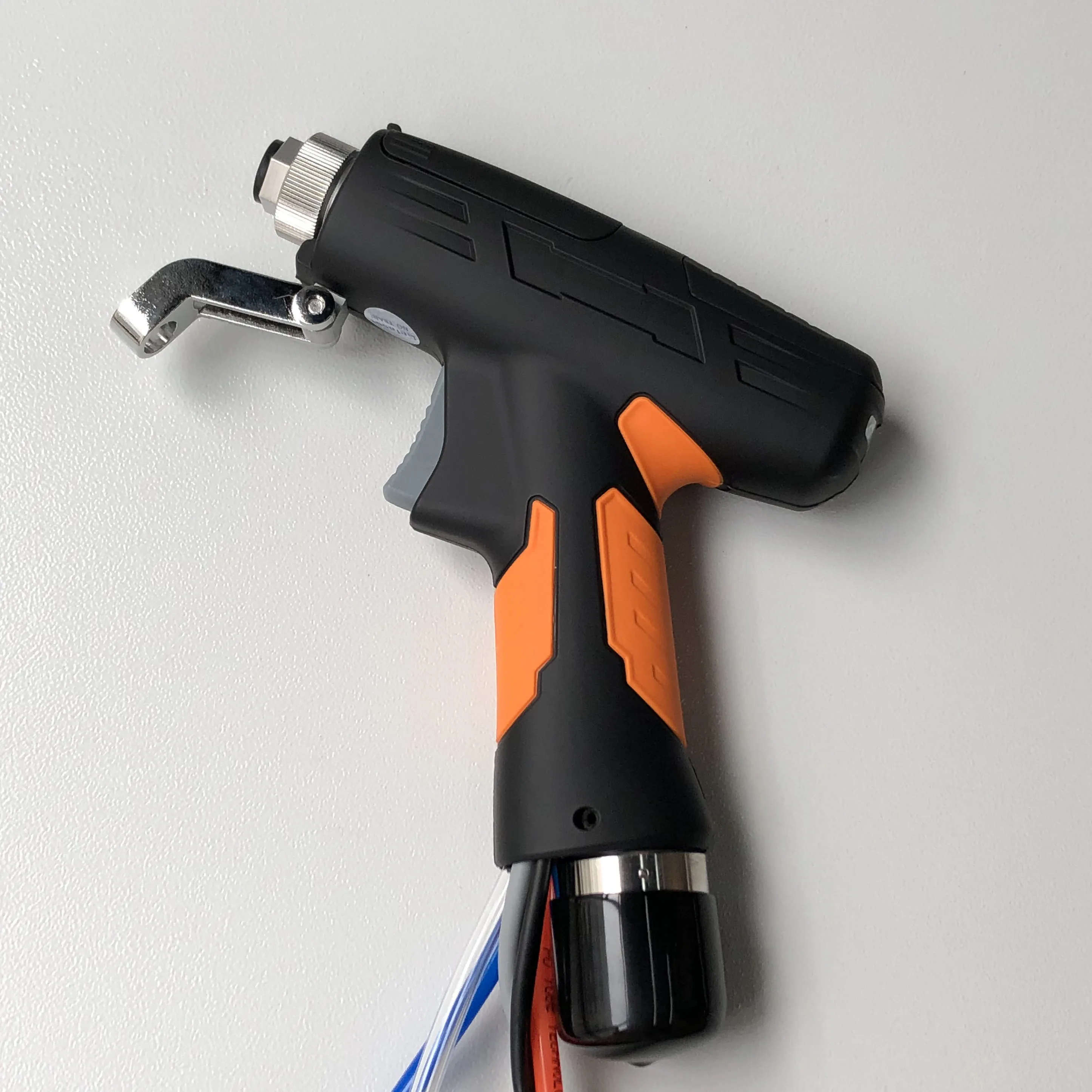

Handheld Fiber Laser Welding head/4 in 1 Laser Head SUP23T
*used for handheld laser welding machine.

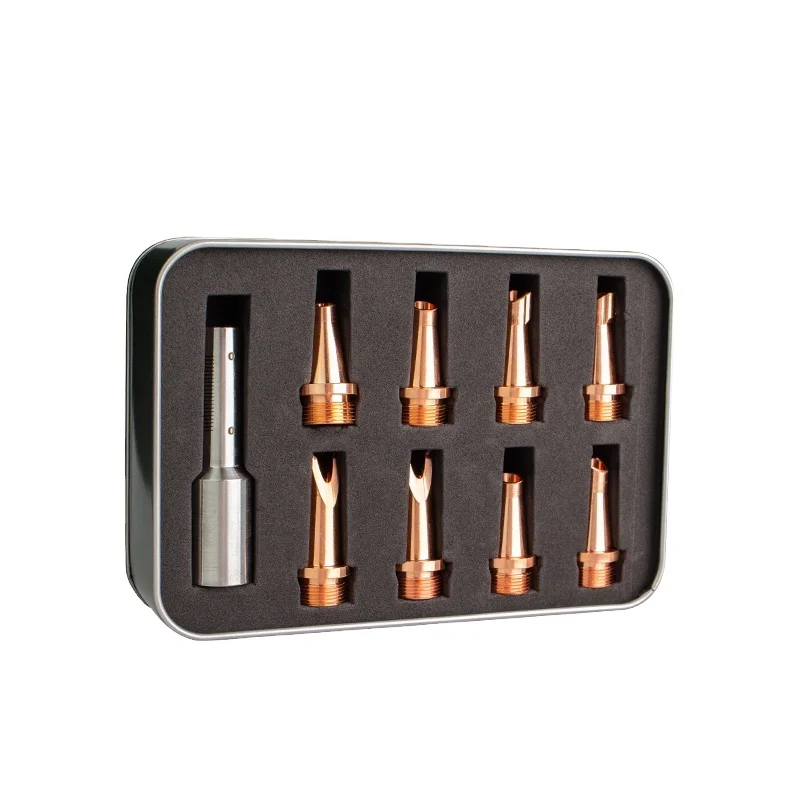

*include laser welding head (4 in 1 laser head), control panel, wire feeder and accessories.
Handheld laser welding system includes a handheld welding gun and self-developed control system with
multiple safety alarms as well as automatic and safe power off and light cut-off settings. It can be adapted to fiber lasers of all brands; optimized optical and water-cooled design allows the laser head to work stably at 3000W for a long time.
multiple safety alarms as well as automatic and safe power off and light cut-off settings. It can be adapted to fiber lasers of all brands; optimized optical and water-cooled design allows the laser head to work stably at 3000W for a long time.
Our Advantages
1. It's with multiple safety alarms, smaller in size, flexible in operation and easy to get started.
2. More stable: since all parameters are visible, the whole machine state can be monitored in real time, problems can be avoided in advance and also can be checked and solved more conveniently, ensuring the stable work of the plumb joint.
3. Technology: since all parameters are visible, the welding quality is perfect, the deformation is small, and the penetration is high.
4. Stable parameters and high repeatability: with a defined air pressure of nozzle and lens state, the technology parameters must be repeatable as long as the laser power is stable. This greatly improves efficiency and also reduces operator requirements.
2. More stable: since all parameters are visible, the whole machine state can be monitored in real time, problems can be avoided in advance and also can be checked and solved more conveniently, ensuring the stable work of the plumb joint.
3. Technology: since all parameters are visible, the welding quality is perfect, the deformation is small, and the penetration is high.
4. Stable parameters and high repeatability: with a defined air pressure of nozzle and lens state, the technology parameters must be repeatable as long as the laser power is stable. This greatly improves efficiency and also reduces operator requirements.
Specification
Name | 4 in 1 laser head |
Model | SUP23T |
Input Voltage | 220V±10%AC 50/60Hz |
Installation environment | flat, no vibration and impact |
Working environment temperature | -10~50℃ |
Working environmnet humidity | <70% |
Cooling-down method | hydrocooling |
Applicable wavelength | 1064nm |
Applicable power | 1000w~3000w |
Collimation lens | D16F60 |
Focus lens | D20F150 |
Reflection mirror | 30x14xT2 |
Protective lens | D18T2 |
Max. air pressure support | 15bar |
Focus of vertical adjustment range | ±10mm |
Welding scan width | 0~8mm |
Cleaning width | F150: 0~30mm F400: 0~60mm F800: 0~120mm |
N.W of laser gun | 0.75kg |
Welding Application
Packing & Delivery
Packed in two cartons. Handheld laser welding head, control panel, cable and accessories will be packed in one carton. Wire feeder will be packed in another carton.
Recommend Products
FAQ
Q1: What handheld laser welding system include?
A1: It includes handheld laser welding head, control panel, wire feeder and accessories.
A2：It’s for different metals welding, such as carton steel, stainless steel,aluminum, copper, brass, etc .
Max. welding thickness for reference:
1000w: 4mm stainless steel; 4mm carbon steel; 1.5mm aluminum
1500w: 5mm stainless steel; 5mm carbon steel; 2.5mm aluminum
2000w: 6mm stainless steel; 6mm carbon steel; 4mm aluminum
Q3: What's lead time? Do you have it in stock?
A3: Yes, we have it in stock.
Q4: What's packing method?
A4: packed in two cartons: handheld laser welding head, control panel and accessories will be packed in one carton. Wire feeder will be packed in another carton.
Q5: What's payment way do you accept?
A5: TT, PayPal, Credit Card, LC.
Q6: What power can be used?
A6: 1000w, 1500w, 2000w and 3000w
Q7: How is your warranty?
A7: We provide one year warranty.
Max. welding thickness for reference:
1000w: 4mm stainless steel; 4mm carbon steel; 1.5mm aluminum
1500w: 5mm stainless steel; 5mm carbon steel; 2.5mm aluminum
2000w: 6mm stainless steel; 6mm carbon steel; 4mm aluminum
Q3: What's lead time? Do you have it in stock?
A3: Yes, we have it in stock.
Q4: What's packing method?
A4: packed in two cartons: handheld laser welding head, control panel and accessories will be packed in one carton. Wire feeder will be packed in another carton.
Q5: What's payment way do you accept?
A5: TT, PayPal, Credit Card, LC.
Q6: What power can be used?
A6: 1000w, 1500w, 2000w and 3000w
Q7: How is your warranty?
A7: We provide one year warranty.
Похожие товары

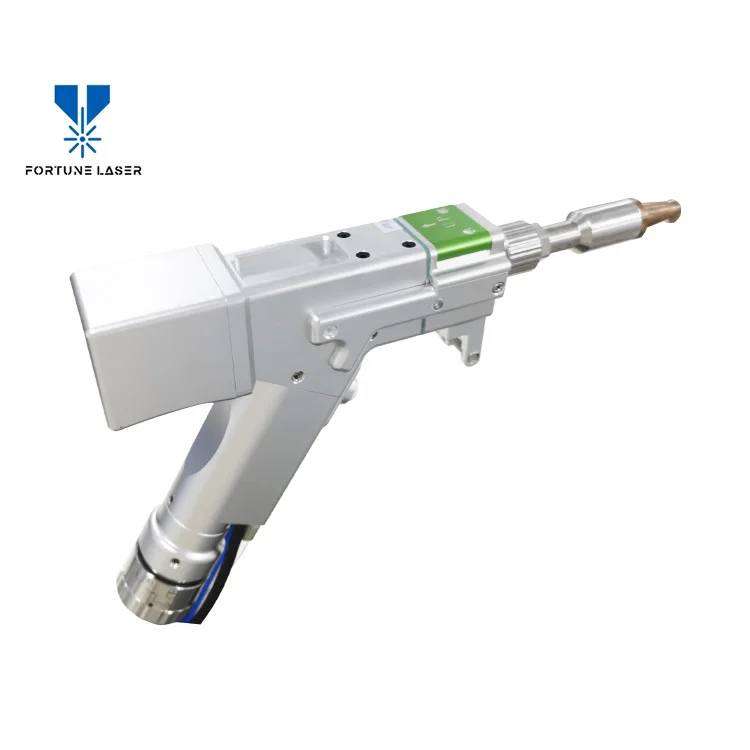

WaveTopSign Raytools BW101 ручная лазерная сварочная головка 0-3 кВт проволочный питатель для волоконно-лазерной сварочной машины

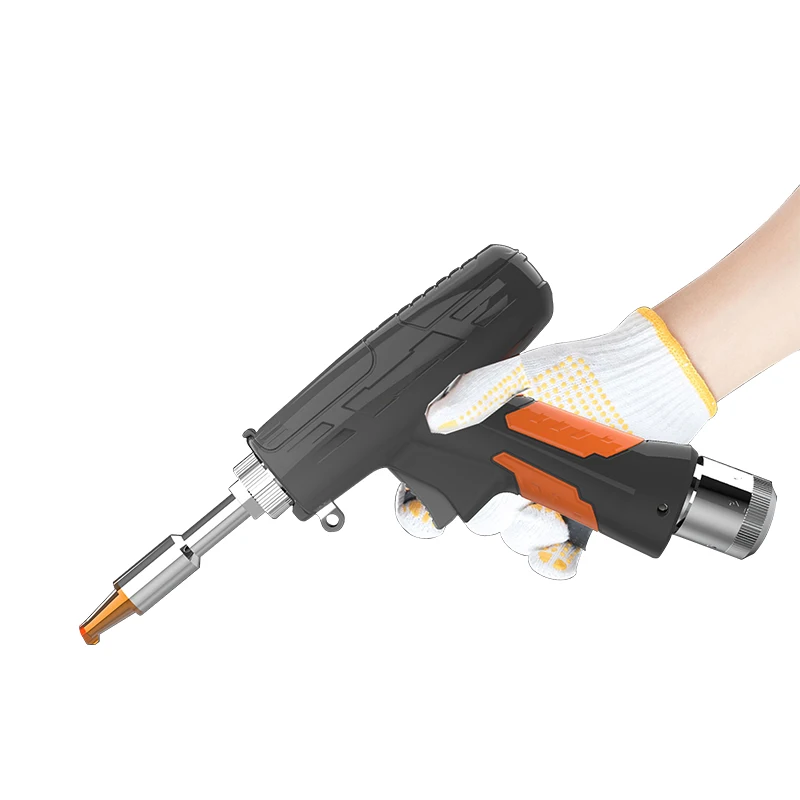

Ручной волоконно-Лазерный сварочный наконечник для ручной лазерной сварочной головки для сварочного шва материалов

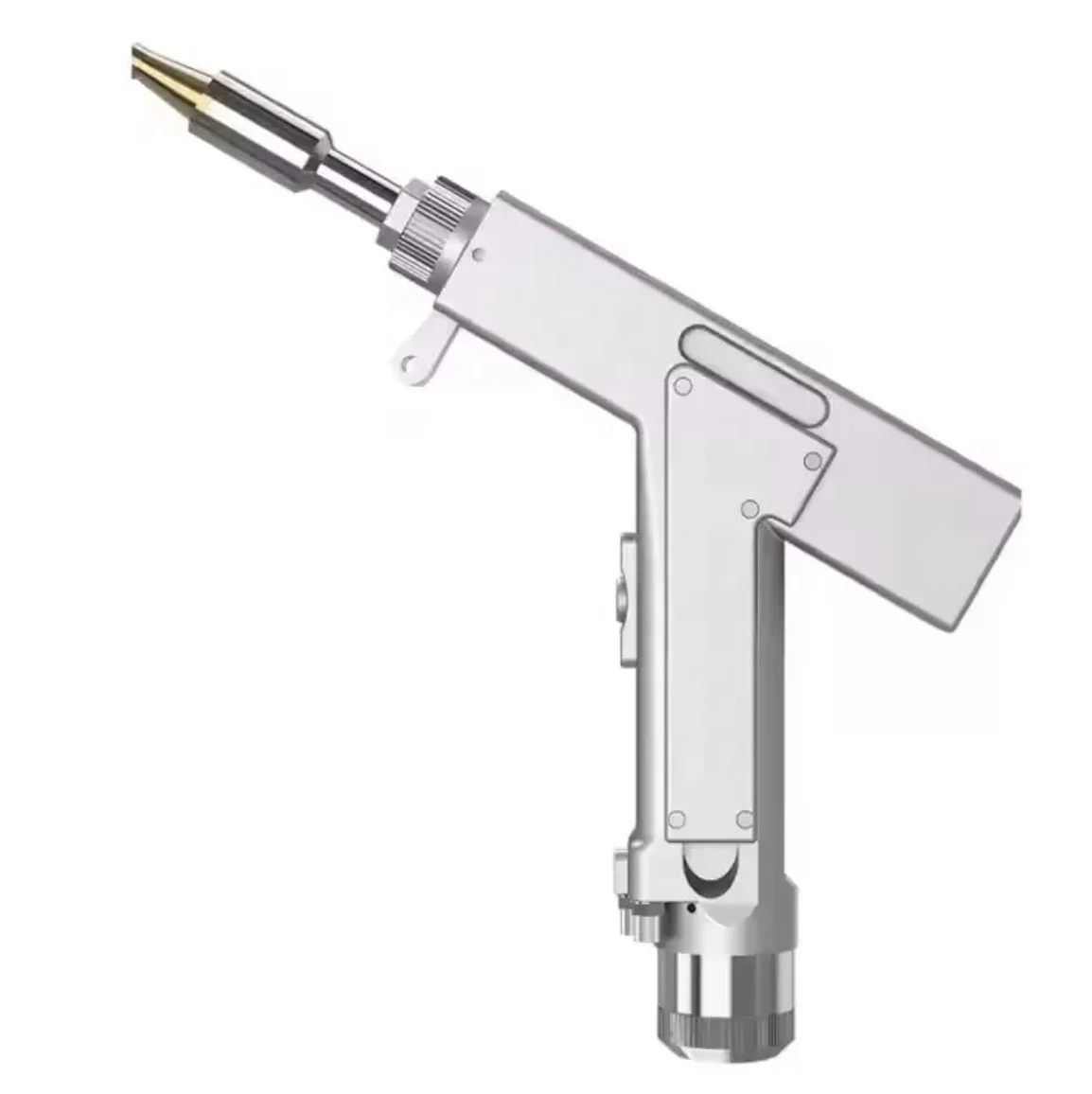

Новая портативная лазерная сварочная головка Sup21T для завода по розничной торговле и производству лазерного сварочного аппарата
35 606,28 ₽ - 36 685,26 ₽

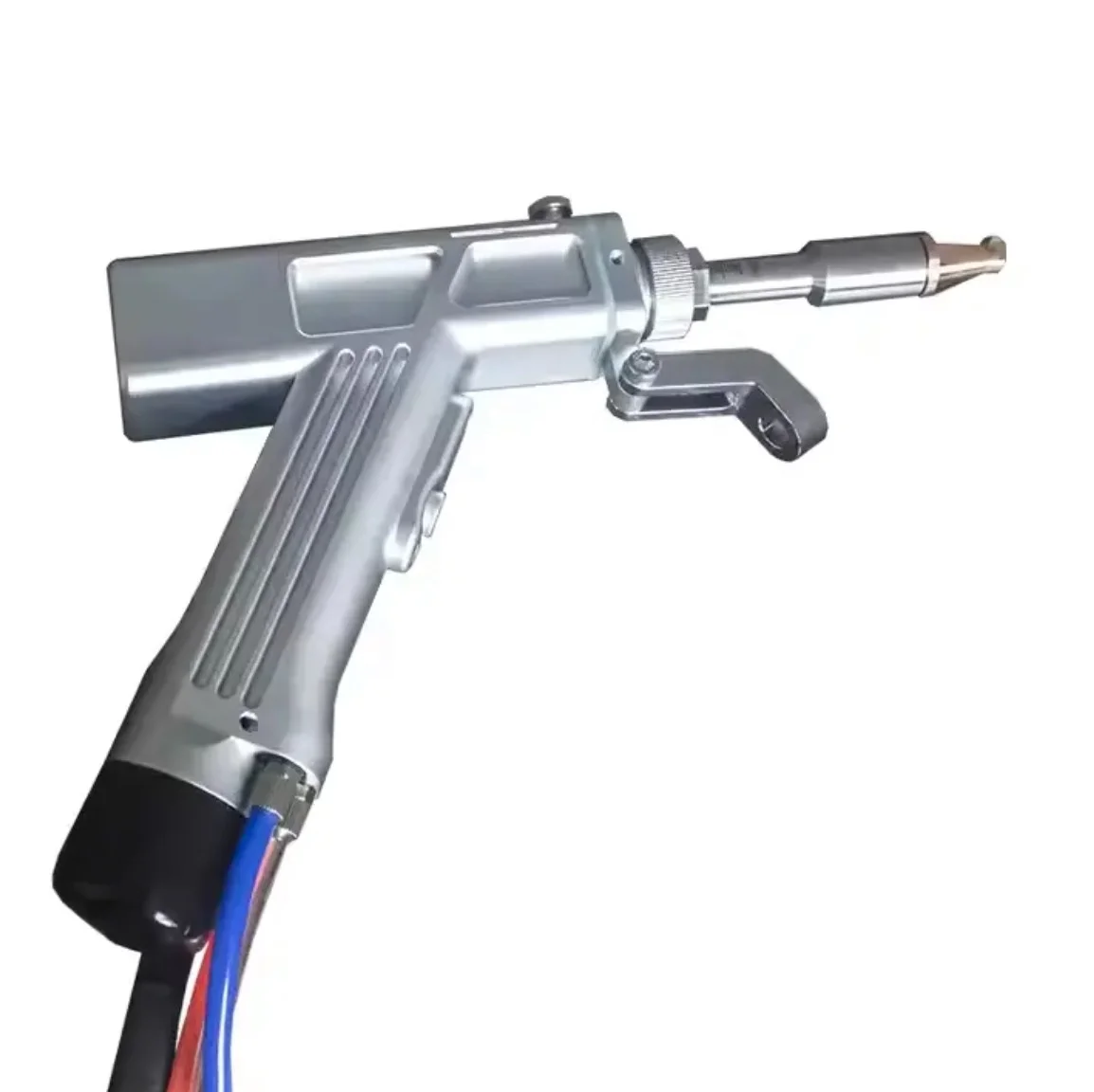

Волоконно-лазерная сварочная головка 3 в 1 сварочный пистолет с сварочным аппаратом
113 292,69 ₽ - 124 082,47 ₽
2024 Новый портативный лазерный сварочный аппарат SUP21T три в одном лазерная сварочная головка для оптоволоконной сварки

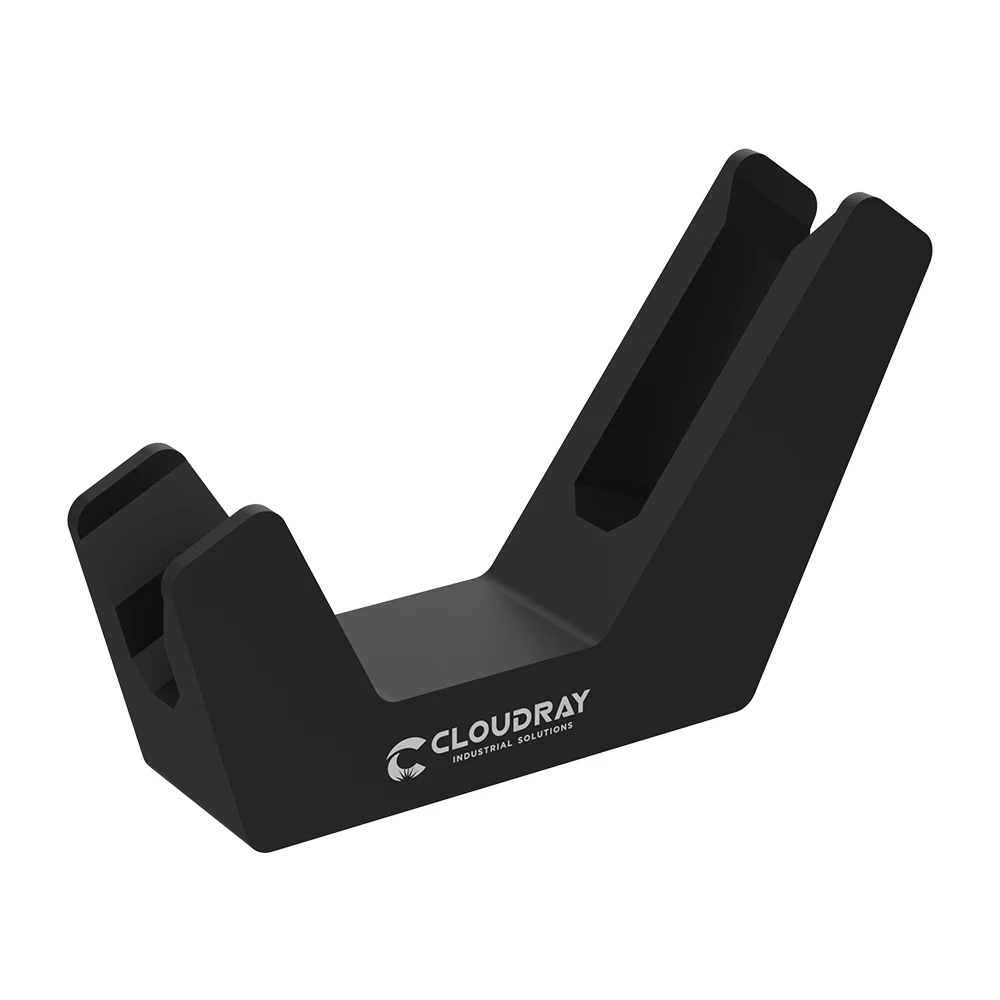

Люлька для сварочной головки Cloudray
