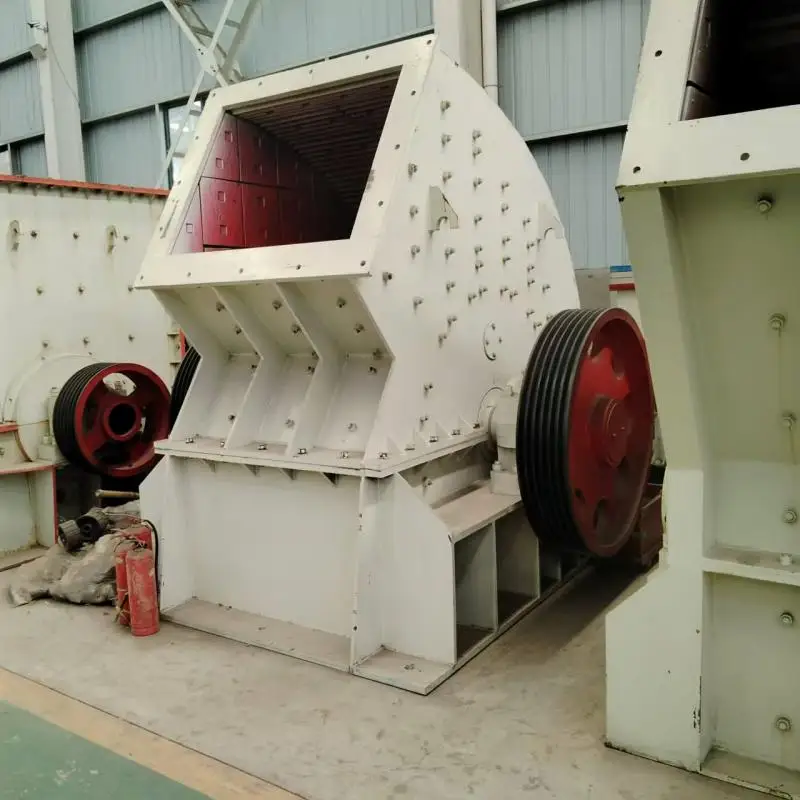

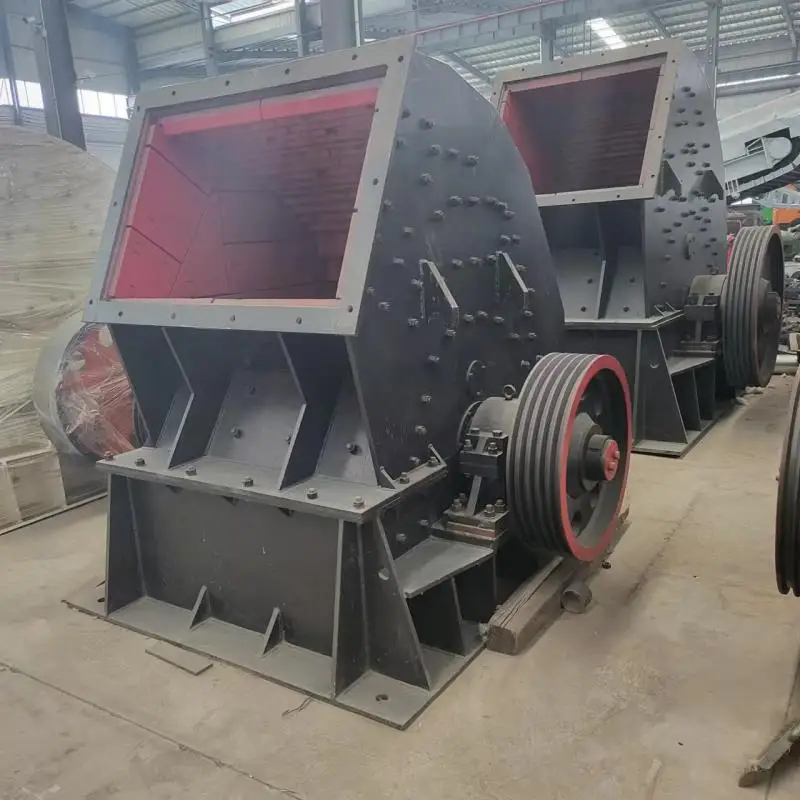

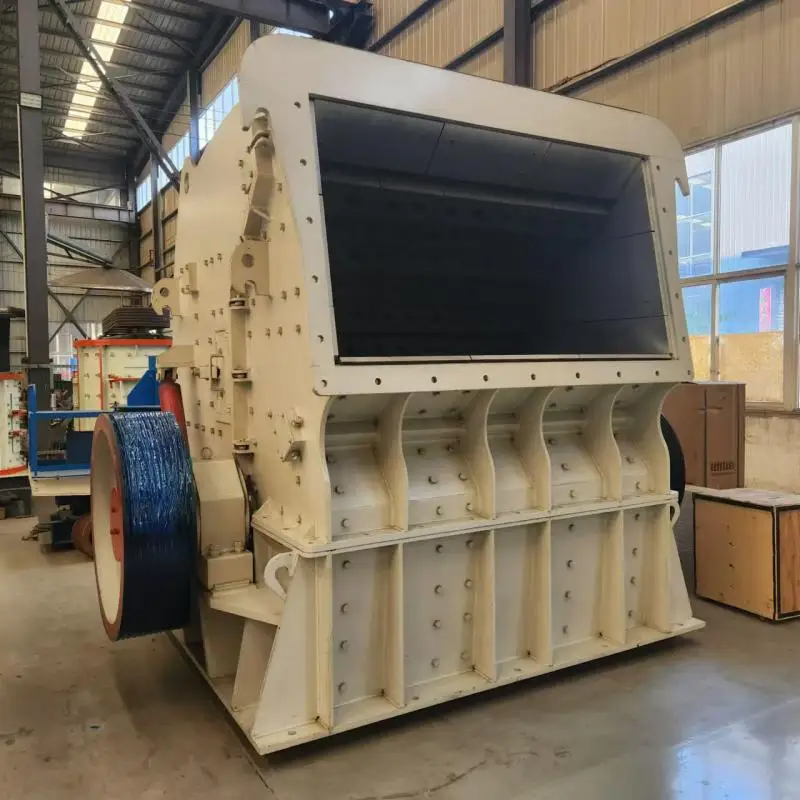

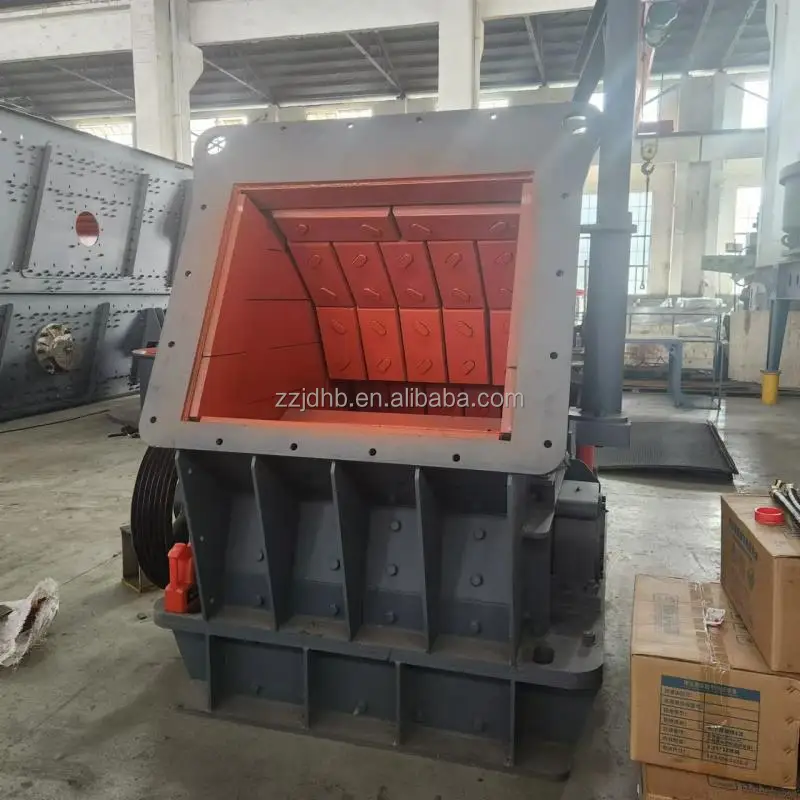

Тяжелая молотковая дробилка гранитная Известняковая Золотая Руда угольная для продажи
- Категория: >>>
- Поставщик: Zhengzhou Juding Environmental Protection Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601261593561:
Описание и отзывы
Характеристики
Heavy Hammer Crusher is a commonly used crushing equipment with large crushing ratio (generally 10-25, high up to 50), high production capacity, uniform product, less powder phenomenon, low energy consumption per unit product, simple structure, light equipment,easy operation and maintenance, etc. It is suitable for fine crushing of medium hardness and brittle materials in mining, cement,coal, metallurgy, building materials, highways, and combustion.The material discharge size can be adjusted by change the gap of the gridscreen, to meet the different needs of different users.Heavy hammer crusher can be directly used for material crushing without initial crushing.
Working Principle
Hammer Crusher Is Mainly Used To Crush Material By Impact. The Crushing Process Is Roughly Like This. The Material Enters The Crusher And Is Broken By The Impact Of A High-Speed Rotary Hammer. The Broken Material Obtains Kinetic Energy From The Hammerhead, And Thus Rushes Towards The Baffles And Screen Bars At High Speeds. At The Same Time, The Materials Collided With Each Other And Were Broken Several Times. Material Smaller Than The Gap Between The Screen Strips Was Discharged From The Gap. The Individual Larger Materials Were Again Broken By The Impact, Grinding, And Squeezing Of The Hammer On The Screen Strip. It Is Extruded From The Gap By A Hammer To Obtain The Desired Particle Size Product.
Features Of Heavy Hammer Crusher Machine：
1 The Hammer Head Of The Hammer Crusher Introduces Foreign Advanced Technology And Adopts New Technology For Casting, Which Is More Wear-Resistant, Impact-Resistant And Prolongs Its Service Life.
2 The Hammer Crusher Machinery Can Adjust The Grate Gap According To The Size Of The Material To Meet The Different Needs Of Different Users.
3 The Body Of The Hammer Crusher Equipment Adopts A Fully Sealed Device, Which Has Less Dust Pollution In The Workshop, And Is Safe And Reliable.
4 Large Crusher Ratio And High Production Efficiency
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.
Heavy Hammer Crusher Main
Parts Display

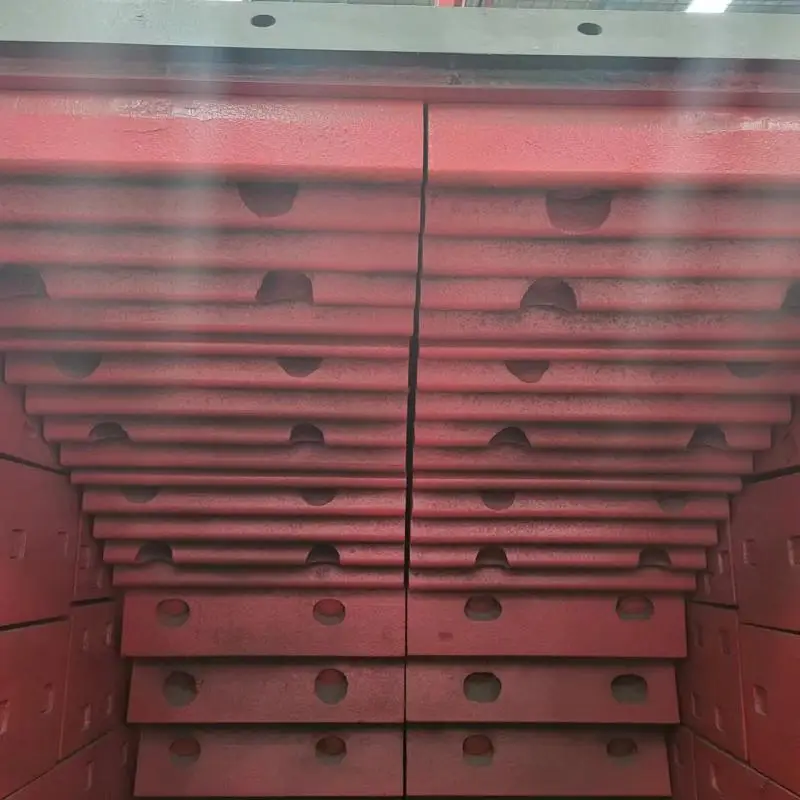

1：Liner
2：Rotor
3：Belt Pulley
4：Wear-resistant Tile Seat
5: Customized V-belts
6：Counterweight Wheel
liner
Rotor
Belt Pulley
Wear-resistant Tile Seat
Customized V-belts
Counterweight Wheel
Model | Rotor Size (mm) | Opening Size(mm) | Max Feeding Size(t/h) | Production Capacity(T/H) | Motor Power(kw) | Overall Dimension (mm) |
PCZ1308 | 1310*790 | 850*800 | ≤600 | 100-160 | 132 | 0.2 |
PCZ1510 | 1500*950 | 1000*900 | ≤700 | 160-210 | 132*2 | 0.4 |
PCZ1512 | 1500*1160 | 1200*900 | ≤750 | 250-320 | 160*2 | 0.55 |
PCZ1615 | 1650*1452 | 1500*1200 | ≤1000 | 420-500 | 200*2 | 0.8 |
PCZ1620 | 1660*1900 | 2000*1200 | ≤1200 | 800-1000 | 400*2 | 1 |
PCZ1820 | 1800*1964 | 2000*1200 | ≤1200 | 1000-1200 | 450*2 | 1.8 |
Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.
Q1: Are you a factory or a trading company?
Q2: Where have your products been exported to?
A: We are factory.
Q2: Where have your products been exported to?
A:Our products have been sold to South Asia, Africa, South America and the Middle East.
Q3:How can I help my customers install their equipment?
A:Our senior engineers will video guide you through installation,commissioning and initial production.
Q4: What is the availability of wearing parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send
atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send
atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
