Flygt картридж AES механическое уплотнение штекер в уплотнениях 20 мм 25 35 45 60 90

Flygt картридж AES механическое уплотнение штекер в уплотнениях 20 мм 25 35 45 60 90

Категория: >>>
Поставщик: Hefei Supseals International Trade Co. Ltd.

Цена:9 868,36 ₽ - 10 964,84 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

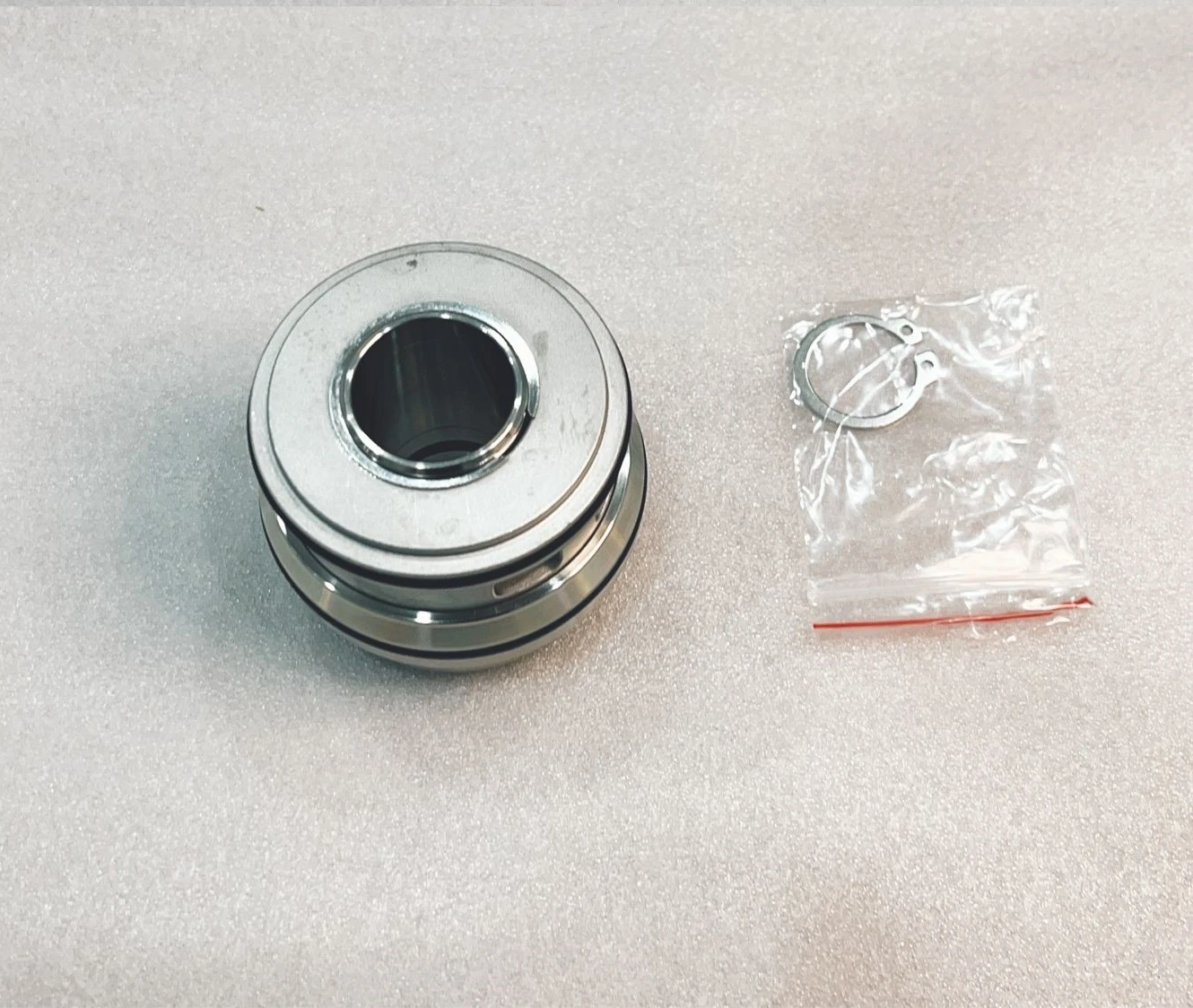

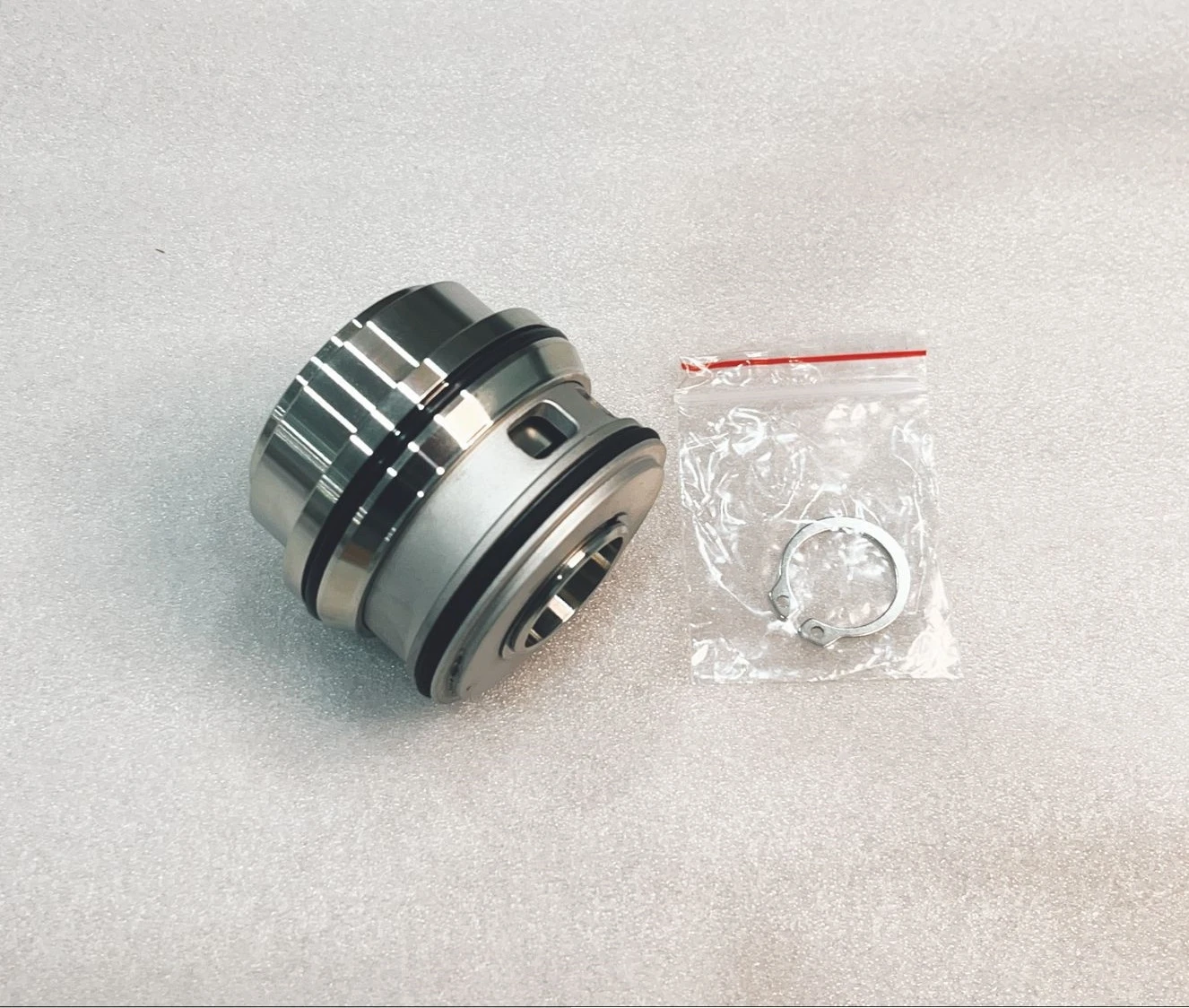

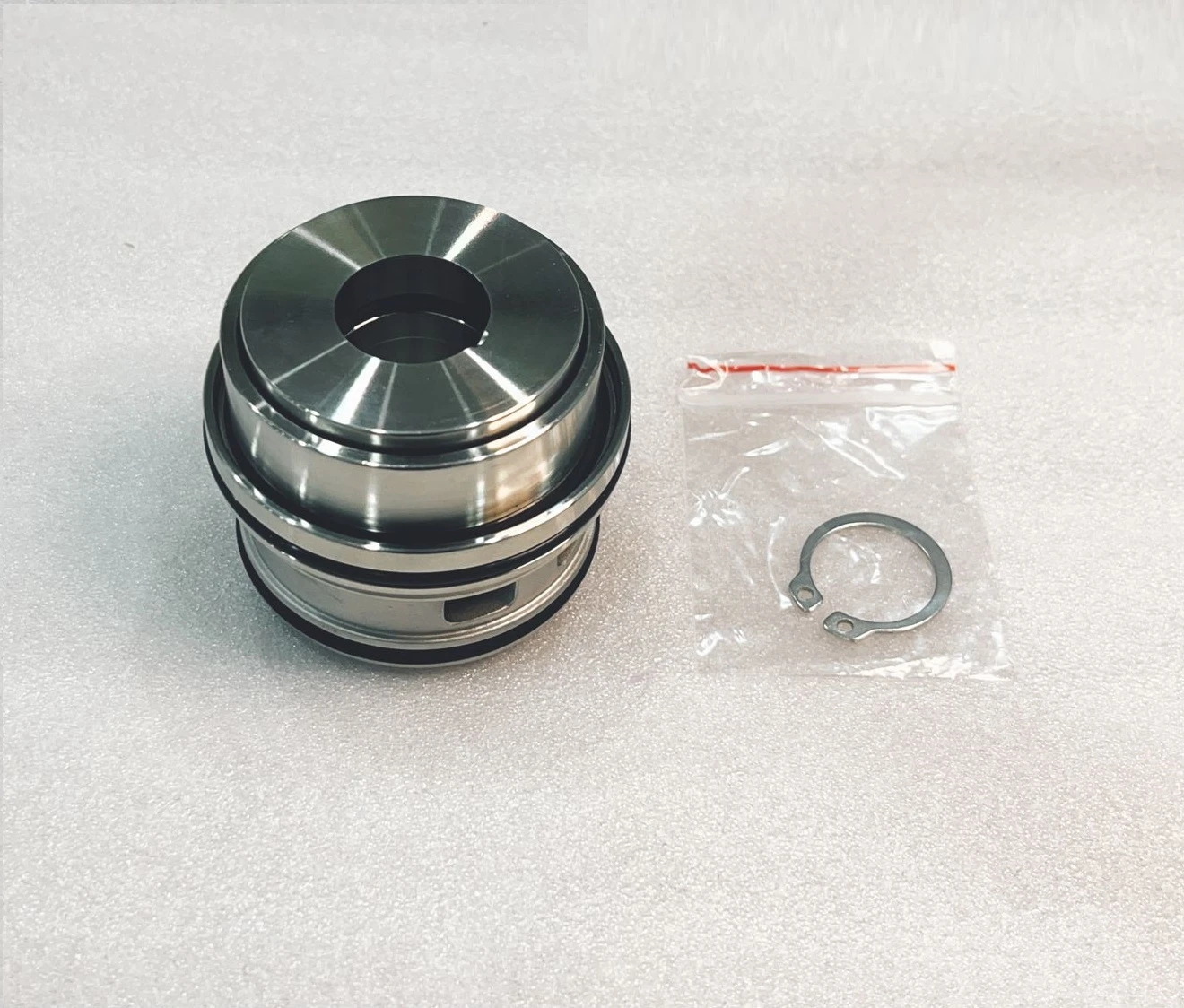

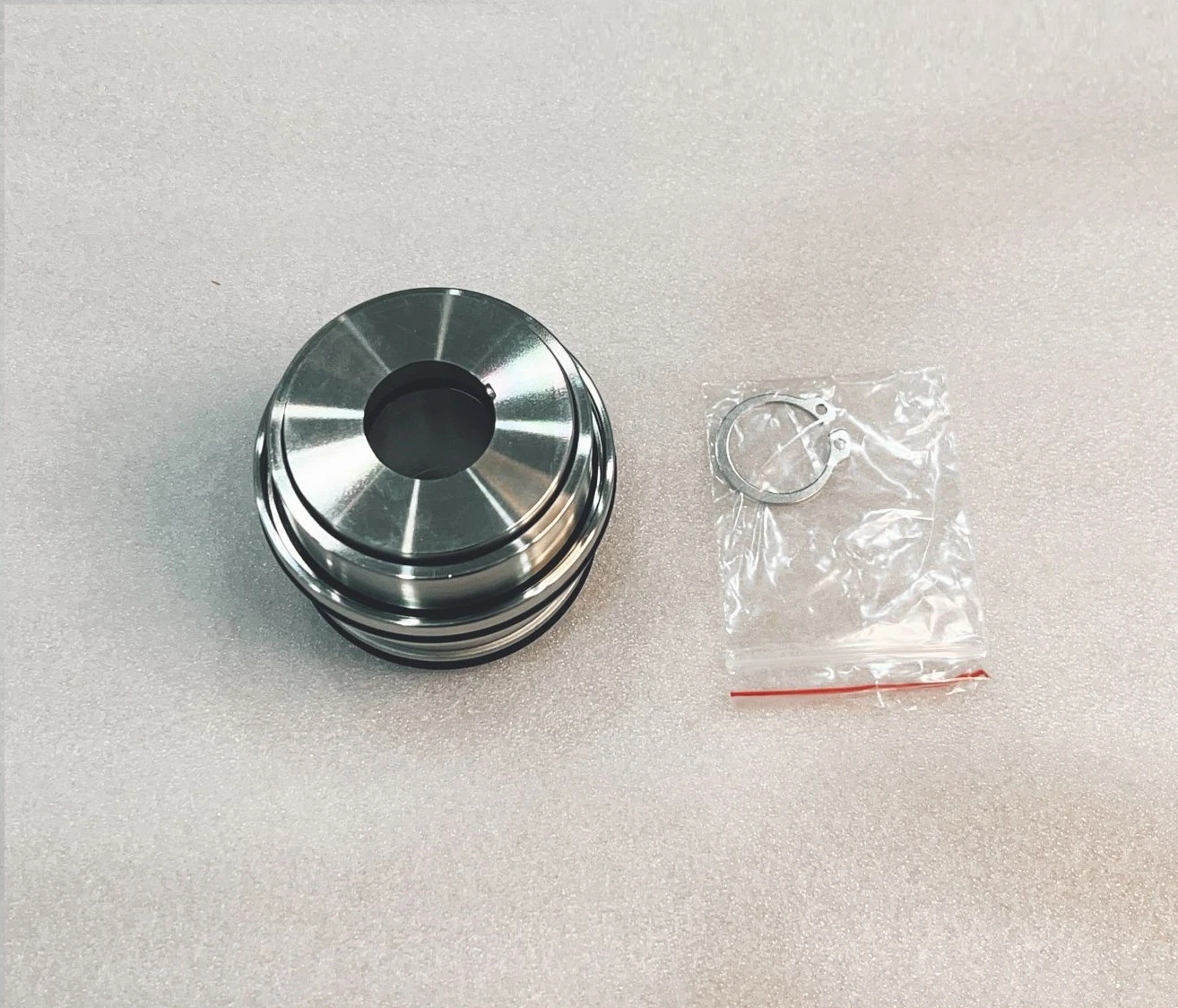

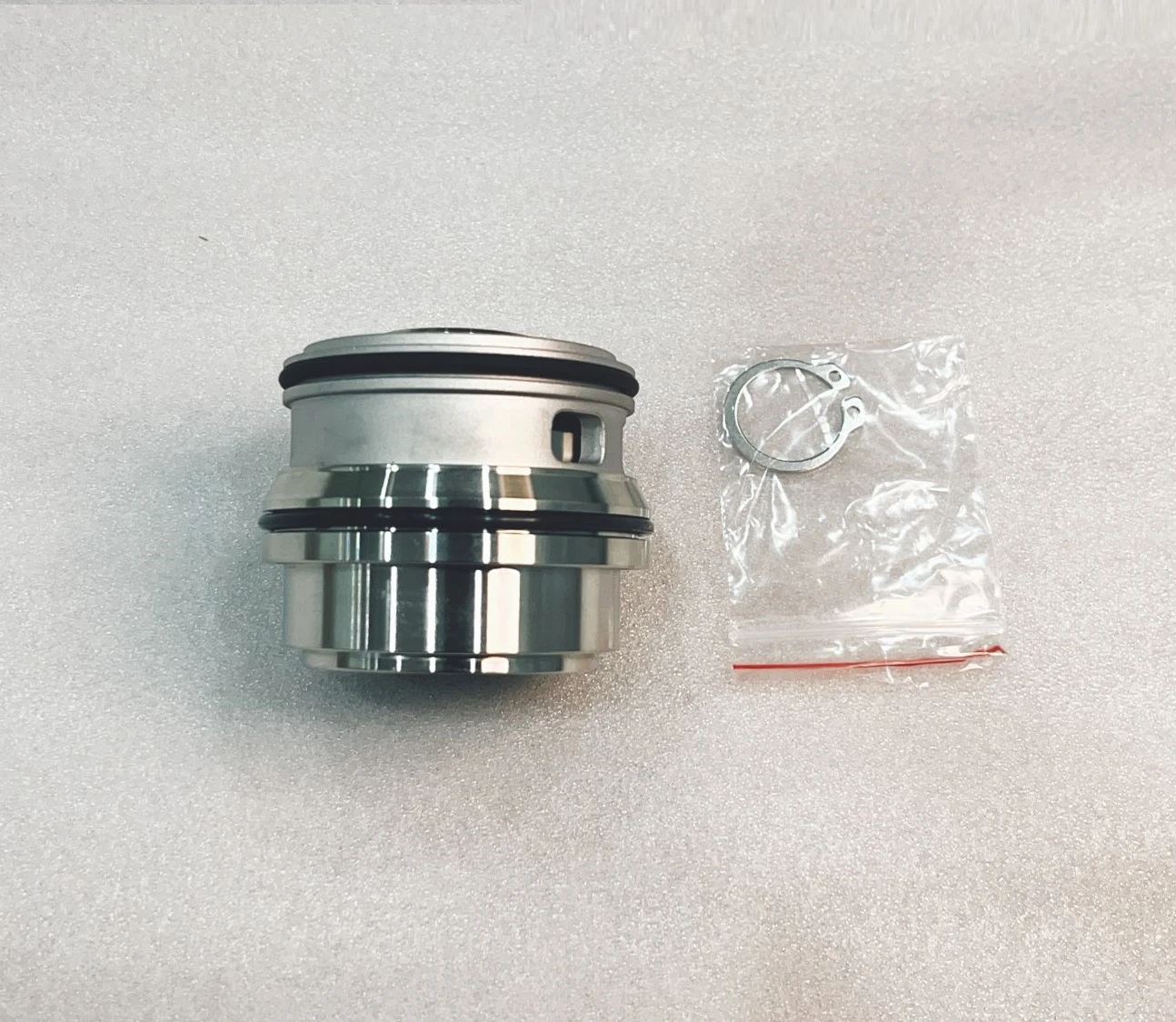

Mechanical Seal 60MM Flygt Plug-In Pump Seal Cartridge Seal 3202 Aluminium

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components
are held togther by a snap ring in a unized construction design and can
be repaired easily on-site.

High Quality Mechanical Seals

Flygt Pump seal Mechanical Seals

Profile:

Applications:
Pressure: ≤ 1.2Mpa;
Temperature: -30--200 ° C
Speeds: 10m/s

Materials:

1Temperature -30ºC~180ºC

2 Pressure Less than 1.5MPa

3 Speed Less than 10m/s

4 Stationary Ring :Ceramic/SiC/TC

5 Rotary Ring :Carbon/SiC/TC

6 Secondary Seal : NBR/EPDM/Viton

7 Sping&Other Parts SUS304/SUS316L

Flygt Pump seal Mechanical Seals

Temperature	-30ºC to 200ºC,Dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size	20MM-90MM
Brand	JR
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM
Spring	SS304, SS316
Metal parts	SS304, SS316

1. Sealcon Plug in is for Flygt Pump Model: as follows picture
2. Our seals can replace the original seals.
3.Application: seals are primarily used in the chemical sector and in water pumps.
4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
5.OEM and Customized products is welcomed.
6. Factory Price,High Quality ,Fast Delivery and Best Sevice.

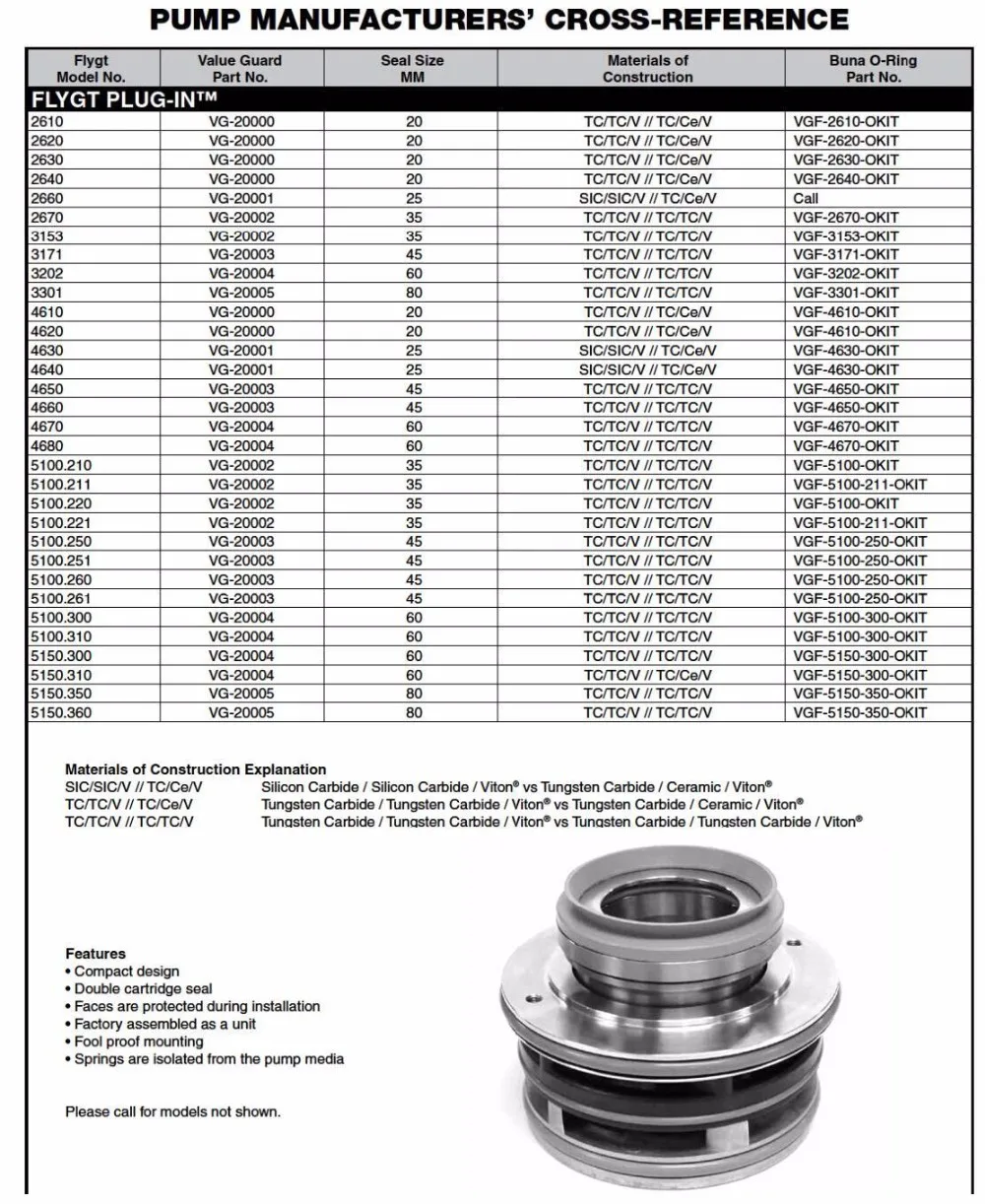

Seal Code	Size	Material	Flygt Pump
20	20MM	TC TC TC TC FFKM	2610,2620,2630,2640,4610 & 4620
25	25MM	TC TC TC TC FFKM	2640,4610 & 4620
35	35MM	TC TC TC TC FFKM	2670,3153,5100.210,5100.211,5100.220 & 5100.221
45	45MM	TC TC TC TC FFKM	3171,4650,4660,5100.250,5100.251,5100.260 & 5100.261
60	60MM	TC TC TC TC FFKM	3202,4670,4680,5100.300,5100.310,5150.300 & 5150.310
90	90MM	TC TC TC TC FFKM	3301,5150.350 & 5150.360

mechanical seal could be interchangeable with John crane, Burgn,

Aesseal, Vulcan, Roten seals etc.

All ranges of mechanical seals for Flygt Pumps, Grufos Pumps, Alfa Laval
Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,
Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request.

With advanced designer&manufacturer of machanical seal, for industrial pump,
its range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and suto air-condition compressor lip seal.
It is widely used and highly reliable in food, drink, petroleum, chemistry,
refinery, paper making, pharmacy, power and auto industry etc.

Characteristics:
High and low temperature resistant, acid-alkali resistant, ozone resistant, aging resistant, weather resistant, good insulation property, anti-toxic, good air-permeable, etc.

Welcome to quote for more details.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on. Please kindly visit our website: www.supseals.com
