Product Overview

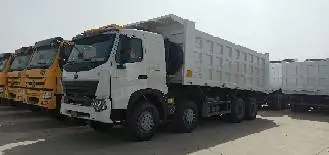

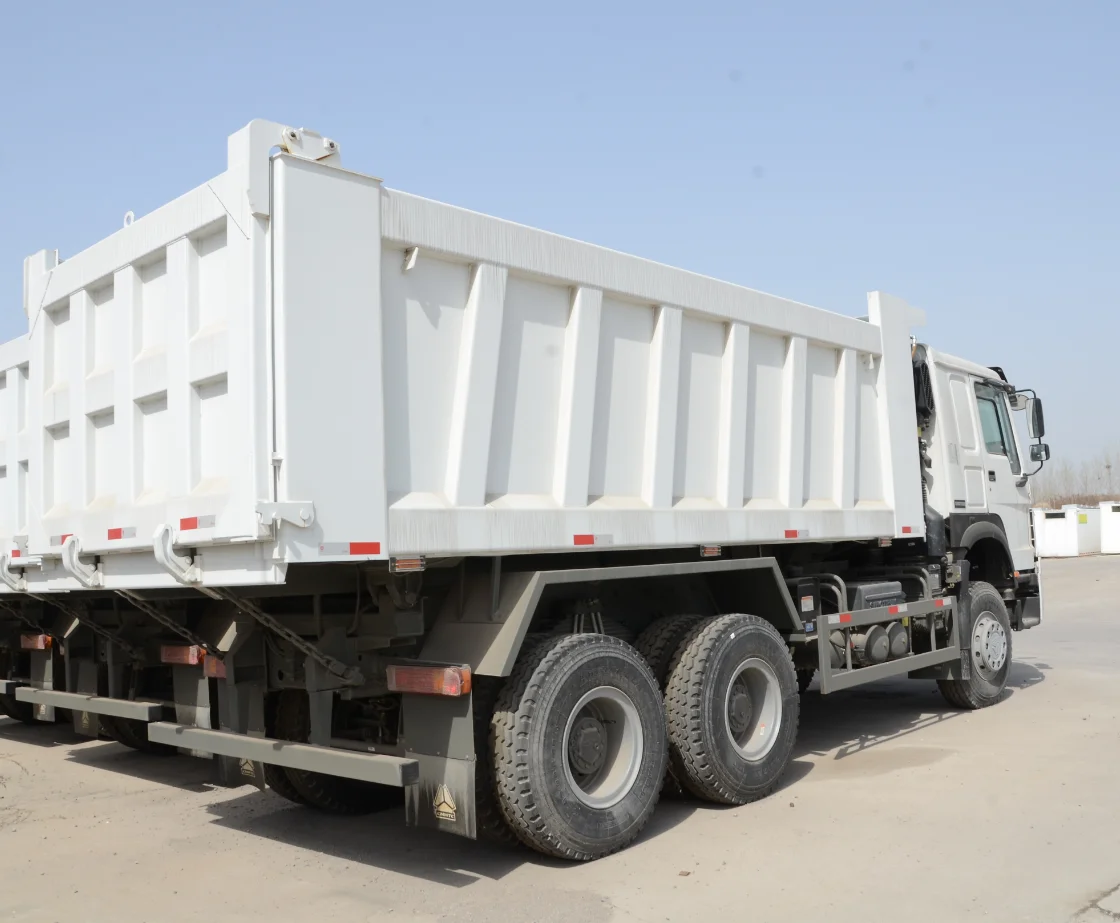

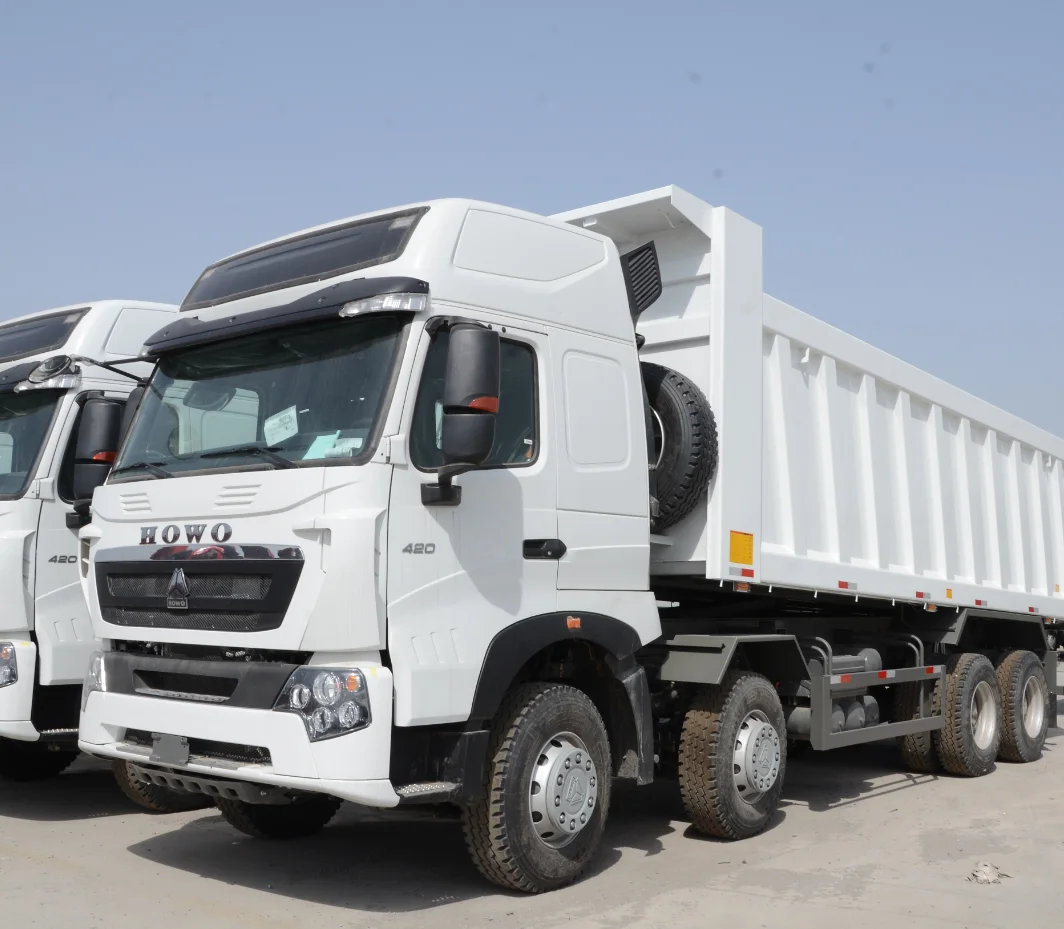

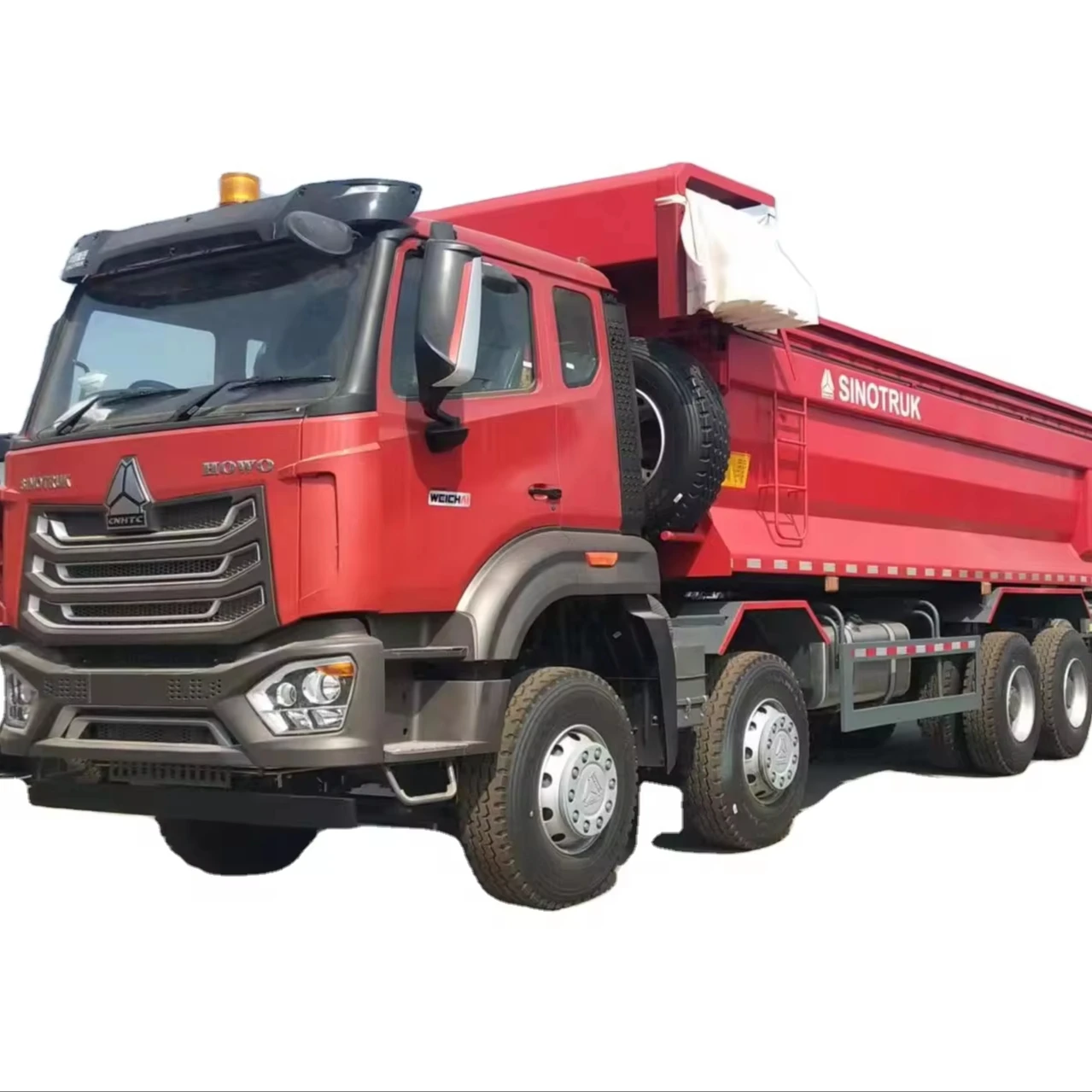

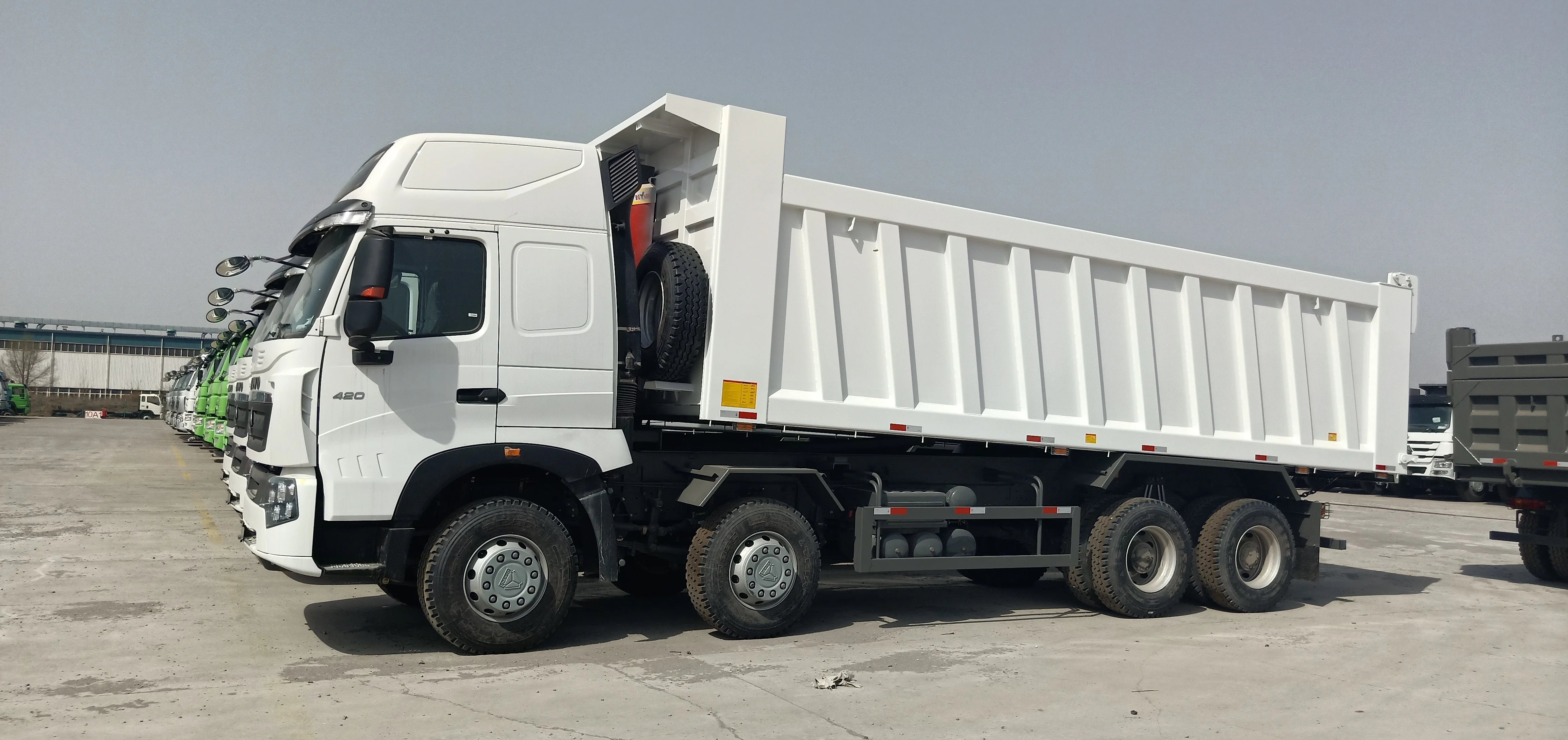

SINOTRUK howo dump truck 8*4 dump truck

HOWO dump truck is a brand under Sinotruk, a Chinese heavy-duty vehicle manufacturer, mainly used for heavy transportation and engineering operations. The body design of dump trucks meets the requirements of large capacity loading, usually using high-strength steel to ensure load-bearing capacity and durability. Equipped with a hydraulic system, it can quickly dump goods and improve operational efficiency. There are two lifting methods: rear unloading and side unloading.

Adopting a heavy-duty chassis design, it has good stability and passability, suitable for various complex terrains. Equipped with a high-performance diesel engine, it has strong power and is suitable for heavy-duty operations. The engine displacement and power vary depending on different vehicle models.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

UPGRADE THE COCKPIT

VERSATILITY

REINFORCED CARRIAGE

Right elevation

Left elevation

Front elevation

Product Paramenters

HOWO A7 8x4 Dump Truck SPECIFICATION
Dimension(Lx W xH)(unloaded)(mm)			10745×2496×3450
Cargo body size (LxWxH) (mm)			7800x2300x1500 Sand body,Front lifting, Bottom 8 mm, Side 6 mm
Approaching angle/Departure angle(°)			19/20
Overhang(front/rear) (mm)			1500/2295
Wheel base (mm)			1800+3800+1350
Max speed(km/h)			75
Curb weight(kg)			15400
Engine(Steyr technology, made in China)	Model	WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
		Fuel type	Diesel
		Power, max(kw/rpm)	371HP
		Emission	EUROII
Fuel tanker capacity(L)			300L aluminum oil tank
Transmission			Model	HW19710, 10 speeds forward and 2 reverse
Brake system			Service brake	Dual circuit compressed air brake
				Parking brake	spring energy, compressed air operating on rear wheels
Steering system			Model	ZF8118
Front axle			HF9
Rear axle			HC16
Tire			12.00R20
Electrical system			Battery			2X12V/165Ah
			Alternator			28V-1500kw
		Starter			7.5Kw/24V
Cab			HOWO A7-W New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
