Индивидуальное введение бренда RNKJ в фотоэлектрические системы, материалы и устройства, дерево зеленой энергии
270 015,50 ₽ - 302 417,36 ₽
Многофункциональный солнечный инвертор с дизельным двигателем и параллельной функцией
- Категория: >>>
- Поставщик: Shenzhen Scmk New Energy Co. Ltd.
Сохранить в закладки 1601263586853:
Описание и отзывы
Характеристики
Off Grid 5KW MPPT pure sine wave solar inverter with parallel function
Products Description
off Grid Inverter 48v Limit 5kw Solar Energy System Off Grid 5 Kw Hybrid Solar Inverter

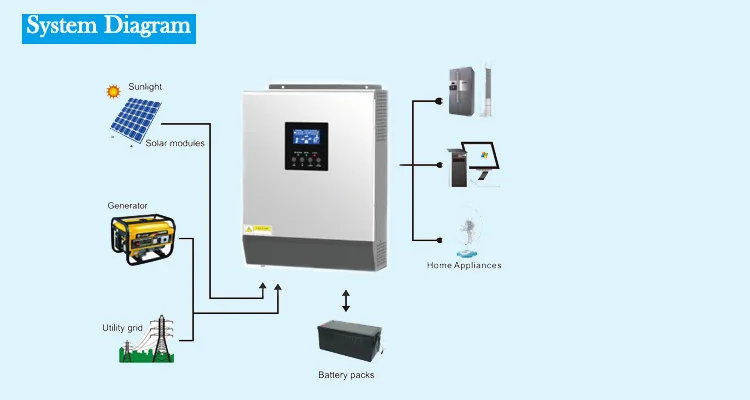

Off-grid inverter, support mains and photovoltaic solar two input.
DPS digital control technology, double transform online design, using input PFC technology, input power up to 0.99, efficient inverter topology, higher output efficiency
The battery equalization function optimizes battery performance for higher energy storage efficiency
Mains/pv/battery/multi mode optimal output Support battery cold start

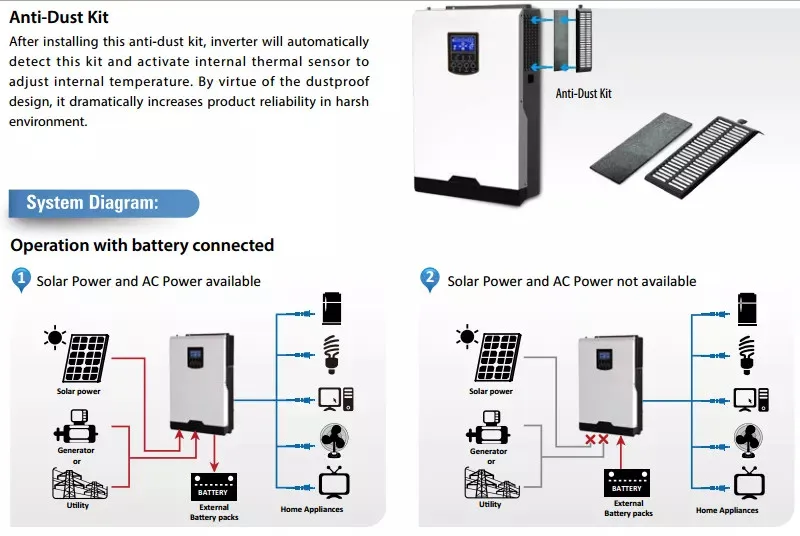

Built-in dust-proof net suite, suitable for bad environment

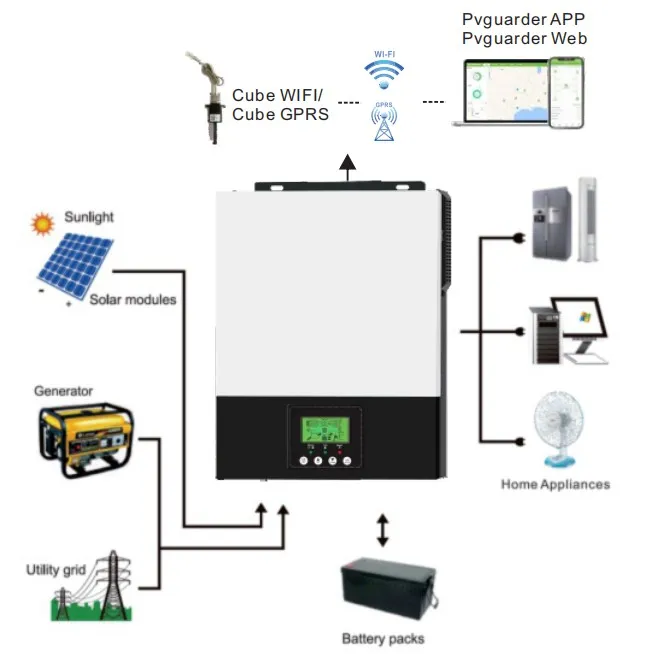

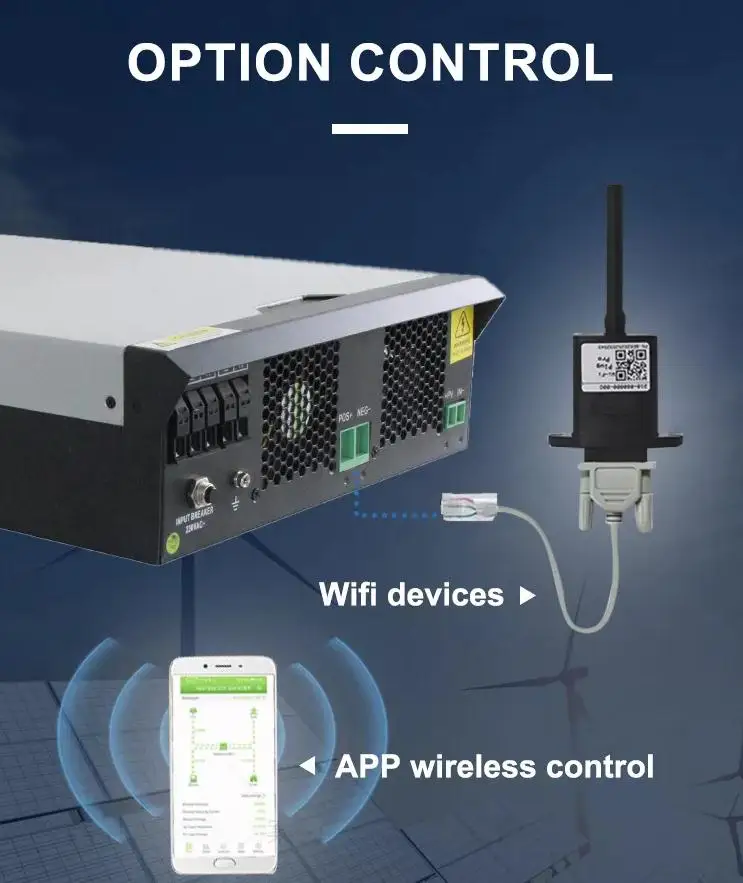

Support external WI FI module, can use mobile APP remote monitoring (optional)
DPS digital control technology, double transform online design, using input PFC technology, input power up to 0.99, efficient inverter topology, higher output efficiency
The battery equalization function optimizes battery performance for higher energy storage efficiency
Mains/pv/battery/multi mode optimal output Support battery cold start
Built-in dust-proof net suite, suitable for bad environment
Support external WI FI module, can use mobile APP remote monitoring (optional)
Technical Specification
Model | SCMK 5KW-48V Silver grey | |||||||
Rated power | 5000VA/5000W | |||||||
Parallel Capacity | Yes,6 units | |||||||
INPUT | ||||||||
Voltage | 230VAC | |||||||
Voltage range | 170-280VAC | |||||||
Frequency Range | 60/50Hz | |||||||
MPPT Range @ Operating Voltage | 120VDC-430VDC | |||||||
GRID-TIE OPERATION | ||||||||
GRID OUTPUT (AC) | ||||||||
Output Voltage Range | 184-265VAC | |||||||
Efficiency | 90% | |||||||
OFF-GRID,HYBRID OPERATION | ||||||||
GRID INPUT | ||||||||
Acceptable Input Voltage Range | 120-430VDC | |||||||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||||||
Output Wave form | Pure sine wave | |||||||
Battery& Charger | ||||||||
Battery voltage | 48VDC | |||||||
Floating Charge Voltage | 54VDC | |||||||
Overcharge Protection | 66VDC | |||||||
Maximum Solar Charge Current | 80A | |||||||
Maximum AC Charge Current | 80A | |||||||
Maximum Charge Current | 80A | |||||||
Emergency Output Power | ||||||||
Maximum output power | 5500W | |||||||
Automatic Transfer Time | 10ms | |||||||
GENERAL | ||||||||
INTERFACE | ||||||||

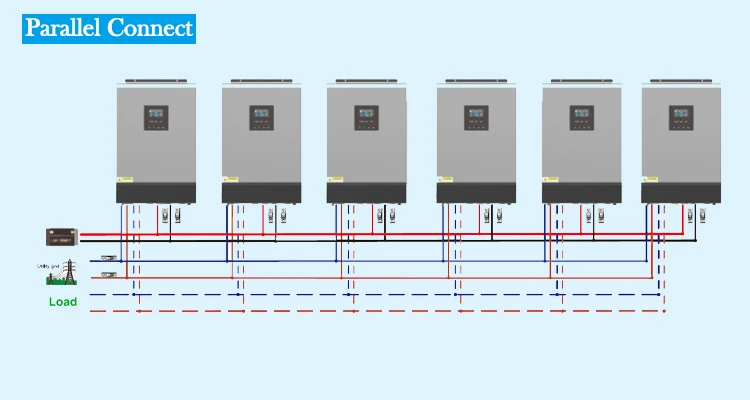

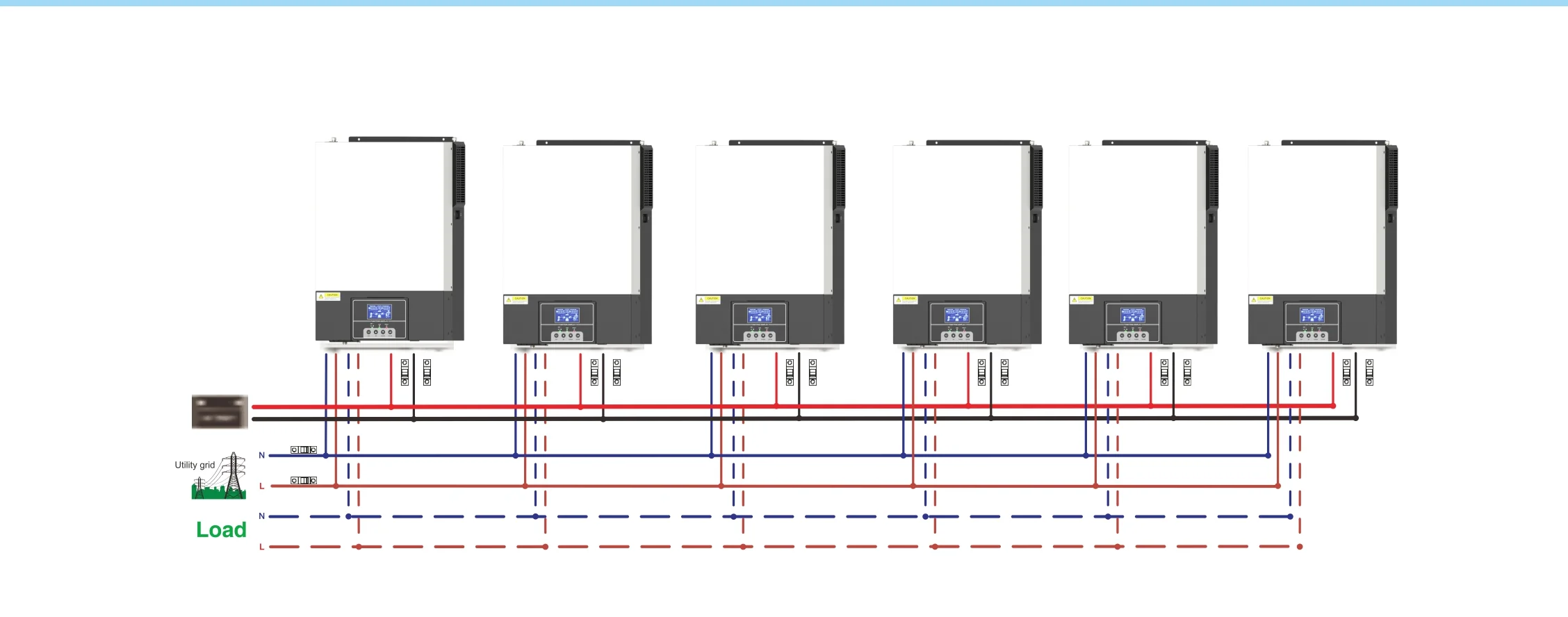

Parallel Function | Yes,6 units | |||||||
Environment | ||||||||
Humidity | 5%-95% Relative Humidity (Non-condending) | |||||||
Operation Temperature | 0℃ to 55℃ | |||||||
Measurement | ||||||||
Net Weight (KG) | 11 | |||||||
Rough Weight (KG) | 11.35 | |||||||
Dimension (w*D*H) mm | 120*295*468 | |||||||

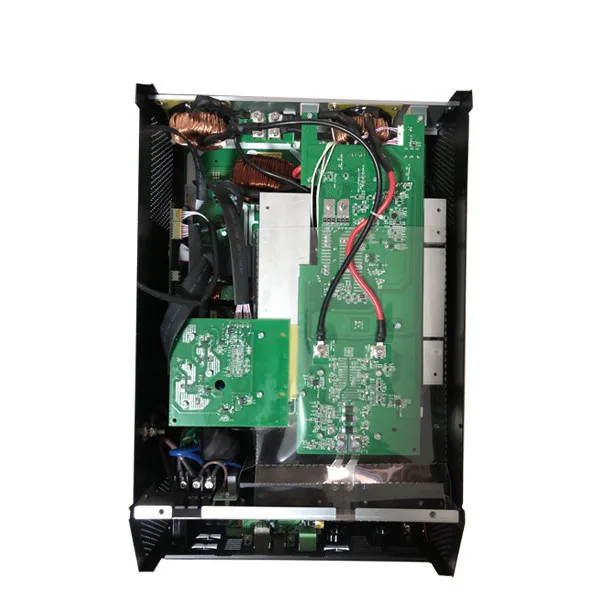

Details Images
Installation Instructions
Product packaging
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1pc in a high quality Carton box, enough time for Aging test to ensure good quality.
Company Profile
Shenzhen Zhengxin Electronics Co., Ltd.provide a one stop solution to the ups series product including design,R&D,manufacturing
and sales with after sales to our valuable customer.currently we are working closely with our customer in OEM,ODM and JDM mode ,we
also looking for better opportunity to work with our potential customer on some new products and new projects.Withn the
certification of ISO9001 and ISO14001 ,we believed that we are able to provide the best quality and service to our customer
truthfully and we are seeing the success together .
and sales with after sales to our valuable customer.currently we are working closely with our customer in OEM,ODM and JDM mode ,we
also looking for better opportunity to work with our potential customer on some new products and new projects.Withn the
certification of ISO9001 and ISO14001 ,we believed that we are able to provide the best quality and service to our customer
truthfully and we are seeing the success together .
Our Service
Pre-Sales Service
* Salesmen with 2 months of product training.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
*Your questions will be forwarded to the engineer for
confirmation.
* Sample testing support and OEM service.
* View our Factory.
After-Sales Service
* Warranty:Two years
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
* After-sales team keep track of usage and provide
timely feedback
* Engineers maintenance on the damaged part for free.
FAQ
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .
Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L
Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production
Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.
Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
