Домашняя BAC 18 4 трубный цифровой программируемый Wi Fi
- Категория: >>>
- Поставщик: Xiamen Tianli Huasheng Technology Co. Ltd.
Сохранить в закладки 1601263853043:
Описание и отзывы
Характеристики
Products Description

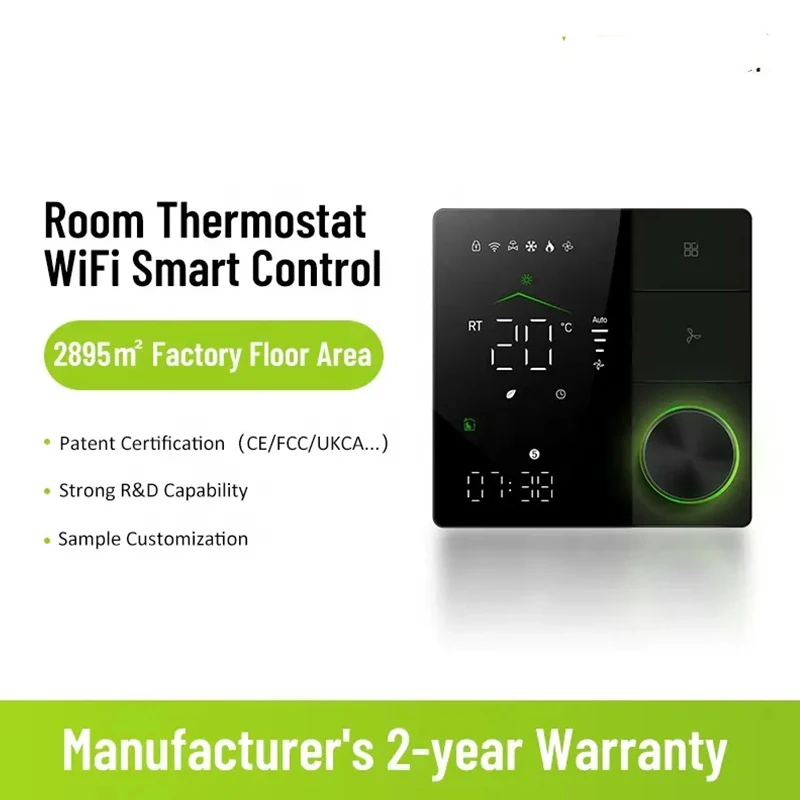

Touch Screen Digital Thermostat For Fan Coil And Central Air Conditioner
Customize different functions for different projects:
1. 2-pipe or 4-pipe fan coil unit
2. 0-10V fan or 0-10V valve.
3. Different protocols such as modbus, WiFi, zigbee, Bacnet, z-wave, etc.
4. External sensor (return sensor)
5. Humidity display, humidity control
6. Human body induction, when someone passes through the thermostat, the thermostat will automatically light up; 7. Filter cleaning reminder.
8. Air conditioning system, heat pump system, etc. Despite your custom request, our professional development
team makes professional solutions for you.
team makes professional solutions for you.
Product Paramenters
Product Name | Air conditioner Room thermostat | Style No. | BAC-18 |
Power Supply | 95 ~ 240 VAC, 50 ~ 60HZ | Inductive | 1A |
Fan Relay Amps Resistance | 5A | Sensor | NTC3950,10K |
Inductive | 3A | Accuracy | +0.5 °C |
Valve Relay Amps Resistance | 3A | Set Temp. Range | 5 -35 ℃ |
Dispaly Temp. Range | 5 ~ 99 ℃ | Ambient Temp. | 0~45℃ |
Ambient Humidity | 5 ~95 % RH (Non Condensing) | Storage Temp | -5~45 ℃ |
Power Consumption | <1.5W | Timing Error | < 1% |

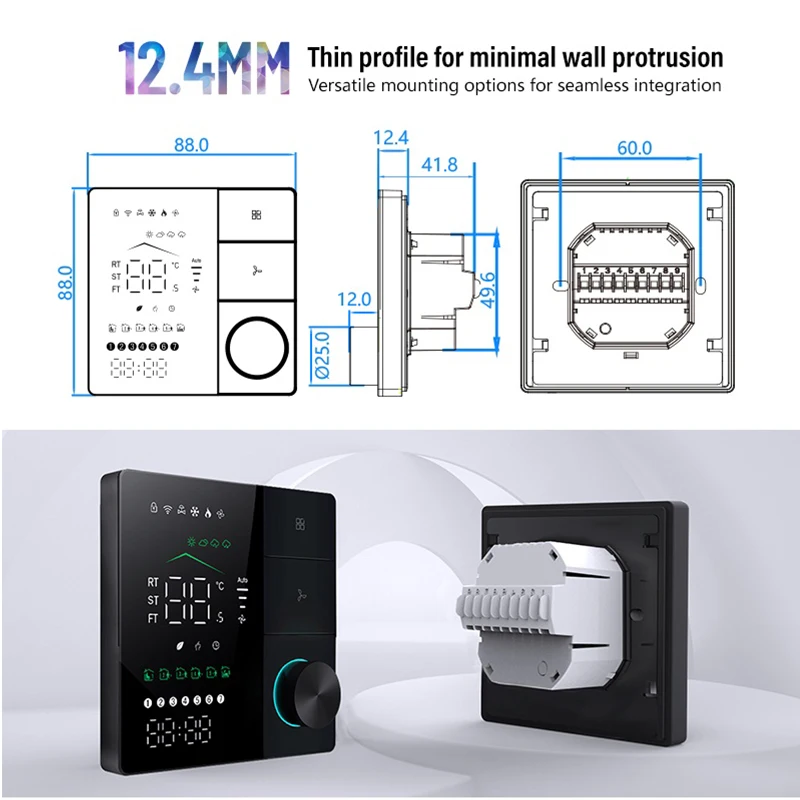

Shell Material | PC +ABS ( Fireproof) | Installation Box | 86 * 86mm Square or European 60mm Round Box |
Wire Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | Protection Class | IP20 |
Buttons | Capactive Touch Buttons | Service | OEM&ODM |
BAC-18 Smart Knob Thermostat
BAC- 18 series Modern square Touch Screen Room Thermostats are designed to on /off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp. As reaching the aim of comfort and saving energy
Feature

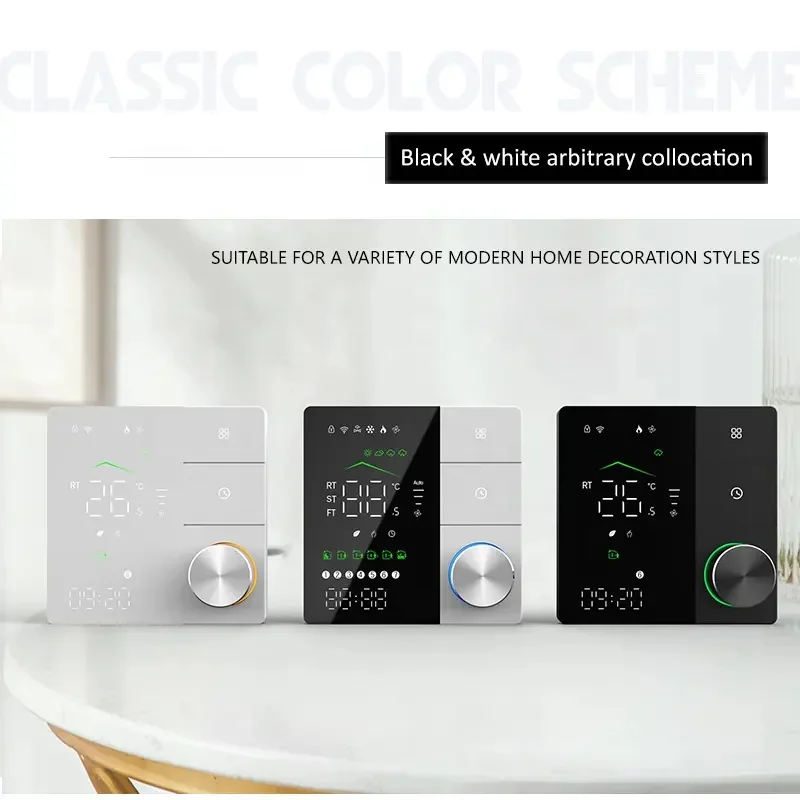

1. 3 color : White, Black, White and Black color smart knob thermostat.2. Large size colorful screen display area, creates your colorful life.
3. Touch buttons to make simple operation.
4. Amazing Silver Frame opens your modern life.
5. The visible thickness above the wall is only 15 mm.
6. The snap connection allows you to easily install.
7.86mm hidden box and European 60mm round box is suitable.
8. White, black or brushed stainless steel for your selection.
9. Wrap-around cooling holes help heat to escape quickly and avoid affecting temperature detection.
On Functionality
1. 0.5°C acuracy keeps temperature within the level you set.
2. Data memory when power is off.
3.5+1+1 six periods programmable maximize comfort and economy.
4. Temporary programmable.
2. Data memory when power is off.
3.5+1+1 six periods programmable maximize comfort and economy.
4. Temporary programmable.
Company Profile
FAQ
Q1: Do you supply OEM or ODM?
A: Yes, we have strong R&D sources and production ability and have a good feedback about our products.
Q2: Which payments are acceptable?
A: We accept Paypal,T/T,L/C,Alibaba Secure Payment etc.
Q3: Can l visit your factory?
A: Yes, of course you are warmly welcomed to visit our factory. Please kindly contact us in advance.
Q4: What is your terms of delivery?
A: We accept EXW, FOB, ClF, elc, You can choose the one which is the most convenient or cost effective for you.
Q5: Do you have limit on MOQ? And What is the MOQ?
A: As usually,Hot selling models , can low MOQ and can delivery fast . MOQ only for order with OEM, ODM and other
special requirement, As well as strategic product.
Printing Logo on product: MOQ 500 pcs Customize Package: MOQ 500 pcs
Customize Product Color: MOQ2000 pcs ODM: Depends degree of difficulty.
Q6: What is the lead time for bulk order?
A: Depend on order quantity, product model, lead time of components etc.generally 15-35 days.
Q2: Which payments are acceptable?
A: We accept Paypal,T/T,L/C,Alibaba Secure Payment etc.
Q3: Can l visit your factory?
A: Yes, of course you are warmly welcomed to visit our factory. Please kindly contact us in advance.
Q4: What is your terms of delivery?
A: We accept EXW, FOB, ClF, elc, You can choose the one which is the most convenient or cost effective for you.
Q5: Do you have limit on MOQ? And What is the MOQ?
A: As usually,Hot selling models , can low MOQ and can delivery fast . MOQ only for order with OEM, ODM and other
special requirement, As well as strategic product.
Printing Logo on product: MOQ 500 pcs Customize Package: MOQ 500 pcs
Customize Product Color: MOQ2000 pcs ODM: Depends degree of difficulty.
Q6: What is the lead time for bulk order?
A: Depend on order quantity, product model, lead time of components etc.generally 15-35 days.
Похожие товары
Настенная огнестойкая фенольная пенопластовая огнестойкая фенольная изоляционная плита Ventech
540,04 ₽ - 648,04 ₽
Изоляционные материалы из фенольной пены
540,04 ₽ - 648,04 ₽
4-ходовой реверсивный клапан SHF-7H-34U-P для системы теплового насоса
Эффективная цена WIFI Tuya умная система вентиляции контроллер вентилятора
2 700,16 ₽ - 3 024,18 ₽
Сертифицированный радиатор для тепловых труб
5 399,23 ₽ - 7 559,36 ₽

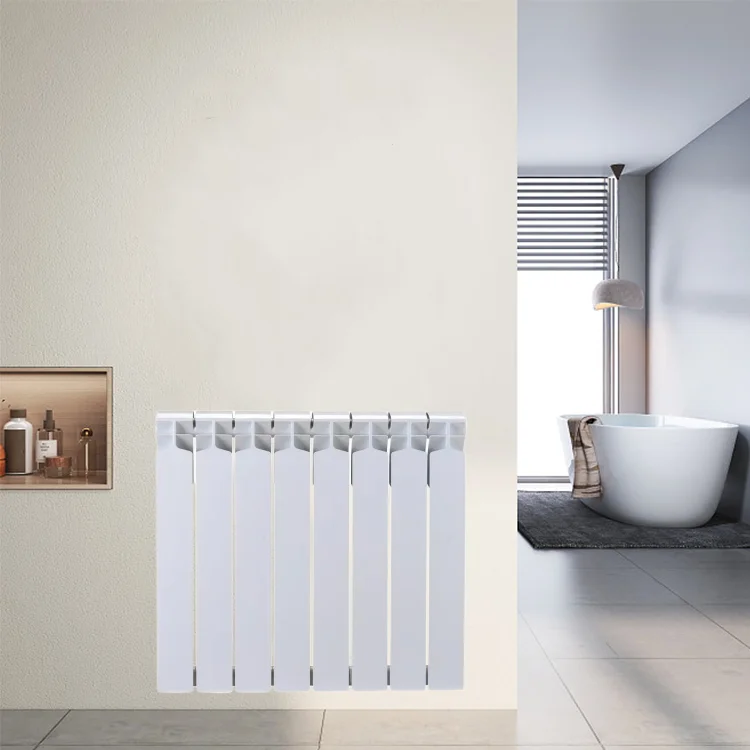

Популярный в Европе радиатор для воды, радиатор для центрального отопления из литого алюминия для дома
384,51 ₽ - 426,63 ₽

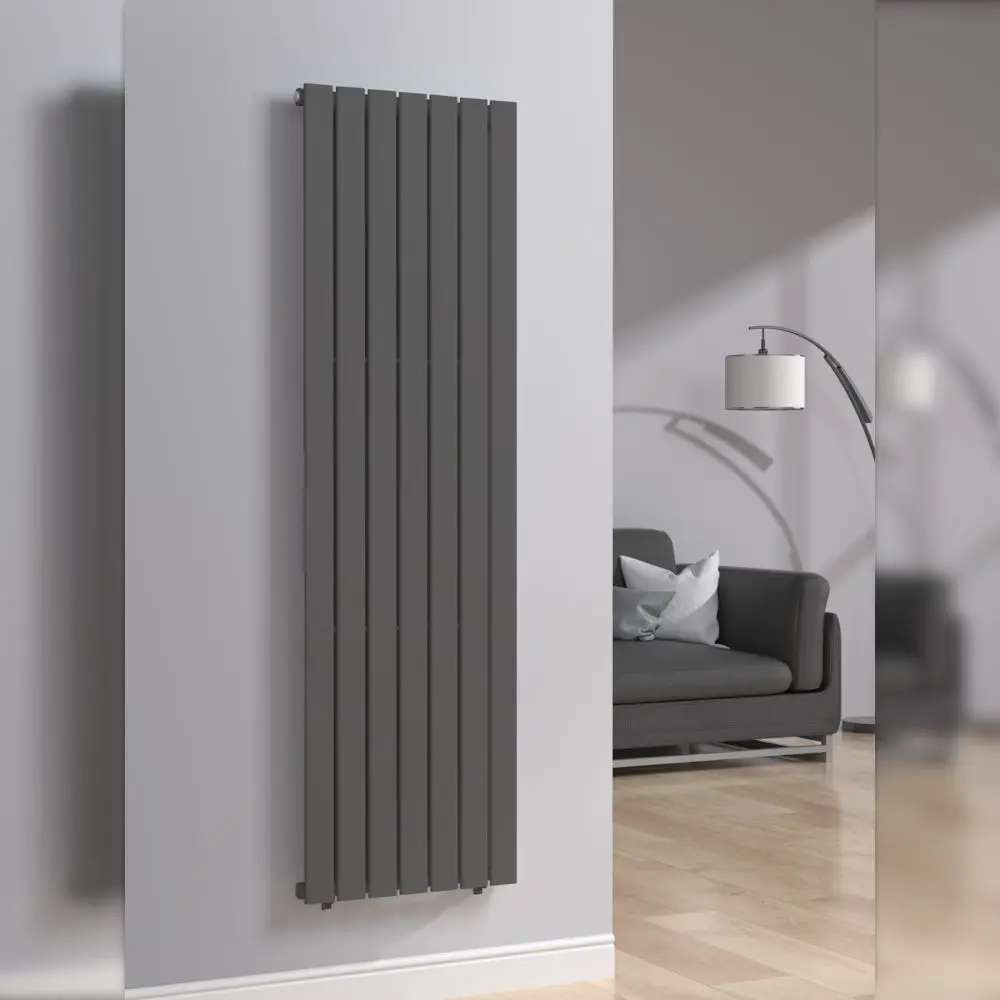

Вертикальный двойной плоский дизайнерский радиатор 1800x10 стержней антрацитовый радиатор из мягкой стали для системы отопления дома
