Программируемый светодиодный пиксельный контроллер 5 В 12 24 HC008 4 клавиши rgb RF пульт дистанционного управления 2048 пикселей ucs1903 ws2811

programmable led pixel controller 5v 12v 24v HC008 4 keys rgb led controller RF remote control 2048 pixel ucs1903 ws2811

Product Parameter

	RF remote control HC008
	Input Voltage	DC5-24V
	Supported chips	Such as the TM16726,TM2801,TM8806,WS2811, UCS1903 etc.
	Size	L122 x W71 x H24mm
	Working temperature	-20℃~60℃
	Effects model	133 effect
	Maximum control points	1024 (Low-speed) points, 2048 (High-speed) points
	Application	For led strip,led matrix,led module , led pixel light

Features:

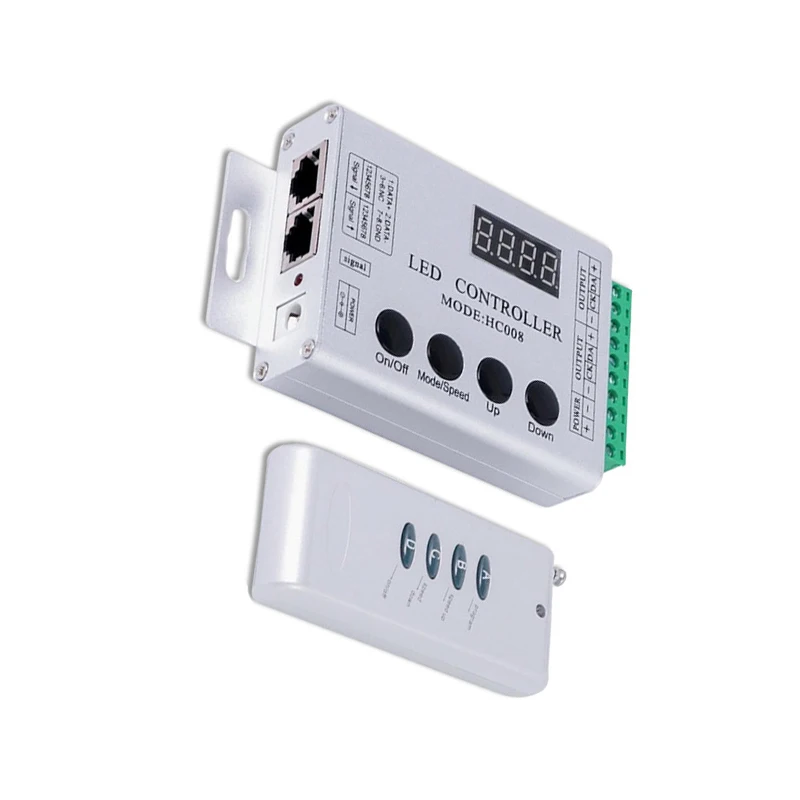

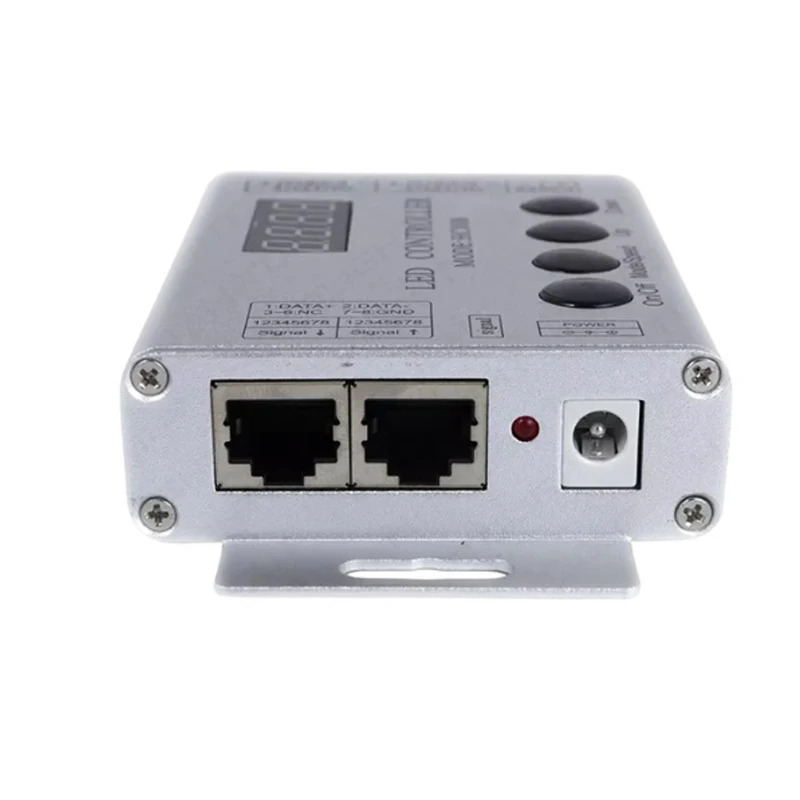

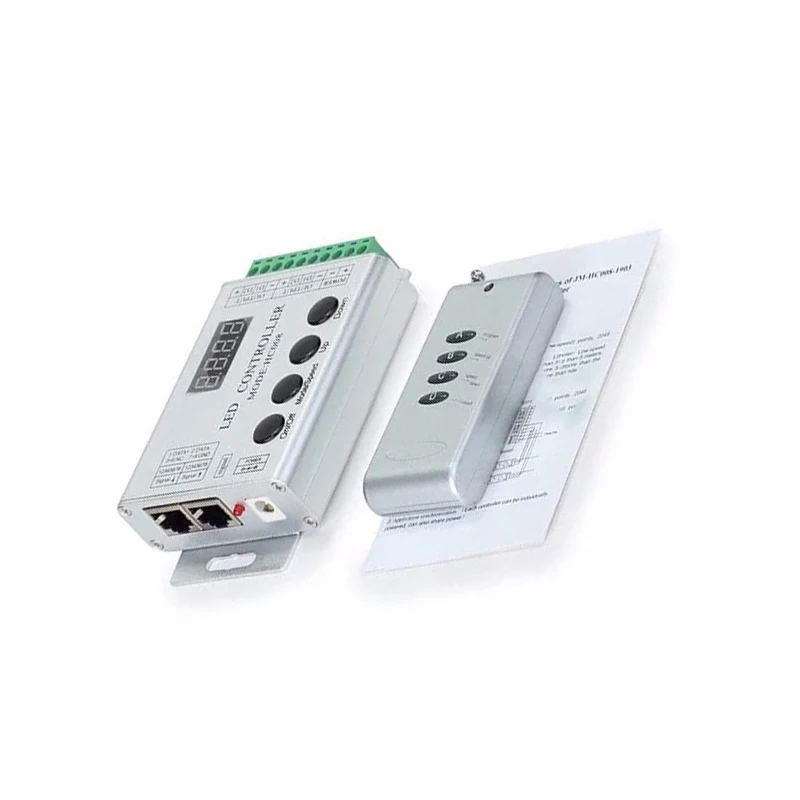

HC008 133 Kinds effects built in,RF Remote control, Pixel LED Controller

Wireless Controller is suit for drive LED directly. It is widely used in advertising, stage sets, home decorations, etc. It has many advantages such as low price, easy connection and simplicity to use. It has a memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. It can also be used as a synchronous controller. That is to say you can synchronously control number of decoders and LED lights.

Instructions for use:
Connect the light bar and connect the power cord. Make sure there is no short circuit between the cables before powering on. After power on, make the following settings.

Press the "On / off" key to turn off the power on (the menu can not be set in the off state).

Press "UP" and "DOWN" simultaneously to press the "Mode / Speed" button to enter the menu setting screen.

The first screen is "S-HI" or "S-LO" for the controller "High Speed, Low Speed Setting". Press "UP" and "DOWN" to select (IC on the light bar is high speed mode Select "S-HI", low-speed mode select "S-LO"), the factory default is high-speed mode.

Press "Mode / Speed" to enter the second screen "Control point setting". At this time, the digital display shows the 4 digits as the number of control points, and the number of control points is increased and decreased by "UP" and "DOWN" Can be quickly adjusted), the factory default is 50.

After setting, press "On / off" key to "save" and exit.

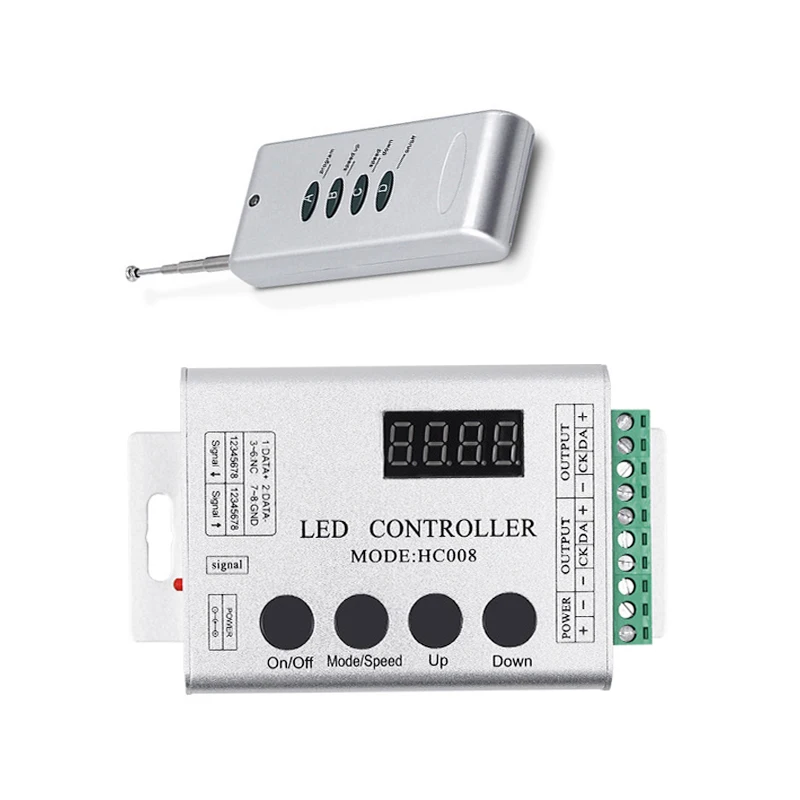

There are 4 keys on the controller panel. The key functions are as follows:
On / off: power on / off.

Mode / Speed: mode adjustment / speed adjustment function of the switch (digital tube first display H for the mode adjustment, display S for the speed adjustment)

UP: mode + / speed +, when the mode adjustment function for the mode of the key, in the speed adjustment function for the key to speed up.

DOWN: mode - / speed -, when in the mode adjustment function for the mode minus, in the speed adjustment function when the key for the slowdown.

Note: When the controller is powered up, the red indicator light will light and the green indicator will flash every time the key is pressed

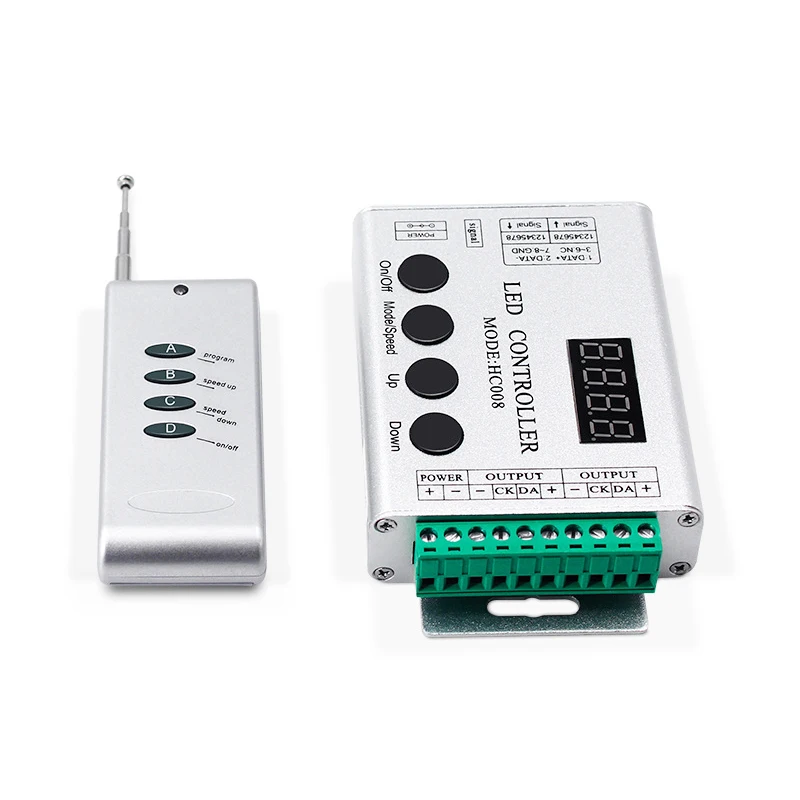

Using radio frequency control, remote control on a total of four keys, the key functions are as follows:
A:Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)

B:Mode+/Speed+ button. When in mode regulator function, it is for Mode+. When in speed regulator function, it is for Speed+.

C:Mode-/Speed- button. When in mode regulator function, it is for Mode-. When in speed regulator function, it is for Speed-.

1) 1 controller to connect the led light

2) Multi-motor synchronization function application

Cascade Connection,the master controller just output the signal to the first branch controller, and the next branch controller signal is from the  previous branch controller,etc)

3) .Bus connection,all branch controller’s signal output are from the master controller directly

HC008 Controller is suit for drive LED directly. It is widely used in advertising, stage sets, home decorations, etc. It has many advantages such as low price, easy connection and simplicity to use. It has a memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. It can also be used as a synchronous controller. That is to say you can synchronously control number of decoders and LED lights.
