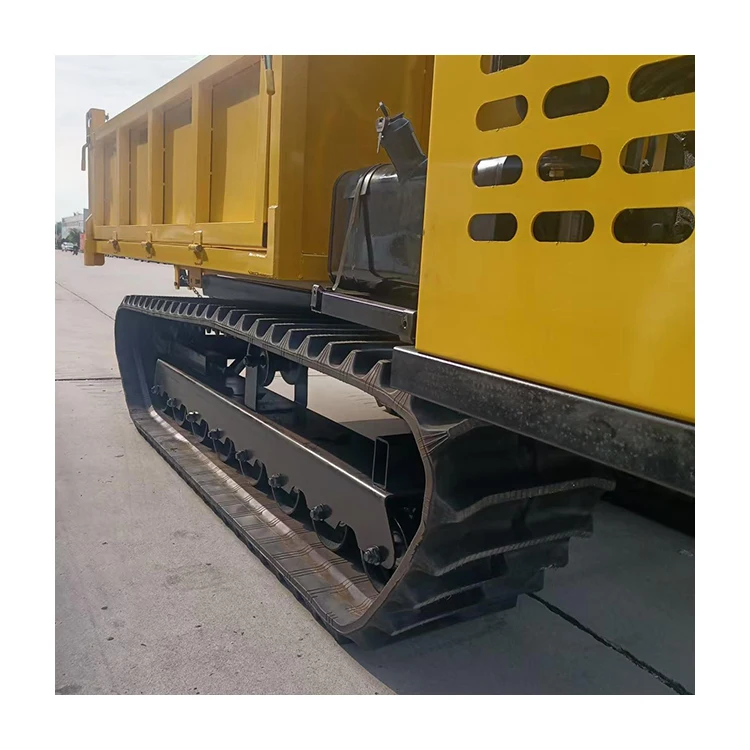

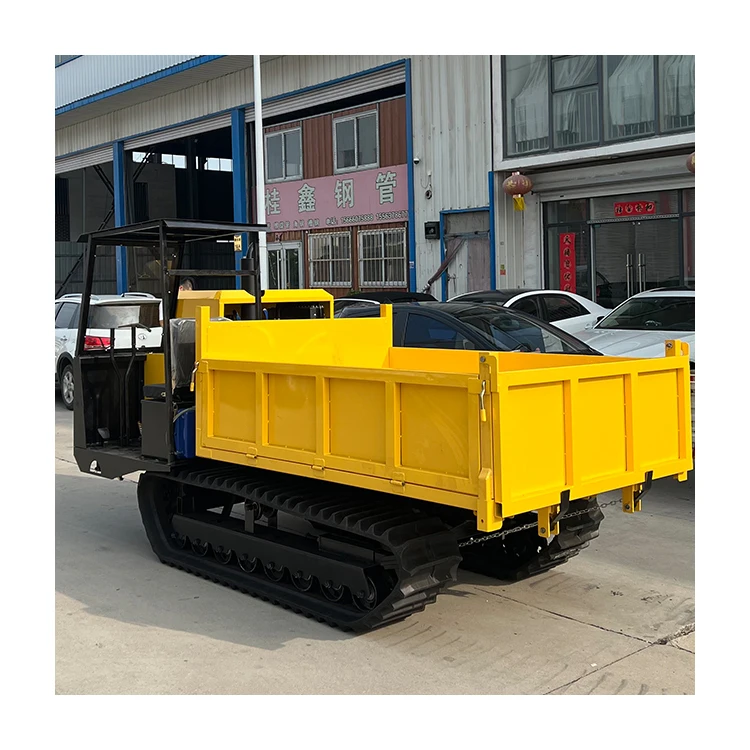

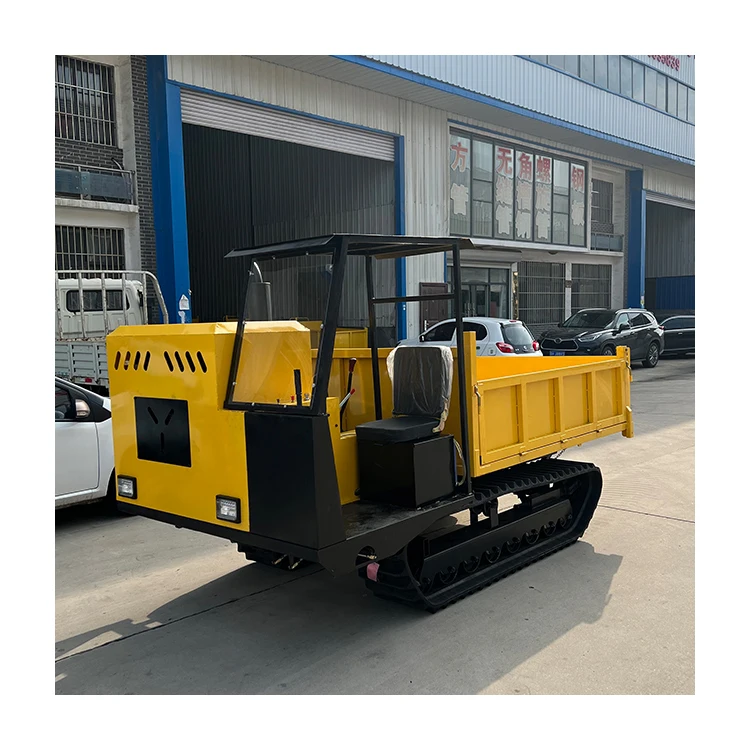

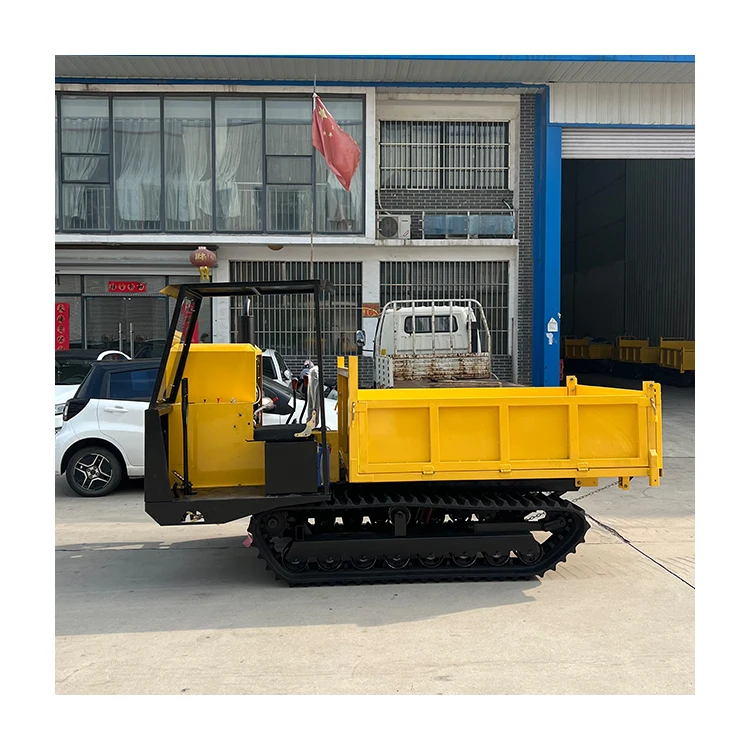

Трек с высококачественной резиновой или стальной направляющей пластиной износостойкий коррозионная стойкость. Нагрузка 5000 кг
- Категория: >>>
- Поставщик: Shandong Yitui Machinery Equipment Co. Ltd.
Сохранить в закладки 1601264359251:
Описание и отзывы
Характеристики
Advantages of tracked transporters：
Driven by a diesel engine, the horsepower is stronger, the gearbox is front-mounted, the center of gravity is stable, the climbing ability is stronger, the tie rod operation panel adopts wet friction disc brakes, the brake and steering are the same fork, the operation adjustment is more convenient, and the steering action is softer.
Product Description
Retrofitting Accessories
Company Profile
Shandong Yitui Machinery Co, Ltd.
Shandong Yitui Machinery Co, Ltd. is located in the hometown of Kongmengzhi Jining Rencheng District Jiacheng Road and 327 provincial highway intersection covers an area of 4,000 square meters, registered capital of 10 million, Yitui company is a collection of research and development, construction machinery and equipment, non-standard special equipment customization in one of the new intelligent equipment manufacturing enterprises, focusing on crawler equipment development and production, sales and integrated production The company has a strong technical development team, strict productior management regulations to standard assembly line production operations, the company now has 200 registered personnel.In March 2015, the company established an e-commerce business department and settled in Alibaba,Taobao, Jinadong Baidu and other e-commerce platforms. In July 2017, the e-commerce foreign trade department was established and settled in the commercial power e-commerce building.In just two years of e-commerce time, the sales products spread throughout the country and cooperated with Shandong Agricultural University, Nanjing Agricultural 211 University and Chang'an University, and exported to the United States and Russia
Ross, Algeria and other overseas countries. With a conscientious industry reputation, perfect sales network and perfect technical system,it has won unanimous praise from customers at home and abroad, and the company qualification 3A certificate is complete, which fully meets the needs of various engineering vehicle manufacturing.The company wholeheartedly provides customers with reliable, high-quality qualified products, but also to provide customers with meticulous after-sales service, must achieve excellence, with its excellent performance by the majority of users praise, the company's products price concessions, excellent quality welcome interested parties to consult!
Certifications
Exhibition
Recommend Products
Overall dimensions (L*WH)/mm | 1530*710*1100 |
Cabin size/mm | 970*710*370 |
Engine model | Gasoline 170/diesel 173 |
Power/power | 7Ps |
Crawler specification model | 180*60*40 |
Chassis width | 650mm |
Transmission model | Customized |
Self-weight | 300kg |
Single-sided track load configuration | 3 x 150 integral wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 1800*750*1200 |
Cabin size/mm | 1200*750*450 |
Engine model | 186FA air-cooled diesel engine |
Power/power | 8.5Ps |
Crawler specification model | 180*72*38 |
Chassis width | 700mm |
Transmission model | Type 13 |
Self-weight | 400kg |
Single-sided track load configuration | 3 x 150 integral wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 2500*1100*1300 |
Cabin size/mm | 1400*1100*500 |
Engine model | 192FA air-cooled diesel engine |
Power/power | 11.7Ps |
Crawler specification model | 23072*46 |
Chassis width | 1000mm |
Transmission model | Type 18 |
Self-weight | 650kg |
Single-sided track load configuration | 5 x 150 integral wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 2600*1300*1400 |
Cabin size/mm | 1600*1200*500 |
Engine model | 18/22hp single cylinder water-cooled |
Power/power | 18/22Ps |
Crawler specification model | 230*72*56 |
Chassis width | 1000mm |
Transmission model | Type 18 |
Self-weight | 970kg |
Single-sided track load configuration | 6 x 150 split wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 3350*16001550 |
Cabin size/mm | 2200*1600*500 (bottom 2 sides 2) |
Engine model | 25/30hp single cylinder water-cooled |
Power/power | 25/30Ps |
Crawler specification model | 350*90*56 |
Chassis width | 1550mm |
Transmission model | Type 21 |
Self-weight | 1500kg |
Single-sided track load configuration | 6 x 180 split wheels, 205 bearings, 2 x 150floating wheels, 2 x 150 drag wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 3350*1600*2100 |
Cabin size/mm | 2200*1600*600 (bottom 3 sides 2) |
Engine model | Four-cylinder 490 |
Power/power | 51Ps |
Crawler specification model | 350*90*56 |
Chassis width | 1550mm |
Transmission model | Type 23 |
Self-weight | 1600kg |
Single-sided track load configuration | 6 x 180 split wheels, 205 bearings, 2 x 150floating wheels, 2 x 150 drag wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 3500*1800*2100 |
Cabin size/mm | 2200*1800*600 (bottom 3 sides 2) |
Engine model | Four-cylinder 4102 |
Power/power | 70Ps |
Crawler specification model | 400*90*56 |
Chassis width | 1720mm |
Transmission model | 29Type |
Self-weight | 2000kg |
Single-sided track load configuration | 6 x 180 weighted wheels 306 bearings 2 x 150floating wheels 2 x 150 dragging wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 4200*2000*2400 |
Cabin size/mm | 2600*2000*500 (bottom 3 sides 2) |
Engine model | Four-cylinder 4105ZY |
Power/power | 120Ps |
Crawler specification model | 400*90*70 |
Chassis width | 2000mm |
Transmission model | Wanliyang 145 |
Self-weight | 3800kg |
Single-sided track load configuration | 2 x 200 solid wheels with 30207 bearings 4 x 200 weighted wheels, 30207 bearings 2 x 180 floating wheels, 2 x 180 drag wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Overall dimensions (L*WH)/mm | 4700*2200*2600 |
Cabin size/mm | 3200*2200*500 (bottom 3 sides 2） |
Engine model | Four-cylinder 4108ZY |
Power/power | 160Ps |
Crawler specification model | 450*90*82 |
Chassis width | 2200mm |
Transmission model | Wanliyang 545 |
Self-weight | 4500kg |
Single-sided track load configuration | 10 x 200 solid floating wheels 2 x 180 weighted drag wheels |
Slope angle | 30° |
Recommended climbing degree | 45° |
Coating process | Overall spraying of the whole system |
Why Choose Us
Highest quality and professional service
Complete mechanical solutions to problems, we have one-stop professional, service as well as professional design team and the best quality products to provide you with the most popular skid steer loader models.
Fast delivery and stability
Final delivery speed, when you place an order from our first-class production chain, we will start preparing customized production for you as quickly as possible, delivering the goods to you.
Professional after-sales service
1 year warranty,our company has a professional after-sales service tean, once there is any problem with the machine， we will bet he fastest person to provide the best solution, any reference accessories can be obtained in time.
Packaging & Shipping
FAQ
Q1: What is the advantage about your company?
A1: 0ur company has professional team and professional production line.
Q2: Why should I choose your products?
A2: Our products are high quality and low price.
Q3: Any other good service your company can provide?
A3: Yes,we can provide good after-sale and faast delivery.
Q4: Can your product be customized?
A4: Yes,you are welcome to customize.
Похожие товары

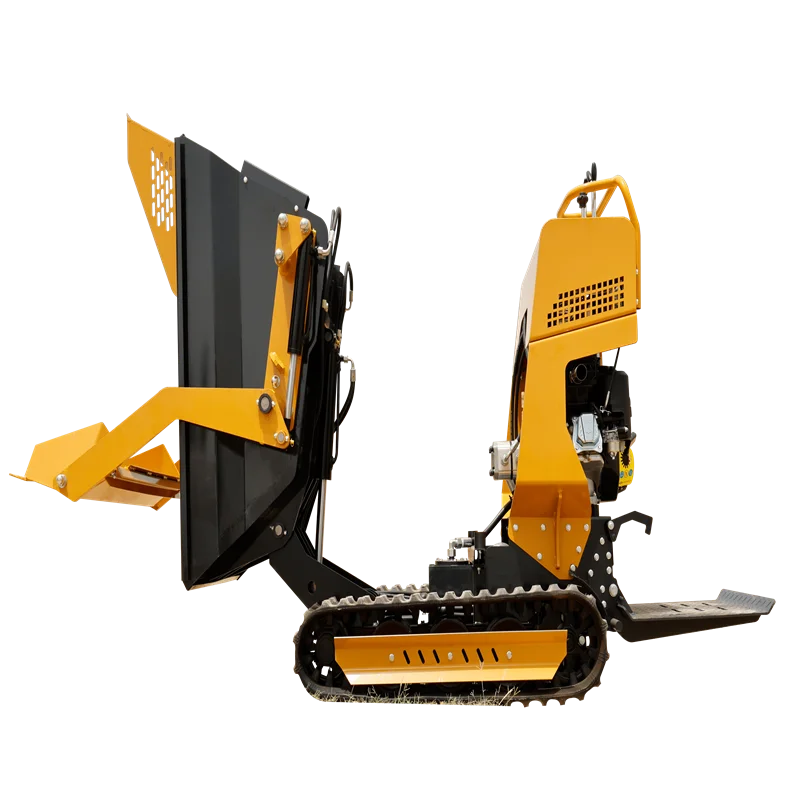

Новинка хорошее рабочее состояние сельскохозяйственный лесной сад дизельный самозагружаемый мини-самосвал
383 769,40 ₽
Бензиновый дизельный двигатель мини-самосвал садовый большой грузоподъемности
142 433,28 ₽ - 241 116,84 ₽
Высокое качество китайские производители небольшой Гусеничный мини-гусеничный самосвал бензиновый мини-самосвал
173 244,48 ₽ - 186 402,28 ₽

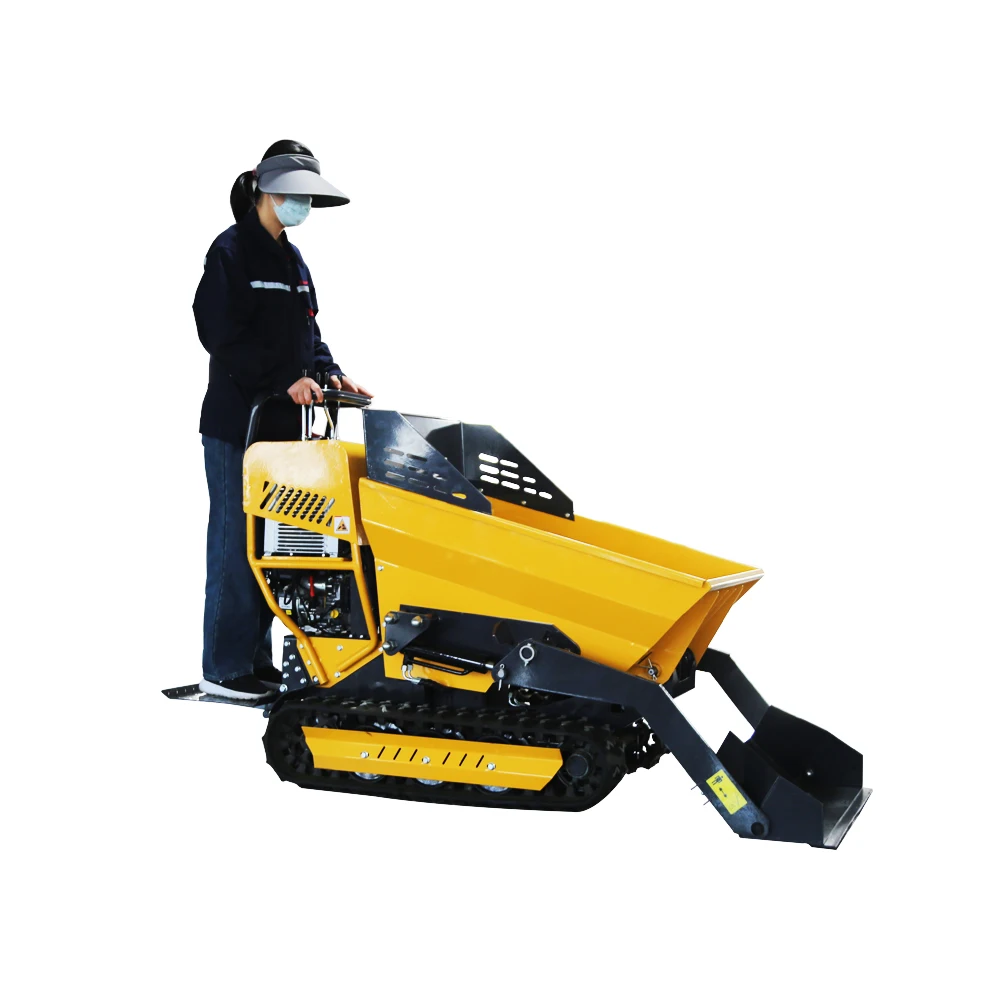

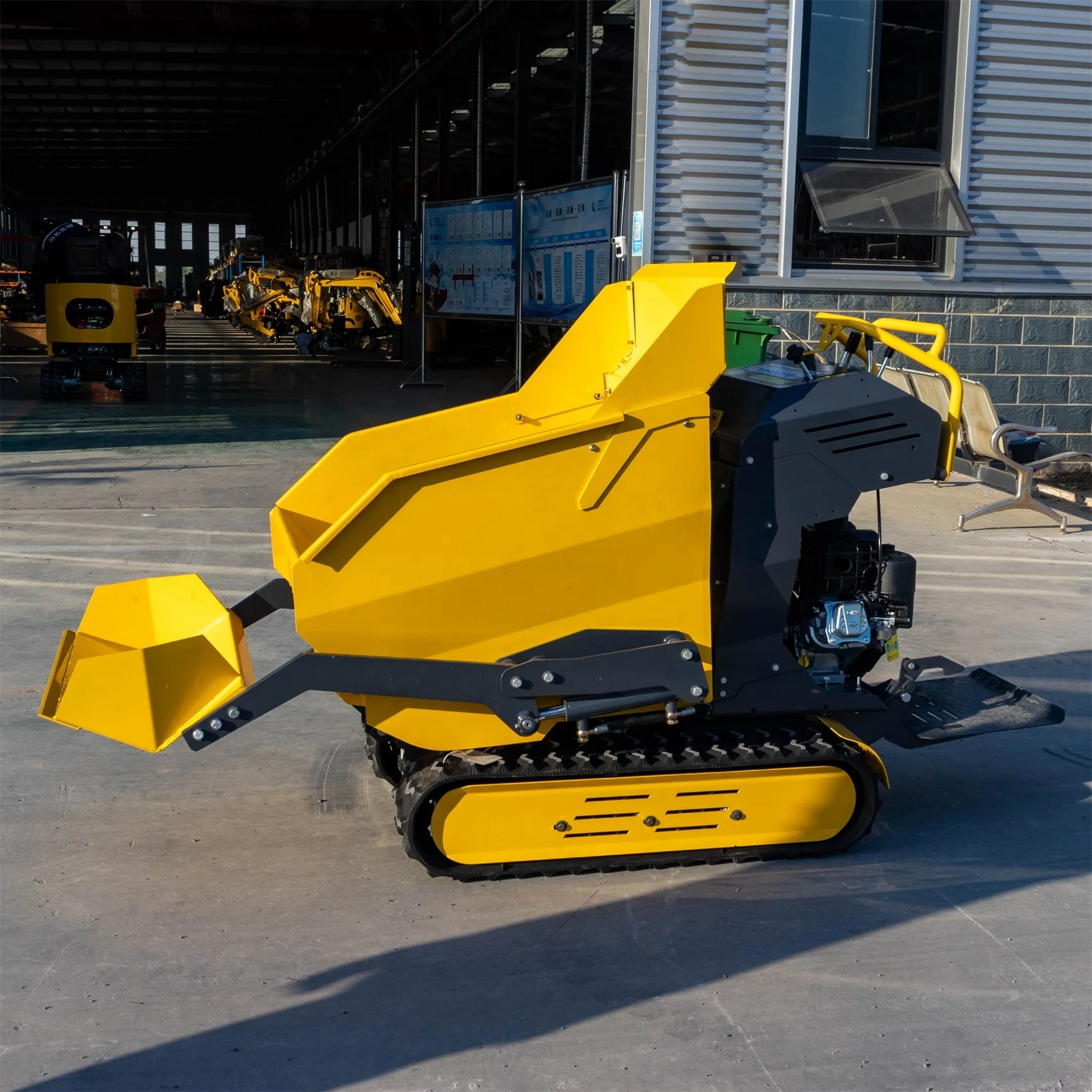

Высококачественный мини-самосвал 400 кг мини-бетонный самосвал для сада дома мини-гусеничный
58 113,66 ₽ - 97 587,08 ₽

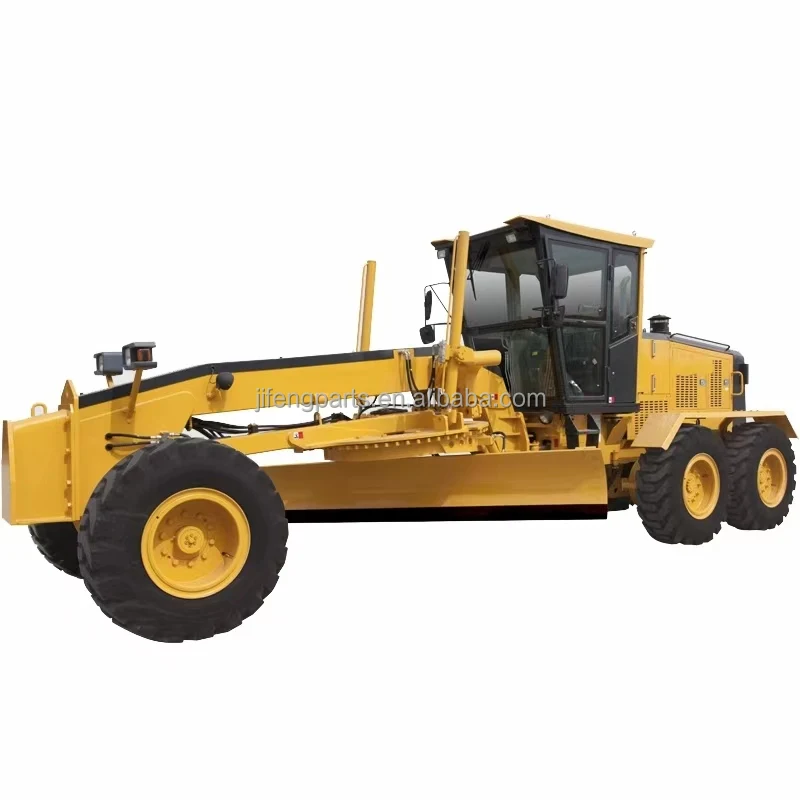

Инженерная техника строительное оборудование 15ton 125kw моторный грейдер для продажи
4 383 743,04 ₽ - 4 385 826,36 ₽

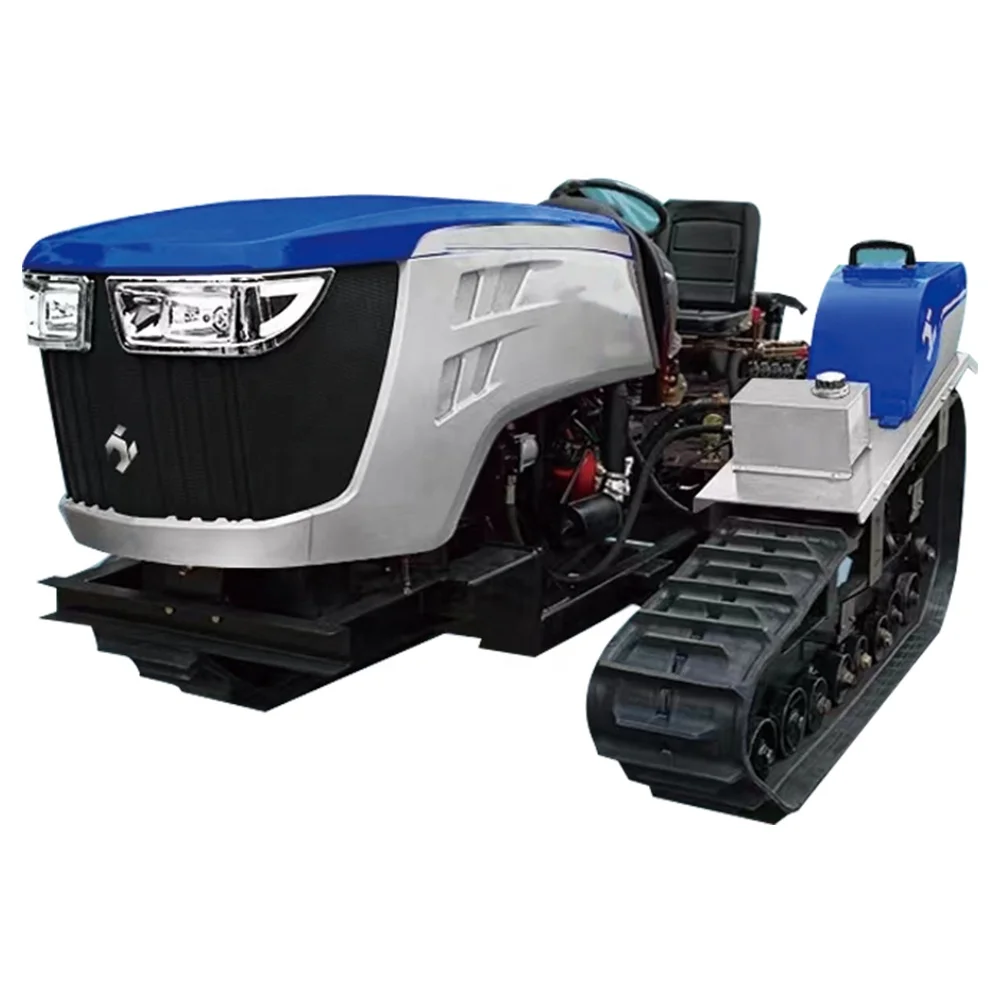

Фермерский трактор 120 л.с. JCZ-1202 по конкурентоспособной цене
274 121,00 ₽ - 822 363,00 ₽

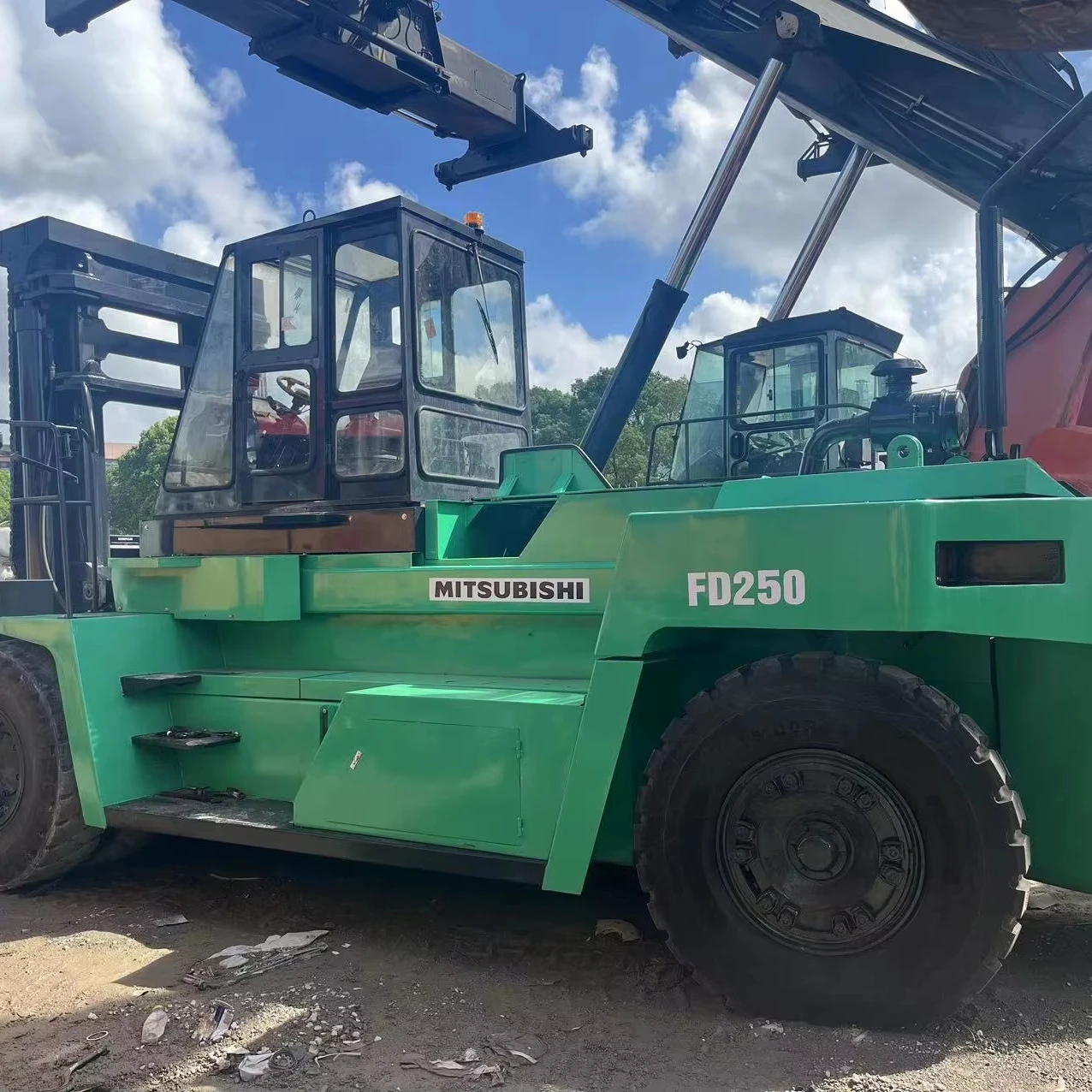

98% Новый mitsubishi FD250 25 Тонн Подержанный вилочный погрузчик большой хорошее состояние в наличии дешевая цена 30 тонн 20
