60W80W100W CO2 Cutter Machine CO2 Laser 6090 Laser Engraving Machine Laser Acrylic Cutting Machine




2010/3020/3040
Mini Laser Engraving Machine
3050/4060/6090
M2 Control Laser Cutting Machine
4060/6090/1060/1080
Ruida 6445G Control Laser Cutting Machine


4060/6090
Laser engraving machines
130/1410/1610/1810
Laser engraving machines
1325/1625/3015/2010
Big Laser cutting machines


Product




9060 /6090 LASER ENGRAVING/ CUTTING MACHINE
1-WD-6090 Co2 laser engraving cutting machine’s equipped with enclosed laser tube, three-wire straight rail, RUIDA or TROCEN control system, Industrial laser head, high power stepping motor.
2-This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of files. You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer. The machine front and back doors can open to accommodate larger materials.




6090 laser Engraving and Cutting Machine -Configuration parameters of the machine:
1)Offline Working;
2)XY axis 12MM three-line square rail;
3)industrial laser head;

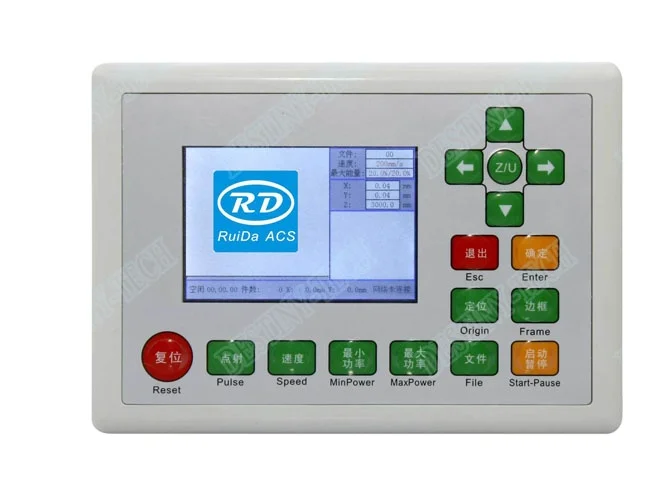

4)RUida 6445G system;
5)42 stepper motor Standard (57 stepper motor upgraded);
6) using CWG/RECI Laser tube (EFR Optional)
7)Equipped with automatic lifting,


Product Description

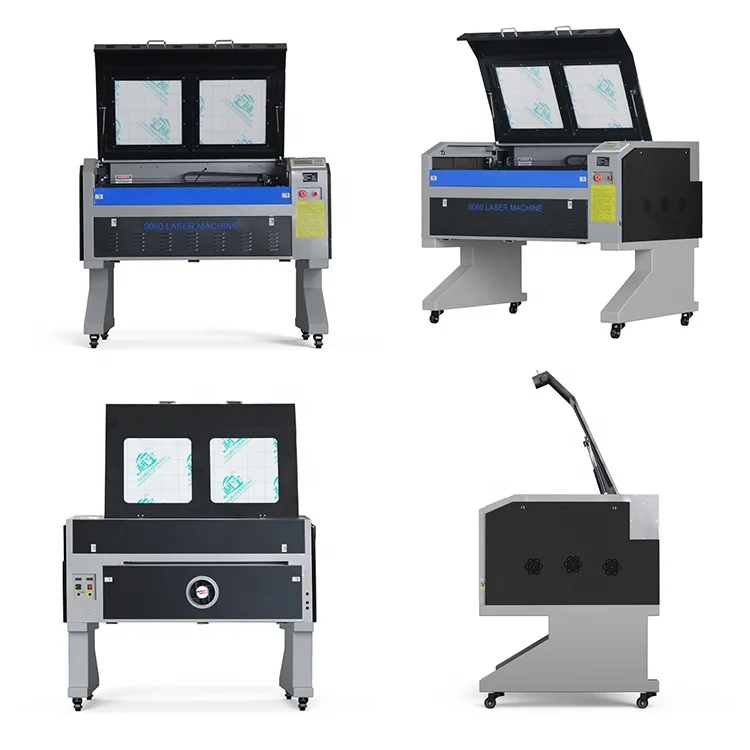

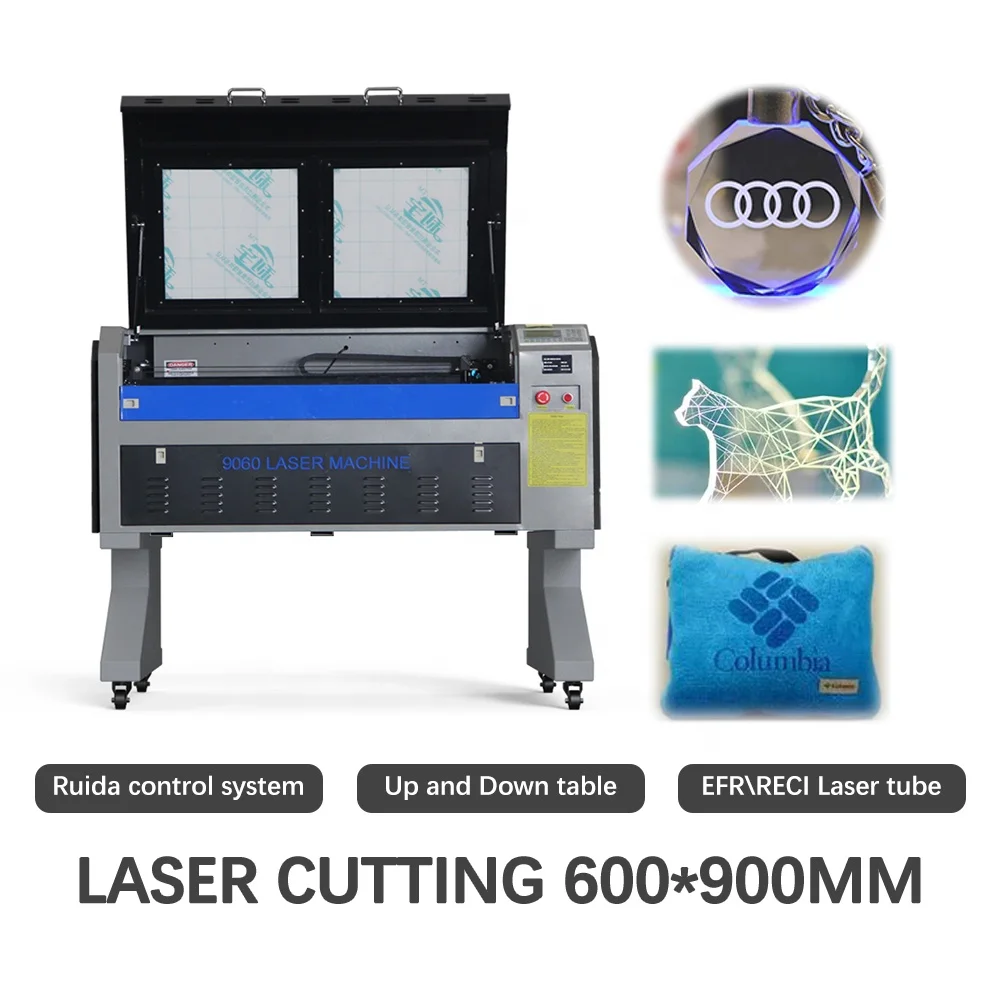

6090 CO2 laser engraving cutting machine
Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.
6090 laser cutting machine are widely used in Mdf, Plywod Acrylic ,laser engraving are widely used in clothing, shoes, luggage, computer embroidery clipping, model,electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts.
Household appliances, laser processing and other industries.








Detailed Images


Technical   Specifications
Model
WD-6090
Laser Tube
EFR RECI

Focal Lens
Diameter
0.71 in. (18 mm)
Thickness
0.08 in. (2 mm)
Focal Length
2 in. (50.8 mm)
Mirror
Diameter
0.79 in. (20 mm)
Input Power
110V/220V,50Hz/60Hz
Power Consumption
900W
Rated Power
50W/ 60W /80w /100w/130W/150W
Expected Service Life
at <40% / 40–70% / >70% Power
8000/6000/4000 hr.
Laser Wavelength
10.64um
Laser Frequency
28.3 kHz
Processing Area
15.7×23.6 inches (400×600 mm)
Max. Engraving Speed
19.68 ips (500 mm/s)
Max. Cutting Speed
15.7 ips (400 mm/s)
Min. Engraving Depth
0.0004 in. (0.01 mm)
Max. Engraving Depth
0.4 in. (10 mm)
Min. Letter Size
0.04×0.04 in. (1×1 mm)
Required Operating Environment
<70% Humidity 40–75°F (5–25°C)
Provided Operating Software
RDWorks
Supported Operating Software
CorelLaser, LaserDRAW, LightBurn
Supported Image Formats
.ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg,
Graphic Operating Modes
Raster, Vector, Combined
Net Weight
248 lb. (112 kg)












Standard Accessories:
(01)laser engraving cutting software --laser cut 5.3(English version)
(02)User manual of machine(English version)
(03) User manual of software (04)USB cable
(05)communication cable (06) air exhaust fan (07)air pump
(08)3 reflecting mirrors (has been installed in the machine)
(9)one focus lens(has been installed in the machine )
(10)one laser tube(has been installed in the machine)
(11) tool box that you need to repair or maintenance
(12)with water pump
(13) with up and down table
(14) with Honeycomb panels


Packing & Delivery




Packing & Delivery




Package:
Firstly,there are for angle irons to fix the footstands(Casted iron,more stable).
The five pieces of package is from inside to outside.Preservative film--- Foam --- Preservative film --- Plywood case --- Paint the mark.


Our Company


Liaocheng Ketai Laser (Worldslaser) Equipment Co.,Ltd

Liaocheng Dongchangfu Ketai(Worldslaser) Laser Equipment Co., established in 2007,which is located in that beautiful "Jiangbei Water City"Shandong Liaocheng .

Worldslaser Equipment Co.,Ltd has strong technical strength with a complete technical development system and strong ability to innovate,the production of manufacturing has a strict management philosophy and system. We have a professional team with strong customer service awareness of the staff with consummate technology and innovation ability and have rich work experience to pursuit the excellent quality of products .Our company continues to exceed the level of technology research development and standardized of scientific management, excellent product quality and customer respect service philosophy, making our products to win a good corporate honor in the global market .

We specialize in the production of laser engraving cutting machine, laser seal engraving machine, small laser engraving machine, fiber laser marking machine, Co2 laser marking machine, metal laser cutting machine, fiber laser cutting machine, CNC cutting machine, as well as accessories, laser tube, linear guide , the laser head, the laser machine working platform and KT series engraving and cutting machine. Our company independent research and development constantly extend the product range to meet a variety of customer requirement. Our products are widely used in advertising, decoration, textile and garment producing artistic processing, furniture manufacturing industry, craft or gift industry, flexible materials industry, the metals industry and the electronics and chip industrie.







FAQ


Q1.What should I do if I can not operate the cnc machine?

1.Customer can come to our factory to learn the machine operation
2.we have the machine operation videos online.

Q2. How long is the delivery time?

For standard machines, it would be 10-15 days;
For nonstandard machines and customized machines according to client s specific requirements, it would be 25 to 35 days.

Q3. How's the payment?

Normal payment term is Telegraphic Transfer(T/T), L/C,D/P, Western Union Escrow etc,if this is not acceptable for you,please send email for negotiate.

Q4.How about the documents after shipment?

All original documents to send by DHL, for example :the Packing List, Commercial Invoice, B/L,and other certificates as required by clients.

Q5.What's the guarantee, in case the machine breaks down?
The machine has one year warranty.,We will offer 24 hours online service support.. Parts except for consumable parts will be replaced for free if the problems are caused by quality fail.
