Натриево-ионный автомобильный стартовый Аккумулятор заменяет 54313 LBN1 12V 50Ah автомобильный аккумулятор на 1400 + CCA высокопроизводительный автомобильный SIB аккумулятор
8 860,87 ₽ - 11 158,13 ₽
SIB 12 В 70ah стартовая натриево ионная батарея для автомобиля замена 80D26L 2MF запуска
- Категория: >>>
- Поставщик: Shenzhen DJS Tech Co. Ltd
Сохранить в закладки 1601264554313:
Описание и отзывы
Характеристики
Products Description

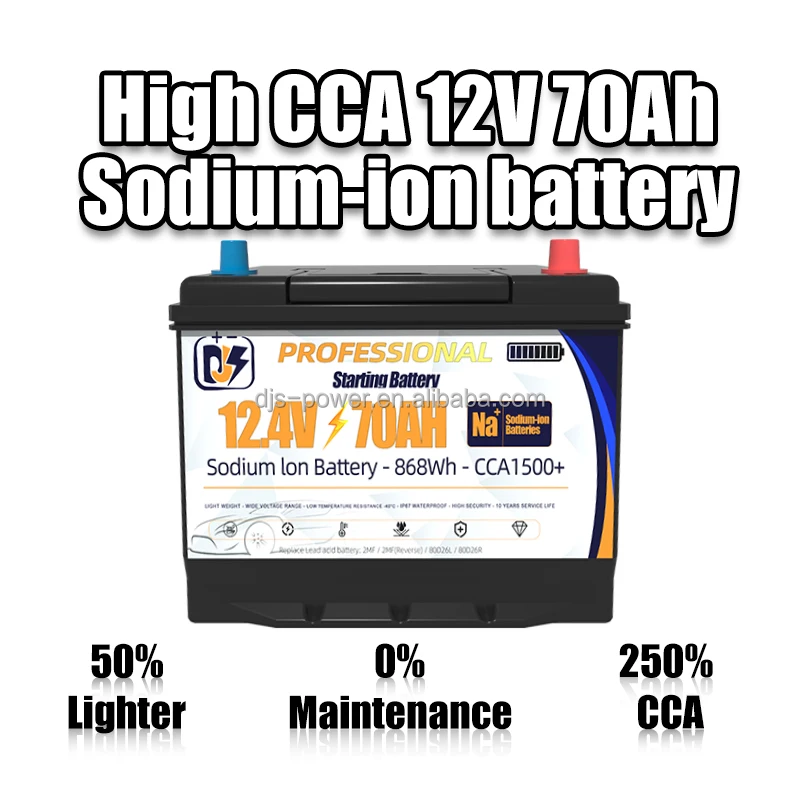

12V 70Ah Sodium Ion Sodium-ion Batteries
Sodium-ion batteries are a promising alternative to lithium-ion batteries — currently the most widely used type of rechargeable battery.
* Sodium is more environmentally friendly and can be transported at zero volt, making it safer;
Sodium-ion batteries are a promising alternative to lithium-ion batteries — currently the most widely used type of rechargeable battery.
* Sodium is more environmentally friendly and can be transported at zero volt, making it safer;
* A sodium-ion battery uses aluminum which is cheaper than copper;
* Sodium-ion battery has a higher operating temperature range. This means these can be used in more extreme temperatures without the risk of thermal runway;
DJS 12V 90Ah Sodium Ion Battery for Starting
* Advanced Sodium-ion technology
* Made for 12V engine start
* Compatible with all 12V alternators and starter charging systems
* Works in the cold, -40℃
* 1700CCA
* Wide voltage range: 8~15.8V
* 216 Reserve Minutes
* Replace SLA Din100 (355mm L x 175mm W x 188mm H)
* IP67 watertight
Datasheet
Technical Specifications | Model | DJS-12-70NA |
Cell Chemistry | 3.1V Sodium Ion Battery Cells | |
Cell Configuration | 4S | |
Rated Capacity(Ah) | 70Ah @0.2C discharge rate | |
Nominal Voltage(V) | 12.4V | |
Rated Energy(Wh) | 868Wh | |
Voltage Range(V) | 6-15.8V | |
Cycle life | 3000 cycles DOD60% | |
Charging | Standard Charge Current(A) | 0.2C(Constant current charging) |
Max. Charge Current(A) | 90A | |
Charge Condition | @-10℃~45℃ | |
Discharging | Standard Discharge Current(A) | 0.2C(Constant current discharging) |
Max. Discharge Current(A) | 300A | |
Discharge Condition | @-40~80℃ | |
Protection & Function | Heat Dissipation | Nature cooling |
Cell Balancing | Automatic passive cell balancing | |
Safety Function | Overcharge,over-discharge,over-current and temperature protection | |
Heating System(optional) | Available upon requirements | |

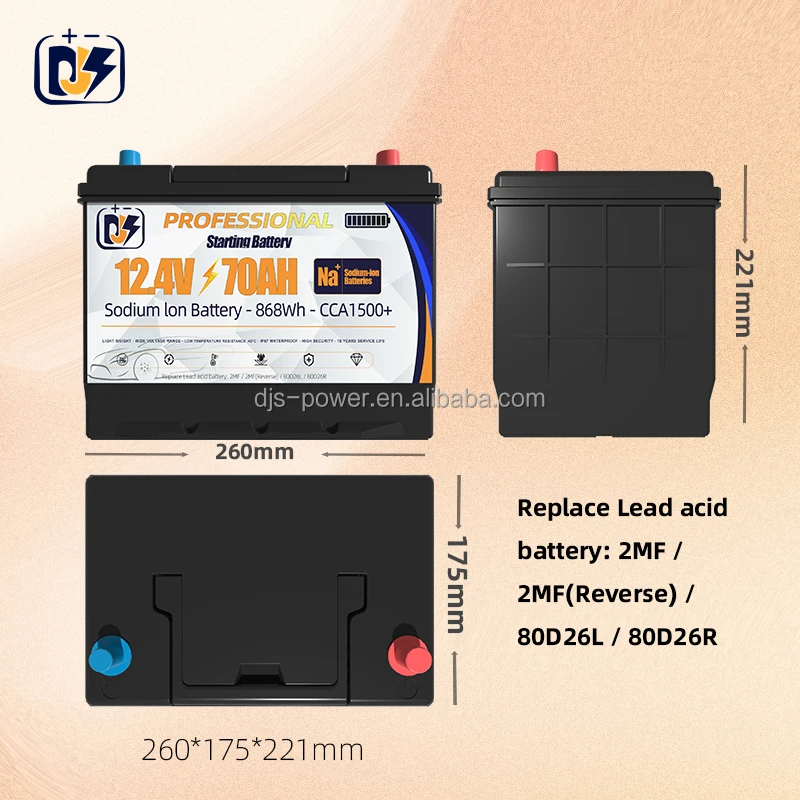

Enclosure & Terminals | Dimensions | L260*W175*H221mm |
Enclosure | ABS,IP67 | |
Terminal | M8 | |
Maintenance & Storage | Maintenance | The battery pack should be charged and discharged fully once every 3 months. |
Storage Condition @-20~25℃ | Can be kept for 3 months at 50% capacity | |
Storage Condition @-20~45℃ | Can be kept for 1 month at 50% capacity |
Features and Applications
Applications of Sodium Ion Battery
Since this Deep Cycle battery series is specially designed to replace traditional Lead-acid/AGM/GEL, they can be used in any
application the same with Lead acid batteries.
* UPS, backup, Telecom use
* Solar series (home ESS, street light, solar CCTV...)
* Marine, boat, trolling, fishing, boat solar
* Vehicle series (Golf cart, RV, light-speed vehicle...)
* Wheelchairs, Medical equipment and other almost 12V series.
LiFePO4 Car Batteries Series
DJS 12V 60Ah Sodium Ion Battery
Nominal Capacity: 60Ah
CCA: 1400+
Operating Temperature: -40~70℃
Operating Temperature: -40~70℃
Cycle Life: 3000 times
Dimension: 244*176*197mm
Weight: 9kg
Replace SLA: DIN55
DJS 12V 70Ah Sodium Ion Battery
Nominal Capacity: 90Ah
CCA: 1500+
Operating Temperature: -40~70℃
Cycle Life: 3000
Dimension: 335*175*188mm
Weight: 11.5kg
Replace SLA: DIN100
CCA: 1500+
Operating Temperature: -40~70℃
Cycle Life: 3000
Dimension: 335*175*188mm
Weight: 11.5kg
Replace SLA: DIN100
DJS 12V 40Ah Sodium Ion Battery
Nominal Capacity: 40Ah
CCA: 1000+
Operating Temperature: -40~70℃
Cycle Life: 3000
Dimension: 238*133*222mm
Weight: 7kg
Replace SLA: NS60/55B24L
CCA: 1000+
Operating Temperature: -40~70℃
Cycle Life: 3000
Dimension: 238*133*222mm
Weight: 7kg
Replace SLA: NS60/55B24L
Model | Specs | Dimensions(mm) | N.W(kg) |
DJS-1220S | 12V 20Ah | L197*W128*H200/220 | 4 |
DJS-1240S | 12V 40Ah | L197*W128*H200/220 | 6 |
DJS-1250S | 12V 50Ah | L238*W133*H198/222 | 6.5 |
DJS-1260S | 12V 60Ah | L244*W176*H197 L242*W175*H162/183 L230*W174*H200/219 | 7 |
L230*W175*H181/200 L260*W175*H201/221 L278*W176*H172 | 7.5 | ||
DJS-1280S | 12V 80Ah | L306*W174*H200/220 L279*W175*H189 | 9 |
DJS-1290S | 12V 90Ah | L318*W176*H187 | 9.5 |
DJS-12100S | 12V 100Ah | L318*W176*H187 | 10.5 |
DJS-12120S | 12V 120Ah | L355*W175*H188 | 13 |
DJS-12135S | 12V 135Ah | L230*W174*H200/219 | 14 |
DJS-12150S | 12V 150Ah | L355*W175*H188 | 15 |
Above are our regular car starting batteries, we support customization, customize them to be used on boat or other motor cranking.
Company Profile
Shenzhen DJS Tech Co., Ltd is a professional Lithium Battery Manufacturer, specialized in the design and producing LiFePO4 battery pack and system, having 12 years of R&D experience, and various kinds of energy storage/EV power battery system producing experience.Our annual output is 50MWh, have been exported to more than 50 different countries.
Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.
For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Our main products including Lithium Deep Cycle batteries for solar system/RV/marine/off-grid uses, high burst cranking/ starting batteries for car/boat, Lithium ESS for industrial & residential use, Power Battery system for forklift/golf cart/high voltage vehicle and so on.
For technology, We focus on reliable long cycle life LiFePO4 batteries,having a professional engineer team and a strict QC team, to ensure valuable and high quality products.Currently,we can support CANBUS/ RS485/ RS232 communication solution, complete EV class BMS system to meet smart home solar system & high voltage Electric vehicle system, we also developed battery self-heating and low temperature protection function to solve battery environment problem and extend battery’s lifespan.
For Certificate, As factory, we can support complete battery certificate for shipment,sale and so on. Such as: CE,UN38.3, MSDS,Transport Report,DG packaging cert.,IEC,BIS,etc. We can also support new certificate testing for clients' customized products.
Customization
As specialized battery factory, our company support OEM/ODM customization.Besides appearance changing, we can also support technical customization, like CANBUS/RS485/RS232 communication, smart Blue tooth function, high voltage battery system solution,and low temperature protection function.
We can do batteries:
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Solar system, RV, Marine, off-grid, Golf cart, Forklift, ESS.
PROJECT CASES
2019. 2MWh Container ESS for Factory
2020. 400KWh Lake Around Power Station
2017. Thailand Airport. Aircraft Tractor Battery Project
2016. Logistics Tractor Battery Case
Package & Delivery
All shipment are 100% inspected and packed according to DG packing requirement.
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
